CHRYSLER VOYAGER 2001 Service Manual

PASSENGER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
1 C33 20LB/BR (RHD) PASSENGER BLEND DOOR DRIVER (A)
2 C33 20LB/BR (LHD) PASSENGER BLEND DOOR DRIVER (A)
2 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
PASSENGER DOOR COURTESY LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z322 20BK/BR (LHD) GROUND
1 Z321 20BK/BR (RHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
PASSENGER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (EXCEPT POWER WIN-
DOWS)FUSED ACCESSORY RELAY OUTPUT
1 F304 16WT/PK (POWER WINDOWS) FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
2 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (LHD) GROUND
3 Z461 20BK/DG (RHD) GROUND
PASSENGER FOLDING MIRROR RELAY (BUILT-UP-EXPORT) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 18LG/RD FUSED B(+)
5 P164 18LG/DB PASSENGER FOLDING MIRROR RELAY INPUT
6 P162 18LG/DG PASSENGER FOLDING MIRROR RELAY CONTROL
7- -
8 P160 18TN/LG PASSENGER FOLDING MIRROR RELAY OUTPUT
9- -
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-91

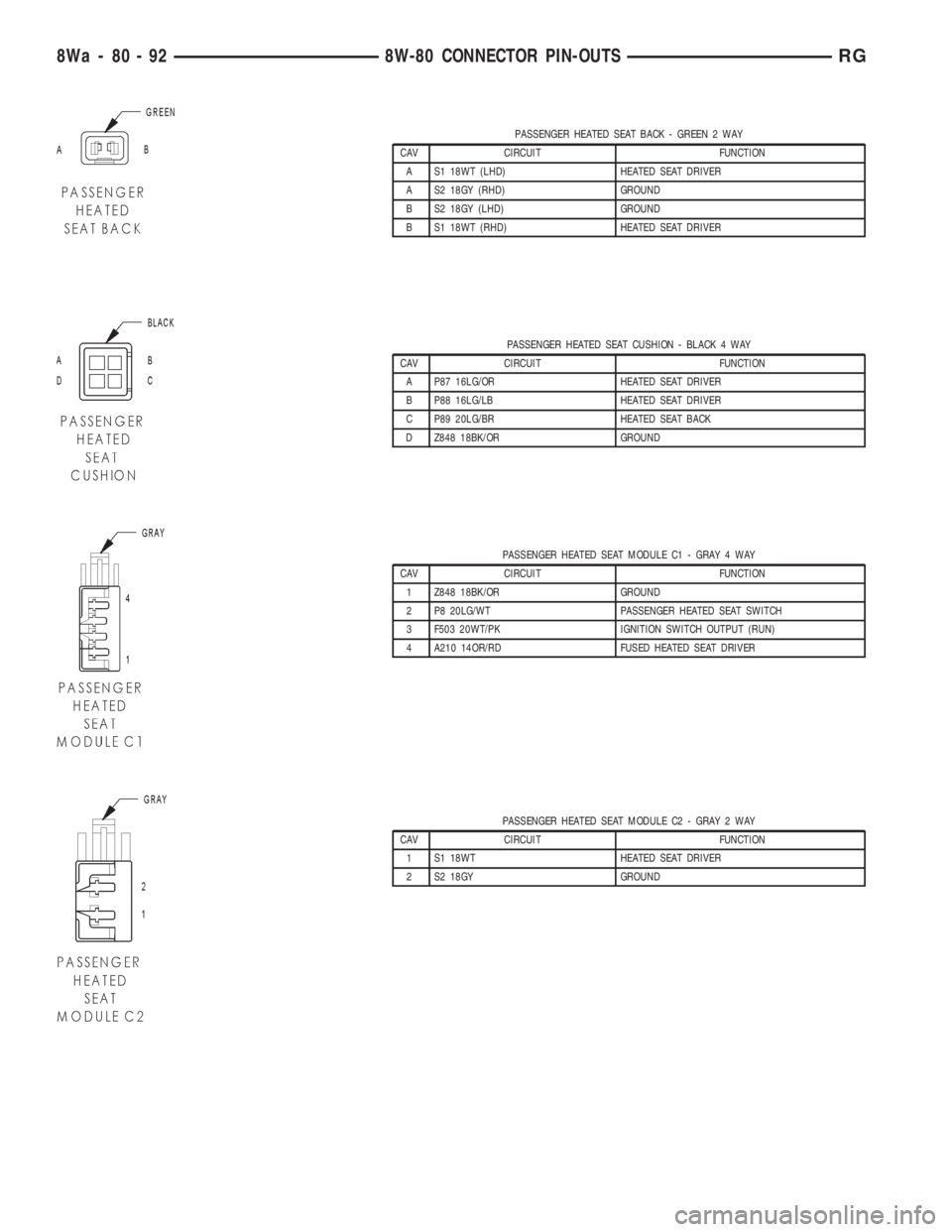

PASSENGER HEATED SEAT BACK - GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 18WT (LHD) HEATED SEAT DRIVER
A S2 18GY (RHD) GROUND
B S2 18GY (LHD) GROUND
B S1 18WT (RHD) HEATED SEAT DRIVER
PASSENGER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
A P87 16LG/OR HEATED SEAT DRIVER
B P88 16LG/LB HEATED SEAT DRIVER
C P89 20LG/BR HEATED SEAT BACK
D Z848 18BK/OR GROUND
PASSENGER HEATED SEAT MODULE C1 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z848 18BK/OR GROUND
2 P8 20LG/WT PASSENGER HEATED SEAT SWITCH
3 F503 20WT/PK IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED HEATED SEAT DRIVER
PASSENGER HEATED SEAT MODULE C2 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 S1 18WT HEATED SEAT DRIVER
2 S2 18GY GROUND
8Wa - 80 - 92 8W-80 CONNECTOR PIN-OUTSRG

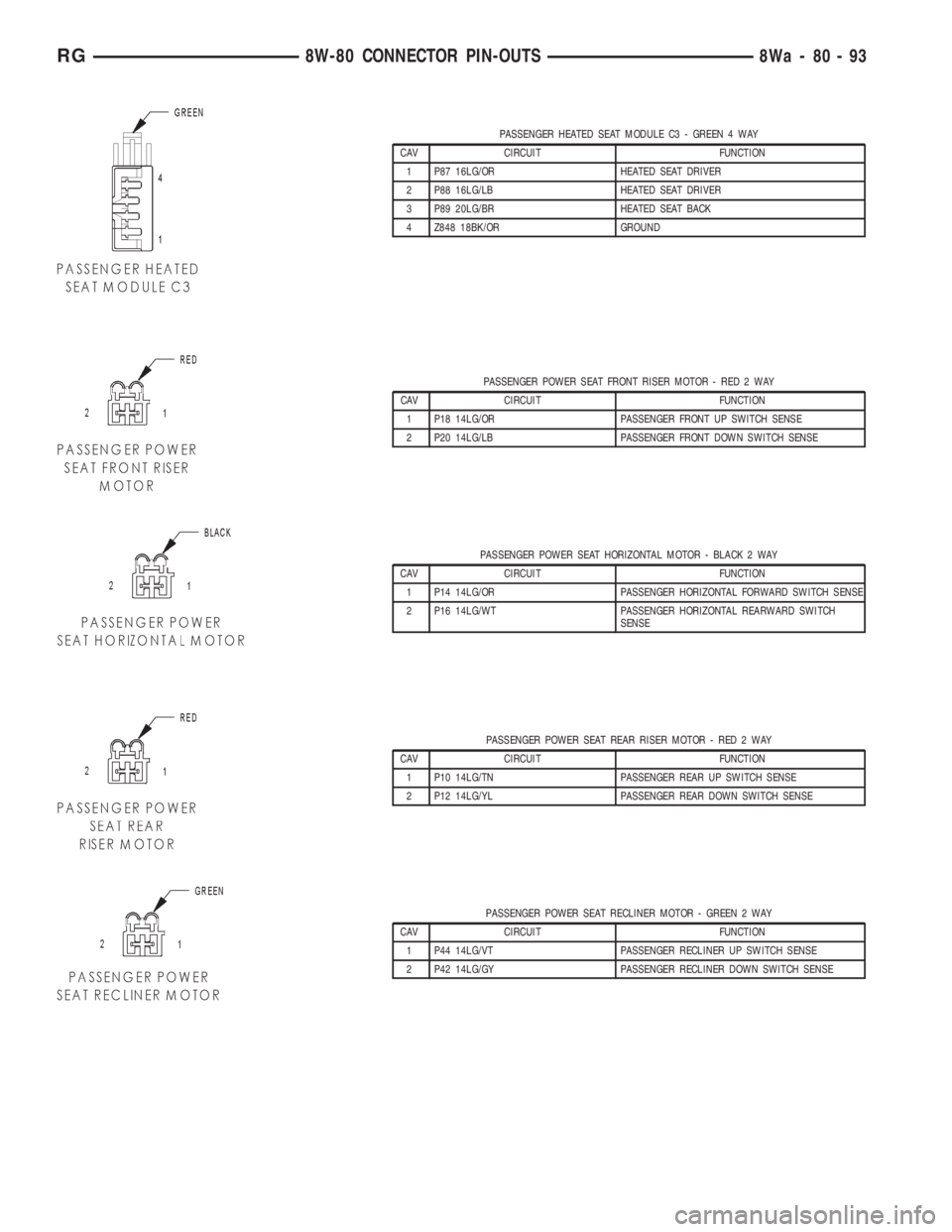

PASSENGER HEATED SEAT MODULE C3 - GREEN 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16LG/OR HEATED SEAT DRIVER
2 P88 16LG/LB HEATED SEAT DRIVER
3 P89 20LG/BR HEATED SEAT BACK
4 Z848 18BK/OR GROUND
PASSENGER POWER SEAT FRONT RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P18 14LG/OR PASSENGER FRONT UP SWITCH SENSE
2 P20 14LG/LB PASSENGER FRONT DOWN SWITCH SENSE
PASSENGER POWER SEAT HORIZONTAL MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P14 14LG/OR PASSENGER HORIZONTAL FORWARD SWITCH SENSE
2 P16 14LG/WT PASSENGER HORIZONTAL REARWARD SWITCH
SENSE
PASSENGER POWER SEAT REAR RISER MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 P10 14LG/TN PASSENGER REAR UP SWITCH SENSE
2 P12 14LG/YL PASSENGER REAR DOWN SWITCH SENSE
PASSENGER POWER SEAT RECLINER MOTOR - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 P44 14LG/VT PASSENGER RECLINER UP SWITCH SENSE
2 P42 14LG/GY PASSENGER RECLINER DOWN SWITCH SENSE
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-93

PASSENGER POWER SEAT SWITCH - GREEN 10 WAY
CAV CIRCUIT FUNCTION
1 Z848 14BK/OR GROUND
2 P44 14LG/VT PASSENGER RECLINER UP SWITCH SENSE
3 P16 14LG/WT PASSENGER HORIZONTAL REARWARD SWITCH
SENSE
4 P42 14LG/GY PASSENGER RECLINER DOWN SWITCH SENSE
5 A210 14OR/RD FUSED SEAT SWITCH DRIVER
6 P14 14LG/OR PASSENGER HORIZONTAL FORWARD SWITCH SENSE
7 P20 14LG/LB PASSENGER FRONT DOWN SWITCH SENSE
8 P12 14LG/YL PASSENGER REAR DOWN SWITCH SENSE
9 P10 14LG/TN PASSENGER REAR UP SWITCH SENSE
10 P18 14LG/OR PASSENGER FRONT UP SWITCH SENSE
PASSENGER POWER WINDOW MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Q12 14OR/BR PASSENGER WINDOW DRIVER UP
2 Q22 14OR/VT PASSENGER WINDOW DRIVER DOWN
PASSENGER POWER WINDOW SWITCH - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (BUILT-UP-EXPORT
LHD)FUSED WINDOW CIRCUIT BREAKER OUTPUT
1 F304 12WT/PK (EXCEPT BUILT-UP-
EXPORT RHD)FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 Q26 12OR/GY MASTER WINDOW SWITCH PASSENGER DOWN
3 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER UP
4- -
5 Q22 14OR/VT PASSENGER WINDOW DRIVER DOWN
6 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
7 Z422 20BK/BR GROUND
8 Q12 14OR/BR PASSENGER WINDOW DRIVER UP
PASSENGER SEAT BELT SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 R60 18LB/TN PASSENGER SEAT BELT SWITCH LINE 1
2 R58 18LB/GY PASSENGER SEAT BELT SWITCH LINE 2
8Wa - 80 - 94 8W-80 CONNECTOR PIN-OUTSRG

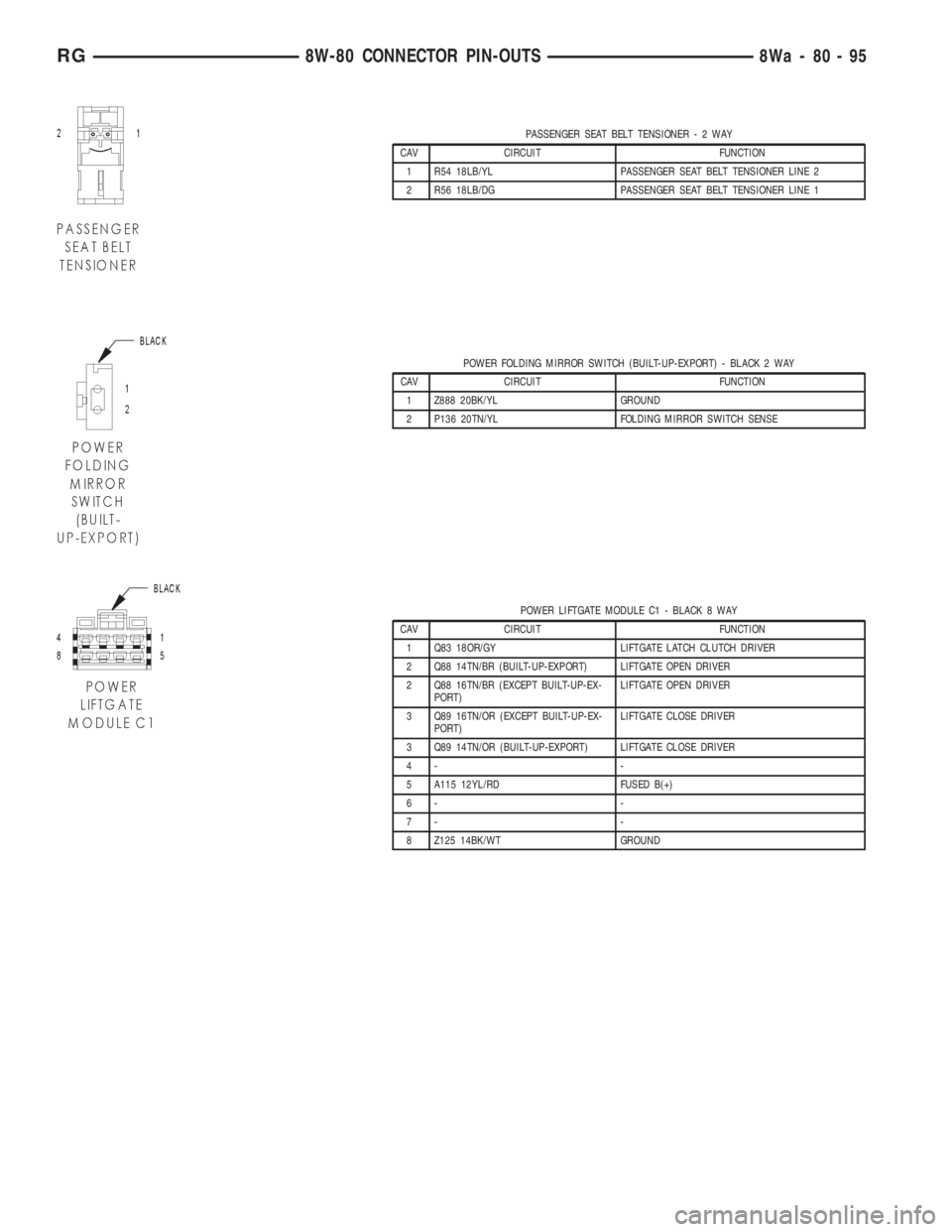

PASSENGER SEAT BELT TENSIONER-2WAY
CAV CIRCUIT FUNCTION
1 R54 18LB/YL PASSENGER SEAT BELT TENSIONER LINE 2
2 R56 18LB/DG PASSENGER SEAT BELT TENSIONER LINE 1
POWER FOLDING MIRROR SWITCH (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z888 20BK/YL GROUND
2 P136 20TN/YL FOLDING MIRROR SWITCH SENSE
POWER LIFTGATE MODULE C1 - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
2 Q88 14TN/BR (BUILT-UP-EXPORT) LIFTGATE OPEN DRIVER
2 Q88 16TN/BR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE OPEN DRIVER
3 Q89 16TN/OR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE CLOSE DRIVER
3 Q89 14TN/OR (BUILT-UP-EXPORT) LIFTGATE CLOSE DRIVER
4- -
5 A115 12YL/RD FUSED B(+)
6- -
7- -
8 Z125 14BK/WT GROUND
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-95

POWER LIFTGATE MODULE C2 - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 Q90 20TN/VT LIFTGATE HALL EFFECT SIGNAL
2- -
3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4- -
5 Q76 20OR/LB PINCH SENSOR SIGNAL
6- -
7 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
8 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
9 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
10 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
11 D25 20WT/VT PCI BUS
12 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
13 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
14 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
15 - -
16 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
17 Q91 20TN/LG LIFTGATE HALL EFFECT SIGNAL
18 Q94 20TN/LG LIFTGATE CHIME DRIVER
19 G153 20VT/YL LIFTGATE MODULE WAKE UP SIGNAL
20 Z87 20BK/LG GROUND
POWER LIFTGATE MOTOR - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 Z87 20BK/LG (BUILT-UP-EXPORT) GROUND
1 Z78 20BK/OR (EXCEPT BUILT-UP-EX-
PORT)GROUND
2 Q51 20OR LIFTGATE FULL OPEN SWITCH SENSE
3 Q151 20TN/DB LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
5 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
6 Q88 14TN/BR (BUILT-UP-EXPORT) LIFTGATE OPEN DRIVER
6 Q88 16TN/BR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE OPEN DRIVER
7 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
8 Q91 20TN/LG LIFTGATE HALL EFFECT SIGNAL
9 Z87 20BK/LG GROUND
10 Q89 14TN/OR (BUILT-UP-EXPORT) LIFTGATE CLOSE DRIVER
10 Q89 16TN/OR (EXCEPT BUILT-UP-EX-
PORT)LIFTGATE CLOSE DRIVER
8Wa - 80 - 96 8W-80 CONNECTOR PIN-OUTSRG

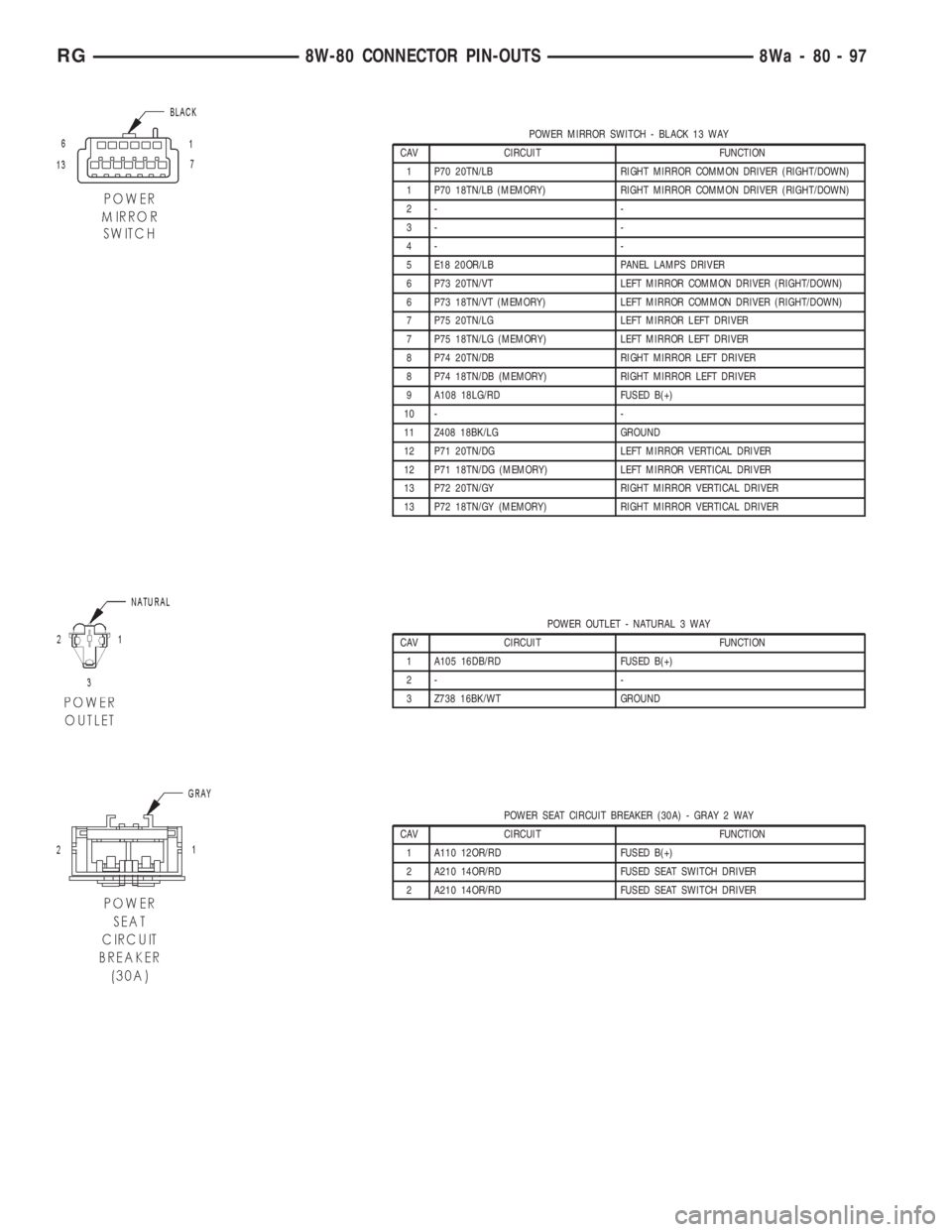

POWER MIRROR SWITCH - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
1 P70 18TN/LB (MEMORY) RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
2- -
3- -
4- -
5 E18 20OR/LB PANEL LAMPS DRIVER
6 P73 20TN/VT LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
6 P73 18TN/VT (MEMORY) LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
7 P75 20TN/LG LEFT MIRROR LEFT DRIVER
7 P75 18TN/LG (MEMORY) LEFT MIRROR LEFT DRIVER
8 P74 20TN/DB RIGHT MIRROR LEFT DRIVER
8 P74 18TN/DB (MEMORY) RIGHT MIRROR LEFT DRIVER
9 A108 18LG/RD FUSED B(+)
10 - -
11 Z408 18BK/LG GROUND
12 P71 20TN/DG LEFT MIRROR VERTICAL DRIVER
12 P71 18TN/DG (MEMORY) LEFT MIRROR VERTICAL DRIVER
13 P72 20TN/GY RIGHT MIRROR VERTICAL DRIVER
13 P72 18TN/GY (MEMORY) RIGHT MIRROR VERTICAL DRIVER
POWER OUTLET - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 A105 16DB/RD FUSED B(+)
2- -
3 Z738 16BK/WT GROUND
POWER SEAT CIRCUIT BREAKER (30A) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A110 12OR/RD FUSED B(+)
2 A210 14OR/RD FUSED SEAT SWITCH DRIVER
2 A210 14OR/RD FUSED SEAT SWITCH DRIVER
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-97

POWERTRAIN CONTROL MODULE C1 (2.4L/3.3L/3.8L) - GRAY/BLACK 40-WAY
CAV CIRCUIT FUNCTION
1- -
2 K18 16DB/OR (3.3L/3.8L) IGNITION COIL NO. 3 DRIVER
3 K17 16DB/TN IGNITION COIL NO. 2 DRIVER
4- -
5 V32 18VT/YL SPEED CONTROL ON/OFF SWITCH SENSE
6 K342 16BR/WT AUTOMATIC SHUTDOWN RELAY OUTPUT
7 K13 16BR/LB FUEL INJECTOR NO. 3 DRIVER
8 K20 18BR/GY GENERATOR FIELD CONTROL
9- -
10 Z130 18BK/BR GROUND
11 K19 16DB/DG IGNITION COIL NO. 1 DRIVER
12 G6 16VT/GY ENGINE OIL PRESSURE SWITCH SENSE
13 K11 16BR/YL FUEL INJECTOR NO. 1 DRIVER
14 K58 16BR/VT (3.3L/3.8L) FUEL INJECTOR NO. 6 DRIVER
15 K38 16BR/OR (3.3L/3.8L) FUEL INJECTOR NO. 5 DRIVER
16 K14 16BR/TN FUEL INJECTOR NO. 4 DRIVER
17 K12 16BR/DB FUEL INJECTOR NO. 2 DRIVER
18 K99 18BR/LG OXYGEN SENSOR 1/1 HEATER CONTROL
19 - -
20 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
21 - -
22 - -
23 - -
24 - -
25 K42 18DB/YL KNOCK SENSOR SIGNAL
26 K2 18VT/OR ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
27 K902 18BR/DG OXYGEN SENSOR GROUND
28 - -
29 - -
30 K41 18DB/LB OXYGEN SENSOR 1/1 SIGNAL
31 T752 18DG/OR ENGINE STARTER MOTOR RELAY CONTROL
32 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
33 K44 18DB/GY CAMSHAFT POSITION SENSOR SIGNAL
34 - -
35 K22 18BR/OR THROTTLE POSITION SENSOR SIGNAL
36 K1 18VT/BR MANIFOLD ABOLUTE PRESSURE SENSOR SIGNAL
37 K21 18DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
38 - -
39 - -
40 K35 18DB/VT EGR SOLENOID CONTROL
8Wa - 80 - 98 8W-80 CONNECTOR PIN-OUTSRG

POWERTRAIN CONTROL MODULE C2 (2.4L/3.3L/3.8L) - GRAY/GRAY 40 WAY
CAV CIRCUIT FUNCTION
41 V37 18VT SPEED CONTROL SWITCH SIGNAL
42 C18 18LB/BR A/C PRESSURE SENSOR SIGNAL
43 K900 18DB/DG SENSOR GROUND
44 F888 18BR/PK 8 VOLT SUPPLY
45 - -
46 A109 18OR/RD FUSED B(+)
47 - -
48 K40 18BR/LG (2.4L) IDLE AIR CONTROL NO. 3 DRIVER
49 K60 18VT/LG (2.4L) IDLE AIR CONTROL NO. 2 DRIVER
49 K39 18VT/DG (3.3L/3.8L) IDLE AIR CONTROL NO. 1 DRIVER
50 Z131 18BK/DG GROUND
51 K141 18DB/YL OXYGEN SENSOR 1/2 SIGNAL
52 - -
53 - -
54 - -
55 - -
56 V36 18VT/YL SPEED CONTROL VACUUM SOLENOID CONTROL
57 K39 18VT/DG (2.4L) IDLE AIR CONTROL NO. 1 DRIVER
57 K60 18VT/LG (3.3L/3.8L) IDLE AIR CONTROL NO. 2 DRIVER
58 K59 18BR/DG (2.4L) IDLE AIR CONTROL NO. 4 DRIVER
59 D25 18WT/VT PCI BUS
60 - -
61 F855 18PK/YL 5 VOLT SUPPLY
62 B29 18DG/WT SECONDARY BRAKE SWITCH SIGNAL
63 T10 18DG/LG (EATX) TORQUE MANAGEMENT REQUEST SENSE
64 C13 18LB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
65 D21 18WT/BR SCI TRANSMIT
66 N7 18DB/OR VEHICLE SPEED SENSOR SIGNAL
67 K51 18BR/WT AUTOMATIC SHUTDOWN RELAY CONTROL
68 K52 18DB/WT EVAPORATIVE EMISSION SOLENOID CONTROL
69 - -
70 K70 18DB/BR EVAPORATIVE EMISSION SOLENOID SENSE
71 - -
72 K107 18VT/WT (EXCEPT BUILT-UP-
EXPORT)LEAK DETECTION PUMP SWITCH SENSE
73 K173 18BR/VT RADIATOR FAN RELAY CONTROL
74 K31 18BR FUEL PUMP RELAY CONTROL
75 D20 18WT/LG SCI RECEIVE
76 T41 18YL/DB PARK/NEUTRAL POSITION SWITCH SENSE (TRS T41)
77 K106 18VT/LB (EXCEPT BUILT-UP-
EXPORT)LEAK DETECTION PUMP SOLENOID CONTROL
78 K54 18DB/WT (ATX) TORQUE CONVERTER CLUTCH SOLENOID CONTROL
79 - -
80 V35 18VT/OR SPEED CONTROL VENT SOLENOID CONTROL
RG8W-80 CONNECTOR PIN-OUTS8Wa-80-99

POWER WINDOW CIRCUIT BREAKER (25A) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 F30 12PK/YL FUSED ACCESSORY RELAY OUTPUT
2 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
RADIATOR FAN NO. 1 (DIESEL) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 N202 12DB/OR RADIATOR FAN NO. 1 CONTROL
2 N201 12DB/LG RADIATOR FAN RELAY NO. 1 OUTPUT
RADIATOR FAN NO. 1 (GAS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
2 Z223 12BK/DG GROUND
RADIATOR FAN NO. 2 (DIESEL) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 Z823 12BK GROUND
2 N112 12DB/OR RADIATOR FAN RELAY NO. 2 AND NO. 3 COMMON
OUTPUT
RADIATOR FAN NO. 2 (GAS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
2 Z223 12BK/DG GROUND
8Wa - 80 - 100 8W-80 CONNECTOR PIN-OUTSRG
