CHRYSLER VOYAGER 2001 Service Manual

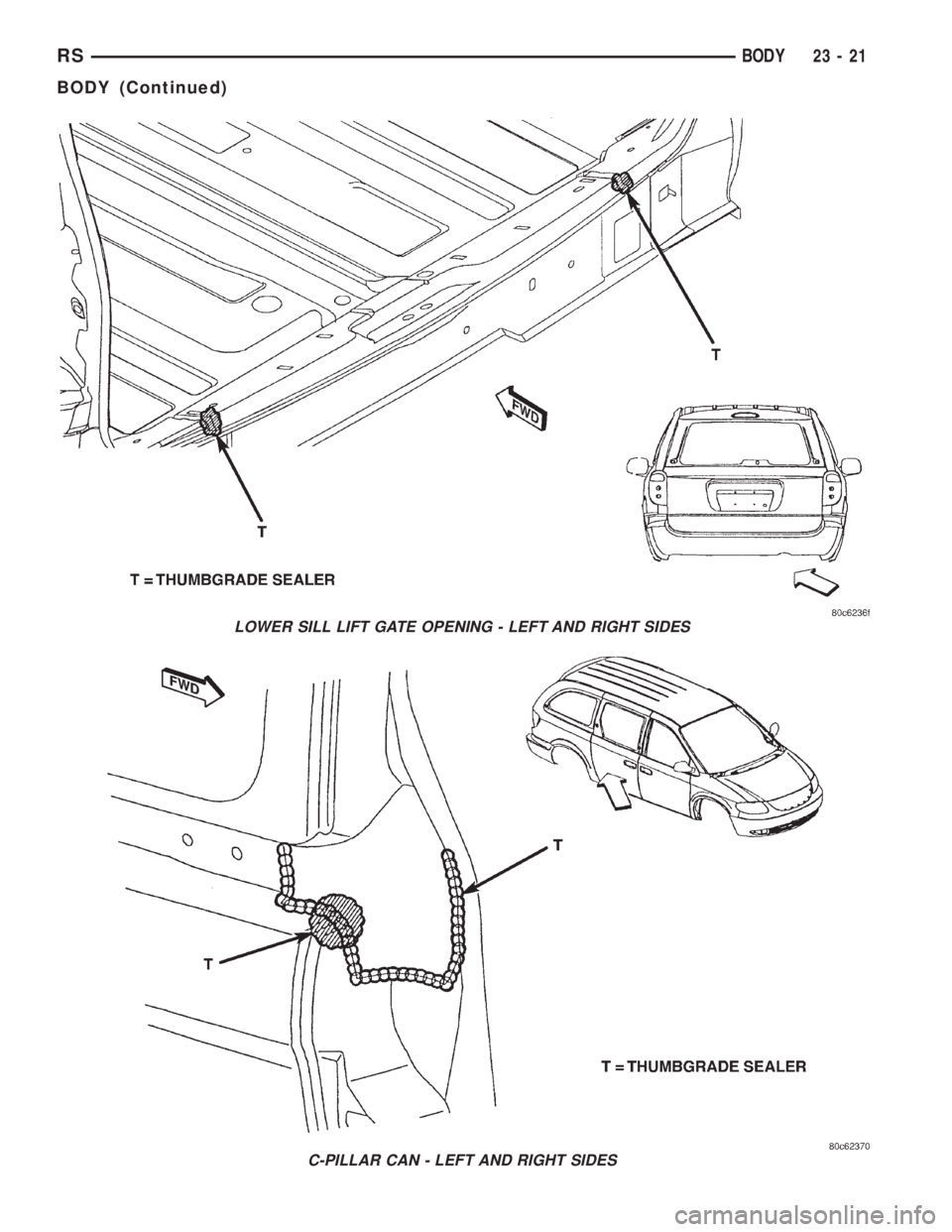

LOWER SILL LIFT GATE OPENING - LEFT AND RIGHT SIDES
C-PILLAR CAN - LEFT AND RIGHT SIDES
RSBODY23-21
BODY (Continued)

SHOCK TOWER AREA - LEFT AND RIGHT SIDES
OUTER SHOCK TOWER AREA - LEFT AND RIGHT SIDES
23 - 22 BODYRS
BODY (Continued)

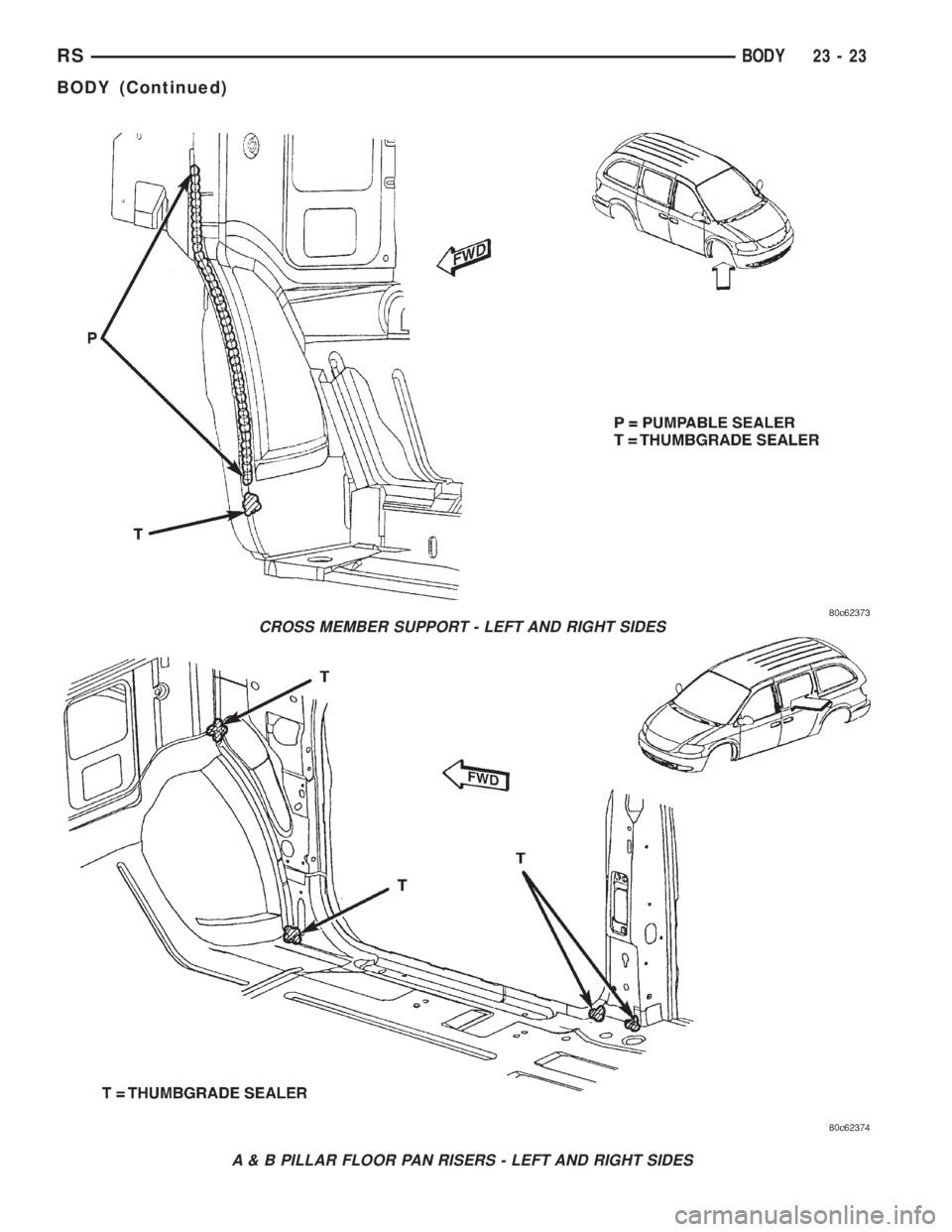

CROSS MEMBER SUPPORT - LEFT AND RIGHT SIDES
A & B PILLAR FLOOR PAN RISERS - LEFT AND RIGHT SIDES
RSBODY23-23
BODY (Continued)

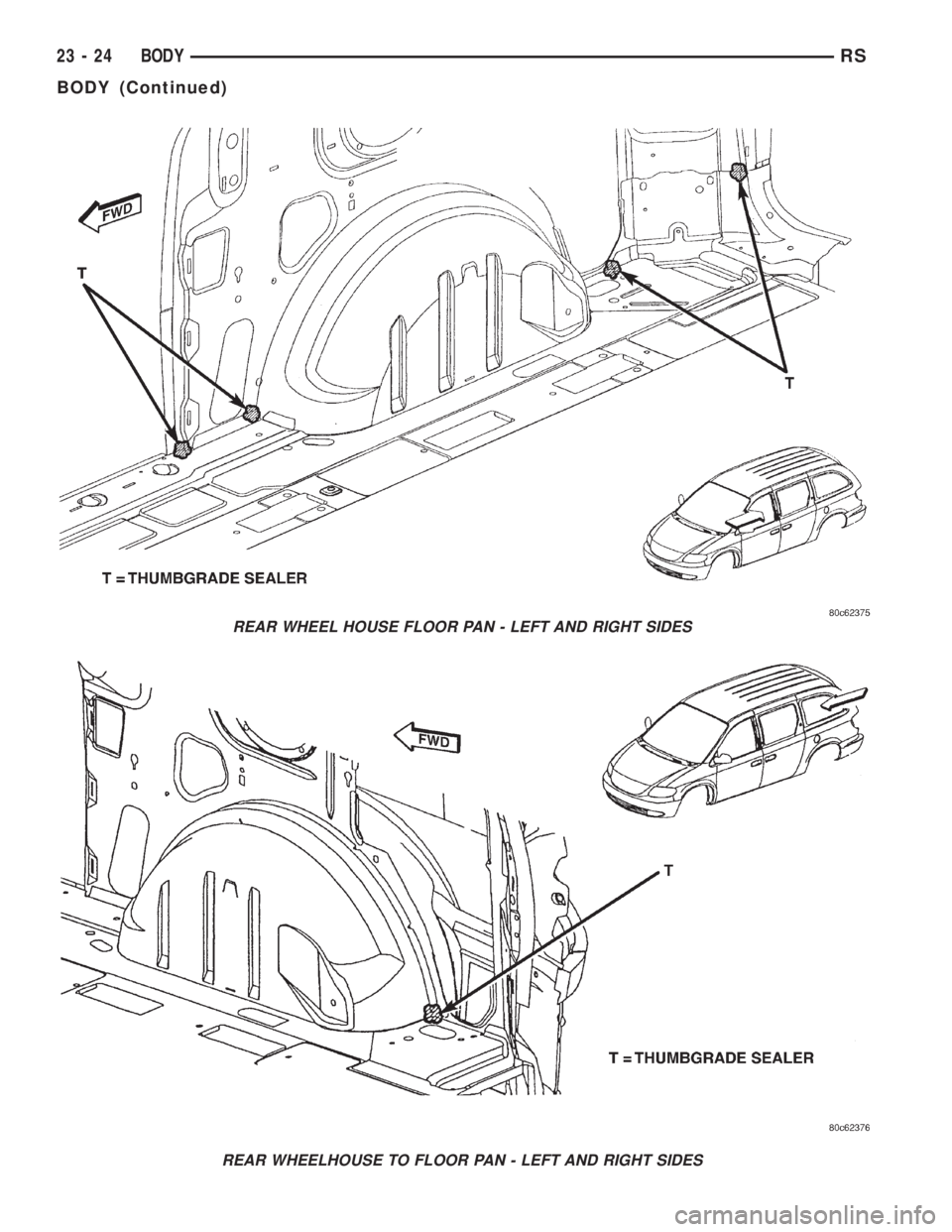

REAR WHEEL HOUSE FLOOR PAN - LEFT AND RIGHT SIDES
REAR WHEELHOUSE TO FLOOR PAN - LEFT AND RIGHT SIDES
23 - 24 BODYRS
BODY (Continued)

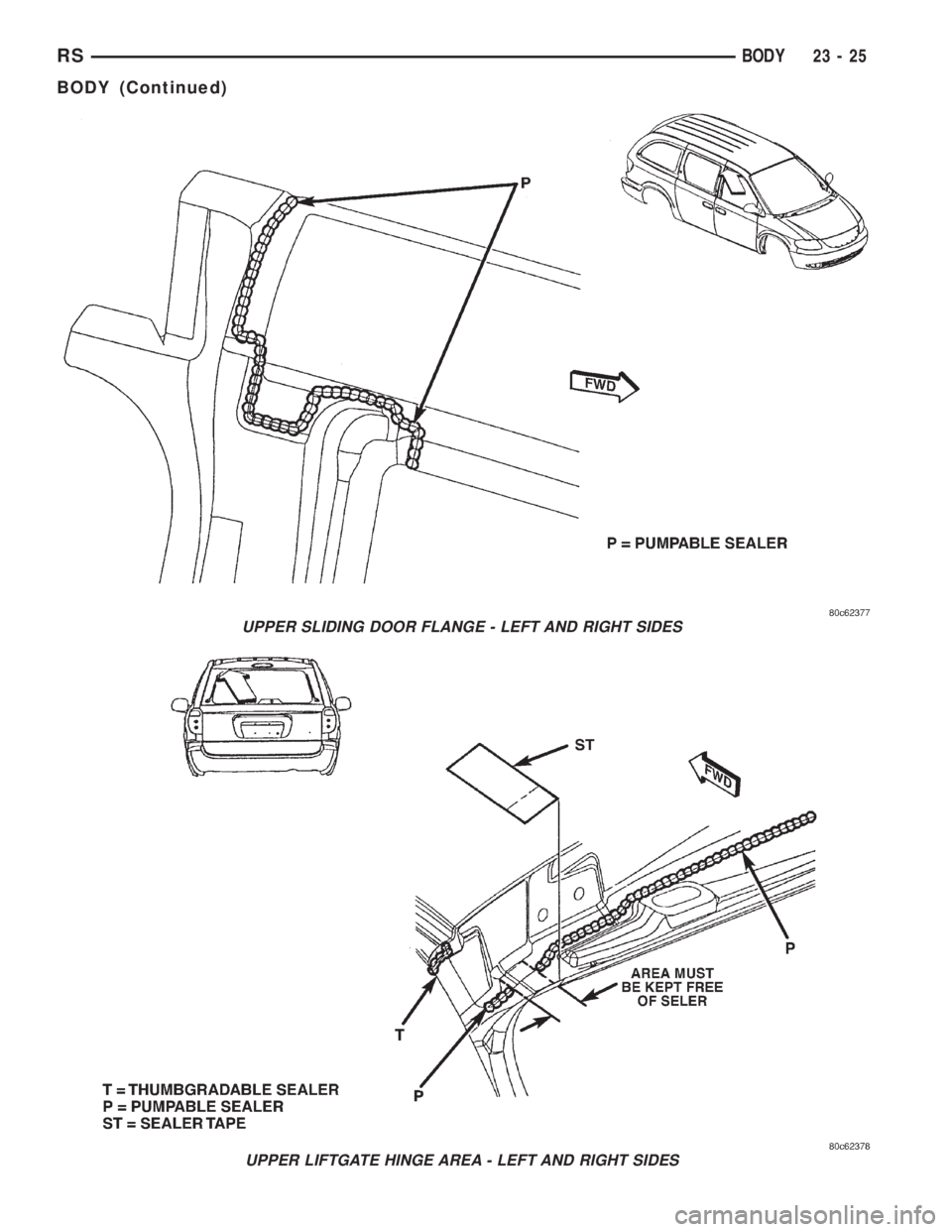

UPPER SLIDING DOOR FLANGE - LEFT AND RIGHT SIDES
UPPER LIFTGATE HINGE AREA - LEFT AND RIGHT SIDES
RSBODY23-25
BODY (Continued)

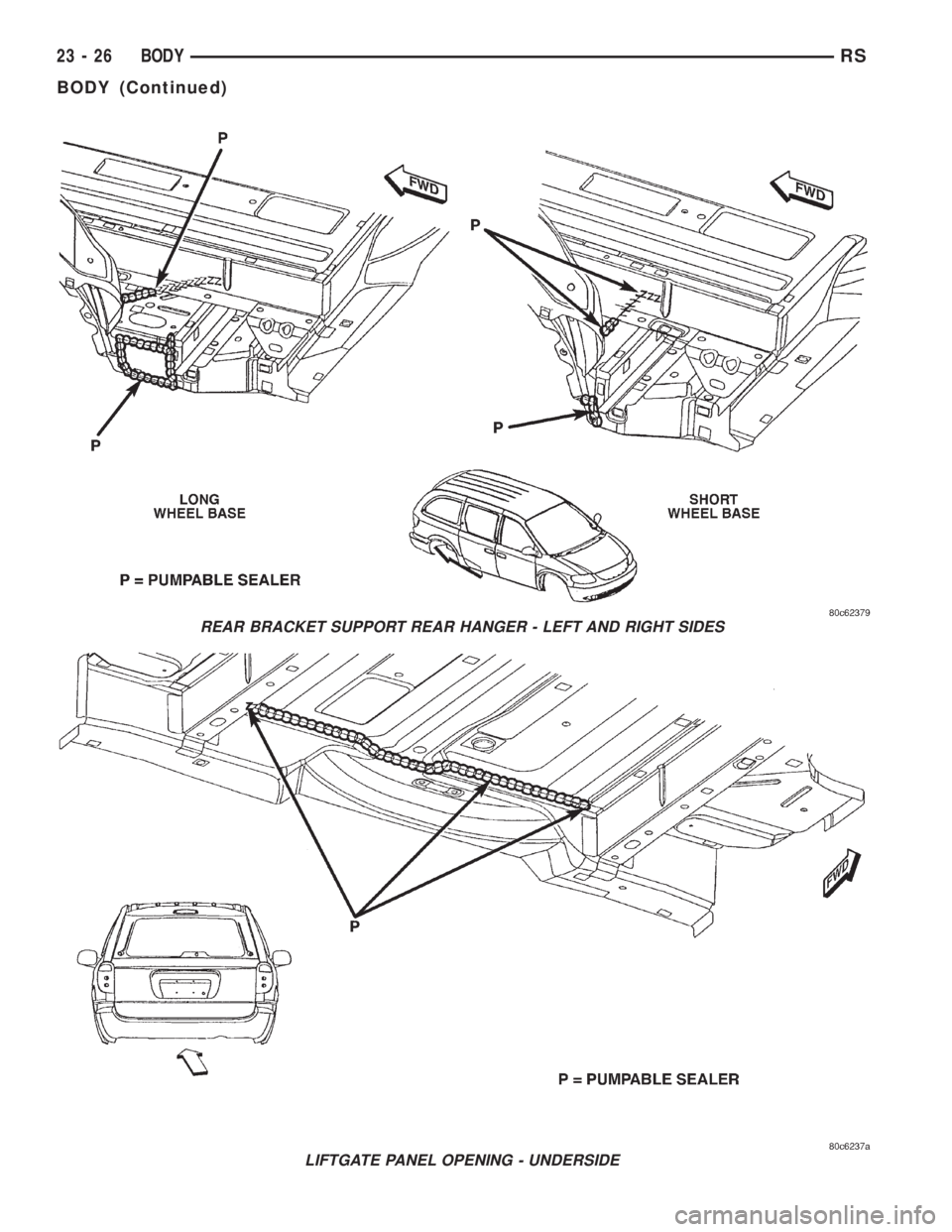

REAR BRACKET SUPPORT REAR HANGER - LEFT AND RIGHT SIDES
LIFTGATE PANEL OPENING - UNDERSIDE
23 - 26 BODYRS
BODY (Continued)

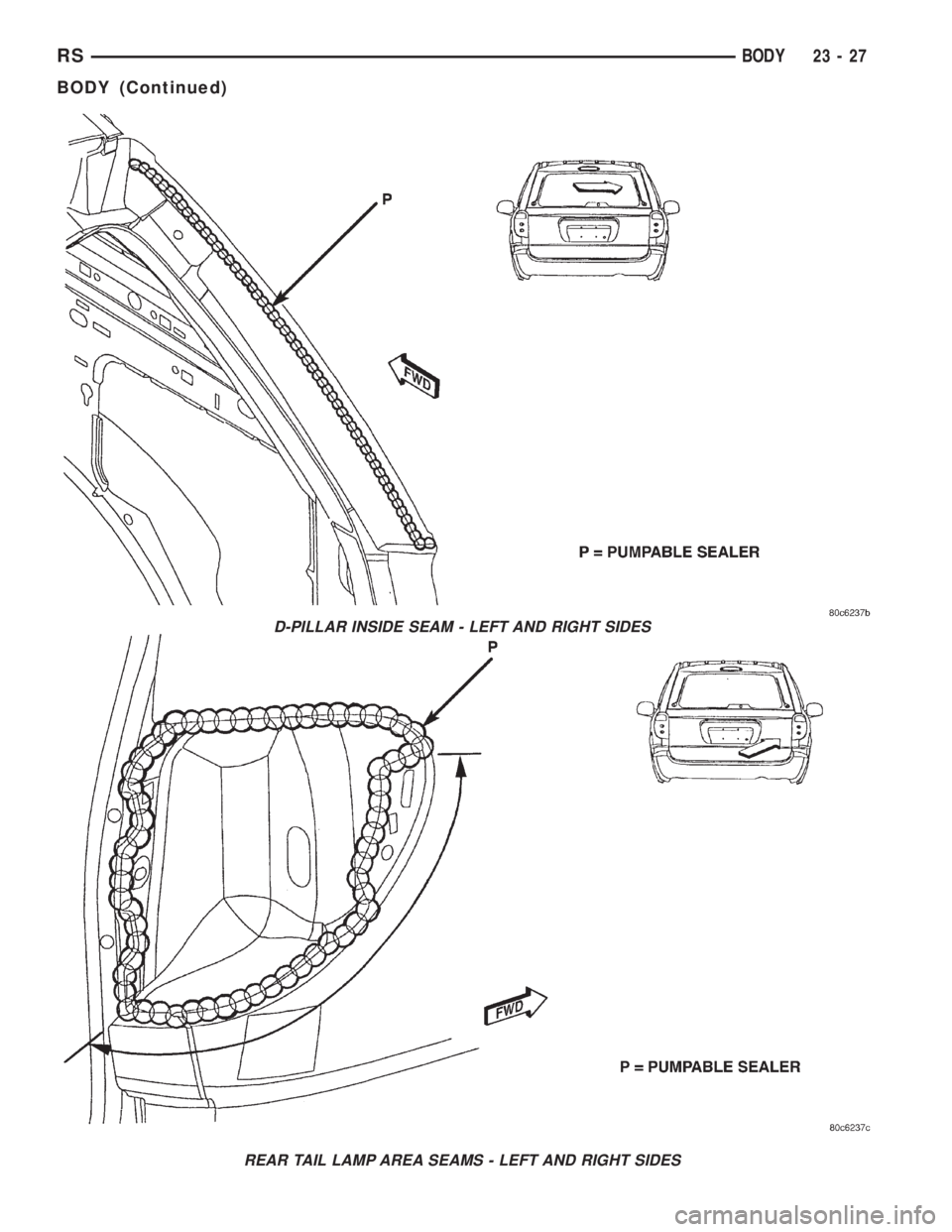

D-PILLAR INSIDE SEAM - LEFT AND RIGHT SIDES
REAR TAIL LAMP AREA SEAMS - LEFT AND RIGHT SIDES
RSBODY23-27
BODY (Continued)

UPPER LIFTGATE PANEL SILL - LEFT AND RIGHT SIDES
FRONT WHEELHOUSE & SHOCK TOWER - LEFT AND RIGHT SIDES
23 - 28 BODYRS
BODY (Continued)

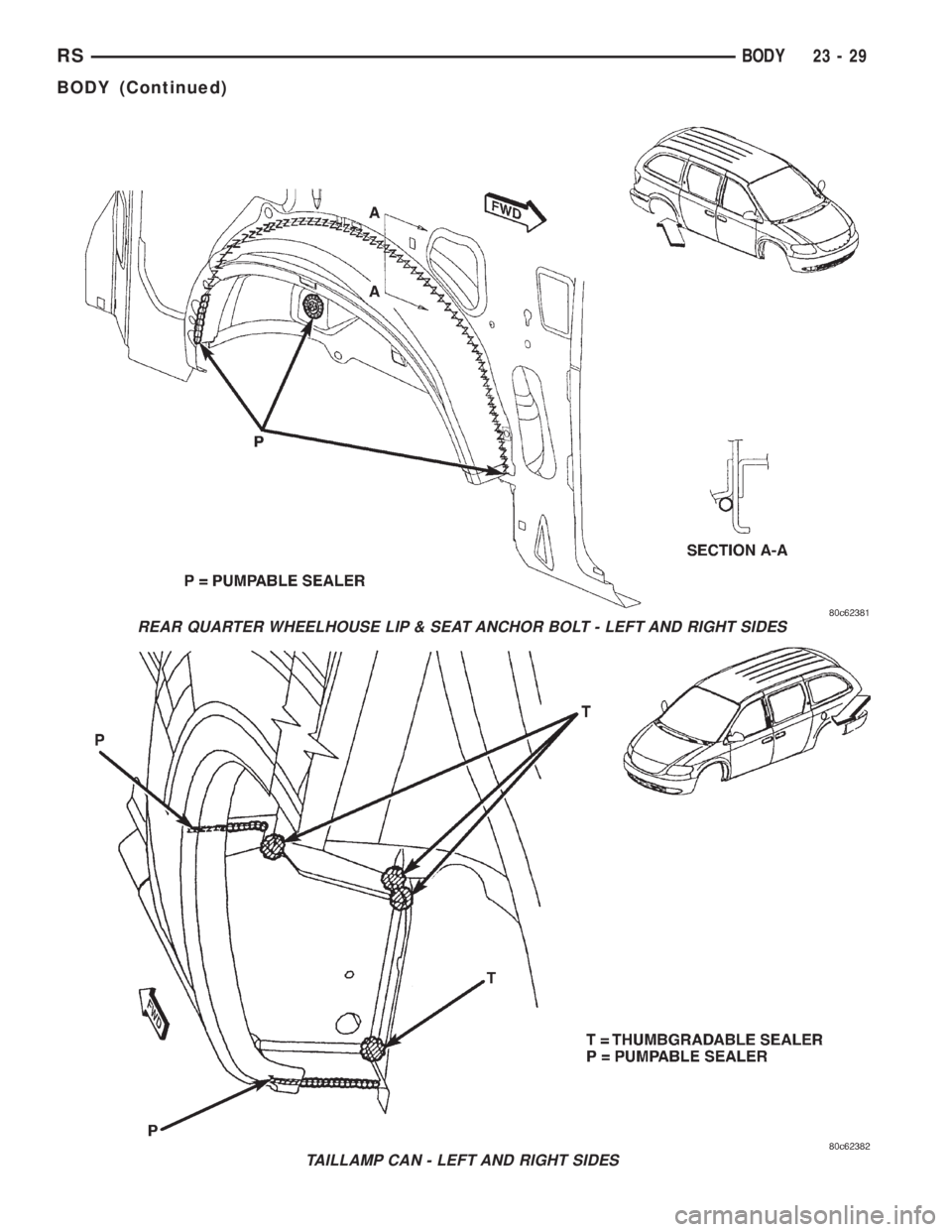

REAR QUARTER WHEELHOUSE LIP & SEAT ANCHOR BOLT - LEFT AND RIGHT SIDES
TAILLAMP CAN - LEFT AND RIGHT SIDES
RSBODY23-29
BODY (Continued)

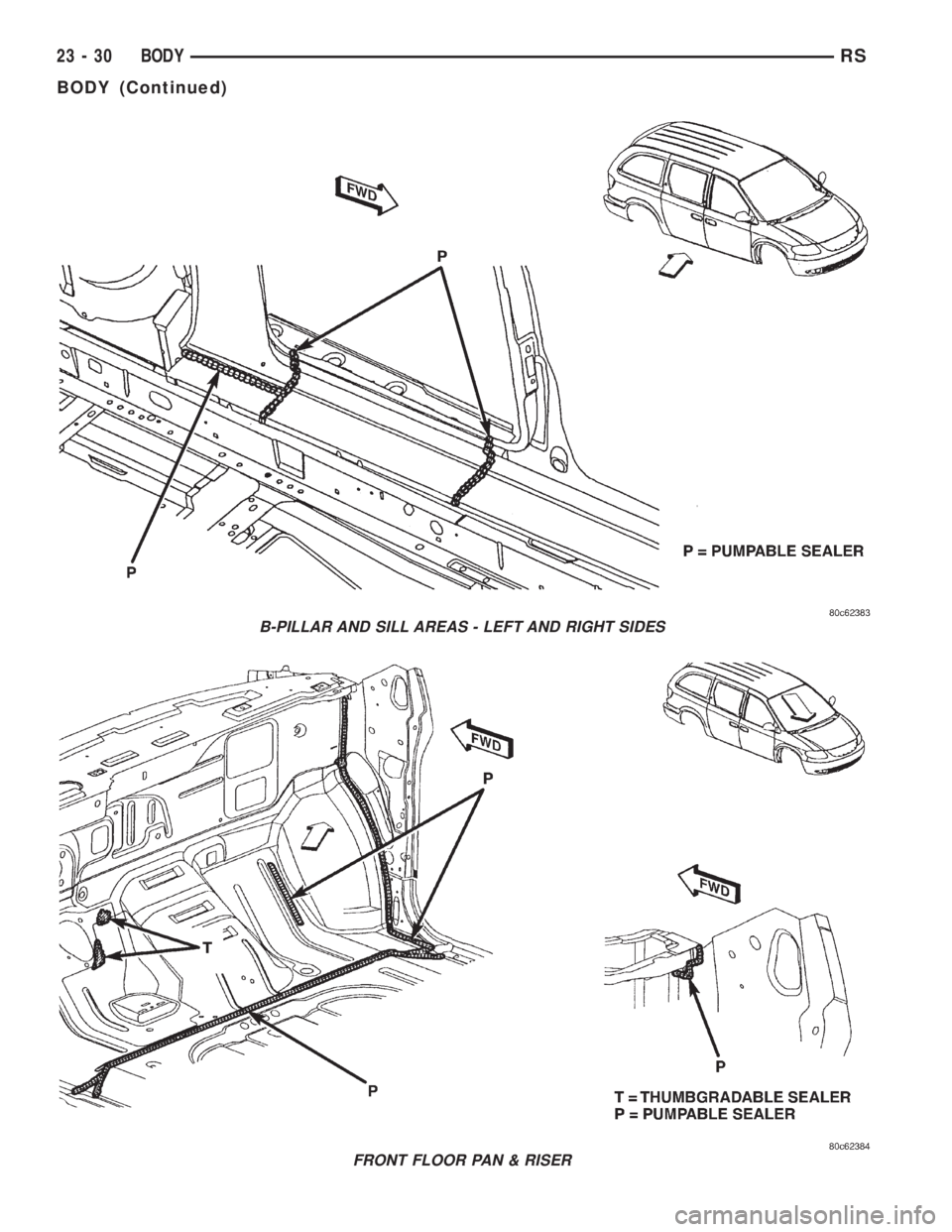

B-PILLAR AND SILL AREAS - LEFT AND RIGHT SIDES
FRONT FLOOR PAN & RISER
23 - 30 BODYRS
BODY (Continued)
