sensor CHRYSLER VOYAGER 2001 Service Manual

Symptom:
P1794-SPEED SENSOR GROUND ERROR
When Monitored and Set Condition:
P1794-SPEED SENSOR GROUND ERROR
When Monitored: The transmission gear ratio is monitored continuously while the
transmission is in gear.
Set Condition: After a TCM reset in neutral and Input/Output equals a ratio of input to
output of 2.50
POSSIBLE CAUSES
INTERMITTENT WIRING AND CONNECTORS
SPEED SENSOR GROUND CIRCUIT OPEN
TCM - SPEED SENSOR GROUND
TEST ACTION APPLICABILITY
1NOTE: Low fluid level can be the cause of many Transmission problems. If
the fluid level is low locate and repair the leak then check and adjust the
fluid level per the Service Information.
NOTE: Always perform diagnostics with a fully charged battery to avoid
false symptoms.
With the DRBIIIt, read the engine DTC's. Check and repair all engine DTC's prior
to performing Transmission Symptom Diagnostics.
With the DRBIIIt, read Transmission DTC's. Record all DTC's and 1 Trip Failures.
NOTE: Diagnose 1 Trip Failures as a fully matured DTC.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Repair as necessary.
Perform the Shift Lever Position Test. If the test does not pass, refer to Symptom test
for P0705 Check Shifter Signal.
For Gear Ratio DTC's, check and record all CVI's.
Most DTC's set on start up but some must be set by driving the vehicle such that all
diagnostic monitors have run.
NOTE: Verify flash level of Transmission Control Module. Some problems
are corrected by software upgrades to the Transmission Control Module.
NOTE: Check for applicable TSB's related to the symptom.
Perform this procedure prior to Symptom diagnosis.All
Continue
Go To 2
2 Start the engine in park.
With the DRBIIIt, observe the Input and Output Speed Sensor readings.
Is the Output Speed Sensor reading twice the Input Speed Sensor reading?All
Ye s®Go To 4
No®Go To 3
133
TRANSMISSION

TEST ACTION APPLICABILITY
3 The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this
circuit.
Wiggle the wiring while checking for shorts and open circuits.
Were there any problems found?All
Ye s®Repair as necessary.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 4
4 Turn ignition off to the lock position.
CAUTION: Remove the Starter Relay from the IPM. This will prevent the
vehicle from being started in gear.
Install Transmission Simulator, Miller tool #8333 and the FWD Adapter Cable kit,
Miller tool #8333-1.
Ignition on, engine not running.
Using the Transmission Simulator, set the selector switch to the 3000/1250 position.
Turn the Input/Output switch to ON.
With the DRBIIIt, read the Input and Output Speed Sensor RPM.
Does the Input Speed read 3000 RPM and the Output Speed read 1250 RPM within
50 RPM?All
Ye s®Go To 5
No®Go To 5
5 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the TRS harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the Input Speed Sensor Ground circuit from the TCM
harness connector to the Speed Sensor harness connector.
Is the resistance above 5.0 ohms?All
Ye s®Repair the Speed Sensor Ground circuit for an open or high
resistance..
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 6
6 If there are no possible causes remaining, view repair. All
Repair
Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
134
TRANSMISSION
P1794-SPEED SENSOR GROUND ERROR ÐContinued

Symptom:

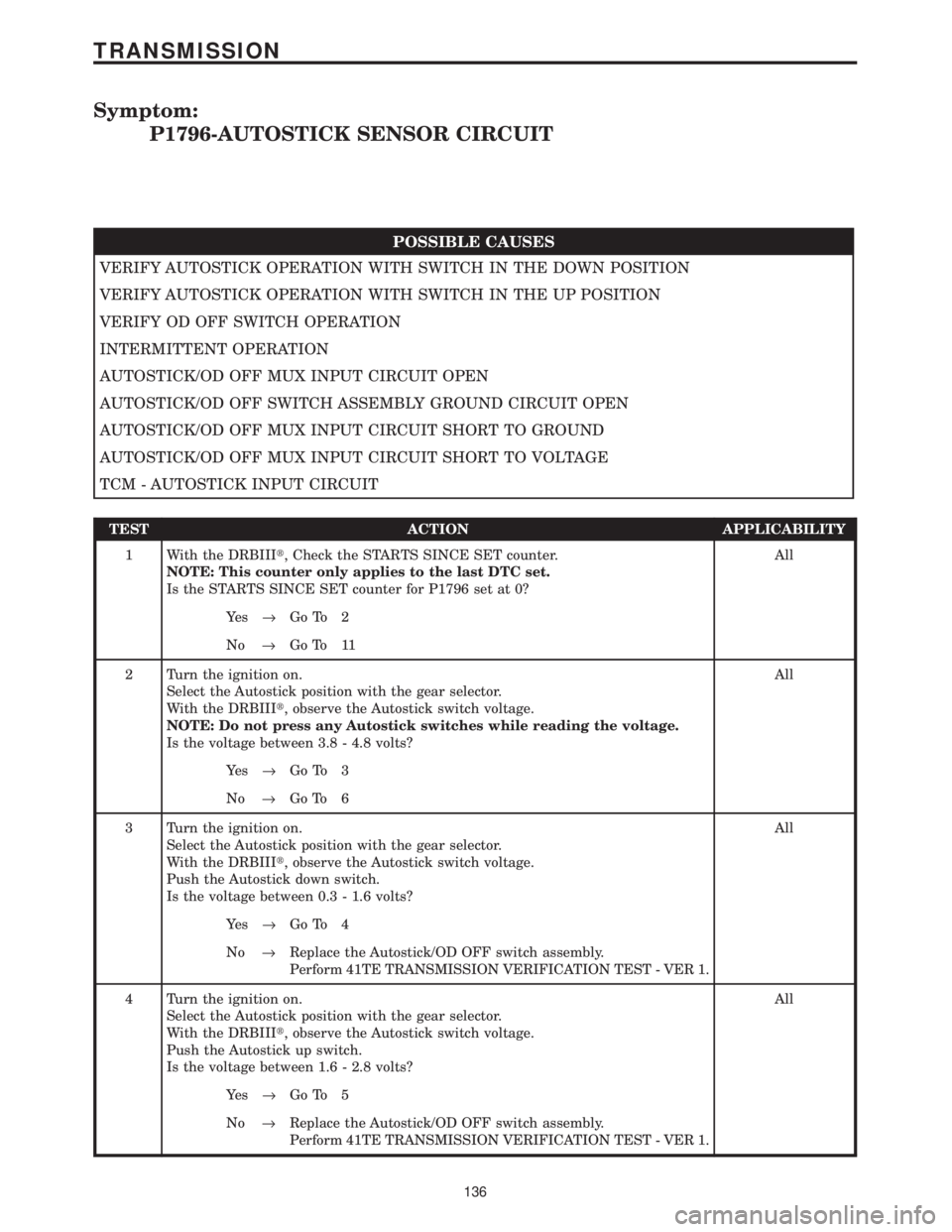

P1796-AUTOSTICK SENSOR CIRCUIT
POSSIBLE CAUSES
VERIFY AUTOSTICK OPERATION WITH SWITCH IN THE DOWN POSITION
VERIFY AUTOSTICK OPERATION WITH SWITCH IN THE UP POSITION
VERIFY OD OFF SWITCH OPERATION
INTERMITTENT OPERATION
AUTOSTICK/OD OFF MUX INPUT CIRCUIT OPEN
AUTOSTICK/OD OFF SWITCH ASSEMBLY GROUND CIRCUIT OPEN
AUTOSTICK/OD OFF MUX INPUT CIRCUIT SHORT TO GROUND
AUTOSTICK/OD OFF MUX INPUT CIRCUIT SHORT TO VOLTAGE
TCM - AUTOSTICK INPUT CIRCUIT
TEST ACTION APPLICABILITY
1 With the DRBIIIt, Check the STARTS SINCE SET counter.
NOTE: This counter only applies to the last DTC set.
Is the STARTS SINCE SET counter for P1796 set at 0?All
Ye s®Go To 2
No®Go To 11
2 Turn the ignition on.
Select the Autostick position with the gear selector.
With the DRBIIIt, observe the Autostick switch voltage.
NOTE: Do not press any Autostick switches while reading the voltage.
Is the voltage between 3.8 - 4.8 volts?All
Ye s®Go To 3
No®Go To 6
3 Turn the ignition on.
Select the Autostick position with the gear selector.
With the DRBIIIt, observe the Autostick switch voltage.
Push the Autostick down switch.
Is the voltage between 0.3 - 1.6 volts?All
Ye s®Go To 4
No®Replace the Autostick/OD OFF switch assembly.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
4 Turn the ignition on.
Select the Autostick position with the gear selector.
With the DRBIIIt, observe the Autostick switch voltage.
Push the Autostick up switch.
Is the voltage between 1.6 - 2.8 volts?All
Ye s®Go To 5
No®Replace the Autostick/OD OFF switch assembly.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
136
TRANSMISSION

TEST ACTION APPLICABILITY

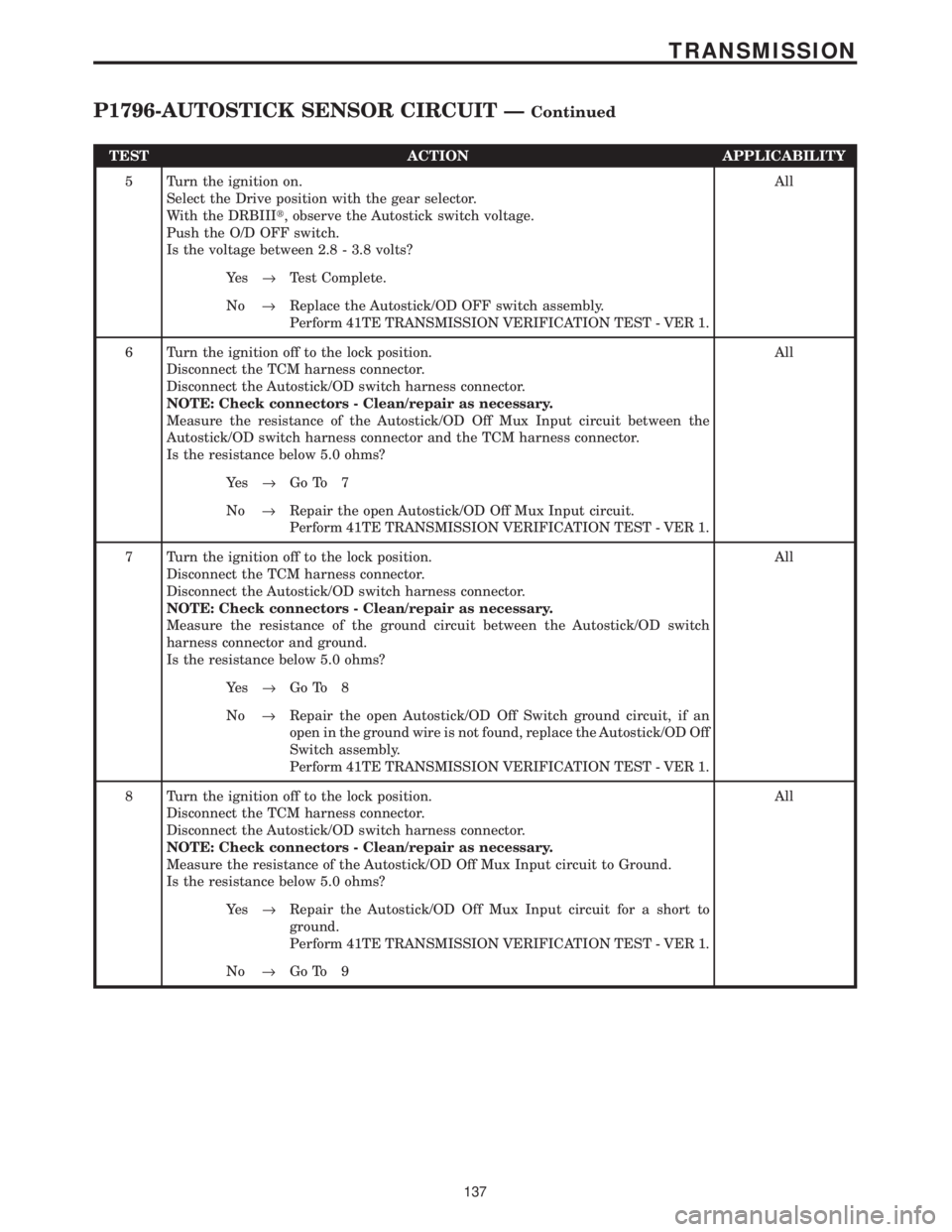

5 Turn the ignition on.
Select the Drive position with the gear selector.
With the DRBIIIt, observe the Autostick switch voltage.
Push the O/D OFF switch.
Is the voltage between 2.8 - 3.8 volts?All
Ye s®Test Complete.
No®Replace the Autostick/OD OFF switch assembly.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
6 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Autostick/OD switch harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance of the Autostick/OD Off Mux Input circuit between the
Autostick/OD switch harness connector and the TCM harness connector.
Is the resistance below 5.0 ohms?All
Ye s®Go To 7
No®Repair the open Autostick/OD Off Mux Input circuit.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
7 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Autostick/OD switch harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance of the ground circuit between the Autostick/OD switch
harness connector and ground.
Is the resistance below 5.0 ohms?All
Ye s®Go To 8
No®Repair the open Autostick/OD Off Switch ground circuit, if an
open in the ground wire is not found, replace the Autostick/OD Off
Switch assembly.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
8 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Autostick/OD switch harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Measure the resistance of the Autostick/OD Off Mux Input circuit to Ground.
Is the resistance below 5.0 ohms?All
Ye s®Repair the Autostick/OD Off Mux Input circuit for a short to
ground.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 9
137
TRANSMISSION
P1796-AUTOSTICK SENSOR CIRCUIT ÐContinued

TEST ACTION APPLICABILITY

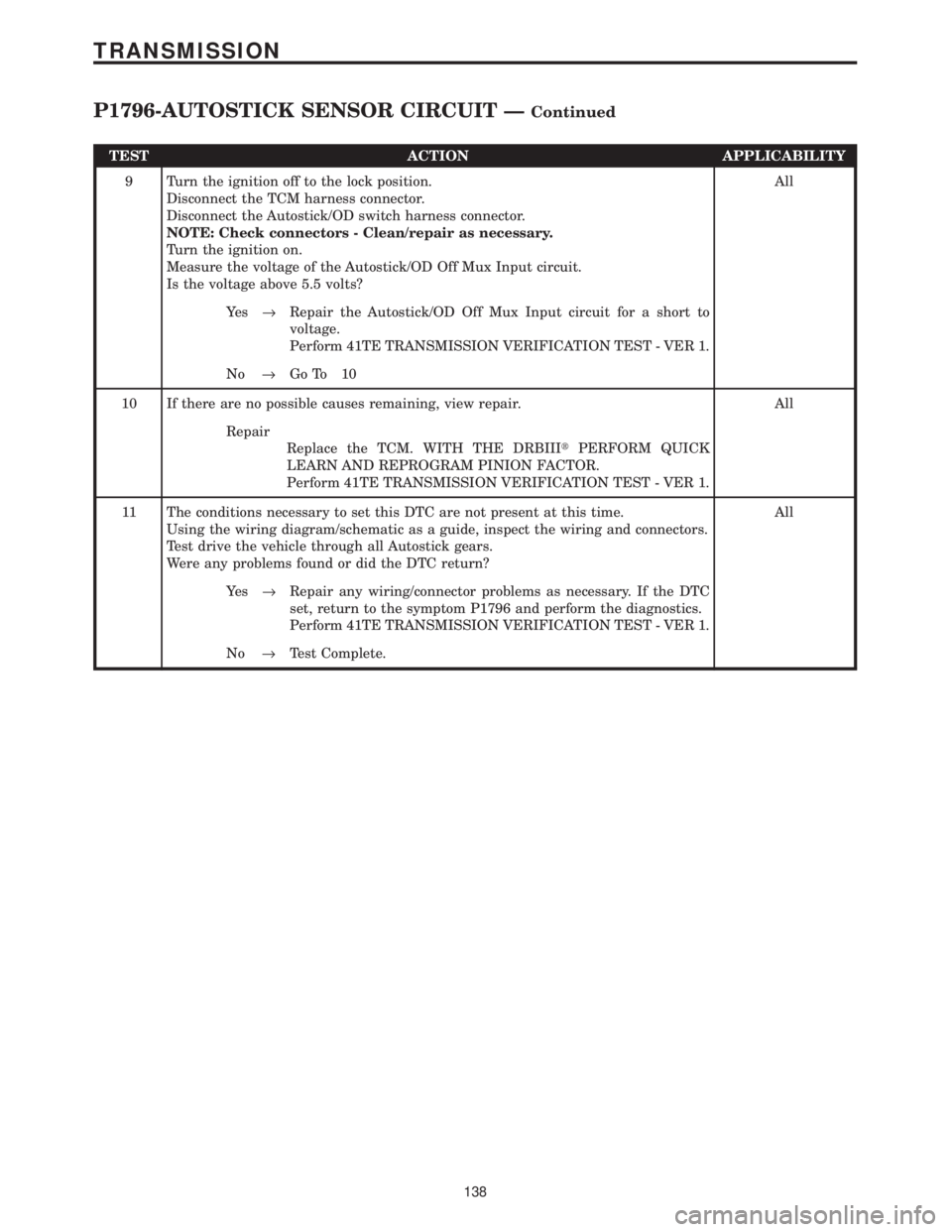

9 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the Autostick/OD switch harness connector.
NOTE: Check connectors - Clean/repair as necessary.
Turn the ignition on.
Measure the voltage of the Autostick/OD Off Mux Input circuit.
Is the voltage above 5.5 volts?All
Ye s®Repair the Autostick/OD Off Mux Input circuit for a short to
voltage.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 10
10 If there are no possible causes remaining, view repair. All
Repair
Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
11 The conditions necessary to set this DTC are not present at this time.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Test drive the vehicle through all Autostick gears.
Were any problems found or did the DTC return?All
Ye s®Repair any wiring/connector problems as necessary. If the DTC
set, return to the symptom P1796 and perform the diagnostics.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Test Complete.
138
TRANSMISSION
P1796-AUTOSTICK SENSOR CIRCUIT ÐContinued

Symptom:

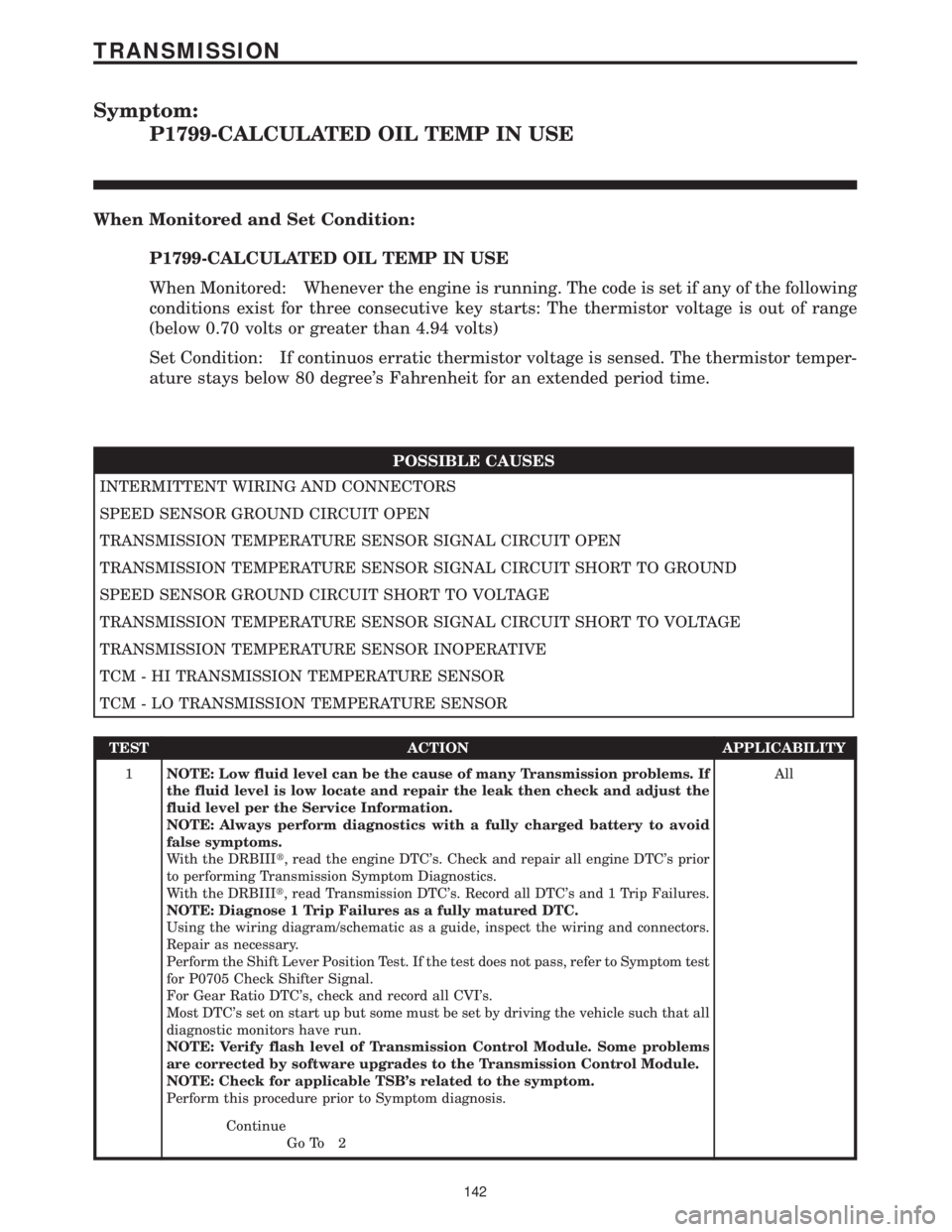

P1799-CALCULATED OIL TEMP IN USE
When Monitored and Set Condition:
P1799-CALCULATED OIL TEMP IN USE
When Monitored: Whenever the engine is running. The code is set if any of the following
conditions exist for three consecutive key starts: The thermistor voltage is out of range
(below 0.70 volts or greater than 4.94 volts)
Set Condition: If continuos erratic thermistor voltage is sensed. The thermistor temper-
ature stays below 80 degree's Fahrenheit for an extended period time.
POSSIBLE CAUSES
INTERMITTENT WIRING AND CONNECTORS
SPEED SENSOR GROUND CIRCUIT OPEN
TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN
TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO GROUND
SPEED SENSOR GROUND CIRCUIT SHORT TO VOLTAGE
TRANSMISSION TEMPERATURE SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE
TRANSMISSION TEMPERATURE SENSOR INOPERATIVE
TCM - HI TRANSMISSION TEMPERATURE SENSOR
TCM - LO TRANSMISSION TEMPERATURE SENSOR
TEST ACTION APPLICABILITY
1NOTE: Low fluid level can be the cause of many Transmission problems. If
the fluid level is low locate and repair the leak then check and adjust the
fluid level per the Service Information.
NOTE: Always perform diagnostics with a fully charged battery to avoid
false symptoms.
With the DRBIIIt, read the engine DTC's. Check and repair all engine DTC's prior
to performing Transmission Symptom Diagnostics.
With the DRBIIIt, read Transmission DTC's. Record all DTC's and 1 Trip Failures.
NOTE: Diagnose 1 Trip Failures as a fully matured DTC.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
Repair as necessary.
Perform the Shift Lever Position Test. If the test does not pass, refer to Symptom test
for P0705 Check Shifter Signal.
For Gear Ratio DTC's, check and record all CVI's.
Most DTC's set on start up but some must be set by driving the vehicle such that all
diagnostic monitors have run.
NOTE: Verify flash level of Transmission Control Module. Some problems
are corrected by software upgrades to the Transmission Control Module.
NOTE: Check for applicable TSB's related to the symptom.
Perform this procedure prior to Symptom diagnosis.All
Continue
Go To 2
142
TRANSMISSION

TEST ACTION APPLICABILITY

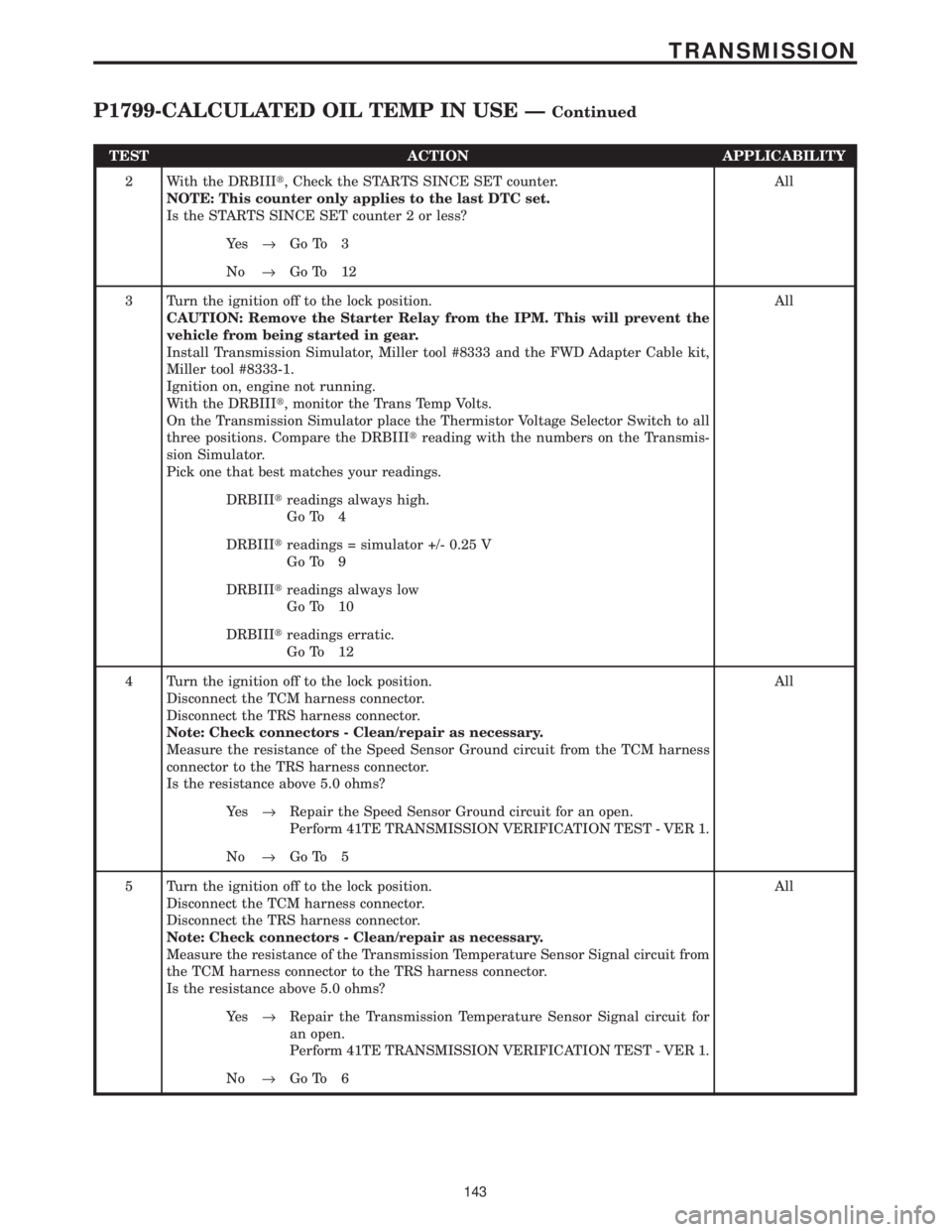

2 With the DRBIIIt, Check the STARTS SINCE SET counter.
NOTE: This counter only applies to the last DTC set.
Is the STARTS SINCE SET counter 2 or less?All
Ye s®Go To 3
No®Go To 12
3 Turn the ignition off to the lock position.
CAUTION: Remove the Starter Relay from the IPM. This will prevent the
vehicle from being started in gear.
Install Transmission Simulator, Miller tool #8333 and the FWD Adapter Cable kit,
Miller tool #8333-1.
Ignition on, engine not running.
With the DRBIIIt, monitor the Trans Temp Volts.
On the Transmission Simulator place the Thermistor Voltage Selector Switch to all
three positions. Compare the DRBIIItreading with the numbers on the Transmis-
sion Simulator.
Pick one that best matches your readings.All
DRBIIItreadings always high.
Go To 4
DRBIIItreadings = simulator +/- 0.25 V
Go To 9
DRBIIItreadings always low
Go To 10
DRBIIItreadings erratic.
Go To 12
4 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the TRS harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the Speed Sensor Ground circuit from the TCM harness
connector to the TRS harness connector.
Is the resistance above 5.0 ohms?All
Ye s®Repair the Speed Sensor Ground circuit for an open.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 5
5 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the TRS harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the Transmission Temperature Sensor Signal circuit from
the TCM harness connector to the TRS harness connector.
Is the resistance above 5.0 ohms?All
Ye s®Repair the Transmission Temperature Sensor Signal circuit for
an open.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 6
143
TRANSMISSION

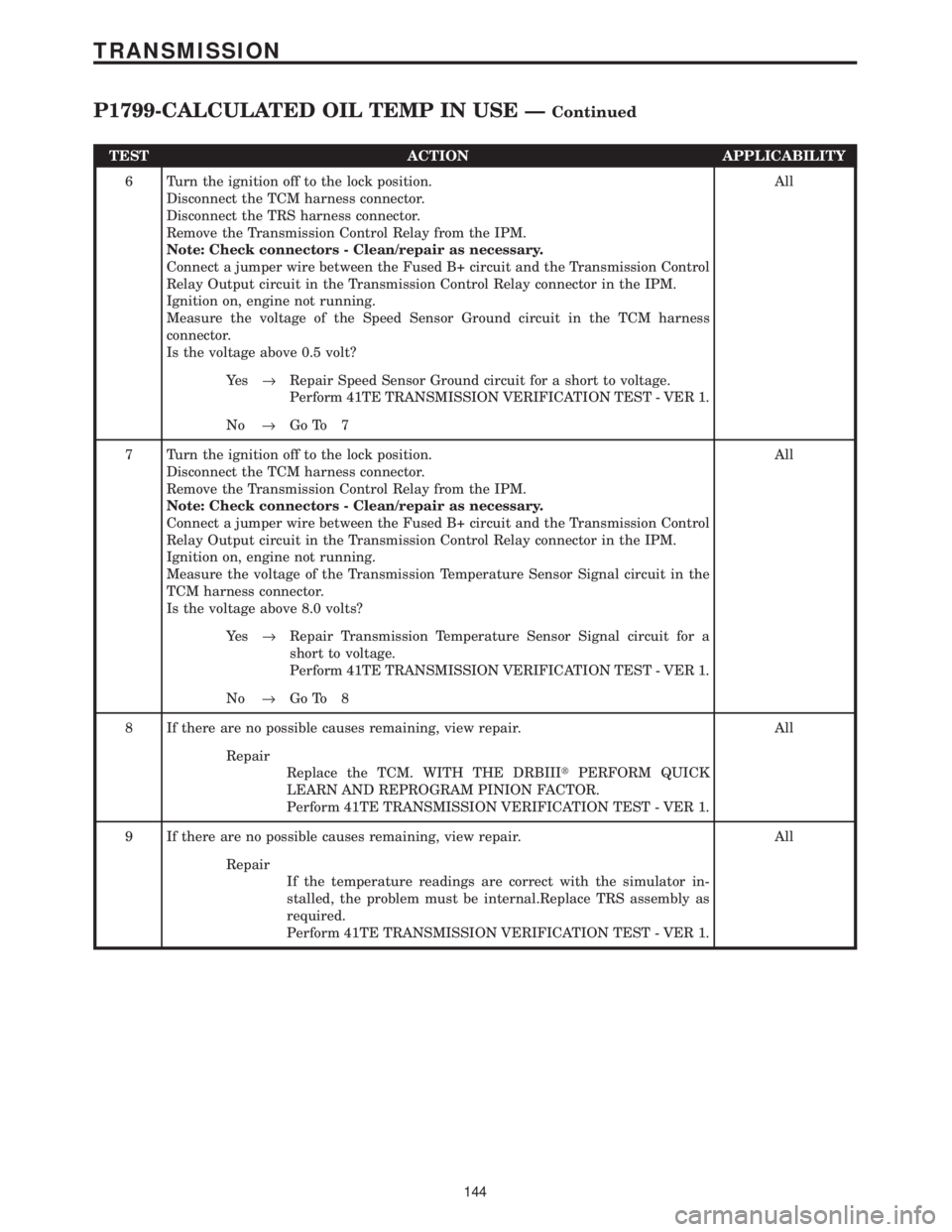

P1799-CALCULATED OIL TEMP IN USE ÐContinued

TEST ACTION APPLICABILITY
6 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the TRS harness connector.
Remove the Transmission Control Relay from the IPM.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire between the Fused B+ circuit and the Transmission Control
Relay Output circuit in the Transmission Control Relay connector in the IPM.
Ignition on, engine not running.
Measure the voltage of the Speed Sensor Ground circuit in the TCM harness
connector.
Is the voltage above 0.5 volt?All
Ye s®Repair Speed Sensor Ground circuit for a short to voltage.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 7
7 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Remove the Transmission Control Relay from the IPM.
Note: Check connectors - Clean/repair as necessary.
Connect a jumper wire between the Fused B+ circuit and the Transmission Control
Relay Output circuit in the Transmission Control Relay connector in the IPM.
Ignition on, engine not running.
Measure the voltage of the Transmission Temperature Sensor Signal circuit in the
TCM harness connector.
Is the voltage above 8.0 volts?All
Ye s®Repair Transmission Temperature Sensor Signal circuit for a
short to voltage.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 8
8 If there are no possible causes remaining, view repair. All
Repair
Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
9 If there are no possible causes remaining, view repair. All
Repair
If the temperature readings are correct with the simulator in-
stalled, the problem must be internal.Replace TRS assembly as
required.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
144
TRANSMISSION

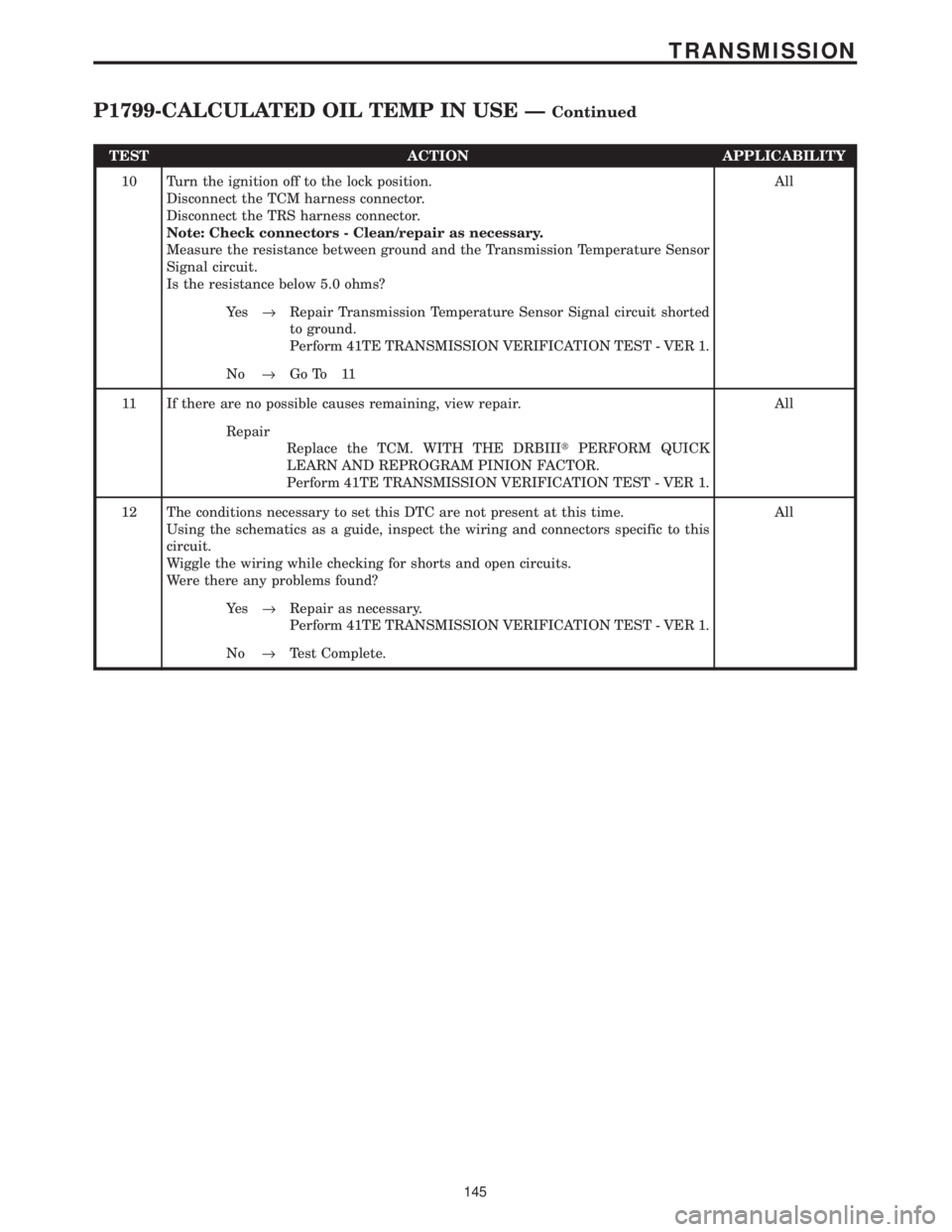

P1799-CALCULATED OIL TEMP IN USE ÐContinued

TEST ACTION APPLICABILITY
10 Turn the ignition off to the lock position.
Disconnect the TCM harness connector.
Disconnect the TRS harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the Transmission Temperature Sensor
Signal circuit.
Is the resistance below 5.0 ohms?All
Ye s®Repair Transmission Temperature Sensor Signal circuit shorted
to ground.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Go To 11
11 If there are no possible causes remaining, view repair. All
Repair
Replace the TCM. WITH THE DRBIIItPERFORM QUICK
LEARN AND REPROGRAM PINION FACTOR.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
12 The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this
circuit.
Wiggle the wiring while checking for shorts and open circuits.
Were there any problems found?All
Ye s®Repair as necessary.
Perform 41TE TRANSMISSION VERIFICATION TEST - VER 1.
No®Test Complete.
145
TRANSMISSION
P1799-CALCULATED OIL TEMP IN USE ÐContinued

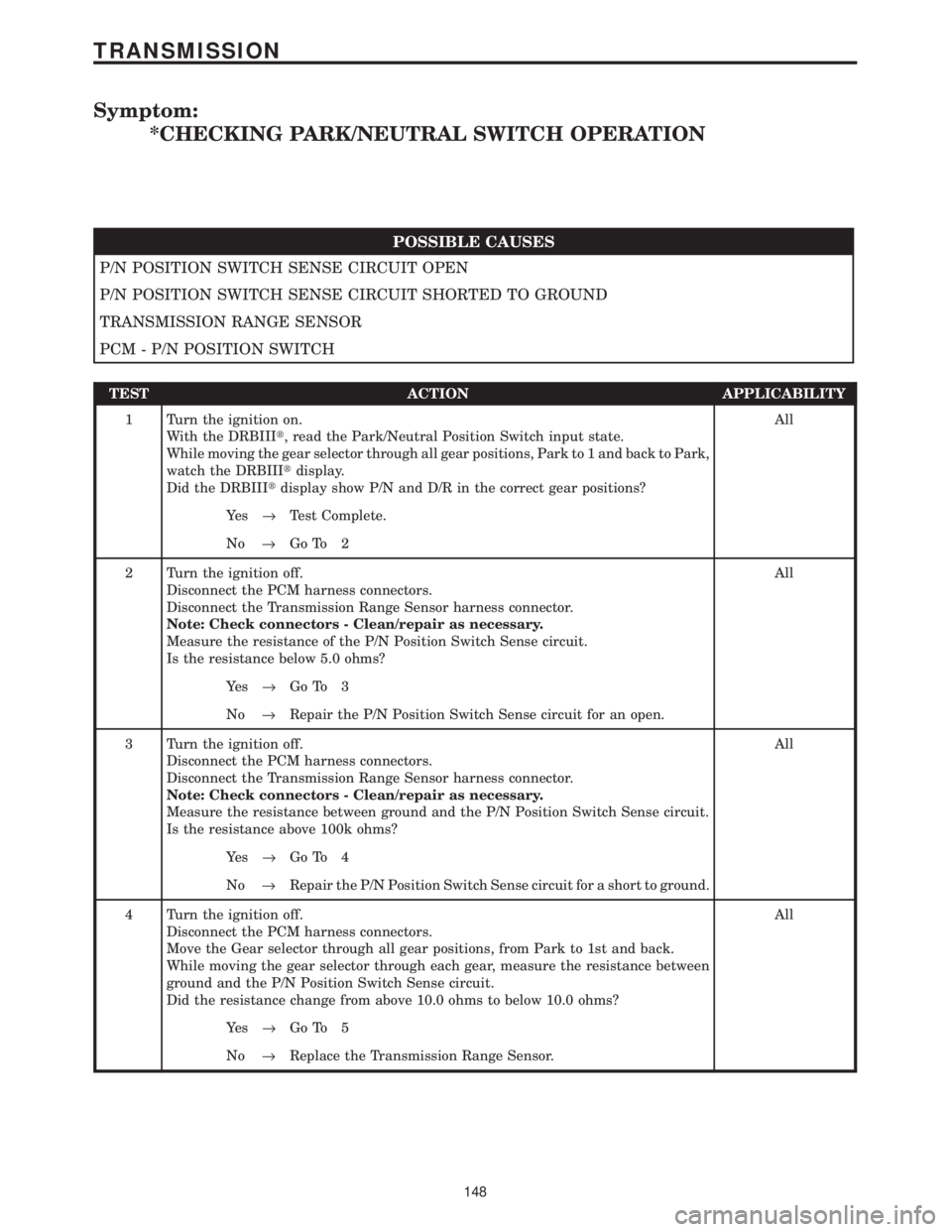

Symptom:
*CHECKING PARK/NEUTRAL SWITCH OPERATION
POSSIBLE CAUSES
P/N POSITION SWITCH SENSE CIRCUIT OPEN
P/N POSITION SWITCH SENSE CIRCUIT SHORTED TO GROUND
TRANSMISSION RANGE SENSOR
PCM - P/N POSITION SWITCH
TEST ACTION APPLICABILITY
1 Turn the ignition on.
With the DRBIIIt, read the Park/Neutral Position Switch input state.
While moving the gear selector through all gear positions, Park to 1 and back to Park,
watch the DRBIIItdisplay.
Did the DRBIIItdisplay show P/N and D/R in the correct gear positions?All
Ye s®Test Complete.
No®Go To 2
2 Turn the ignition off.
Disconnect the PCM harness connectors.
Disconnect the Transmission Range Sensor harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance of the P/N Position Switch Sense circuit.
Is the resistance below 5.0 ohms?All
Ye s®Go To 3
No®Repair the P/N Position Switch Sense circuit for an open.
3 Turn the ignition off.
Disconnect the PCM harness connectors.
Disconnect the Transmission Range Sensor harness connector.
Note: Check connectors - Clean/repair as necessary.
Measure the resistance between ground and the P/N Position Switch Sense circuit.
Is the resistance above 100k ohms?All
Ye s®Go To 4
No®Repair the P/N Position Switch Sense circuit for a short to ground.
4 Turn the ignition off.
Disconnect the PCM harness connectors.
Move the Gear selector through all gear positions, from Park to 1st and back.
While moving the gear selector through each gear, measure the resistance between
ground and the P/N Position Switch Sense circuit.
Did the resistance change from above 10.0 ohms to below 10.0 ohms?All
Ye s®Go To 5
No®Replace the Transmission Range Sensor.
148
TRANSMISSION
