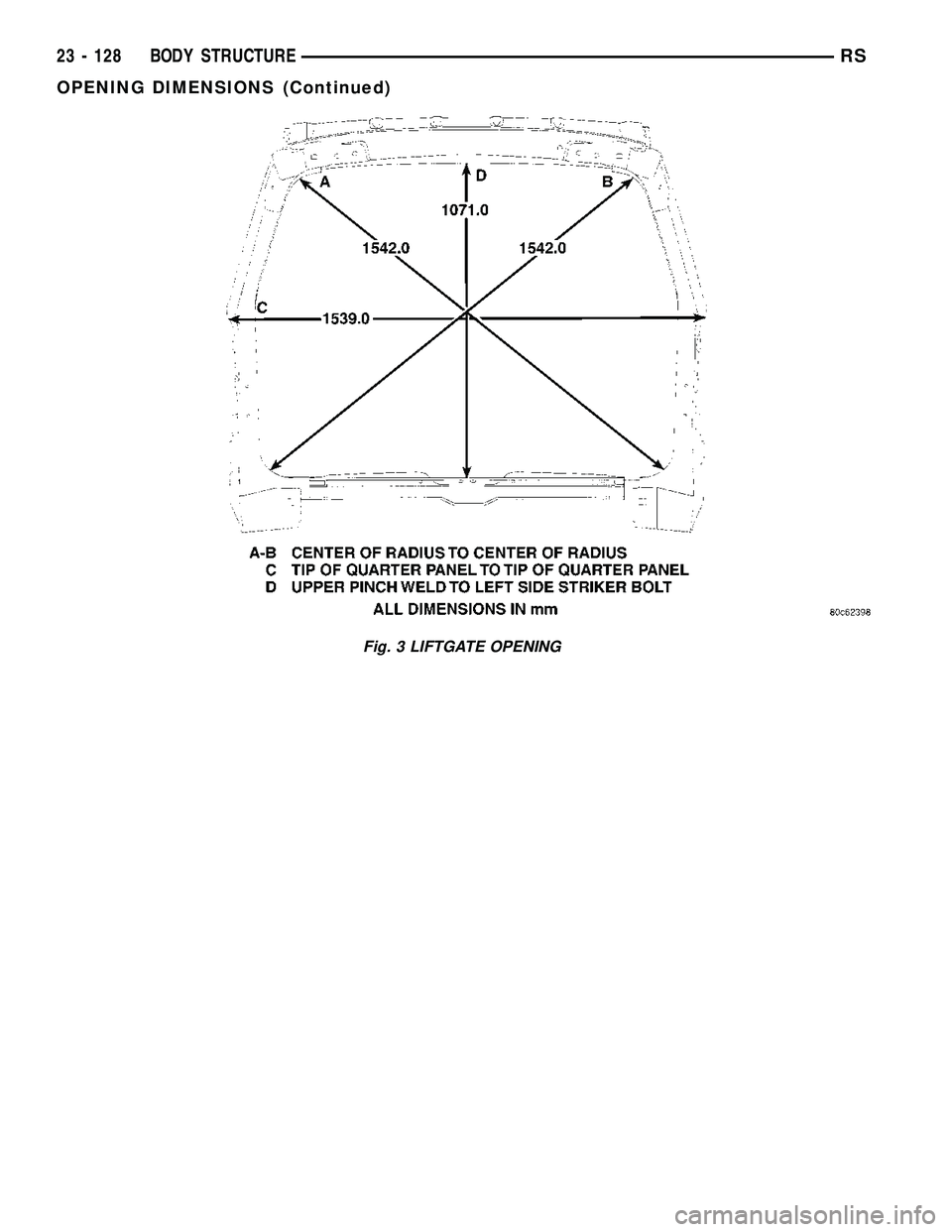

Fig. 3 LIFTGATE OPENING
23 - 128 BODY STRUCTURERS
OPENING DIMENSIONS (Continued)

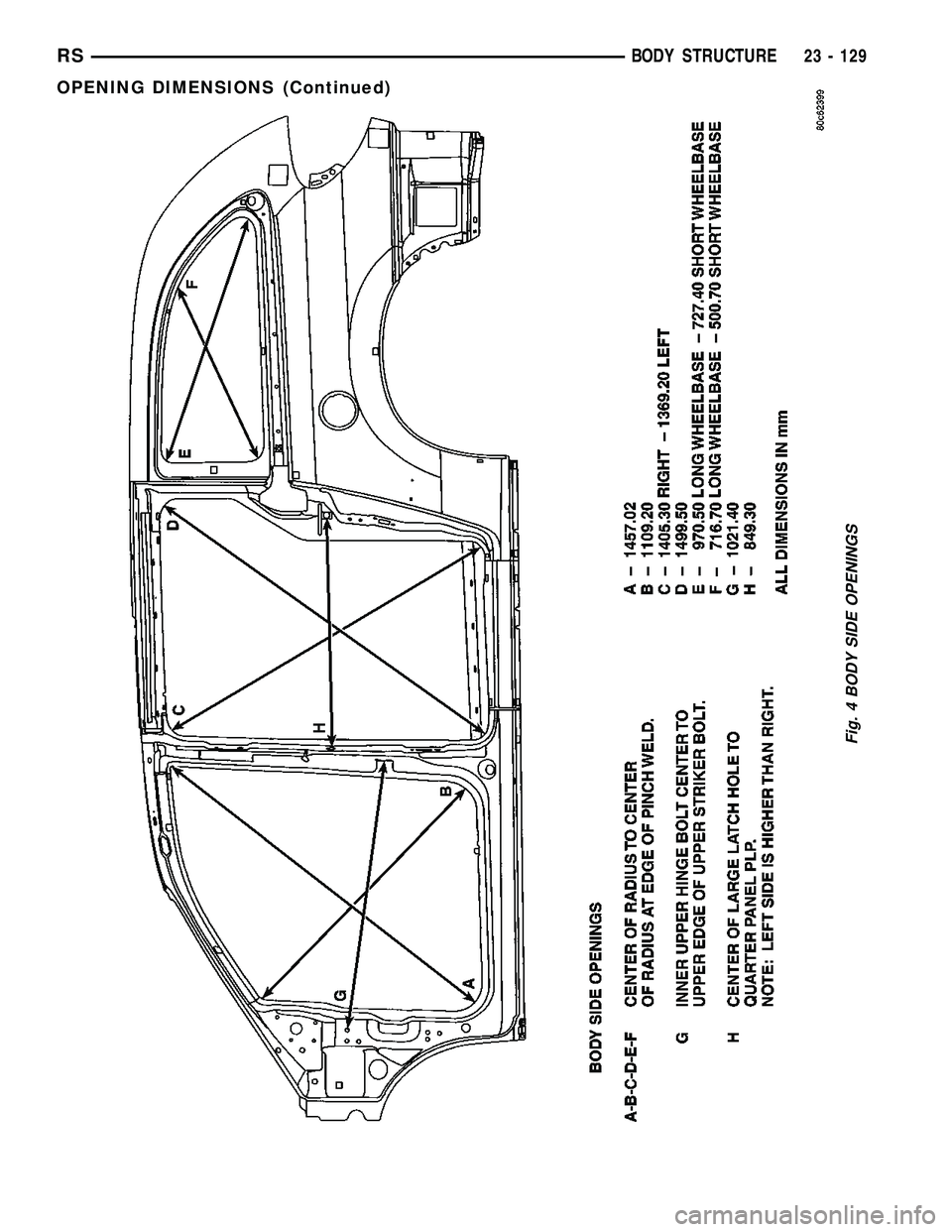

Fig. 4 BODY SIDE OPENINGS
RSBODY STRUCTURE23 - 129
OPENING DIMENSIONS (Continued)

COOLING/ACCESSORY DRIVE/DRIVE BELTS -
3.3L/3.8L - INSTALLATION).
(15) Lower the vehicle.
(16) Reconnect the battery negative cable.
CLUTCH BREAK-IN
After a new compressor clutch has been installed,
cycle the compressor clutch approximately twenty
times (five seconds on, then five seconds off). During
this procedure, set the A/C-heater control to the A/C
Recirculation Mode, the blower motor switch in the
highest speed position, and the engine speed at 1500
to 2000 rpm. This procedure (burnishing) will seat
the opposing friction surfaces and provide a higher
compressor clutch torque capability.
A/C COMPRESSOR CLUTCH
RELAY
DESCRIPTION
The compressor clutch relay (Fig. 7) is a Interna-
tional Standards Organization (ISO) micro-relay.
Relays conforming to the ISO specifications have
common physical dimensions, current capacities, ter-
minal patterns, and terminal functions. The ISO
micro-relay terminal functions are the same as a con-
ventional ISO relay. However, the ISO micro-relay
terminal pattern (or footprint) is different, the cur-
rent capacity is lower, and the physical dimensions
are smaller than those of the conventional ISO relay.
The A/C compressor clutch relay is located in the
Integrated Power Module (IPM) in the engine com-
partment. See the fuse and relay layout map molded
into the inner surface of the IPM cover for A/C com-
pressor clutch relay identification and location.The black, molded plastic case is the most visible
component of the A/C compressor clutch relay. Five
male spade-type terminals extend from the bottom of
the base to connect the relay to the vehicle electrical
system, and the ISO designation for each terminal is
molded into the base adjacent to each terminal. The
ISO terminal designations are as follows:
²30 (Common Feed)- This terminal is con-
nected to the movable contact point of the relay.
²85 (Coil Ground)- This terminal is connected
to the ground feed side of the relay control coil.
²86 (Coil Battery)- This terminal is connected
to the battery feed side of the relay control coil.
²87 (Normally Open)- This terminal is con-
nected to the normally open fixed contact point of the
relay.
²87A (Normally Closed)- This terminal is con-
nected to the normally closed fixed contact point of
the relay.
OPERATION
The A/C compressor clutch relay is an electrome-
chanical switch that uses a low current input from
the powertrain control module (PCM) to control the
high current output to the compressor clutch electro-
magnetic coil. The movable common feed contact
point is held against the fixed normally closed con-
tact point by spring pressure. When the relay coil is
energized, an electromagnetic field is produced by the
coil windings. This electromagnetic field draws the
movable relay contact point away from the fixed nor-
mally closed contact point, and holds it against the
fixed normally open contact point. When the relay
coil is de-energized, spring pressure returns the mov-
able contact point back against the fixed normally
closed contact point. The resistor or diode is con-
nected in parallel with the relay coil in the relay, and
helps to dissipate voltage spikes and electromagnetic
interference that can be generated as the electromag-
netic field of the relay coil collapses.
The compressor clutch relay terminals are con-
nected to the vehicle electrical system through a
receptacle in the integrated power module (IPM). The
inputs and outputs of the A/C compressor clutch
relay include:
²The common feed terminal (30) receives a bat-
tery current input from a fuse in the IPM through a
fused B(+) circuit at all times.
²The coil ground terminal (85) receives a ground
input from the PCM through the compressor clutch
relay control circuit only when the PCM electroni-
cally pulls the control circuit to ground.
²The coil battery terminal (86) receives a battery
current input from the PCM through a fused ignition
switch output (run-start) circuit only when the igni-
tion switch is in the On or Start positions.
Fig. 7 A/C Compressor Clutch Relay
RSCONTROLS - FRONT24-19
A/C COMPRESSOR CLUTCH/COIL (Continued)

(3) Connect the HVAC wire harness connector to
the blend door actuator.
(4) Install the silencer under the driver side end of
the instrument panel (Refer to 23 - BODY/INSTRU-
MENT PANEL/INSTRUMENT PANEL SILENCER -
INSTALLATION).
(5) Reconnect the battery negative cable.
(6) Perform the heater-A/C control calibration pro-
cedure (Refer to 24 - HEATING & AIR CONDITION-
ING/CONTROLS - FRONT/A/C-HEATER CONTROL
- STANDARD PROCEDURE - HEATER-A/C CON-
TROL CALIBRATION).
BLOWER MOTOR RELAY
DESCRIPTION
The blower motor relay is a International Stan-
dards Organization (ISO) mini-relay (Fig. 12). Relays
conforming to the ISO specifications have common
physical dimensions, current capacities, terminal pat-
terns, and terminal functions. The ISO mini-relay
terminal functions are the same as a conventional
ISO relay. However, the ISO mini-relay terminal pat-
tern (or footprint) is different, the current capacity is
lower, and the physical dimensions are smaller than
those of the conventional ISO relay. The blower
motor relay is located in the Integrated Power Mod-
ule (IPM), which is in the engine compartment near
the battery. See the fuse and relay layout map
molded into the inner surface of the IPM cover for
blower motor relay identification and location.The black, molded plastic case is the most visible
component of the blower motor relay. Five male
spade-type terminals extend from the bottom of the
base to connect the relay to the vehicle electrical sys-
tem, and the ISO designation for each terminal is
molded into the base adjacent to each terminal. The
ISO terminal designations are as follows:
²30 (Common Feed)- This terminal is con-
nected to the movable contact point of the relay.
²85 (Coil Ground)- This terminal is connected
to the ground feed side of the relay control coil.
²86 (Coil Battery)- This terminal is connected
to the battery feed side of the relay control coil.
²87 (Normally Open)- This terminal is con-
nected to the normally open fixed contact point of the
relay.
²87A (Normally Closed)- This terminal is con-
nected to the normally closed fixed contact point of
the relay.
The blower motor relay cannot be adjusted or
repaired. If the relay is damaged or faulty, it must be
replaced.
OPERATION
The blower motor relay is an electromechanical
switch that uses a low current input from the Front
Control Module (FCM) to control the high current
output to the blower motor resistor (manual heater-
A/C control) or blower power module (ATC control).
The movable common feed contact point is held
against the fixed normally closed contact point by
spring pressure. When the relay coil is energized, an
electromagnetic field is produced by the coil wind-
ings. This electromagnetic field draws the movable
relay contact point away from the fixed normally
closed contact point, and holds it against the fixed
Fig. 11 Blend Door Actuator - LHD Shown, RHD
Typical
1 - WIRE HARNESS CONNECTOR
2 - MODE DOOR ACTUATOR
3 - SCREW (2)
4 - DRIVER BLEND DOOR ACTUATOR (DUAL-ZONE)
5 - HEATER CORE
6 - BLEND DOOR ACTUATOR (SINGLE ZONE) OR PASSENGER
BLEND DOOR ACTUATOR (DUAL-ZONE)Fig. 12 Blower Motor Relay
24 - 24 CONTROLS - FRONTRS
BLEND DOOR ACTUATOR (Continued)

BLOWER MOTOR RELAY
DESCRIPTION
The blower motor relay is a International Stan-
dards Organization (ISO) mini-relay (Fig. 4). Relays
conforming to the ISO specifications have common
physical dimensions, current capacities, terminal pat-
terns, and terminal functions. The ISO mini-relay
terminal functions are the same as a conventional
ISO relay. However, the ISO mini-relay terminal pat-
tern (or footprint) is different, the current capacity is
lower, and the physical dimensions are smaller than
those of the conventional ISO relay. The rear blower
motor relay is located in the Integrated Power Mod-
ule (IPM), which is in the engine compartment near
the battery. See the fuse and relay layout map
molded into the inner surface of the IPM cover for
rear blower motor relay identification and location.
The black, molded plastic case is the most visible
component of the blower motor relay. Five male
spade-type terminals extend from the bottom of the
base to connect the relay to the vehicle electrical sys-
tem, and the ISO designation for each terminal is
molded into the base adjacent to each terminal. The
ISO terminal designations are as follows:
²30 (Common Feed)- This terminal is con-
nected to the movable contact point of the relay.
²85 (Coil Ground)- This terminal is connected
to the ground feed side of the relay control coil.
²86 (Coil Battery)- This terminal is connected
to the battery feed side of the relay control coil.
²87 (Normally Open)- This terminal is con-
nected to the normally open fixed contact point of the
relay.²87A (Normally Closed)- This terminal is con-
nected to the normally closed fixed contact point of
the relay.
The rear blower motor relay cannot be adjusted or
repaired. If the relay is damaged or faulty, it must be
replaced.
OPERATION
The rear blower motor relay is an electromechani-
cal switch that uses a low current input from the
Front Control Module (FCM) to control the high cur-
rent output to the rear blower motor resistor (man-
ual heater-A/C control) or rear blower motor power
module (ATC heater-A/C control). The movable com-
mon feed contact point is held against the fixed nor-
mally closed contact point by spring pressure. When
the relay coil is energized, an electromagnetic field is
produced by the coil windings. This electromagnetic
field draws the movable relay contact point away
from the fixed normally closed contact point, and
holds it against the fixed normally open contact
point. When the relay coil is de-energized, spring
pressure returns the movable contact point back
against the fixed normally closed contact point. The
resistor or diode is connected in parallel with the
relay coil in the relay, and helps to dissipate voltage
spikes and electromagnetic interference that can be
generated as the electromagnetic field of the relay
coil collapses.
The rear blower motor relay terminals are con-
nected to the vehicle electrical system through a
receptacle in the Integrated Power Module (IPM).
The inputs and outputs of the rear blower motor
relay include:
²The common feed terminal (30) receives a bat-
tery current input from the battery through a B(+)
circuit at all times.
²The coil ground terminal (85) receives a ground
input through the front/rear blower motor relay con-
trol circuit only when the FCM electronically pulls
the control circuit to ground.
²The coil battery terminal (86) receives a battery
current input from the battery through a B(+) circuit
at all times.
²The normally open terminal (87) provides a bat-
tery current output to the blower motor resistor
(manual heater-A/C control) or blower power module
(ATC heater-A/C control) through a fuse in the IPM
on the fused rear blower motor relay output circuit
only when the blower motor relay coil is energized.
²The normally closed terminal (87A) is not con-
nected to any circuit in this application, but provides
a battery current output only when the rear blower
motor relay coil is de-energized.
Fig. 4 Rear Blower Motor Relay
RSCONTROLS - REAR24-37

BLEEDING - STANDARD PROCEDURE,
BASE BRAKE......................5-7,5s-7
BLEEDING - STANDARD PROCEDURE,
MASTER CYLINDER...............5-35,5s-34
BLEND DOOR ACTUATOR -
DESCRIPTION..................24-23,24-35
BLEND DOOR ACTUATOR -
INSTALLATION..................24-23,24-36
BLEND DOOR ACTUATOR - OPERATION . . 24-23,
24-35
BLEND DOOR ACTUATOR - REMOVAL....24-23,
24-36
BLOCK - CLEANING, ENGINE.......9-112,9-36
BLOCK - DESCRIPTION, BLOWER
MOTOR RESISTOR...................24-26
BLOCK - DESCRIPTION, ENGINE.....9-112,9-35
BLOCK - DESCRIPTION, NON-ABS
JUNCTION......................5-33,5s-32
BLOCK - DIAGNOSIS AND TESTING,
BLOWER MOTOR RESISTOR............24-26
BLOCK - DIAGNOSIS AND TESTING,
REAR BLOWER MOTOR RESISTOR......24-38
BLOCK - INSPECTION, ENGINE......9-112,9-36
BLOCK - INSTALLATION, BLOWER
MOTOR RESISTOR...................24-27
BLOCK - INSTALLATION, NON-ABS
JUNCTION......................5-33,5s-32
BLOCK - OPERATION, BLOWER MOTOR
RESISTOR..........................24-26
BLOCK - OPERATION, NON-ABS
JUNCTION......................5-33,5s-32
BLOCK - REMOVAL, BLOWER MOTOR
RESISTOR...........................24-26
BLOCK - REMOVAL, NON-ABS JUNCTION . . 5-33,
5s-32
BLOCK HEATER - DESCRIPTION, ENGINE . . . 7-20
BLOCK HEATER - INSTALLATION,
ENGINE.............................7-20
BLOCK HEATER - OPERATION, ENGINE....7-20
BLOCK HEATER - REMOVAL, ENGINE......7-20
BLOCK HEATER TESTING - DIAGNOSIS
AND TESTING, ENGINE.................7-20
BLOCKER LATCH - INSTALLATION, FUEL
FILL DOOR.........................23-53
BLOCKER LATCH - REMOVAL, FUEL FILL
DOOR.............................23-53
BLOCKER LATCH STRIKER -
INSTALLATION, FUEL FILL DOOR........23-53
BLOCKER LATCH STRIKER - REMOVAL,
FUEL FILL DOOR.....................23-53
BLOCKER LOCKOUT LINK -
INSTALLATION, FUEL FILL DOOR........23-54
BLOCKER LOCKOUT LINK - REMOVAL,
FUEL FILL DOOR.....................23-53
BLOWER MOTOR - DESCRIPTION . . 24-46,24-57
BLOWER MOTOR - DESCRIPTION,
POWER MODULE....................24-31
BLOWER MOTOR - DESCRIPTION,
POWER MODULE - REAR..............24-41
BLOWER MOTOR - DIAGNOSIS AND
TESTING...........................24-47
BLOWER MOTOR - DIAGNOSIS AND
TESTING, REAR......................24-58
BLOWER MOTOR - INSTALLATION . . 24-49,24-58
BLOWER MOTOR - INSTALLATION,
POWER MODULE....................24-32
BLOWER MOTOR - INSTALLATION,
POWER MODULE - REAR..............24-42
BLOWER MOTOR - OPERATION....24-46,24-57
BLOWER MOTOR - OPERATION, POWER
MODULE...........................24-31
BLOWER MOTOR - OPERATION, POWER
MODULE - REAR.....................24-41
BLOWER MOTOR - REMOVAL......24-47,24-58
BLOWER MOTOR - REMOVAL, POWER
MODULE...........................24-31
BLOWER MOTOR - REMOVAL, POWER
MODULE - REAR.....................24-41
BLOWER MOTOR RELAY - DESCRIPTION
. 24-24,
24-37
BLOWER MOTOR RELAY -
INSTALLATION
..................24-25,24-38
BLOWER MOTOR RELAY - OPERATION
. . . 24-24,
24-37
BLOWER MOTOR RELAY - REMOVAL
....24-25,
24-38
BLOWER MOTOR RESISTOR -
DESCRIPTION
.......................24-38BLOWER MOTOR RESISTOR -
INSTALLATION.......................24-39
BLOWER MOTOR RESISTOR -
OPERATION.........................24-38
BLOWER MOTOR RESISTOR - REMOVAL . . 24-39
BLOWER MOTOR RESISTOR BLOCK -
DESCRIPTION.......................24-26
BLOWER MOTOR RESISTOR BLOCK -
DIAGNOSIS AND TESTING.............24-26
BLOWER MOTOR RESISTOR BLOCK -
DIAGNOSIS AND TESTING, REAR........24-38
BLOWER MOTOR RESISTOR BLOCK -
INSTALLATION.......................24-27
BLOWER MOTOR RESISTOR BLOCK -
OPERATION.........................24-26
BLOWER MOTOR RESISTOR BLOCK -
REMOVAL..........................24-26
BODY - ASSEMBLY, VALVE.....21-257,21s-159,
21s-212
BODY - DESCRIPTION, THROTTLE.......14-35
BODY - DESCRIPTION, VALVE . . . 21-250,21s-152
BODY - DISASSEMBLY, VALVE . . 21-252,21s-155,
21s-208
BODY - INSTALLATION, THROTTLE.......14-35
BODY - INSTALLATION, VALVE . . 21-262,21s-164,
21s-217
BODY - OPERATION, THROTTLE.........14-35
BODY - OPERATION, VALVE....21-250,21s-152
BODY - REMOVAL, THROTTLE..........14-35
BODY - REMOVAL, VALVE.....21-251,21s-153,
21s-206
BODY AND CABLE - DESCRIPTION,
ANTENNA...........................8A-4
BODY AND CABLE - DIAGNOSIS AND
TESTING, ANTENNA...................8A-4
BODY AND CABLE - INSTALLATION,
ANTENNA...........................8A-6
BODY AND CABLE - OPERATION,
ANTENNA...........................8A-4
BODY AND CABLE - REMOVAL,
ANTENNA...........................8A-5
BODY CODE PLATE - DESCRIPTION.....Intro.-1
BODY CONTROL MODULE -
DESCRIPTION........................8s-1
BODY CONTROL MODULE -
DESCRIPTION........................8E-3
BODY CONTROL MODULE -
INSTALLATION........................8s-3
BODY CONTROL MODULE -
INSTALLATION........................8E-5
BODY CONTROL MODULE - OPERATION . . . 8s-1
BODY CONTROL MODULE - OPERATION . . . 8E-3
BODY CONTROL MODULE - REMOVAL.....8s-3
BODY CONTROL MODULE - REMOVAL.....8E-4
BODY LUBRICATION, SPECIFICATIONS....23-12
BODY OPENING DIMENSIONS -
SPECIFICATIONS....................23-127
BODY PANEL REPAIR - STANDARD
PROCEDURE, PLASTIC.................23-3
BODY SEALING LOCATIONS -
SPECIFICATIONS....................23-130
BODY SIDE MOLDINGS - INSTALLATION . . 23-46
BODY SIDE MOLDINGS - REMOVAL......23-45
BODY, SPECIAL TOOLS................23-13
BOLSTER - INSTALLATION, QUARTER
TRIM..............................23-79
BOLSTER - REMOVAL, QUARTER TRIM . . . 23-79
BOOSTER - DESCRIPTION, POWER
BRAKE.........................5-40,5s-43
BOOSTER - DIAGNOSIS AND TESTING,
POWER BRAKE..................5-41,5s-44
BOOSTER - OPERATION, POWER BRAKE . . 5-41,
5s-44
BOOT - INNER - INSTALLATION, CV........3-6
BOOT - INNER - REMOVAL, CV...........3-6
BOOT - INNER/OUTER - INSTALLATION,
CV .................................3-17
BOOT - INNER/OUTER - REMOVAL, CV....3-15
BOOT - INSTALLATION, GEARSHIFT......21-73
BOOT - OUTER - INSTALLATION, CV......3-10
BOOT - OUTER - REMOVAL, CV..........3-10
BOOT - REMOVAL, GEARSHIFT
..........21-72
BORE FITTING - STANDARD
PROCEDURE, PISTON TO CYLINDER
......9-42
BORE HONING - STANDARD
PROCEDURE, CYLINDER
...........9-112,9-35
BOX - INSTALLATION, GLOVE
...........23-64
BOX - REMOVAL, GLOVE
..............23-64BOX LAMP SWITCH - INSTALLATION,
GLOVE.............................8L-22
BOX LAMP SWITCH - REMOVAL, GLOVE . . 8L-22
BOX LATCH - INSTALLATION, GLOVE.....23-64
BOX LATCH - REMOVAL, GLOVE.........23-64
BOX LATCH STRIKER - INSTALLATION,
GLOVE.............................23-64
BOX LATCH STRIKER - REMOVAL,
GLOVE.............................23-64
B-PILLAR - INSTALLATION, A-PILLAR-
HEADER, OR........................23-17
B-PILLAR - REMOVAL, A-PILLAR-
HEADER, OR........................23-17
B-PILLAR LOWER TRIM - INSTALLATION . . 23-75
B-PILLAR LOWER TRIM - REMOVAL.....23-74
B-PILLAR SWITCH - DESCRIPTION, LEFT . 8N-32
B-PILLAR SWITCH - DESCRIPTION,
RIGHT.............................8N-32
B-PILLAR SWITCH - INSTALLATION,
LEFT..............................8N-32
B-PILLAR SWITCH - INSTALLATION,
RIGHT.............................8N-32
B-PILLAR SWITCH - OPERATION, LEFT . . . 8N-32
B-PILLAR SWITCH - OPERATION, RIGHT . . 8N-32
B-PILLAR SWITCH - REMOVAL, LEFT....8N-32
B-PILLAR SWITCH - REMOVAL, RIGHT . . . 8N-32
B-PILLAR UPPER TRIM - INSTALLATION . . 23-75
B-PILLAR UPPER TRIM - REMOVAL......23-75
BRACKET - 2.4L ENGINE -
INSTALLATION, A/C COMPRESSOR
MOUNTING.........................24-76
BRACKET - 2.4L ENGINE - REMOVAL,
A/C COMPRESSOR MOUNTING..........24-75
BRACKET - DESCRIPTION, TRANSVERSE . . 8N-18
BRACKET - INSTALLATION, TRANSVERSE . 8N-18
BRACKET - OPERATION, TRANSVERSE . . . 8N-18
BRACKET - REMOVAL, TRANSVERSE.....8N-18
BRACKET ASSEMBLY - INSTALLATION,
FLOOR CONSOLE TRAY................23-83
BRACKET ASSEMBLY - REMOVAL,
FLOOR CONSOLE TRAY................23-83
BRAKE - DESCRIPTION, CONTROLLER
ANTILOCK...........................8E-5
BRAKE - INSTALLATION, CONTROLLER
ANTILOCK...........................8E-6
BRAKE - INSTALLATION, LEVER -
PARKING.......................5-65,5s-67
BRAKE - INSTALLATION, SHOES -
PARKING.......................5-72,5s-75
BRAKE - INSTALLATION, SUPPORT
PLATE - DRUM..................5-56,5s-58
BRAKE - OPERATION, CONTROLLER
ANTILOCK...........................8E-5
BRAKE - REMOVAL, CONTROLLER
ANTILOCK...........................8E-6
BRAKE - REMOVAL, LEVER - PARKING....5-64,
5s-67
BRAKE - REMOVAL, SHOES - PARKING . . . 5-67,
5s-69
BRAKE - REMOVAL, SUPPORT PLATE -
DRUM
.........................5-56,5s-58
BRAKE AUTOMATIC ADJUSTER -
DIAGNOSIS AND TESTING, DRUM
. . . 5-13,5s-13
BRAKE AUTOMATIC ADJUSTER TENSION
RELEASE - STANDARD PROCEDURE,
PARKING
.......................5-58,5s-61
BRAKE AUTOMATIC ADJUSTER TENSION
RESET - STANDARD PROCEDURE,
PARKING
.......................5-59,5s-61
BRAKE BLEEDING - STANDARD
PROCEDURE, BASE
.................5-7,5s-7
BRAKE BOOSTER - DESCRIPTION,
POWER
........................5-40,5s-43
BRAKE BOOSTER - DIAGNOSIS AND
TESTING, POWER
................5-41,5s-44
BRAKE BOOSTER - OPERATION, POWER
. . 5-41,
5s-44
BRAKE CABLE (FRONT) - INSTALLATION,
PARKING
.......................5-63,5s-65
BRAKE CABLE (FRONT) - REMOVAL,
PARKING
.......................5-59,5s-62
BRAKE CABLE (INTERMEDIATE) -
INSTALLATION, PARKING
..........5-63,5s-66
BRAKE CABLE (INTERMEDIATE) -
REMOVAL, PARKING
..............5-60,5s-62
BRAKE CABLE (LEFT REAR) -
INSTALLATION, PARKING
..........5-64,5s-66
4 INDEXRS
Description Group-Page Description Group-Page Description Group-Page

CV BOOT - INNER/OUTER -
INSTALLATION........................3-17
CV BOOT - INNER/OUTER - REMOVAL.....3-15
CV BOOT - OUTER - INSTALLATION.......3-10
CV BOOT - OUTER - REMOVAL...........3-10
CYCLE - STANDARD PROCEDURE,
POWER DOOR LEARN................8N-28
CYCLE - STANDARD PROCEDURE,
POWER LIFTGATE LEARN...............8N-9
CYLINDER - DESCRIPTION, KEY/LOCK....19-20
CYLINDER - DESCRIPTION, STANDARD 4 . . . 8I-9
CYLINDER - INSTALLATION, KEY/LOCK . . . 19-20
CYLINDER - INSTALLATION, LOCK . . 23-19,23-42
CYLINDER - INSTALLATION, SLAVE.......6-11
CYLINDER - INSTALLATION, SUPPORT....23-43
CYLINDER - LHD - INSTALLATION,
MASTER............................6-10
CYLINDER - LHD - REMOVAL, MASTER.....6-9
CYLINDER - OPERATION, KEY/LOCK......19-20
CYLINDER - REMOVAL, KEY/LOCK.......19-20
CYLINDER - REMOVAL, LOCK......23-19,23-42
CYLINDER - REMOVAL, SLAVE...........6-11
CYLINDER - REMOVAL, SUPPORT.......23-43
CYLINDER - RHD - INSTALLATION,
MASTER.............................6-9
CYLINDER - RHD - REMOVAL, MASTER.....6-8
CYLINDER BLEEDING - STANDARD
PROCEDURE, MASTER............5-35,5s-34
CYLINDER BORE FITTING - STANDARD
PROCEDURE, PISTON TO...............9-42
CYLINDER BORE HONING - STANDARD
PROCEDURE....................9-112,9-35
CYLINDER COMBUSTION PRESSURE
LEAKAGE TEST - DIAGNOSIS AND
TESTING.........................9-83,9-9
CYLINDER COMPRESSION PRESSURE
TEST - DIAGNOSIS AND TESTING.....9-83,9-9
CYLINDER (FLUID RESERVOIR) -
ASSEMBLY, MASTER..............5-38,5s-37
CYLINDER (FLUID RESERVOIR) -
DISASSEMBLY, MASTER...........5-37,5s-36
CYLINDER HEAD - CLEANING . . 9-100,9-26,9s-17
CYLINDER HEAD - DESCRIPTION....9-24,9-99,
9s-16
CYLINDER HEAD - INSPECTION.....9-101,9-26,
9s-17
CYLINDER HEAD - INSTALLATION . . . 9-101,9-26,
9s-18
CYLINDER HEAD - REMOVAL . . 9-100,9-25,9s-17
CYLINDER HEAD COVER - CLEANING......9-31
CYLINDER HEAD COVER - INSPECTION....9-31
CYLINDER HEAD COVER -
INSTALLATION........................9-31
CYLINDER HEAD COVER - LEFT -
INSTALLATION.......................9-103
CYLINDER HEAD COVER - LEFT -
REMOVAL..........................9-103
CYLINDER HEAD COVER - REMOVAL......9-31
CYLINDER HEAD COVER - RIGHT -
INSTALLATION.......................9-103
CYLINDER HEAD COVER - RIGHT -
REMOVAL..........................9-102
CYLINDER HEAD COVER-LEFT -
INSTALLATION
.......................9s-20
CYLINDER HEAD COVER-LEFT -
REMOVAL
..........................9s-20
CYLINDER HEAD COVER-RIGHT -
INSTALLATION
.......................9s-19
CYLINDER HEAD COVER-RIGHT -
REMOVAL
..........................9s-19
CYLINDER HEAD COVER(S) -
DESCRIPTION
..................9-102,9s-19
CYLINDER HEAD GASKET - DIAGNOSIS
AND TESTING
...............9-24,9-99,9s-16
CYLINDER HEAD OFF - INSTALLATION
. . . 9-108,
9-33,9s-26
CYLINDER HEAD OFF - REMOVAL
. . . 9-106,9-32,
9s-24
CYLINDER HEAD ON - INSTALLATION
....9-108,
9-33,9s-26
CYLINDER HEAD ON - REMOVAL
. . . 9-106,9-32,
9s-24
CYLINDER HOUSING - INSTALLATION,
LOCK
..............................19-19
CYLINDER HOUSING - REMOVAL, LOCK
. . 19-17
CYLINDER LOCK SWITCH -
DESCRIPTION, DOOR
.................8N-40CYLINDER LOCK SWITCH - DIAGNOSIS
AND TESTING, DOOR.................8N-40
CYLINDER LOCK SWITCH - EXPORT -
DESCRIPTION, DOOR..................8N-3
CYLINDER LOCK SWITCH - EXPORT -
DIAGNOSIS AND TESTING, DOOR........8N-3
CYLINDER LOCK SWITCH - EXPORT -
INSTALLATION, DOOR.................8N-4
CYLINDER LOCK SWITCH - EXPORT -
OPERATION, DOOR....................8N-3
CYLINDER LOCK SWITCH - EXPORT -
REMOVAL, DOOR.....................8N-3
CYLINDER LOCK SWITCH -
INSTALLATION, DOOR.................8N-41
CYLINDER LOCK SWITCH - OPERATION,
DOOR.............................8N-40
CYLINDER LOCK SWITCH - REMOVAL,
DOOR.............................8N-41
CYLINDERS - INSPECTION, WHEEL . . 5-57,5s-59
CYLINDERS - INSTALLATION, WHEEL . 5-57,5s-60
CYLINDERS - REMOVAL, WHEEL....5-57,5s-59
DAMAGED OR WORN THREADS -
STANDARD PROCEDURE, REPAIR OF . . 9-10,9-86
DAMPER - INSTALLATION, VIBRATION . . . 9-130,
9-47
DAMPER - REMOVAL, VIBRATION . . . 9-130,9-47
DATA BUS COMMUNICATION RECEIVE -
PCM INPUT - OPERATION..............8E-15
DATA LINK CONNECTOR - DESCRIPTION . . . 8E-6
DATA LINK CONNECTOR - OPERATION.....8E-7
DAY / NIGHT MIRROR - DESCRIPTION,
AUTOMATIC..........................8N-47
DAY / NIGHT MIRROR - DIAGNOSIS AND
TESTING, AUTOMATIC................8N-47
DAY / NIGHT MIRROR - OPERATION,
AUTOMATIC........................8N-47
DEAERATION - DIAGNOSIS AND
TESTING, COOLING SYSTEM.............7-4
DECOUPLER PULLEY - DESCRIPTION,
GENERATOR....................8F-25,8F-27
DECOUPLER PULLEY - DIAGNOSIS AND
TESTING, GENERATOR...........8F-25,8F-27
DECOUPLER PULLEY - INSTALLATION,
GENERATOR....................8F-26,8F-28
DECOUPLER PULLEY - OPERATION,
GENERATOR....................8F-25,8F-27
DECOUPLER PULLEY - REMOVAL,
GENERATOR....................8F-26,8F-28
DEFINITION - DESCRIPTION, TRIP........25-1
DEFLECTOR - INSTALLATION, WIND.....23-121
DEFLECTOR - REMOVAL, WIND........23-121
DEFOGGER RELAY - DESCRIPTION,
REAR WINDOW.......................8G-3
DEFOGGER RELAY - INSTALLATION,
REAR WINDOW.......................8G-3
DEFOGGER RELAY - OPERATION, REAR
WINDOW............................8G-3
DEFOGGER RELAY - REMOVAL, REAR
WINDOW............................8G-3
DEFOGGER SWITCH - DESCRIPTION,
REAR WINDOW.......................8G-4
DEFOGGER SWITCH - OPERATION, REAR
WINDOW............................8G-4
DEFOGGER SYSTEM - DIAGNOSIS AND
TESTING, REAR WINDOW..............8G-2
DEFROSTER DUCT - INSTALLATION......24-50
DEFROSTER DUCT - REMOVAL..........24-50
DEMAGNETIZING - STANDARD
PROCEDURE, COMPASS...............8M-4
DEMISTER DUCTS - INSTALLATION,
INSTRUMENT PANEL..................24-55
DEMISTER DUCTS - REMOVAL,
INSTRUMENT PANEL..................24-55
DEMISTER OUTLET - INSTALLATION.....24-46
DEMISTER OUTLET - REMOVAL.........24-45
DEPLOYMENT - STANDARD
PROCEDURE, SERVICE AFTER AN
AIRBAG.............................8O-3
DETECTION ASSY - INSTALLATION,
NATURAL VAC LEAK
..................25-13
DETECTION ASSY - REMOVAL, NATURAL
VAC LEAK
..........................25-13
DETECTION PUMP - INSTALLATION,
LEAK
..............................25-13
DETECTION PUMP - REMOVAL, LEAK
....25-13
DEVICES - STANDARD PROCEDURE,
ELECTROSTATIC DISCHARGE (ESD)
SENSITIVE
........................8W-01-8DIAGNOSTIC SYSTEM - DIAGNOSIS AND
TESTING, ON-BOARD.................8F-21
DIAGNOSTIC TROUBLE CODES -
STANDARD PROCEDURE, OBTAINING.....8E-15
DIAGRAMS - 41TE TRANSAXLE
HYDRAULIC SCHEMATICS,
SCHEMATICS.......................21-169
DIAGRAMS - 4XTE TRANSAXLE
HYDRAULIC SCHEMATICS,
SCHEMATICS.......................21s-75
DIAGRAMS - DESCRIPTION, HOW TO
USE WIRING......................8W-01-1
DIAGRAMS - SPECIAL TOOLS,
SCHEMATICS.......................21s-89
DIESEL - DESCRIPTION, 2.5L...........19-51
DIESEL - DIAGNOSIS AND TESTING,
SYSTEM CHARGE LEVEL TEST - 2.5L....24-68
DIESEL - INSTALLATION, 2.5L..........19-52
DIESEL - REMOVAL, 2.5L..............19-51
DIESEL ENGINE - DESCRIPTION, FUEL
REQUIREMENTS.......................0-6
DIESEL ENGINES - DESCRIPTION,
ENGINE OIL...........................0-6
DIESEL ENGINES - EXPORT -
DESCRIPTION........................0-24
DIESEL HEATER WIRING -
INSTALLATION, SUPPLEMENTAL........24-119
DIESEL HEATER WIRING - REMOVAL,
SUPPLEMENTAL....................24-119
DIESEL SUPPLEMENTAL CABIN HEATER
- DIAGNOSIS AND TESTING...........24-113
DIFFERENTIAL - ASSEMBLY............21-66
DIFFERENTIAL - DESCRIPTION...........21-62
DIFFERENTIAL - DISASSEMBLY.........21-62
DIFFERENTIAL - OPERATION............21-62
DIFFERENTIAL ASSEMBLY -
DESCRIPTION........................3-39
DIFFERENTIAL ASSEMBLY - OPERATION . . . 3-39
DIFFERENTIAL ASSEMBLY FLUID
CHANGE - STANDARD PROCEDURE.......3-40
DIFFERENTIAL BEARING PRELOAD -
ADJUSTMENT......................21-199
DIFFERENTIAL BEARING PRELOAD
MEASUREMENT AND ADJUSTMENT,
ADJUSTMENTS....................21s-100
DIFFERENTIAL CARRIER SEAL -
INSTALLATION........................21-9
DIFFERENTIAL CARRIER SEAL -
REMOVAL...........................21-9
DIFFERENTIAL SIDE GEAR END PLAY -
ADJUSTMENT.......................21-70
DIFFERENTIAL TURNING TORQUE -
ADJUSTMENT.......................21-69
DIMENSIONS - SPECIFICATIONS, BODY
OPENING..........................23-127
DIMENSIONS, SPECIFICATIONS - FRAME . . . 13-4
DIODE - INSTALLATION............8W-01-14
DIODE - REMOVAL................8W-01-14
DISC AND PRESSURE PLATE - 2.5L TD -
INSTALLATION, CLUTCH................6-12
DISC AND PRESSURE PLATE - 2.5L TD -
REMOVAL, CLUTCH....................6-11
DISC BRAKE CALIPER - INSTALLATION,
REAR..........................5-30,5s-29
DISC BRAKE CALIPER - REMOVAL,
REAR..........................5-27,5s-26
DISC BRAKE CALIPER ADAPTER -
INSTALLATION, FRONT............5-31,5s-30
DISC BRAKE CALIPER ADAPTER -
REMOVAL, FRONT................5-31,5s-30
DISC BRAKE CALIPER (CONTINENTAL
TEVES BRAKES) - INSTALLATION,
FRONT.............................5s-26
DISC BRAKE CALIPER (CONTINENTAL
TEVES BRAKES) - REMOVAL, FRONT.....5s-23
DISC BRAKE CALIPER (DISC/DISC
BRAKES) - INSTALLATION, FRONT........5-27
DISC BRAKE CALIPER (DISC/DISC
BRAKES) - REMOVAL, FRONT
............5-24
DISC BRAKE CALIPER (DISC/DRUM
BRAKES) - INSTALLATION, FRONT
........5-27
DISC BRAKE CALIPER (DISC/DRUM
BRAKES) - REMOVAL, FRONT
............5-24
DISC BRAKE CALIPER GUIDE PINS
(DISC/DRUM BRAKES) -
INSTALLATION
........................5-31
DISC BRAKE CALIPER GUIDE PINS
(DISC/DRUM BRAKES) - REMOVAL
.......5-31
10 INDEXRS
Description Group-Page Description Group-Page Description Group-Page

FILL/CHECK LOCATIONS - DESCRIPTION,
FLUID...............................0-7
FILLER CAP - DESCRIPTION, FUEL.......25-12
FILLER CAP - OPERATION, FUEL........25-12
FILLER NECK SEAL - DIAGNOSIS AND
TESTING, RADIATOR CAP TO............7-27
FILLER TUBE - INSTALLATION, FUEL
TANK ..............................14-13
FILLER TUBE - REMOVAL, FUEL TANK....14-12
FILLING - STANDARD PROCEDURE,
COOLING SYSTEM.....................7-5
FILLING - STANDARD PROCEDURE,
REAR HEATER CORE.................24-101
FILTER - DESCRIPTION, AIR............24-43
FILTER - DESCRIPTION, OIL.............9-53
FILTER - INSTALLATION, AIR...........24-44
FILTER - INSTALLATION, INLET..........14-13
FILTER - INSTALLATION, OIL.......9-139,9-53
FILTER - REMOVAL, AIR...............24-43
FILTER - REMOVAL, INLET.............14-13
FILTER - REMOVAL, OIL...........9-139,9-53
FILTER ADAPTER - INSTALLATION, OIL . . . 9-139
FILTER ADAPTER - REMOVAL, OIL.......9-139
FILTER CHANGE - STANDARD
PROCEDURE, ENGINE OIL..........9-137,9-53
FILTER SERVICE - STANDARD
PROCEDURE, FLUID..........21-203,21s-104
FINAL DRIVE - ASSEMBLY......21-195,21s-99
FINAL DRIVE - DESCRIPTION............21s-95
FINAL DRIVE - DISASSEMBLY....21-190,21s-96
FINAL DRIVE - OPERATION............21s-96
FINESSE SANDING/BUFFING &
POLISHING - DESCRIPTION............23-85
FINISH - DESCRIPTION, BASE
COAT/CLEARCOAT....................23-85
FIRING ORDER, SPECIFICATIONS.........8I-3
FIRST ROW - BENCH - INSTALLATION,
SEAT BELT BUCKLE..................8O-13
FIRST ROW - BENCH - REMOVAL, SEAT
BELT BUCKLE.......................8O-13
FIRST ROW - OUTBOARD -
INSTALLATION, SEAT BELT &
RETRACTOR........................8O-14
FIRST ROW - OUTBOARD - REMOVAL,
SEAT BELT & RETRACTOR.............8O-14
FIRST ROW INBOARD - QUAD BUCKET -
INSTALLATION, SEAT BELT BUCKLE......8O-12
FIRST ROW INBOARD - QUAD BUCKET -
REMOVAL, SEAT BELT BUCKLE.........8O-12
FITTING - CONNECTING ROD............9-45
FITTING - PISTON RING................9-45
FITTING - STANDARD PROCEDURE,
MAIN BEARING......................9-123
FITTING - STANDARD PROCEDURE,
PISTON RING.......................9-121
FITTING - STANDARD PROCEDURE,
PISTON TO CYLINDER BORE............9-42
FITTING CONNECTING RODS -
STANDARD PROCEDURE...............9-116
FITTING PISTONS - STANDARD
PROCEDURE........................9-117
FITTINGS - STANDARD PROCEDURE,
HANDLING TUBING...................24-70
FITTINGS - STANDARD PROCEDURE,
QUICK-CONNECT.....................14-14
FLANGE SEAL - INSTALLATION, INPUT....3-45
FLANGE SEAL - INSTALLATION, OUTPUT . . . 3-46
FLANGE SEAL - REMOVAL, INPUT
........3-44
FLANGE SEAL - REMOVAL, OUTPUT
.......3-45
FLANGE SHIM SELECTION,
ADJUSTMENTS - OUTPUT
...............21-7
FLAP AND SPRING ASSEMBLY -
INSTALLATION, QUAD BUCKET SEAT
SIDE SHIELD/CUPHOLDER
............23-107
FLAP AND SPRING ASSEMBLY -
REMOVAL, QUAD BUCKET SEAT SIDE
SHIELD/CUPHOLDER
.................23-107
FLEX DRIVE - DESCRIPTION
...........8N-36
FLEX DRIVE - INSTALLATION
...........8N-37
FLEX DRIVE - OPERATION
.............8N-36
FLEX DRIVE - REMOVAL
...............8N-37
FLEX PLATE - INSTALLATION
...........9-131
FLEX PLATE - REMOVAL
...............9-131
FLEXIBLE FUEL ENGINE OIL -
DESCRIPTION
.........................0-3
FLOOR CONSOLE TRAY - BRACKET
ASSEMBLY - INSTALLATION
............23-83FLOOR CONSOLE TRAY - BRACKET
ASSEMBLY - REMOVAL................23-83
FLOOR CONSOLE TRAY - INSTALLATION . . 23-83
FLOOR CONSOLE TRAY - REMOVAL......23-83
FLOOR DISTRIBUTION DUCTS -
INSTALLATION.......................24-50
FLOOR DISTRIBUTION DUCTS -
REMOVAL..........................24-50
FLOOR HEAT DUCT - INSTALLATION,
REAR..............................24-63
FLOOR HEAT DUCT - REMOVAL, REAR . . . 24-62
FLOOR MATS - INSTALLATION, CARPETS . 23-76
FLOOR MATS - REMOVAL, CARPETS.....23-75
FLOW AND PRESSURE TEST -
DIAGNOSIS AND TESTING, POWER
STEERING SYSTEM....................19-1
FLOW CHECK - DIAGNOSIS AND
TESTING, COOLING SYSTEM.............7-3
FLUID - DESCRIPTION, AUTOMATIC/
MANUAL TRANSAXLE...................0-4
FLUID - DESCRIPTION, AWD POWER
TRANSFER UNIT.......................0-6
FLUID AND FILTER SERVICE -
STANDARD PROCEDURE.......21-203,21s-104
FLUID CAPACITIES - SPECIFICATIONS......0-6
FLUID CHANGE - STANDARD
PROCEDURE, DIFFERENTIAL
ASSEMBLY..........................3-40
FLUID CHANGE - STANDARD
PROCEDURE, OVERRUNNING CLUTCH
HOUSING............................3-41
FLUID CHANGE - STANDARD
PROCEDURE, PTU......................21-5
FLUID CONTAMINATION - DIAGNOSIS
AND TESTING, BRAKE.............5-32,5s-31
FLUID COOLER - DESCRIPTION.........19-44
FLUID COOLER - INSTALLATION.........19-45
FLUID COOLER - OPERATION...........19-44
FLUID COOLER - REMOVAL............19-44
FLUID DRAIN AND FILL - STANDARD
PROCEDURE........................21-71
FLUID FILL/CHECK LOCATIONS -
DESCRIPTION.........................0-7
FLUID LEAK DIAGNOSIS, DIAGNOSIS
AND TESTING........................21-3
FLUID LEAKAGE - DIAGNOSIS AND
TESTING, TORQUE CONVERTER
HOUSING....................21-123,21s-31
FLUID LEVEL AND CONDITION CHECK,
STANDARD PROCEDURE.......21-201,21s-102
FLUID LEVEL CHECK - STANDARD
PROCEDURE........................21-71
FLUID LEVEL CHECKING - STANDARD
PROCEDURE, BRAKE..............5-32,5s-31
FLUID LEVEL CHECKING - STANDARD
PROCEDURE, POWER STEERING........19-44
FLUID LEVEL INSPECTION - STANDARD
PROCEDURE.........................21-4
FLUID LEVEL SWITCH - DESCRIPTION,
BRAKE..........................5-10,5s-9
FLUID LEVEL SWITCH - INSTALLATION,
BRAKE.........................5-11,5s-10
FLUID LEVEL SWITCH - INSTALLATION,
WASHER...........................8R-12
FLUID LEVEL SWITCH - OPERATION,
BRAKE..........................5-10,5s-9
FLUID LEVEL SWITCH - REMOVAL,
BRAKE
.........................5-11,5s-10
FLUID LEVEL SWITCH - REMOVAL,
WASHER
...........................8R-12
FLUID, SPECIFICATIONS - BRAKE
....5-33,5s-32
FLUIDS - DESCRIPTION, AWD REAR
DRIVELINE MODULE
....................0-6
FLUSH MEASUREMENTS -
SPECIFICATIONS, GAP
................23-124
FLYWHEEL - INSTALLATION
.............6-12
FLYWHEEL - REMOVAL
.................6-12
FOG LAMP - DIAGNOSIS AND TESTING,
FRONT
..............................8L-7
FOG LAMP - INSTALLATION, FRONT
.......8L-8
FOG LAMP - REMOVAL, FRONT
..........8L-8
FOG LAMP UNIT ALIGNMENT - EXPORT
- STANDARD PROCEDURE, FRONT
........8L-9
FOG LAMP UNIT ALIGNMENT -
STANDARD PROCEDURE, FRONT
.........8L-9
FOLDAWAY MIRROR SWITCH - EXPORT
- DESCRIPTION, POWER
..............8N-48FOLDAWAY MIRROR SWITCH - EXPORT
- INSTALLATION, POWER..............8N-49
FOLDAWAY MIRROR SWITCH - EXPORT
- OPERATION, POWER................8N-48
FOLDAWAY MIRROR SWITCH - EXPORT
- REMOVAL, POWER..................8N-48
FORK AND SHAFT - DESCRIPTION,
SHIFT.............................21-113
FORM-IN-PLACE GASKETS AND
SEALERS - STANDARD PROCEDURE . . 9-11,9-84
FRAME DIMENSIONS, SPECIFICATIONS....13-4
FRONT - DESCRIPTION, HALF SHAFT.......3-1
FRONT - INSTALLATION, CRANKSHAFT
OIL SEAL.......................9-127,9-40
FRONT - INSTALLATION, HALF SHAFT......3-4
FRONT - INSTALLATION, SEAT BELT &
RETRACTOR - OUTBOARD.............8O-14
FRONT - INSTALLATION, SPRING
MOUNTS............................2-44
FRONT - INSTALLATION, WHEEL
MOUNTING STUDS...................22-21
FRONT - REMOVAL, CRANKSHAFT OIL
SEAL..........................9-127,9-40
FRONT - REMOVAL, HALF SHAFT..........3-2
FRONT - REMOVAL, SEAT BELT &
RETRACTOR - OUTBOARD.............8O-14
FRONT - REMOVAL, SPRING MOUNTS.....2-43
FRONT - REMOVAL, WHEEL MOUNTING
STUDS.............................22-20
FRONT - SPECIFICATIONS, HALF SHAFT . . . 3-15,
3-6
FRONT BRAKE ROTOR - INSTALLATION.....5-54,
5s-57
FRONT BRAKE ROTOR - REMOVAL . . . 5-54,5s-57
FRONT BUMPER REINFORCEMENT -
INSTALLATION........................13-2
FRONT BUMPER REINFORCEMENT -
REMOVAL...........................13-2
FRONT BUSHING - INSTALLATION, LEAF
SPRING.............................2-30
FRONT BUSHING - REMOVAL, LEAF
SPRING.............................2-29
FRONT CABLE - INSTALLATION.....5-64,5s-67
FRONT CABLE - INSTALLATION,
PARKING BRAKE LEVER...........5-66,5s-69
FRONT CABLE - REMOVAL.........5-64,5s-67
FRONT CABLE - REMOVAL, PARKING
BRAKE LEVER...................5-65,5s-68
FRONT CONTROL MODULE -
DESCRIPTION........................8E-7
FRONT CONTROL MODULE - DIAGNOSIS
AND TESTING........................8E-7
FRONT CONTROL MODULE -
INSTALLATION........................8E-8
FRONT CONTROL MODULE - OPERATION . . 8E-7
FRONT CONTROL MODULE - REMOVAL....8E-8
FRONT CRADLE CROSSMEMBER -
DESCRIPTION........................13-9
FRONT CRADLE CROSSMEMBER
THREAD REPAIR - DESCRIPTION
.........13-9
FRONT CROSSMEMBER MOUNT
BUSHINGS - INSTALLATION
............13-12
FRONT CROSSMEMBER MOUNT
BUSHINGS - REMOVAL
................13-12
FRONT DISC BRAKE CALIPER ADAPTER
- INSTALLATION
.................5-31,5s-30
FRONT DISC BRAKE CALIPER ADAPTER
- REMOVAL
.....................5-31,5s-30
FRONT DISC BRAKE CALIPER
(CONTINENTAL TEVES BRAKES) -
INSTALLATION
.......................5s-26
FRONT DISC BRAKE CALIPER
(CONTINENTAL TEVES BRAKES) -
REMOVAL
..........................5s-23
FRONT DISC BRAKE CALIPER
(DISC/DISC BRAKES) - INSTALLATION
.....5-27
FRONT DISC BRAKE CALIPER
(DISC/DISC BRAKES) - REMOVAL
.........5-24
FRONT DISC BRAKE CALIPER
(DISC/DRUM BRAKES) -
INSTALLATION
........................5-27
FRONT DISC BRAKE CALIPER
(DISC/DRUM BRAKES) - REMOVAL
.......5-24
FRONT DISC BRAKE CALIPER (TRW
BRAKES) - INSTALLATION
..............5s-26
FRONT DISC BRAKE CALIPER (TRW
BRAKES) - REMOVAL
.................5s-23
14 INDEXRS
Description Group-Page Description Group-Page Description Group-Page

MOUNTING STUDS - FRONT -
INSTALLATION, WHEEL................22-21
MOUNTING STUDS - FRONT - REMOVAL,
WHEEL............................22-20
MOUNTING STUDS - REAR -
INSTALLATION, WHEEL................22-22
MOUNTING STUDS - REAR - REMOVAL,
WHEEL............................22-21
MOUNTS - FRONT - INSTALLATION,
SPRING.............................2-44
MOUNTS - FRONT - REMOVAL, SPRING . . . 2-43
MOUNTS - REAR - INSTALLATION,
SPRING.............................2-45
MOUNTS - REAR - REMOVAL, SPRING....2-44
MUFFLER - INSTALLATION..............11-7
MUFFLER - REMOVAL..................11-7
MULTI-FUNCTION SWITCH - DIAGNOSIS
AND TESTING.......................8L-18
MULTI-FUNCTION SWITCH -
INSTALLATION.......................8L-18
MULTI-FUNCTION SWITCH - REMOVAL . . . 8L-18
NAME PLATES - ADHESIVE ATTACHED -
INSTALLATION, EXTERIOR.............23-51
NAME PLATES - ADHESIVE ATTACHED -
REMOVAL, EXTERIOR.................23-51
NAME PLATES - TAPE ATTACHED -
INSTALLATION, EXTERIOR.............23-51
NAME PLATES - TAPE ATTACHED -
REMOVAL, EXTERIOR.................23-51
NATURAL VAC LEAK DETECTION ASSY -
INSTALLATION.......................25-13
NATURAL VAC LEAK DETECTION ASSY -
REMOVAL..........................25-13
NECK SEAL - DIAGNOSIS AND TESTING,
RADIATOR CAP TO FILLER..............7-27
NGC CONTROLLER - REMOVAL.........8E-17
NIGHT MIRROR - DESCRIPTION,
AUTOMATIC DAY.....................8N-47
NIGHT MIRROR - DIAGNOSIS AND
TESTING, AUTOMATIC DAY.............8N-47
NIGHT MIRROR - OPERATION,
AUTOMATIC DAY.....................8N-47
NO CUPHOLDER - INSTALLATION, QUAD
BUCKET SEAT SIDE SHIELD............23-97
NO CUPHOLDER - REMOVAL, QUAD
BUCKET SEAT SIDE SHIELD............23-97
NOISE - DIAGNOSIS AND TESTING,
EXCESSIVE EXHAUST SYSTEM...........11-2
NOISE - DIAGNOSIS AND TESTING,
REAR DRIVELINE MODULE..............3-24
NOISE - DIAGNOSIS AND TESTING, TIRE . 22-14,
22s-6
NOISE - DIAGNOSIS AND TESTING,
WIND...............................23-2
NOISE DIAGNOSIS - DIAGNOSIS AND
TESTING, COMPRESSOR...............24-74
NOISE DIAGNOSIS - DIAGNOSIS AND
TESTING, HYDRAULIC LASH
ADJUSTER...........................9-34
NOISE SUPPRESSION COMPONENTS -
DESCRIPTION, RADIO.................8A-11
NOISE SUPPRESSION COMPONENTS -
OPERATION, RADIO..................8A-12
NON-ABS JUNCTION BLOCK -
DESCRIPTION...................5-33,5s-32
NON-ABS JUNCTION BLOCK -
INSTALLATION
...................5-33,5s-32
NON-ABS JUNCTION BLOCK -
OPERATION
.....................5-33,5s-32
NON-ABS JUNCTION BLOCK - REMOVAL
. . 5-33,
5s-32
NON-MONITORED CIRCUITS -
OPERATION
..........................25-5
NOT FILL - DIAGNOSIS AND TESTING,
VEHICLE DOES
......................25-16
NUMBER - DESCRIPTION, VEHICLE
IDENTIFICATION
....................Intro.-9
NVLD - INSTALLATION, WITH
...........25-20
NVLD - REMOVAL, WITH
..............25-19
O2 SENSOR - DESCRIPTION
............14-32
O2 SENSOR - OPERATION
.............14-32
OBTAINING DIAGNOSTIC TROUBLE
CODES - STANDARD PROCEDURE
.......8E-15
OCCUPANT RESTRAINT CONTROLLER -
DESCRIPTION
........................8O-8
OCCUPANT RESTRAINT CONTROLLER -
INSTALLATION
.......................8O-8OCCUPANT RESTRAINT CONTROLLER -
OPERATION..........................8O-8
OCCUPANT RESTRAINT CONTROLLER -
REMOVAL...........................8O-8
OIL - DESCRIPTION, FLEXIBLE FUEL
ENGINE..............................0-3
OIL - DESCRIPTION, REFRIGERANT......24-92
OIL - DIESEL ENGINES - DESCRIPTION,
ENGINE..............................0-6
OIL - OPERATION, REFRIGERANT........24-92
OIL AND FILTER CHANGE - STANDARD
PROCEDURE, ENGINE.............9-137,9-53
OIL AND LUBRICANTS - DESCRIPTION,
ENGINE..............................0-1
OIL COOLER - DESCRIPTION,
TRANSMISSION.......................7-37
OIL COOLER - INSPECTION,
TRANSMISSION.......................7-37
OIL COOLER - INSTALLATION,
TRANSMISSION.......................7-37
OIL COOLER & LINES - DESCRIPTION....9-138
OIL COOLER & LINES - INSTALLATION . . . 9-138
OIL COOLER & LINES - OPERATION......9-138
OIL COOLER & LINES - REMOVAL.......9-138
OIL COOLER - REMOVAL,
TRANSMISSION.......................7-37
OIL COOLER LINES - INSTALLATION,
TRANSMISSION.......................7-38
OIL COOLER LINES - REMOVAL,
TRANSMISSION.......................7-38
OIL FILTER - DESCRIPTION.............9-53
OIL FILTER - INSTALLATION........9-139,9-53
OIL FILTER - REMOVAL............9-139,9-53
OIL FILTER ADAPTER - INSTALLATION....9-139
OIL FILTER ADAPTER - REMOVAL.......9-139
OIL GALLERY PLUGS - STANDARD
PROCEDURE, ENGINE CORE.........9-10,9-86
OIL LEAK INSPECTION - DIAGNOSIS
AND TESTING, ENGINE..............9-8,9-82
OIL LEVEL - STANDARD PROCEDURE,
REFRIGERANT.......................24-93
OIL LEVEL CHECK - STANDARD
PROCEDURE, ENGINE.................9-137
OIL LEVEL CHECK, STANDARD
PROCEDURE - ENGINE.................9-53
OIL PAN - CLEANING.................9-140
OIL PAN - INSPECTION................9-140
OIL PAN - INSTALLATION..........9-140,9-54
OIL PAN - REMOVAL..............9-140,9-54
OIL PRESSURE - DIAGNOSIS AND
TESTING, CHECKING ENGINE............9-52
OIL PRESSURE - DIAGNOSIS AND
TESTING, ENGINE....................9-136
OIL PRESSURE RELIEF VALVE -
INSTALLATION.......................9-141
OIL PRESSURE RELIEF VALVE -
REMOVAL..........................9-141
OIL PRESSURE SWITCH - DESCRIPTION . . 9-141
OIL PRESSURE SWITCH - INSTALLATION . 9-141,
9-54
OIL PRESSURE SWITCH - OPERATION....9-141
OIL PRESSURE SWITCH - REMOVAL . 9-141,9-54
OIL PUMP - ASSEMBLY...........9-143,9-56
OIL PUMP - ASSEMBLY.......21-232,21s-132
OIL PUMP - CLEANING............9-142,9-56
OIL PUMP - DESCRIPTION.............9-142
OIL PUMP - DESCRIPTION.....21-230,21s-131
OIL PUMP - DISASSEMBLY........9-142,9-55
OIL PUMP - DISASSEMBLY.....21-230,21s-131
OIL PUMP - INSPECTION..........9-142,9-56
OIL PUMP - INSTALLATION........9-144,9-57
OIL PUMP - INSTALLATION, SEAL......21-233,
21s-133
OIL PUMP - OPERATION.......21-230,21s-131
OIL PUMP - REMOVAL............9-142,9-55
OIL PUMP - REMOVAL, SEAL . . . 21-232,21s-133
OIL SEAL - FRONT - INSTALLATION,
CRANKSHAFT...................9-127,9-40
OIL SEAL - FRONT - REMOVAL,
CRANKSHAFT
...................9-127,9-40
OIL SEAL - REAR - INSTALLATION,
CRANKSHAFT
...................9-129,9-42
OIL SEAL - REAR - REMOVAL,
CRANKSHAFT
...................9-128,9-41
OIL SEAL RETAINER - INSTALLATION,
CRANKSHAFT REAR
..................9-129
OIL SEAL RETAINER - REMOVAL,
CRANKSHAFT REAR
..................9-129OIL SEAL(S) - INSTALLATION,
CAMSHAFT..........................9-28
OIL SEAL(S) - REMOVAL, CAMSHAFT.....9-27
ON-BOARD DIAGNOSTIC SYSTEM -
DIAGNOSIS AND TESTING..............8F-21
OPEN LATCH - INSTALLATION, HOLD.....23-25
OPEN LATCH - REMOVAL, HOLD........23-25
OPEN LATCH CABLE - INSTALLATION,
HOLD..............................23-38
OPEN LATCH CABLE - REMOVAL, HOLD . . . 23-38
OPEN LATCH STRIKER - INSTALLATION,
HOLD..............................23-26
OPEN LATCH STRIKER - REMOVAL,
HOLD..............................23-26
OPEN SWITCH - DESCRIPTION, FULL....8N-12,
8N-31
OPEN SWITCH - INSTALLATION, FULL....8N-13
OPEN SWITCH - OPERATION, FULL . 8N-12,8N-31
OPEN SWITCH - REMOVAL, FULL.......8N-13
OPEN-CIRCUIT VOLTAGE TEST -
STANDARD PROCEDURE...............8F-13
OPENING DIMENSIONS -
SPECIFICATIONS, BODY..............23-127
OPENING REINFORCEMENT -
INSTALLATION, GRILLE................23-54
OPENING REINFORCEMENT - REMOVAL,
GRILLE............................23-54
ORDER, SPECIFICATIONS - FIRING........8I-3
O-RING - INSTALLATION, REAR COVER . . . 21-20
O-RING - REMOVAL, REAR COVER.......21-19
ORVR - OPERATION..................25-14
OUTBOARD - FRONT - INSTALLATION,
SEAT BELT & RETRACTOR.............8O-14
OUTBOARD - FRONT - REMOVAL, SEAT
BELT & RETRACTOR..................8O-14
OUTBOARD - INSTALLATION, SEAT BELT
& RETRACTOR - FIRST ROW...........8O-14
OUTBOARD - INSTALLATION, SEAT BELT
& RETRACTOR - SECOND ROW - LEFT . . . 8O-17
OUTBOARD - INSTALLATION, SEAT BELT
& RETRACTOR - SECOND ROW -
RIGHT.............................8O-15
OUTBOARD - REMOVAL, SEAT BELT &
RETRACTOR - FIRST ROW.............8O-14
OUTBOARD - REMOVAL, SEAT BELT &
RETRACTOR - SECOND ROW - LEFT.....8O-17
OUTBOARD - REMOVAL, SEAT BELT &
RETRACTOR - SECOND ROW - RIGHT....8O-15
OUTBOARD WITH REAR HVAC - LWB -
INSTALLATION, SEAT BELT &
RETRACTOR - SECOND ROW - RIGHT....8O-16
OUTBOARD WITH REAR HVAC - LWB -
REMOVAL, SEAT BELT & RETRACTOR -
SECOND ROW - RIGHT................8O-16
OUTER - INSTALLATION, CV BOOT........3-10
OUTER - REMOVAL, CV BOOT...........3-10
OUTER BELT MOLDING - INSTALLATION,
FRONT DOOR......................23-113
OUTER BELT MOLDING - REMOVAL,
FRONT DOOR......................23-113
OUTER HALF SHAFT SEAL -
INSTALLATION.......................21-19
OUTER HALF SHAFT SEAL - REMOVAL . . . 21-19
OUTER TIE ROD - INSTALLATION........19-34
OUTER TIE ROD - REMOVAL...........19-34
OUTLET - DESCRIPTION, POWER......8W-97-4
OUTLET - DIAGNOSIS & TESTING,
POWER..........................8W-97-4
OUTLET - INSTALLATION, DEMISTER
.....24-46
OUTLET - INSTALLATION, INSTRUMENT
PANEL
.............................24-46
OUTLET - OPERATION, POWER
.......8W-97-4
OUTLET - REMOVAL, DEMISTER
........24-45
OUTLET - REMOVAL, INSTRUMENT
PANEL
.............................24-45
OUTLETS - DESCRIPTION, AIR
.....24-44,24-56
OUTLETS - INSTALLATION, AIR
.........24-56
OUTLETS - INSTALLATION, CENTER
BEZEL
.............................24-45
OUTLETS - REMOVAL, AIR
.............24-56
OUTLETS - REMOVAL, CENTER BEZEL
....24-44
OUTPUT - DESCRIPTION, SPEED
SENSOR
....................21-241,21s-142
OUTPUT - INSTALLATION, SPEED
SENSOR
....................21-242,21s-143
OUTPUT - OPERATION, 5 VOLT SUPPLY -
PCM
...............................8E-15
RSINDEX23
Description Group-Page Description Group-Page Description Group-Page
