REAR CONTROL PANEL
The rear A/C-heater control centrally mounted in
the headliner allows intermediate seat passengers to
adjust rear air distribution, temperature and blower
motor speed when the center knob on the front A/C-
heater control is set to the Rear position. The rear
A/C-heater control contains:
²a rotary adjustment knob for temperature.
²a rotary adjustment for fan speed control.
DESCRIPTION - AUTOMATIC THREE ZONE
The automatic temperature control (ATC), three
zone, front and rear heating and air conditioning sys-
tem allows both the driver and front occupants and
the rear intermediate occupants to select individual
comfort temperatures.
NOTE: Individual comfort temperatures are the per-
ceived temperature level at the individual seating
areas, NOT the actual passenger compartment air
temperature.
The ATC system includes a particulate air filter.
The filter element is the same size as the air condi-
tioning evaporator to ensure ample capacity. A door
at the base of the HVAC housing below the glove box
provides easy access to the filter element.
The ATC computer utilizes integrated circuitry and
information carried on the programmable communi-
cations interface (PCI) data bus network to monitor
many sensors and switch inputs throughout the vehi-
cle. In response to those inputs, the internal circuitry
and programming of the ATC computer allow it to
control electronic functions and features of the ATC
system. The inputs to the ATC computer are:
²Vehicle Speed/Engine RPM± The ATC com-
puter monitors engine rpm, vehicle speed and mani-
fold absolute pressure information from the
powertrain control module (PCM).
²Coolant Temperature± ATC computer moni-
tors coolant temperature received from the PCM and
converts it to degrees Fahrenheit.
²Ambient Temperature± ATC computer moni-
tors ambient temperature from the compass mini trip
computer (CMTC) and converts it to degrees Fahren-
heit.
²Engine Miscellaneous Sensor Status±ATC
computer monitors A/C disable information from the
PCM.
²Refrigerant Pressure± ATC computer moni-
tors barometric pressure, intake air temperature,
high side pressure and methanol content as broad-
cast by the PCM.
²Door Ajar Status± The ATC computer moni-
tors driver front door, passenger front door, left rear
door, right rear door and liftgate ajar information, asidentified by the body control module (BCM), to
determine if all in-car temperatures should be main-
tained.
²Dimming± The ATC computer monitors dim-
ming status from the BCM to determine the required
level of brightness and will dim accordingly.
²Vehicle Odometer± The ATC computer moni-
tors the vehicle odometer information from the BCM
to prevent flashing the vacuum-flourescent (VF) dig-
ital display icons if the manual motor calibration or
manual cool down tests have failed. Flashing of the
display icons will cease when the vehicle odometer is
greater than 3 miles.
²English/Metric± The ATC computer monitors
the English/Metric information broadcast by the
CMTC. The set temp displays for both the front and
rear control heads will be set accordingly.
²Vehicle Identification Number± The ATC
computer monitors the last eight characters of the
VIN broadcast by the PCM and compares it to the
information stored in EEPROM. If it is different, the
new number will be stored over the old one and a
motor calibration shall be initiated.
²A/C System Information± The ATC computer
will send a message for evaporator temperature too
low, fan blower relay status, evaporator sensor fail-
ure, rear window defogger relay and A/C select.
FRONT CONTROL PANEL
The front A/C-heater control and integral computer
is mounted in the instrument panel and contains:
²a power button which allows the system to be
completely turned off. The display is blank when the
system is off.
²a rocker switch that selects a cool-down rate.
LO-AUTO or HI-AUTO are displayed when the sys-
tem is in automatic operation.
²three rocker switches that select comfort temper-
atures from 15É to 30É C (59É to 85É F), which are
shown in the VF digital display. If the set temp is 15É
C (59É F) and the down button is pressed, the set
temp value will become 13É C (55É F) but the display
will show LO. If the set temp is 29É C (85É F) and the
up button is pressed, the set temp value will become
32É C (90É F) but the display will show HIGH. Tem-
peratures can be displayed in either metric or Fahr-
enheit, which is controlled from the overhead console.
²an air conditioning button that allows the com-
pressor to be turned off. A Snowflake symbol is illu-
minated when air conditioning is on, whether under
manual or automatic control.
²an air recirculation button. A Recirculation sym-
bol appears in the display when the button is
pressed, or when the system exceeds 80 percent cir-
culated air under automatic control due to high air
conditioning demand.
RSHEATING & AIR CONDITIONING24-3
HEATING & AIR CONDITIONING (Continued)

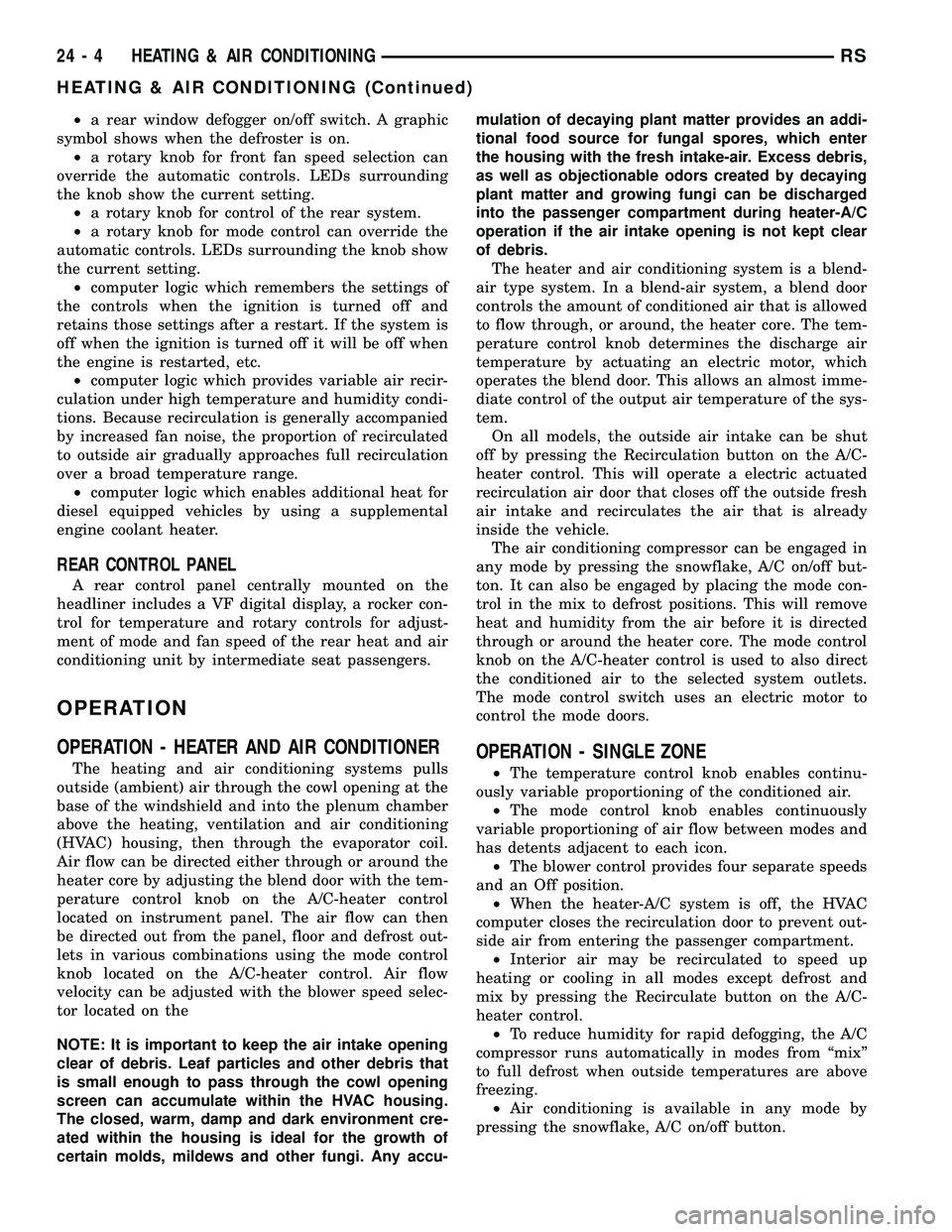

²a rear window defogger on/off switch. A graphic
symbol shows when the defroster is on.
²a rotary knob for front fan speed selection can
override the automatic controls. LEDs surrounding
the knob show the current setting.
²a rotary knob for control of the rear system.
²a rotary knob for mode control can override the
automatic controls. LEDs surrounding the knob show
the current setting.
²computer logic which remembers the settings of
the controls when the ignition is turned off and
retains those settings after a restart. If the system is
off when the ignition is turned off it will be off when
the engine is restarted, etc.
²computer logic which provides variable air recir-
culation under high temperature and humidity condi-
tions. Because recirculation is generally accompanied
by increased fan noise, the proportion of recirculated
to outside air gradually approaches full recirculation
over a broad temperature range.
²computer logic which enables additional heat for
diesel equipped vehicles by using a supplemental
engine coolant heater.
REAR CONTROL PANEL
A rear control panel centrally mounted on the
headliner includes a VF digital display, a rocker con-
trol for temperature and rotary controls for adjust-
ment of mode and fan speed of the rear heat and air
conditioning unit by intermediate seat passengers.
OPERATION
OPERATION - HEATER AND AIR CONDITIONER
The heating and air conditioning systems pulls
outside (ambient) air through the cowl opening at the
base of the windshield and into the plenum chamber
above the heating, ventilation and air conditioning
(HVAC) housing, then through the evaporator coil.
Air flow can be directed either through or around the
heater core by adjusting the blend door with the tem-
perature control knob on the A/C-heater control
located on instrument panel. The air flow can then
be directed out from the panel, floor and defrost out-
lets in various combinations using the mode control
knob located on the A/C-heater control. Air flow
velocity can be adjusted with the blower speed selec-
tor located on the
NOTE: It is important to keep the air intake opening
clear of debris. Leaf particles and other debris that
is small enough to pass through the cowl opening
screen can accumulate within the HVAC housing.
The closed, warm, damp and dark environment cre-
ated within the housing is ideal for the growth of
certain molds, mildews and other fungi. Any accu-mulation of decaying plant matter provides an addi-
tional food source for fungal spores, which enter
the housing with the fresh intake-air. Excess debris,
as well as objectionable odors created by decaying
plant matter and growing fungi can be discharged
into the passenger compartment during heater-A/C
operation if the air intake opening is not kept clear
of debris.
The heater and air conditioning system is a blend-
air type system. In a blend-air system, a blend door
controls the amount of conditioned air that is allowed
to flow through, or around, the heater core. The tem-
perature control knob determines the discharge air
temperature by actuating an electric motor, which
operates the blend door. This allows an almost imme-
diate control of the output air temperature of the sys-
tem.
On all models, the outside air intake can be shut
off by pressing the Recirculation button on the A/C-
heater control. This will operate a electric actuated
recirculation air door that closes off the outside fresh
air intake and recirculates the air that is already
inside the vehicle.
The air conditioning compressor can be engaged in
any mode by pressing the snowflake, A/C on/off but-
ton. It can also be engaged by placing the mode con-
trol in the mix to defrost positions. This will remove
heat and humidity from the air before it is directed
through or around the heater core. The mode control
knob on the A/C-heater control is used to also direct
the conditioned air to the selected system outlets.
The mode control switch uses an electric motor to
control the mode doors.OPERATION - SINGLE ZONE
²The temperature control knob enables continu-
ously variable proportioning of the conditioned air.
²The mode control knob enables continuously
variable proportioning of air flow between modes and
has detents adjacent to each icon.
²The blower control provides four separate speeds
and an Off position.
²When the heater-A/C system is off, the HVAC
computer closes the recirculation door to prevent out-
side air from entering the passenger compartment.
²Interior air may be recirculated to speed up
heating or cooling in all modes except defrost and
mix by pressing the Recirculate button on the A/C-
heater control.
²To reduce humidity for rapid defogging, the A/C
compressor runs automatically in modes from ªmixº
to full defrost when outside temperatures are above
freezing.
²Air conditioning is available in any mode by
pressing the snowflake, A/C on/off button.
24 - 4 HEATING & AIR CONDITIONINGRS
HEATING & AIR CONDITIONING (Continued)

OPERATION - DUAL ZONE
²The two slide controls enable continuously vari-
able proportioning of the conditioned air.
²The mode control knob enables continuously
variable proportioning of air flow between modes and
has detents adjacent to each icon.
²The blower control provides four separate speeds
and an Off position.
²When the heater-A/C system is off, the HVAC
computer closes the recirculation door to prevent out-
side air from entering the passenger compartment.
²Interior air may be recirculated to speed up
heating or cooling in all modes except defrost and
mix by pressing the Recirculate button on the A/C-
heater control.
²To reduce humidity for rapid defogging, the A/C
compressor runs automatically in modes from ªmixº
to full defrost when outside temperatures are above
freezing.
²Air conditioning is available in any mode by
pressing the snowflake, A/C on/off button.
OPERATION - MANUAL THREE ZONE
FRONT CONTROL PANEL
²Primary control of the rear heater-A/C system is
on the instrument panel. This control allows the
driver to set the rear compartment fan speed, to turn
the rear heater-A/C system off, or to give control to
the intermediate seat occupants by switching to the
Rear position. When the rear heater-A/C system is
controlled from the instrument panel, rear air tem-
perature is based on the driver-side temperature con-
trol position, and the mode (floor or overhead air) is
based on the front control's mode position.
²The mode control knob enables continuously
variable proportioning of air flow between modes but
has detents adjacent to each icon.
²The blower control provides four separate speeds
and an Off position. When the heater-A/C system is
off, the HVAC computer closes the recirculation door
to prevent outside air from entering the passenger
compartment.
²Interior air may be recirculated to speed up
heating or cooling in all modes except defrost and
mix by pressing the Recirculate button on the control
panel.
²To reduce humidity for rapid defogging the A/C
compressor runs automatically in modes from ªmix'
to full defrost when outside temperatures are above
freezing.
²Air conditioning is available in any mode by
pressing the snowflake, A/C on/off, button.
REAR CONTROL PANEL
With the rear control active, temperature selection
dictates the air distribution mode (floor or overhead
air) of the rear unit: a cool temperature setting
directs flow to the overhead outlets and a warm tem-
perature setting to the floor.
OPERATION - THREE ZONE ATC
Comfort temperature or perceived temperature is
affected by air flow, sun levels on exposed skin, etc. The
air temperature may be higher or lower than the com-
fort temperature. Two infrared sensors in the instru-
ment panel center stack measure the temperature of
the occupants to determine their comfort level relative
to the selected comfort temperature. The integral
HVAC computer adjusts temperature and air flow rates
to maintain the customer-perceived comfort tempera-
ture. The air temperature in the passenger compart-
ment may be slightly higher or lower than the comfort
temperature at any time. For instance, on sunny sum-
mer days the air flow will probably be cooler than the
comfort temperature; on cold or cloudy days and at
night it will probably be slightly warmer. Infrared
Three-Zone Temperature Control provides side-to-side
and front-to-rear variations in comfort temperature set-
tings. The Infrared Three-Zone Automatic Temperature
Control fan provides a continuously variable air flow
rate to meet occupant comfort requirements.
FRONT CONTROL PANEL
²AUTO HI/LO± This system features two sets of
automatic control logic that allow either a rapid cool-
down rate or a somewhat slower cool-down rate with
less fan noise. HI-AUTO controls the system to reach
its assigned temperature quickly with a higher fan
speed. LO-AUTO controls the system to reach its
assigned temperature somewhat slower with less fan
noise. Both modes will automatically engage auto
recirculation.
²DE-FROST± The defrost function is active
when the rear window defogger function is active or
when the defog/defrost mode is selected.
²RECIRC± The RECIRC button will close the
air inlet door. If the system is in auto recirc (indica-
tor being displayed automatically), pressing the man-
ual recirc button will disable the auto recirc function
until one of the auto keys are pressed or the ignition
is cycled. If Auto HI/LO is pressed while manual
recirc is active, manual recirc will be deactivated.
²REAR WINDOW DEFOGGER± Pushing the
button sends a PCI bus message to the Intelligent
Power Module which controls the Rear Window
Defogger and side view mirror (if equipped) circuitry.
The defogger function will be active for 10 minutes
and can be turned off by a switch press. The defogger
will function while the control is in the ON mode.
RSHEATING & AIR CONDITIONING24-5
HEATING & AIR CONDITIONING (Continued)

²FAN/MODE± The Fan and Mode knobs have
17 manual selectable positions. Manually changing
either of the rotary knobs for mode or fan speed set-
tings makes control of that blowe motor manual. If
only one is changed manually, the other remains
under automatic control. Pressing the HI-AUTO/LO-
AUTO rocker switch restores full automatic control.
²REAR CONTROL± When the Rear System
control knob is moved to the OFF position, there will
be a delay of approximately 1 second before the sys-
tem actually turns off. This delay is to prevent an
undesired blower dropout if the knob is moved
through OFF to the other selections.
²BLOWER DELAY TIMER± The word DELAY
is displayed at start-up to signify that the system is
waiting so that cold air will not be blowing. This tells
the operator that it is unnecessary to turn the sys-
tem off, raise the temperature setting or turn the fan
speed setting down to prevent cold air from blowing.
A countdown in minutes and seconds until the engine
is warm enough to begin delivering heat to the pas-
sengers alternates with the DELAY message at 25
second intervals. This countdown is based on actual
measurement of the rate of engine coolant tempera-
ture change. During the delay time, mix mode is
selected and the fan operates at a low speed to keep
the windshield fog free.
REAR CONTROL PANEL
Primary control of the rear compartment unit is in
the instrument panel center stack. The rear unit con-
trol knob there allows the driver to turn the rear
unit off, allow control by the intermediate seat occu-
pants by switching to the REAR position, or provide
fully automatic control based on the temperature set-
ting shown on the front control display.
²REAR CONTROL± Selecting automatic control
of the rear unit at the instrument panel, illuminates
a Locked Padlock in the rear control panel display.
Selecting REAR activates the rear control panel and
the Padlock then appears unlocked.
²FAN KNOB± The rear fan control has Off and
AUTO positions and a range of manual speed set-
tings that override the AUTO setting.
²MODE KNOB± The mode control allows inter-
mediate seat occupants to manually override the
automatic mode and select any balance of air flow
between overhead and floor outlets from full over-
head to full floor.
²SET TEMP± The rear set temp control will
operate identical to the front controls. If the front
control rear set temp button is pressed simulta-
neously with the rear control head, then the front
control head press events shall have priority, i.e. if
the front user presses Rear Set Temp down and therear user presses Set Temp up, then the rear set
temp will decrease.
DIAGNOSIS AND TESTING
DIAGNOSIS AND TESTING - A/C COOL DOWN
TEST
The heater-A/C control module can perform an A/C
cool down test, which is a test performed during the
manufacturing process to confirm that the air condi-
tioning system is performing satisfactorily. This test
can also provide a quick confirmation of air condi-
tioning system performance to the service technician.
If the test is completed satisfactorily, no further ser-
vice is required. If the test is failed, proceed to the
A/C Performance Test to confirm the A/C system is
operating properly, or use a DRBIIItscan tool to
diagnose the A/C system control and distribution sys-
tems. Refer to the appropriate diagnostic informa-
tion.
MANUAL TEMPERATURE CONTROL
The front blower speed and rear blower speed (if
equipped with rear HVAC) must be set to High and
the evaporator temperature sensor must be greater
than 13É C (55É F) or the test will fail immediately.
The test is activated by depressing the A/C and Rear
Wipe/Wash buttons simultaneously and holding them
depressed for no less than five seconds. The Rear
Wipe/Wash and A/C LEDs will blink on and off until
the test is complete. If the LEDs stop blinking before
two minutes, then the cool down test has been com-
pleted successfully. If the two minutes expire without
the expansion valve temperature reaching -6É C (20É
F) less than the outside air temperature, then the
cool down test has been failed and further A/C sys-
tem diagnosis is required. If the test is failed, the
LEDs will continue to blink until the vehicle has
been driven for greater than 1.6 km (8 miles).
AUTOMATIC TEMPERATURE CONTROL
The ambient air temperature in the room where
the vehicle will be tested must be a minimum of 21É
C (70ÉF) for this test. The test is activated by
depressing the A/C and PWR buttons simultaneously
and holding them depressed for no less than four sec-
onds. The snowflake icon and the DELAY text in the
ATC display will blink on and off alternately until
the test is complete. If the snowflake icon and the
DELAY text stop blinking before two minutes, then
the cool down test has been completed successfully. If
the two minutes expire without the evaporator tem-
perature reaching -6É C (20É F) less than the evapo-
rator initial temperature, then the cool down test has
been failed and further A/C system diagnosis is
24 - 6 HEATING & AIR CONDITIONINGRS
HEATING & AIR CONDITIONING (Continued)

EMISSIONS CONTROL
TABLE OF CONTENTS
page page
EMISSIONS CONTROL
DESCRIPTION
DESCRIPTION - VEHICLE EMISSION
CONTROL INFORMATION LABEL..........1
DESCRIPTION - TRIP DEFINITION.........1
DESCRIPTION - MONITORED COMPONENT . 1
OPERATION - NON-MONITORED CIRCUITS . . 5
DESCRIPTION - MONITORED SYSTEMS....6DESCRIPTION - HIGH AND LOW LIMITS....8
OPERATION
OPERATION - SYSTEM..................9
DRB IIITSTATE DISPLAY TEST MODE......9
EVAPORATIVE EMISSIONS................10
EXHAUST GAS RECIRCULATION...........21
ON-BOARD DIAGNOSTICS................24
EMISSIONS CONTROL
DESCRIPTION
DESCRIPTION - VEHICLE EMISSION CONTROL
INFORMATION LABEL
All models have a Vehicle Emission Control Infor-
mation (VECI) Label. Chrysler permanently attaches
the label in the engine compartment. It cannot be
removed without defacing information and destroying
the label.
The label contains the vehicle's emission specifica-
tions and vacuum hose routings. All hoses must be
connected and routed according to the label.
DESCRIPTION - TRIP DEFINITION
A ªTripº means vehicle operation (following an
engine-off period) of duration and driving mode such
that all components and systems are monitored at
least once by the diagnostic system. The monitors
must successfully pass before the PCM can verify
that a previously malfunctioning component is meet-
ing the normal operating conditions of that compo-
nent. For misfire or fuel system malfunction, the
MIL may be extinguished if the fault does not recur
when monitored during three subsequent sequential
driving cycles in which conditions are similar to
those under which the malfunction was first deter-
mined.
Anytime the MIL is illuminated, a DTC is stored.
The DTC can self erase only after the MIL has been
extinguished. Once the MIL is extinguished, the
PCM must pass the diagnostic test for the most
recent DTC for 40 warm-up cycles (80 warm-up
cycles for the Fuel System Monitor and the Misfire
Monitor). A warm-up cycle can best be described by
the following:
²The engine must be running²A rise of 40ÉF in engine temperature must occur
from the time when the engine was started
²Engine coolant temperature must crossover
160ÉF
²A ªdriving cycleº that consists of engine start up
and engine shut off.
Once the above conditions occur, the PCM is con-
sidered to have passed a warm-up cycle. Due to the
conditions required to extinguish the MIL and erase
the DTC, it is most important that after a repair has
been made, all DTC's be erased and the repair veri-
fied by running 1±good trip.
DESCRIPTION - MONITORED COMPONENT
There are several components that will affect vehi-
cle emissions if they malfunction. If one of these com-
ponents malfunctions the Malfunction Indicator
Lamp (Check Engine) will illuminate.
Some of the component monitors are checking for
proper operation of the part. Electrically operated
components now have input (rationality) and output
(functionality) checks. Previously, a component like
the Throttle Position sensor (TPS) was checked by
the PCM for an open or shorted circuit. If one of
these conditions occurred, a DTC was set. Now there
is a check to ensure that the component is working.
This is done by watching for a TPS indication of a
greater or lesser throttle opening than MAP and
engine rpm indicate. In the case of the TPS, if engine
vacuum is low and engine rpm is 1600 or greater and
the TPS indicates a small throttle opening, a DTC
will be set.
Any component that has an associated limp in will
set a fault after 1 trip with the malfunction present.
Refer to the Diagnostic Trouble Codes Description
Charts (Refer to 8 - ELECTRICAL/ELECTRONIC
CONTROL MODULES/POWERTRAIN CONTROL
MODULE - DESCRIPTION) and the appropriate
Powertrain Diagnostic Procedure Manual for diag-
nostic procedures.
RSEMISSIONS CONTROL25-1

OPERATION
OPERATION - SYSTEM
The Powertrain Control Module (PCM) monitors
many different circuits in the fuel injection, ignition,
emission and engine systems. If the PCM senses a
problem with a monitored circuit often enough to
indicate an actual problem, it stores a Diagnostic
Trouble Code (DTC) in the PCM's memory. If the
code applies to a non-emissions related component or
system, and the problem is repaired or ceases to
exist, the PCM cancels the code after 40 warmup
cycles. Diagnostic trouble codes that affect vehicle
emissions illuminate the Malfunction Indicator Lamp
(MIL). Refer to Malfunction Indicator Lamp in this
section.
Certain criteria must be met before the PCM
stores a DTC in memory. The criteria may be a spe-
cific range of engine RPM, engine temperature,
and/or input voltage to the PCM.
The PCM might not store a DTC for a monitored
circuit even though a malfunction has occurred. This
may happen because one of the DTC criteria for the
circuit has not been met.For example, assume the
diagnostic trouble code criteria requires the PCM to
monitor the circuit only when the engine operates
between 750 and 2000 RPM. Suppose the sensor's
output circuit shorts to ground when engine operates
above 2400 RPM (resulting in 0 volt input to the
PCM). Because the condition happens at an engine
speed above the maximum threshold (2000 rpm), the
PCM will not store a DTC.
There are several operating conditions for which
the PCM monitors and sets DTC's. Refer to Moni-
tored Systems, Components, and Non-Monitored Cir-
cuits in this section.
NOTE: Various diagnostic procedures may actually
cause a diagnostic monitor to set a DTC. For
instance, pulling a spark plug wire to perform a
spark test may set the misfire code. When a repair
is completed and verified, use the DRBIIITscan tool
to erase all DTC's and extinguish the MIL.Technicians can display stored DTC's. Refer to
Diagnostic Trouble Codes (Refer to 8 - ELECTRICAL/
ELECTRONIC CONTROL MODULES/POWER-
TRAIN CONTROL MODULE - DESCRIPTION). For
obtaining the DTC information, use the Data Link
Connector with the DRBIIItscan tool (Fig. 1).
DRB IIITSTATE DISPLAY TEST MODE
OPERATION
The switch inputs to the Powertrain Control Mod-
ule (PCM) have two recognized states; HIGH and
LOW. For this reason, the PCM cannot recognize the
difference between a selected switch position versus
an open circuit, a short circuit, or a defective switch.
If the State Display screen shows the change from
HIGH to LOW or LOW to HIGH, assume the entire
switch circuit to the PCM functions properly. From
the state display screen, access either State Display
Inputs and Outputs or State Display Sensors.
Fig. 1 Data Link Connector
RSEMISSIONS CONTROL25-9
EMISSIONS CONTROL (Continued)

The Task Manager Screen shows both a Requested
MIL state and an Actual MIL state. When the MIL is
illuminated upon completion of a test for a good trip,
the Requested MIL state changes to OFF. However,
the MIL remains illuminated until the next key
cycle. (On some vehicles, the MIL will actually turn
OFF during the thirdgood trip) During the key cycle
for the third good trip, the Requested MIL state is
OFF, while the Actual MIL state is ON. After the
next key cycle, the MIL is not illuminated and both
MIL states read OFF.
Diagnostic Trouble Codes (DTCs)
With OBD II, different DTC faults have different
priorities according to regulations. As a result, the
priorities determine MIL illumination and DTC era-
sure. DTCs are entered according to individual prior-
ity. DTCs with a higher priority overwrite lower
priority DTCs.
Priorities
²Priority 0 ÐNon-emissions related trouble codes.
²Priority 1 Ð One trip failure of a two trip fault
for non-fuel system and non-misfire. (MIL Off)
²Priority 2 Ð One trip failure of a two trip fault
for fuel system (rich/lean) or misfire. (MIL Off)
²Priority3ÐTwotrip failure for a non-fuel sys-
tem and non-misfire or matured one trip comprehen-
sive component fault. (MIL On)
²Priority4ÐTwotrip failure or matured fault
for fuel system (rich/lean) and misfire or one trip cat-
alyst damaging misfire. Catalyst damage misfire is a
2 trip MIL. The MIL flashes on the first trip when
catalyst damage misfire levels are present. (MIL On)
Non-emissions related failures have no priority.
One trip failures of two trip faults have low priority.
Two trip failures or matured faults have higher pri-
ority. One and two trip failures of fuel system and
misfire monitor take precedence over non-fuel system
and non-misfire failures.
DTC Self Erasure
With one trip components or systems, the MIL is
illuminated upon test failure and DTCs are stored.
Two trip monitors are components requiring failure
in two consecutive trips for MIL illumination. Upon
failure of the first test, the Task Manager enters a
maturing code. If the component fails the test for a
second time the code matures and a DTC is set.
After three good trips the MIL is extinguished and
the Task Manager automatically switches the trip
counter to a warm-up cycle counter. DTCs are auto-
matically erased following 40 warm-up cycles if the
component does not fail again.
For misfire and fuel system monitors, the compo-
nent must pass the test under a Similar Conditions
Window in order to record a good trip. A Similar Con-ditions Window is when engine RPM is within  375
RPM and load is within  20% of when the fault
occurred.
NOTE: It is important to understand that a compo-
nent does not have to fail under a similar window of
operation to mature. It must pass the test under a
Similar Conditions Window when it failed to record
a Good Trip for DTC erasure for misfire and fuel
system monitors.
DTCs can be erased anytime with a DRBIIIt.
Erasing the DTC with the DRBIIIterases all OBD II
information. The DRBIIItautomatically displays a
warning that erasing the DTC will also erase all
OBD II monitor data. This includes all counter infor-
mation for warm-up cycles, trips and Freeze Frame.
Trip Indicator
TheTripis essential for running monitors and
extinguishing the MIL. In OBD II terms, a trip is a
set of vehicle operating conditions that must be met
for a specific monitor to run. All trips begin with a
key cycle.
Good Trip
The Good Trip counters are as follows:
²Global Good Trip
²Fuel System Good Trip
²Misfire Good Trip
²Alternate Good Trip (appears as a Global Good
Trip on DRBIIIt)
²Comprehensive Components
²Major Monitor
²Warm-Up Cycles
Global Good Trip
To increment a Global Good Trip, the Oxygen sen-
sor and Catalyst efficiency monitors must have run
and passed, and 2 minutes of engine run time.
Fuel System Good Trip
To count a good trip (three required) and turn off
the MIL, the following conditions must occur:
²Engine in closed loop
²Operating in Similar Conditions Window
²Short Term multiplied by Long Term less than
threshold
²Less than threshold for a predetermined time
If all of the previous criteria are met, the PCM will
count a good trip (three required) and turn off the
MIL.
Misfire Good Trip
If the following conditions are met the PCM will
count one good trip (three required) in order to turn
off the MIL:
²Operating in Similar Condition Window
²1000 engine revolutions with no misfire
RSON-BOARD DIAGNOSTICS25-25
TASK MANAGER (Continued)

Alternate Good Trip
Alternate Good Trips are used in place of Global
Good Trips for Comprehensive Components and
Major Monitors. If the Task Manager cannot run a
Global Good Trip because a component fault is stop-
ping the monitor from running, it will attempt to
count an Alternate Good Trip.
The Task Manager counts an Alternate Good Trip
for Comprehensive components when the following
conditions are met:
²Two minutes of engine run time, idle or driving
²No other faults occur
The Task Manager counts an Alternate Good Trip
for a Major Monitor when the monitor runs and
passes. Only the Major Monitor that failed needs to
pass to count an Alternate Good Trip.
Warm-Up Cycles
Once the MIL has been extinguished by the Good
Trip Counter, the PCM automatically switches to a
Warm-Up Cycle Counter that can be viewed on the
DRBIIIt. Warm-Up Cycles are used to erase DTCs
and Freeze Frames. Forty Warm-Up cycles must
occur in order for the PCM to self-erase a DTC and
Freeze Frame. A Warm-Up Cycle is defined as fol-
lows:
²Engine coolant temperature must start below
and rise above 160É F
²Engine coolant temperature must rise by 40É F
²No further faults occur
Freeze Frame Data Storage
Once a failure occurs, the Task Manager records
several engine operating conditions and stores it in a
Freeze Frame. The Freeze Frame is considered one
frame of information taken by an on-board data
recorder. When a fault occurs, the PCM stores the
input data from various sensors so that technicians
can determine under what vehicle operating condi-
tions the failure occurred.
The data stored in Freeze Frame is usually
recorded when a system fails the first time for two
trip faults. Freeze Frame data will only be overwrit-
ten by a different fault with a higher priority.
CAUTION: Erasing DTCs, either with the DRBIIIT;or
by disconnecting the battery, also clears all Freeze
Frame data.
Similar Conditions Window
The Similar Conditions Window displays informa-
tion about engine operation during a monitor. Abso-
lute MAP (engine load) and Engine RPM are stored
in this window when a failure occurs. There are two
different Similar conditions Windows: Fuel System
and Misfire.FUEL SYSTEM
²Fuel System Similar Conditions WindowÐ
An indicator that 'Absolute MAP When Fuel Sys Fail'
and 'RPM When Fuel Sys Failed' are all in the same
range when the failure occurred. Indicated by switch-
ing from 'NO' to 'YES'.
²Absolute MAP When Fuel Sys FailÐ The
stored MAP reading at the time of failure. Informs
the user at what engine load the failure occurred.
²Absolute MAPÐ A live reading of engine load
to aid the user in accessing the Similar Conditions
Window.
²RPM When Fuel Sys FailÐ The stored RPM
reading at the time of failure. Informs the user at
what engine RPM the failure occurred.
²Engine RPMÐ A live reading of engine RPM
to aid the user in accessing the Similar Conditions
Window.
²Adaptive Memory FactorÐ The PCM utilizes
both Short Term Compensation and Long Term Adap-
tive to calculate the Adaptive Memory Factor for
total fuel correction.
²Upstream O2S VoltsÐ A live reading of the
Oxygen Sensor to indicate its performance. For
example, stuck lean, stuck rich, etc.
²SCW Time in Window (Similar Conditions
Window Time in Window)Ð A timer used by the
PCM that indicates that, after all Similar Conditions
have been met, if there has been enough good engine
running time in the SCW without failure detected.
This timer is used to increment a Good Trip.
²Fuel System Good Trip CounterÐATrip
Counter used to turn OFF the MIL for Fuel System
DTCs. To increment a Fuel System Good Trip, the
engine must be in the Similar Conditions Window,
Adaptive Memory Factor must be less than cali-
brated threshold and the Adaptive Memory Factor
must stay below that threshold for a calibrated
amount of time.
²Test Done This TripÐ Indicates that the
monitor has already been run and completed during
the current trip.
MISFIRE
²Same Misfire Warm-Up StateÐ Indicates if
the misfire occurred when the engine was warmed up
(above 160É F).
²In Similar Misfire WindowÐ An indicator
that 'Absolute MAP When Misfire Occurred' and
'RPM When Misfire Occurred' are all in the same
range when the failure occurred. Indicated by switch-
ing from 'NO' to 'YES'.
²Absolute MAP When Misfire OccurredÐ
The stored MAP reading at the time of failure.
Informs the user at what engine load the failure
occurred.
25 - 26 ON-BOARD DIAGNOSTICSRS
TASK MANAGER (Continued)

DISC BRAKE CALIPER GUIDE PINS (TRW
BRAKES) - INSTALLATION..............5s-30
DISC BRAKE CALIPER GUIDE PINS (TRW
BRAKES) - REMOVAL.................5s-30
DISC BRAKE CALIPER (TRW BRAKES) -
INSTALLATION, FRONT................5s-26
DISC BRAKE CALIPER (TRW BRAKES) -
REMOVAL, FRONT....................5s-23
DISC BRAKE SHOES - CLEANING....5-16,5-18,
5s-15,5s-17
DISC BRAKE SHOES - INSPECTION . . . 5-16,5-18,
5s-15,5s-17
DISC BRAKE SHOES - INSTALLATION,
REAR..........................5-19,5s-18
DISC BRAKE SHOES - REMOVAL, REAR . . . 5-17,
5s-16
DISC BRAKE SHOES (CONTINENTAL
TEVES BRAKES) - INSTALLATION,
FRONT.............................5s-15
DISC BRAKE SHOES (CONTINENTAL
TEVES BRAKES) - REMOVAL, FRONT.....5s-14
DISC BRAKE SHOES (DISC/DISC
BRAKES) - INSTALLATION, FRONT........5-16
DISC BRAKE SHOES (DISC/DISC
BRAKES) - REMOVAL, FRONT............5-14
DISC BRAKE SHOES (DISC/DRUM
BRAKES) - INSTALLATION, FRONT........5-17
DISC BRAKE SHOES (DISC/DRUM
BRAKES) - REMOVAL, FRONT............5-15
DISC BRAKE SHOES (TRW BRAKES) -
INSTALLATION, FRONT................5s-16
DISC BRAKE SHOES (TRW BRAKES) -
REMOVAL, FRONT....................5s-14
DISC BRAKES (EXPORT) - DESCRIPTION....5-13,
5s-12
DISC BRAKES (FRONT) - DESCRIPTION . . . 5-11,
5s-10
DISC BRAKES (FRONT) - OPERATION . 5-13,5s-12
DISC BRAKES (REAR) - DESCRIPTION....5-12,
5s-12
DISC BRAKES (REAR) - OPERATION . . 5-13,5s-13
DISC RUNOUT - DIAGNOSIS AND
TESTING, CLUTCH COVER...............6-6
DISCHARGE (ESD) SENSITIVE DEVICES -
STANDARD PROCEDURE,
ELECTROSTATIC...................8W-01-8
DISCHARGE LINE - INSTALLATION, A/C . . . 24-80
DISCHARGE LINE - REMOVAL, A/C.......24-79
DISPLAY TEST MODE, OPERATION - DRB
IIITSTATE ...........................25-9
DISSASEMBLY, REMOVAL..............24-51
DISTRIBUTION DUCT - INSTALLATION....24-57
DISTRIBUTION DUCT - REMOVAL........24-57
DISTRIBUTION DUCTS - INSTALLATION,
FLOOR.............................24-50
DISTRIBUTION DUCTS - REMOVAL,
FLOOR.............................24-50
DISTRIBUTION SYSTEM - DESCRIPTION,
POWER..........................8W-97-1
DISTRIBUTION SYSTEM - OPERATION,
POWER..........................8W-97-1
DISTRIBUTION SYSTEMS, SPECIAL
TOOLS - POWER...................8W-97-1
DOES NOT FILL - DIAGNOSIS AND
TESTING, VEHICLE...................25-16
DOME/CARGO LAMP - INSTALLATION....8L-22
DOME/CARGO LAMP - REMOVAL........8L-22
DOOR - INSTALLATION................23-16
DOOR - INSTALLATION, FUEL FILL.......23-52
DOOR - INSTALLATION, SLIDING........23-30
DOOR - REMOVAL....................23-15
DOOR - REMOVAL, FUEL FILL..........23-52
DOOR - REMOVAL, SLIDING............23-29
DOOR ACTUATOR - DESCRIPTION,
BLEND........................24-23,24-35
DOOR ACTUATOR - DESCRIPTION,
MODE.............................24-30
DOOR ACTUATOR - DESCRIPTION,
RECIRCULATION.....................24-32
DOOR ACTUATOR - INSTALLATION,
BLEND
........................24-23,24-36
DOOR ACTUATOR - INSTALLATION,
MODE
.............................24-31
DOOR ACTUATOR - INSTALLATION,
RECIRCULATION
.....................24-33
DOOR ACTUATOR - OPERATION, BLEND
. . 24-23,
24-35
DOOR ACTUATOR - OPERATION, MODE
. . . 24-30DOOR ACTUATOR - OPERATION,
RECIRCULATION.....................24-32
DOOR ACTUATOR - REAR -
DESCRIPTION, MODE.................24-39
DOOR ACTUATOR - REAR -
INSTALLATION, MODE.................24-40
DOOR ACTUATOR - REAR - OPERATION,
MODE.............................24-40
DOOR ACTUATOR - REAR - REMOVAL,
MODE.............................24-40
DOOR ACTUATOR - REMOVAL, BLEND . . . 24-23,
24-36
DOOR ACTUATOR - REMOVAL, MODE....24-30
DOOR ACTUATOR - REMOVAL,
RECIRCULATION.....................24-33
DOOR ADJUSTMENT - STANDARD
PROCEDURE, SLIDING................8N-28
DOOR ADJUSTMENTS, ADJUSTMENTS -
SLIDING............................23-30
DOOR BLOCKER LATCH - INSTALLATION,
FUEL FILL..........................23-53
DOOR BLOCKER LATCH - REMOVAL,
FUEL FILL..........................23-53
DOOR BLOCKER LATCH STRIKER -
INSTALLATION, FUEL FILL.............23-53
DOOR BLOCKER LATCH STRIKER -
REMOVAL, FUEL FILL.................23-53
DOOR BLOCKER LOCKOUT LINK -
INSTALLATION, FUEL FILL.............23-54
DOOR BLOCKER LOCKOUT LINK -
REMOVAL, FUEL FILL.................23-53
DOOR CONTROL MODULE -
DESCRIPTION, SLIDING...............8E-19
DOOR CONTROL MODULE -
INSTALLATION, SLIDING...............8E-20
DOOR CONTROL MODULE - OPERATION,
SLIDING............................8E-19
DOOR CONTROL MODULE - REMOVAL,
SLIDING............................8E-19
DOOR CYLINDER LOCK SWITCH -
DESCRIPTION.......................8N-40
DOOR CYLINDER LOCK SWITCH -
DIAGNOSIS AND TESTING.............8N-40
DOOR CYLINDER LOCK SWITCH -
EXPORT - DESCRIPTION................8N-3
DOOR CYLINDER LOCK SWITCH -
EXPORT - DIAGNOSIS AND TESTING......8N-3
DOOR CYLINDER LOCK SWITCH -
EXPORT - INSTALLATION...............8N-4
DOOR CYLINDER LOCK SWITCH -
EXPORT - OPERATION.................8N-3
DOOR CYLINDER LOCK SWITCH -
EXPORT - REMOVAL...................8N-3
DOOR CYLINDER LOCK SWITCH -
INSTALLATION......................8N-41
DOOR CYLINDER LOCK SWITCH -
OPERATION.........................8N-40
DOOR CYLINDER LOCK SWITCH -
REMOVAL..........................8N-41
DOOR GLASS - INSTALLATION..........23-17
DOOR GLASS - INSTALLATION, REAR . . . 23-111
DOOR GLASS - INSTALLATION, SLIDING . 23-110
DOOR GLASS - REMOVAL.............23-17
DOOR GLASS - REMOVAL, REAR.......23-111
DOOR GLASS - REMOVAL, SLIDING.....23-110
DOOR GLASS RUN WEATHERSTRIP -
INSTALLATION, FRONT...............23-113
DOOR GLASS RUN WEATHERSTRIP -
REMOVAL, FRONT...................23-113
DOOR INNER BELT MOLDING -
INSTALLATION, FRONT...............23-115
DOOR INNER BELT MOLDING -
REMOVAL, FRONT...................23-115
DOOR LEARN CYCLE - STANDARD
PROCEDURE, POWER.................8N-28
DOOR LOCK MOTOR - DIAGNOSIS AND
TESTING.......................8N-4,8N-41
DOOR LOCK MOTOR - INSTALLATION,
SLIDING.......................8N-44,8N-6
DOOR LOCK MOTOR - REMOVAL,
SLIDING.......................8N-44,8N-6
DOOR LOCK SWITCH - DIAGNOSIS AND
TESTING
.......................8N-4,8N-41
DOOR LOCK SWITCH - INSTALLATION
....8N-4,
8N-42
DOOR LOCK SWITCH - REMOVAL
. . . 8N-4,8N-42
DOOR MOTOR - DESCRIPTION, SLIDING
. . 8N-30
DOOR MOTOR - INSTALLATION, SLIDING
. 8N-31DOOR MOTOR - OPERATION, SLIDING . . . 8N-30
DOOR MOTOR - REMOVAL, SLIDING.....8N-30
DOOR OUTER BELT MOLDING -
INSTALLATION, FRONT...............23-113
DOOR OUTER BELT MOLDING -
REMOVAL, FRONT...................23-113
DOOR SILL PLATE - INSTALLATION,
SLIDING............................23-82
DOOR SILL PLATE - REMOVAL, SLIDING . . 23-82
DOOR SILL TRIM PLATE -
INSTALLATION.......................23-77
DOOR SILL TRIM PLATE - REMOVAL.....23-77
DOOR STOP BUMPER BEZEL -
INSTALLATION, SLIDING...............23-25
DOOR STOP BUMPER BEZEL -
REMOVAL, SLIDING..................23-25
DOOR SYSTEM - DESCRIPTION, POWER
SLIDING...........................8N-19
DOOR SYSTEM - DIAGNOSIS AND
TESTING, POWER SLIDING.............8N-22
DOOR SYSTEM - OPERATION, POWER
SLIDING...........................8N-21
DOOR WEATHERSTRIP - INSTALLATION,
FRONT............................23-114
DOOR WEATHERSTRIP - INSTALLATION,
SLIDING...........................23-115
DOOR WEATHERSTRIP - REMOVAL,
FRONT............................23-114
DOOR WEATHERSTRIP - REMOVAL,
SLIDING...........................23-115
DOSING PUMP - DESCRIPTION, FUEL . . . 24-115
DOSING PUMP - INSTALLATION, FUEL....24-116
DOSING PUMP - OPERATION, FUEL.....24-115
DOSING PUMP - REMOVAL, FUEL......24-115
DOWNSTREAM 1/2 - 2.4/3.3/3.8L -
REMOVAL..........................14-34
DOWNSTREAM 2/1, 2.4/3.3/3.8L -
INSTALLATION.......................14-34
D-PILLAR TRIM PANEL - INSTALLATION,
LEFT..............................23-78
D-PILLAR TRIM PANEL - INSTALLATION,
RIGHT.............................23-82
D-PILLAR TRIM PANEL - REMOVAL,
LEFT..............................23-78
D-PILLAR TRIM PANEL - REMOVAL,
RIGHT.............................23-81
DRAIN AND FILL - STANDARD
PROCEDURE, FLUID..................21-71
DRAIN TUBE - INSTALLATION..........23-120
DRAIN TUBE - REMOVAL.............23-119
DRAINCOCK - INSTALLATION, RADIATOR . . . 7-26
DRAINCOCK - REMOVAL, RADIATOR......7-26
DRAINING - STANDARD PROCEDURE,
COOLING SYSTEM.....................7-4
DRAINING FUEL TANK - STANDARD
PROCEDURE.........................14-2
DRAW TEST - STANDARD PROCEDURE,
IGNITION-OFF.......................8F-13
DRB IIITSTATE DISPLAY TEST MODE,
OPERATION..........................25-9
DRIER - DESCRIPTION, RECEIVER.......24-91
DRIER - INSTALLATION, RECEIVER......24-92
DRIER - OPERATION, RECEIVER.........24-91
DRIER - REMOVAL, RECEIVER..........24-91
DRIVE - ASSEMBLY, FINAL......21-195,21s-99
DRIVE - DESCRIPTION, FINAL..........21s-95
DRIVE - DESCRIPTION, FLEX...........8N-36
DRIVE - DISASSEMBLY, FINAL . . . 21-190,21s-96
DRIVE - INSTALLATION, FLEX..........8N-37
DRIVE - OPERATION, FINAL...........21s-96
DRIVE - OPERATION, FLEX.............8N-36
DRIVE - REMOVAL, FLEX..............8N-37
DRIVE BELT - DIAGNOSIS AND TESTING,
ACCESSORY..........................7-7
DRIVE BELT TENSION, SPECIFICATIONS -
ACCESSORY..........................7-5
DRIVE BELTS - 2.4L - ADJUSTMENTS.....7-10
DRIVE BELTS - 2.4L - CLEANING..........7-9
DRIVE BELTS - 2.4L - INSPECTION........7-9
DRIVE BELTS - 2.4L - INSTALLATION......7-10
DRIVE BELTS - 2.4L - REMOVAL..........7-8
DRIVE BELTS - 3.3/3.8L - CLEANING......7-11
DRIVE BELTS - 3.3/3.8L - INSPECTION
....7-11
DRIVE BELTS - 3.3/3.8L - INSTALLATION
. . . 7-12
DRIVE BELTS - 3.3/3.8L - REMOVAL
......7-11
DRIVE PLATE MISALIGNMENT -
DIAGNOSIS AND TESTING
...............6-6
DRIVE UNIT - DESCRIPTION, LOWER
....8N-32
RSINDEX11
Description Group-Page Description Group-Page Description Group-Page

HEATED SEAT SWITCH - INSTALLATION,
DRIVER............................8G-10
HEATED SEAT SWITCH - INSTALLATION,
PASSENGER........................8G-14
HEATED SEAT SWITCH - OPERATION,
DRIVER.............................8G-8
HEATED SEAT SWITCH - OPERATION,
PASSENGER........................8G-12
HEATED SEAT SWITCH - REMOVAL,
DRIVER............................8G-10
HEATED SEAT SWITCH - REMOVAL,
PASSENGER........................8G-14
HEATED SEAT SYSTEM - DESCRIPTION....8G-7
HEATED SEAT SYSTEM - DIAGNOSIS
AND TESTING........................8G-8
HEATED SEAT SYSTEM - OPERATION.....8G-8
HEATER - DESCRIPTION, CABIN........24-112
HEATER - DESCRIPTION, ENGINE BLOCK . . . 7-20
HEATER - DIAGNOSIS AND TESTING,
DIESEL SUPPLEMENTAL CABIN........24-113
HEATER - INSTALLATION, ENGINE
BLOCK..............................7-20
HEATER - OPERATION, ENGINE BLOCK....7-20
HEATER - REMOVAL, ENGINE BLOCK......7-20
HEATER AND AIR CONDITIONER -
DESCRIPTION........................24-1
HEATER AND AIR CONDITIONER -
OPERATION..........................24-4
HEATER CONTROL - DESCRIPTION, A/C . . . 24-20
HEATER CONTROL - INSTALLATION, A/C . . 24-21
HEATER CONTROL - REMOVAL, A/C.......24-21
HEATER CORE - DESCRIPTION....24-101,24-83
HEATER CORE - INSTALLATION . . . 24-103,24-85
HEATER CORE - OPERATION......24-101,24-83
HEATER CORE - REMOVAL.......24-102,24-84
HEATER CORE FILLING - STANDARD
PROCEDURE, REAR..................24-101
HEATER CORE TUBES - INSTALLATION . . . 24-85
HEATER CORE TUBES - REMOVAL.......24-83
HEATER HOSES - INSTALLATION.......24-104
HEATER HOSES - REMOVAL...........24-103
HEATER INLET HOSE - INSTALLATION....24-86
HEATER INLET HOSE - REMOVAL........24-85
HEATER LINES - INSTALLATION, REAR . . 24-111
HEATER PERFORMANCE TEST -
DIAGNOSIS AND TESTING.............24-10
HEATER RETURN HOSE - INSTALLATION . . 24-87
HEATER RETURN HOSE - REMOVAL......24-86
HEATER TESTING - DIAGNOSIS AND
TESTING, ENGINE BLOCK...............7-20
HEATER TUBES - REMOVAL,
UNDERBODY.......................24-109
HEATER UNIT - INSTALLATION.........24-119
HEATER UNIT - REMOVAL.............24-118
HEATER WIRING - INSTALLATION,
SUPPLEMENTAL DIESEL..............24-119
HEATER WIRING - REMOVAL,
SUPPLEMENTAL DIESEL..............24-119
HEAVY DUTY, CARGO - INSTALLATION,
AWD ...............................2-36
HEAVY DUTY, CARGO - REMOVAL, AWD . . . 2-36
HEIGHT ADJUSTER-BORC-PILLAR -
INSTALLATION, SEAT BELT.............8O-13
HEIGHT ADJUSTER-BORC-PILLAR -
REMOVAL, SEAT BELT................8O-13
HEIGHT ADJUSTER KNOB -
INSTALLATION, SEAT BELT.............8O-14
HEIGHT ADJUSTER KNOB - REMOVAL,
SEAT BELT .........................8O-14
HEIGHT MEASUREMENT - STANDARD
PROCEDURE, CURB...................2-55
HIGH AND LOW LIMITS - DESCRIPTION . . . 25-8
HIGH MOUNTED STOP LAMP -
INSTALLATION, CENTER................8L-6
HIGH MOUNTED STOP LAMP -
REMOVAL, CENTER....................8L-6
HIGH MOUNTED STOP LAMP UNIT -
INSTALLATION, CENTER................8L-6
HIGH MOUNTED STOP LAMP UNIT -
REMOVAL, CENTER....................8L-6
HIGH PRESSURE RELIEF VALVE -
DESCRIPTION
.......................24-73
HIGH PRESSURE RELIEF VALVE -
OPERATION
.........................24-73
HIGH SPEED OPERATION - STANDARD
PROCEDURE, TIRE PRESSURE
.....22-17,22s-9
HINGE - INSTALLATION
......23-18,23-40,23-60
HINGE - INSTALLATION, CENTER
........23-24HINGE - INSTALLATION, LOWER........23-28
HINGE - INSTALLATION, UPPER.........23-36
HINGE - REMOVAL.........23-17,23-40,23-60
HINGE - REMOVAL, BENCH SEAT BACK . . 23-102
HINGE - REMOVAL, CENTER............23-24
HINGE - REMOVAL, LOWER............23-28
HINGE - REMOVAL, UPPER.............23-36
HINGE COVERS - QUAD BUCKET, 50/50
SPLIT, BENCH - INSTALLATION, SEAT
BACK.............................23-101
HINGE COVERS - QUAD BUCKET, 50/50
SPLIT, BENCH - REMOVAL, SEAT BACK . . 23-101
HOISTING - STANDARD PROCEDURE......0-27
HOLD OPEN LATCH - INSTALLATION.....23-25
HOLD OPEN LATCH - REMOVAL.........23-25
HOLD OPEN LATCH CABLE -
INSTALLATION.......................23-38
HOLD OPEN LATCH CABLE - REMOVAL . . . 23-38
HOLD OPEN LATCH STRIKER -
INSTALLATION.......................23-26
HOLD OPEN LATCH STRIKER -
REMOVAL..........................23-26
HOLDDOWN - DESCRIPTION, BATTERY . . . 8F-15
HOLDDOWN - INSTALLATION, BATTERY . . . 8F-16
HOLDDOWN - OPERATION, BATTERY.....8F-15
HOLDDOWN - REMOVAL, BATTERY . 8F-15,8F-16
HOLDER - INSTALLATION, CUP.........23-64
HOLDER - REMOVAL, CUP.............23-64
HOLDING CLUTCHES - DESCRIPTION . . . 21-207,
21s-106
HOLDING CLUTCHES - OPERATION.....21-207,
21s-106
HOLE REPAIR - DESCRIPTION,
THREADED........................Intro.-5
HONING - STANDARD PROCEDURE,
CYLINDER BORE.................9-112,9-35
HOOD - INSTALLATION................23-61
HOOD - REMOVAL....................23-60
HOOD AJAR SWITCH - EXPORT -
INSTALLATION.......................8Q-3
HOOD AJAR SWITCH - EXPORT -
REMOVAL...........................8Q-3
HORN - DIAGNOSIS AND TESTING.......8H-3
HORN - INSTALLATION.................8H-5
HORN - REMOVAL....................8H-4
HORN CHIRP PREFERENCE - STANDARD
PROCEDURE....................8N-42,8N-5
HORN SWITCH - DESCRIPTION..........8H-5
HORN SYSTEM - DESCRIPTION..........8H-1
HORN SYSTEM - DIAGNOSIS AND
TESTING............................8H-1
HORN SYSTEM - OPERATION............8H-1
HOSE - INSTALLATION, HEATER INLET....24-86
HOSE - INSTALLATION, HEATER RETURN . 24-87
HOSE - REMOVAL, HEATER INLET.......24-85
HOSE - REMOVAL, HEATER RETURN.....24-86
HOSE CLAMPS - DESCRIPTION...........7-1
HOSE CLAMPS - OPERATION.............7-2
HOSES - DESCRIPTION, BRAKE TUBES....5-14,
5s-13
HOSES - INSPECTION, BRAKE TUBES.....5-14,
5s-13
HOSES - INSTALLATION, HEATER.......24-104
HOSES - INSTALLATION, WASHER.......8R-13
HOSES - OPERATION, BRAKE TUBES . 5-14,5s-13
HOSES - REMOVAL, HEATER..........24-103
HOSES - REMOVAL, WASHER..........8R-13
HOSES AND CLAMP - STANDARD
PROCEDURE.........................14-7
HOUSING - INSTALLATION, AIR
CLEANER........................9-24,9-99
HOUSING - INSTALLATION, HVAC........24-61
HOUSING - INSTALLATION, LOCK
CYLINDER..........................19-19
HOUSING - REMOVAL, AIR CLEANER . . 9-24,9-99
HOUSING - REMOVAL, HVAC...........24-60
HOUSING - REMOVAL, LOCK CYLINDER . . 19-17
HOUSING FLUID CHANGE - STANDARD
PROCEDURE, OVERRUNNING CLUTCH.....3-41
HOUSING FLUID LEAKAGE - DIAGNOSIS
AND TESTING, TORQUE CONVERTER . . . 21-123,
21s-31
HOW TO USE WIRING DIAGRAMS -
DESCRIPTION
.....................8W-01-1
HUB / BEARING - DESCRIPTION
.......2-30,2-4
HUB / BEARING - INSTALLATION
......2-33,2-6
HUB / BEARING - OPERATION
........2-30,2-4
HUB / BEARING - REMOVAL
..........2-31,2-5HUB AND BEARING - DIAGNOSIS AND
TESTING.........................2-31,2-5
HVAC - LWB - INSTALLATION, SEAT
BELT & RETRACTOR - SECOND ROW -
RIGHT OUTBOARD WITH REAR.........8O-16
HVAC - LWB - REMOVAL, SEAT BELT &
RETRACTOR - SECOND ROW - RIGHT
OUTBOARD WITH REAR...............8O-16
HVAC HOUSING - INSTALLATION........24-61
HVAC HOUSING - REMOVAL............24-60
HVAC LOUVER - INSTALLATION, REAR . . . 23-81
HVAC LOUVER - REMOVAL, REAR.......23-81
HYDRAULIC CIRCUITS AND VALVES -
OPERATION..........................5-83
HYDRAULIC LASH ADJUSTER NOISE
DIAGNOSIS - DIAGNOSIS AND
TESTING............................9-34
HYDRAULIC LASH ADJUSTERS -
INSTALLATION........................9-34
HYDRAULIC LASH ADJUSTERS -
REMOVAL...........................9-34
HYDRAULIC LIFTERS - DIAGNOSIS AND
TESTING...........................9-113
HYDRAULIC LIFTERS (CAM IN BLOCK) -
DESCRIPTION.......................9-113
HYDRAULIC LIFTERS (CAM IN BLOCK) -
INSTALLATION.......................9-114
HYDRAULIC LIFTERS (CAM IN BLOCK) -
REMOVAL..........................9-114
HYDRAULIC PRESSURE TESTS -
DIAGNOSIS AND TESTING.......21-120,21s-28
HYDRAULIC SCHEMATICS, SCHEMATICS
AND DIAGRAMS - 41TE TRANSAXLE....21-169
HYDRAULIC SCHEMATICS, SCHEMATICS
AND DIAGRAMS - 4XTE TRANSAXLE....21s-75
HYDROSTATIC LOCKED ENGINE -
STANDARD PROCEDURE............9-10,9-85
ICU - ASSEMBLY......................5-94
ICU - DISASSEMBLY...................5-93
ICU (INTEGRATED CONTROL UNIT) -
DESCRIPTION........................5-89
ICU (INTEGRATED CONTROL UNIT) -
OPERATION..........................5-90
IDENTIFICATION - DESCRIPTION,
FASTENER.........................Intro.-2
IDENTIFICATION - DESCRIPTION,
VEHICLE............................23-1
IDENTIFICATION AND INFORMATION -
DESCRIPTION, SECTION.............8W-01-6
IDENTIFICATION, DIAGNOSIS AND
TESTING - SEAL......................21-3
IDENTIFICATION NUMBER -
DESCRIPTION, VEHICLE..............Intro.-9
IDLE AIR CONTROL MOTOR -
DESCRIPTION.......................14-28
IDLE AIR CONTROL MOTOR -
INSTALLATION.......................14-29
IDLE AIR CONTROL MOTOR -
OPERATION.........................14-28
IDLE AIR CONTROL MOTOR - REMOVAL . . 14-29
IGNITION COIL - DESCRIPTION...........8I-6
IGNITION COIL - OPERATION.............8I-7
IGNITION INTERLOCK - DESCRIPTION....19-17
IGNITION SENSE - PCM INPUT -
OPERATION.........................8E-15
IGNITION SWITCH - INSTALLATION......19-16
IGNITION SWITCH - REMOVAL..........19-14
IGNITION SYSTEM - DESCRIPTION........8I-1
IGNITION SYSTEM - OPERATION..........8I-1
IGNITION-OFF DRAW TEST - STANDARD
PROCEDURE........................8F-13
IIITSTATE DISPLAY TEST MODE,
OPERATION - DRB....................25-9
ILLUMINATION LAMPS - INSTALLATION,
CLUSTER...........................8L-21
ILLUMINATION LAMPS - REMOVAL,
CLUSTER...........................8L-21
IMMOBILIZER MODULE - DESCRIPTION,
SENTRY KEY
........................8E-18
IMMOBILIZER MODULE - INSTALLATION,
SENTRY KEY
........................8E-19
IMMOBILIZER MODULE - OPERATION,
SENTRY KEY
........................8E-18
IMMOBILIZER MODULE - REMOVAL,
SENTRY KEY
........................8E-18
INBOARD - 50/50 BENCH -
INSTALLATION, SEAT BELT BUCKLE -
SECOND ROW
.......................8O-13
RSINDEX17
Description Group-Page Description Group-Page Description Group-Page
