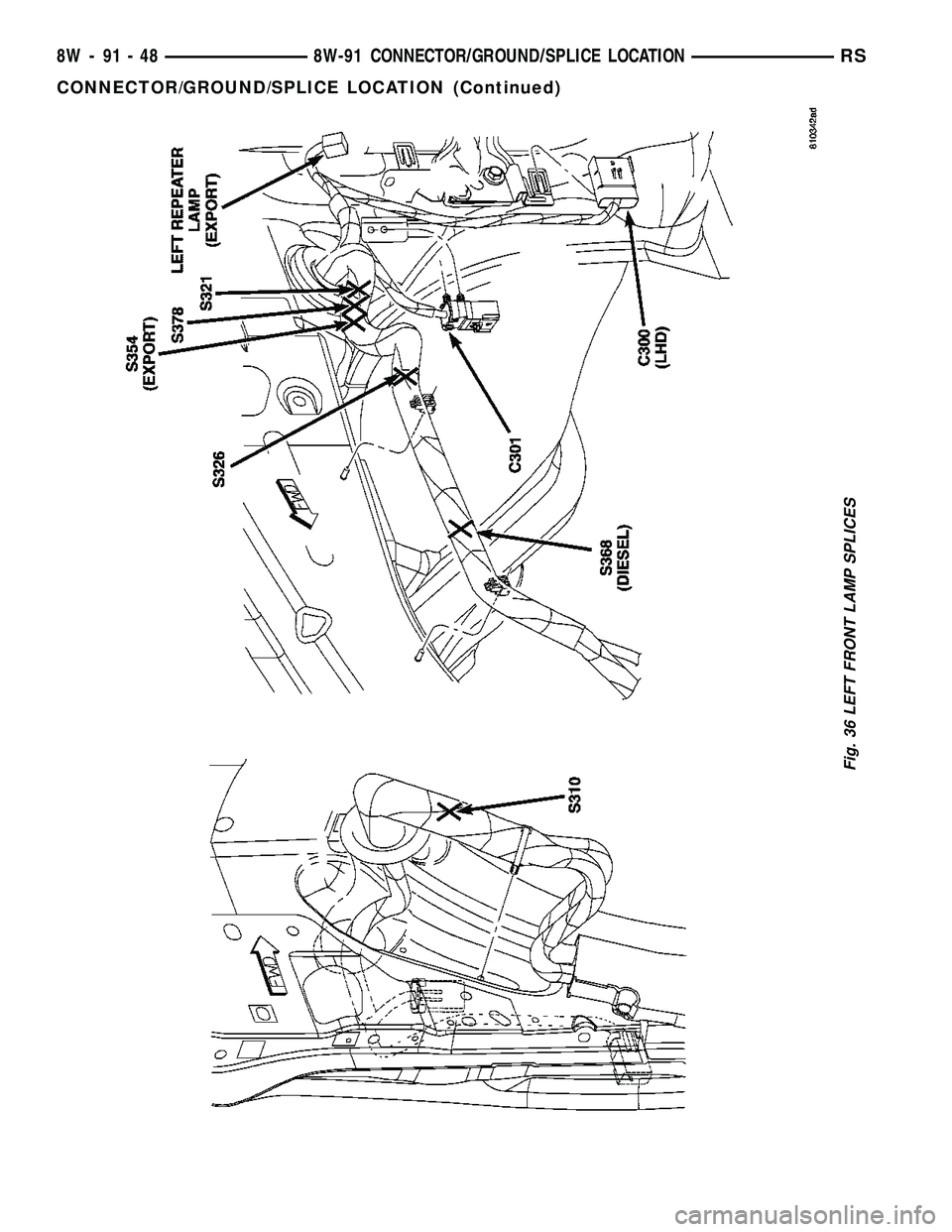

Fig. 36 LEFT FRONT LAMP SPLICES
8W - 91 - 48 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

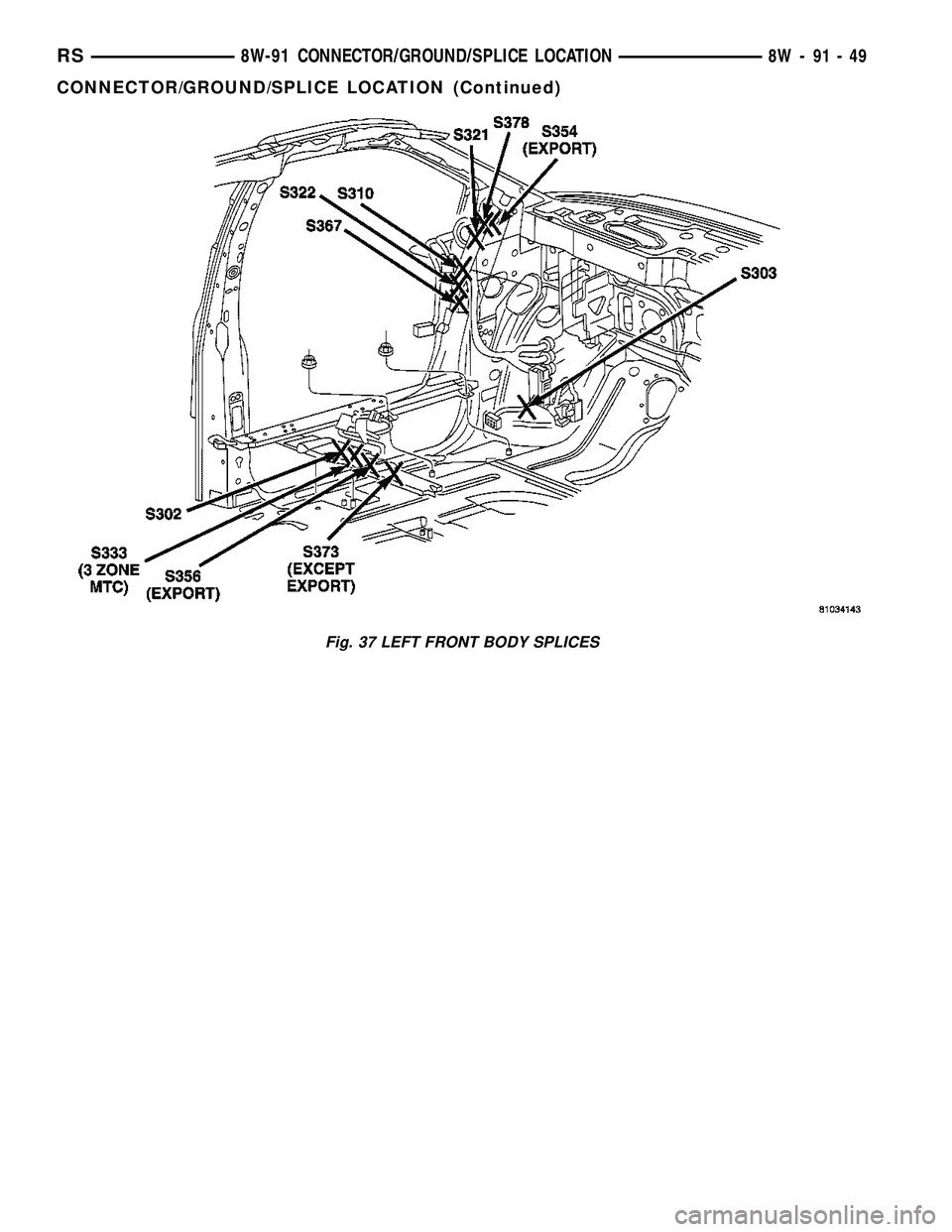

Fig. 37 LEFT FRONT BODY SPLICES
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-49
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

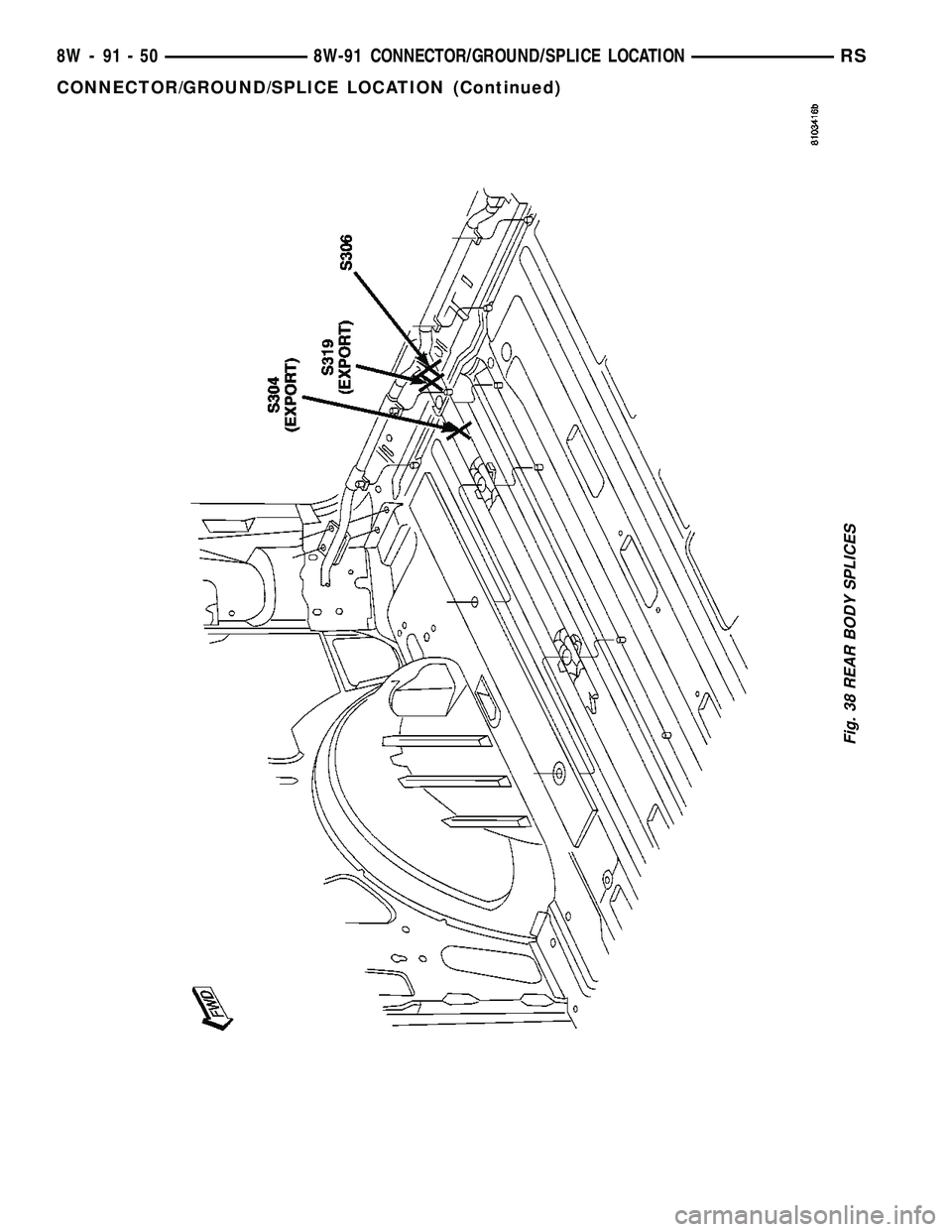

Fig. 38 REAR BODY SPLICES
8W - 91 - 50 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

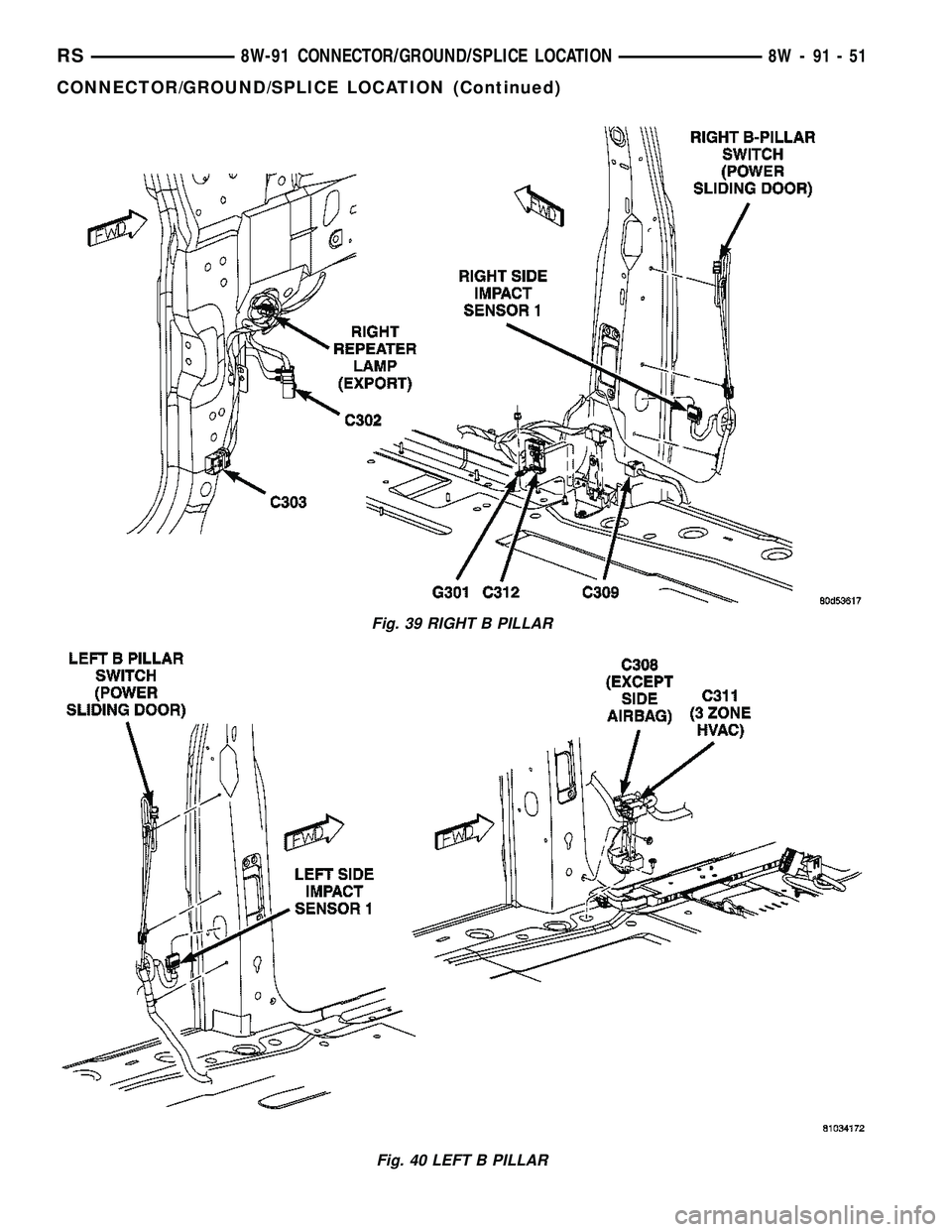

Fig. 39 RIGHT B PILLAR
Fig. 40 LEFT B PILLAR
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-51
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

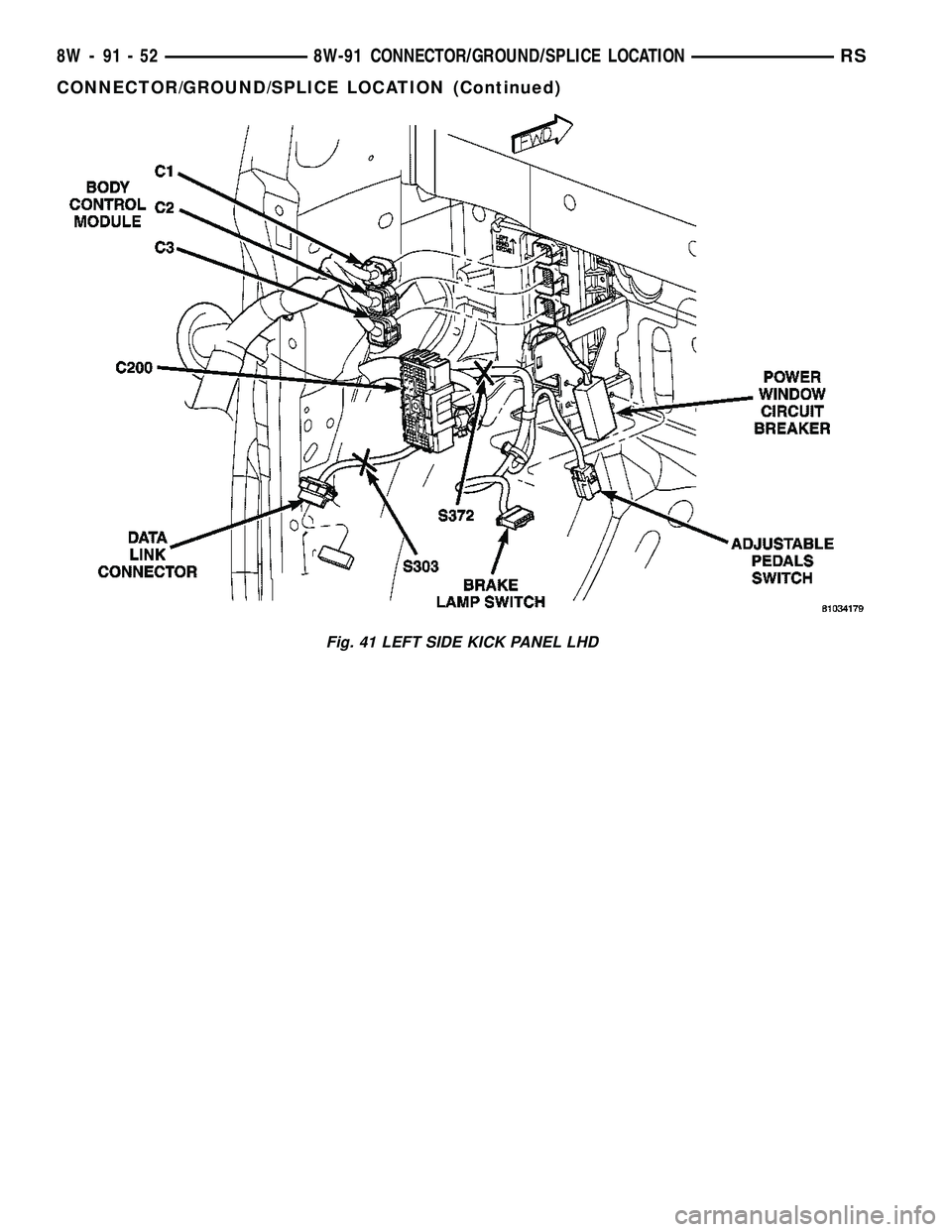

Fig. 41 LEFT SIDE KICK PANEL LHD
8W - 91 - 52 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 42 RIGHT SIDE KICK PANEL RHD
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-53
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

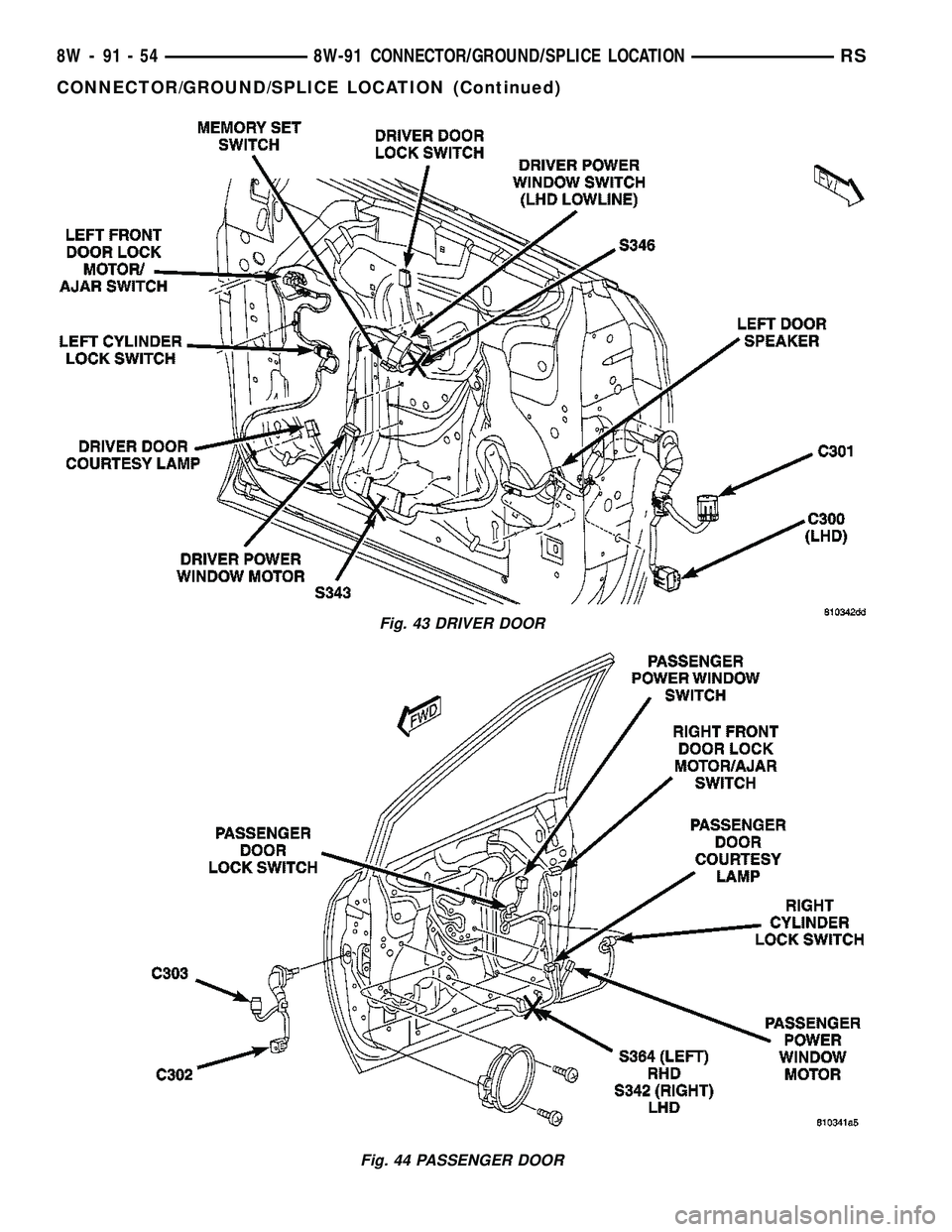

Fig. 43 DRIVER DOOR
Fig. 44 PASSENGER DOOR
8W - 91 - 54 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

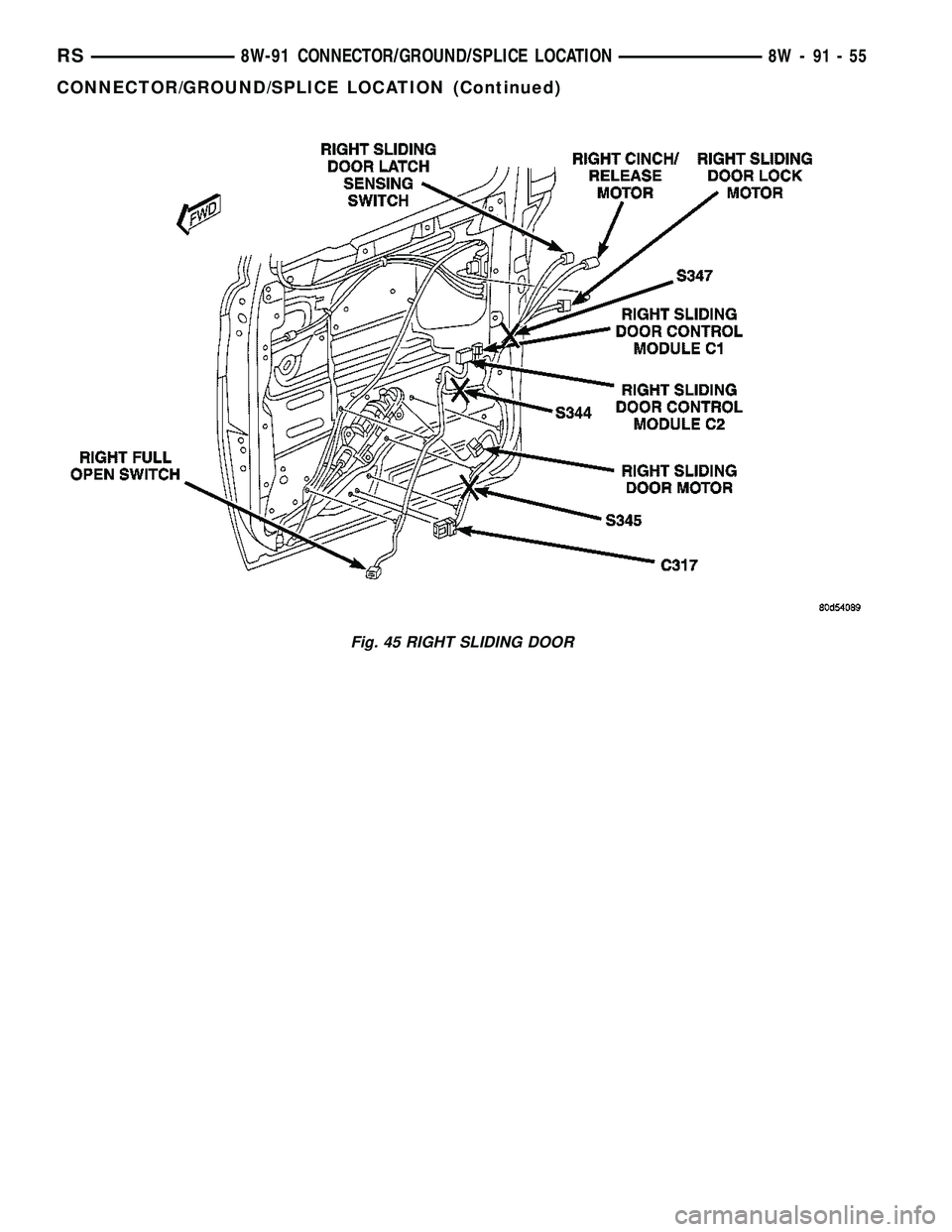

Fig. 45 RIGHT SLIDING DOOR
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-55
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

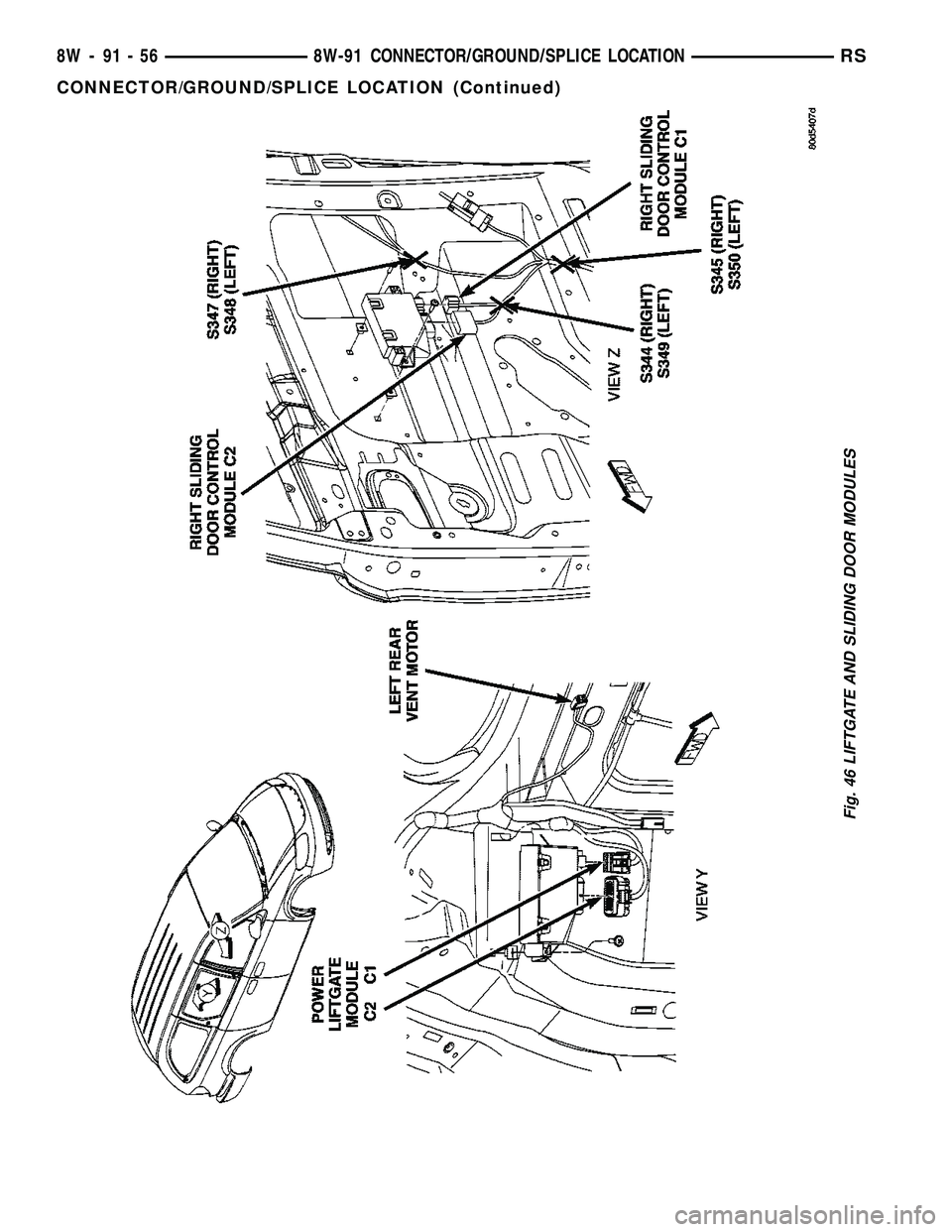

Fig. 46 LIFTGATE AND SLIDING DOOR MODULES
8W - 91 - 56 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

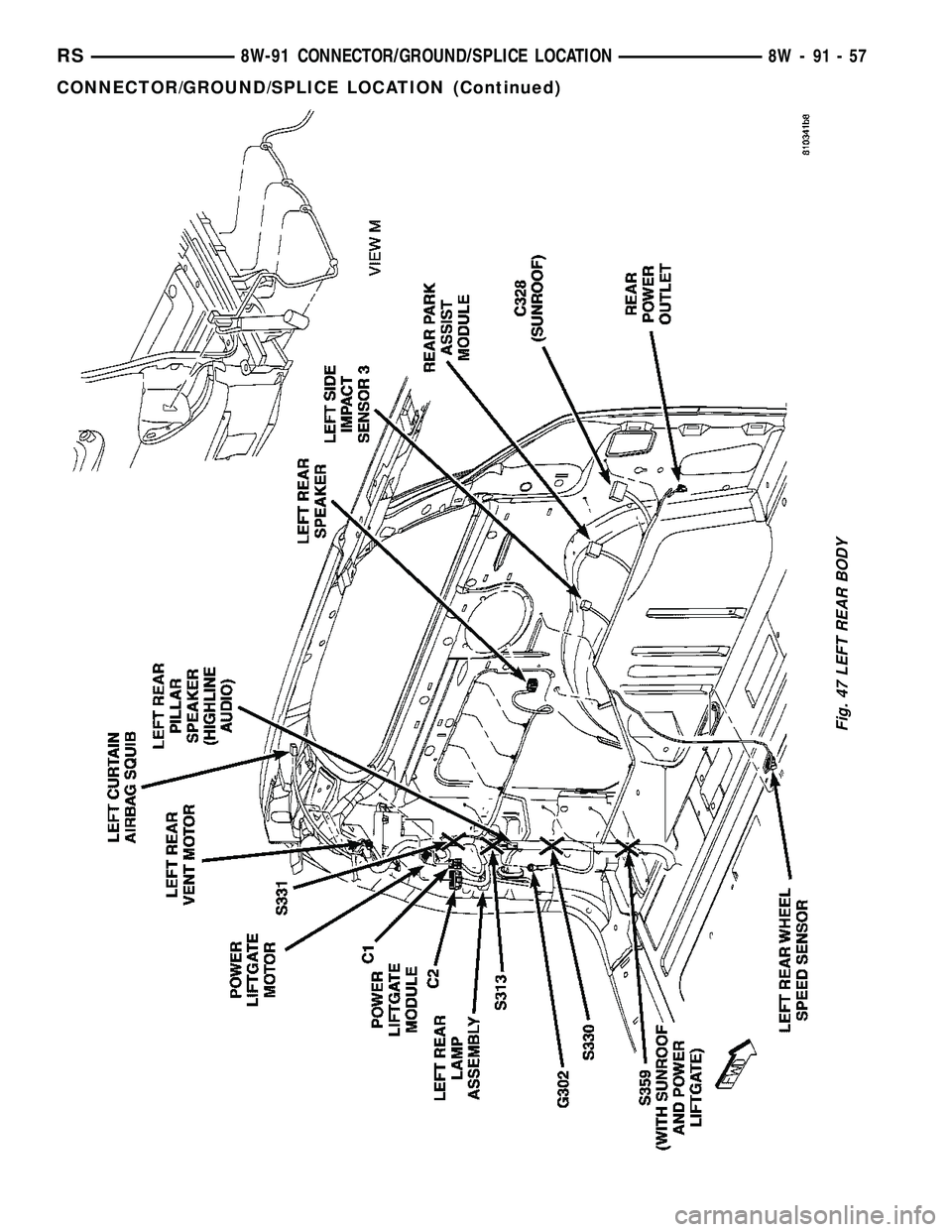

Fig. 47 LEFT REAR BODY
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-57
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
