Component Page
Left Sliding Door Motor (Power Sliding
Door).......................... 8W-80-96
Left Speed Control Switch............ 8W-80-96
Left Turn Signal Lamp (Export)........ 8W-80-96
Left Visor/Vanity Lamp (Premium/Luxury
Except Export)................... 8W-80-97
License Lamp (Manual Release)........ 8W-80-97
License Lamp (Power Liftgate)......... 8W-80-97
License Lamp (Power Release)......... 8W-80-97
Lift Pump Motor (Diesel)............. 8W-80-98
Liftgate Ajar Switch (Manual Release) . . . 8W-80-98
Liftgate Ajar Switch (Power Release).... 8W-80-98
Liftgate Cinch/Release Motor (Power
Liftgate)........................ 8W-80-98
Liftgate Left Pinch Sensor (Power
Liftgate)........................ 8W-80-99
Liftgate Right Pinch Sensor (Power
Liftgate)........................ 8W-80-99
Manifold ABSolute Pressure Sensor
(Gas)........................... 8W-80-99
Mass Air Flow Sensor (Diesel)......... 8W-80-99
Memory Seat/Mirror/Adjustable
Pedals Module C1................ 8W-80-100
Memory Seat/Mirror/Adjustable
Pedals Module C2................ 8W-80-100
Memory Seat/Mirror/Adjustable
Pedals Module C3................ 8W-80-101
Memory Seat/Mirror/Adjustable
Pedals Module C4................ 8W-80-101
Memory Set Switch................. 8W-80-101
Message Center (Export)............ 8W-80-101
Mode Door Actuator................ 8W-80-102
Multi-Function Switch.............. 8W-80-102
Natural Vacuum Leak Detection Assembly
(Except Export).................. 8W-80-102
Occupant Classification Module....... 8W-80-102
Occupant Restraint Controller C1..... 8W-80-103
Occupant Restraint Controller C2..... 8W-80-104
Output Speed Sensor............... 8W-80-104
Overhead Console (Except Base)...... 8W-80-105
Oxygen Sensor 1/1 Upstream (Gas).... 8W-80-105
Oxygen Sensor 1/2 Downstream (Gas) . . 8W-80-105
Park Assist Display................ 8W-80-105
Park Assist Module................. 8W-80-106
Park Assist Sensor No. 1............ 8W-80-106
Park Assist Sensor No. 2............ 8W-80-106
Park Assist Sensor No. 3............ 8W-80-107
Park Assist Sensor No. 4............ 8W-80-107
Passenger Airbag.................. 8W-80-107
Passenger Airbag On/Off Indicator
Lamp......................... 8W-80-107
Passenger Blend Door Actuator....... 8W-80-107
Passenger Door Courtesy Lamp
(Luxury/Export)................. 8W-80-108
Passenger Door Lock Switch.......... 8W-80-108Component Page
Passenger Folding Mirror Relay
(Export)....................... 8W-80-108
Passenger Heated Seat Back......... 8W-80-108
Passenger Heated Seat Cushion....... 8W-80-109
Passenger Heated Seat Module (Except
Export)........................ 8W-80-109
Passenger Heated Seat Module C1
(Export)....................... 8W-80-109
Passenger Heated Seat Module C2
(Export)....................... 8W-80-109
Passenger Heated Seat Module C3
(Export)........................ 8W-80-110
Passenger Power Seat Front Riser
Motor......................... 8W-80-110
Passenger Power Seat
Horizontal Motor................ 8W-80-110
Passenger Power Seat
Rear Riser Motor................ 8W-80-110
Passenger Power Seat Recliner Motor . . . 8W-80-111
Passenger Power Seat Switch......... 8W-80-111
Passenger Power Window Motor....... 8W-80-111
Passenger Power Window Switch...... 8W-80-111
Passenger Seat Belt Switch (Occupant
Sensing)....................... 8W-80-112
Passenger Seat Belt Tensioner........ 8W-80-112
Passenger Seat Weight Sensor........ 8W-80-112
Power Folding Mirror Switch (Export) . . 8W-80-113
Power Liftgate Module C1........... 8W-80-113
Power Liftgate Module C2........... 8W-80-113
Power Liftgate Motor............... 8W-80-114
Power Mirror Switch................ 8W-80-114
Power Outlet (Except Lowline)........ 8W-80-114
Power Seat Circuit Breaker (30A)...... 8W-80-115
Power Window Circuit Breaker (25A) . . . 8W-80-115
Power Window Switch (LHD Lowline) . . 8W-80-115
Powertrain Control Module C1........ 8W-80-116
Powertrain Control Module C2........ 8W-80-117
Powertrain Control Module C3........ 8W-80-118
Powertrain Control Module C4........ 8W-80-119
Radiator Fan No. 1 (Diesel).......... 8W-80-120
Radiator Fan No. 1 (Gas)............ 8W-80-120
Radiator Fan No. 2 (Diesel).......... 8W-80-120
Radiator Fan No. 2 (Gas)............ 8W-80-120
Radiator Fan Relay (Gas)............ 8W-80-121
Radiator Fan Relay No. 1 (Diesel)..... 8W-80-121
Radiator Fan Relay No. 2 (Diesel)..... 8W-80-121
Radiator Fan Relay No. 3 (Diesel)..... 8W-80-122
Radio C1......................... 8W-80-122
Radio C2 (CD Changer)............. 8W-80-123
Radio C2 (DVD/CD Changer)......... 8W-80-123
Radio C2 (Hands Free).............. 8W-80-123
Rear A/C-Heater Unit (3 Zone MTC) . . . 8W-80-124
Rear Auto Temp Control Switch (3 Zone
ATC) .......................... 8W-80-124
8W - 80 - 4 8W-80 CONNECTOR PIN-OUTSRS

Component Page
Rear Blower Front Control Switch (3 Zone
MTC)......................... 8W-80-124
Rear Blower Motor Power Module C1 (3 Zone
ATC) .......................... 8W-80-125
Rear Blower Motor Power Module C2 (3 Zone
ATC) .......................... 8W-80-125
Rear Blower Rear Control Switch C1 (3 Zone
MTC)......................... 8W-80-125
Rear Blower Rear Control Switch C2 (3 Zone
MTC)......................... 8W-80-125
Rear Dome Lamp (Except Luxury)..... 8W-80-126
Rear Intrusion Sensor (United
Kingdom)...................... 8W-80-126
Rear Mode Motor (3 Zone ATC)....... 8W-80-126
Rear Power Outlet................. 8W-80-126
Rear Temperature Motor (3 Zone ATC) . . 8W-80-127
Rear View Mirror C1 (Luxury)........ 8W-80-127
Rear View Mirror C2 (Hands Free)..... 8W-80-127
Rear Wiper Motor.................. 8W-80-128
Recirculation Door Actuator.......... 8W-80-128
Right B-Pillar Switch (Power Sliding
Door).......................... 8W-80-128
Right Cinch/Release Motor (Power Sliding
Door).......................... 8W-80-128
Right Curtain Airbag Squib.......... 8W-80-129
Right Cylinder Lock Switch (Export) . . . 8W-80-129
Right Door Speaker................ 8W-80-129
Right Fog Lamp................... 8W-80-129
Right Front Door Ajar Switch (Base) . . . 8W-80-130
Right Front Door Lock Motor/Ajar Switch (Except
Base).......................... 8W-80-130
Right Front Impact Sensor........... 8W-80-130
Right Front Park/Turn Signal Lamp.... 8W-80-130
Right Front Wheel Speed Sensor...... 8W-80-131
Right Full Open Switch (Power Sliding
Door).......................... 8W-80-131
Right Headlamp (Caravan/Voyager Except
Export)........................ 8W-80-131
Right Headlamp (Town And Country) . . . 8W-80-131
Right Headlamp Leveling Motor
(Export)....................... 8W-80-132
Right High Beam Lamp (Export)...... 8W-80-132
Right Instrument Panel Speaker...... 8W-80-132
Right Liftgate Flood Lamp........... 8W-80-132
Right Low Beam Lamp (Export)....... 8W-80-133
Right Mid Reading Lamp (Premium/
Luxury)........................ 8W-80-133
Right Park Lamp (Export)........... 8W-80-133
Right Power Mirror................ 8W-80-133
Right Rear Lamp Assembly.......... 8W-80-134
Right Rear Pillar Speaker (Highline
Audio)......................... 8W-80-134Component Page
Right Rear Reading Lamp (Luxury).... 8W-80-134
Right Rear Speaker................ 8W-80-134
Right Rear Vent Motor.............. 8W-80-135
Right Rear Wheel Speed Sensor....... 8W-80-135
Right Remote Radio Switch.......... 8W-80-135
Right Repeater Lamp (Export)........ 8W-80-135
Right Side Impact Sensor 1 (Export) . . . 8W-80-135
Right Side Impact Sensor 1 (Except
Export)........................ 8W-80-136
Right Side Impact Sensor 2.......... 8W-80-136
Right Side Impact Sensor 3.......... 8W-80-136
Right Sliding Door Control Module C1 (Power
Sliding Door)................... 8W-80-136
Right Sliding Door Control Module C2 (Power
Sliding Door)................... 8W-80-137
Right Sliding Door Latch Sensing Switch (Power
Sliding Door)................... 8W-80-137
Right Sliding Door Lock Motor (Power Sliding
Door).......................... 8W-80-137
Right Sliding Door Lock Motor/Ajar Switch (Manual
Sliding Door)................... 8W-80-138
Right Sliding Door Motor (Power Sliding
Door).......................... 8W-80-138
Right Speed Control Switch.......... 8W-80-138
Right Turn Signal Lamp (Export)...... 8W-80-138
Right Visor/Vanity Lamp (Except Base/
Export)........................ 8W-80-139
Sentry Key Remote Entry Module
(SKREEM)..................... 8W-80-139
Siren (United Kingdom)............. 8W-80-139
Speed Control Servo (Gas)........... 8W-80-139
Sunroof Module (Except Export)....... 8W-80-140
Sunroof Switch (Except Export)....... 8W-80-140
Thatcham Alarm Module (United
Kingdom)...................... 8W-80-140
Throttle Position Sensor (Gas)........ 8W-80-141
Traction Control Switch............. 8W-80-141
Trailer Tow Connector (Except Export) . . 8W-80-141
Transmission Control Module (Diesel) . . 8W-80-141
Transmission Control Relay (Diesel).... 8W-80-143
Transmission Range Sensor.......... 8W-80-143
Transmission Solenoid/Pressure Switch
Assembly...................... 8W-80-143
Vehicle Speed Sensor (MTX).......... 8W-80-144
Washer Fluid Level Switch........... 8W-80-144
Washer Pump Motor................ 8W-80-144
Water In Fuel Sensor (Diesel)......... 8W-80-144
Wiper Module..................... 8W-80-144
RS8W-80 CONNECTOR PIN-OUTS8W-80-5

A/C COMPRESSOR CLUTCH - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C3 20DB/YL (DIESEL) A/C COMPRESSOR CLUTCH RELAY OUTPUT
1 C3 20DB/YL (GAS) A/C CLUTCH RELAY OUTPUT
2 Z153 18BK/GY GROUND
A/C PRESSURE SENSOR - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 C918 20BK/LB (DIESEL) A/C PRESSURE SENSOR GROUND
1 K900 18DB/DG (GAS) SENSOR GROUND
2 F855 20PK/YL (2.4L) 5 VOLT SUPPLY
2 F855 18PK/YL (3.3L/3.8L) 5 VOLT SUPPLY
2 F851 20LB/PK (DIESEL) SENSOR REFERENCE VOLTAGE B
3 C18 20LB/BR (DIESEL) A/C PRESSURE SENSOR SIGNAL
3 C18 18LB/BR (GAS) A/C PRESSURE SIGNAL
4- -
A/C-HEATER CONTROL C1 (MTC) - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 Z24 18BK/OR GROUND
2 C121 20DB/DG SENSOR GROUND
3 C22 20LB/WT (3 ZONE) REAR TEMPERATURE FEEDBACK SIGNAL
4- -
5 F850 20LB/PK (3 ZONE) 5 VOLT SUPPLY
6- -
7 C32 22DB/TN RECIRCULATION DOOR DRIVER (A)
8 C54 22LB/YL (3 ZONE) REAR BLEND DOOR DRIVER
9 C34 22DB/LB COMMON DOOR DRIVER (B)
10 D25 20WT/VT PCI BUS
11 - -
12 C121 20DB/DG (3 ZONE) REAR TEMPERATURE RETURN
13 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
14 E12 20OR/GY PANEL LAMPS DRIVER
15 C21 22LB EVAPORATOR TEMPERATURE SENSOR SIGNAL
16 C33 22LB/BR PASSENGER BLEND DOOR DRIVER (A)
17 C61 22DB/LG (EXCEPT BASE) DRIVER BLEND DOOR DRIVER (A)
18 C35 22LB/LG MODE DOOR DRIVER (A)
19 C53 22LB (3 ZONE) REAR MODE DOOR DRIVER
20 C154 20LB/OR (3 ZONE) REAR COMMON DOOR DRIVER
8W - 80 - 6 8W-80 CONNECTOR PIN-OUTSRS

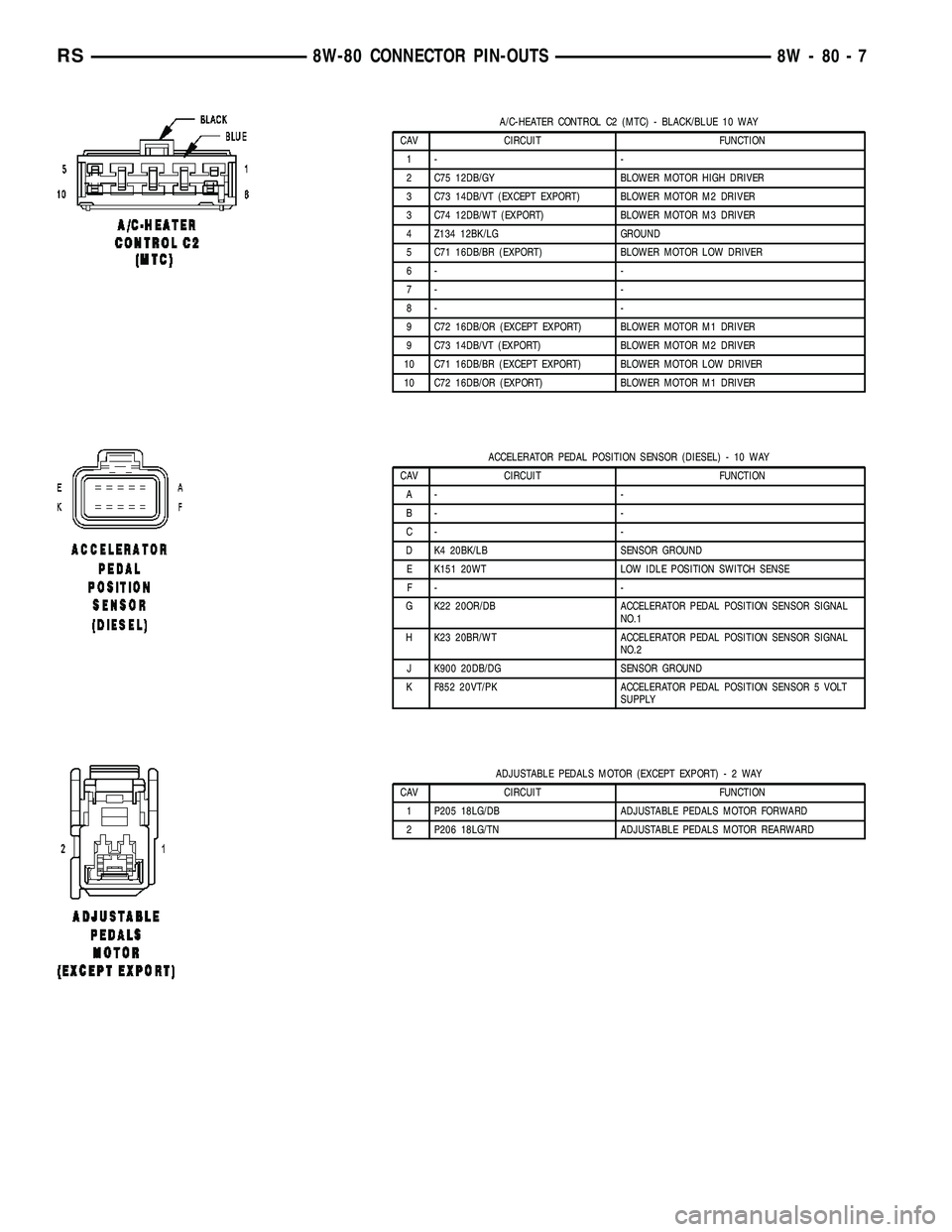

A/C-HEATER CONTROL C2 (MTC) - BLACK/BLUE 10 WAY
CAV CIRCUIT FUNCTION
1- -
2 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
3 C73 14DB/VT (EXCEPT EXPORT) BLOWER MOTOR M2 DRIVER
3 C74 12DB/WT (EXPORT) BLOWER MOTOR M3 DRIVER
4 Z134 12BK/LG GROUND
5 C71 16DB/BR (EXPORT) BLOWER MOTOR LOW DRIVER
6- -
7- -
8- -
9 C72 16DB/OR (EXCEPT EXPORT) BLOWER MOTOR M1 DRIVER
9 C73 14DB/VT (EXPORT) BLOWER MOTOR M2 DRIVER
10 C71 16DB/BR (EXCEPT EXPORT) BLOWER MOTOR LOW DRIVER
10 C72 16DB/OR (EXPORT) BLOWER MOTOR M1 DRIVER
ACCELERATOR PEDAL POSITION SENSOR (DIESEL) - 10 WAY
CAV CIRCUIT FUNCTION
A- -
B- -
C- -
D K4 20BK/LB SENSOR GROUND
E K151 20WT LOW IDLE POSITION SWITCH SENSE
F- -
G K22 20OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
NO.1
H K23 20BR/WT ACCELERATOR PEDAL POSITION SENSOR SIGNAL
NO.2
J K900 20DB/DG SENSOR GROUND
K F852 20VT/PK ACCELERATOR PEDAL POSITION SENSOR 5 VOLT
SUPPLY
ADJUSTABLE PEDALS MOTOR (EXCEPT EXPORT)-2WAY
CAV CIRCUIT FUNCTION
1 P205 18LG/DB ADJUSTABLE PEDALS MOTOR FORWARD
2 P206 18LG/TN ADJUSTABLE PEDALS MOTOR REARWARD
RS8W-80 CONNECTOR PIN-OUTS8W-80-7

ADJUSTABLE PEDALS RELAY (EXCEPT EXPORT/EXCEPT MEMORY)-9WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 18LG/RD FUSED B(+)
5 A128 18RD/OR ADJUSTABLE PEDALS RELAY OUTPUT
6 P201 20LG/DB ADJUSTABLE PEDALS RELAY CONTROL
7- -
8 A108 18LG/RD FUSED B(+)
9- -
ADJUSTABLE PEDALS SENSOR (EXCEPT EXPORT)-3WAY
CAV CIRCUIT FUNCTION
1 G11 18VT/TN (EXCEPT MEMORY) ADJUSTABLE PEDALS SENSOR FEED
1 G11 20VT/TN (MEMORY) ADJUSTABLE PEDALS SENSOR FEED
2 G12 18VT/BR (EXCEPT MEMORY) ADJUSTABLE PEDALS SENSOR SIGNAL
2 G12 22VT/BR (MEMORY) ADJUSTABLE PEDALS SENSOR SIGNAL
3 G912 18VT/WT (EXCEPT MEMORY) ADJUSTABLE PEDALS SENSOR RETURN
3 G912 20VT/WT (MEMORY) ADJUSTABLE PEDALS SENSOR RETURN
ADJUSTABLE PEDALS SWITCH (EXCEPT EXPORT)-4WAY
CAV CIRCUIT FUNCTION
1 A128 18RD/OR (EXCEPT MEMORY) ADJUSTABLE PEDALS RELAY OUTPUT
1 A114 18GY/RD (MEMORY) FUSED B(+) (I.O.D.)
2 Z146 18BK/YL GROUND
3 Q102 18OR/LB ADJUSTABLE PEDALS SWITCH REARWARD
4 Q103 18OR/LG ADJUSTABLE PEDALS SWITCH FORWARD
AMBIENT TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G31 18VT/LG (DIESEL) AMBIENT TEMPERATURE SENSOR SIGNAL
1 G31 18VT/LG (GAS) AAT SIGNAL
2 G931 18VT/BR (DIESEL) AMBIENT TEMPERATURE SENSOR RETURN
2 K900 18DB/DG (GAS) SENSOR GROUND
8W - 80 - 8 8W-80 CONNECTOR PIN-OUTSRS

ATC REMOTE SENSOR (ATC)-4WAY
CAV CIRCUIT FUNCTION
1 F600 20LB/PK PROTECTED IGNITION
2 D40 20WT/LB KDB NO. 2 CLOCK
3 C905 20BR/LB SENSOR RETURN
4 D18 20WT/YL KDB NO. 2 DATA
AUTO TEMP CONTROL C1 - NATURAL 13 WAY
CAV CIRCUIT FUNCTION
1 C161 22LB/WT DRIVER BLEND DOOR DRIVER (B)
2 C61 22DB/LG DRIVER BLEND DOOR DRIVER (A)
3 C133 22DB/WT PASSENGER BLEND DOOR DRIVER (B)
4 C33 22LB/BR PASSENGER BLEND DOOR DRIVER (A)
5 C132 22DB/YL RECIRCULATION DOOR DRIVER (B)
6 C32 22DB/TN RECIRCULATION DOOR DRIVER (A)
7 C135 22DB/GY MODE DOOR DRIVER (B)
8 C35 22LB/LG MODE DOOR DRIVER (A)
9 C53 22LB REAR MODE DOOR DRIVER (A)
10 C154 22LB/OR REAR MODE DOOR DRIVER (B)
11 C54 22LB/YL REAR BLEND DOOR DRIVER (A)
12 C169 22DB/OR REAR BLEND DOOR DRIVER (B)
13 - -
AUTO TEMP CONTROL C2 - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 C21 22LB EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C121 20DB/DG (LHD) SENSOR GROUND
2 C121 22DB/DG (RHD) SENSOR GROUND
3 E12 20OR/GY PANEL LAMPS DRIVER
4 A114 18GY/RD FUSED B(+) (I.O.D.)
5 F504 20GY/PK FUSED IGNITION SWITCH OUTPUT (RUN)
6 D25 20WT/VT PCI BUS
7 C56 22DB/VT (LHD) BLOWER MOTOR CONTROL
7 C56 22DB/LB (RHD) BLOWER MOTOR CONTROL
8 C59 22DB/LB REAR BLOWER MOTOR CONTROL
9 D22 20WT/TN (3 ZONE) KDB CLOCK
10 D17 22WT/DG KDB DATA
11 Z24 18BK/OR GROUND
12 - -
13 - -
8W - 80 - 10 8W-80 CONNECTOR PIN-OUTSRS

BLOWER MOTOR RESISTOR C1 (MTC) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 C75 12DB/GY (EXPORT) BLOWER MOTOR HIGH DRIVER
2 C75 12DB/GY (EXCEPT EXPORT) BLOWER MOTOR HIGH DRIVER
2 C74 12DB/WT (EXPORT) BLOWER MOTOR M3 DRIVER
3 C73 14DB/VT BLOWER MOTOR M2 DRIVER
4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
5 C72 16DB/OR BLOWER MOTOR M1 DRIVER
6 C71 16DB/BR BLOWER MOTOR LOW DRIVER
BLOWER MOTOR RESISTOR C2 (MTC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C70 12DG REAR BLOWER HIGH SPEED
2 C7 12BK HIGH SPEED BLOWER MOTOR
BODY CONTROL MODULE C1 - BLACK/BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 A101 12VT/RD FUSED B(+)
2 A701 16BR/RD FUSED B(+) (HAZARD)
3 Z100 12BK/TN GROUND
4- -
5 A101 12VT/RD FUSED B(+)
6- -
8W - 80 - 12 8W-80 CONNECTOR PIN-OUTSRS

BODY CONTROL MODULE C2 - BLACK/GREEN 34 WAY
CAV CIRCUIT FUNCTION
1 L61 20WT/LB LEFT FRONT TURN SIGNAL DRIVER
2 L63 18WT/DG LEFT REAR TURN SIGNAL DRIVER
3 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
4 L62 18WT/BR RIGHT REAR TURN SIGNAL DRIVER
5 F20 20PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 G25 22VT/TN LIFTGATE SWITCH MUX
7 A114 18GY/RD FUSED B(+) (I.O.D.)
8- -
9 L1 18WT/LG BACK-UP LAMP FEED
10 P3 20TN/WT LEFT FRONT DOOR LOCK DRIVER
11 P2 20TN/GY RIGHT FRONT DOOR LOCK DRIVER
12 P38 20TN/DB RIGHT SLIDING DOOR LOCK DRIVER
13 - -
14 - -
15 Z15 18BK/TN GROUND
16 G920 20VT/YL (MEMORY) MEMORY SELECT SWITCH RETURN
17 G153 20VT/DG (POWER LIFTGATE) LIFTGATE MODULE WAKE UP SIGNAL
18 P32 20TN/VT LEFT SLIDING DOOR LOCK DRIVER
19 Z10 18BK/TN GROUND
20 P5 20TN/OR LEFT SLIDING DOOR UNLOCK DRIVER
21 P164 18LG/DB (EXPORT) PASSENGER FOLDING MIRROR RELAY INPUT
22 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
23 - -
24 G200 20VT/BR (MEMORY) MEMORY SELECT SWITCH MUX
25 M22 20YL/OR COURTESY LAMPS DRIVER
26 P4 20TN/BR RIGHT FRONT DOOR UNLOCK DRIVER
27 P34 20TN/LB RIGHT SLIDING DOOR UNLOCK DRIVER
28 P1 20TN/LG LEFT FRONT DOOR UNLOCK DRIVER
29 P159 20TN/DG (EXPORT) DRIVER FOLDING MIRROR FOLD DRIVER
30 P174 20TN/LB (EXPORT) RIGHT FOLDING MIRROR UNFOLD DRIVER
31 P171 20TN/YL (EXPORT) LEFT FOLDING MIRROR UNFOLD DRIVER
32 W13 18BR/LG REAR WIPER MOTOR CONTROL
33 - -
34 L38 20WT/YL (EXPORT) REAR FOG LAMP SWITCH OUTPUT
RS8W-80 CONNECTOR PIN-OUTS8W-80-13

BODY CONTROL MODULE C5 - BLACK/BLACK 34 WAY
CAV CIRCUIT FUNCTION
1 L91 22WT/DB (LHD) HAZARD SWITCH SENSE
1 L91 20WT/DB (RHD) HAZARD SWITCH SENSE
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9- -
10 G20 20VT/BR IGNITION SWITCH SENSE
11 - -
12 - -
13 - -
14 - -
15 - -
16 G926 22VT/WT (ATC/EXPORT MTC) REAR WIPER SWITCH MUX RETURN
17 L900 22WT/YL HEADLAMP SWITCH MUX RETURN
18 L307 20WT/BR HEADLAMP SWITCH MUX
19 - -
20 - -
21 - -
22 - -
23 - -
24 - -
25 L36 20WT/DB (EXPORT) REAR FOG LAMP INDICATOR DRIVER
26 X20 22GY/WT (REMOTE AUDIO) RADIO CONTROL MUX
27 G194 22VT/LG HIGH BEAM/FRONT WASHER SWITCH MUX
28 W26 22BR/DB (PREMIUM/LUXURY/
EXPORT)REAR WIPER SWITCH MUX
29 W52 22BR/YL FRONT WIPER SWITCH MUX
30 E2 22OR/BR PANEL LAMPS DIMMER SIGNAL
31 L305 20WT/LB TURN SIGNAL SWITCH MUX
32 - -
33 - -
34 L39 22WT/OR (HIGHLINE) FRONT FOG LAMP INDICATOR DRIVER
BOOST PRESSURE SENSOR (DIESEL)-4WAY
CAV CIRCUIT FUNCTION
1 K121 20DB BOOST PRESSURE SENSOR GROUND
2 K21 20DB/LG INTAKE AIR TEMPERATURE SENSOR SIGNAL
3 F851 20LB/PK SENSOR REFERENCE VOLTAGE B
4 K37 20DB/YL BOOST PRESSURE SENSOR SIGNAL
8W - 80 - 16 8W-80 CONNECTOR PIN-OUTSRS

CLUTCH PEDAL UPSTOP SWITCH (DIESEL) - RED 2 WAY
CAV CIRCUIT FUNCTION
1 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
2 Z150 20BK/LG GROUND
CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY
CAV CIRCUIT FUNCTION
1 Z107 12BK/DG GROUND
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
4- -
5 D25 18WT/VT PCI BUS
6 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
7 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
8- -
9 A111 12DG/RD FUSED B(+)
10 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
11 - -
12 - -
13 - -
14 - -
15 - -
16 Z127 12BK/DG GROUND
17 - -
18 L50 18WT/TN (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
18 L50 18WT/TN (GAS) BRAKE LAMP SWITCH OUTPUT
19 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
20 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
21 - -
22 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
23 B9 18DG/WT (3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
23 B9 18DG/LG (EXCEPT 3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUP-
PLY
24 A107 12TN/RD FUSED B(+)
8W - 80 - 56 8W-80 CONNECTOR PIN-OUTSRS
