MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C1 - GRAY 26 WAY
CAV CIRCUIT FUNCTION
1 P205 14LG/DB ADJUSTABLE PEDALS MOTOR FORWARD
2- -
3 P69 22TN/DB (LHD) LEFT MIRROR SENSOR GROUND
3 P66 20TN/LG (RHD) RIGHT MIRROR SENSOR GROUND
4- -
5 P64 22TN (LHD) LEFT MIRROR VERTICAL POSITION SIGNAL
5 P67 22TN/OR (RHD) RIGHT MIRROR VERTICAL POSITION SIGNAL
6 Q103 18OR/LG (EXCEPT EXPORT) ADJUSTABLE PEDALS SWITCH FORWARD
7 Q102 18OR/LB (EXCEPT EXPORT) ADJUSTABLE PEDALS SWITCH REARWARD
8 P65 22TN/VT (LHD) LEFT MIRROR HORIZONTAL POSITION SIGNAL
8 P68 20TN/YL (RHD) RIGHT MIRROR HORIZONTAL POSITION SIGNAL
9 P73 20TN/YL (LHD) LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
9 P70 20TN/LB (RHD) RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
10 - -
11 D25 20WT/VT PCI BUS
12 - -
13 P206 14LG/TN (EXCEPT EXPORT) ADJUSTABLE PEDALS MOTOR REARWARD
14 - -
15 - -
16 G11 20VT/TN (EXCEPT EXPORT) ADJUSTABLE PEDALS SENSOR FEED
17 P75 20TN/LG (LHD) LEFT MIRROR LEFT DRIVER
17 P74 20TN/DB (RHD) RIGHT MIRROR LEFT DRIVER
18 P71 20TN/DG (LHD) LEFT MIRROR UP DRIVER
18 P72 20TN/GY (RHD) RIGHT MIRROR UP DRIVER
19 G12 22VT/BR (EXCEPT EXPORT) ADJUSTABLE PEDALS SENSOR SIGNAL
20 G912 20VT/WT (EXCEPT EXPORT) ADJUSTABLE PEDALS SENSOR RETURN
21 - -
22 - -
23 - -
24 - -
25 - -
26 - -
MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C2 - GRAY 16 WAY
CAV CIRCUIT FUNCTION
1 P19 20LG/LB DRIVER SEAT FRONT UP SWITCH SENSE
2 P11 20LG/YL DRIVER SEAT REAR UP SWITCH SENSE
3 P25 20LG/VT DRIVER SEAT HORIZONTAL POSITION SIGNAL
4 P47 20LG/LB DRIVER SEAT RECLINER POSITION SIGNAL
5 P26 20LG DRIVER SEAT FRONT RISER POSITION SIGNAL
6 P27 20LG/DB DRIVER SEAT REAR RISER POSITION SIGNAL
7 P21 20LG/TN DRIVER SEAT FRONT DOWN SWITCH SENSE
8 P13 20LG/OR DRIVER SEAT REAR DOWN SWITCH SENSE
9 P15 20LG/WT DRIVER SEAT HORIZONTAL FORWARD SWITCH
SENSE
10 P43 20LG/VT DRIVER SEAT RECLINER UP SWITCH SENSE
11 P29 20LG/WT DRIVER SEAT SENSOR 5 VOLT SUPPLY
12 P28 20LG/BR DRIVER SEAT POSITION SENSOR GROUND
13 - -
14 P17 20LG/DG DRIVER SEAT HORIZONTAL REARWARD SWITCH
SENSE
15 P41 20LG/DB DRIVER SEAT RECLINER DOWN SWITCH SENSE
16 - -
8W - 80 - 100 8W-80 CONNECTOR PIN-OUTSRS

MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C3 - WHITE 12 WAY
CAV CIRCUIT FUNCTION
1 P141 14LG/BR DRIVER SEAT RECLINER DOWN DRIVER
2 P115 14LG DRIVER SEAT HORIZONTAL FORWARD DRIVER
3 P117 14LG/LB DRIVER SEAT HORIZONTAL REARWARD DRIVER
4 P111 14LG/YL DRIVER SEAT REAR UP DRIVER
5 P119 14LG/DG DRIVER SEAT FRONT UP DRIVER
6- -
7- -
8 P143 14LG/GY DRIVER SEAT RECLINER UP DRIVER
9 P9 20LG/OR DRIVER SEAT SWITCH B(+) SUPPLY
10 - -
11 P113 14LG/WT DRIVER SEAT REAR DOWN DRIVER
12 P121 14LG/DB DRIVER SEAT FRONT DOWN DRIVER
MEMORY SEAT/MIRROR/ADJUSTABLE PEDALS MODULE C4 - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A210 14OR/RD FUSED B(+)
2 Z849 14BK/OR GROUND
MEMORY SET SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G200 20VT/BR (EXCEPT EXPORT) MEMORY SELECT SWITCH MUX
1 G200 22VT/BR (EXPORT) MEMORY SELECT SWITCH MUX
2 G920 20VT/YL (EXCEPT EXPORT) MEMORY SELECT SWITCH RETURN
2 G920 22VT/YL (EXPORT) MEMORY SELECT SWITCH RETURN
MESSAGE CENTER (EXPORT) - WHITE 14 WAY
CAV CIRCUIT FUNCTION
1 L160 20WT/TN (LHD) RIGHT TURN INDICATOR DRIVER
1 G700 20VT/YL (RHD DIESEL) SUPPLEMENTAL HEAT INDICATOR SENSE
2 G3 20VT/LB (LHD) MALFUNCTION INDICATOR LAMP DRIVER
3 L134 20WT/GY (RHD) HIGH BEAM INDICATOR DRIVER
4 L160 20WT/TN (RHD) RIGHT TURN INDICATOR DRIVER
5- -
6 G7 20VT/GY (LHD) LOW OIL PRESSURE INDICATOR DRIVER
7 A701 18BR/RD (LHD) FUSED B(+) (HAZARD)
8 A701 18BR/RD (RHD) FUSED B(+) (HAZARD)
9 G7 20VT/GY (RHD) LOW OIL PRESSURE INDICATOR DRIVER
10 - -
11 L161 20WT/LG (LHD) LEFT TURN INDICATOR DRIVER
12 L134 20WT/GY (LHD) HIGH BEAM INDICATOR DRIVER
13 G3 20VT/LB (RHD) MALFUNCTION INDICATOR LAMP DRIVER
14 G700 20VT/YL (LHD DIESEL) SUPPLEMENTAL HEAT INDICATOR SENSE
14 L161 20WT/LG (RHD) LEFT TURN INDICATOR DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 101

PASSENGER DOOR COURTESY LAMP (LUXURY/EXPORT) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z322 20BK/BR (LHD) GROUND
1 Z321 20BK/BR (RHD) GROUND
2- -
3 M21 14YL/BR (EXCEPT EXPORT) COURTESY LAMPS DRIVER
3 M21 20YL/BR (EXPORT) COURTESY LAMPS DRIVER
PASSENGER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
2 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (LHD) GROUND
3 Z461 20BK/DG (RHD) GROUND
PASSENGER FOLDING MIRROR RELAY (EXPORT) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 20LG/RD FUSED B(+)
5 P164 18LG/DB PASSENGER FOLDING MIRROR RELAY INPUT
6 P162 18LG/DG PASSENGER FOLDING MIRROR RELAY CONTROL
7- -
8 P160 18TN/LG PASSENGER FOLDING MIRROR RELAY OUTPUT
9- -
PASSENGER HEATED SEAT BACK - LT. GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 16DB (EXCEPT EXPORT) SEAT HEATER B(+) DRIVER
A S1 18WT (EXPORT) SEAT HEATER B(+) DRIVER
B Z848 16BK/OR (EXCEPT EXPORT) GROUND
B S2 18GY (EXPORT) SEAT HEATER GROUND
8W - 80 - 108 8W-80 CONNECTOR PIN-OUTSRS

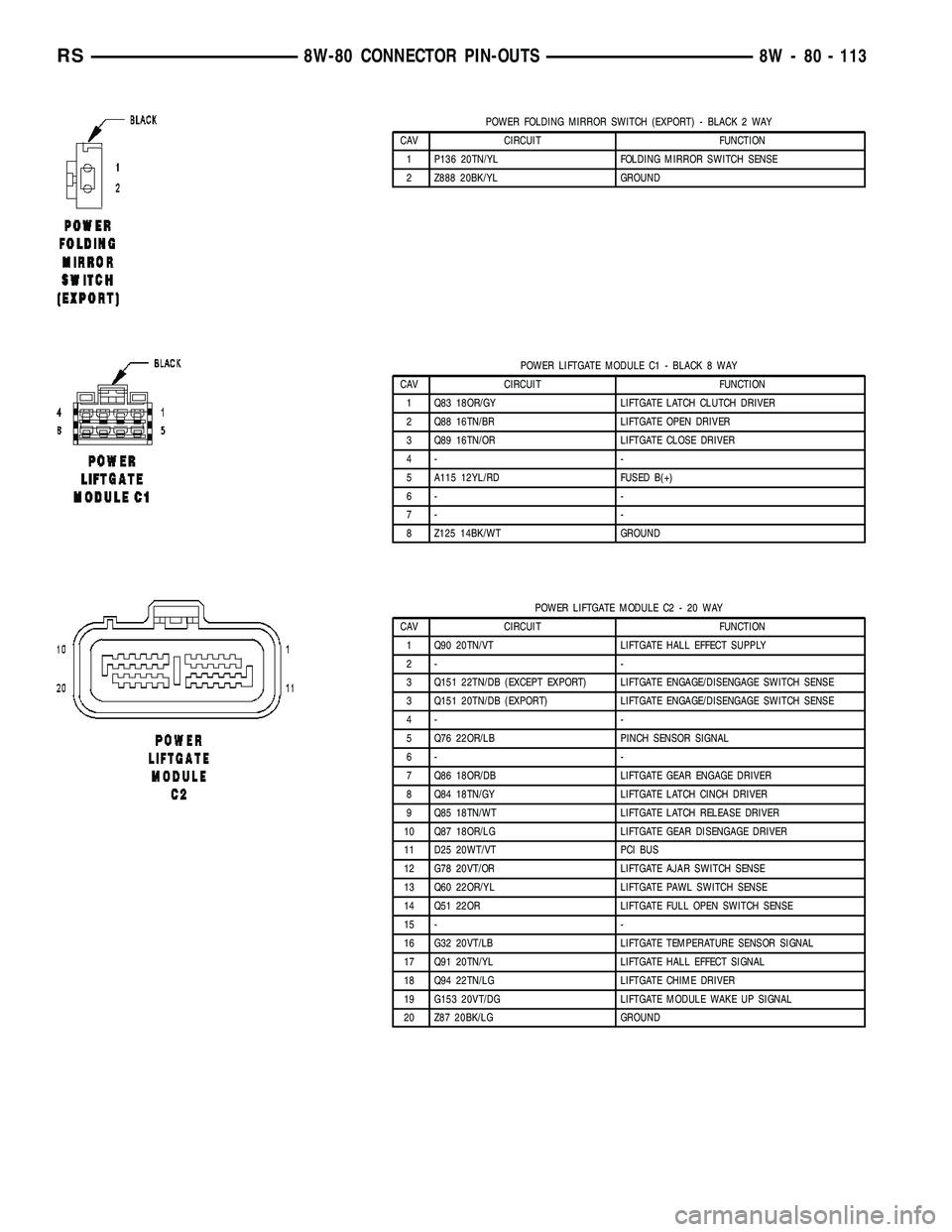

POWER FOLDING MIRROR SWITCH (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P136 20TN/YL FOLDING MIRROR SWITCH SENSE
2 Z888 20BK/YL GROUND
POWER LIFTGATE MODULE C1 - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
2 Q88 16TN/BR LIFTGATE OPEN DRIVER
3 Q89 16TN/OR LIFTGATE CLOSE DRIVER
4- -
5 A115 12YL/RD FUSED B(+)
6- -
7- -
8 Z125 14BK/WT GROUND
POWER LIFTGATE MODULE C2 - 20 WAY
CAV CIRCUIT FUNCTION
1 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
2- -
3 Q151 22TN/DB (EXCEPT EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
3 Q151 20TN/DB (EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4- -
5 Q76 22OR/LB PINCH SENSOR SIGNAL
6- -
7 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
8 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
9 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
10 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
11 D25 20WT/VT PCI BUS
12 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
13 Q60 22OR/YL LIFTGATE PAWL SWITCH SENSE
14 Q51 22OR LIFTGATE FULL OPEN SWITCH SENSE
15 - -
16 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
17 Q91 20TN/YL LIFTGATE HALL EFFECT SIGNAL
18 Q94 22TN/LG LIFTGATE CHIME DRIVER
19 G153 20VT/DG LIFTGATE MODULE WAKE UP SIGNAL
20 Z87 20BK/LG GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 113

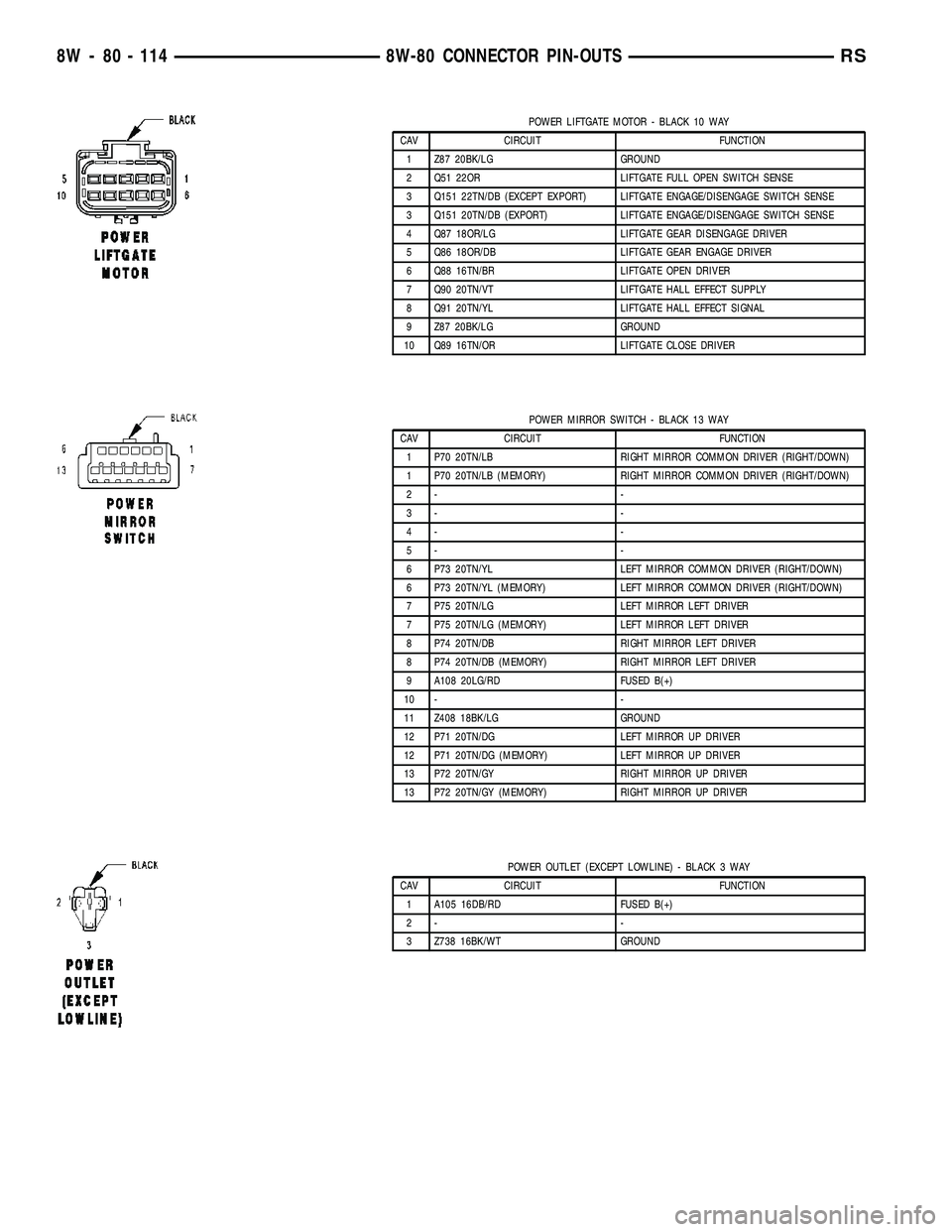

POWER LIFTGATE MOTOR - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 Z87 20BK/LG GROUND
2 Q51 22OR LIFTGATE FULL OPEN SWITCH SENSE
3 Q151 22TN/DB (EXCEPT EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
3 Q151 20TN/DB (EXPORT) LIFTGATE ENGAGE/DISENGAGE SWITCH SENSE
4 Q87 18OR/LG LIFTGATE GEAR DISENGAGE DRIVER
5 Q86 18OR/DB LIFTGATE GEAR ENGAGE DRIVER
6 Q88 16TN/BR LIFTGATE OPEN DRIVER
7 Q90 20TN/VT LIFTGATE HALL EFFECT SUPPLY
8 Q91 20TN/YL LIFTGATE HALL EFFECT SIGNAL
9 Z87 20BK/LG GROUND
10 Q89 16TN/OR LIFTGATE CLOSE DRIVER
POWER MIRROR SWITCH - BLACK 13 WAY
CAV CIRCUIT FUNCTION
1 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
1 P70 20TN/LB (MEMORY) RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
2- -
3- -
4- -
5- -
6 P73 20TN/YL LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
6 P73 20TN/YL (MEMORY) LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
7 P75 20TN/LG LEFT MIRROR LEFT DRIVER
7 P75 20TN/LG (MEMORY) LEFT MIRROR LEFT DRIVER
8 P74 20TN/DB RIGHT MIRROR LEFT DRIVER
8 P74 20TN/DB (MEMORY) RIGHT MIRROR LEFT DRIVER
9 A108 20LG/RD FUSED B(+)
10 - -
11 Z408 18BK/LG GROUND
12 P71 20TN/DG LEFT MIRROR UP DRIVER
12 P71 20TN/DG (MEMORY) LEFT MIRROR UP DRIVER
13 P72 20TN/GY RIGHT MIRROR UP DRIVER
13 P72 20TN/GY (MEMORY) RIGHT MIRROR UP DRIVER
POWER OUTLET (EXCEPT LOWLINE) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 A105 16DB/RD FUSED B(+)
2- -
3 Z738 16BK/WT GROUND
8W - 80 - 114 8W-80 CONNECTOR PIN-OUTSRS

REAR TEMPERATURE MOTOR (3 ZONE ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C54 18LB/YL REAR BLEND DOOR DRIVER (A)
2 C169 18LB/TN REAR BLEND DOOR DRIVER (B)
REAR VIEW MIRROR C1 (LUXURY) - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1 F503 20BK/PK (EXCEPT HANDS FREE) FUSED IGNITION SWITCH OUTPUT (RUN)
1 X793 20DB (HANDS FREE) IGNITION RUN/ACC SIGNAL
2 Z113 20BK (EXCEPT HANDS FREE) GROUND
2 Z530 18GY/BK (HANDS FREE) GROUND
3 L1 20BK/WT BACK-UP LAMP FEED
4 P112 22BK/OR (EXCEPT HANDS FREE) MIRROR B(+)
5 P114 22BK/LB (EXCEPT HANDS FREE) MIRROR B(-)
6- -
7 L24 20BK/GY (EXCEPT HANDS FREE) AUTOMATIC HEADLAMP SWITCH SENSOR
REAR VIEW MIRROR C2 (HANDS FREE) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 X722 20BK/LB MICROPHONE 2 IN (+)
5- -
6 X712 20BK/GY MICROPHONE 1 IN (+)
7 X793 20DB IGNITION RUN/ACC SIGNAL
8- -
9 X730 20BK/VT VOICE RECOGNITION/PHONE SWITCH SIGNAL
10 - -
11 X835 20BK SENSOR GROUND
12 X792 20BK/WT MICROPHONE IN (-)
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 127

RIGHT LOW BEAM LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L44 16WT RIGHT LOW BEAM DRIVER
RIGHT MID READING LAMP (PREMIUM/LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
RIGHT PARK LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT)
RIGHT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P174 20TN/LB (EXPORT) RIGHT FOLDING MIRROR UNFOLD DRIVER
2- -
3- -
4 P68 20TN/YL (MEMORY) RIGHT MIRROR HORIZONTAL POSITION SIGNAL
5 P66 20TN/LG (MEMORY) RIGHT MIRROR SENSOR GROUND
6 P67 20TN/OR (MEMORY) RIGHT MIRROR VERTICAL POSITION SIGNAL
7 P160 20TN/LG (LHD EXPORT) PASSENGER FOLDING MIRROR RELAY OUTPUT
7 P159 20TN/DG (RHD) DRIVER FOLDING MIRROR FOLD DRIVER
8 Z216 20BK/DB GROUND
9 C16 20DB/GY (HEATED MIRRORS) FUSED DEFOGGER RELAY OUTPUT
10 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P72 20TN/GY RIGHT MIRROR UP DRIVER
12 P74 20TN/DB RIGHT MIRROR LEFT DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 133

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
Left Full Open Switch (Power
Sliding Door)BK Left Sliding Door N/S
Left Headlamp Caravan/Voyager
(Except Export)BK At Lamp 1
Left Headlamp (Town & Country) GN At Lamp 1
Left Headlamp Leveling Motor
(Export)WT At Motor N/S
Left High Beam Lamp (Export) BK At Lamp N/S
Left Instrument Panel Speaker WT At Speaker 20, 21, 27
Left Liftgate Flood Lamp (Power
Liftgate)GY At Lamp 49
Left Low Beam Lamp (Export) BK At Lamp N/S
Left Mid Reading Lamp
(Premium/Luxury)GY At Lamp N/S
Left Park Lamp (Export) BK At Lamp NS
Left Power Mirror BK At Mirror 27
Left Rear Lamp Assembly BK At Lamp 47
Left Rear Pillar Speaker (Highline
Audio)BK Left of Liftgate 47
Left Rear Reading Lamp (Luxury) GY At Lamp N/S
Left Rear Speaker (Highline) BK/RD At Speaker 47
Left Rear Speaker (Lowline) At Speaker N/S
Left Rear Vent Motor NAT At Motor 46, 47
Left Rear Wheel Speed Sensor BK Center Rear of Floor Pan 47
Left Remote Radio Switch BK Steering Wheel N/S
Left Repeater Lamp (Export) GY Left Front Fender 4, 36
Left Side Impact Sensor 1 DKGY Left B Pillar 40
Left Side Impact Sensor 2 Left Sliding Door N/S
Left Side Impact Sensor 3 BK Left Quarter Panel 47
Left Sliding Door Control Module
C1BK Left Sliding Door N/S
Left Sliding Door Control Module
C2Left Sliding Door N/S
Left Sliding Door Latch Sensing
SwitchBK Left Sliding Door N/S
Left Sliding Door Lock Motor BK Left Sliding Door N/S
Left Sliding Door Lock Motor/Ajar
Switch (Manual Sliding Door)BK Left Sliding Door N/S
Left Sliding Door Motor BK Left Sliding Door N/S
Left Speed Control Switch WT Steering Wheel N/S
Left Turn Signal Lamp (Export) OR AT Lamp N/S
Left Visor/Vanity Lamp BK At Lamp N/S
License Lamp DKGY At Lamp 49
Lift Pump Motor (Diesel) BK Left Rear Engine Compartment N/S
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-7
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
Liftgate Ajar Switch (Manual
Release)BK At Latch 49
Liftgate Ajar Switch (Power
Release)BK Lower Liftgate 49
Liftgate Cinch/Release Motor
(Power Liftgate)BL Liftgate 49
Liftgate Left Pinch Sensor (Power
Liftgate)BK Left Side of Liftgate 49
Liftgate Right Pinch Sensor
(Power Liftgate)BK Right Side of Liftgate 49
Manifold Absolute Pressure
Sensor (Gas)BK On Intake N/S
Mass Air Flow Sensor (Diesel) OR Top of Engine 15, 16
Memory Seat/Mirror/Adjustable
Pedals Module C1GY Under Driver Seat N/S
Memory Seat/Mirror/ Adjustable
Pedals Module C2GY Under Driver Seat N/S
Memory Seat/Mirror/ Adjustable
Pedals Module C3WT Under Driver Seat N/S
Memory Seat/Mirror/ Adjustable
Pedals Module C4GY Under Driver Seat N/S
Memory Set Switch BK At Switch Driver Door 43
Message Center (Highline) WT Rear of Message Center 20, 21, 28
Mode Door Actuator GY Left Side of HVAC N/S
Multi Function Switch BK At Steering Column 20, 21, 22, 23, 31
Natural Vacuum Leak Detection
Assembly (Except Export)LTGY Top of Engine 12
Occupant Classification Module BK Passenger Seat N/S
Occupant Restraint Controller C1 YL Right Side Instrument Panel
Occupant Restraint Controller C2 YL Right Side Instrument Panel 20, 24, 25
Output Speed Sensor GY Front of Transmission 14, 19
Overhead Console (Except Base) BK Front of Console N/S
Oxygen Sensor 1/1 Upstream
(Gas)Rear of Engine 11, 12, 18
Oxygen Sensor 1/2 Downstream
(Gas)Rear of Engine 11, 12,18
Park Brake Switck Bottoom Left Side of Instrument
Panel20, 21
Park Sensor No.1 (Parktronics) Rear Fascia N/S
Park Sensor No.2 (Parktronics) Rear Fascia N/S
Park Sensor No.3 (Parktronics) Rear Fascia N/S
Park Sensor No.4 (Parktronics) Rear Fascia N/S
Passenger Airbag YL Passenger Side of Instrument Panel 20, 23, 24, 29
Passenger Airbag On/Off
Indicator LampRight Center of Instrument Panel 20, 23, 25
Passenger Blend Door Actuator GY On HVAC N/S
8W - 91 - 8 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
Passenger Door Courtesy Lamp GY At Lamp 44
Passenger Door Lock Switch BK At Switch 44
Passenger Folding Mirror Relay
(Export)BL Left Kick Panel 7
Passenger Heated Seat Back GN At Seat N/S
Passenger Heated Seat Cushion BK At Seat N/S
Passenger Heated Seat Module GY At Heated Seat N/S
Passenger Power Seat Front
Riser MotorRD Under Seat N/S
Passenger Power Seat Horizontal
MotorBK Under Seat N/S
Passenger Power Seat Rear
Riser MotorRD Under Seat N/S
Passenger Power Seat Recliner
MotorGN Under Seat N/S
Passenger Power Seat Switch GN At Switch N/S
Passenger Power Window Motor RD At Motor 44
Passenger Power Window Switch BK At Switch 44
Passenger Seat Belt Switch
(Occupant Sensing)YL On Seat Harness N/S
Passenger Seat Belt Tensioner On Seat Harness N/S
Passenger Seat Weight Sensor BK Passenger Seat N/S
Power Folding Mirror Switch
(Export)BK Near Steering Column 31
Power Liftgate Module C1 BK Left Quarter 46, 47
Power Liftgate Module C2 Left Quarter 46, 47
Power Liftgate Motor BK Left Quarter 47
Power Mirror Switch BK Rear of Switch 30
Power Outlet (Except Lowline) BK Instrument Panel 20, 23, 25
Power Seat Circuit Breaker GY Under Seat N/S
Powertrain Control Module C1 BK Left Front Engine Compartment 11
Powertrain Control Module C2 OR Left Front Engine Compartment 11
Powertrain Control Module C3 NAT Left Front Engine Compartment 11
Powertrain Control Module C4 GN Left Front Engine Compartment 11
Power Window Circuit Breaker GY Left Side Kick Panel 41 42
Radiator Fan No.1 (Gas) BK Left Side At Motor 1
Radiator Fan No.1 (Diesel) GY Left Side At Motor 1
Radiator Fan No.2 (Gas) BK Right Side At Motor 1, 2
Radiator Fan No.2 (Diesel) GY Right Side At Motor 1, 2
Radiator Fan Relay (Gas) Top of Left Front Frame Rail 1
Radiator Fan Relay No. 1
(Diesel)BL Left Front Engine Compartment 2
Radiator Fan Relay No. 2
(Diesel)BL Left Front Engine Compartment 2
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-9
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
