CHRYSLER VOYAGER 2005 Service Manual

8W-31 TRANSMISSION CONTROL SYSTEM
Component Page

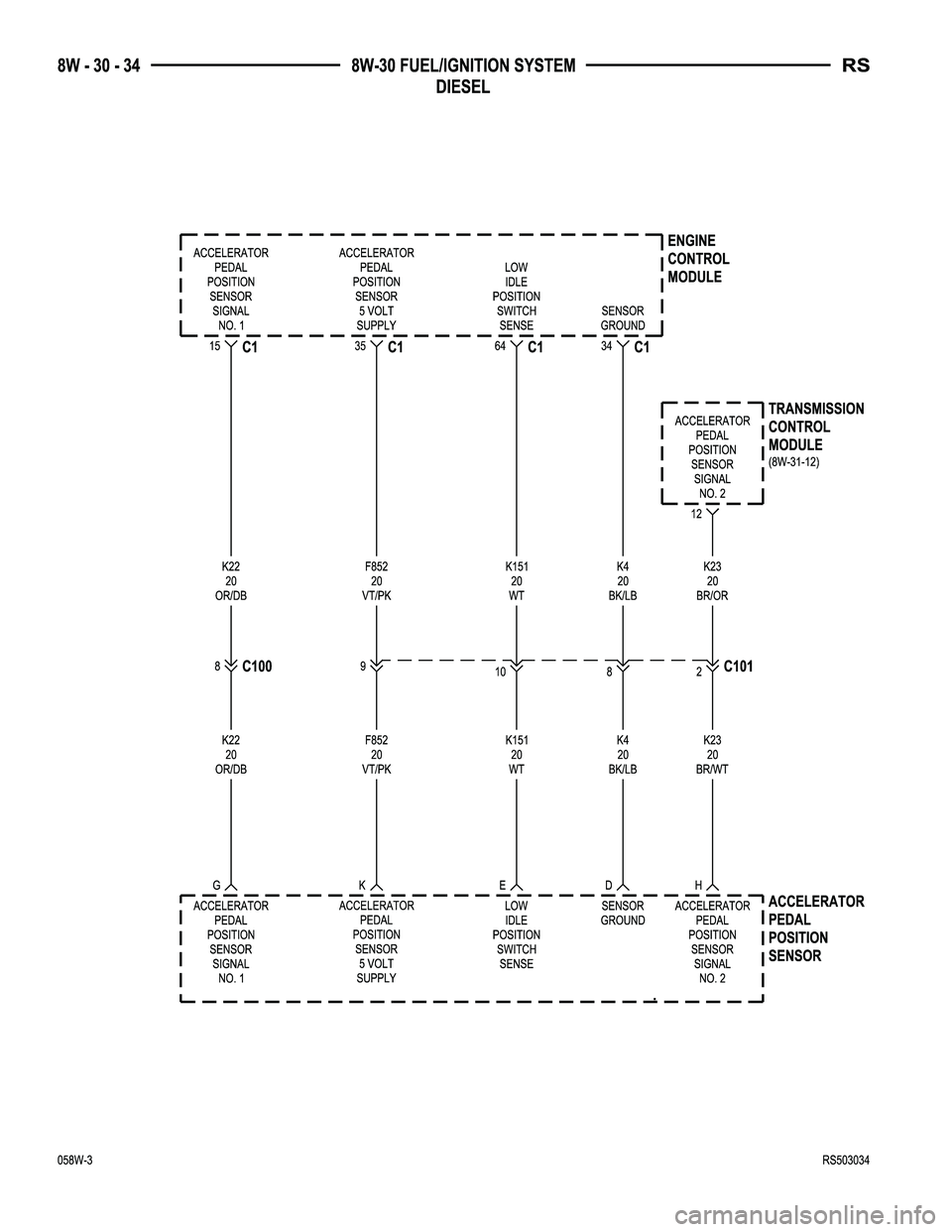

Accelerator Pedal Position Sensor...... 8W-31-12
Battery................ 8W-31-2, 5, 6, 7, 10, 11

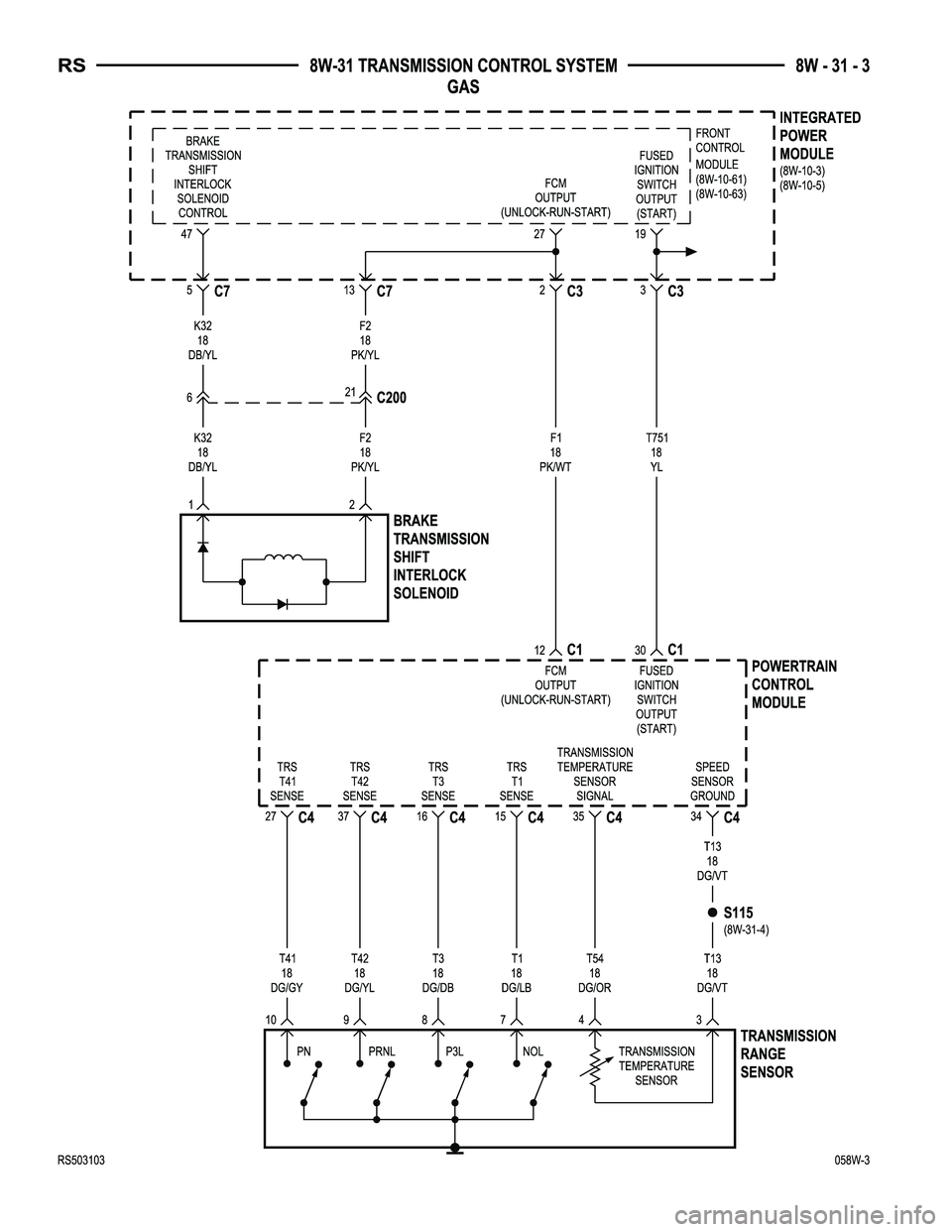

Brake Transmission Shift Interlock
Solenoid....................... 8W-31-3, 8
Data Link Connector................ 8W-31-12
Engine Control Module............. 8W-31-8, 12
Front Control Module.......... 8W-31-3, 6, 8, 12
Fuse 15.......................... 8W-31-2, 5
Fuselink..................... 8W-31-7, 10, 11
G101........................ 8W-31-2, 5, 6, 7Component Page

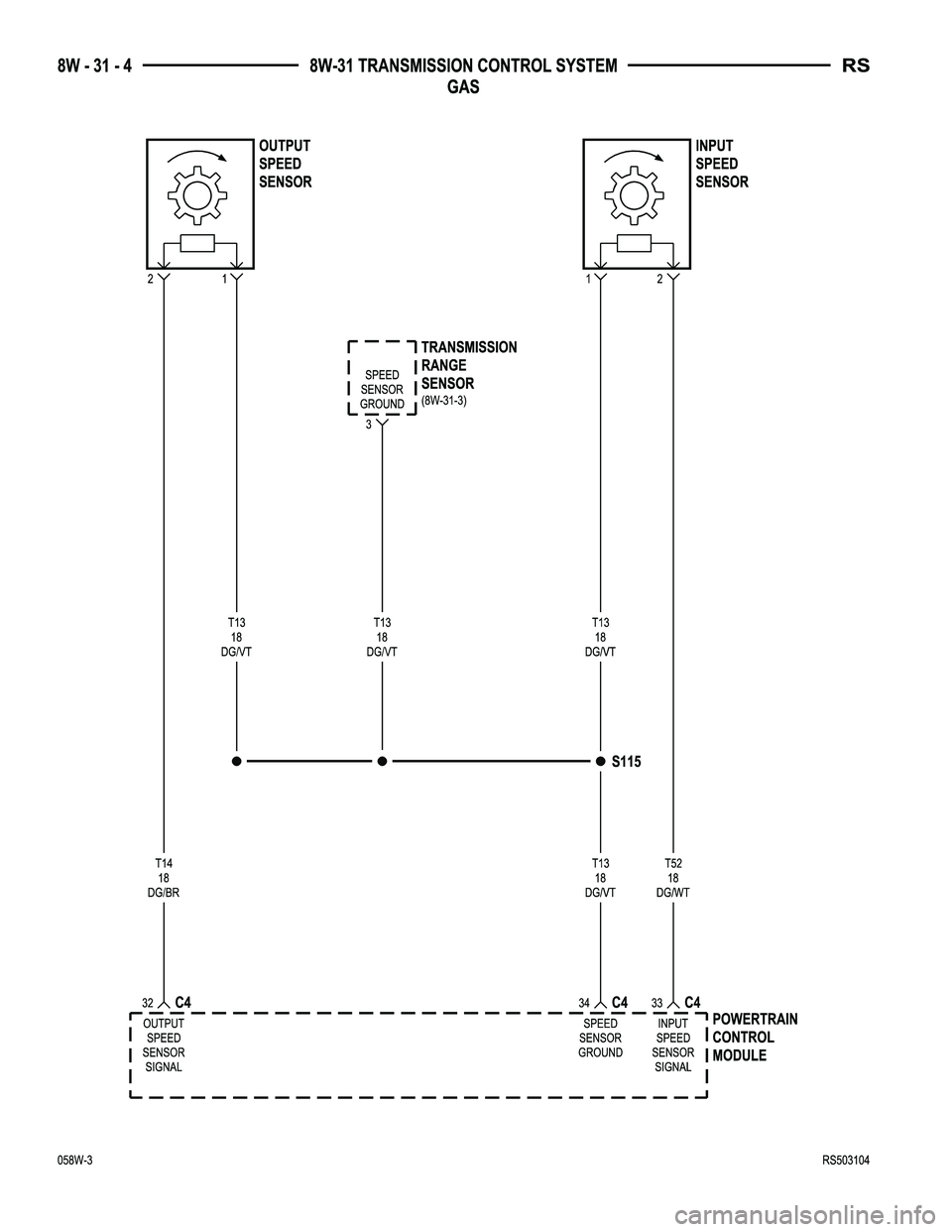

Input Speed Sensor................ 8W-31-4, 9
Integrated Power Module . . . 8W-31-2, 3, 5, 6, 8, 12
Output Speed Sensor............... 8W-31-4, 9
Powertrain Control Module..... 8W-31-2, 3, 4, 5, 6
Transmission Control
Module.............. 8W-31-7, 8, 9, 10, 11, 12

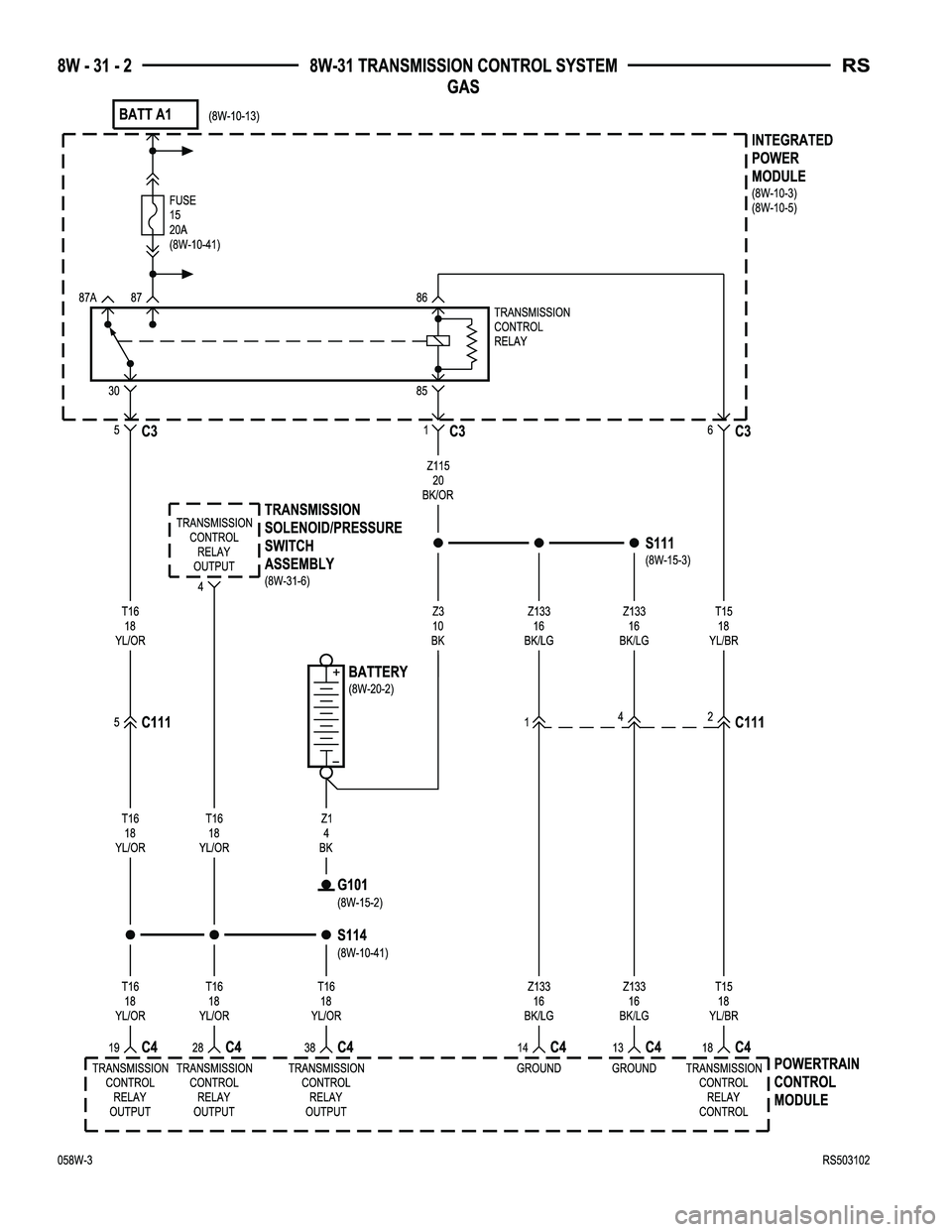

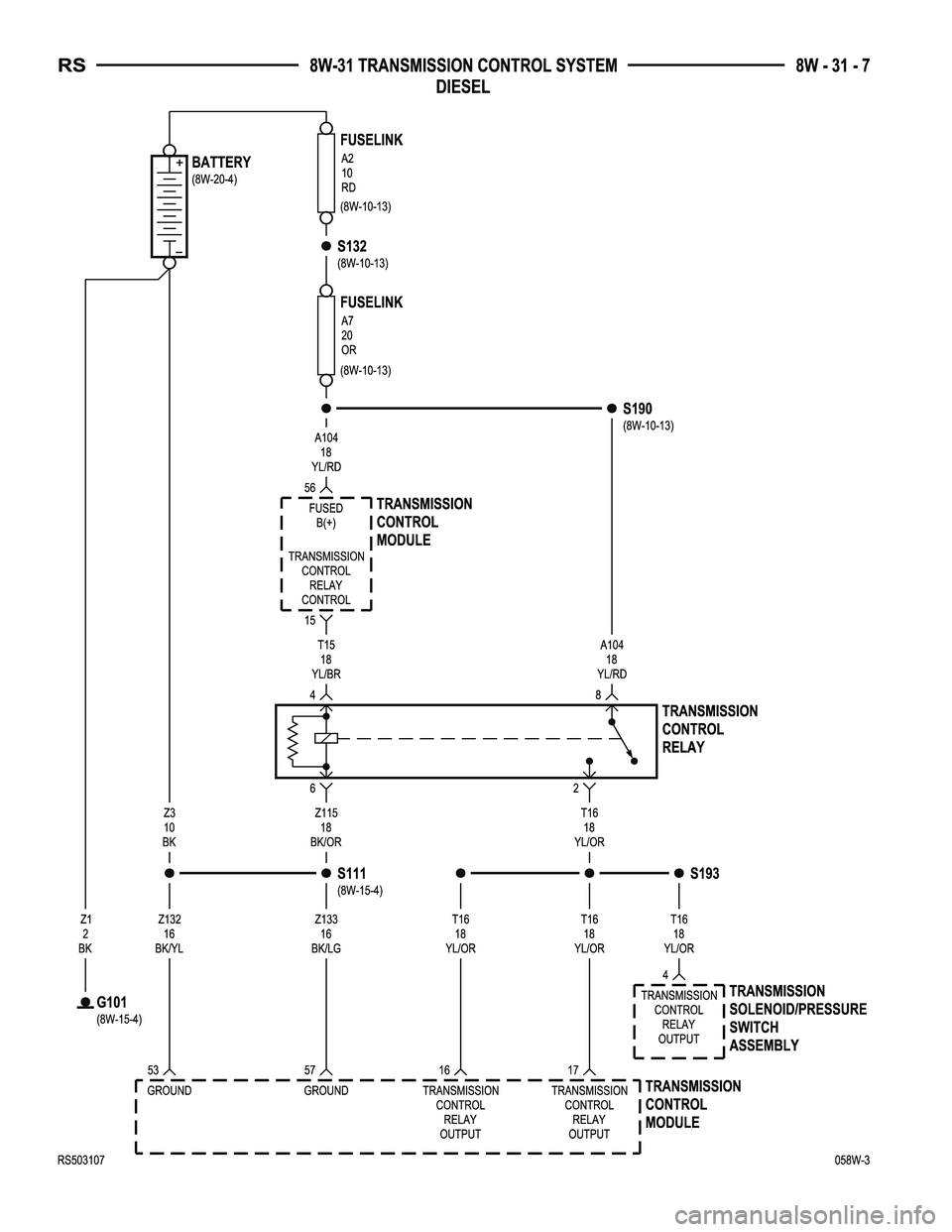

Transmission Control Relay . . 8W-31-2, 5, 7, 10, 11
Transmission Range Sensor...... 8W-31-3, 4, 8, 9

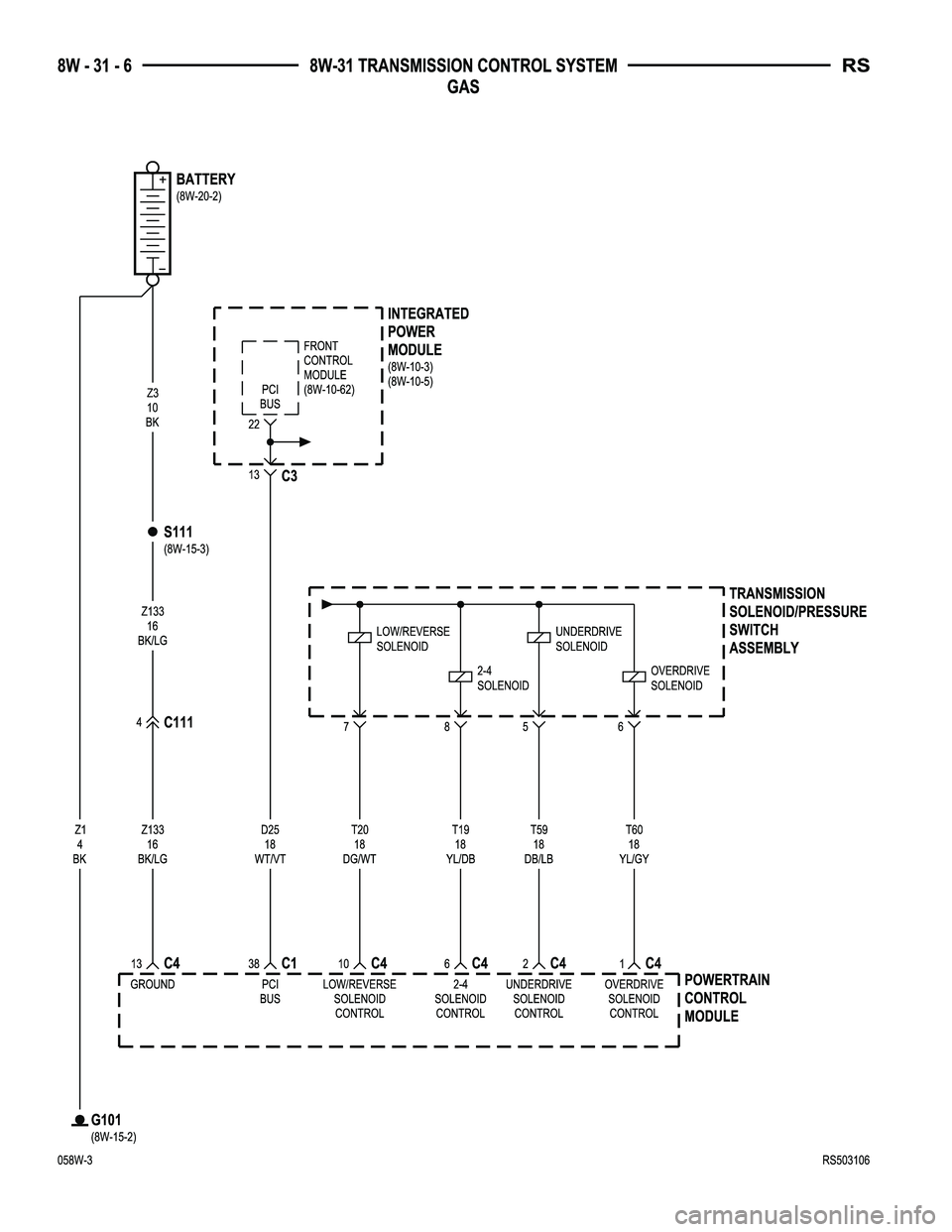

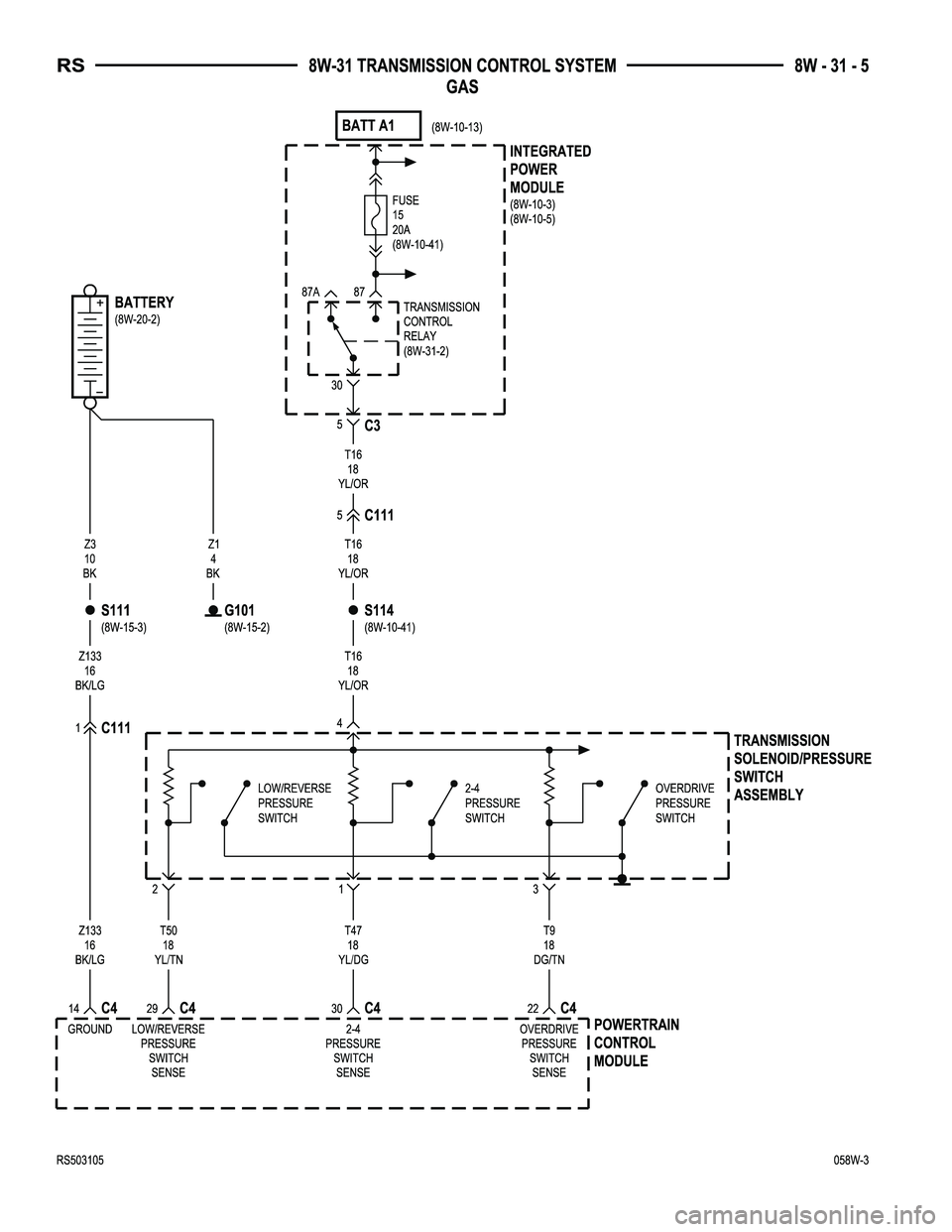

Transmission Solenoid/Pressure Switch
Assembly............. 8W-31-2, 5, 6, 7, 10, 11
RS8W-31 TRANSMISSION CONTROL SYSTEM8W-31-1
