Page 761 of 2339

CHRYSLER VOYAGER 2005 Service Manual

Page 762 of 2339

CHRYSLER VOYAGER 2005 Service Manual

Page 763 of 2339

CHRYSLER VOYAGER 2005 Service Manual

Page 764 of 2339

CHRYSLER VOYAGER 2005 Service Manual

Page 765 of 2339

CHRYSLER VOYAGER 2005 Service Manual

Page 766 of 2339

CHRYSLER VOYAGER 2005 Service Manual

Page 767 of 2339

CHRYSLER VOYAGER 2005 Service Manual

Page 768 of 2339

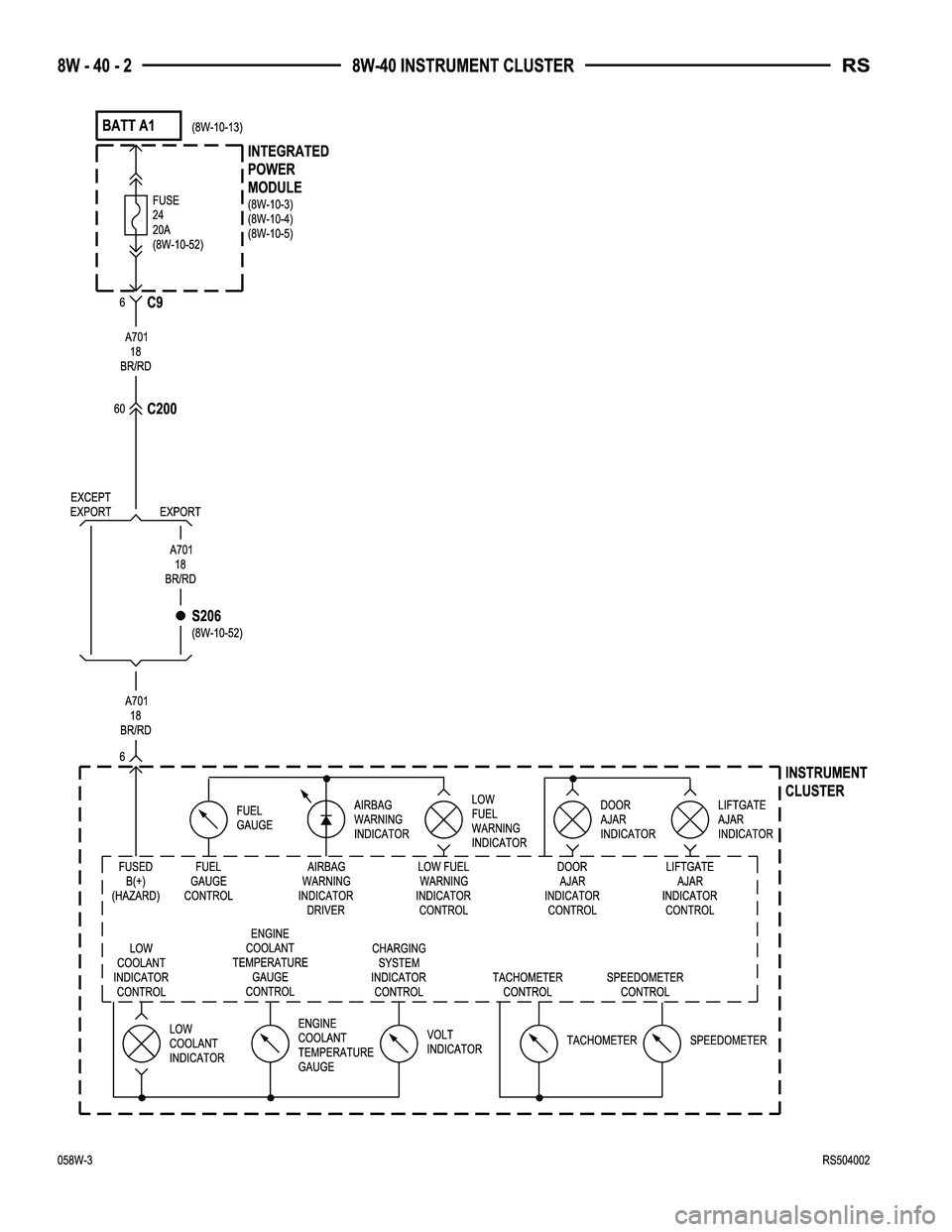

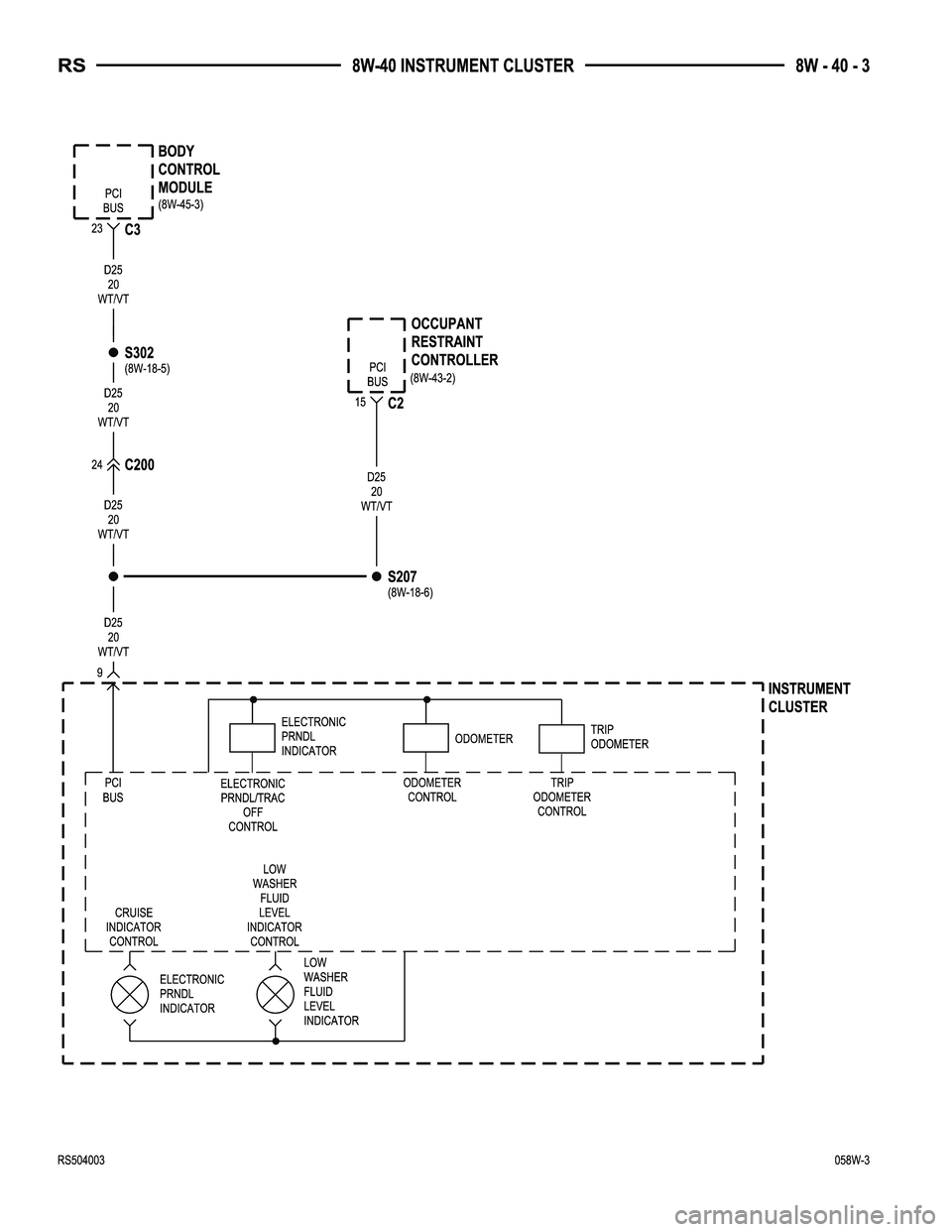

CHRYSLER VOYAGER 2005 Service Manual 8W-40 INSTRUMENT CLUSTER Component Page Body Control Module............... 8W-40-3, 4 Fuse 24............................ 8W-40-2 G200.............................. 8W-40-4 Instrument Cluster.........

Page 769 of 2339

CHRYSLER VOYAGER 2005 Service Manual

Page 770 of 2339

CHRYSLER VOYAGER 2005 Service Manual
