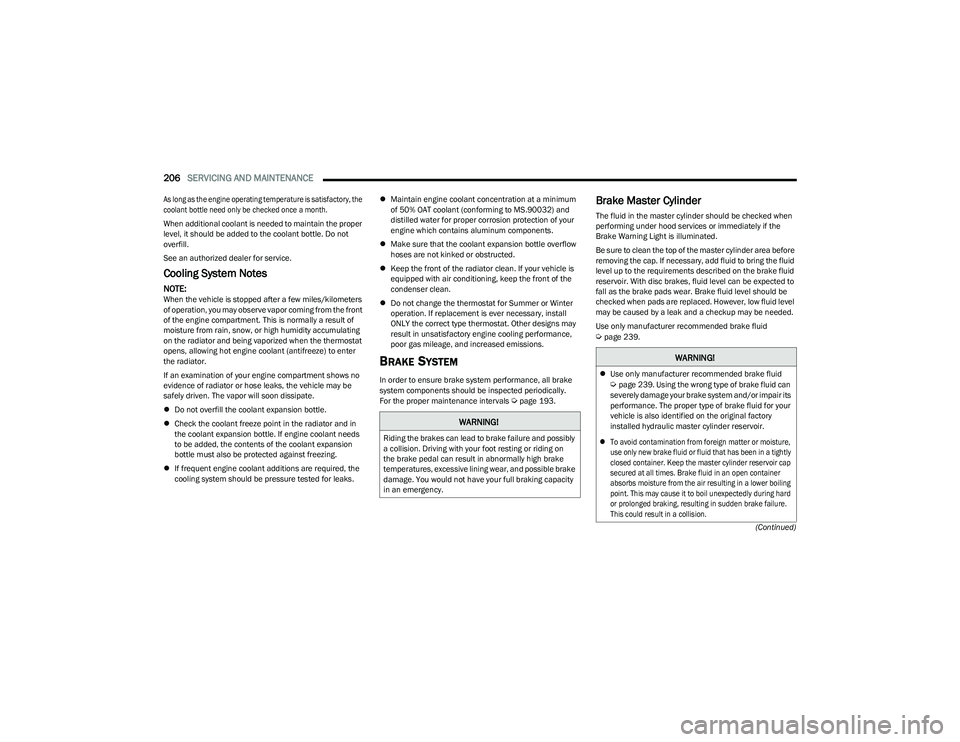

206SERVICING AND MAINTENANCE
(Continued)

As long as the engine operating temperature is satisfactory, the
coolant bottle need only be checked once a month.

When additional coolant is needed to maintain the proper
level, it should be added to the coolant bottle. Do not
overfill.
See an authorized dealer for service.
Cooling System Notes
NOTE:When the vehicle is stopped after a few miles/kilometers
of operation, you may observe vapor coming from the front
of the engine compartment. This is normally a result of
moisture from rain, snow, or high humidity accumulating
on the radiator and being vaporized when the thermostat
opens, allowing hot engine coolant (antifreeze) to enter
the radiator.
If an examination of your engine compartment shows no
evidence of radiator or hose leaks, the vehicle may be
safely driven. The vapor will soon dissipate.

Do not overfill the coolant expansion bottle.
 Check the coolant freeze point in the radiator and in
the coolant expansion bottle. If engine coolant needs
to be added, the contents of the coolant expansion
bottle must also be protected against freezing.
 If frequent engine coolant additions are required, the
cooling system should be pressure tested for leaks. 
Maintain engine coolant concentration at a minimum
of 50% OAT coolant (conforming to MS.90032) and
distilled water for proper corrosion protection of your
engine which contains aluminum components.
 Make sure that the coolant expansion bottle overflow
hoses are not kinked or obstructed.
 Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean.
 Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install
ONLY the correct type thermostat. Other designs may
result in unsatisfactory engine cooling performance,
poor gas mileage, and increased emissions.
BRAKE SYSTEM
In order to ensure brake system performance, all brake
system components should be inspected periodically.
For the proper maintenance intervals
Úpage 193.
Brake Master Cylinder
The fluid in the master cylinder should be checked when
performing under hood services or immediately if the
Brake Warning Light is illuminated.
Be sure to clean the top of the master cylinder area before
removing the cap. If necessary, add fluid to bring the fluid
level up to the requirements described on the brake fluid
reservoir. With disc brakes, fluid level can be expected to
fall as the brake pads wear. Brake fluid level should be
checked when pads are replaced. However, low fluid level
may be caused by a leak and a checkup may be needed.
Use only manufacturer recommended brake fluid
Úpage 239.
WARNING!
Riding the brakes can lead to brake failure and possibly
a collision. Driving with your foot resting or riding on
the brake pedal can result in abnormally high brake
temperatures, excessive lining wear, and possible brake
damage. You would not have your full braking capacity
in an emergency.
WARNING!
Use only manufacturer recommended brake fluid Úpage 239. Using the wrong type of brake fluid can
severely damage your brake system and/or impair its
performance. The proper type of brake fluid for your
vehicle is also identified on the original factory
installed hydraulic master cylinder reservoir.

 To avoid contamination from foreign matter or moisture,
use only new brake fluid or fluid that has been in a tightly
closed container. Keep the master cylinder reservoir cap
secured at all times. Brake fluid in an open container
absorbs moisture from the air resulting in a lower boiling
point. This may cause it to boil unexpectedly during hard
or prolonged braking, resulting in sudden brake failure.
This could result in a collision.

23_RUV_OM_EN_US_t.book Page 206

246 C
Camera ............................................................................92
Camera, Rear ..................................................................92
Capacities, Fluid ........................................................... 238
Caps, Filler Fuel .............................................................................93
Oil (Engine) .............................................................. 195
Radiator (Coolant Pressure)................................... 205
Car Washes .................................................................. 233
Carbon Monoxide Warning .......................................... 169
Cargo Vehicle Loading..........................................................58
Cargo Load Floor ............................................................. 58
Cellular Phone .............................................................. 120
Certification Label ...........................................................93
Chains, Tire................................................................... 230
Change Oil Indicator ....................................................... 63
Changing A Flat Tire ..................................................... 173
Chart, Tire Sizing .......................................................... 218
Check Engine Light (Malfunction Indicator Light) .........74
Checking Your Vehicle For Safety ............................... 167
Checks, Safety.............................................................. 167
Child Restraint.............................................................. 153
Child Restraints Booster Seats.......................................................... 155
Center Seat LATCH ................................................. 160Child Seat Installation ................................... 162
, 163
How To Stow An unused ALR Seat Belt ................. 161
Infant And Child Restraints .................................... 154 Lower Anchors And Tethers For Children .............. 156Older Children And Child Restraints ...................... 155
Seating Positions .................................................... 156
Using The Top Tether Anchorage........................... 165
Clean Air Gasoline........................................................ 236 Cleaning
Wheels .....................................................................229
Climate Control ............................................................... 44 Manual ....................................................................... 44
Rear ............................................................................ 47
Cold Weather Operation ................................................. 77
Compact Spare Tire ...................................................... 228
Contract, Service .......................................................... 242
Cooling Pressure Cap (Radiator Cap) ..........................205
Cooling System ............................................................. 204 Adding Coolant (Antifreeze) ....................................205
Coolant Level ...........................................................205
Cooling Capacity ...................................................... 238
Disposal Of Used Coolant ....................................... 205Drain, Flush, And Refill............................................204
Inspection ...................................................... 204
, 205
Points To Remember............................................... 206
Pressure Cap ...........................................................205
Radiator Cap ............................................................205 Selection Of Coolant (Antifreeze) ................. 204
, 238
Corrosion Protection ..................................................... 232
Cruise Control ................................................................. 86
Cruise Light ..................................................................... 72
Customer Assistance ....................................................240
Cybersecurity ................................................................ 104
DDaytime Running Lights ................................................. 39
Dealer Service............................................................... 197
Defroster, Windshield ...................................................167
Delay (Intermittent) Wipers ............................................ 42
Diagnostic System, Onboard.......................................... 73
Dimmer Switch Headlight .................................................................... 39 Dipsticks
Oil (Engine) .............................................................. 196
Disable Vehicle Towing ................................................ 190
Disposal Antifreeze (Engine Coolant) .................................... 205
Door Ajar .................................................................. 68
, 69
Door Ajar Light ......................................................... 68, 69
Driver’s Seat Back Tilt .................................................... 23
Driving Through Flowing, Rising, Or Shallow Standing Water .................................................. 103
EElectric Brake Control System ..................................... 122Anti-Lock Brake System .......................................... 121Traction Control System ......................................... 125
Electric Parking Brake.................................................... 79
Electronic Stability Control (ESC) ................................ 123
Electronic Throttle Control Warning Light ..................... 68
Emergency Braking ...................................................... 131
Emergency Gas Can Refueling .................................... 187
Emergency, In Case Of Hazard Warning Flasher ......................................... 170Jacking ............................................................ 173
, 175
Jump Starting .......................................................... 185
Overheating ............................................................. 187
Towing...................................................................... 190
Emission Control System Maintenance ........................ 74
Engine ........................................................................... 195 Air Cleaner ............................................................... 198Block Heater .............................................................. 78
Break-In Recommendations..................................... 78

23_RUV_OM_EN_US_t.book Page 246

247
Checking Oil Level .................................................. 196Compartment .......................................................... 195
Compartment Identification ................................... 195Coolant (Antifreeze) ................................................ 238
Cooling..................................................................... 204
Exhaust Gas Caution .............................................. 169
Fails To Start .............................................................. 77
Flooded, Starting ....................................................... 77
Fuel Requirements ................................................. 236 Oil .................................................................... 197
, 238
Oil Filler Cap ............................................................ 195
Oil Filter ................................................................... 197
Oil Selection ................................................... 197
, 238
Oil Synthetic ............................................................ 197
Overheating ............................................................. 187
Starting ....................................................................... 75
Enhanced Accident Response Feature ............. 152
, 191
Ethanol.......................................................................... 236
Exhaust Gas Cautions.................................................. 169
Exhaust System ................................................... 169
, 203
Exterior Lighting .................................................... 39, 216
Exterior Lights......................................39, 168, 215, 216
FFilters Air Cleaner ............................................................... 198Air Conditioning................................................ 49
, 199
Engine Oil ....................................................... 197, 238
Engine Oil Disposal ................................................. 197
Flashers Hazard Warning ...................................................... 170
Turn Signals ..................................... 39
, 72, 168, 216 Flash-To-Pass ........................................................... 39
, 40
Flat Tire Changing ...................................... 173, 217, 228
Flat Tire Stowage ....................................... 180, 217, 228
Flooded Engine Starting ................................................. 77
Fluid Capacities ............................................................238
Fluid Leaks ....................................................................168
Fluid Level Checks Brake ........................................................................ 206
Engine Oil ................................................................. 196
Fluid, Brake ...................................................................239
Fog Lights ........................................................................ 39
Fold In Floor (Stow ‘n Go) Seating ................................. 30
Fold-Flat Seats ................................................................ 23
Forward Collision Warning ...........................................129
Freeing A Stuck Vehicle................................................ 189
Front Position Light....................................................... 216
Fuel ................................................................................ 236 Additives...................................................................237Clean Air ...................................................................236Ethanol .....................................................................236
Filler Cap (Gas Cap)................................................... 93
Gasoline ...................................................................236 Materials Added ...................................................... 237
Methanol .................................................................. 236
Octane Rating ................................................ 236
, 238
Requirements .......................................................... 236
Specifications .......................................................... 238
Tank Capacity .......................................................... 238
Fuses .............................................................................208
GGas Cap (Fuel Filler Cap) ............................................... 93
Gasoline, (Fuel) ............................................................ 236
Gasoline, Clean Air ....................................................... 236
Gasoline, Reformulated ............................................... 236
Gear Ranges ................................................................... 82
Glass Cleaning .............................................................. 234
Gross Axle Weight Rating ............................................... 95
Gross Vehicle Weight Rating ......................................... 94 GVWR .............................................................................. 93
HHazard Driving Through Flowing, Rising, Or Shallow Standing Water .................................................. 103
Hazard Warning Flashers............................................. 170
Head Restraints.............................................................. 35 Headlights ....................................................................... 39 Cleaning ................................................................... 232
High Beam/Low Beam Select Switch ...................... 39
Lights On Reminder ........................................... 39
, 41
Passing ............................................................... 39, 40
Switch ........................................................................ 39
Time Delay ................................................................. 39
Heated Mirrors ........................................................ 38
, 39
Heated Seats .................................................................. 34
Heater, Engine Block...................................................... 78
Hill Start Assist ............................................................. 124
Hitches Trailer Towing ............................................................ 96
Hood Prop ....................................................................... 56
Hood Release ................................................................. 56
11

23_RUV_OM_EN_US_t.book Page 247

249
Map/Reading Lights ....................................................... 41
Marker Lights, Side ...................................................... 216
Media Hub ....................................................................... 52Methanol ...................................................................... 236
Mirrors .............................................................................38 Automatic Dimming ...................................................38
Exterior Folding ..........................................................39
Heated .................................................................38
, 39
Outside ....................................................................... 38
Rearview ........................................................... 38
, 170
Vanity ..........................................................................38
Modifications/Alterations Vehicle .......................................................................... 7
Monitor, Tire Pressure System .................................... 131
Mopar Parts .................................................................. 242
MP3 Control ....................................................................52
Multi-Function Control Lever ..........................................39
NNew Vehicle Break-In Period ..........................................78
OOccupant Restraints .................................................... 134
Octane Rating, Gasoline (Fuel) .......................... 236, 238
Oil Change Indicator ....................................................... 63 Reset ..........................................................................63
Oil Filter, Change .......................................................... 197
Oil Filter, Selection ....................................................... 197
Oil Life Reset

b
............................................................63
Oil Pressure Light ............................................................69 Oil, Engine ........................................................... 197
, 238
Capacity ...................................................................238 Checking .................................................................. 196
Dipstick ....................................................................196Disposal ...................................................................197Filter ............................................................... 197
, 238
Filter Disposal .......................................................... 197
Identification Logo...................................................197
Materials Added To ................................................. 197
Pressure Warning Light............................................. 69
Recommendation .......................................... 197
, 238
Synthetic .................................................................. 197
Viscosity ...................................................................238
Onboard Diagnostic System........................................... 73
Operating Precautions.................................................... 73 Operator Manual Owner's Manual ....................................................... 243
Outside Rearview Mirrors............................................... 38
Overheating, Engine ..................................................... 187
PPaint Care...................................................................... 232
Parking Brake ................................................................. 79
ParkSense System, Rear................................................ 87
Passive Entry................................................................... 18 Pets ................................................................................ 167
Placard, Tire And Loading Information ........................ 221
Power Brakes ...................................................................... 235
Mirrors ........................................................................ 39
Outlet (Auxiliary Electrical Outlet) ............................. 52
Seats .......................................................................... 33
Steering ...................................................................... 84 Power Seats
Down .......................................................................... 33
Forward ...................................................................... 33
Rearward ................................................................... 33
Up ............................................................................... 33
Power Sliding Door On / Off Switch ................................................... 20
, 57
Pregnant Women And Seat Belts ................................ 140
Preparation For Jacking ............................................... 173
Pretensioners Seat Belts ................................................................ 141
RRadial Ply Tires ............................................................. 225
Radiator Cap (Coolant Pressure Cap) ......................... 205
Radio Operation ........................................................... 120
Rear Air Conditioning ..................................................... 47
Rear Cross Path............................................................ 128
Rear ParkSense System ................................................ 87Rear Seat Reminder ..................................................... 121
Rear View ........................................................................ 38
Reclining Front Seats ..................................................... 24
Recreational Towing ..................................................... 101
Reformulated Gasoline ................................................ 236
Refrigerant .................................................................... 199
Release, Hood ................................................................ 56
Reminder, Lights On....................................................... 39Reminder, Seat Belt ..................................................... 135
Remote Control Starting System ......................................................... 14
Remote Keyless Entry Arm The Alarm ........................................................... 16
Disarm The Alarm ..................................................... 16
Programming Additional Key Fobs ........................... 12
11

23_RUV_OM_EN_US_t.book Page 249
