26GETTING TO KNOW YOUR VEHICLE
NOTE:
The seatback may lock into the fold-flat position.
Use the recline lever to unlock the seatback.
 If equipped with Stow ‘n Go seating: when returning the
seat to the original position, the headrest must be
folded back to the original position.

Stow ‘n Go Seating Head Restraint

Easy Entry
Easy Tilt Seat — With Or Without Child Seat Installed
The second row seats can be tilted forward for easy entry
into the third row with or without a child seat installed.

1. Located in the seatback of the second row seat is a
lever (or handle for Stow ‘n Go seats) that provides
easier access to the third row by tilting the seat
forward.
2. Slide the lever upwards, or if equipped, pull the
handle forward, to unlock the seatback.

Lift Easy Tilt Seat Lever (If Equipped)
Pull Easy Tilt Seat Handle (If Equipped)

3. Push on seatback to slide seat forward to access the third row.

Easy Tilt Seat
Easy Tilt With Child Seat Installed

4. To put the seat back into original position, just pull back on the seatback and lock the seat into position.
WARNING!
Do not use this feature with a child in seat. Serious
injury or death may occur.

23_RUV_OM_EN_US_t.book Page 26

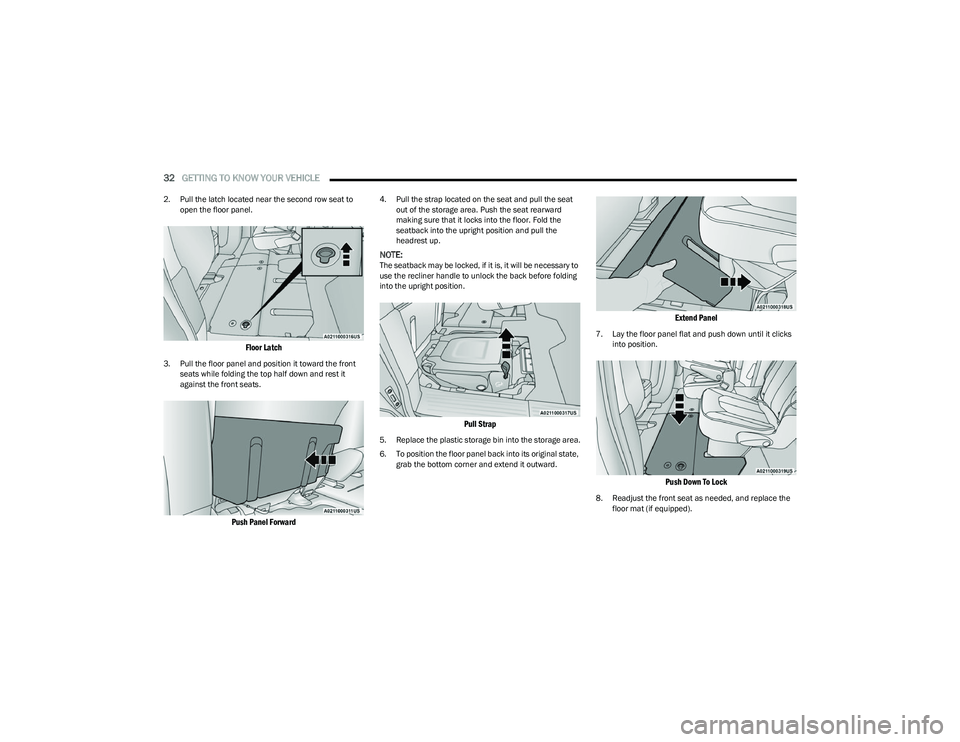

32GETTING TO KNOW YOUR VEHICLE
2. Pull the latch located near the second row seat to
open the floor panel.

Floor Latch

3. Pull the floor panel and position it toward the front seats while folding the top half down and rest it
against the front seats.

Push Panel Forward

4. Pull the strap located on the seat and pull the seat out of the storage area. Push the seat rearward
making sure that it locks into the floor. Fold the
seatback into the upright position and pull the
headrest up.
NOTE:The seatback may be locked, if it is, it will be necessary to
use the recliner handle to unlock the back before folding
into the upright position.

Pull Strap

5. Replace the plastic storage bin into the storage area.
6. To position the floor panel back into its original state, grab the bottom corner and extend it outward.

Extend Panel

7. Lay the floor panel flat and push down until it clicks into position.

Push Down To Lock

8. Readjust the front seat as needed, and replace the floor mat (if equipped).

23_RUV_OM_EN_US_t.book Page 32

158SAFETY
NOTE:If the folding, non-adjustable head restraint interferes with
the installation of the child restraint, the head restraint
may be folded and the child seat installed in front of it.

Car Seat With Head Restraint Folded

Locating The LATCH Anchorages

The lower anchorages are round bars that are
found at the rear of the seat cushion where it meets
the seatback, below the anchorage symbols on the
seatback. They are just visible when you lean into
the rear seat to install the child restraint. You will easily feel
them if you run your finger along the gap between the seatback
and seat cushion.


Can the rear-facing child restraint touch the back of the front passenger seat? Yes

The child seat may touch the back of the front passenger seat if the child restraint manufacturer
also allows contact. See your child restraint owner’s manual for more information.

Can the rear head restraints be removed? YesThe 2nd row head restraints on bench and the center head restraint in the 8 passenger
vehicle can be removed if they interfere with the installation of the child restraint. 2nd row Stow 'n Go head restraints are not removable. The 3rd row center head restraint is
removable in all vehicles, but the 3rd row outboard head restraints are not removable
Úpage 35.
Frequently Asked Questions About Installing Child Restraints With LATCH
WARNING!
Always make sure the head restraint is in its upright
position when the seat is to be used by an occupant
who is not in a child restraint. Sitting in a seat with the
head restraint in its lowered position could result in
serious injury or death in a collision.
1 — Folded Headrest
2 — Child Restraint

23_RUV_OM_EN_US_t.book Page 158

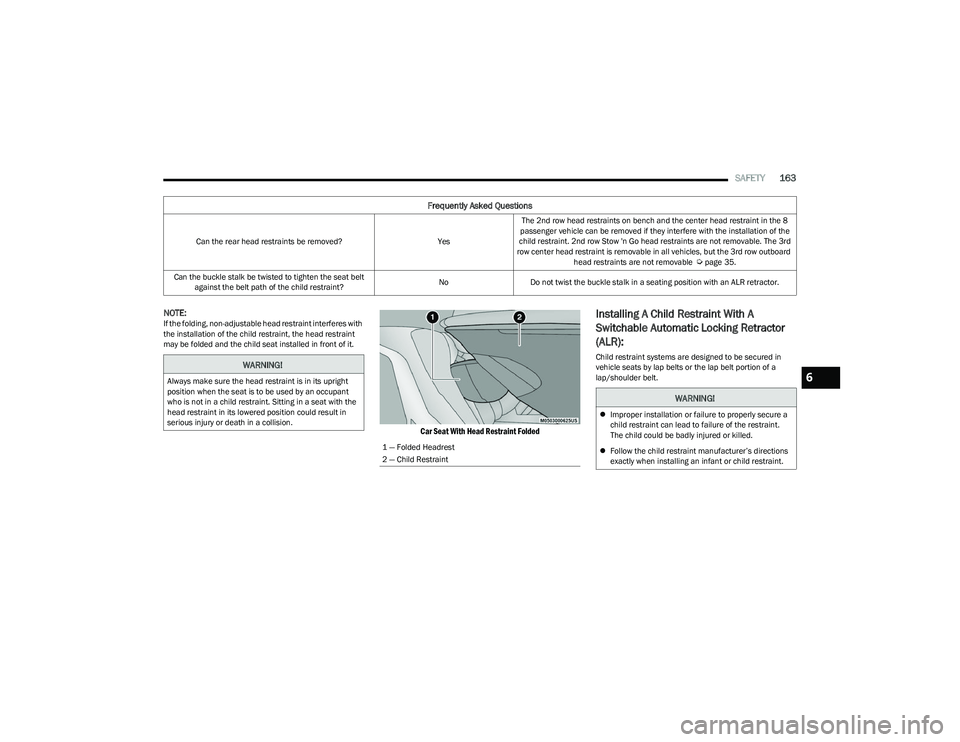

SAFETY163
NOTE:If the folding, non-adjustable head restraint interferes with
the installation of the child restraint, the head restraint
may be folded and the child seat installed in front of it.

Car Seat With Head Restraint Folded

Installing A Child Restraint With A
Switchable Automatic Locking Retractor
(ALR):
Child restraint systems are designed to be secured in
vehicle seats by lap belts or the lap belt portion of a
lap/shoulder belt.
Can the rear head restraints be removed?
YesThe 2nd row head restraints on bench and the center head restraint in the 8
passenger vehicle can be removed if they interfere with the installation of the
child restraint. 2nd row Stow 'n Go head restraints are not removable. The 3rd
row center head restraint is removable in all vehicles, but the 3rd row outboard
head restraints are not removable
Úpage 35.
Can the buckle stalk be twisted to tighten the seat belt against the belt path of the child restraint? No
Do not twist the buckle stalk in a seating position with an ALR retractor.
Frequently Asked Questions
WARNING!
Always make sure the head restraint is in its upright
position when the seat is to be used by an occupant
who is not in a child restraint. Sitting in a seat with the
head restraint in its lowered position could result in
serious injury or death in a collision.
1 — Folded Headrest
2 — Child Restraint
WARNING!
Improper installation or failure to properly secure a
child restraint can lead to failure of the restraint.
The child could be badly injured or killed.
 Follow the child restraint manufacturer’s directions
exactly when installing an infant or child restraint.
6
