technical data CITROEN AMI 2022 Owners Manual

2
Contents
 ■
Overview
 ■
Eco-driving
1Dashboard instrumentsInstrument panel with monochrome display screen 6
Warning and indicator lamps 6
Charge level 7
Distance recorder 7
2AccessDoors 9
Windows 9
3Ease of use and comfortDriver's seat 10
Door mirrors 10
Ventilation/Heating/Demisting 10
Interior fittings 11
Available accessories 12
4Lighting and visibilityExterior lighting 13
Direction indicators 13
Wipers/Screenwash 13
Changing a wiper blade 14
5SafetySafety - General recommendations 15
Hazard warning lamps 15
Horn 15
Seat belts 15
Child seats 16
6DrivingDriving recommendations 18
Parking brake 18
Drive selector 19
Starting/Stopping the vehicle 19
7Practical informationCharging the traction battery 21
Electric motor 23
Checking levels 23
Checks 24
Free-wheeling 25
Advice on care and maintenance 25
8In the event of a breakdownChanging a wheel 27
Changing a bulb 27
Changing a fuse 28
12 V battery 29
Towing the vehicle 33
9Technical dataElectric motor 34
Dimensions 34
Identification markings 35
 ■
Alphabetical index

34

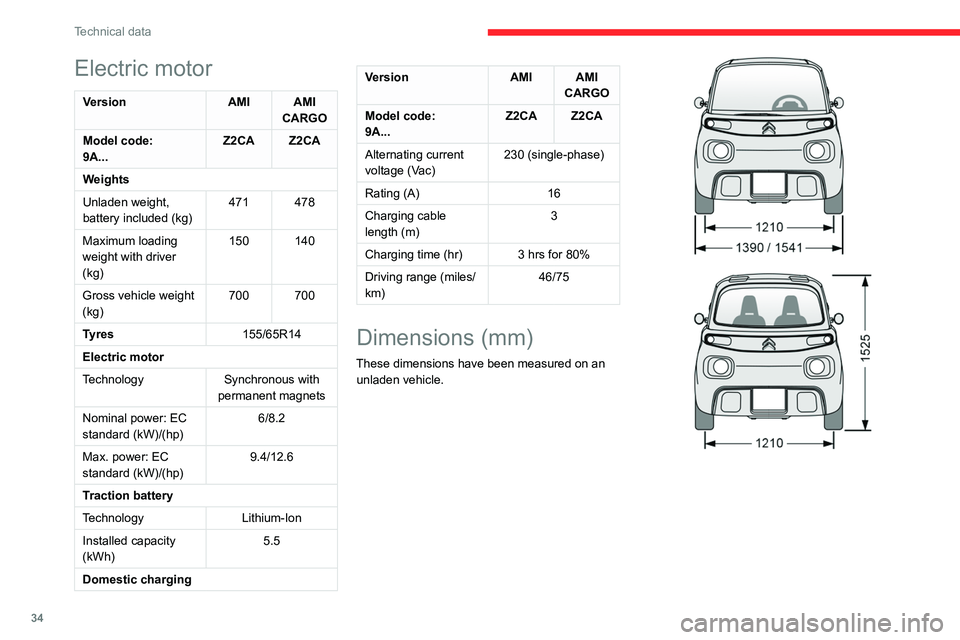

Technical data
Electric motor
VersionAMI AMI
CARGO
Model code:
9A... Z2CA Z2CA
Weights
Unladen weight,
battery included (kg) 471 478
Maximum loading
weight with driver
(kg) 150 140
Gross vehicle weight
(kg) 700 700
Tyres 155/65R14
Electric motor
Technology Synchronous with
permanent magnets
Nominal power: EC
standard (kW)/(hp) 6/8.2
Max. power: EC
standard (kW)/(hp) 9.4/12.6
Traction battery
Technology Lithium-Ion
Installed capacity
(kWh) 5.5
Domestic charging
Version AMI AMI
CARGO
Model code:
9A... Z2CA Z2CA
Alternating current
voltage (Vac) 230 (single-phase)
Rating (A) 16
Charging cable
length (m) 3
Charging time (hr) 3 hrs for 80%
Driving range (miles/
km) 46/75
Dimensions (mm)
These dimensions have been measured on an
unladen vehicle.

35
Technical data
9

Identification markings
Various visible markings for vehicle identification
and vehicle search.


A. Tyres label
Attached to the base of the driver's seat.
Indicates tyre inflation pressures when cold. B. Manufacturer's label
Attached to the base of the passenger seat.
Bears the following information:
–
Manufacturer’
s name.
–
European whole vehicle type approval
number.
–
Vehicle Identification number (VIN).
– Noise level/Rated speed.
– Maximum power/Maximum speed.
– Gross vehicle weight (GVW).
