CHECKING THE VALVE TIMING
Engine: NFU
Remove the sparking plugs, to facilitate rotation of the crankshaft.
Rotate the engine by means of the crankshaft pinion screw
(clockwise)to bring it to the pegging
position.
Fit the tools [2a]and [2b].
Peg the flywheel, using tool [1].
NOTE:If the setting proves impossible, restart the timing setting operation.
Remove the tools [1], [2a]and [2b].
Complete the refitting.
IMPERATIVE: Carry out the operations that are necessary following a reconnection of the
battery
(see corresponding operation).
B1EP170C
B1BP2MBC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 198

Downloaded from www.Manualslib.com manuals search engine 199
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: NFU
Tools.
[1]Flywheel setting peg: 4507-T.A Toolkit 4507-T
[2a]Camshaft setting peg: 4533-TA.C1
[2b]Camshaft setting peg: 4533-TA.C2
[3]Belt retaining pin: 4533-T.AD
[4]Dynamic tensioner roller pin: 4200-T.H
IMPERATIVE: Respect the safety and cleanliness requirements.
Removing.
Raise and support the vehicle, front wheels hanging
Disconnect the battery.
Remove:
- The auxiliaries drive belt (4)
(see corresponding operation).
- The crankshaft pulley (3).
- The oil filter.
Suspend the engine, using a workshop hoist.
Remove the timing cover, the engine support (1), the intermediate support and the timing cover (2).
B1BP382C
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 199

Downloaded from www.Manualslib.com manuals search engine 200
ENGINE
200
CHECKING AND SETTING THE VALVE TIMING
Engine: NFU
Peg the flywheel, using tool [1].
Position the tools [2a]and [2b].
Slacken the tensioner roller.
Turn the dynamic tensioner roller so as to be able
to position the tool[4], with the aid of an Allen key
placed at «a».
Turn the tensioner roller towards the right to bring
it to the index «c»in position «b».
Peg the tensioner roller in this position in order to
slacken the timing belt to the maximum.
IMPERATIVE: Never make the dynamic tensioner
roller turn by a complete rotation.
Remove the timing belt (8).
Check that the rollers and the pump pulley turn
freely
(no tight spot).
B1BP2MBC
B1EP170C
B1EP18PC
B1EP18QC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 200

Downloaded from www.Manualslib.com manuals search engine 201
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: NFU
Refitting.
Fit the
(new)timing belt in position, in the following order:
- Inlet camshaft pulley, exhaust camshaft pulley, guide roller, crankshaft pulley, position tool [5],
coolant pump pulley, dynamic tensioner roller.
Remove tools [1], [2a], [2b]and [4].
Overtension on the belt.
Turn the tensioner roller (7)with the aid of a hexagonal spanner at «a».
Bring the index «c»to position «d», to tension the belt to the maximum of the interval indicated.
Hold the tensioner roller, using tool [4].
Tighten the fixing nut of the tensioner roller, tightening to 1 m.daN.
Turn the crankshaft by 4 rotations
(normal direction of rotation).
IMPERATIVE: Never make the crankshaft rotate backwards.
Make sure that the timing is correctly set by refitting the pegs [1], [2a]and [2b].
Remove the pegs [1], [2a], [2b]and[4].
B1EP1DPC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 201

Downloaded from www.Manualslib.com manuals search engine 202
ENGINECHECKING AND SETTING THE VALVE TIMING
Engine: NFU
Adjusting the fitting tension of the timing belt.
Slacken the nut while maintaining the position of the tensioner roller, with the aid of a hexagonal
spanner at «a».
Next bring the index «c»to its adjusting position «e».
WARNING: The index «c» must not go beyond the notch «e». If it should do this, restart the
timing belt tensioning operation.
Hold the tensioner roller in this position with the aid of a hexagonal spanner.
Tighten the tensioner roller fixing nut to 2.2 ± 0.2 m.daN.
IMPERATIVE: The tensioner roller must not rotate during the tightening of its fixing. If it
does, restart the timing belt tensioning operation.
Refitting.
Refit the timing covers, the crankshaft pulley, the auxiliaries drive belt
(see corresponding operation).
Complete the refitting.
IMPERATIVE: Carry out the operations that are necessary following a reconnection of the
battery
(see corresponding operation).
B1EP1HHC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 202

Downloaded from www.Manualslib.com manuals search engine 203
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: RFJ
Tools.
[1]Camshaft pinion peg: (-).0194.A
[2]Crankshaft setting peg: (-).0189.R
IMPERATIVE: Respect the safety and cleanliness requirements.
Disconnect the battery.
Raise and support the vehicle, front wheels hanging.
Remove the front RH wheel, the plastic pins holding the splash-shield, the splash-shield itself.
A:Pegging on the manualgearbox.
B:Pegging on the automaticgearbox.
Turn the engine by means of the crankshaft pinion screw, to bring it to the pegging position.
B1BP2V3D
B1BP38VC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 203

Downloaded from www.Manualslib.com manuals search engine 204
ENGINECHECKING AND SETTING THE VALVE TIMING
Engine: RFJ
Peg the crankshaft, using tool [2].
Suspend the engine, using a workshop hoist.
Remove the RH engine support, the upper timing cover.
Peg the camshaft pulleys, using tool [1].
NOTE:The pegs [1]should go in without forcing.
WARNING: If the pegs go in only with difficulty, repeat the operation for fitting and tensioning
the timing belt
(see corresponding operation).
Refitting.
Remove tools [1]and [2].
Complete the refitting.
IMPERATIVE: Carry out the operations that are necessary following a reconnection of the
battery
(see corresponding operation).
B1BP2V3D
B1BP38VC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 204

Downloaded from www.Manualslib.com manuals search engine 205
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: RFJ
Tools.
[1] Camshaft setting peg: (-).0194.B
[2] Crankshaft setting peg: (-).0189.R
[3]Timing belt retaining pin: (-) 0189.K
[4]Adaptor for angular tightening: 4069-T
[5]Hub immobilising tool: (-).0189.S
[5a] : (-).0189.S1
[5b] : (-).0189.S2
Pliers for removing plastic pins: 7504-T
IMPERATIVE: Respect the safety and cleanliness requirements.
Checking and setting the timing.
Removing.
Disconnect the negative terminal of the battery
(see corresponding operation).
Raise and support the vehicle, front wheels hanging.
Remove the auxiliaries drive belt
(see corresponding operation).
Unclip and move aside the fuel supply hose from the timing cover.
Suspend the engine by means of a workshop hoist.
Remove the RH engine support and the timing cover (1).
Turn the engine by means of the screw (3)of the crankshaft pinion (2)to bring it to the pegging
position.
B1BP310C
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 205

Downloaded from www.Manualslib.com manuals search engine 206
ENGINECHECKING AND SETTING THE VALVE TIMING
Engine: RFJ
Checking and setting the timing (continued).
A:Pegging on the manual gearbox.
B:Pegging on the automaticgearbox.
Peg the crankshaft, using tool [2].
Remove the fixing bracket screw (4).
Move aside the power steering pipes.
Peg the camshaft pulleys (6)and (7), using tool [1].
Remove the screw (3), the crankshaft pulley (2)and
the lower timing cover (5).
IMPERATIVE: Never remove the crankshaft
pulley (2), without pegging the crankshaft and
the camshafts.
Slacken the screw (10)of the tensioner roller (9).
Turn the tensioner roller (9)
(clockwise).
Remove the timing belt (8).
B1BP2V3D
B1EP1G1DB3EP15JC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 206

Downloaded from www.Manualslib.com manuals search engine 207
ENGINE

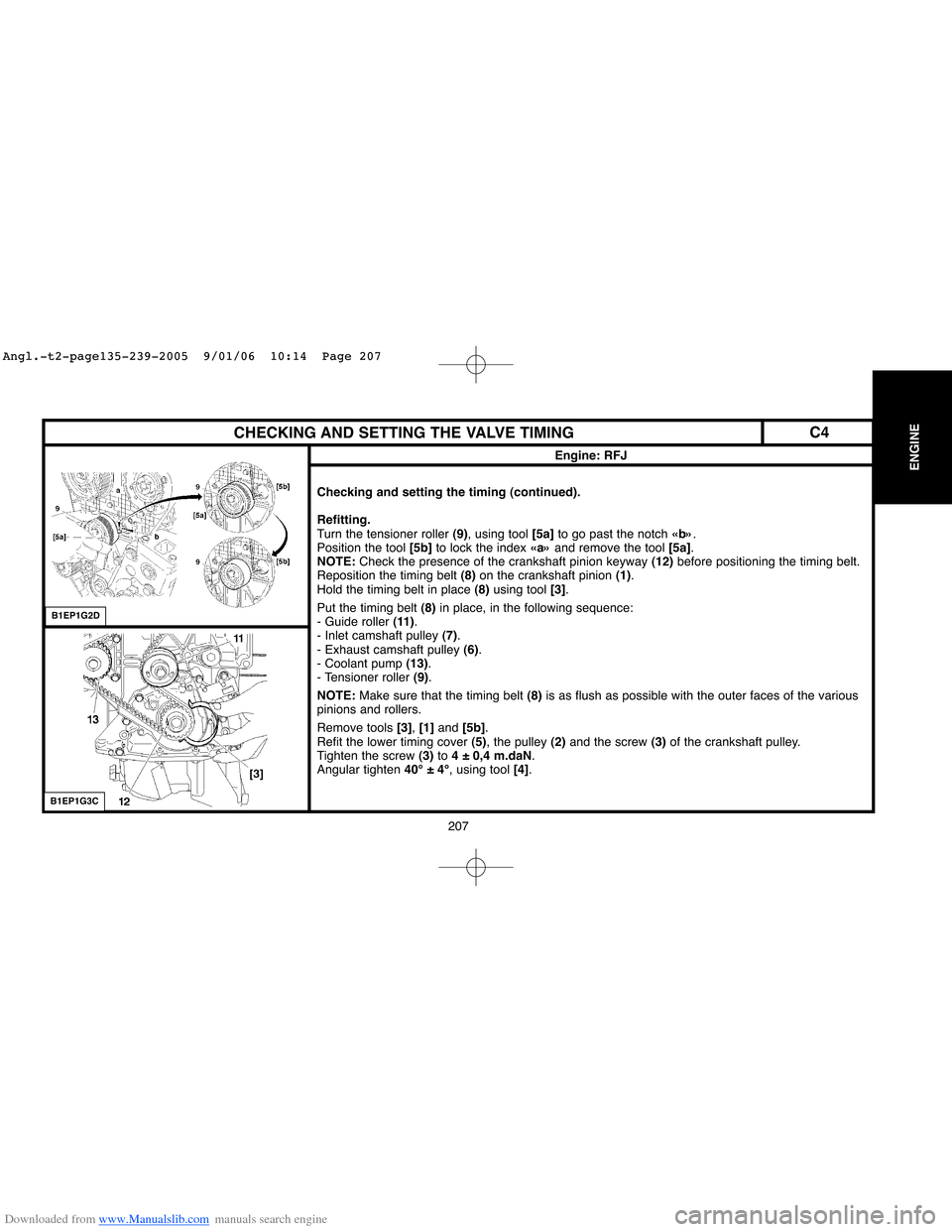

CHECKING AND SETTING THE VALVE TIMING
Engine: RFJ
Checking and setting the timing (continued).
Refitting.
Turn the tensioner roller (9), using tool [5a]to go past the notch «b».
Position the tool [5b] to lock the index «a»and remove the tool [5a].
NOTE: Check the presence of the crankshaft pinion keyway (12)before positioning the timing belt.
Reposition the timing belt (8)on the crankshaft pinion (1).
Hold the timing belt in place (8)using tool [3].
Put the timing belt (8)in place, in the following sequence:
- Guide roller (11).
- Inlet camshaft pulley (7).
- Exhaust camshaft pulley (6).
- Coolant pump (13).
- Tensioner roller (9).
NOTE: Make sure that the timing belt (8)is as flush as possible with the outer faces of the various
pinions and rollers.
Remove tools[3], [1]and [5b].
Refit the lower timing cover (5), the pulley (2)and the screw (3)of the crankshaft pulley.
Tighten the screw (3)to 4 ± 0,4 m.daN.
Angular tighten 40°±4°, using tool [4].
B1EP1G2D
B1EP1G3C
C4
