Page 117 of 153
111
ACCESSORIES
66
Equipment
A u d i o e q u i p m e n t , h a n d s - f r e e k i t ,
speakers, CD changer, navigation, ...
To prevent the mat from becoming
caught under the pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s
are positioned correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
Regardless of the audio and telematic
e q u i p m e n t o f f e r e d o n t h e m a r k e t , t h e
technical constraints linked with the
fi t t i n g o f e q u i p m e n t o f t h e s e f a m i l i e s
of products mean that the special
f e a t u r e s o f t h e e q u i p m e n t a n d i t s
compatibility with the capacities of the
y o u r v e h i c l e ’ s s t a n d a r d e q u i p m e n t
must be taken into account. Please
contact a CITROËN dealer for
i n f o r m a t i o n b e f o r e fi t t i n g s u c h
e q u i p m e n t .
Maximum weights on bars
- R o o f r a c k : 1 2 0 K g .
- T r a n s v e r s e b a r s o n r o o f : 1 0 0 K g .
- T r a n s v e r s e b a r s o n l o n g i t u d i n a l b a r s : 7 5 K g . Installation of radiocommunication
transmitters
Before installing accessory
radiocommunication transmitters with
an external aerial on your vehicle, you
are advised to contact a representative
o f t h e C I T R O Ë N m a r q u e .
The CITROËN Network will inform you
o f t h e s p e c i fi c a t i o n s ( f r e q u e n c y b a n d ,
maximum output power, aerial position,
s p e c i fi c i n s t a l l a t i o n c o n d i t i o n s ) o f t h e
t r a n s m i t t e r s w h i c h c a n b e fi t t e d , i n
accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
( 2 0 0 4 / 1 0 4 / C E ) .
F r o n t m u d fl a p s , r e a r m u d fl a p s ,
1 5 / 1 7 i n c h a l l o y w h e e l s , w h e e l a r c h
trim, leather steering wheel, ...
Screenwash, interior and exterior
cleaning and maintenance products,
replacement bulbs, ... T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not
recommended by Automobiles
CITROËN may result in the failure
of your vehicle’s electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g . Y o u
are advised to contact a representative
o f t h e M a r q u e t o b e s h o w n t h e r a n g e
o f r e c o m m e n d e d e q u i p m e n t a n d
accessories.
Depending on the country in which
the vehicle is sold or operated, it is
compulsory to have a high visibility
safety jacket, warning triangle and
replacement bulbs available in the
vehicle.
"Active Fleet Data" Telematic unit
Connected directly to the heart of the
vehicle (multiplexed network: "Full CAN"),
the telematic unit, by means of a "ready to
use" service, permits the sending in real
time of information such as:
- d i s t a n c e t r a v e l l e d ,
- d i s t a n c e r e m a i n i n g b e f o r e t h e n e x t service,
- w a r n i n g s a n d f a u l t s ( o i l l e v e l , coolant level, oil temperature,
coolant temperature, etc...).
This enables "Fleet" managers
to optimise the monitoring and
management of their professional
vehicles.
According to country, contact
a CITROËN dealer for further
information.
Page 145 of 153
139

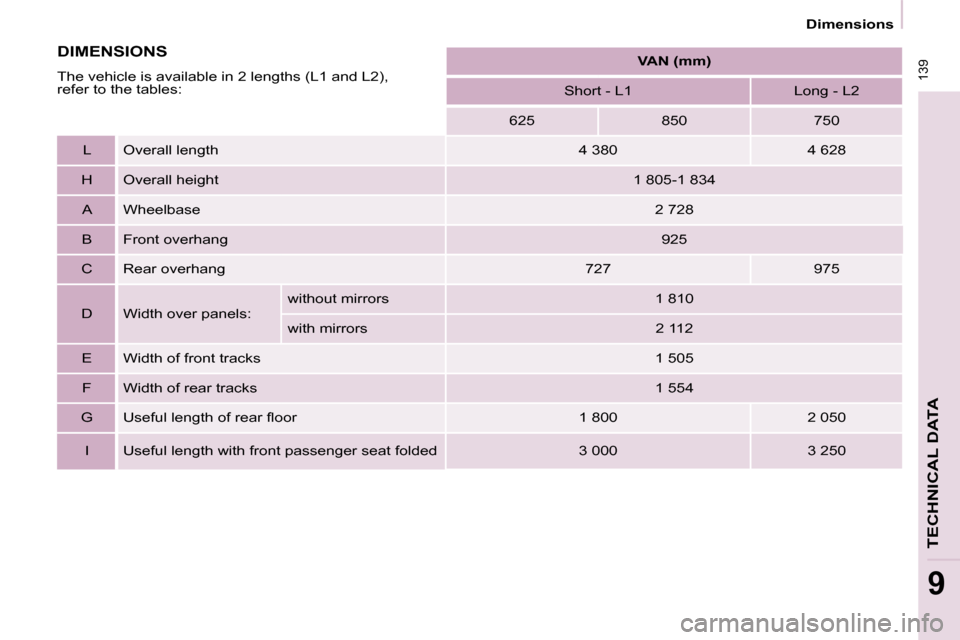

Dimensions
TECHNICAL DATA
9
VAN (mm)
Short - L1 Long - L2
625 850 750
L Overall length 4 380 4 628
H Overall height 1 805-1 834
A Wheelbase 2 728
B Front overhang 925
C Rear overhang 727 975
D Width over panels: without mirrors
1 810
with mirrors 2 112
E Width of front tracks 1 505
F Width of rear tracks 1 554
G U s e f u l l e n g t h o f r e a r fl o o r 1 800 2 050
I Useful length with front passenger seat folded 3 000 3 250
DIMENSIONS DIMENSIONS
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables:
Page 147 of 153
Dimensions
TECHNICAL DATA
9

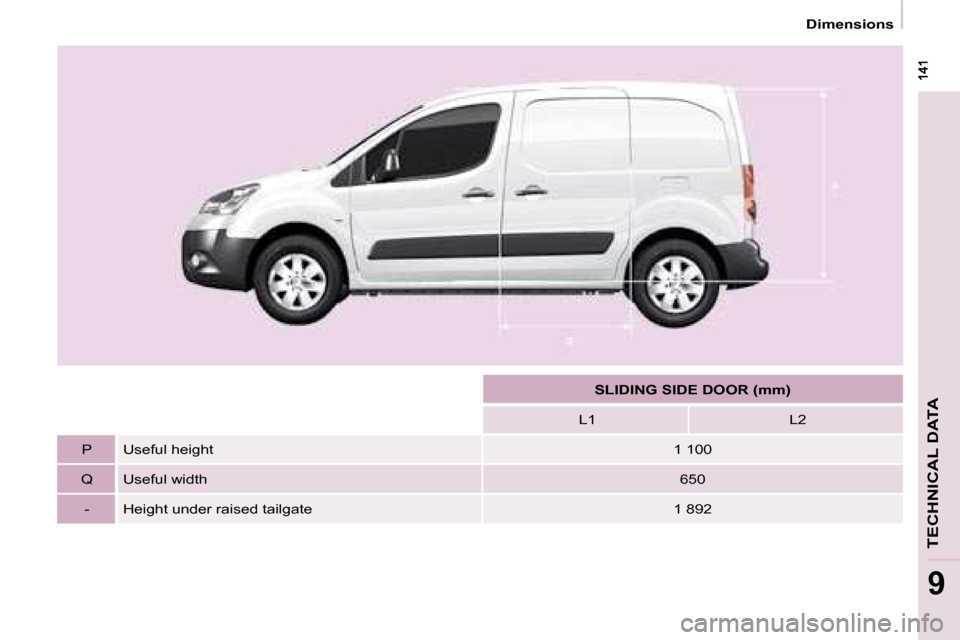

SLIDING SIDE DOOR (mm)
L1 L2
P Useful height 1 100
Q Useful width 650
- Height under raised tailgate 1 892
Page 149 of 153
143
TECHNICAL DATA
9
Weights
WEIGHTS AND TOWED LOADS (KG)
General points The GTW and towed load values
indicated are valid up to a maximum
altitude of 1 000 metres; the towed
load mentioned must be reduced by
10 % for each additional 1 000 metres.
GTW: gross train weight
GVW: gross vehicle weight
MOM: kerb weight
CVA: vertical load on the towbar
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country).
The braked towed weight with load
transfer can be increased on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
using a lightly loaded towing vehicle
may have an adverse effect on its road
holding. High exterior temperatures may result
in a reduction in the performance of the
vehicle in order to protect the engine;
when the exterior temperature is higher
than 37 °C, limit the towed weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi l l e d t o 9 0 % .
For further information, consult your
r e g i s t r a t i o n c e r t i fi c a t e .
In each country, it is imperative that
the towed loads authorised by local
l e g i s l a t i o n a r e c o m p l i e d w i t h . T o fi n d
out your vehicle’s towing capacities
and its gross train weight, consult a
CITROËN dealer.
Page 151 of 153
145
TECHNICAL DATA
9

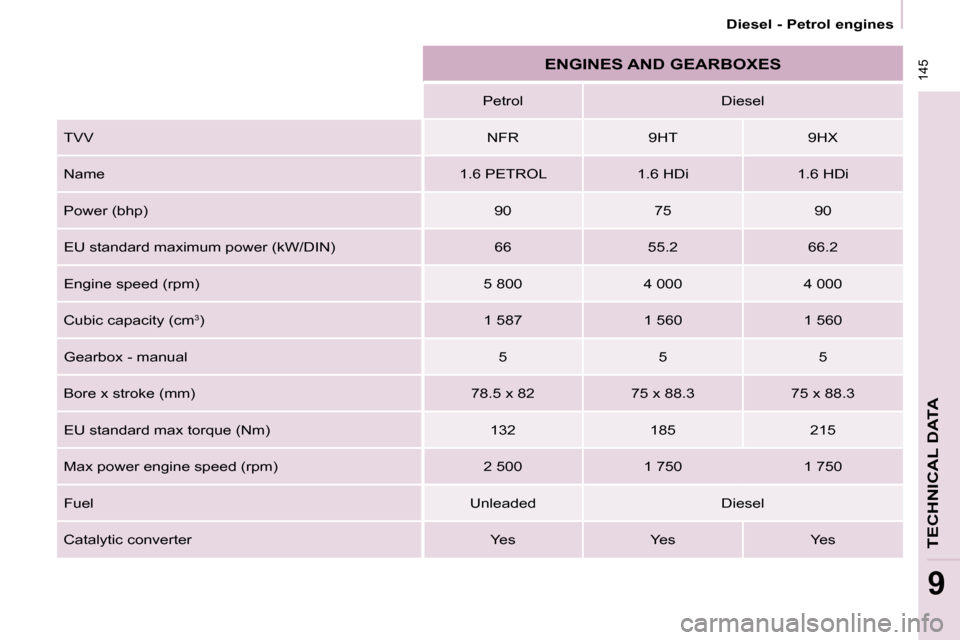

Diesel - Petrol engines
ENGINES AND GEARBOXES
Petrol Diesel
TVV NFR 9HT 9HX
Name 1.6 PETROL 1.6 HDi 1.6 HDi
Power (bhp) 90 75 90
EU standard maximum power (kW/DIN) 66 55.2 66.2
Engine speed (rpm) 5 800 4 000 4 000
Cubic capacity (cm 3
) 1 587 1 560 1 560
Gearbox - manual 5 5 5
Bore x stroke (mm) 78.5 x 82 75 x 88.3 75 x 88.3
EU standard max torque (Nm) 132 185 215
Max power engine speed (rpm) 2 500 1 750 1 750
Fuel Unleaded Diesel
Catalytic converter Yes Yes Yes
Page 153 of 153
147
TECHNICAL DATA
9
Identification features
IDENTIFICATION FEATURES
A. Manufacturer’s plate. C. Tyres and paint colour reference.
B. Serial number.
This is located on the engine mounting,
on the right-hand side.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch.
The label
C , on the front door gives:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the tyre pressure must be checked when
the tyre is cold, at least once a
month),
- the paint colour reference.
