Dimensions
REAR DOORS (mm)
L1 - 625 L1 - 850 L2
M Maximum threshold with 195/65 R15 tyre 584 609 612
Hinged doors Tailgate
Small Large
N Useful opening height (under panel) 1 148 1 313
O Width 495 543 1 582
Page 132 of 185
Dimensions
TECHNICAL DATA
8
SLIDING SIDE DOOR (mm)
L1 L2
P Useful height 1 100
Q Useful width 650
- Height under raised tailgate 1 892
Page 133 of 185
126
Dimensions
PLATFORM CAB (mm)
L Overall length 4 237
H Overall height 1 821-1 822 A Wheelbase 2 728
B Front overhang 925
C Rear overhang 584
D Width over panels (without mirrors) 1 810 E Width of front tracks 1 505
F Width of rear tracks 1 554
Page 134 of 185
127
TECHNICAL DATA
8
Weights
WEIGHTS AND TOWED LOADS (KG)
General points The GTW and towed load values
indicated are valid up to a maximum
altitude of 1 000 metres; the towed
load mentioned must be reduced by
10 % for each additional 1 000 metres.
GTW: gross train weight
GVW: gross vehicle weight
MOM: kerb weight
CVA: vertical load on the towbar
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country).
The braked towed weight with load
transfer can be increased on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
using a lightly loaded towing vehicle
may have an adverse effect on its road
holding. High exterior temperatures may result
in a reduction in the performance of the
vehicle in order to protect the engine;
when the exterior temperature is higher
than 37 °C, limit the towed weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi l l e d t o 9 0 % .
For further information, consult your
r e g i s t r a t i o n c e r t i fi c a t e .
In each country, it is imperative that
the towed loads authorised by local
l e g i s l a t i o n a r e c o m p l i e d w i t h . T o fi n d
out your vehicle's towing capacities
and its gross train weight, consult a
CITROËN dealer.
Page 135 of 185
Weights
128
Weights
Number of
seats

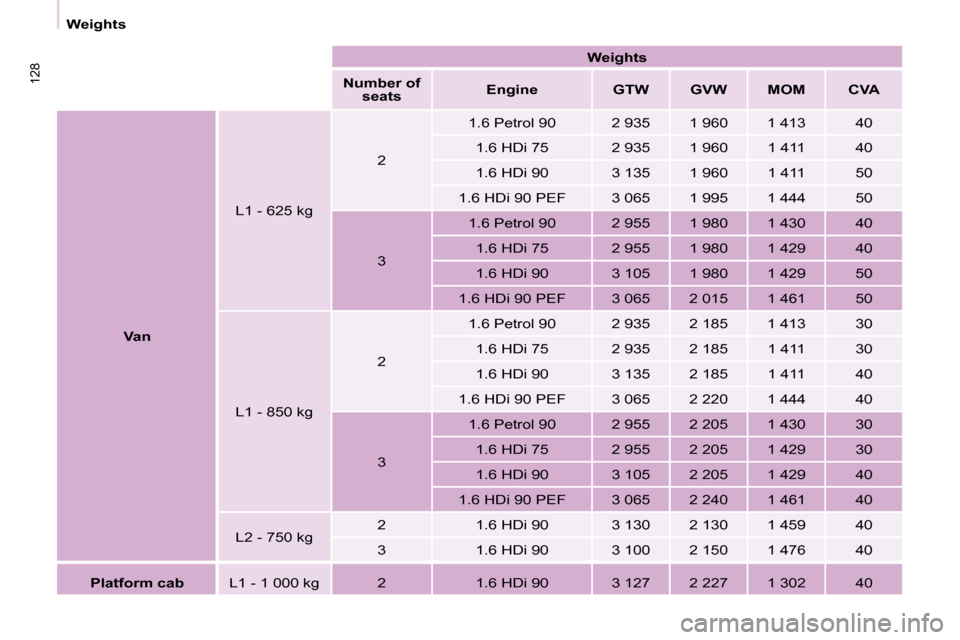

Engine GTW GVW MOM CVA
Van L1 - 625 kg
2
1.6 Petrol 90 2 935 1 960 1 413 40
1.6 HDi 75 2 935 1 960 1 411 40
1.6 HDi 90 3 135 1 960 1 411 50
1.6 HDi 90 PEF 3 065 1 995 1 444 50
3 1.6 Petrol 90 2 955 1 980 1 430 40
1.6 HDi 75 2 955 1 980 1 429 40
1.6 HDi 90 3 105 1 980 1 429 50
1.6 HDi 90 PEF 3 065 2 015 1 461 50
L1 - 850 kg 2
1.6 Petrol 90 2 935 2 185 1 413 30
1.6 HDi 75 2 935 2 185 1 411 30
1.6 HDi 90 3 135 2 185 1 411 40
1.6 HDi 90 PEF 3 065 2 220 1 444 40
3 1.6 Petrol 90 2 955 2 205 1 430 30
1.6 HDi 75 2 955 2 205 1 429 30
1.6 HDi 90 3 105 2 205 1 429 40
1.6 HDi 90 PEF 3 065 2 240 1 461 40
L2 - 750 kg 2 1.6 HDi 90 3 130 2 130 1 459 40
3 1.6 HDi 90 3 100 2 150 1 476 40
Platform cab L1 - 1 000 kg 2 1.6 HDi 90 3 127 2 2 27 1 302 40
Page 136 of 185
Diesel - Petrol engines
129
TECHNICAL DATA
8
ENGINES AND GEARBOXES
Petrol Diesel
Name 1.6 PETROL 1.6 HDi 1.6 HDi 1.6 HDi PEF
Power (bhp) 90 75 92
EU standard maximum power (kW/DIN) 66 55 66
Engine speed (rpm) 5 800 4 000 4 000
Cubic capacity (cm 3
) 1 587 1 560 1 560
Gearbox - manual 5 5 5
Bore x stroke (mm) 78.5 x 82 75 x 88.3 75 x 88.3
EU standard max torque (Nm) 132 185 215
Max torque engine speed (rpm) 2 500 1 750 1 750
Fuel Unleaded Diesel
P a r t i c l e e m i s s i o n fi l t e r / No No Yes
Catalytic converter Yes Yes Yes
Page 137 of 185
Identification features
130
IDENTIFICATION FEATURES
A. Manufacturer's plate. C. Tyres and paint colour reference.
B. Serial number.
This is located on the engine mounting,
on the right-hand side.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch.
The label
C , on the front door gives:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the tyre pressure must be checked when
the tyre is cold, at least once
a month),
- the paint colour reference.
Page 138 of 185
9.1
Audio system
CONTENTS
Page 139 of 185
9.2
1 1
2 2
1 0 1 0 1 1 1 1
1 3 1 3 1 4 1 4 1 5 1 5
3 3 4 4 5 5 6 6 7 7 8 8 9 9
1 2 1 2

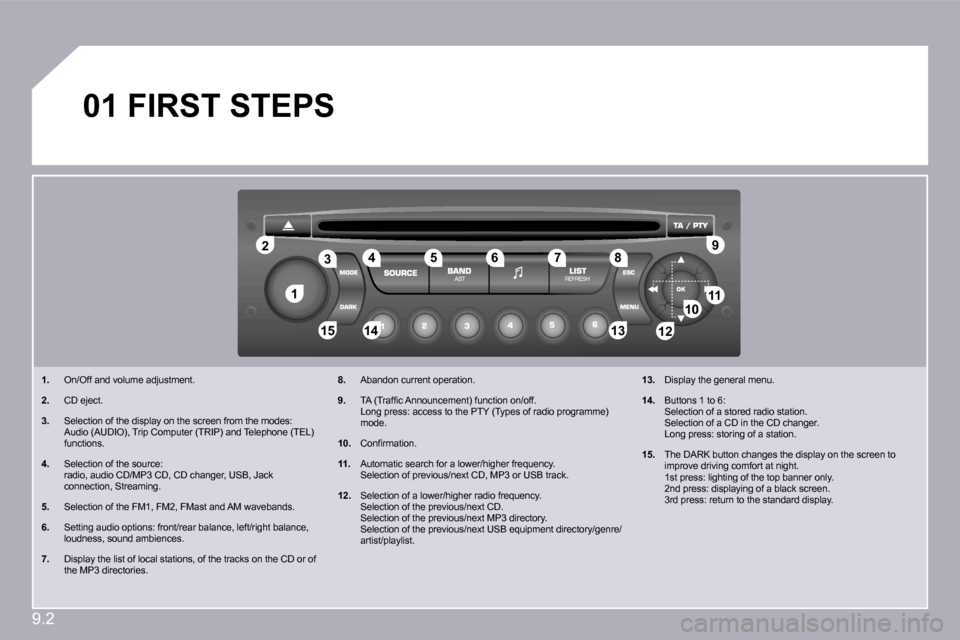

0 1 F I R S T S T E P S
1 . On/Off and volume adjustment.
2 . CD eject.
3 . Selection of the display on the screen from the modes: Audio (AUDIO), Trip Computer (TRIP) and Telephone (TEL) functions.
4 . Selection of the source: r a d i o , a u d i o C D / M P 3 C D , C D c h a n g e r , U S B , J a c k c o n n e c t i o n , S t r e a m i n g .
5 . Selection of the FM1, FM2, FMast and AM wavebands.
6 . S e t t i n g a u d i o o p t i o n s : f r o n t / r e a r b a l a n c e , l e f t / r i g h t b a l a n c e , loudness, sound ambiences.
7 . D i s p l a y t h e l i s t o f l o c a l s t a t i o n s , o f t h e t r a c k s o n t h e C D o r o f the MP3 directories.
8 . Abandon current operation.
9 . T A ( T r a f fi c A n n o u n c e m e n t ) f u n c t i o n o n / o f f . L o n g p r e s s : a c c e s s t o t h e P T Y ( T y p e s o f r a d i o p r o g r a m m e ) mode.
1 0 . C o n fi r m a t i o n .
1 1 . A u t o m a t i c s e a r c h f o r a l o w e r / h i g h e r f r e q u e n c y . S e l e c t i o n o f p r e v i o u s / n e x t C D , M P 3 o r U S B t r a c k .
1 2 . S e l e c t i o n o f a l o w e r / h i g h e r r a d i o f r e q u e n c y . Selection of the previous/next CD. Selection of the previous/next MP3 directory. S e l e c t i o n o f t h e p r e v i o u s / n e x t U S B e q u i p m e n t d i r e c t o r y / g e n r e /artist/playlist.
1 3 . D i s p l a y t h e g e n e r a l m e n u .
1 4 . B u t t o n s 1 t o 6 : Selection of a stored radio station. S e l e c t i o n o f a C D i n t h e C D c h a n g e r . L o n g p r e s s : s t o r i n g o f a s t a t i o n .
1 5 . T h e D A R K b u t t o n c h a n g e s t h e d i s p l a y o n t h e s c r e e n t o i m p r o v e d r i v i n g c o m f o r t a t n i g h t . 1 s t p r e s s : l i g h t i n g o f t h e t o p b a n n e r o n l y . 2 n d p r e s s : d i s p l a y i n g o f a b l a c k s c r e e n . 3rd press: return to the standard display.
Page 140 of 185
9.3

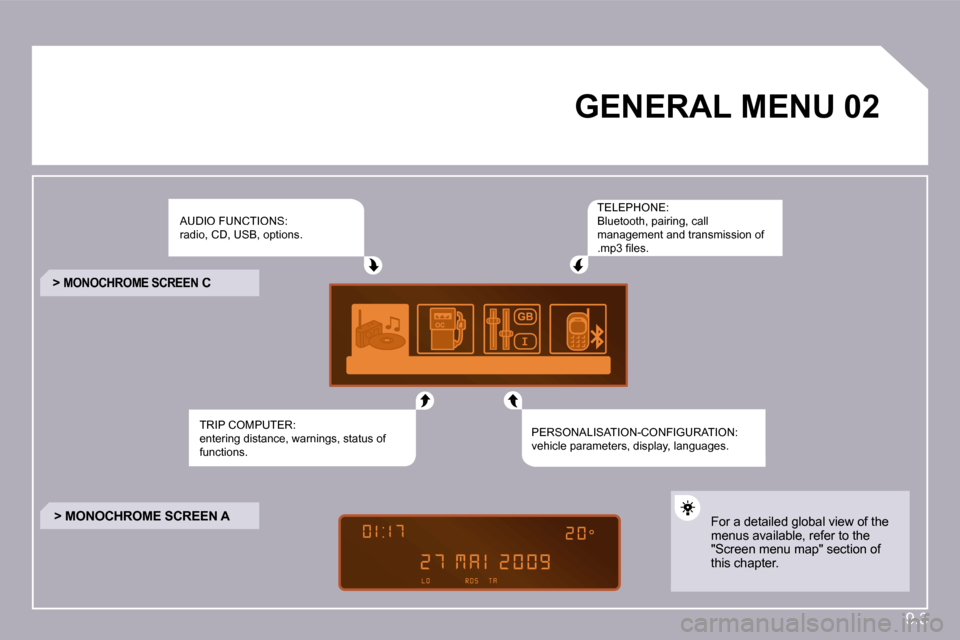

0 2 G E N E R A L M E N U
AUDIO FUNCTIONS: r a d i o , C D , U S B , o p t i o n s .
TRIP COMPUTER: e n t e r i n g d i s t a n c e , w a r n i n g s , s t a t u s o f functions.
TELEPHONE: B l u e t o o t h , p a i r i n g , c a l l m a n a g e m e n t a n d t r a n s m i s s i o n o f . m p 3 fi l e s .
PERSONALISATION-CONFIGURATION: v e h i c l e p a r a m e t e r s , d i s p l a y , l a n g u a g e s .
> M O N O C H R O M E S C R E E N C
> M O N O C H R O M E S C R E E N A F o r a d e t a i l e d g l o b a l v i e w o f t h e menus available, refer to the "Screen menu map" section of this chapter.
