Page 221 of 240
9.79
09
UNITS
TEMPERATURE: °CELSIUS / °FAHRENHEIT
FUEL CONSUMPTION: KM/L - L/100 - MPG
1
2
2
SCREEN MENU MAP
DISPLAY ADJUST
MONTH
DATE
HOUR
MINUTES
YEAR
12 H/24 H MODE
LANGUAGE
ITALIANO
NEDERLANDS
PORTUGUES
PORTUGUES-BRASIL
FRANCAIS
DEUTSCH
ENGLISH
ESPANOL
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
Page 222 of 240
9.80
09 SCREEN MENU MAP
Press the OK dial for access to short-cut menus according to the display\
on the screen: MONOCHROME C
activate / deactivate RDS
activate / deactivate REG mode
activate / deactivate radiotext
RADIO
activate / deactivate Intro
CD / MP3 CD
activate / deactivate track repeat (the entire current CD for CD, the entire current folder for MP3 CD)
activate / deactivate random play (the entire current CD for CD, the entire current folder for MP3 CD)
activate / deactivate track repeat (of the current folder / artist / genre / playlist)
USB
activate / deactivate random play (of the current folder / artist / genre / playlist)
1
1
1
1
1
1
1
1

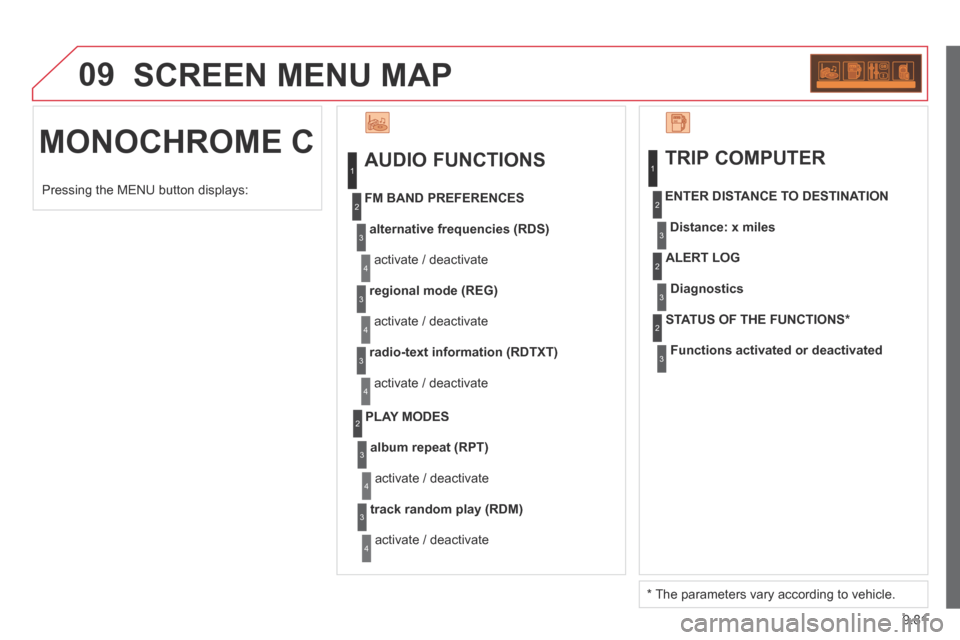

Page 223 of 240
9.81
09 SCREEN MENU MAP
MONOCHROME C AUDIO FUNCTIONS
alternative frequencies (RDS)
activate / deactivate
FM BAND PREFERENCES
regional mode (REG)
activate / deactivate
radio-text information (RDTXT)
activate / deactivate
1
2
3
4
3
4
3
4
PLAY MODES
album repeat (RPT)
activate / deactivate
track random play (RDM)
activate / deactivate
2
3
4
3
4
TRIP COMPUTER
Distance: x miles
ENTER DISTANCE TO DESTINATION
Diagnostic s
ALERT LOG
Functions activated or deactivated
STATUS OF THE FUNCTIONS *
1
2
3
3
2
3
2
Pressing the MENU button displays:
* The parameters vary according to vehicle.

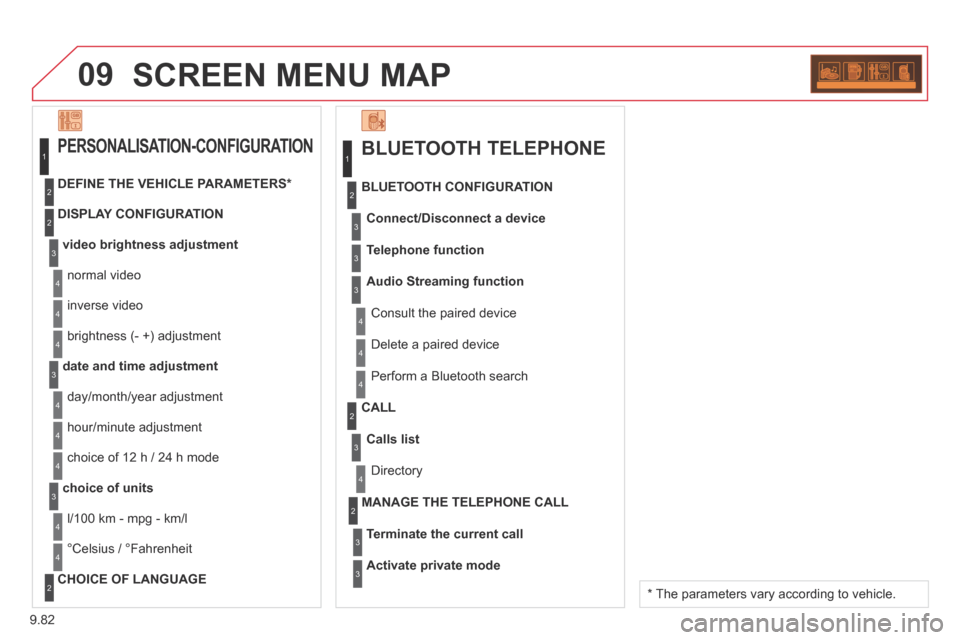

Page 224 of 240
9.82
09 SCREEN MENU MAP
BLUETOOTH TELEPHONE
Connect/Disconnect a device
Consult the paired device
BLUETOOTH CONFIGURATION
Telephone function
Audio Streaming function
Delete a paired device
Perform a Bluetooth search
Calls list
CALL
Directory
Terminate the current call
MANAGE THE TELEPHONE CALL
Activate private mode
1
2
3
3
3
4
4
4
2
3
4
2
3
3
video brightness adjustment
DISPLAY CONFIGURATION
DEFINE THE VEHICLE PARAMETERS *
PERSONALISATION-CONFIGURATION
normal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h / 24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius / °Fahrenheit
CHOICE OF LANGUAGE
1
2
4
3
2
4
4
3
4
4
2
3
4
4
4
* The parameters vary according to vehicle.

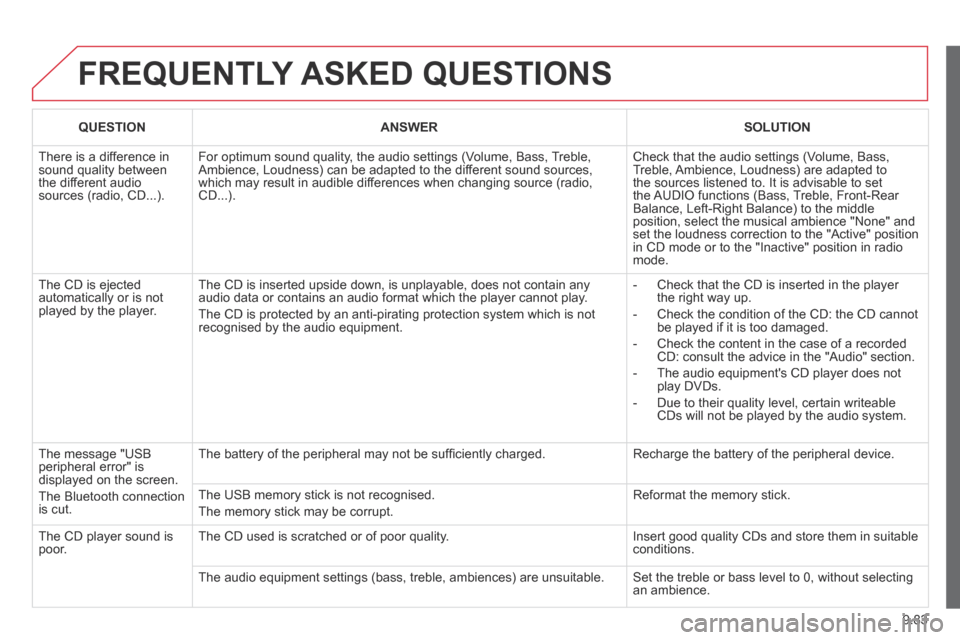

Page 225 of 240
9.83
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
There is a difference in sound quality between the different audio sources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the player the right way up.
- Check the condition of the CD: the CD cannot be played if it is too damaged.
- Check the content in the case of a recorded CD: consult the advice in the "Audio" section.
- The audio equipment's CD player does not play DVDs.
- Due to their quality level, certain writeable CDs will not be played by the audio system.
The message "USB peripheral error" is displayed on the screen.
The Bluetooth connection is cut.
The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick.
The CD player sound is poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
Page 226 of 240
9.84
QUESTIONANSWERSOLUTION
The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
The radio station is not part of the regional traffi c information network. Tune to a radio station which broadcasts traffi c information.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened\
to or there is no transmitter in the geographical area through which the\
vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) blo\
ck reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode. During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating time depends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is t\
oo high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of \
the CD.
Switch the audio system off for a few minutes to allow the system to cool.
Page 227 of 240
141
Exterior
VISUAL SEARCH
10
EXTERIOR
Remote control 15-16
Changing the battery,
reinitialisation 16 Key 15
Starting 45
Hill start assist 46
Central locking / unlocking 15, 24
Locking / unlocking the load space 15, 24
Filler cap, fuel tank 112-113
Fuel cut-off, Diesel priming 113 Wiper blades 131
Door mirrors 77-78
Side repeater 124
Front lamps, foglamps, direction indicators 47-49, 123-124
Headlamp beam height
adjustment 50 Changing front bulbs 122-124
Headlamp wash 51, 109
Snow cover 120
Front doors 18
Sliding side door 19
Key 15
Opening the bonnet 105
Infl ation, pressures 139
Towing, lifting 101-102, 132
Towbar 101-102
Rear parking sensors 81-82 Number plate lamp 126
Spare wheel, jack, changing a wheel,
tools 116-120
Rear lamps, direction
indicators 47-48, 125-126
3rd brake lamp 126
Changing rear bulbs 122, 125-126
Load space, opening 15, 24
Doors, tailgate 20-21, 23 Accessories 102-103
Roof bars 76
Rear roof fl ap 22
Emergency control 23 Dimensions
133-137
Floor cab dimensions 137
Brakes, pads 80, 108, 110
Emergency braking 83
ABS, EBFD 83
ASR, DSC 84
"Grip control" 85-86
Tyre, pressures 139
Tyre under-infl ation detection 34-35
Snow chains 121
Page 228 of 240
142
Instruments and controls
DSC 84
Parking sensors 81-82
Electric mirrors 77-78
Headlamp beam height adjustment 49
Stop & Start 42-44 Starter motor, ignition switch 45 Wipers controls
50-51
Automatic wiping 50
Windscreen / headlamp wash 51, 109
Trip computer Section 9
Cruise control 52-54
Speed limiter 55-57
Lighting controls
47-49
Automatic illumination of headlamps 48-49
Foglamps 48
LED daytime runing lamps 48
INSTRUMENTS AND CONTROLS
Dashboard, passenger compartment fuses 127-129
Opening the bonnet 105
Parking brake, handbrake 80 Instrument panels,
screens, dials 25-26
Warning lamps, indicator lamps 27-32
Indicators, gauge 33, 36-37
Setting the time in the instrument panel 26
Lighting dimmer 37
Gear shift indicator 38-39
Audio equipment steering mounted controls Section 9
Steering wheel adjustment 41
Horn 80
Gearbox
38

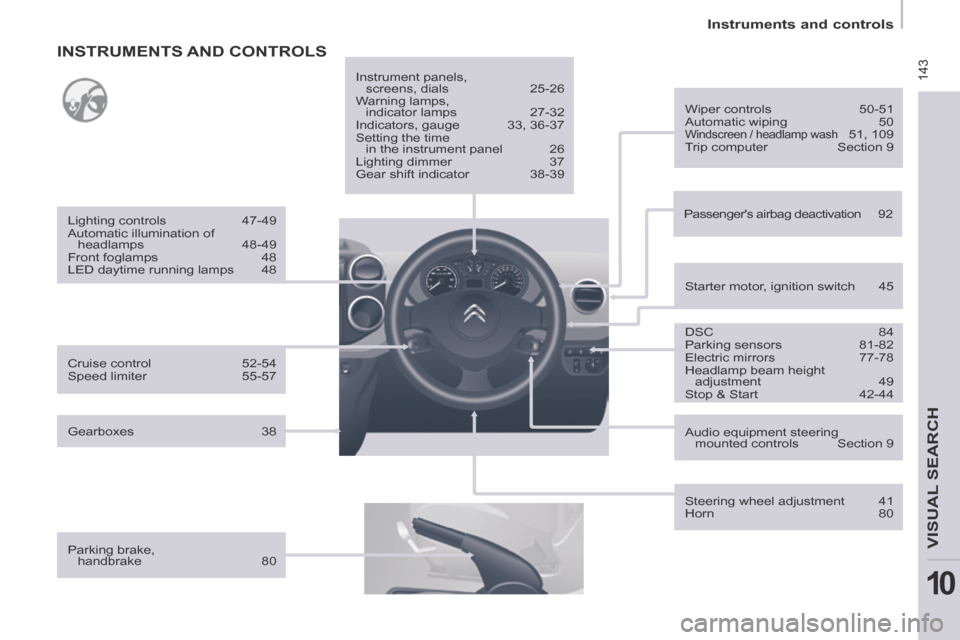

Page 229 of 240
143
Instruments and controls
VISUAL SEARCH
10
INSTRUMENTS AND CONTROLS
Parking brake, handbrake 80 Instrument panels,
screens, dials 25-26
Warning lamps, indicator lamps 27-32
Indicators, gauge 33, 36-37
Setting the time in the instrument panel 26
Lighting dimmer 37
Gear shift indicator 38-39
Passenger's airbag deactivation 92
DSC 84
Parking sensors 81-82
Electric mirrors 77-78
Headlamp beam height
adjustment 49 Stop & Start 42-44
Starter motor, ignition switch 45 Wiper controls
50-51
Automatic wiping 50
Windscreen / headlamp wash 51, 109
Trip computer Section 9
Audio equipment steering mounted controls Section 9
Steering wheel adjustment 41
Horn 80
Cruise control
52-54
Speed limiter 55-57
Lighting controls
47-49
Automatic illumination of headlamps 48-49
Front foglamps 48
LED daytime running lamps 48
Gearboxes 38

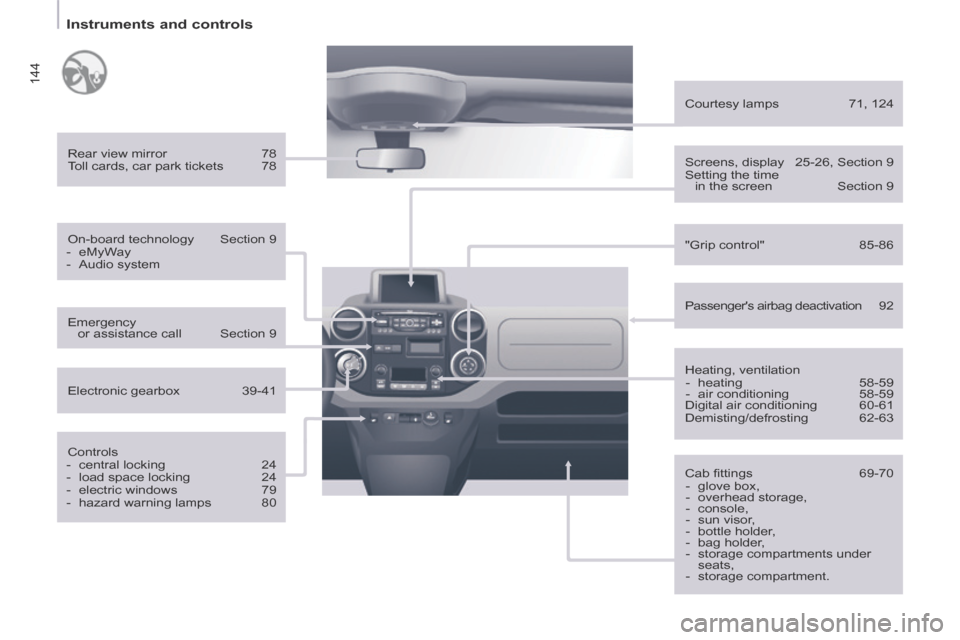

Page 230 of 240
144
Instruments and controls
Heating, ventilation - heating 58-59
- air conditioning 58-59
Digital air conditioning 60-61
Demisting/defrosting 62-63
Rear view mirror
78
Toll cards, car park tickets 78
Passenger's airbag deactivation 92
Courtesy lamps
71, 124
On-board technology Section 9
- eMyWay
- Audio system
Controls
- central locking 24
- load space locking 24
- electric windows 79
- hazard warning lamps 80 Cab fi ttings
69-70
- glove box,
- overhead storage,
- console,
- sun visor,
- bottle holder,
- bag holder,
- storage compartments under seats,
- storage compartment.
Screens, display 25-26, Section 9
Setting the time
in the screen Section 9
Emergency or assistance call Section 9
Electronic gearbox 39-41 "Grip control"
85-86
