wipers Citroen BERLINGO 2013.5 2.G Owner's Manual

2
Contents
Key 15
Remote control 15
Alarm 17
Doors 18
Rear roof fl ap 22
Tailgate 23
Central locking 24
Instrument panel 25
Adjusting the time 26
Warning lamps 27
Fuel gauge 33
Coolant 33
Tyre under-infl ation
detection 34
Service indicator 36
Lighting dimmer 37
Gearbox 38
Gear shift indicator 38
6-speed electronic
gearbox 39
Steering wheel
adjustment 41
Stop & Start 42
Starting and stopping 45
Hill start assist 46
Lighting control 47
wipers 50
Cruise control 52
Speed limiter 55
Heating / Air conditioning
manual 58
digital 60
Demisting
and defrosting 62
Front seats 64
Individual passenger
seat 65
Extenso Cab 66
Confi gurations 68
Front fi ttings 69
Courtesy lamps 71
Crew cab 72
Load space 74
Roof bars 76
Mirrors 77
Toll cards/
car park tickets 78
Electric windows 79
Exterior 4
Instruments and controls 6
Sitting comfortably 8
Seeing clearly 9
Driving safely 9
Cab space 10
Load space 11
Ventilation 12
Eco-driving 13
Hazard warning lamps 80
Parking brake 80
Parking sensors 81
Anti-lock braking system
(ABS) 83
Emergency braking
assistance 83
ASR and DSC 84
"Grip control" 85
Seat belts 87
Airbags 89
Deactivating the
passenger's airbag 92
Child seats 94
Recommended seats 98
Installation 99
2. READY TO GO
15-46
4. SAFETY
80-100
1. FAMILIARISATION
4-14
3. EASE OF USE and
COMFORT 47-79

3
3
3
2
9
3475052, 55
51, 131 46
9.3, 9.63
9
1
FAMILIARISATION
Interior
Lighting off.
Sidelamps.
Dipped beam headlamps (green).
Main beam headlamps (blue).
2 fast.
1 normal.
I intermittent.
0 off.
 single wipe.
AUTO, press the stalk down.
AUTO, automatic
illumination of headlamps. In cruise control mode, the vehicle speed
must be higher than 25 mph (40 km/h)
with at least 4th gear engaged.

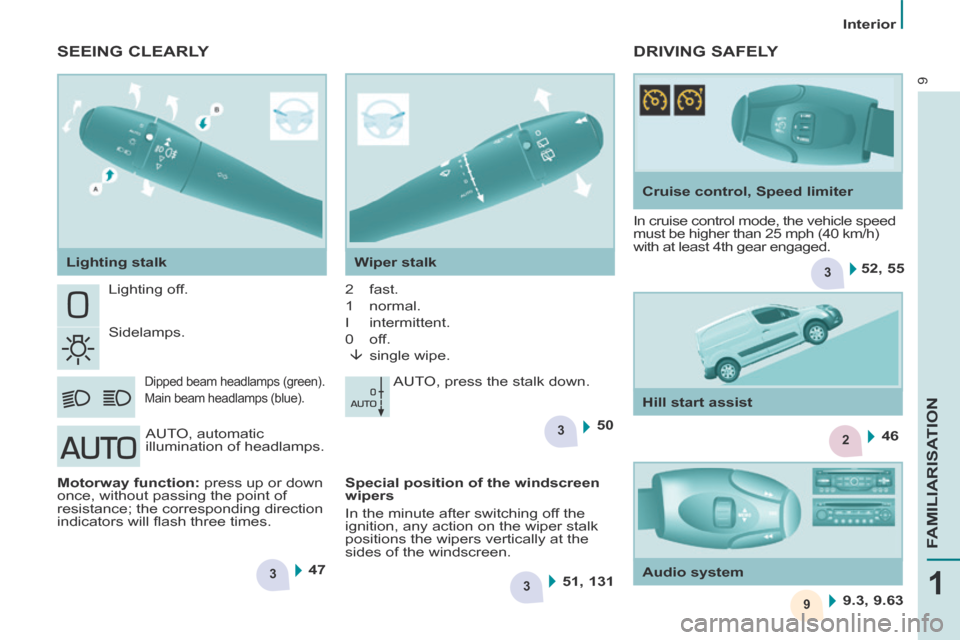

SEEING CLEARLY
DRIVING SAFELY
Motorway function: press up or down
once, without passing the point of
resistance; the corresponding direction
indicators will fl ash three times. Lighting stalk
Wiper stalk Cruise control, Speed limiter
Hill start assist
Audio system
Special position of the windscreen
wipers
In the minute after switching off the
ignition, any action on the wiper stalk
positions the wipers vertically at the
sides of the windscreen.

48
Steering mounted controls
LED daytime running lamps
Rear foglamps (amber,
2nd rotation of the ring
forwards).
Front foglamps (green,
1st rotation of the ring
forwards).
Front and rear foglamps
Rotate ring
B forwards to switch on
and rearwards to switch off. The status
is confi rmed by the warning lamps in
the instrument panel.
They operate with the sidelamps and
dipped beam headlamps. Do not forget to switch them off
when they are no longer needed.
Operation of the automatic illumination
of headlamps switches off the rear
foglamps, but the front foglamps
remain on.
Programming
For countries where exterior lighting by
day is not a legal requirement, you can
activate or deactivate the function via
the confi guration menu.
To switch off the front and rear
foglamps, turn the ring rearwards twice
in succession.
In clear weather or in rain, both day
and night, rear foglamps dazzle and
their use is prohibited.

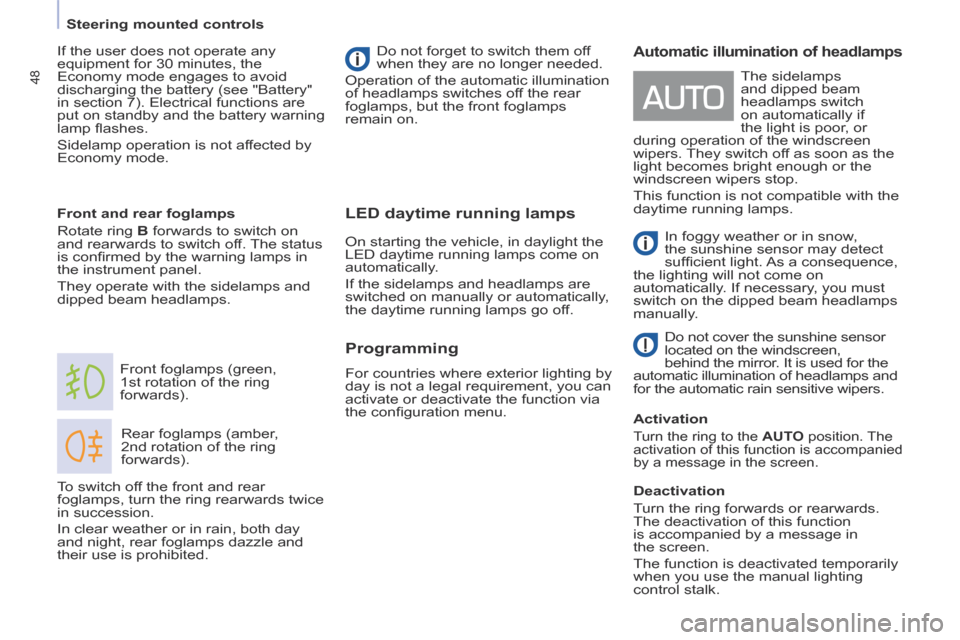

Automatic illumination of headlamps
In foggy weather or in snow,
the sunshine sensor may detect
suffi cient light. As a consequence,
the lighting will not come on
automatically. If necessary, you must
switch on the dipped beam headlamps
manually.
Do not cover the sunshine sensor
located on the windscreen,
behind the mirror. It is used for the
automatic illumination of headlamps and
for the automatic rain sensitive wipers.
Activation
Turn the ring to the AUTO position. The
activation of this function is accompanied
by a message in the screen.
Deactivation
Turn the ring forwards or rearwards.
The deactivation of this function
is accompanied by a message in
the screen.
The function is deactivated temporarily
when you use the manual lighting
control stalk. The sidelamps
and dipped beam
headlamps switch
on automatically if
the light is poor, or
during operation of the windscreen
wipers. They switch off as soon as the
light becomes bright enough or the
windscreen wipers stop.
This function is not compatible with the
daytime running lamps.
If the user does not operate any
equipment for 30 minutes, the
Economy mode engages to avoid
discharging the battery (see "Battery"
in section 7). Electrical functions are
put on standby and the battery warning
lamp fl ashes.
Sidelamp operation is not affected by
Economy mode.
On starting the vehicle, in daylight the
LED daytime running lamps come on
automatically.
If the sidelamps and headlamps are
switched on manually or automatically,
the daytime running lamps go off.

50
Steering mounted controls
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
 Single wipe
(press downwards).
In the I ntermittent position, the wiping
speed is in proportion to the vehicle
speed.
WINDSCREEN WIPER STALK
Manual windscreen wipers Whenever the ignition has been
switched off for more than one minute,
with the windscreen wiper stalk in
position 2, 1 or I, the stalk must be
reactivated:
- move the stalk to any position,
- then move it back to the required position.
Do not cover the rain sensor,
located in the centre of the
windscreen, behind the mirror. Activation
Press the control downwards.
Activation of the function is
accompanied by a message in the
screen.
Deactivation / Switching off
Place the windscreen wipers stalk in
position
I , 1 or 2 . Deactivation of the
function is accompanied by a message
in the screen.
In the event of malfunction of the
automatic windscreen wipers, the
windscreen wipers will operate in
intermittent mode.
Contact a CITROËN dealer or a
qualifi ed workshop to have the system
checked. In the AUTO position, the windscreen
wipers operate automatically and
adapt their speed to the intensity of the
rainfall.
When not in AUTO mode, for the
other positions, refer to the manual
windscreen wipers section.
The automatic rain sensitive
windscreen wipers function must
be reactivated by pressing the stalk
downwards, if the ignition has been
switched off for more than one minute.
When using an automatic car
wash, switch off the ignition to
avoid triggering the automatic
wiping.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating automatic wipe.
Automatic rain sensitive windscreen wipers

51
Steering mounted controls
EASE OF USE and COMFORT
3
Wash-wipe and headlamp wash
Pull the stalk towards you, the wash-
wipe is accompanied by a timed sweep
of the wipers.
The headlamp wash is linked with the
wash-wipe, it is triggered if the dipped
headlamps are on. Turn the ring past the fi rst
position: the rear screenwash
then the rear wiper operates
for a fi xed time.
In winter, in the event of a
considerable amount of snow
or ice, switch on the heated
rear screen. Once the screen is
clear, remove the snow or ice which
has accumulated on the rear wiper
blade. You can then operate the rear
windscreen wiper.
To top up the levels, refer to the
"Levels" section of chapter 6.
Special position of the
windscreen wipers
Refer to the "Changing a
windscreen wiper blade" section of
chapter 7.
To park the wipers in their normal
position after this has been done,
switch on the ignition and move
the stalk. Turn the ring to the fi rst
position.
Rear screenwash
Rear wiper
In the minute following switching
off of the ignition, any action on
the stalk positions the wipers
against the windscreen uprights.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.

Changing a fuse
130
FUSES UNDER THE BONNET
After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F Amperes

A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear screenwash pump
4 20 Headlamp wash pump or LED
5 15 Engine components
6 10 Steering wheel angle sensor, DSC
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management
unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp

Changing a wiper blade
131
QUICK HELP
7
Placing the windscreen wiper
blades in the special position
- Less than a minute after switching off the ignition, press the wiper stalk
downwards to position the wiper
blades along the windscreen pillars
(special position). Changing a front wiper blade
- Lift the wiper arm.
- Unclip the blade and remove it.
- Fit the new blade.
- Push back the wiper arm.
To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk. Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
- Fit the new blade and push back the wiper arm.

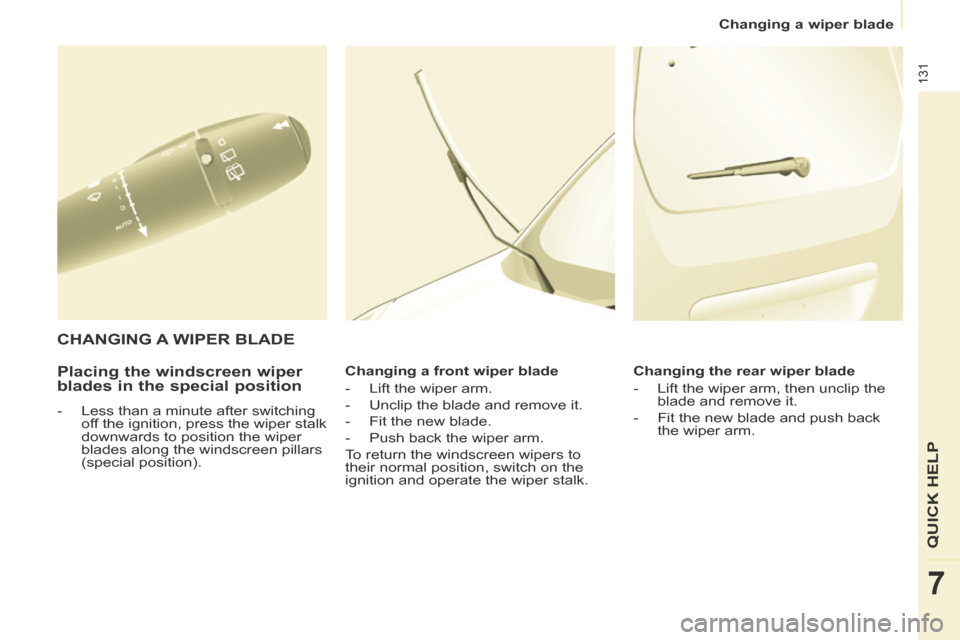

CHANGING A WIPER BLADE

9.55

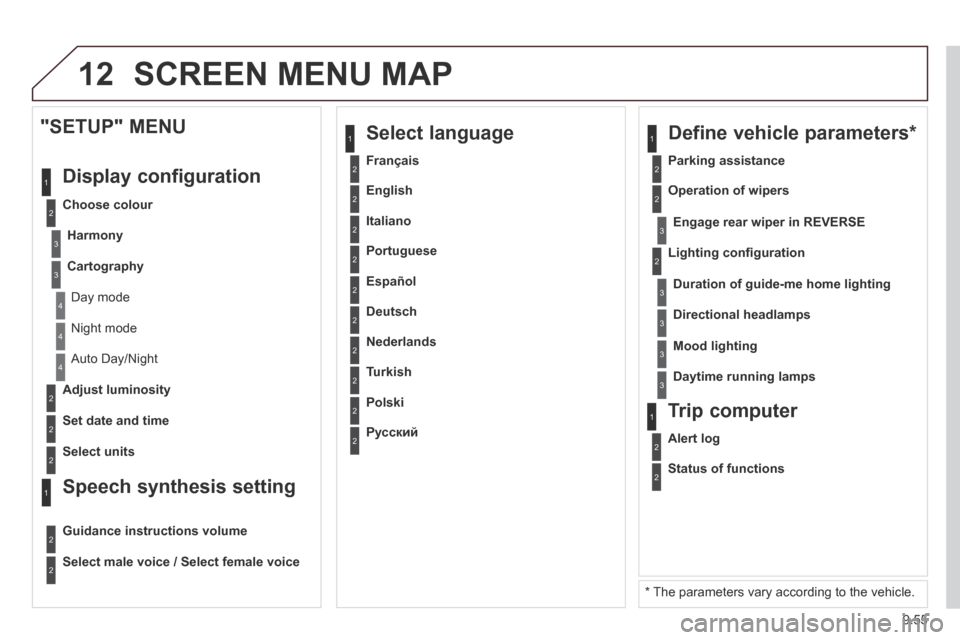

12 SCREEN MENU MAP
2
3
3
1
4
2
2
1
4
4
2
2
Night mode
Auto Day/Night
Adjust luminosity
Set date and time
"SETUP" MENU
Display configuration
Choose colour
Harmony
Cartography
Day mode
Speech synthesis setting
Guidance instructions volume
Select male voice / Select female voice
2 Select units
2
3
3
2 Lighting confi guration
Parking assistance
Engage rear wiper in REVERSE
Duration of guide-me home lighting
1 Define vehicle parameters *
2 Operation of wipers
3Directional headlamps
3Mood lighting
3Daytime running lamps
* The parameters vary according to the vehicle.
2 Alert log
1 Trip computer
2 Status of functions
2 Français
1 Select language
2 English
2 Italiano
2 Portuguese
2 Español
2 Deutsch
2 Nederlands
2 Turkish
2 Polski
2 Русский

142
Instruments and controls
DSC 84
Parking sensors 81-82
Electric mirrors 77-78
Headlamp beam height adjustment 49
Stop & Start 42-44 Starter motor, ignition switch 45 Wipers controls
50-51
Automatic wiping 50
Windscreen / headlamp wash 51, 109
Trip computer Section 9
Cruise control 52-54
Speed limiter 55-57
Lighting controls
47-49
Automatic illumination of headlamps 48-49
Foglamps 48
LED daytime runing lamps 48
INSTRUMENTS AND CONTROLS
Dashboard, passenger compartment fuses 127-129
Opening the bonnet 105
Parking brake, handbrake 80 Instrument panels,
screens, dials 25-26
Warning lamps, indicator lamps 27-32
Indicators, gauge 33, 36-37
Setting the time in the instrument panel 26
Lighting dimmer 37
Gear shift indicator 38-39
Audio equipment steering mounted controls Section 9
Steering wheel adjustment 41
Horn 80
Gearbox
38
