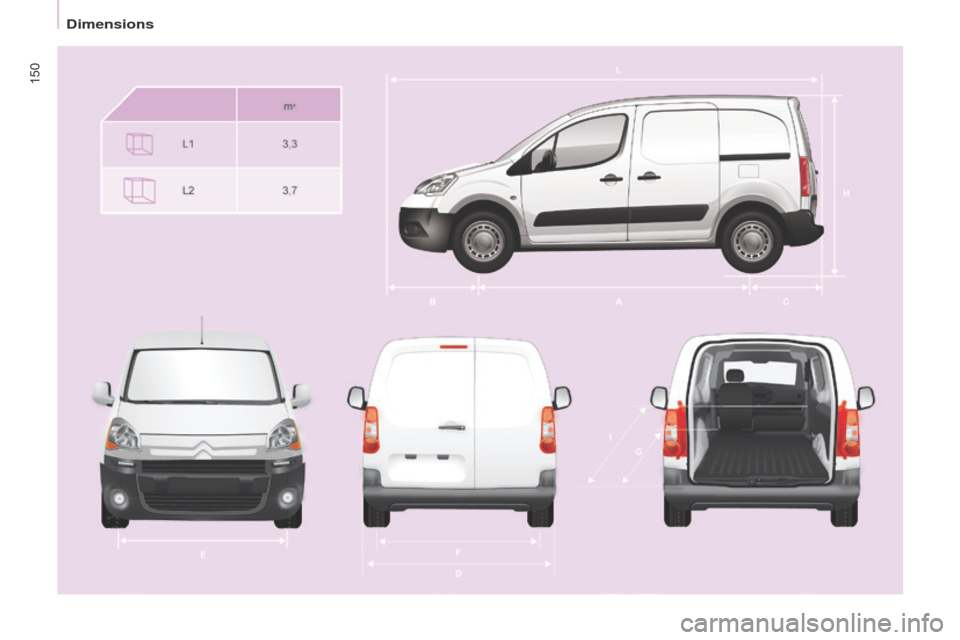

Dimensions

151
Berlingo-2-VU_en_Chap09_Caract-technique_ed02-2014
VAN (mm)
Short - L1 Long - L2
625 850 750
L Overall length 43804628
H Overall height 1805-1834
aWheelbase 2728
bFront overhang 925
C Rear overhang 727975
dWidth over panels:without mirrors
1810
with mirrors 21

12
E Width of front track 1505
F Width of rear track 1554
G Useable rear floor length 18002050
I Useable length with front passenger seat
folded 3000
3250DIMENSIONS
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables:
Dimensions
TECHNICAL DATA
9

152
Berlingo-2-VU_en_Chap09_Caract-technique_ed02-2014

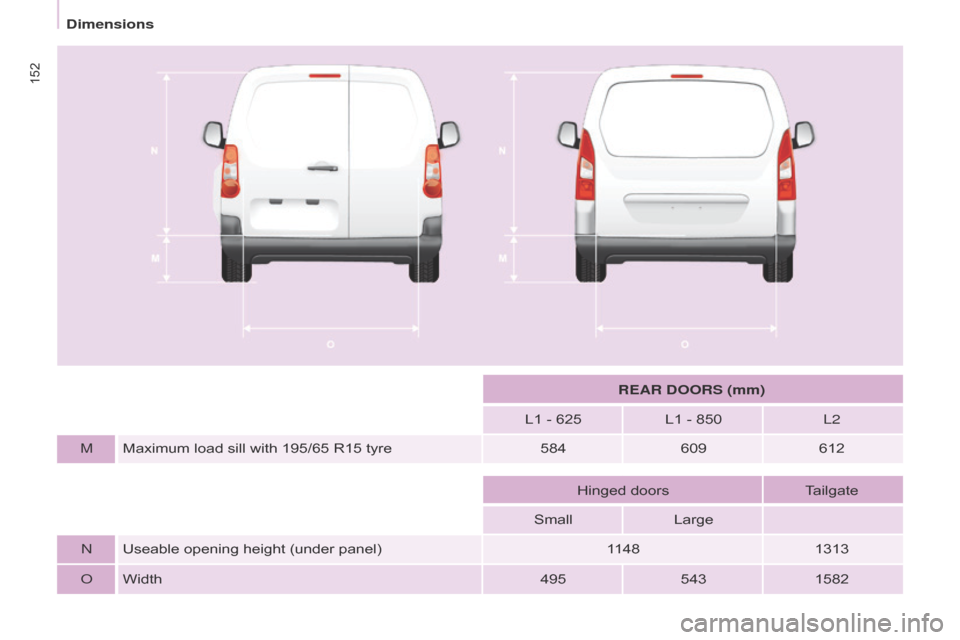

REAR DOORS (mm)
L1 - 625 L1 - 850 L2
M Maximum load sill with 195/65 R15 tyre 584609612
Hinged doors Tailgate
Small Large
nUseable opening height (under panel) 1

148 1313
oWidth 4955431582
Dimensions

153
Berlingo-2-VU_en_Chap09_Caract-technique_ed02-2014
SLIDING SIDE DOOR (mm)
L1 L2
P Useable height 1100
Q Useable width 650
- Height under raised tailgate 1892
Dimensions
TECHNICAL DATA
9

154
Berlingo-2-VU_en_Chap09_Caract-technique_ed02-2014
PLATFORM CAB (mm)
L Overall length 4237
H Overall height 1821-1822
aWheelbase 2728
bFront overhang 925
C Rear overhang 584
dWidth over panels (without mirrors)1810
E Width of front track 1505
F Width of rear track 1554
Dimensions

155
Berlingo-2-VU_en_Chap09_Caract-technique_ed02-2014
WEIGHTS AND TOWED LOADS
The weights and towable loads for your
vehicle can be found on the vehicle's
registration certificate.
These values, expressed in kg, are
laos present on the manufacturer's
plate or label.The recommended nose weight is
the downward force on the towball
(removable with or without tools).
In each country, it is imperative that
the towed loads authorised by local
legislation are complied with. To find
out your vehicle's towing capacities
and its gross train weight, consult a
CITROËN dealer.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
filled to 90%.
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres. The value of
the towed load mentioned must be
reduced by 10 % for each additional
1000 metres.
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. High ambient temperatures
may result in a reduction in the
performance of the vehicle in order
to protect the engine. When the ambient
temperature is higher than 37 °C, limit
the towed weight.
Refer to chapter 9, "Identification
markings" section.
ENGINE CHARACTERISTICS
The engine characteristics (capacity,
maximum power, maximum power
speed, fuel, CO
2 emissions...) for your
vehicle are given in the registration
document.
These characteristics correspond to the
values type-approved on a test bed,
under conditions defined in European
legislation (Directive 1999/99/EC).
For more information, refer to the
manufacturer's website or sales
brochure for the model. Contact
a CITROËN dealer or a qualified
workshop. GVW: gross vehicle weight, the
maximum authorised weight.
GTW: gross train weight, the maximum
weight for vehicle plus trailer.
Towing with a lightly loaded
vehicle can adversely affect road
holding.
Towing a trailer increases braking
distances.
When towing, the maximum permitted
speed is reduced (comply with the
legislation in force in the country).
Weights
TECHNICAL DATA
9

Berlingo-2-VU_en_Chap09_Caract-technique_ed02-2014
156

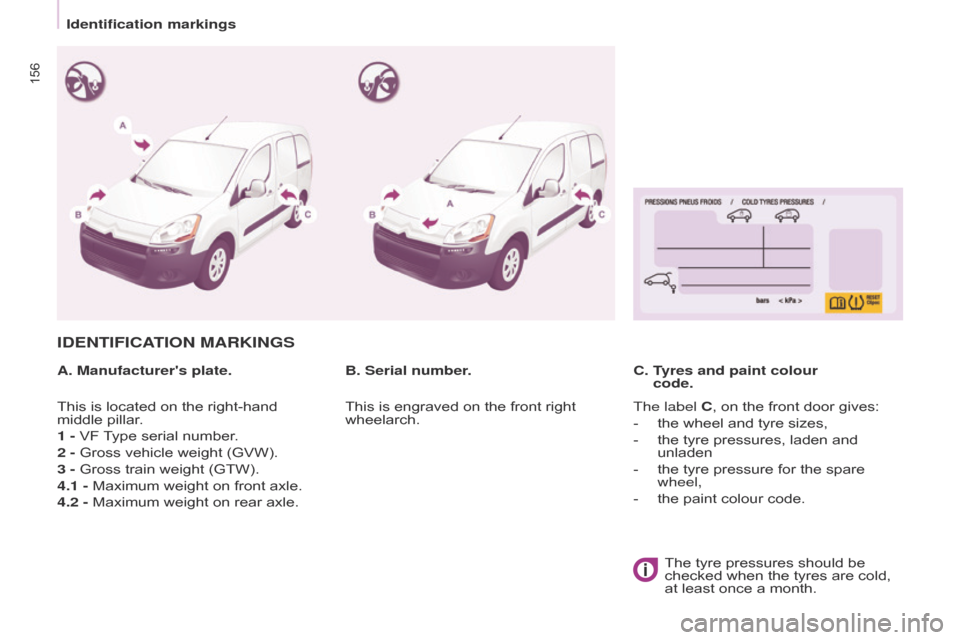

IDENTIFICATION MARKINGS
A. Manufacturer's plate.C. T yres and paint colour
code.
B. Serial number.
This is located on the right-hand
middle pillar.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch.
The label C, on the front door gives:
-

the wheel and tyre sizes,
-


the tyre pressures, laden and
unladen
-


the tyre pressure for the spare
wheel,
-


the paint colour code.The tyre pressures should be
checked when the tyres are cold,
at least once a month.
Identification markings

10.1
Berlingo-2-VU_en_Chap10a_BTA_ed02-2014
EMERGENCY OR ASSIST ANCE CALL

10.2
Berlingo-2-VU_en_Chap10a_BTA_ed02-2014
EMERGENCY OR ASSIST ANCE CALL

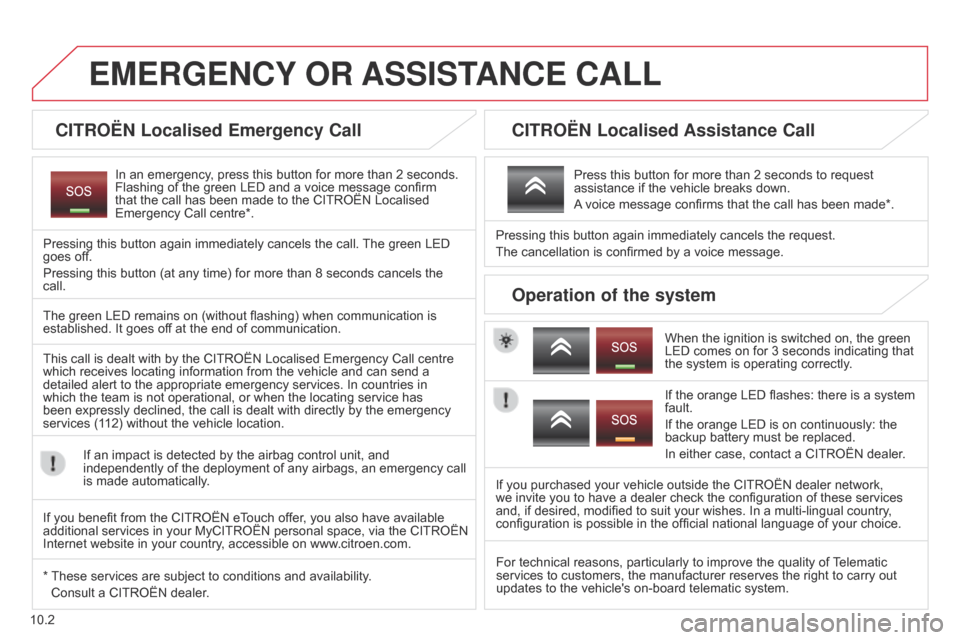

CITROËN Localised Emergency Call
In an emergency, press this button for more than 2 seconds.
Flashing of the green LED and a voice message confirm
that the call has been made to the CITROËN Localised
Emergency Call centre*.
Pressing this button again immediately cancels the call. The green LED
goes off.
Pressing this button (at any time) for more than 8 seconds cancels the
call.
CITROËN Localised Assistance Call
When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly.
If the orange LED flashes: there is a system
fault.
If the orange LED is on continuously: the
backup battery must be replaced.
In either case, contact a CITROËN dealer.
Pressing this button again immediately cancels the request.
The cancellation is confirmed by a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confirms that the call has been made*.
Operation of the system
The green LED remains on (without flashing) when communication is
established. It goes off at the end of communication.
This call is dealt with by the CITROËN Localised Emergency Call centre
which receives locating information from the vehicle and can send a
detailed alert to the appropriate emergency services. In countries in
which the team is not operational, or when the locating service has
been expressly declined, the call is dealt with directly by the emergency
services (112) without the vehicle location.
If an impact is detected by the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
* These services are subject to conditions and availability.
Consult a CITROËN dealer

. If you purchased your vehicle outside the CITROËN dealer network,
we invite you to have a dealer check the configuration of these services
and, if desired, modified to suit your wishes. In a multi-lingual country
,
configuration is possible in the official national language of your choice.
For technical reasons, particularly to improve the quality of Telematic
services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
If you benefit from the CITROËN eTouch offer, you also have available
additional services in your MyCITROËN personal space, via the CITROËN
Internet website in your country, accessible on www.citroen.com.
