BATTERY
Before disconnecting the battery, you
must wait for 2 minutes after switching
off the ignition.
Never disconnect a terminal when the
engine is running.
Never charge a battery without first
disconnecting the terminals.
a
fter every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If problems
remain after doing this, please contact
a CITROËN dealer or a qualified
workshop.
After changing bulbs, wait
approximately 3 minutes before
reconnecting the battery.
It is advisable to disconnect the
battery if the vehicle is not to be
used for a period of more than
one


month.
To charge the battery using a
battery charger
- Disconnect the battery ,
-
Follow the instructions for use
given by the battery charger
manufacturer

,
-

Reconnect starting with the
negative (-) terminal,
-


Check that the terminals and
connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect them
and clean them.
To start the vehicle from
another battery
- Connect the red cable to the
positive (+) terminals of the
two batteries,
-

Connect one end of the green
or black cable to the negative (-)
terminal of the slave battery

,
-

Connect the other end of the green
or black cable to an earth point on
the broken down vehicle as far as
possible from the battery

,
-

Operate the starter
, let the engine run,
-

W
ait for the engine to return to idle,
then disconnect the cables.
The presence of this label
indicates the use of a 12 V
lead-acid battery with special
technology and specification, for which
the involvement of a CITROËN dealer
or qualified workshop is required when
replacing or disconnecting the battery.
Failure to observe this
recommendation may cause premature
wear of the battery.
After refitting the battery, the Stop &
Start system will only be active after
several hours depending on the
climatic conditions and the state of
charge of the battery (up to about
8

hours).
The Stop & Start battery does not have
to be disconnected for charging.
Battery
QUICK HELP
8

130
Berlingo-2-VU_en_Chap08_Aide-rapide_ed02-2014
ECONOMY MODE
After the engine has stopped, with
the key in the ignition position, certain
functions (windscreen wiper, electric
windows, courtesy lamps, audio
equipment, etc.) can only be used for a
cumulative duration of thirty minutes, to
prevent discharging of the battery.
Once the thirty minutes are over, the
active functions are put on standby
and the battery warning lamp flashes
accompanied by a message in the
screen.
To resume the use of these functions
immediately, start the engine and let it
run for a few minutes.
The time available will then be double
the time for which the engine was left
running. However, this time will always
be between five and thirty minutes.A flat battery will prevent the
engine from starting.
Battery

131
Berlingo-2-VU_en_Chap08_Aide-rapide_ed02-2014
1. Parking the vehicle
- The occupants must get out of the
vehicle and wait in a safe location.
-

If possible, park the vehicle on
level, stable and non-slippery
ground.
-


Apply the parking brake, switch
of

f the ignition and engage first or
reverse gear. -
Place the chock against the wheel
diagonally opposite the one to be
changed.
CHANGING A WHEEL
2. Tools
The tools are stowed in an open storage
compartment under a front seat.
- If necessary, move the seat to
access the storage compartment
from the rear.
-

T
ake out the jack and tool carrier.
-

Remove the tools needed from the
carrier

.
1.

Jack.
2.


Wheelbrace.
3.


Chock.
4.


Rear lamp spanner
.
5.

Allow wheel trim removal tool*.
6.


T
owing eye.
If the vehicle is fitted with a towbar,
it is sometimes necessary to raise
the vehicle slightly to make it easier
to remove the spare wheel from its
carrier.
On certain types of ground and/
or if considerable loads are being
transported, call a CITROËN dealer or
a qualified workshop.
*
This tool is not needed for your
version.
The jack and the tool kit are specific to
your vehicle. Do not use them for other
purposes.
Changing a wheel
QUICK HELP
8

132
Berlingo-2-VU_en_Chap08_Aide-rapide_ed02-2014

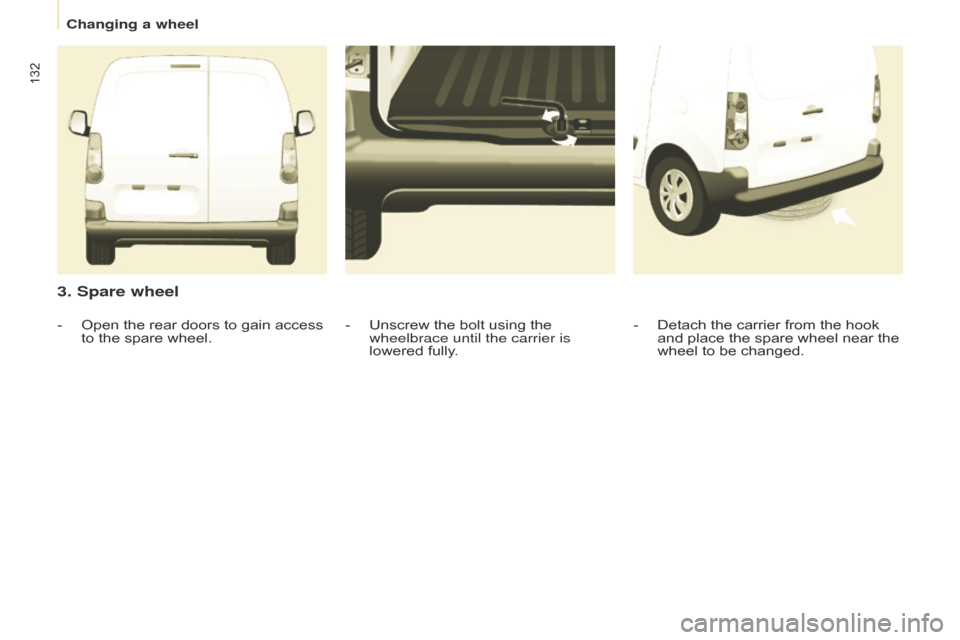

3. Spare wheel
- Detach the carrier from the hook
and place the spare wheel near the
wheel to be changed.
-
Unscrew the bolt using the
wheelbrace until the carrier is
lowered fully
.
-
Open the rear doors to gain access
to the spare wheel.
Changing a wheel

133
Berlingo-2-VU_en_Chap08_Aide-rapide_ed02-2014
4. Procedure
- Place the jack in contact with the
locating point provided, the one
which is closest to the wheel to
be changed. Ensure that the jack
is straight and that the base of
the jack is fully in contact with the
ground.
-

Extend the jack to lift the wheel
clear of the ground.
-


Resume and complete the
unscrewing of the wheel bolts.
-


Remove the bolts and remove the
wheel.
-

Remove the wheel trim.
-

Loosen the wheel bolts and start
unscrewing them. Do not extend the jack until you have
started unscrewing the bolts on the
wheel to be changed and have placed
the chock under the wheel diagonally
opposite.
Changing a wheel
QUICK HELP
8

134
Berlingo-2-VU_en_Chap08_Aide-rapide_ed02-2014

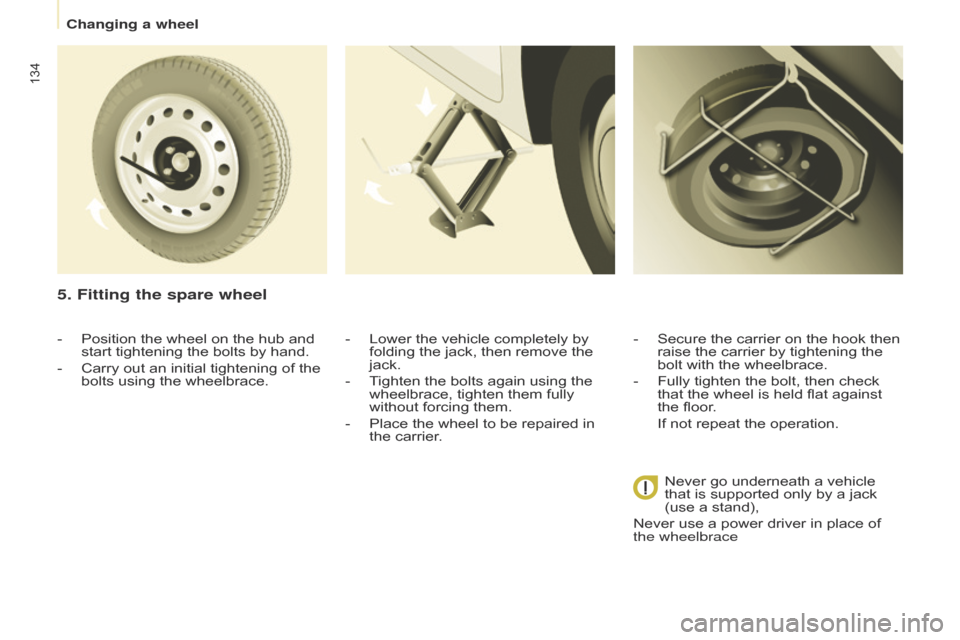

5. Fitting the spare wheel
- Lower the vehicle completely by
folding the jack, then remove the
jack.
-

T
ighten the bolts again using the
wheelbrace, tighten them fully
without forcing them.
-

Place the wheel to be repaired in
the carrier

. -
Secure the carrier on the hook then
raise the carrier by tightening the
bolt with the wheelbrace.
-

Fully tighten the bolt, then check
that the wheel is held flat against
the floor

.
If not repeat the operation.
-

Position the wheel on the hub and
start tightening the bolts by hand.
-

Carry out an initial tightening of the
bolts using the wheelbrace.
Never go underneath a vehicle
that is supported only by a jack
(use a stand),
Never use a power driver in place of
the wheelbrace
Changing a wheel

135
Berlingo-2-VU_en_Chap08_Aide-rapide_ed02-2014
REMOVABLE SNOW SCREEN
According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of snow at the radiator
cooling fan.
Do not forget to remove the snow
screen when the exterior temperature
is higher than 10°C (no risk of snowfall)
and when towing.
Fitting
Removal
- Pass a screwdriver into the hole
located near each of the clips.
-

Use the screwdriver as a lever to
unclip the four clips

B in turn.
-

Of
fer up the snow screen facing its
centring pin A on the front bumper.
-
Put it in place by pressing at each
clip

B located in the four corners.
6. Refitting the repaired wheel
The wheel is refitted as described in
step 5, not forgetting to refit the wheel
trim.
Refer to the "Identification
markings" section of chapter 9 to
locate the tyre label.
Refer to the "Instruments and
controls" section of chapter 3,
"Tyre under-inflation detection"
part, for recommendations after
changing a wheel fitted with a tyre
under-inflation detection sensor.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by
a CITROËN dealer or a qualified
workshop as soon as possible.
Have the original wheel repaired
and refitted by a CITROËN dealer
or a qualified workshop as soon as
possible.
Snow screen
QUICK HELP
8

136
Berlingo-2-VU_en_Chap08_Aide-rapide_ed02-2014

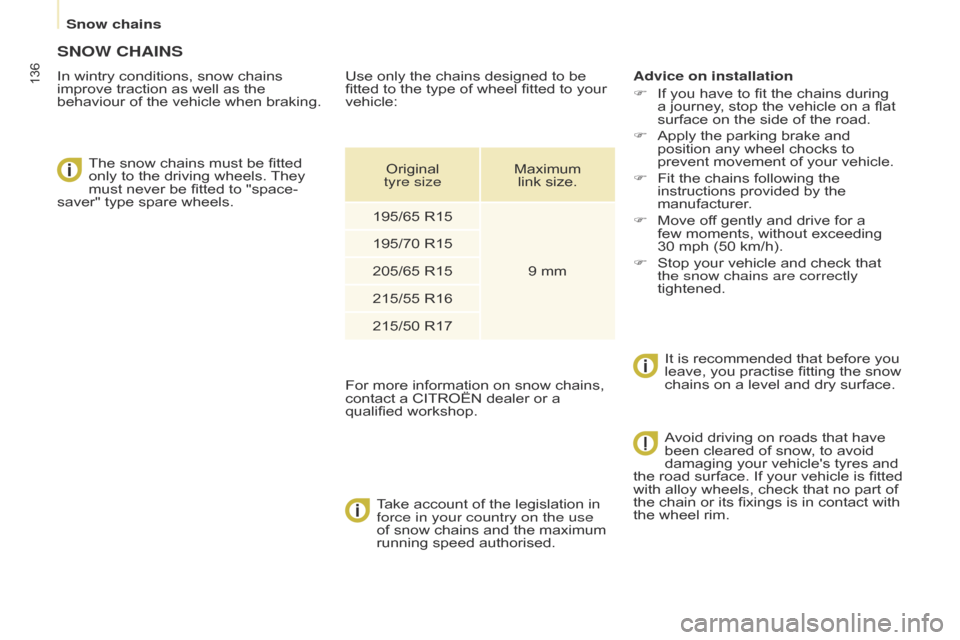

SNOW CHAINS
In wintry conditions, snow chains
improve traction as well as the
behaviour of the vehicle when braking.The snow chains must be fitted
only to the driving wheels. They
must never be fitted to "space-
saver" type spare wheels.
T

ake account of the legislation in
force in your country on the use
of snow chains and the maximum
running speed authorised. Advice on installation
F

If you have to fit the chains during
a journey

, stop the vehicle on a flat
surface on the side of the road.
F

Apply the parking brake and
position any wheel chocks to
prevent movement of your vehicle.
F


Fit the chains following the
instructions provided by the
manufacturer

.
F

Move of
f gently and drive for a
few moments, without exceeding
30
mph (50 km/h).
F

Stop your vehicle and check that
the snow chains are correctly
tightened.It is recommended that before you
leave, you practise fitting the snow
chains on a level and dry surface.
Use only the chains designed to be
fitted to the type of wheel fitted to your
vehicle:
For more information on snow chains,
contact a CITROËN dealer or a
qualified workshop.
Original


tyre size Maximum
link size.
195/65 R15
9 mm
195/70 R15
205/65 R15
215/55 R16
215/50 R17
Avoid driving on roads that have
been cleared of snow, to avoid
damaging your vehicle's tyres and
the road surface. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
Snow chains

137
Berlingo-2-VU_en_Chap08_Aide-rapide_ed02-2014
CHANGING A BULB
Type B
Bayonet bulb: press
on the bulb then turn it
anticlockwise. Type A
All glass bulb: pull gently
as it is fitted by pressure.
Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
order to refit each bulb and check that
the bonnet is closed securely. Type C
Halogen bulb: release
the retaining spring from
its housing.
Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fingers, use lint-free cloths.
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting. The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3

minutes after changing the bulb
before reconnecting the battery.
Check that the lamps operate correctly
after each operation.
High pressure washing
Types of bulb
Various types of bulb are fitted to your
vehicle. To remove them: When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lamps and their
edges to avoid damaging their coating
and seals.
Type D
Light emitting diode
(LED): for replacement
of the daytime running
lamps, contact a
CITROËN dealer or a
qualified workshop.
Changing a bulb
QUICK HELP
8

138
Berlingo-2-VU_en_Chap08_Aide-rapide_ed02-2014
3. Direction indicators

T
ype B, PY21W - 21W (amber)
-

Remove the cover by pullin
g the
flexible rubber tab.
-

T
urn the bulb holder a quarter
turn anticlockwise.
-

Remove the bulb by pressing
it lightly while turning it
anticlockwise.
-


Change the bulb.
-


Ensure that the cover is refitted
correctly all round to assure
correct sealing.
2.

Sidelamps



T

ype A, W5W - 5W
-

Remove the cover by pullin

g the
flexible rubber tab.
-

Remove the bulb holder fitted by
pressure

by pulling the connector.
-

Change the bulb.
-


Ensure that the cover is refitted
correctly all round to assure
correct sealing.
FRONT LAMPS
1. Dipped / Main beam headlamps

T
ype C, H4 - 55W
-

Remove the centre cover by
pullin

g the flexible rubber tab.
-

Disconnect the electrical
connector

.
-

Release the retaining tab.
-


Change the bulb taking care
to align the metal part with the
grooves on the lamp.
-


Reposition the retaining tab.
-


Ensure that the cover is refitted
correctly all round to assure
correct sealing.
Changing a bulb
