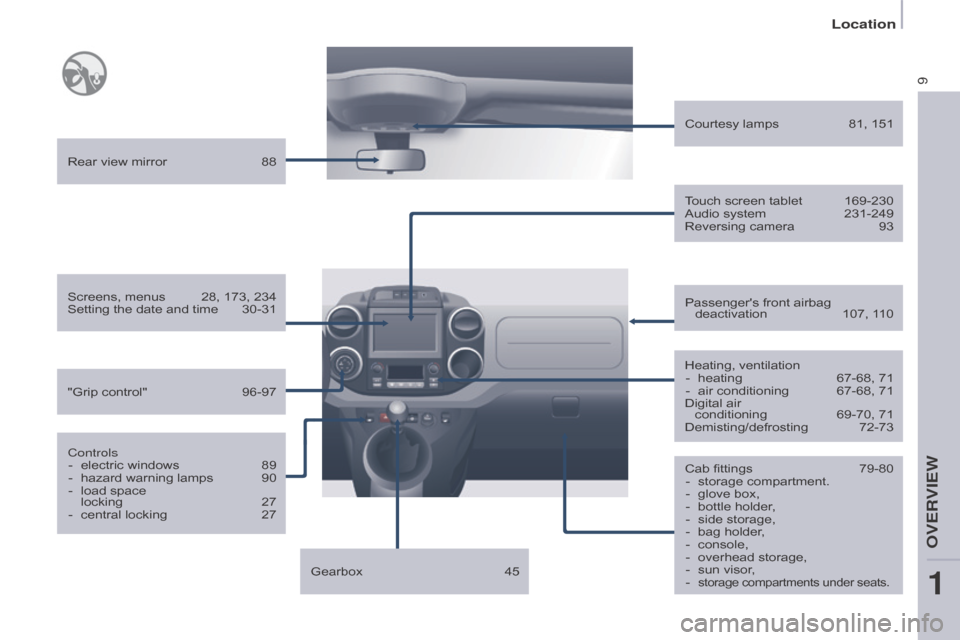

9
Berlingo-2-VU_en_Chap01_vue ensemble_ed01-2015
Cab fittings 79-80
- storage compartment.
-
glove box,
-
bottle holder
,
-
side storage,
-
bag holder
,
-
console,
-
overhead storage,
-
sun visor
,
-
storage compartments under seats.
Rear view mirror 88
Passenger's front airbag deactivation
107, 1
10
Courtesy lamps
81, 151
Gearbox
45
Controls
-
electric windows
89
-
hazard warning lamps
90
-
load space
locking
27
-
central locking
27
Screens, menus
28, 173, 234
Setting the date and time
30-31 Heating, ventilation-
heating
67-68, 71
-
air conditioning
67-68, 71
Digital air
conditioning
69-70, 71
Demisting/defrosting
72-73
"Grip control"
96-97 T
ouch screen tablet
169-230
Audio system
231-249
Reversing camera
93
1
oVERVIEW
Location
Page 12 of 266
10
Berlingo-2-VU_en_Chap01_vue ensemble_ed01-2015
Heating, ventilation- heating 67-68, 71
-
air conditioning
67-68, 71
Digital air
conditioning
69-70, 71
Demisting/defrosting
72-73
Rear view mirror
88
Controls-
electric windows
89
-
hazard warning lamps
90
-
load space
locking
27
-
central locking
27
"Grip control"
96-97
Cab fittings
79-80
-
storage compartment.
-
glove box,
-
bottle holder
,
-
side storage,
-
bag holder
,
-
console,
-
overhead storage,
-
sun visor
,
-
storage compartments under seats.
Dashboard, passenger compartment fuses 154-156
Opening the bonnet
124
T
ouch screen tablet
169-230
Audio system
231-249
Reversing camera
93
Screens, menus
28, 173, 234
Setting the date and time
30-31
Gearbox
45
Courtesy lamps
81, 151
InSTRUMEnTS AnD CO
n TROLS
Location
Page 13 of 266
11
Berlingo-2-VU_en_Chap01_vue ensemble_ed01-2015
Parking brake, handbrake 90 Instrument panels,
screens, dials
28-29Warning lamps, indicator lamps 32-39
Indicators, gauge
40, 43-44
Setting the time
in the instrument panel
29
Lighting dimmer
44
Gear shift
indicator
46 Passenger's front airbag deactivation
107, 1
10
ASR-DSC
95
Parking sensors
91-92
Electric mirrors
87-88Headlamp beam height adjustment 57
Stop & Start
49-51
Starter motor
, ignition switch
52
Wipers
58-59
Automatic wiping
58Windscreen / headlamp wash 59, 128
Trip computer
60
Steering mounted controls: -
T
ouch screen tablet
172
-
Audio system
233
Steering wheel adjustment
45
Horn
90
6-speed electronic
gearbox
47-48
Lighting
55-57
Automatic illumination of headlamps
56
Foglamps
56, 57
Cruise control
61-63
Speed limiter
64-66
1
oVERVIEW
Location
Page 14 of 266
12
Berlingo-2-VU_en_Chap01_vue ensemble_ed01-2015
TECHnICAL DATA - M AI n TE n A n CE
Identification markings,
serial number, paint code,
tyres
168
Windscreen / headlamp
wash, levels
128
Changing bulbs,
lighting
148-153 Checks
129-130
-
battery
,
-
brake pads,
-
brake drums, discs.
-
parking brake,
-
carbon/passenger compartment filter,- oil filter,
- particle filter ,
-
gearbox.
Emissions controls
41
Engine fuses
154, 157
Under the bonnet: -
Diesel
107
-
petrol
106
Fuel cut-of
f,
Diesel priming
132
AdBlue additive
133-139
Opening the bonnet, stay
124 Levels
127-128
-
dipstick,
-
brake fluid,
-
coolant.
-
power steering fluid,
-
Diesel additive,
Bleeding water
, Diesel filter
130
W
arning lamps
32-39
Snow chains
147
Dimensions
162-165
Floor cab dimensions
166
Engines / W
eights
167
Location
Page 15 of 266
13
Berlingo-2-VU_en_Chap01_vue ensemble_ed01-2015
InSTRUMEnTS AnD COn TROLS
1. Lighting and direction indicator control
stalk.
2.
Instrument panel with screen.
3.
Wiper
, screenwash, trip computer
control stalk.
4.
Ignition switch.
5.
Audio controls.
6.
Driver's front airbag, horn.
7.
Steering wheel height and reach
adjustment.
8.
Cruise control, speed limiter controls.
9.
Switch panel: parking sensors,
headlamp beam adjustment, DSC,
Stop & Start.
10.
Bonnet release lever
.
11 .
Electric door mirror adjustment.
12.
Front electric window switches.
13.
Switch panel: hazard warning
lamps, central locking (passenger
compartment, load space).
14.
Cigarette lighter
.
15.
Heating-ventilation controls.
16.
Electronic gearbox control or Grip
control button.
17.
T
ouch screen tablet.
18.
USB port (with electronic gearbox).
19.
USB port (with manual gearbox).
1
OVERVIEW
Presentation
Page 16 of 266
14
Berlingo-2-VU_en_Chap01_vue ensemble_ed01-2015
1. Lighting and direction indicator control
stalk.
2.
Instrument panel with screen.
3.
Wiper
, screenwash, trip computer
control stalk.
4.
Ignition switch.
5.
Audio controls.
6.
Driver's front airbag, horn.
7.
Steering wheel height and reach
adjustment.
8.
Cruise control, speed limiter controls.
9.
Switch panel: parking sensors,
headlamp beam adjustment, DSC,
Stop & Start, alarm.
10.
Bonnet release lever
.
11 .
Electric door mirror adjustment.
12.
Front electric window switches.
13.
Switch panel: hazard warning
lamps, central locking (passenger
compartment, load space).
14.
Cigarette lighter
.
15.
Heating-ventilation controls.
16.
Electronic gearbox control or Grip
control button.
17.
T
ouch screen tablet.
18.
USB port (with electronic gearbox).
19.
USB port (with manual gearbox).
InSTRUMEnTS AnD CO n TROLS
Presentation
Page 17 of 266
15
EnVIROnMEnT
With you, CITRoËn acts to protect
the environment.
We invite you to visit the
www.citroen.co.uk website. As the driver, you also can contribute
to protecting the environment by
following certain rules:
-
adopt a preventive style of driving,
without frequent and harsh
acceleration,
-
observe the service intervals;
we recommend that services are
carried out by a CITROËN dealer
,
authorised to collect used batteries
and fluids,
-
in order to preserve the reliability
of the engine and emission control
systems, do not use engine oil
additives.
Refer to information on eco-driving at
the end of this section.
2
ECO-DRIVInG
Motoring & Environment
Page 18 of 266
16Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2
emissions.
Eco-driving
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up
without waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference
to automatic mode and avoid pressing the accelerator
pedal heavily or suddenly.
The gear shift indicator invites you engage the most
suitable gear: as soon as the indication is displayed in the
instrument panel, follow it straight away.
For vehicles fitted with an electronic or automatic gearbox,
this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine
braking rather than the brake pedal, and press the
accelerator progressively. These practices contribute
towards a reduction in fuel consumption and CO
2
emissions and also helps reduce the background traffic
noise.
If your vehicle has cruise control, make use of the system
at speeds above 25 mph (40 km/h) when the traffic is
flowing well.
Control the use of your electrical equipment
Before moving off, if the passenger compartment is too
warm, ventilate it by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the
air vents open.
Remember to make use of equipment that can help keep
the temperature in the passenger compartment down
(sunroof and window blinds...).
Switch off the air conditioning, unless it has automatic
regulation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not
automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the
level of light does not require their use.
Avoid running the engine before moving off, particularly in
winter; your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia
devices (film, music, video game...), you will contribute
towards limiting the consumption of electrical energy, and
so of fuel.
Disconnect your portable devices before leaving the
vehicle.
Motoring & Environment
Page 19 of 266
17

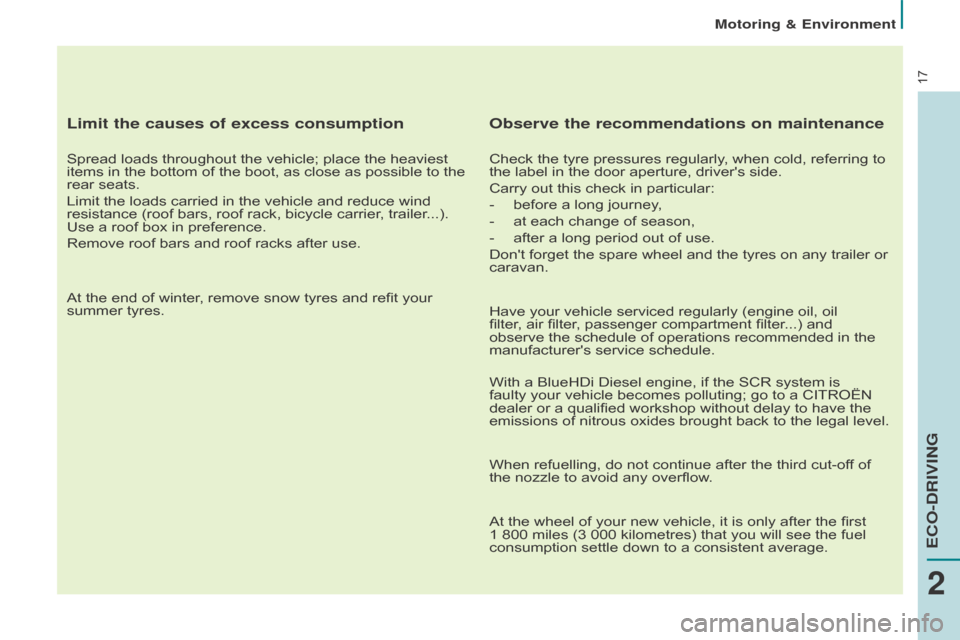

Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest
items in the bottom of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle and reduce wind
resistance (roof bars, roof rack, bicycle carrier, trailer...).
Use a roof box in preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your
summer tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to
the label in the door aperture, driver's side.
Carry out this check in particular:
-
before a long journey
,
-
at each change of season,
-
after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or
caravan.
Have your vehicle serviced regularly (engine oil, oil
filter
, air filter, passenger compartment filter...) and
observe the schedule of operations recommended in the
manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR system is
faulty your vehicle becomes polluting; go to a CITROËN
dealer or a qualified workshop without delay to have the
emissions of nitrous oxides brought back to the legal level.
When refuelling, do not continue after the third cut-off of
the nozzle to avoid any overflow.
At the wheel of your new vehicle, it is only after the first
1 800 miles (3 000 kilometres) that you will see the fuel
consumption settle down to a consistent average.
2
ECO-DRIVInG
Motoring & Environment
Page 20 of 266
18
BERLInGO-2-VU_En_CHAP03_PRET-A-PARTIR_ED01-2015
KEY
This locks and unlocks the vehicle's
doors, opens and closes the fuel filler
cap, as well as starting and stopping
the engine.
Security of use
R
EMOTE
CO
n
TROL
Unlocking the cab or the vehicle Unlocking the load spaceLocking
Press this button to lock the
vehicle completely.
The direction indicators flash once.
If one of the doors is open
(transportation of long loads) or is not
closed correctly, the central locking will
not work.
Deadlocking
A second press on the closed padlock
on the remote control within five
seconds after locking changes the
locking to deadlocking.
This is confirmed by fixed lighting
of the direction indicators for
approximately two seconds.
Deadlocking renders the exterior
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started.
To unlock the load space only:
Press this control to unlock
the load space, the front
doors alone remain locked. Press this control to lock the
vehicle completely. Press this button to unlock all
of the rear doors.
Press this button once to
unlock the front doors.
Press this button again
to unlock your vehicle
completely.
The direction indicators flash twice.
Access
