Citroen BERLINGO 2015 2.G Owner's Manual

6
2
7
3
8
4
9
5
1011
1
Audio and Telematics












Level 1



Level 2




Usage monitor





Internet connection settings




Wi- Fi network connection



Bluetooth
(devices)

1
1
1
2
3
4
5
6
7
8
9
10
11
Audio and Telematics 5


Level 1

Level 2

Comments


Connected
services



Secondary page



Bluetooth
connection

Search
Start the search for a device to connect.

Connect / Disconnect
Start or end the Bluetooth connection to the
selected device.

Update
Import contacts from the selected telephone to
save them in the audio system.

Delete
Delete the selected telephone.

Confirm
Save the settings.

Connected
services



Secondary page



Tr a n s f e r r a t e

Reset

Reset the usage monitor, them confirm.

Confirm


Connected
services



Secondary page



WiFi connection

All
Display all Wi-Fi networks.

Secure
Display secure Wi-Fi networks.

Stored
Memorise the selected Wi-Fi network(s).

Add
Add a new Wi-Fi network.

Off/
On

Activate or deactivate a Wi-Fi network.

Connect
Select a Wi-Fi network found by the system and
connect to it.

Audio and Telematics

MirrorLink TM








Optional depending on the
smartphone and operating
system.

Applications



Car mode

Audio and Telematics 7


As a safety measure and because it
requires sustained attention by the
driver, using a smartphone when
driving is prohibited.
All operations must be done with the
vehicle stationary
.

The synchronisation of a
smartphone allows applications on a
smartphone that are adapted to the
MirrorLink
TM technology to be displayed
in the vehicle's screen.
As the principles and standards are
constantly evolving, it is recommended
that you update the operating system of
your smartphone.
For the list of eligible smar tphones,
connect to the brand's internet website
in your country.
Please note:


- if your smartphone is supported, to
make it "MirrorLink
TM " compatible,
some phone manufacturers
nevertheless invite you to first
download a dedicated application.

- iPhone
®
is not supported yet; an
Apple ® application, "CarPlay ®
", is
being developed.



When connecting a smartphone to
the system, it is recommended that
Bluetooth
® be started on the smartphone


Start the application on the
smartphone (optional, depending
on the smartphone and operating
system).
Access to the different audio sources remains
accessible in the margin of the MirrorLink
TM
display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons

If the smartphone is locked,
communication with the system is only
by USB cable.
During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.

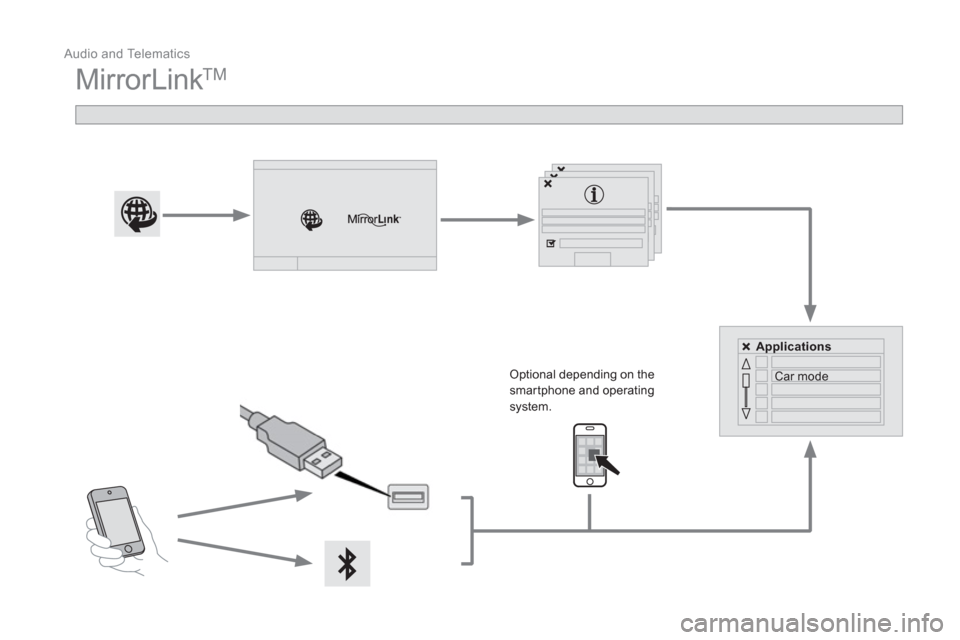

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press " MirrorLink

TM
" to start
the application in the system.
Once connection is established, an
" Applications
" page is displayed with the
list of applications already downloaded to
your smartphone and adapted to MirrorLink
TM
technology.
If only one application has been downloaded to
the smartphone, it starts automatically.



MirrorLink TM
smartphone
connection

Press the end of the lighting control stalk to
start voice recognition of your smartphone via
the system.
Voice recognition requires a compatible
smartphone connected to the vehicle by
Bluetooth.







Voice recognition


As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.
From the system, press " Connected
services
" to display the primary
page.

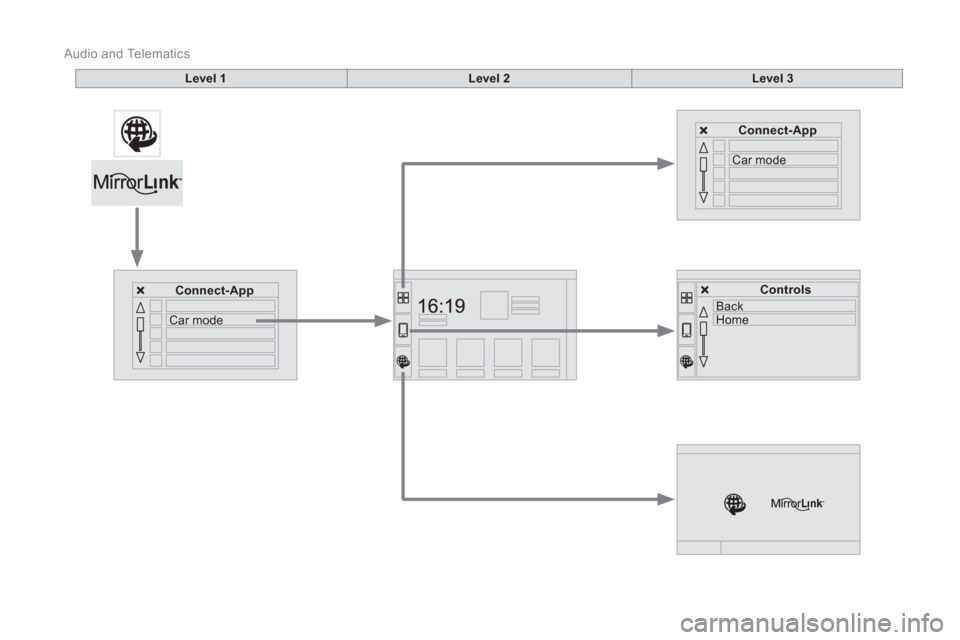

Audio and Telematics


Back

Home

Controls




Connect-App



Car mode

Connect-App



Car mode






Level 1



Level 2



Level 3

Audio and Telematics 9


Level 1

Level 2

Level 3

Comments


Connected
services



MirrorLink
TM




Connect-App
Car mode
Connect-App
Access or return to the list of applications already
downloaded to your smartphone and adapted to
MirrorLink
TM technology.

Controls
"Back": abandon the current operation, go up
one level.
"Home": access or return to the "Car mode"
page.
Access to the "Connected ser vices" primary
page.
