Page 91 of 209
9 4
Practical information
T h e i n t e r i o r r a c k c o n s i s t s o f t w o
b a r s t o b e i n s t a l l e d a t t h e t o p o f t h e
s p a c e l e a v i n g t h e l o w e r a r e a o f t h e
p a s s e n g e r c o m p a r t m e n t f r e e .
I t p e r m i t s t h e t r a n s p o r t a t i o n o f l o n g
l o a d s ( 2 m e t r e s m a x i m u m ) w i t h t h e
d o o r s o r t a i l g a t e c l o s e d . T h e l o n g l o a d
m u s t r e s t o n t h e o v e r h e a d s t o r a g e
c o m p a r t m e n t a n d t h e t w o b a r s . M a x i m u m l o a d : 1 0 k i l o g r a m m e s p e r
b a r .
T h e t w o i n t e r i o r b a r s a r e c o v e r e d
w i t h r u b b e r a n d i n c o r p o r a t e a s t r a p
p a s s a g e t o s e c u r e t h e l o a d e d o b j e c t s .
H o w e v e r , b e s u r e t o c o m p l y w i t h t h e
l o a d s a n d w e i g h t s p e r m i t t e d .
Page 92 of 209
9 5
EASE OF USE AND COMFORT
3
Practical information
T h e i n t e r i o r r a c k i s n o t c o m p a t i b l e
with the Modutop roof.
Fitting the bars
- U n c l i p t h e p l a s t i c c o v e r s
C .
- U n s c r e w t h e k n u r l e d w h e e l s l o c a t e d a t t h e e n d s o f t h e b a r s f u l l y .
- T a k e h o l d o f t h e b a r b y t h e e n d s t o s l i d e t h e m t o w a r d s t h e i n s i d e t o
r e t r a c t t h e m .
- E x t r a c t t h e m e t a l e n d p i e c e A
t a k i n g h o l d o f t h e e n d o f t h e b a r l i k e
a s y r i n g e .
- Insert the end piece A on one side
t h e n l o w e r i t t o fi x i t i n t h e b a s e o f
the notch B . Storing
W h e n t h e b a r s a r e n o t i n u s e :
- p a r t i a l l y l o o s e n t h e k n u r l e d w h e e l s ,
- l i f t t h e b a r s l i g h t l y ,
- p i v o t i t u p w a r d s b y 1 8 0 ° ,
- t i g h t e n t h e k n u r l e d w h e e l .
Good practice
I n t h e e v e n t o f a f r o n t i m p a c t , t h e r a c k
i s d i s e n g a g e d t o a v o i d i n j u r y t o t h e
o c c u p a n t s o f t h e v e h i c l e . T h e s l i g h t
c l e a r a n c e o b s e r v e d i n t h e b a r i s l i n k e d
w i t h t h i s s a f e t y d i s e n g a g e m e n t .
D o n o t l o o s e n o r p l a c e t h e b a r s i n a
p o s i t i o n o t h e r t h a n t h o s e d e s c r i b e d
a b o v e .
T h e l o a d o n t h e r a c k m u s t r e s t o n t h e
o v e r h e a d s t o r a g e c o m p a r t m e n t a n d
b e s t r a p p e d u s i n g t h e s t r a p p a s s a g e s
p r o v i d e d o n t h e b a r s .
T h e b a r s a r e n o t g r a b h a n d l e s f o r t h e
p a s s e n g e r s .
- C a r r y o u t t h e s a m e o p e r a t i o n s o n
the other side.
- E n s u r e t h a t t h e y a r e e n g a g e d c o r r e c t l y a t t h e b a s e o f t h e n o t c h .
- T i g h t e n t h e k n u r l e d w h e e l s a n d c h e c k t h e t i g h t e n i n g b y p u s h i n g t h e
b a r s i d e w a y s .
T o r e m o v e , p r o c e e d i n t h e r e v e r s e
order.
Page 93 of 209
9 6
Mirrors and windows
Electric exterior mirrors
- M o v e t h e c o n t r o l t o t h e r i g h t o r t o the left to select the corresponding
mirror.
- M o v e t h e c o n t r o l i n a l l f o u r d i r e c t i o n s t o a d j u s t .
- R e t u r n t h e c o n t r o l t o t h e c e n t r a l position.
Electric folding/unfolding
T h e m i r r o r s c a n b e f o l d e d o r u n f o l d e d
e l e c t r i c a l l y f r o m t h e i n s i d e , w i t h t h e
v e h i c l e p a r k e d a n d t h e i g n i t i o n o n :
- P l a c e t h e c o n t r o l i n t h e c e n t r a l position.
- T u r n t h e c o n t r o l d o w n w a r d s .
MIRRORS
Heated mirrors
T h e e l e c t r i c m i r r o r s c a n b e h e a t e d .
Manual exterior mirrors
M o v e t h e l e v e r i n a l l f o u r d i r e c t i o n s t o
a d j u s t .
W h e n t h e v e h i c l e i s p a r k e d , t h e
e x t e r i o r m i r r o r s c a n b e f o l d e d b a c k
m a n u a l l y .
T h e m i r r o r s a r e n o t e q u i p p e d w i t h
a u t o m a t i c d e - i c i n g .
Forced folding
I f t h e m i r r o r c a s i n g h a s c o m e o u t o f
i t s i n i t i a l l o c a t i o n , w i t h t h e v e h i c l e
s t a t i o n a r y r e p o s i t i o n t h e m i r r o r c a s i n g
m a n u a l l y o r u s e t h e e l e c t r i c f o l d i n g
control. P r e s s t h e r e a r s c r e e n
de-icing button.
Page 94 of 209
9 7
EASE OF USE AND COMFORT
3
Mirrors and windows
MONITORING MIRROR
T h i s m i r r o r , p l a c e d o n t o p o f t h e
c e n t r a l m i r r o r , e n a b l e s t h e d r i v e r o r
f r o n t p a s s e n g e r t o o b s e r v e a l l t h e r e a r
s e a t s .
F i t t e d o n i t s o w n b a l l j o i n t , i t ' s m a n u a l
a d j u s t m e n t i s s i m p l e a n d p r o v i d e s a
v i e w o f t h e r e a r i n t e r i o r o f t h e v e h i c l e .
I t c a n a l s o b e a d j u s t e d f o r i m p r o v e d
v i s i b i l i t y d u r i n g m a n o e u v r e s o r w h e n
o v e r t a k i n g .
Areas for toll cards/car park
tickets
T h e a t h e r m i c w i n d s c r e e n h a s t w o n o n -
r e fl e c t i v e z o n e s l o c a t e d e i t h e r s i d e o f
t h e b a s e o f t h e i n t e r i o r m i r r o r .
T h e y a r e i n t e n d e d f o r a f fi x i n g t o l l c a r d s
a n d / o r c a r p a r k t i c k e t s .
REAR WINDOWS
T o p a r t i a l l y o p e n t h e r e a r w i n d o w s , t i l t
t h e l e v e r a n d p u s h i t f u l l y t o l o c k t h e
windows in the open position.
Manual interior mirror
T h e i n t e r i o r m i r r o r h a s t w o p o s i t i o n s :
- d a y ( n o r m a l ) ,
- n i g h t ( a n t i - d a z z l e ) .
T o c h a n g e f r o m o n e t o t h e o t h e r , p u s h
o r p u l l t h e l e v e r o n t h e l o w e r e d g e o f
the mirror.
Page 95 of 209
9 7
EASE OF USE AND COMFORT
3
Mirrors and windows
MONITORING MIRROR
T h i s m i r r o r , p l a c e d o n t o p o f t h e
c e n t r a l m i r r o r , e n a b l e s t h e d r i v e r o r
f r o n t p a s s e n g e r t o o b s e r v e a l l t h e r e a r
s e a t s .
F i t t e d o n i t s o w n b a l l j o i n t , i t ' s m a n u a l
a d j u s t m e n t i s s i m p l e a n d p r o v i d e s a
v i e w o f t h e r e a r i n t e r i o r o f t h e v e h i c l e .
I t c a n a l s o b e a d j u s t e d f o r i m p r o v e d
v i s i b i l i t y d u r i n g m a n o e u v r e s o r w h e n
o v e r t a k i n g .
Areas for toll cards/car park
tickets
T h e a t h e r m i c w i n d s c r e e n h a s t w o n o n -
r e fl e c t i v e z o n e s l o c a t e d e i t h e r s i d e o f
t h e b a s e o f t h e i n t e r i o r m i r r o r .
T h e y a r e i n t e n d e d f o r a f fi x i n g t o l l c a r d s
a n d / o r c a r p a r k t i c k e t s .
REAR WINDOWS
T o p a r t i a l l y o p e n t h e r e a r w i n d o w s , t i l t
t h e l e v e r a n d p u s h i t f u l l y t o l o c k t h e
windows in the open position.
Manual interior mirror
T h e i n t e r i o r m i r r o r h a s t w o p o s i t i o n s :
- d a y ( n o r m a l ) ,
- n i g h t ( a n t i - d a z z l e ) .
T o c h a n g e f r o m o n e t o t h e o t h e r , p u s h
o r p u l l t h e l e v e r o n t h e l o w e r e d g e o f
the mirror.
Page 96 of 209
9 8
Mirrors and windows

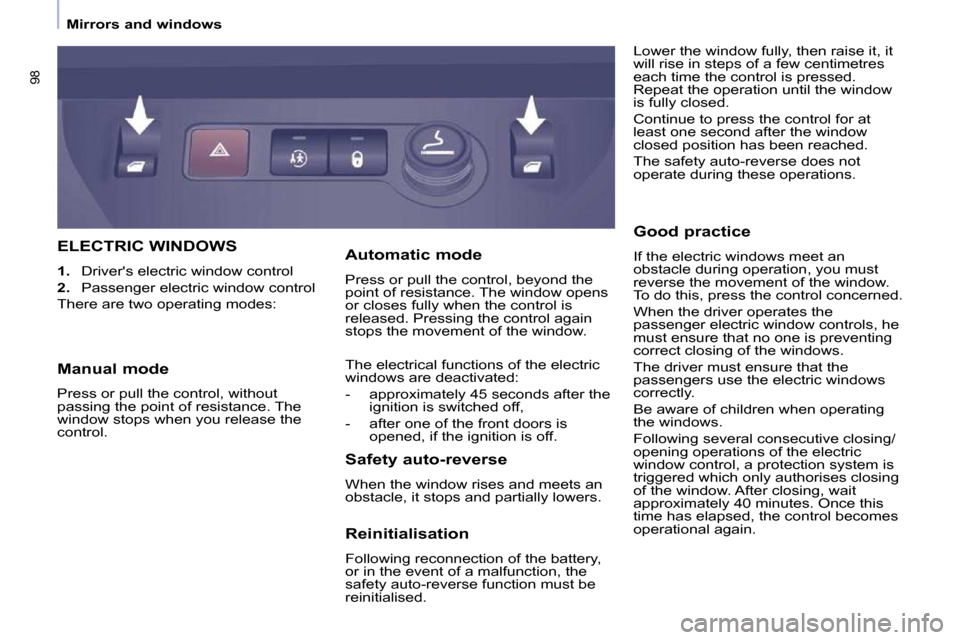

ELECTRIC WINDOWS
1. D r i v e r ' s e l e c t r i c w i n d o w c o n t r o l
2. P a s s e n g e r e l e c t r i c w i n d o w c o n t r o l
T h e r e a r e t w o o p e r a t i n g m o d e s : L o w e r t h e w i n d o w f u l l y , t h e n r a i s e i t , i t
w i l l r i s e i n s t e p s o f a f e w c e n t i m e t r e s
e a c h t i m e t h e c o n t r o l i s p r e s s e d .
R e p e a t t h e o p e r a t i o n u n t i l t h e w i n d o w
is fully closed.
C o n t i n u e t o p r e s s t h e c o n t r o l f o r a t
l e a s t o n e s e c o n d a f t e r t h e w i n d o w
c l o s e d p o s i t i o n h a s b e e n r e a c h e d .
T h e s a f e t y a u t o - r e v e r s e d o e s n o t
o p e r a t e d u r i n g t h e s e o p e r a t i o n s .
Safety auto-reverse
W h e n t h e w i n d o w r i s e s a n d m e e t s a n
o b s t a c l e , i t s t o p s a n d p a r t i a l l y l o w e r s .
Automatic mode
Press or pull the control, beyond the
p o i n t o f r e s i s t a n c e . T h e w i n d o w o p e n s
or closes fully when the control is
r e l e a s e d . P r e s s i n g t h e c o n t r o l a g a i n
s t o p s t h e m o v e m e n t o f t h e w i n d o w .
T h e e l e c t r i c a l f u n c t i o n s o f t h e e l e c t r i c
w i n d o w s a r e d e a c t i v a t e d :
- a p p r o x i m a t e l y 4 5 s e c o n d s a f t e r t h e
ignition is switched off,
- a f t e r o n e o f t h e f r o n t d o o r s i s opened, if the ignition is off. Good practice
I f t h e e l e c t r i c w i n d o w s m e e t a n
o b s t a c l e d u r i n g o p e r a t i o n , y o u m u s t
r e v e r s e t h e m o v e m e n t o f t h e w i n d o w .
To do this, press the control concerned.
W h e n t h e d r i v e r o p e r a t e s t h e
p a s s e n g e r e l e c t r i c w i n d o w c o n t r o l s , h e
m u s t e n s u r e t h a t n o o n e i s p r e v e n t i n g
correct closing of the windows.
T h e d r i v e r m u s t e n s u r e t h a t t h e
p a s s e n g e r s u s e t h e e l e c t r i c w i n d o w s
correctly.
B e a w a r e o f c h i l d r e n w h e n o p e r a t i n g
the windows.
F o l l o w i n g s e v e r a l c o n s e c u t i v e c l o s i n g /
o p e n i n g o p e r a t i o n s o f t h e e l e c t r i c
w i n d o w c o n t r o l , a p r o t e c t i o n s y s t e m i s
t r i g g e r e d w h i c h o n l y a u t h o r i s e s c l o s i n g
o f t h e w i n d o w . A f t e r c l o s i n g , w a i t
a p p r o x i m a t e l y 4 0 m i n u t e s . O n c e t h i s
t i m e h a s e l a p s e d , t h e c o n t r o l b e c o m e s
o p e r a t i o n a l a g a i n .
Manual mode
Press or pull the control, without
p a s s i n g t h e p o i n t o f r e s i s t a n c e . T h e
w i n d o w s t o p s w h e n y o u r e l e a s e t h e
control.
Reinitialisation
F o l l o w i n g r e c o n n e c t i o n o f t h e b a t t e r y ,
o r i n t h e e v e n t o f a m a l f u n c t i o n , t h e
s a f e t y a u t o - r e v e r s e f u n c t i o n m u s t b e
r e i n i t i a l i s e d .
Page 97 of 209
99
Driving safety
SAFETY
4
DRIVING SAFETY
HORN
Press the centre of the steering wheel.

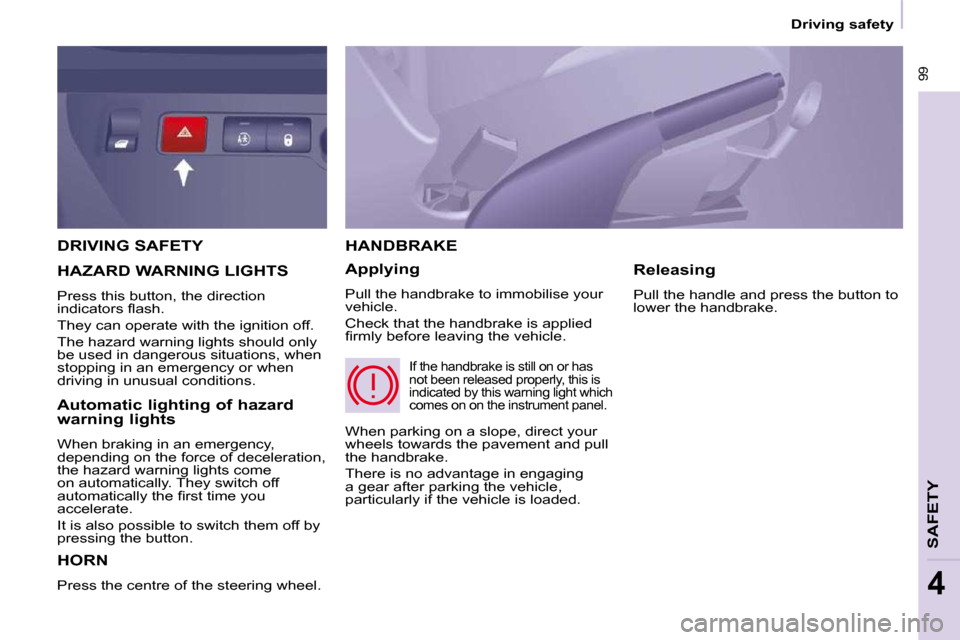

HANDBRAKE
Applying
Pull the handbrake to immobilise your
vehicle.
Check that the handbrake is applied
fi r m l y b e f o r e l e a v i n g t h e v e h i c l e . Releasing
Pull the handle and press the button to
lower the handbrake. HAZARD WARNING LIGHTS
Press this button, the direction
i n d i c a t o r s fl a s h .
They can operate with the ignition off.
The hazard warning lights should only
be used in dangerous situations, when
stopping in an emergency or when
driving in unusual conditions.
When parking on a slope, direct your
wheels towards the pavement and pull
the handbrake.
There is no advantage in engaging
a gear after parking the vehicle,
particularly if the vehicle is loaded.
If the handbrake is still on or has
not been released properly, this is
indicated by this warning light which
comes on on the instrument panel.
Automatic lighting of hazard
warning lights
When braking in an emergency,
depending on the force of deceleration,
the hazard warning lights come
on automatically. They switch off
a u t o m a t i c a l l y t h e fi r s t t i m e y o u
accelerate.
It is also possible to switch them off by
pressing the button.
Page 98 of 209
100
Parking assistance

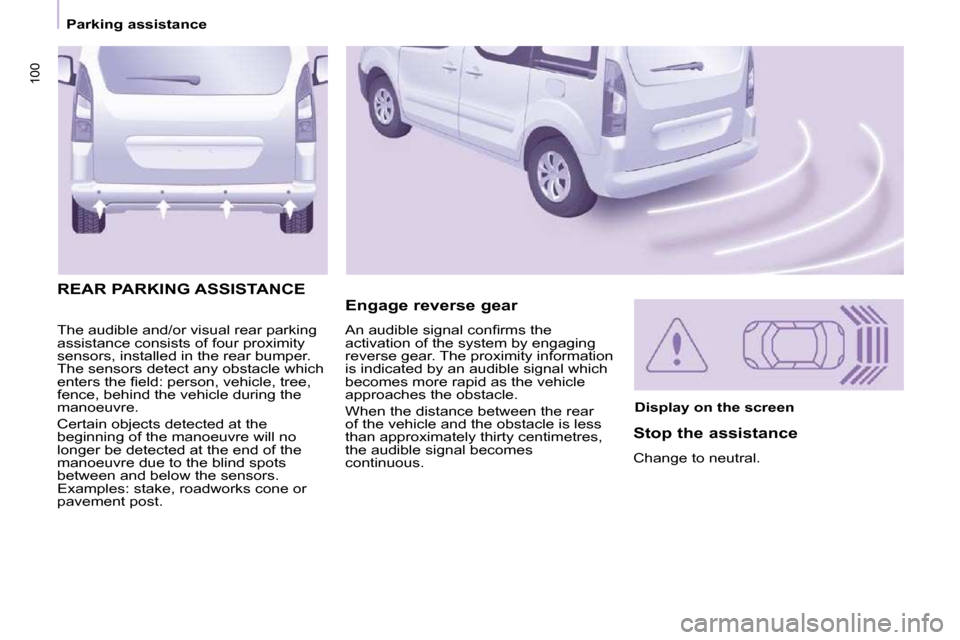

The audible and/or visual rear parking
assistance consists of four proximity
sensors, installed in the rear bumper.
The sensors detect any obstacle which
e n t e r s t h e fi e l d : p e r s o n , v e h i c l e , t r e e ,
fence, behind the vehicle during the
manoeuvre.
Certain objects detected at the
beginning of the manoeuvre will no
longer be detected at the end of the
manoeuvre due to the blind spots
between and below the sensors.
E x a m p l e s : s t a k e , r o a d w o r k s c o n e o r
pavement post. Engage reverse gear
REAR PARKING ASSISTANCE
Display on the screen
Stop the assistance
Change to neutral.
A n a u d i b l e s i g n a l c o n fi r m s t h e
activation of the system by engaging
reverse gear. The proximity information
is indicated by an audible signal which
becomes more rapid as the vehicle
approaches the obstacle.
When the distance between the rear
of the vehicle and the obstacle is less
than approximately thirty centimetres,
the audible signal becomes
continuous.
Page 99 of 209
101
Parking assistance
SAFETY
4
Activation/Deactivation Operating fault
In the event of an operating fault, when
reverse gear is engaged the diode on
the button comes on, accompanied
by an audible signal and a message
on the display. Consult a CITROËN
dealer.
Good practice
In bad weather or in winter, ensure that
the sensors are not covered with mud,
ice or snow.
The system will be deactivated
automatically if a trailer is being towed
o r i f a b i c y c l e c a r r i e r i s fi t t e d ( v e h i c l e
fi t t e d w i t h a t o w b a r o r b i c y c l e c a r r i e r
recommended by CITROËN).
The parking assistance cannot, in
any circumstances, take the place of
the vigilance and responsibility of the
driver.

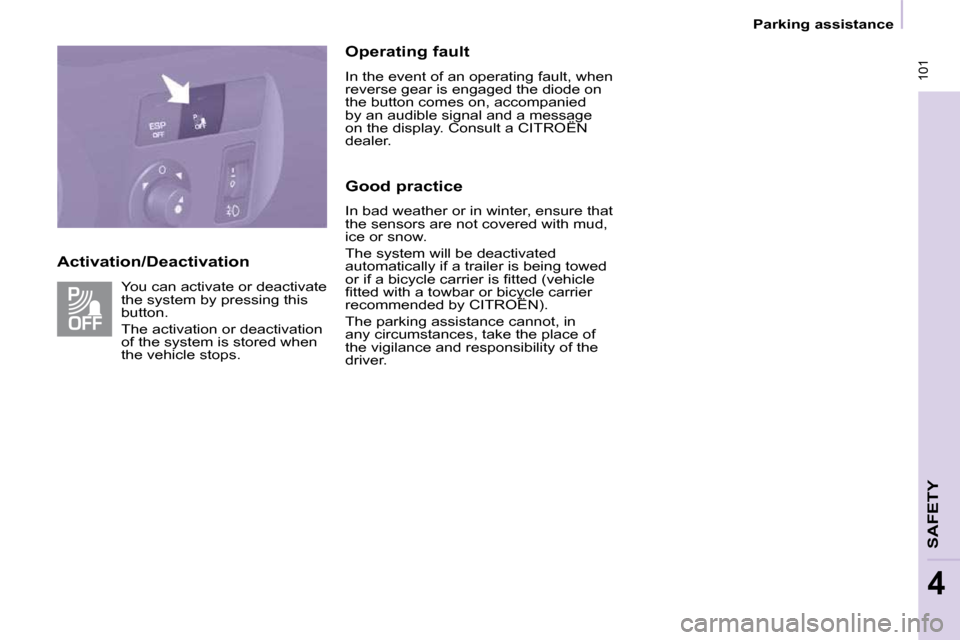

You can activate or deactivate
the system by pressing this
button.
The activation or deactivation
of the system is stored when
the vehicle stops.
Page 100 of 209
ABS
ABS
102
Driving safety
(ABS - EBFD)
T h e A B S a n d E B F D ( e l e c t r o n i c b r a k e
force distribution) systems improve the
stability and manoeuvrability of your
vehicle on braking, in particular on
poor or slippery surfaces.
The ABS prevents locking of the
wheels, the EBFD provides control of
the braking pressure wheel by wheel. If this warning light comes on,
accompanied by an audible
signal and a message on
the display, it indicates a
malfunction of the ABS which
could result in a loss of control of the
vehicle on braking.
If this warning light comes
on, together with the brake
and STOP warning lights,
accompanied by an audible
signal and a message on the
display, it indicates a malfunction of
the electronic brake force distribution
which could result in a loss of control of
the vehicle on braking.
EMERGENCY BRAKING
ASSISTANCE SYSTEM (EBA)
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, press the pedal
fi r m l y w i t h o u t r e l e a s i n g i t .
It is triggered by the speed at which the
brake pedal is activated.
This alters the resistance of the brake
pedal under your foot.
To prolong the operation of the
e m e r g e n c y b r a k i n g a s s i s t a n c e s y s t e m :
keep your foot on the brake pedal.
Good practice
The anti-lock braking system comes
into operation automatically when
there is a risk of wheel lock. It does not
reduce the braking distance.
O n v e r y s l i p p e r y s u r f a c e s ( i c e , o i l ,
etc...) the ABS may increase the
braking distance. When braking in
an emergency, do not hesitate to
p r e s s t h e b r a k e p e d a l fi r m l y , w i t h o u t
releasing the pressure, even on a
slippery surface, you will then be able
to continue to manoeuvre the vehicle
to avoid an obstacle.
Normal operation of the ABS may be
felt by slight vibration of the brake
pedal.
W h e n c h a n g i n g w h e e l s ( t y r e s
and rims), ensure that these are
recommended by CITROËN.
Stop immediately.
In both cases, contact a CITROËN
dealer.
