145
Technical data - Maintenance
VISUAL SEARCH
10

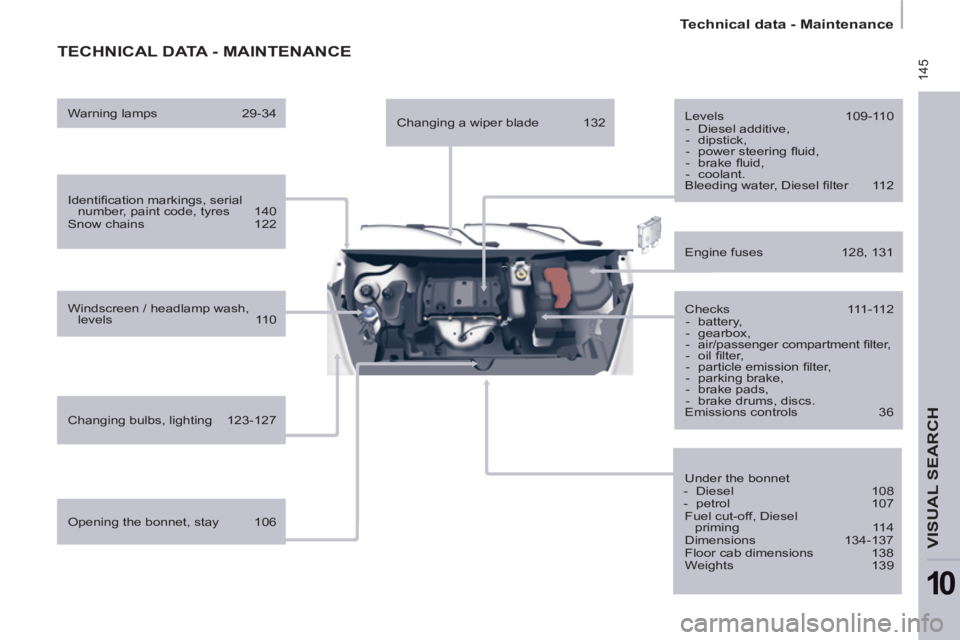

TECHNICAL DATA - MAINTENANCE
Identifi cation markings, serial
number, paint code, tyres 140
Snow chains 122
Windscreen / headlamp wash,
levels 110
Changing bulbs, lighting 123-127
Checks 111-112
- battery,
- gearbox,
- air/passenger compartment fi lter,
- oil fi lter,
- particle emission fi lter,
- parking brake,
- brake pads,
- brake drums, discs.
Emissions controls 36
Engine fuses 128, 131
Under the bonnet
- Diesel 108
- petrol 107
Fuel cut-off, Diesel
priming 114
Dimensions 134-137
Floor cab dimensions 138
Weights 139
Opening the bonnet, stay 106
Levels 109-110
- Diesel additive,
- dipstick,
- power steering fl uid,
- brake fl uid,
- coolant.
Bleeding water, Diesel fi lter 112
Warning lamps 29-34
Changing a wiper blade 132
01-13 This handbook describes all of the equipment
available in the whole range.
Your vehicle will be fi tted with some of this
equipment described in this document, depending
on its trim level, version and the specifi cation for the
country in which it is sold.
The descriptions and illustrations are given without
any obligation. Automobiles CITROËN reserves
the right to modify the technical specifi cations,
equipment and accessories without having to update
this edition of the handbook.
This document is an integral part of your vehicle. It
should be passed on to the new user in the event of
sale or transfer. Automobiles CITROËN declares, by application
of the provisions of the European regulation
(Directive 2000/53) relating to End of Life Vehicles,
that it achieves the objectives set by this regulation
and that recycled materials are used in the
manufacture of the products that it sells.
Reproduction or translation of all or part of this
handbook is prohibited without written authorisation
from Automobiles CITROËN.
Printed in the EU
Anglais
The rear bodywork components of your vehicle have
been designed to minimise spray.

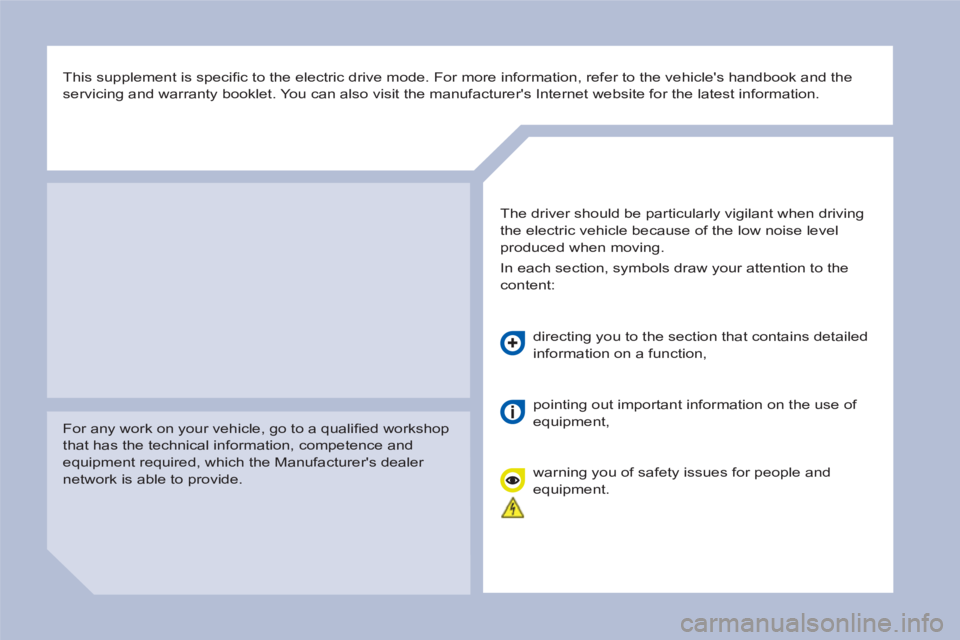

This supplement is specifi c to the electric drive mode. For more information, refer to the vehicle's handbook and the
servicing and warranty booklet. You can also visit the manufacturer's Internet website for the latest information.
For any work on your vehicle, go to a qualifi ed workshop
that has the technical information, competence and
equipment required, which the Manufacturer's dealer
network is able to provide.
The driver should be particularly vigilant when driving
the electric vehicle because of the low noise level
produced when moving.
In each section, symbols draw your attention to the
content:
directing you to the section that contains detailed
information on a function,
pointing out important information on the use of
equipment,
warning you of safety issues for people and
equipment.
2
Presentation3
Indicators6
Warning and indicator lamps9
Display screens 10
Starting procedure 11
Eco-driving 12
Eco-comfort 13
Manual air conditioning and heating 14
Charging the traction battery 15
Control unit 17
Normal charging procedure 19
Fast charging procedure 22
Other information 23
Ancillaries battery 25
Fuses 28
Servicing 29
Towing the vehicle 30
Motor and traction battery 31
Identifi cation markings 32
CONTENTS
