74
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015

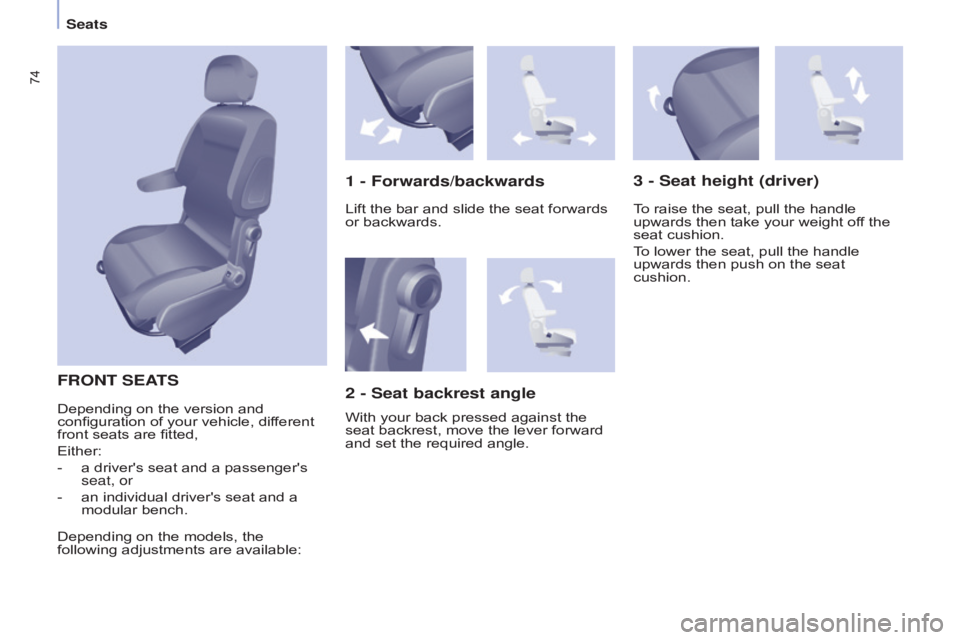

FROnT SEATS
1 - Forwards/backwards3 - Seat height (driver)
To raise the seat, pull the handle
upwards then take your weight off the
seat cushion.
To lower the seat, pull the handle
upwards then push on the seat
cushion.
2 - Seat backrest angle
With your back pressed against the
seat backrest, move the lever forward
and set the required angle. Lift the bar and slide the seat forwards
or backwards.
Depending on the version and
configuration of your vehicle, different
front seats are fitted,
Either:
-

a driver's seat and a passenger's
seat, or
-


an individual driver's seat and a
modular bench.
Depending on the models, the
following adjustments are available:
Seats

75
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015

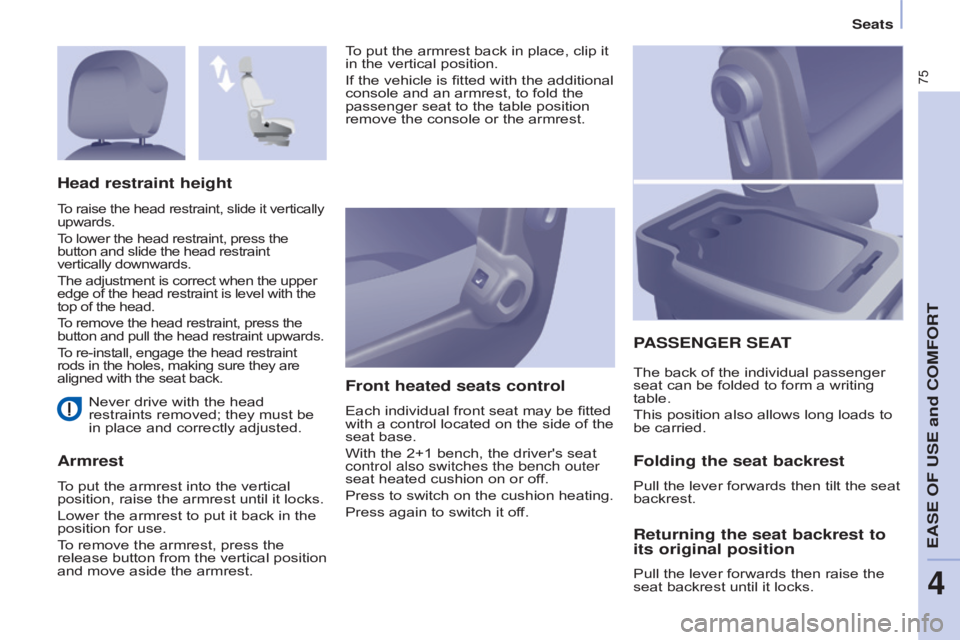

Never drive with the head
restraints removed; they must be
in place and correctly adjusted.
ArmrestFront heated seats control
Each individual front seat may be fitted
with a control located on the side of the
seat base.
With the 2+1 bench, the driver's seat
control also switches the bench outer
seat heated cushion on or off.
Press to switch on the cushion heating.
Press again to switch it off.
PASSE
n GER SEAT
Head restraint height
The back of the individual passenger
seat can be folded to form a writing
table.
This position also allows long loads to
be carried.
Folding the seat backrest
Pull the lever forwards then tilt the seat
backrest.
To put the armrest back in place, clip it
in the vertical position.
If the vehicle is fitted with the additional
console and an armrest, to fold the
passenger seat to the table position
remove the console or the armrest.
To raise the head restraint, slide it vertically
upwards.
To lower the head restraint, press the
button and slide the head restraint
vertically downwards.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove the head restraint, press the
button and pull the head restraint upwards.
To re-install, engage the head restraint
rods in the holes, making sure they are
aligned with the seat back.
To put the armrest into the vertical
position, raise the armrest until it locks.
Lower the armrest to put it back in the
position for use.
To remove the armrest, press the
release button from the vertical position
and move aside the armrest.
Returning the seat backrest to
its original position
Pull the lever forwards then raise the
seat backrest until it locks.
EASE OF USE and COMFORT
4
Seats

102
BERLInGO-2-VU_En_CHAP05_SECURITE_ED01-2015BERLInGO-2-VU_En_CHAP05_SECURITE_ED01-2015

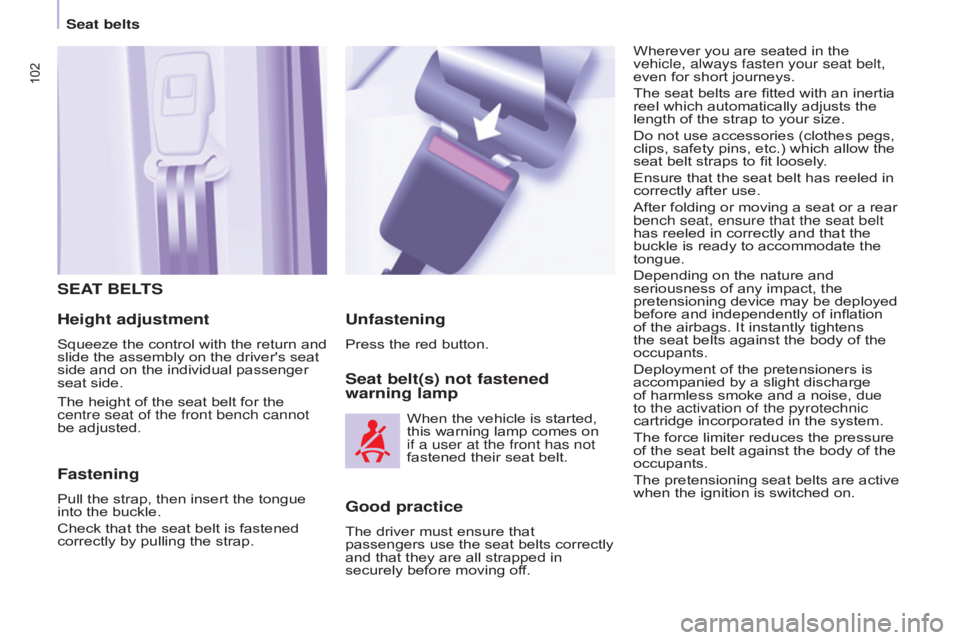

SEAT BELTS
Height adjustment
Squeeze the control with the return and
slide the assembly on the driver's seat
side and on the individual passenger
seat side.
Fastening
Pull the strap, then insert the tongue
into the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Seat belt(s) not fastened
warning lamp
Wherever you are seated in the
vehicle, always fasten your seat belt,
even for short journeys.
The seat belts are fitted with an inertia
reel which automatically adjusts the
length of the strap to your size.
Do not use accessories (clothes pegs,
clips, safety pins, etc.) which allow the
seat belt straps to fit loosely.
Ensure that the seat belt has reeled in
correctly after use.
After folding or moving a seat or a rear
bench seat, ensure that the seat belt
has reeled in correctly and that the
buckle is ready to accommodate the
tongue.
Depending on the nature and
seriousness of any impact, the
pretensioning device may be deployed
before and independently of inflation
of the airbags. It instantly tightens
the seat belts against the body of the
occupants.
Deployment of the pretensioners is
accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
The force limiter reduces the pressure
of the seat belt against the body of the
occupants.
The pretensioning seat belts are active
when the ignition is switched on.
Unfastening
Press the red button.When the vehicle is started,
this warning lamp comes on
if a user at the front has not
fastened their seat belt.
Good practice
The driver must ensure that
passengers use the seat belts correctly
and that they are all strapped in
securely before moving off.
The height of the seat belt for the
centre seat of the front bench cannot
be adjusted.
Seat belts
