flat tire CITROEN BERLINGO ELECTRIC 2017 Handbook (in English)

77
Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VU_en_Chap04_Ergonomie_ed01-2015

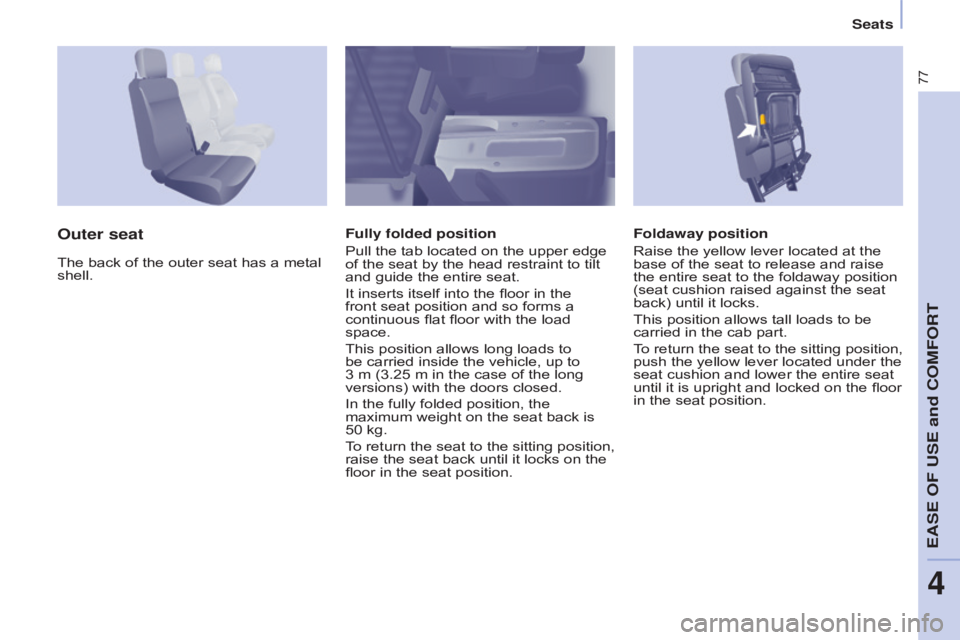

Foldaway position
Raise the yellow lever located at the
base of the seat to release and raise
the entire seat to the foldaway position
(seat cushion raised against the seat
back) until it locks.
This position allows tall loads to be
carried in the cab part.
To return the seat to the sitting position,
push the yellow lever located under the
seat cushion and lower the entire seat
until it is upright and locked on the floor
in the seat position.Outer seatFully folded position
Pull the tab located on the upper edge
of the seat by the head restraint to tilt
and guide the entire seat.
It inserts itself into the floor in the
front seat position and so forms a
continuous flat floor with the load
space.
This position allows long loads to
be carried inside the vehicle, up to
3 m (3.25 m in the case of the long
versions) with the doors closed.
In the fully folded position, the
maximum weight on the seat back is
50 kg.
To return the seat to the sitting position,
raise the seat back until it locks on the
floor in the seat position.
The back of the outer seat has a metal
shell.
EASE OF USE and COMFORT
4
Seats
