technical data Citroen BERLINGO FIRST DAG 2008 1.G Owner's Manual
[x] Cancel search | Manufacturer: CITROEN, Model Year: 2008, Model line: BERLINGO FIRST DAG, Model: Citroen BERLINGO FIRST DAG 2008 1.GPages: 114, PDF Size: 1.55 MB
Page 105 of 114
TECHNICAL DATA102 -
Model codes
GB9HWC
GC9HWC
GJ9HWC
GB9HXC
GC9HXC
GJ9HXC
GBWJYB
GCWJYB
GJWJYB
ENGINES
1.6 litre Turbo HDI 1.6 litre Turbo HDI 1.9 litre
Cubic capacity (cm 3
) 1 560 1 560 1 867
Bore x stroke (mm) 75 x 88.3 75 x 88.3 82.2 x 88
EU standard maximum power (kW) 55.2 66.2 51
Maximum power at engine speed (rpm) 4 000 4 000 4 60 0
EU standard maximum torque (Nm) 175 215 125
Maximum torque at engine speed (rpm) 1 750 1 750 2 5 00
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Gearbox Manual (5 speed) Manual (5 speed) Manual (5 speed)
Oil capacity (in litres)
Engine (with cartridge replacement) 3.75 3.8 4.8
Gearbox - Final drive 1.9 1.9 1.9
DIESEL ENGINES AND GEARBOXES

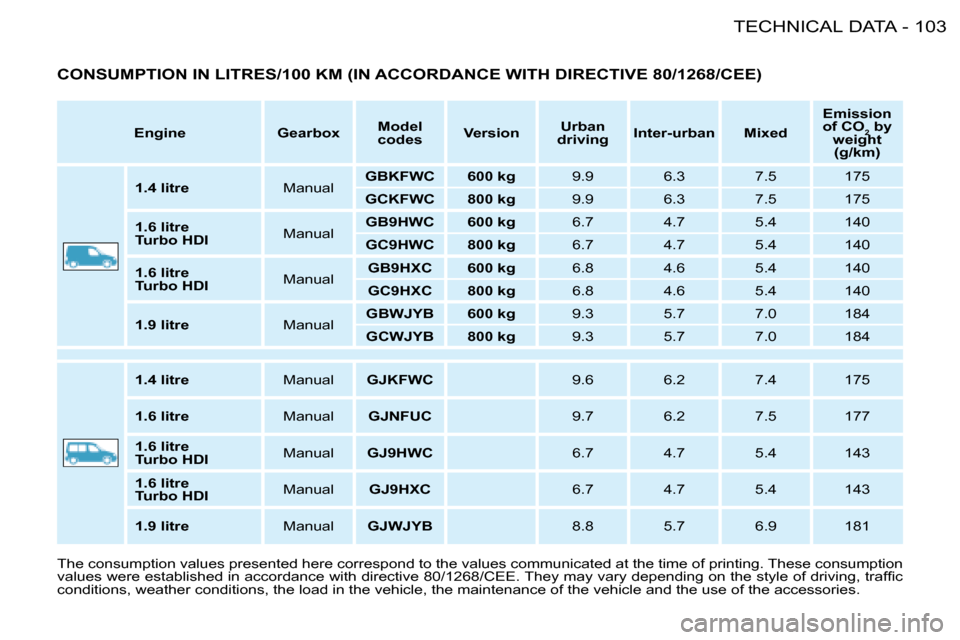

Page 106 of 114
103TECHNICAL DATA-
Engine Gearbox
Model
codes
Version
Urban
driving
Inter-urban Mixed
Emission
of CO 2 by
weight (g/km)
1.4 litre Manual
GBKFWC 600 kg 9.9 6.3 7.5 175
GCKFWC 800 kg 9.9 6.3 7.5 175
1.6 litre
Turbo HDI Manual
GB9HWC 600 kg 6.7 4.7 5.4 140
GC9HWC 800 kg 6.7 4.7 5.4 140
1.6 litre
Turbo HDI Manual
GB9HXC 600 kg 6.8 4.6 5.4 140
GC9HXC 800 kg 6.8 4.6 5.4 140
1.9 litre Manual
GBWJYB 600 kg 9.3 5.7 7.0 184
GCWJYB 800 kg 9.3 5.7 7.0 184
1.4 litre Manual GJKFWC 9.6 6.2 7.4 175
1.6 litre Manual GJNFUC 9.7 6.2 7.5 177
1.6 litre
Turbo HDI Manual
GJ9HWC 6.7 4.7 5.4 143
1.6 litre
Turbo HDI Manual
GJ9HXC 6.7 4.7 5.4 143
1.9 litre Manual GJWJYB 8.8 5.7 6.9 181
CONSUMPTION IN LITRES/100 KM (IN ACCORDANCE WITH DIRECTIVE 8 0/1268/CEE)
The consumption values presented here correspond to the values communicated at the time of printing. These consumption
v a l u e s w e r e e s t a b l i s h e d i n a c c o r d a n c e w i t h d i r e c t i v e 8 0 / 1 2 6 8 / C E E . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c
conditions, weather conditions, the load in the vehicle, t he maintenance of the vehicle and the use of the accessories.

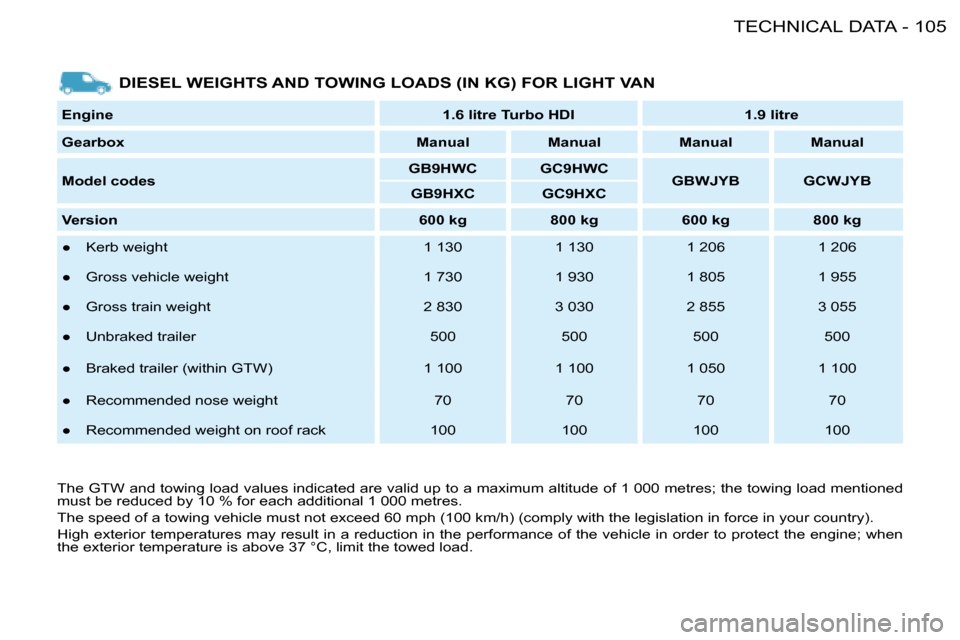

Page 108 of 114
105TECHNICAL DATA-
Engine
1.6 litre Turbo HDI 1.9 litre
Gearbox
Manual Manual Manual Manual
Model codes
GB9HWC GC9HWC
GBWJYB GCWJYB
GB9HXC GC9HXC
Version
600 kg 800 kg 600 kg 800 kg
Page 109 of 114
TECHNICAL DATA106 -
Engine1.4 litre1.6 litre
GearboxManualManual
Model codesGJKFWC GJNFUC
• K e r b w e i g h t1 197 1 254
• G r o s s v e h i c l e w e i g h t ( G V W )1 780 1 840
Page 110 of 114
107TECHNICAL DATA-

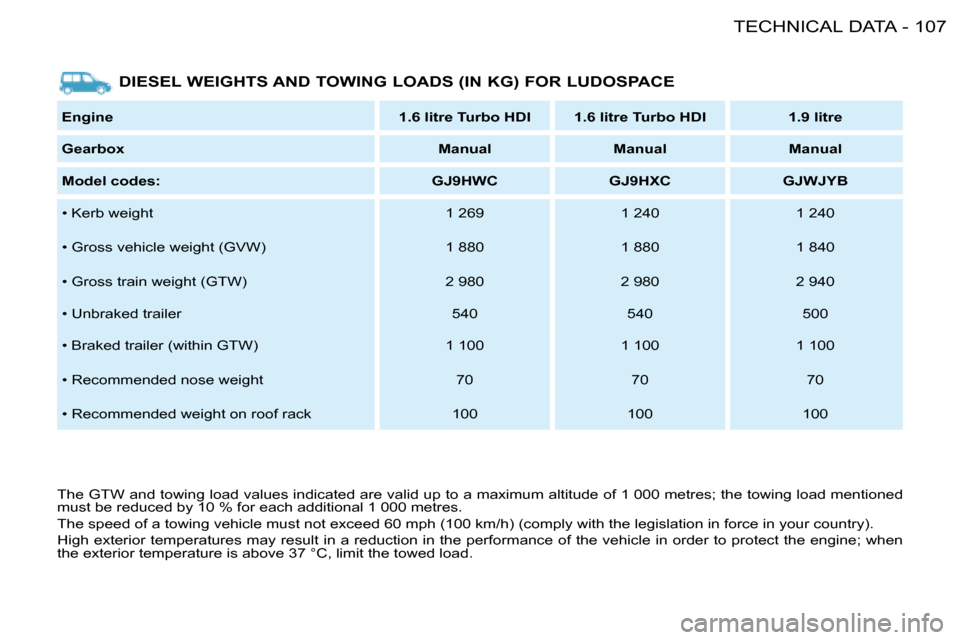

DIESEL WEIGHTS AND TOWING LOADS (IN KG) FOR LUDOSPACE
Engine 1.6 litre Turbo HDI
1.6 litre Turbo HDI1.9 litre
Gearbox Manual
ManualManual
Model codes:GJ9HWC GJ9HXC GJWJYB
• K e r b w e i g h t 1 269 1 240
1 240
• G r o s s v e h i c l e w e i g h t ( G V W )1 880 1 880 1 840
Page 111 of 114
TECHNICAL DATA108 - Light van Ludospace
A2 693
B 4 137
C836
D608
E 570 550
F1 440 1 440 or 1 452
G 1 960
H1 796 to 1 819 1 810
I1 420 1 420 or 1 436
J 1 724
EXTERIOR DIMENSIONS (IN MM)
Page 112 of 114
109TECHNICAL DATA-
INTERIOR DIMENSIONS (IN MM) LIGHT VAN
K 1 155
L 1 320
M 1 190
N 1 190
O 568
P 1 340
Page 113 of 114
TECHNICAL DATA110 -
Page 114 of 114
111TECHNICAL DATA-
IDENTIFICATION FEATURES
B. Serial number on the bodywork
(under the bonnet, on the
right-hand crossmember).
C. Tyres and paint colour reference.
The label C on the driver's door pillar,
near the hinges, gives:
- the wheel and tyre sizes,
- the tyre pressures: (tyre pressure
checks must be carried out cold,
at least every month) ,
- the paint colour reference.
A. Manufacturer's label (under the
bonnet, on the front right wing).
