Citroen BERLINGO FIRST DAG 2008 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2008, Model line: BERLINGO FIRST DAG, Model: Citroen BERLINGO FIRST DAG 2008 1.GPages: 114, PDF Size: 1.55 MB
Page 1 of 114
FAMILIARISATION4 -
Page 2 of 114
5FAMILIARISATION-
INSTRUMENTS AND CONTROLS
12. Windscreen demisting vents.
13. Speaker (tweeter).
14. Side window demisting vents.
15. Side adjustable heating/
ventilation vents.
16. Passenger air bag disarming
control.
17. Upper glove box or passenger
air bag.
18. Lower glove box.
19. Audio RD3.
20. Heating/air conditioning controls.
21. Storage.
22. Removable ashtray.
23. Gear lever.
24. Lighter.
25. Handbrake.
26. Heated seats control.
27. Steering lock and ignition.
28. Steering wheel adjustment
control.
29. Bonnet release.
30. Fuse box.
31. Headlamp height adjustment.
32. Passenger's electric mirror
control.
1. Speed limiter/cruise control stalk.
2. Lights and direction indicators
stalk.
3. Driver's air bag.
Horn.
4. Instrument panel.
5. Audio equipment steering wheel
control.
6. Windscreen wipers/
wash-wipe stalk.
7. Central adjustable heating/
ventilation vents.
8. Hazard lights button.
9. Multifunction display or clock.
10. Central lockingbutton.
11. Controls:
- Electric windows.
- Demisting of rear door windows.
- Air conditioning.
Page 3 of 114
FAMILIARISATION6 -
THE KEYS
The keys allow you to switch on the
ignition and operate the passenger
air bag disarming switch, as well as
to independently operate the locks
o n t h e d o o r s a n d t h e f u e l fi l l e r c a p .
STARTING The remote control
Central locking
From the front doors, the keys allow
you to lock and unlock all of the doors.
If one of the doors is open, it is impos-
sible to operate the central locking.
The remote control performs the
same functions at a distance. Unlocking
Press button
B to unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators.
Locating the vehicle
To locate your vehicle, previously
locked, in a car park:
press button A , the courtesy
lights come on and the direction
i n d i c a t o r s fl a s h f o r a f e w s e c o n d s .
52
Locking
Press button
A to lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g o f t h e
direction indicators for approximately
two seconds. STOP position (S):
The ignition is off.
To release the steering, turn the
steering wheel slightly while turning
the key, without forcing it.
Accessories position (A):
The ignition is off but the accessories
can be used.
On position (M):
The ignition is on.
Starting position (D):
Operates the starter.
Release the key when the engine
has started. Never operate the starter
while the engine is running.
Page 4 of 114
7FAMILIARISATION-
WINDSCREEN WIPERS STEERING WHEEL STALKS
LIGHTING Front fog lamps (1 st turn of the ring
forwards).
Front fog lamps and rear fog lamp
(2 nd turn of the ring forwards).
To switch off: turn the ring rearwards.
Lights off
Side lights
Dipped headlamps/
Main beam headlamps V e h i c l e s fi t t e d w i t h a r e a r
fog lamp (ring B)
Turn the ring forwards.
V e h i c l e s fi t t e d w i t h
front fog lamps and a
rear fog lamp (ring B)
Off Wash-wipe
Intermittent
wipe
Rear
59
60
Front and rear lights (ring A)
Front
2 Rapid wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe.
Windscreen wash-wipe: pull the stalk
towards you.
Page 5 of 114
FAMILIARISATION8 -

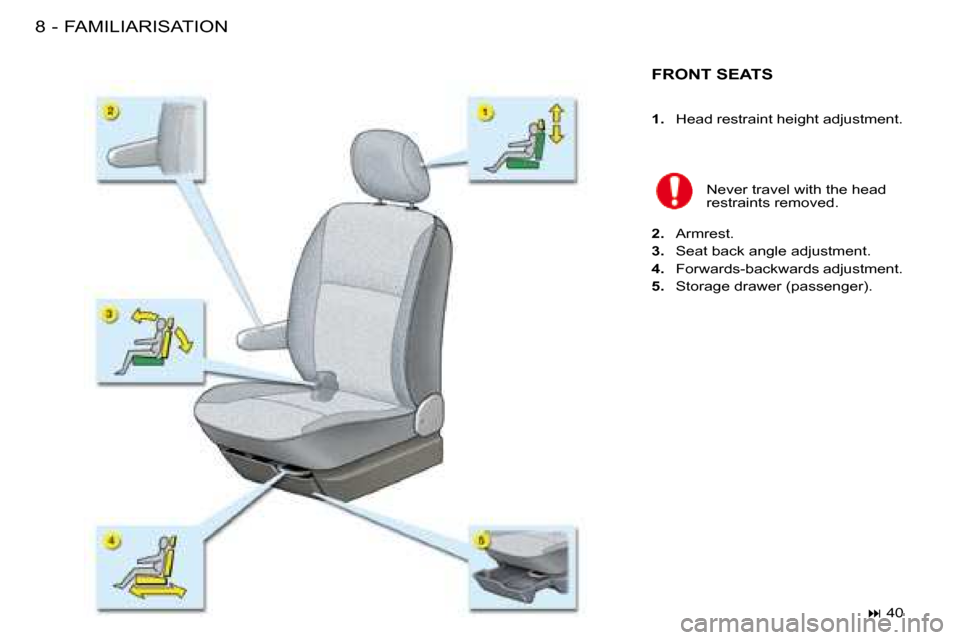

FRONT SEATS
Never travel with the head
restraints removed.
2. Armrest.
3. Seat back angle adjustment.
4. Forwards-backwards adjustment.
5. Storage drawer (passenger).
40
1. Head restraint height adjustment.
Page 6 of 114
9FAMILIARISATION-
AIR BAGS

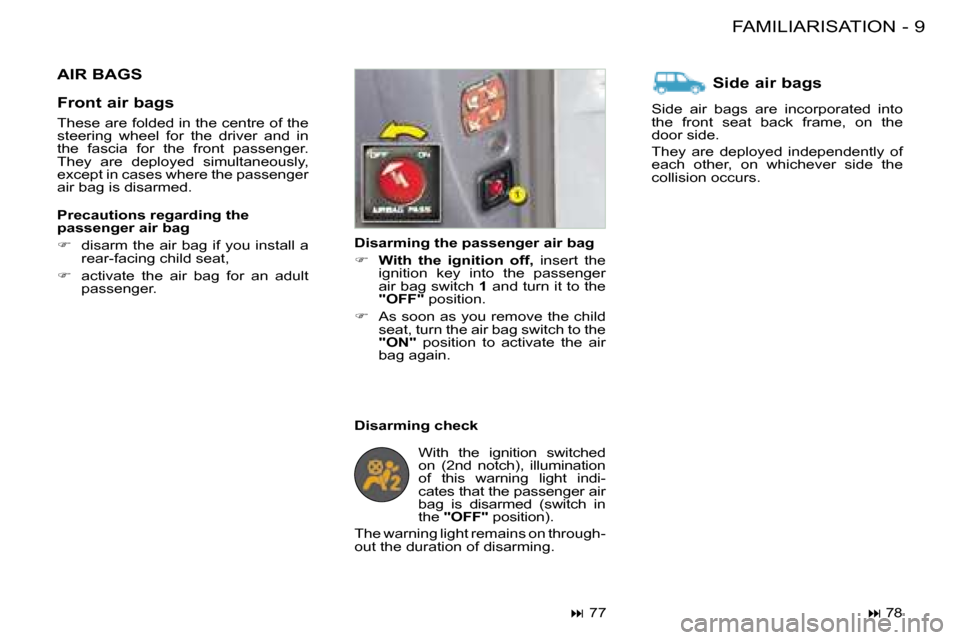

Disarming the passenger air bag
With the ignition off, insert the
ignition key into the passenger
air bag switch 1 and turn it to the
"OFF" position.
As soon as you remove the child
seat, turn the air bag switch to the
"ON" position to activate the air
bag again.
Disarming check With the ignition switched
on (2 nd notch), illumination
of this warning light indi-
cates that the passenger air
bag is disarmed (switch in
the "OFF" position).
The warning light remains on through-
out the duration of disarming.
78
Front air bags
These are folded in the centre of the
steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,
except in cases where the passenger
air bag is disarmed.
Side air bags are incorporated into
the front seat back frame, on the
door side.
They are deployed independently of
each other, on whichever side the
collision occurs.
Precautions regarding the
passenger air bag
disarm the air bag if you install a
rear-facing child seat,
activate the air bag for an adult
passenger.
77 Side air bags
Page 7 of 114
FAMILIARISATION10 -
STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, push the control A
forwards to unlock the steering
wheel.
Adjust the height of the steering
wheel.
Lock it by pulling control A towards
you fully.

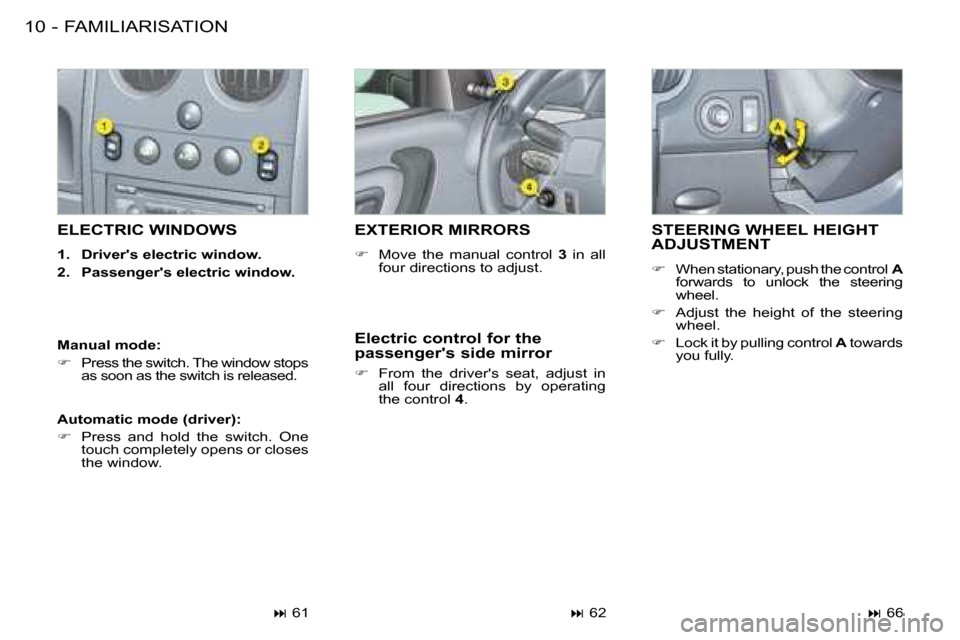

ELECTRIC WINDOWS
1. D r i v e r ' s e l e c t r i c w i n d o w .
2. P a s s e n g e r ' s e l e c t r i c w i n d o w .
EXTERIOR MIRRORS
Move the manual control 3 in all
four directions to adjust.
Electric control for the
passenger's side mirror
From the driver's seat, adjust in
all four directions by operating
the control 4 .
Manual mode:
Press the switch. The window stops
as soon as the switch is released.
Automatic mode (driver):
Press and hold the switch. One
touch completely opens or closes
the window.
61
62
66
Page 8 of 114
11FAMILIARISATION-

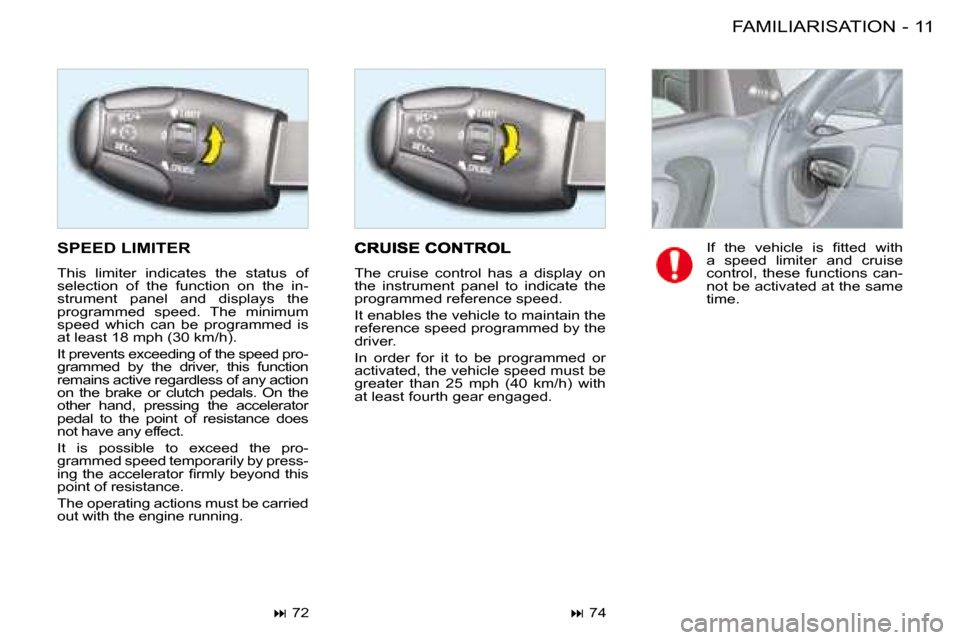

SPEED LIMITER
This limiter indicates the status of
selection of the function on the in-
strument panel and displays the
programmed speed. The minimum
speed which can be programmed is
at least 18 mph (30 km/h).
It prevents exceeding of the speed pro-
grammed by the driver, this function
remains active regardless of any action
on the brake or clutch pedals. On the
other hand, pressing the accelerator
pedal to the point of resistance does
not have any effect.
It is possible to exceed the pro-
grammed speed temporarily by press-
i n g t h e a c c e l e r a t o r fi r m l y b e y o n d t h i s
point of resistance.
The operating actions must be carried
out with the engine running. The cruise control has a display on
the instrument panel to indicate the
programmed reference speed.
It enables the vehicle to maintain the
reference speed programmed by the
driver.
In order for it to be programmed or
activated, the vehicle speed must be
greater than 25 mph (40 km/h) with
at least fourth gear engaged.
74
72 I f t h e v e h i c l e i s fi t t e d w i t h
a speed limiter and cruise
control, these functions can-
not be activated at the same
time.
Page 9 of 114
FAMILIARISATION12 -

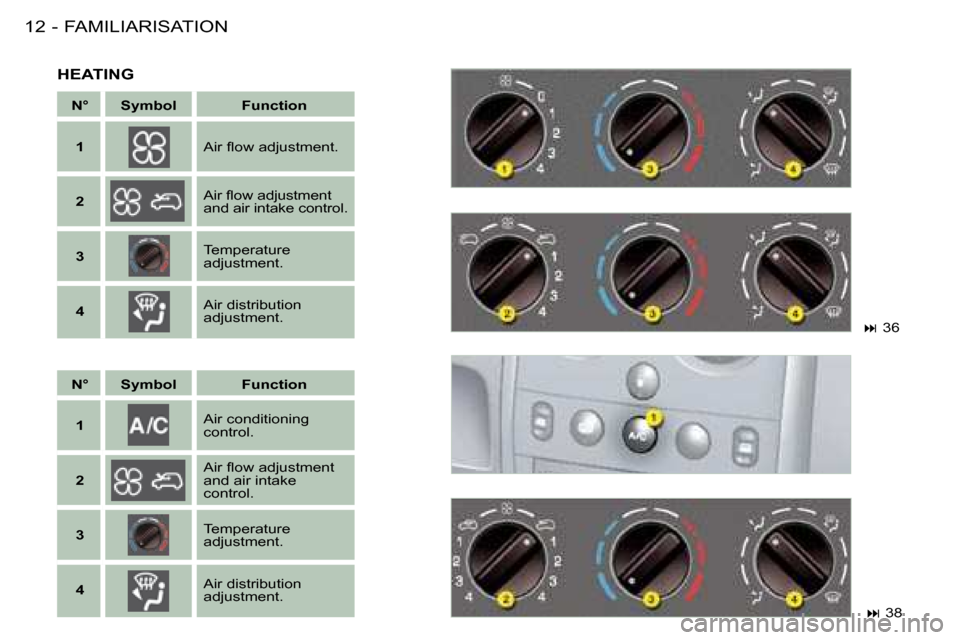

N° Symbol Function
1
A i r fl o w a d j u s t m e n t .
2
A i r fl o w a d j u s t m e n t
and air intake control.
3
Temperature
adjustment.
4
Air distribution
adjustment.
N° Symbol Function
1
Air conditioning
control.
2
A i r fl o w a d j u s t m e n t
and air intake
control.
3
Temperature
adjustment.
4
Air distribution
adjustment.
36
38
HEATING
Page 10 of 114
13FAMILIARISATION-

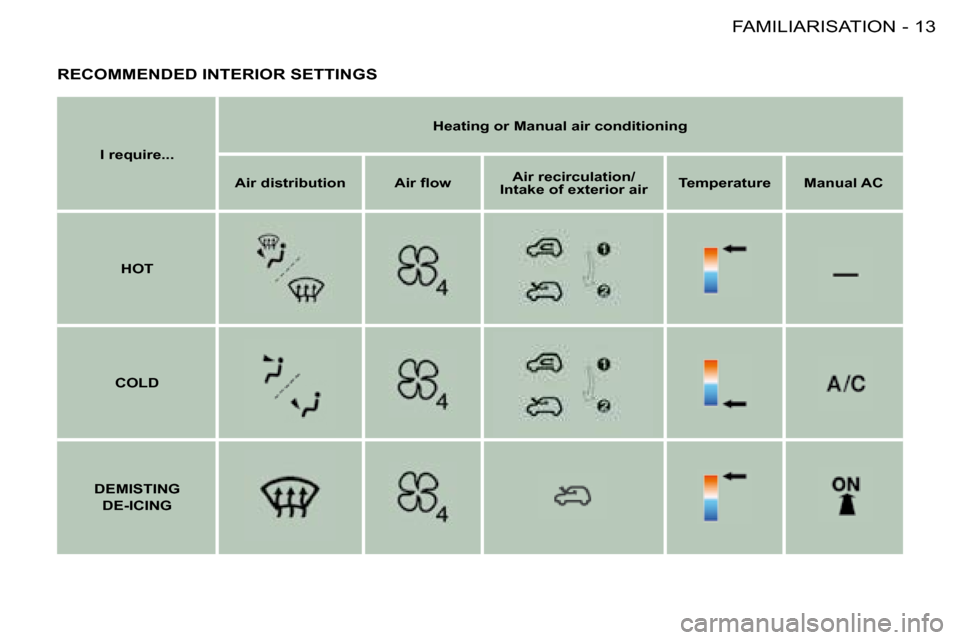

RECOMMENDED INTERIOR SETTINGS
I require...
Heating or Manual air conditioning
Air distribution A i r fl o w
Air recirculation/
Intake of exterior air
Temperature Manual AC
HOT
COLD
DEMISTING
DE-ICING
