53ACCESS and STARTING-
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system as
soon as the ignition has been switched
off and therefore prevents starting of
the vehicle by anyone who does not
h a v e t h e k e y .
The ignition key has an electronic
c h i p w h i c h h a s a s p e c i a l c o d e . W h e n
the ignition is switched on, the code
must be recognised for the vehicle to
s t a r t .
If the system does not function
correctly, the central locking button
indicator light, situated in the centre
o f t h e f a s c i a , fl a s h e s r a p i d l y w h e n t h e
ignition is switched on (2nd notch),
accompanied by an audible signal
a n d a m e s s a g e o n t h e d i s p l a y .
In this case your vehicle will not
s t a r t .
Contact a CITROËN dealer as soon
a s p o s s i b l e .
Key in ignition
A buzzer sounds on opening the
driver’s door, if the key has been left
i n t h e i g n i t i o n . Make a careful note of the
n u m b e r o f e a c h k e y . T h i s
number is coded on the label
a t t a c h e d t o t h e k e y .
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
c l e , w i t h o u t y o u b e i n g a w a r e o f i t .
The remote control does not operate
when the key is in the ignition, even
w h e n t h e i g n i t i o n i s s w i t c h e d o f f , e x -
c e p t f o r r e p r o g r a m m i n g .
Do not operate the deadlocking
function if there is anyone inside the
v e h i c l e .
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
e v e n f o r a s h o r t t i m e .
Do not repeatedly press the buttons
of your remote control out of range of
y o u r v e h i c l e .
You run the risk of stopping it from
working and the remote control would
h a v e t o b e r e p r o g r a m m e d .
W h e n p u r c h a s i n g a s e c o n d - h a n d v e -
hicle, have the key codes memorised
by a CITROËN dealer, to ensure that
the keys in your possession are the
only ones which can start the vehi-
c l e .
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m . If the keys are lost
Visit a CITROËN dealer with the ve-
h i c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u -
m e n t s .
The CITROËN network will be able to
retrieve the key code and the trans-
ponder code to order a replacement
k e y .
Page 58 of 115
ACCESS and STARTING56 -
REAR DOORS

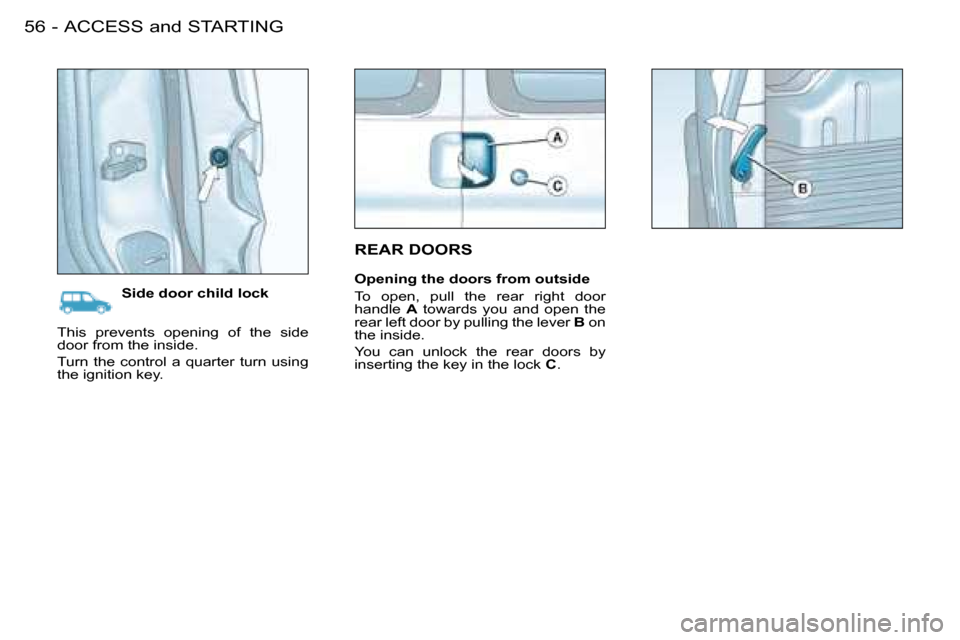

Side door child lock Opening the doors from outside
To open, pull the rear right door
handle
A towards you and open the
rear left door by pulling the lever B on
t h e i n s i d e .
You can unlock the rear doors by
inserting the key in the lock C .
This prevents opening of the side
d o o r f r o m t h e i n s i d e .
Turn the control a quarter turn using
t h e i g n i t i o n k e y .
Page 59 of 115
ACCESS and STARTING56 -
REAR DOORS
Side door child lock Opening the doors from outside
To open, pull the rear right door
handle
A towards you and open the
rear left door by pulling the lever B on
t h e i n s i d e .
You can unlock the rear doors by
inserting the key in the lock C .
This prevents opening of the side
d o o r f r o m t h e i n s i d e .
Turn the control a quarter turn using
t h e i g n i t i o n k e y .
Page 61 of 115
ACCESS and STARTING58 -

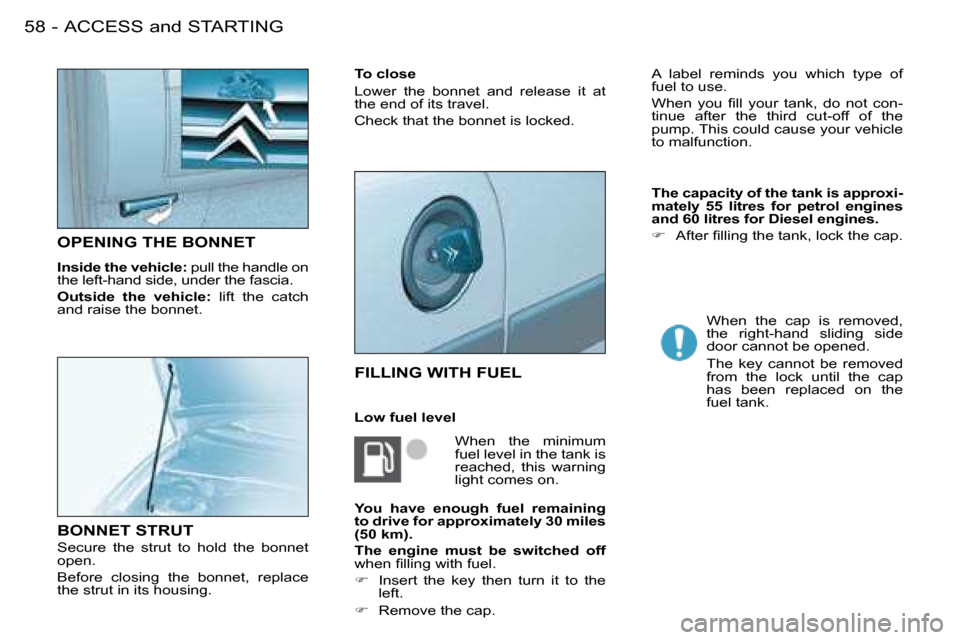

OPENING THE BONNET
Inside the vehicle: pull the handle on
t h e l e f t - h a n d s i d e , u n d e r t h e f a s c i a .
Outside the vehicle: lift the catch
a n d r a i s e t h e b o n n e t .
BONNET STRUT
Secure the strut to hold the bonnet
o p e n .
Before closing the bonnet, replace
t h e s t r u t i n i t s h o u s i n g .
FILLING WITH FUEL
W h e n t h e m i n i m u m
fuel level in the tank is
reached, this warning
l i g h t c o m e s o n . W h e n t h e c a p i s r e m o v e d ,
the right-hand sliding side
d o o r c a n n o t b e o p e n e d .
The key cannot be removed
from the lock until the cap
has been replaced on the
f u e l t a n k .
A label reminds you which type of
f u e l t o u s e .
W h e n y o u fi l l y o u r t a n k , d o n o t c o n -
tinue after the third cut-off of the
p u m p . T h i s c o u l d c a u s e y o u r v e h i c l e
t o m a l f u n c t i o n .
To close
Lower the bonnet and release it at
t h e e n d o f i t s t r a v e l .
C h e c k t h a t t h e b o n n e t i s l o c k e d .
Low fuel level
You have enough fuel remaining
to drive for approximately 30 miles
(50 km).
The engine must be switched off
w h e n fi l l i n g w i t h f u e l .
Insert the key then turn it to the
l e f t .
R e m o v e t h e c a p .
The capacity of the tank is approxi-
mately 55 litres for petrol engines
and 60 litres for Diesel engines.
A f t e r fi l l i n g t h e t a n k , l o c k t h e c a p .
Page 62 of 115
59VISIBILITY-
Dipped/Main beam change
Pull the stalk towards you.
Note: with the ignition off, when the
driver’s door is opened, a buzzer
sounds if you have left your lights on.
LIGHTS STALK
Lights off
Side lights
Dipped/main beam
headlamps Front fog lamps and rear fog
lamp
Rotate the ring forwards to switch on
and backwards to switch off. The sta-
t u s i s c o n fi r m e d b y t h e i n d i c a t o r l i g h t
on the instrument panel.
"Follow-me-home" lighting
In poor light, or at night, if you leave
your vehicle, the side lights and
dipped headlamps may remain on for
approximately one minute.
To activate this function:
- place the key in the
STOP position,
- place the lights stalk in position 0 ,
- fl a s h t h e h e a d l a m p s ,
- exit the vehicle and lock it.
In good or rainy weather,
both day and night, the front
fog lamps and the rear fog
lamp are dazzling and are
prohibited.
Do not forget to switch them
off when they are no longer needed.
Left: downwards.
Right: upwards.
D i r e c t i o n i n d i c a t o r s ( fl a s h e r s )
V e h i c l e s fi t t e d w i t h a r e a r
f o g l a m p o n l y ( r i n g B )
V e h i c l e s fi t t e d w i t h
front fog lamps and
a rear fog lamp
( r i n g B )
F r o n t f o g l a m p s ( fi r s t r o t a t i o n o f t h e
ring forwards).
Front and rear fog lamps (2nd rotation
of the ring forwards).
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring
backwards twice in succession.
Front and rear lights
Selection is by turning ring
A .
Rotate the ring forwards.
This only operates with the dipped/
main beam headlamps.
Page 64 of 115
61-
ELECTRIC WINDOWS
Always remove the ignition
key when leaving the vehi-
cle, even for a short time.
If an obstacle is encountered
while the electric windows
are in use, you must reverse the
movement of the window. To do this,
press the switch concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is preven-
ting correct closing of the windows.
The driver must ensure that passengers
use the electric windows correctly.
Be aware of children when operating
the windows.
1. Driver’s electric window switch
2. Passenger electric window switch
You have two options:
- Manual operation:
Press switch 1 . The window
stops as soon as the switch is
released.
- A u t o m a t i c o p e r a t i o n ( d r i v e r ) :
Press and hold switch 1 . One
touch completely opens or closes
the window.
Automatic closing only operates when
the engine is running.
REAR WINDOWS
To partially open the rear windows,
tilt the lever and push it fully to lock
the windows in the open position.
Page 67 of 115
65COMFORT AND SAFETY-
FRONT LAYOUT

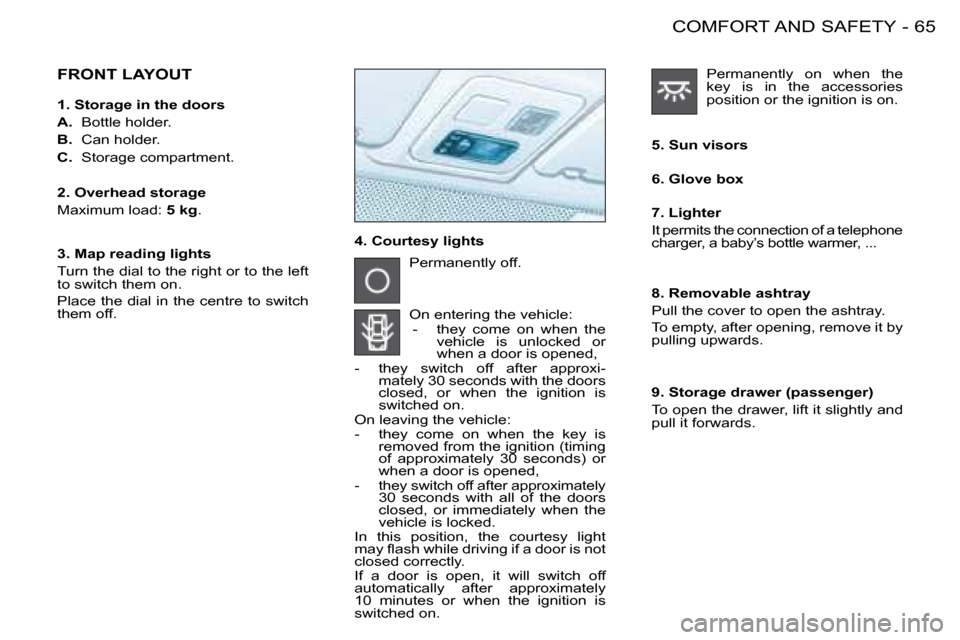

4. Courtesy lights 5. Sun visors
Permanently off.
On entering the vehicle: - they come on when the vehicle is unlocked or
when a door is opened,
- they switch off after approxi- mately 30 seconds with the doors
closed, or when the ignition is
switched on.
On leaving the vehicle:
- they come on when the key is removed from the ignition (timing
of approximately 30 seconds) or
when a door is opened,
- they switch off after approximately 30 seconds with all of the doors
closed, or immediately when the
vehicle is locked.
In this position, the courtesy light
m a y fl a s h w h i l e d r i v i n g i f a d o o r i s n o t
closed correctly.
If a door is open, it will switch off
automatically after approximately
10 minutes or when the ignition is
switched on. Permanently on when the
key is in the accessories
position or the ignition is on.
1. Storage in the doors
A. Bottle holder.
B. Can holder.
C. Storage compartment.
2. Overhead storage
Maximum load: 5 kg .
3. Map reading lights
Turn the dial to the right or to the left
to switch them on.
Place the dial in the centre to switch
them off. 6. Glove box
7. Lighter
It permits the connection of a telephone
charger, a baby’s bottle warmer, ...
8. Removable ashtray
Pull the cover to open the ashtray.
To empty, after opening, remove it by
pulling upwards.
9. Storage drawer (passenger)
To open the drawer, lift it slightly and
pull it forwards.
Page 78 of 115
77DRIVING-
If this warning light comes on,
accompanied by an audible
signal, contact a CITROËN
dealer to have the system
checked. The air bags may
no longer be triggered in the event of
a serious impact.
F r o n t a i r b a g m a l f u n c t i o n
D i s a r m i n g t h e p a s s e n g e r a i r b a g
T o e n s u r e t h e s a f e t y o f y o u r c h i l d ,
i t i s e s s e n t i a l t o d i s a r m t h e p a s -
s e n g e r a i r b a g w h e n y o u i n s t a l l a
r e a r - f a c i n g c h i l d s e a t o n t h e f r o n t
p a s s e n g e r s e a t . O t h e r w i s e , t h e
c h i l d w o u l d r i s k b e i n g k i l l e d o r s e -
r i o u s l y i n j u r e d i f t h e a i r b a g w e r e
t o i n fl a t e .

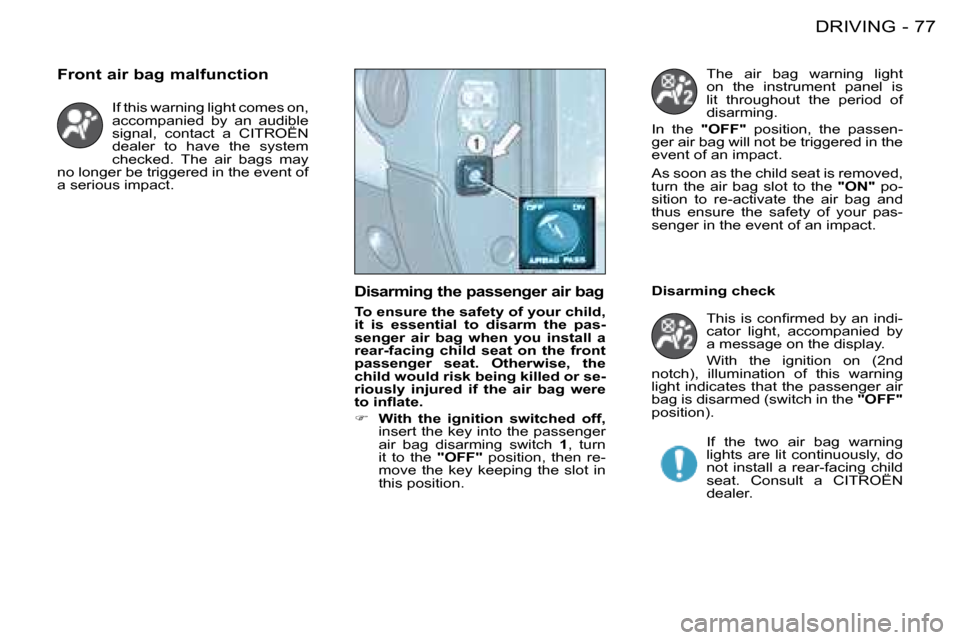

W i t h t h e i g n i t i o n s w i t c h e d o f f ,
insert the key into the passenger
air bag disarming switch 1 , turn
it to the "OFF" position, then re-
move the key keeping the slot in
this position. The air bag warning light
on the instrument panel is
lit throughout the period of
disarming.
In the "OFF" position, the passen-
ger air bag will not be triggered in the
event of an impact.
As soon as the child seat is removed,
turn the air bag slot to the "ON" po-
sition to re-activate the air bag and
thus ensure the safety of your pas-
senger in the event of an impact.
T h i s i s c o n fi r m e d b y a n i n d i -
cator light, accompanied by
a message on the display.
With the ignition on (2nd
notch), illumination of this warning
light indicates that the passenger air
bag is disarmed (switch in the "OFF"
position).
If the two air bag warning
lights are lit continuously, do
not install a rear-facing child
seat. Consult a CITROËN
dealer.
D i s a r m i n g c h e c k
Page 81 of 115
77DRIVING-
If this warning light comes on,
accompanied by an audible
signal, contact a CITROËN
dealer to have the system
checked. The air bags may
no longer be triggered in the event of
a serious impact.
F r o n t a i r b a g m a l f u n c t i o n
D i s a r m i n g t h e p a s s e n g e r a i r b a g
T o e n s u r e t h e s a f e t y o f y o u r c h i l d ,
i t i s e s s e n t i a l t o d i s a r m t h e p a s -
s e n g e r a i r b a g w h e n y o u i n s t a l l a
r e a r - f a c i n g c h i l d s e a t o n t h e f r o n t
p a s s e n g e r s e a t . O t h e r w i s e , t h e
c h i l d w o u l d r i s k b e i n g k i l l e d o r s e -
r i o u s l y i n j u r e d i f t h e a i r b a g w e r e
t o i n fl a t e .
W i t h t h e i g n i t i o n s w i t c h e d o f f ,
insert the key into the passenger
air bag disarming switch 1 , turn
it to the "OFF" position, then re-
move the key keeping the slot in
this position. The air bag warning light
on the instrument panel is
lit throughout the period of
disarming.
In the "OFF" position, the passen-
ger air bag will not be triggered in the
event of an impact.
As soon as the child seat is removed,
turn the air bag slot to the "ON" po-
sition to re-activate the air bag and
thus ensure the safety of your pas-
senger in the event of an impact.
T h i s i s c o n fi r m e d b y a n i n d i -
cator light, accompanied by
a message on the display.
With the ignition on (2nd
notch), illumination of this warning
light indicates that the passenger air
bag is disarmed (switch in the "OFF"
position).
If the two air bag warning
lights are lit continuously, do
not install a rear-facing child
seat. Consult a CITROËN
dealer.
D i s a r m i n g c h e c k
Page 86 of 115
PRACTICAL INFORMATION84 -
CHECKING THE LEVELS
Dipstick
Oil change
According to the information given in
the servicing booklet.
Note: a v o i d u s e d o i l c o m i n g i n t o
prolonged contact with the skin.
E m p t y t h e u s e d o i l i n t o t h e c o n t a i n -
e r s i n t e n d e d f o r t h i s p u r p o s e i n t h e
CITROËN network. Viscosity selection
I n a l l c a s e s , t h e o i l s e l e c t e d m u s t m e e t
t h e m a n u f a c t u r e r ’ s r e q u i r e m e n t s .
Note: the coolant does not need to
be changed.
For vehicles equipped with a parti-
c l e fi l t e r , t h e e n g i n e f a n m a y o p e r a t e
after the ignition has been switched
o f f , e v e n w h e n t h e e n g i n e i s c o l d .
There are two marks
on the dipstick:
A = m a x i m u m
N e v e r fi l l p a s t t h i s
mark.
B = m i n i m u m
To maintain the reliability
of engines and emission
c o n t r o l s y s t e m s , t h e u s e
of additives in engine oil
is prohibited. Brake fluid level:
T h e b r a k e fl u i d m u s t b e c h a n g e d a c -
c o r d i n g t o t h e m a n u f a c t u r e r ’ s s e r v i c i n g
s c h e d u l e .
U s e fl u i d s r e c o m m e n d e d b y t h e
m a n u f a c t u r e r , w h i c h f u l fi l D O T 4
standards.
Note: b r a k e fl u i d i s h a r m f u l t o h e a l t h
and very corrosive. Avoid all contact
with the skin.
C o o l i n g s y s t e m
U s e t h e fl u i d r e c o m m e n d e d b y t h e
m a n u f a c t u r e r .
When the engine is warm, the tem-
p e r a t u r e o f t h e c o o l a n t i s c o n t r o l l e d
by the engine fan. As this fan can op-
erate with the ignition key removed
a n d b e c a u s e t h e c o o l i n g s y s t e m i s
p r e s s u r i s e d , w a i t f o r a t l e a s t o n e h o u r
after the engine has stopped before
c a r r y i n g o u t a n y w o r k .
S l a c k e n t h e c a p b y t w o t u r n s t o r e -
l e a s e t h e p r e s s u r e t o p r e v e n t a n y
r i s k o f s c a l d i n g . W h e n t h e p r e s s u r e
has dropped, remove the cap and
t o p u p t h e l e v e l . Used oil
D o n o t d i s p o s e o f u s e d o i l , b r a k e fl u i d o r
c o o l a n t i n t o d r a i n s o r o n t o t h e g r o u n d .
Power steering reservoir
Open the reservoir, with the en-
g i n e a t a m b i e n t t e m p e r a t u r e . T h e
l e v e l s h o u l d a l w a y s b e a b o v e t h e
MIN. mark and close to the MAX.
mark.
W i n d s c r e e n a n d h e a d l a m p
wash level
F o r b e s t q u a l i t y c l e a n i n g a n d f o r
y o u r s a f e t y , w e w o u l d a d v i s e t h a t
y o u u s e p r o d u c t s r e c o m m e n d e d b y
CITROËN .
F o r o p t i m u m c l e a n i n g a n d t o p r e v e n t
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
u p o r r e p l a c e d w i t h w a t e r .
Oil level
C h e c k t h e l e v e l r e g u l a r l y a n d t o p
u p b e t w e e n c h a n g e s . T h e m a x i -
m u m c o n s u m p t i o n i s 0 . 5 l p e r
600 miles (1 000 km).
Check the level with the vehicle level,
e n g i n e c o l d , u s i n g t h e o i l l e v e l g a u g e
o n t h e i n s t r u m e n t p a n e l o r t h e d i p s t i c k .
