Citroen BERLINGO FIRST RHD 2009 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2009, Model line: BERLINGO FIRST RHD, Model: Citroen BERLINGO FIRST RHD 2009 1.GPages: 115, PDF Size: 1.55 MB
Page 1 of 115
FAMILIARISATION4 -
Page 2 of 115
5FAMILIARISATION-
INSTRUMENTS AND CONTROLS
12. Windscreen wash-wipe stalk.
13. Audio equipment steering
wheel control.
14. Steering lock and ignition.
15. Fuse box.
16. Passenger air bag disarming
control.
17. Alarm.
18. Steering wheel adjustment
control.
19. Passenger's electric mirror
control.
20. Headlamp height adjustment.
21. Heated seats control.
22. Handbrake.
23. Lighter.
24. Removable ashtray.
25. Gear lever.
26. Storage.

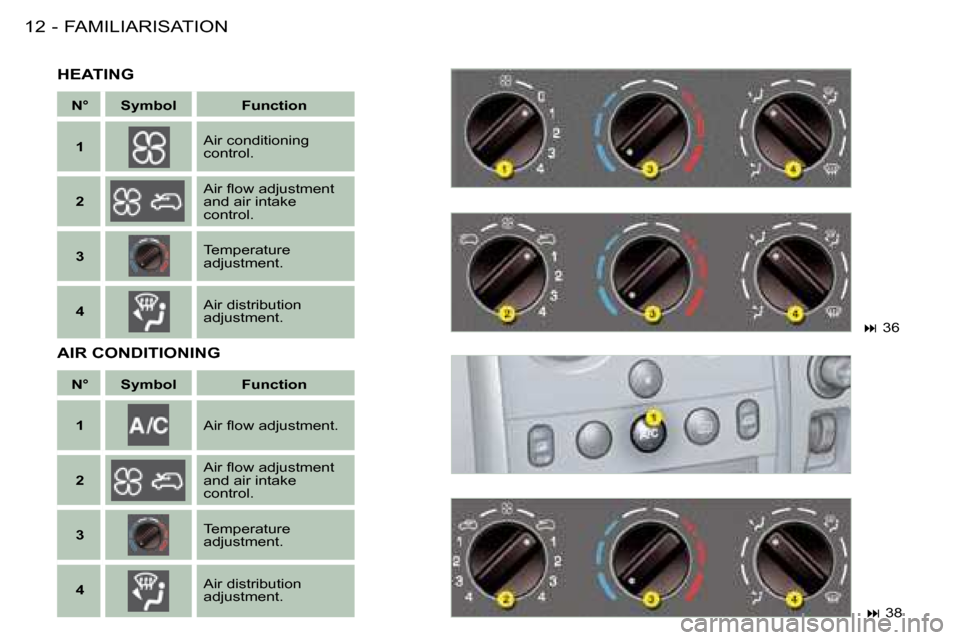

27. Heating/air conditioning controls.
28. Audio RD3.
29. Lower glove box.
30. Upper glove box or passenger
air bag.
31. Bonnet release.
32. Side adjustable heating/
ventilation vents.
33. Side window de-icing/
demisting vents.
1. Speaker (tweeter).
2. Windscreen demisting vents.
3. Controls:
- Electric windows.
- Demisting of rear door windows.
- Air conditioning.
4. Central locking button.
5. Multifunction display or clock.
6. Hazard lights button.
7. Central adjustable heating/
ventilation vents.
8. Lights and direction indicators
stalk.
9. Speed limiter/cruise control.
10. Instrument panel.
11. Driver's air bag
Horn.
Page 3 of 115
FAMILIARISATION6 -
STARTING The remote control
THE KEYS
The keys allow you to switch on the
ignition and operate the passenger
air bag disarming switch, as well as
to independently operate the locks
o n t h e d o o r s a n d t h e f u e l fi l l e r c a p . Unlocking
Press button
B to unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators.
Locating the vehicle
To locate your vehicle, previously
locked, in a car park:
press button A , the courtesy lights
come on and the direction indica-
t o r s fl a s h f o r a f e w s e c o n d s .
52
Locking
Press button
A to lock the vehicle.
T h i s i s c o n fi r m e d b y fi x e d l i g h t i n g o f
the direction indicators for approxi-
mately two seconds. STOP position (S):
The ignition is off.
To release the steering, turn the
steering wheel slightly while turning
the key, without forcing it.
Accessories position (A):
The ignition is off but the accessories
can be used.
On position (M):
The ignition is on.
Starting position (D):
Operates the starter.
Release the key when the engine
has started. Never operate the starter
while the engine is running.
Central locking
From the front doors, the keys allow
you to lock and unlock all of the doors.
If one of the doors is open, it is impos-
sible to operate the central locking.
The remote control performs the
same functions at a distance.
Page 4 of 115
7FAMILIARISATION-
WINDSCREEN WIPERS STEERING WHEEL STALKS
LIGHTING Front fog lamps (1 st turn of the ring
forwards).
Front fog lamps and rear fog lamp
(2 nd turn of the ring forwards).
To switch off: turn the ring rear-
wards.
Lights off
Side lights
Dipped headlamps/
Main beam headlamps V e h i c l e s fi t t e d w i t h a r e a r
fog lamp (ring B)
Turn the ring forwards.
V e h i c l e s fi t t e d w i t h
front fog lamps and
a rear fog lamp
(ring B)
Off Wash-wipe
Intermittent
wipe
Rear
59
60
Front and rear lights (ring A)
Front
2 Rapid wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe.
Windscreen wash-wipe: pull the stalk
towards you.
Page 5 of 115
FAMILIARISATION8 -
FRONT SEATS
Never travel with the head
restraints removed.
2. Armrest.
3. Seat back angle adjustment.
4. Forwards-backwards adjustment.
5. Storage drawer (passenger).
40
1. Head restraint height adjust-
ment.
