tow Citroen BERLINGO FIRST RHD 2009 1.G Owner's Manual

7FAMILIARISATION-
WINDSCREEN WIPERS STEERING WHEEL STALKS
LIGHTING Front fog lamps (1 st turn of the ring
forwards).
Front fog lamps and rear fog lamp
(2 nd turn of the ring forwards).
To switch off: turn the ring rear-
wards.

Lights off
Side lights
Dipped headlamps/
Main beam headlamps Vehicles fi tted with a rear
fog lamp (ring B)
Turn the ring forwards.
Vehicles fi tted with
front fog lamps and
a rear fog lamp
(ring B)
Off Wash-wipe
Intermittent
wipe
Rear

 59
 60
Front and rear lights (ring A)
Front

2 Rapid wipe (heavy rain).

1 Normal wipe (moderate rain).

I Intermittent wipe.

0 Off.

 Single wipe.
Windscreen wash-wipe: pull the stalk
towards you.

FAMILIARISATION10 -
STEERING WHEEL HEIGHT ADJUSTMENT

 When stationary, push the control

A forwards to unlock the steering
wheel.

 Adjust the height of the steering
wheel.

 Lock it by pulling control A
towards you fully.
ELECTRIC WINDOWS

1. Driver's electric window.

2. Passenger's electric window.
EXTERIOR MIRRORS

 Move the manual control 3 in all
four directions to adjust.
Electric control for the
passenger's side mirror

 From the driver's seat, adjust in
all four directions by operating
the control 4 .
Manual mode:

 Press the switch. The window
stops as soon as the switch is
released.
Automatic mode (driver):

 Press and hold the switch. One
touch completely opens or closes
the window.

 61
 62
 66

15FAMILIARISATION-
REAR LAYOUT
Stowing rings
For greater safety, always
ensure that the loads
transported are secured
fi rmly.
 67
1. Load space cover.

2. High load retaining net.

3. Stowing rings.

4. Side door storage compartment.

5. Trays between the front and rear
seats.

6. Seat back storage pockets.

 68

ACCESS and STARTING56 -
REAR DOORS
Side door child lock Opening the doors from outside
To open, pull the rear right door
handle
A towards you and open the
rear left door by pulling the lever B on
the inside.
You can unlock the rear doors by
inserting the key in the lock C .
This prevents opening of the side
door from the inside.
Turn the control a quarter turn using
the ignition key.

ACCESS and STARTING56 -
REAR DOORS
Side door child lock Opening the doors from outside
To open, pull the rear right door
handle
A towards you and open the
rear left door by pulling the lever B on
the inside.
You can unlock the rear doors by
inserting the key in the lock C .
This prevents opening of the side
door from the inside.
Turn the control a quarter turn using
the ignition key.

57ACCESS and STARTING-

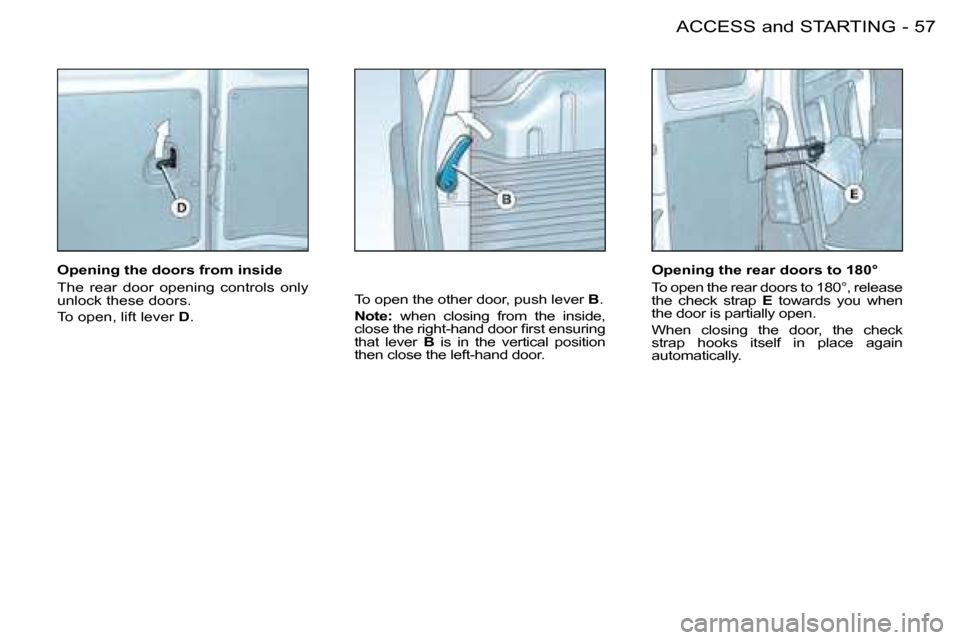

Opening the doors from inside
The rear door opening controls only
unlock these doors.
To open, lift lever D . To open the other door, push lever
B .

Note: when closing from the inside,
close the right-hand door fi rst ensuring
that lever B is in the vertical position
then close the left-hand door. Opening the rear doors to 180°
To open the rear doors to 180°, release
the check strap
E towards you when
the door is partially open.
When closing the door, the check
strap hooks itself in place again
automatically.

59VISIBILITY-
Dipped/Main beam change
Pull the stalk towards you.

Note: with the ignition off, when the
driver’s door is opened, a buzzer
sounds if you have left your lights on.
LIGHTS STALK
Lights off
Side lights
Dipped/main beam
headlamps Front fog lamps and rear fog
lamp
Rotate the ring forwards to switch on
and backwards to switch off. The sta-
tus is confi rmed by the indicator light
on the instrument panel.
"Follow-me-home" lighting
In poor light, or at night, if you leave
your vehicle, the side lights and
dipped headlamps may remain on for
approximately one minute.
To activate this function:
- place the key in the
STOP position,
- place the lights stalk in position 0 ,
- fl ash the headlamps,
- exit the vehicle and lock it.
In good or rainy weather,
both day and night, the front
fog lamps and the rear fog
lamp are dazzling and are
prohibited.
Do not forget to switch them
off when they are no longer needed.
Left: downwards.

Right: upwards.
Direction indicators (fl ashers)
Vehicles fi tted with a rear
fog lamp only (ring B)
Vehicles fi tted with
front fog lamps and
a rear fog lamp
(ring B)
Front fog lamps (fi rst rotation of the
ring forwards).
Front and rear fog lamps (2nd rotation
of the ring forwards).

Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring
backwards twice in succession.
Front and rear lights
Selection is by turning ring
A .
Rotate the ring forwards.
This only operates with the dipped/
main beam headlamps.

VISIBILITY60 - Windscreen wipers

2 Fast wipe (heavy rain).

1 Normal wipe (moderate rain).

I Intermittent wipe.

0 Off.

 Single wipe (press downwards).
Windscreen and headlamp wash
(according to country)
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp wash is also activated,

if the headlamps are on .
Rear windscreen wiper
Turn ring A to the fi rst notch.
The wiping speed is inversely
proportional to the speed of
the vehicle.
In winter, in the event of a
considerable amount of snow
or ice, switch on the rear
window demister. Once de-
icing is complete, remove the
snow or ice which has accumulated
on the rear wiper blade. You can now
operate the rear windscreen wiper. Rear windscreen wash
Turn ring
A past the fi rst
notch: the windscreen wash
then the windscreen wiper
operate for a fi xed time.
Operation
In position 1 or 2 , when the vehicle
stops, the windscreen wiper chan-
ges to a lower wiping speed, then
resumes its initial speed when the
vehicle starts again.
In the I ntermittent position, the wiping
speed is proportional to the speed of
the vehicle. Automatic rear windscreen
wiping

 place the front wipers stalk in a
position other than 0 ,

 engage reverse gear,

 the rear wiper operates with inter-
mittent wiping.

Note
: if a bicycle carrier is used, con-
tact a
CITROËN if a bicycle carrier bicycle dealer to have this
function disarmed.

69COMFORT AND SAFETY-
1.
Trays between the front and rear seats

2. Load-space cover

To install it:
- position the front ends of the load space cover on its support and press gently to put it in place,
- unfold the load space cover fully,
- position the rear ends of the load space cover on its support and press gently to put it in place.
To remove it:
- unclip the rear ends,
- fold the load space cover fully,
- unclip the front ends and remove the load space cover.
To store it, fold it like an accordion. Do not roll it . 3. Stowing rings

4. High load retaining net
The high load retaining net can be fi tted behind the front or rear seats.
Open the covers A of the correspond-ing upper fastenings.
Fit the ends of the metal bar in these fastenings.
Secure the two net strap hooks be-hind the front seats, with the rear seat folded, or in the stowing rings Bon the fl oor.
The rings are located directly below the corresponding upper fastenings.
Pull the two straps C taut.
5.
Side door storage compartments
6. Seat back storage pockets

DRIVING76 -
FRONT AIR BAGS
These are folded in the centre of the
steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,
except in cases where the passen-
ger air bag is disarmed, in the event
of a serious front impact applied in
the impact zone A in the longitudinal
centreline of the vehicle, on a hori-
zontal plane and from the front of the
vehicle towards the rear. The air bag
infl ates between the front occupant of
the vehicle and the fascia to cushion
his forward movement. The air bags
therefore limit the risk of injury to the
head and chest.
The air bags have been designed to
maximise the safety of the occupants
in the event of serious collisions. They
work in conjunction with the force-
limiting seat belts. The electronic de-
tectors register and analyse any abrupt
deceleration of the vehicle in the im-
pact detection zones (see diagram): if
the triggering threshold is reached, the
air bags infl ate instantly and protect
the occupants of the vehicle.
Impact detection zones

A. Front impact zone.

B. Side impact zone. Immediately after the impact, the air
bags defl ate rapidly so that they do
not hinder the visibility of the occu-
pants nor their exit if necessary from
the vehicle.
The air bags are not deployed in the
case of minor impacts, rear impacts
or in certain roll-over conditions. The
seat belt is suffi cient to ensure maxi-
mum protection in these situations.
The seriousness of a collision de-
pends on the nature of the obstacle
and the speed of the vehicle at the
moment of the collision.

Air bags only operate when the igni-
tion is switched on.

Note: the gas escaping from
the air bags can be a minor
irritant.
