Citroen BERLINGO FIRST RHD 2011 1.G Owner's Manual

109
AUDIO SYSTEM
Your Audio system is coded in such a way that it willonly operate in your vehicle. If it is to be installed inanother vehicle, contact your CITROËN dealer for yp y
confi guration of the system.

For safet
y reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the audio equipment mayswitch off after a few minutes.

AUDIO SYSTEM/BLUETOOTH

01 First steps

02 Steering mounted controls

03 Main menu

04 Audio

05 Configuration

06 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p. 11 0
111
11 2
11 3
11 6
11 7
11 9
CONTENTS

110
01
1
22
10101111
133144155
33445566778899
122

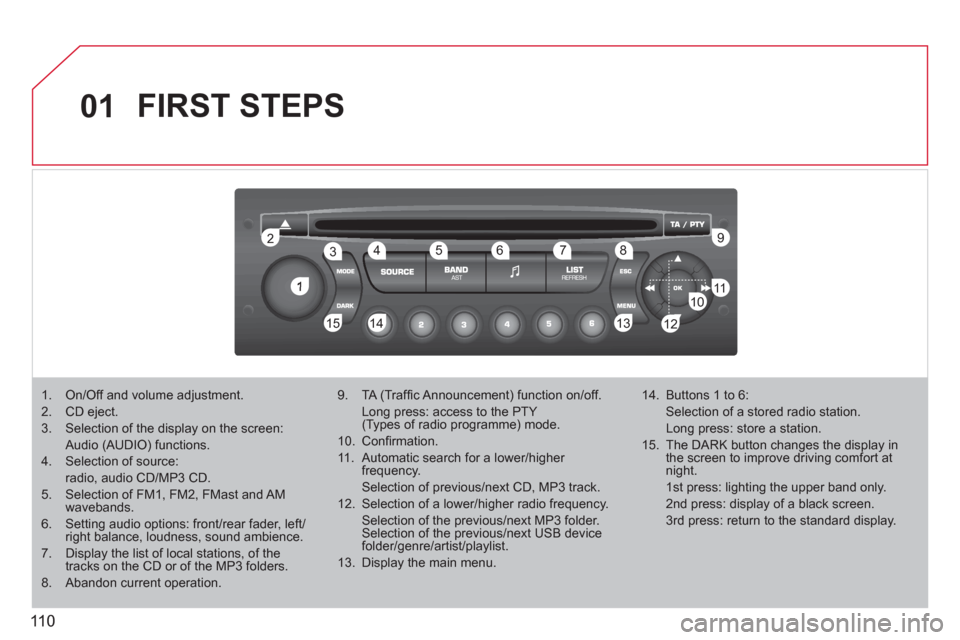

FIRST STEPS
1. On/Off and volume adjustment.
2. CD eject.
3. Selection of the display on the screen:
Audio (AUDIO) functions.
4. Selection of source:
radio, audio CD/MP3 CD.
5. Selection of FM1, FM2, FMast and AMwavebands.
6. Setting audio options: front/rear fader, left/right balance, loudness, sound ambience.
7. Display the list of local stations, of thetracks on the CD or of the MP3 folders.
8. Abandon current operation.


9. TA (Traffi c Announcement) function on/off.
Long press: access to the PTY (Types of radio programme) mode.


10. Confi rmation.


11. Automatic search for a lower/higher frequency.
Selection of previous/next CD, MP3 track.


12. Selection of a lower/higher radio frequency.
Selection of the previous/next MP3 folder.Selection of the previous/next USB devicefolder/genre/artist/playlist.

13. Display the main menu.


14. Buttons 1 to 6:
Selection of a stored radio station.
Long press: store a station.


15. The DARK button changes the display in the screen to improve driving comfort at night.
1st press: lighting the upper band only.
2nd press: display of a black screen.
3rd press: return to the standard display.

111

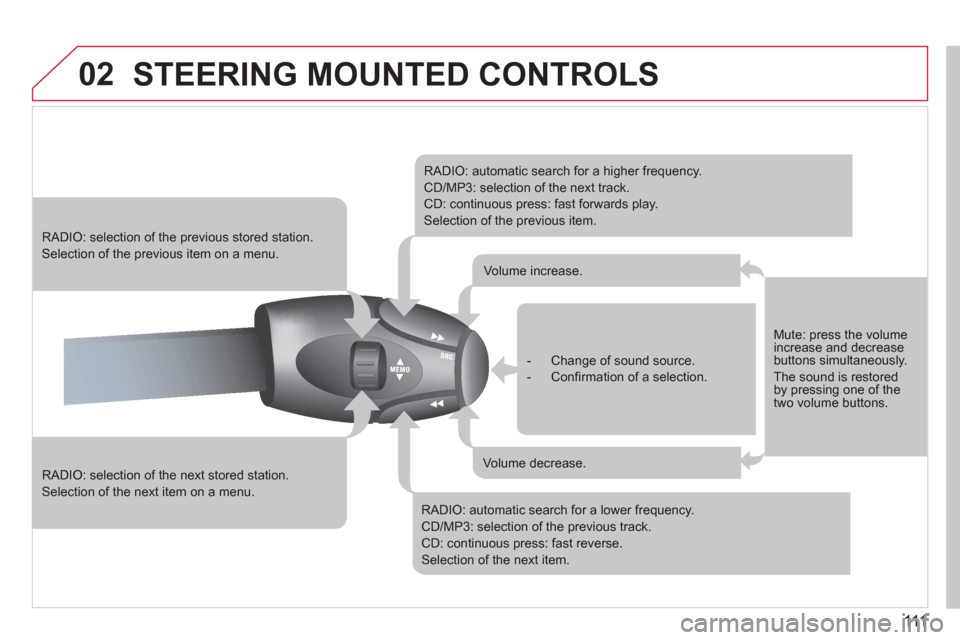

02STEERING MOUNTED CONTROLS

RADIO: selection of the next stored station.
Selection of the next item on a menu.
RADIO: selection of the previous stored station.

Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency.
CD/MP3: selection of the next track.
CD: continuous press: fast forwards play.
Selection of the previous item.
RADIO: automatic search for a lower frequency.
CD/MP3: selection of the previous track.
CD: continuous press: fast reverse.
Selection of the next item.

- Change of sound source.

- Confi rmation of a selection.


Volume increase.
Volume decrease.
Mute: press the volumeincrease and decreasebuttons simultaneously.
The sound is restored by pressing one of thetwo volume buttons.

11 2

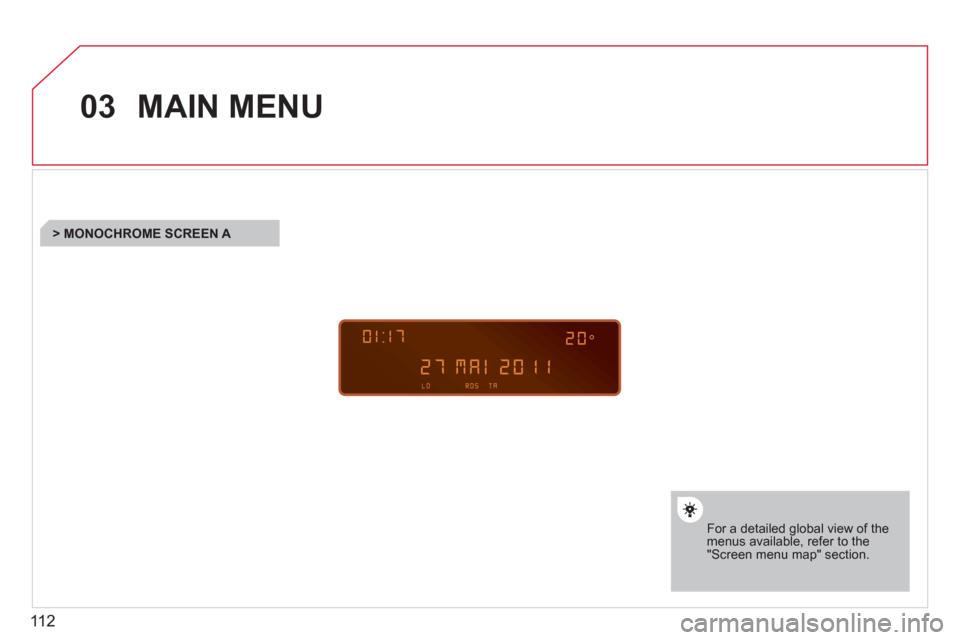

03MAIN MENU
For a detailed global view of the menus available, refer to the"Screen menu map" section.








> MONOCHROME SCREEN A

113
04
1
2
3
4
1
2
3
AUDIO
Press the SOURCE button several
times in succession and select theradio.

Press the BAND A
ST button to select
a waveband: FM1, FM2, FMast, AM.

Briefl
y press one of the buttons tocarry out an automatic search of theradio stations.

Press one o
f the buttons to carry out a manual search of the radio stations.

Press the LI
ST REFRESH button to
display the list of stations received
locally (30 stations maximum).
To update this list, press for more
t
han two seconds. The external environment
(hills, buildings, tunnels, basement car parks, ...)may block reception, including in RDS mode. This is a normal effect of the
way in which radio waves are transmitted and does not indicate any failure of the audio system.

RDS





RADIO

SELECTING A STATION
Pr
ess the MENU button.
Select RADI
O-CD then press OK.

Select RDS then press OK. RDS
appears on the screen.
The RDS, if displayed, enables you to continue listening to the same station by automatic retuning to alternative fequencies. However, incertain conditions, coverage of an RDS station may not be assured
throughout the country as radio stations do not cover 100 % of the
territory. This explains the loss of reception of the station during a journey.

11 4
04
1
2
3
AUDIO
Insert circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no refl ection on the quality of the original player.
Without pressin
g the EJECT button, insert a CD in the player, playbegins automatically.

CD
PLAYING A CD


To play a disc which has already been
inserted, press the SOURCE buttonseveral times in succession andselect CD.

Pr
ess one of the buttons to select a
track on the CD.
Press the LI
ST REFRESH button to display the list of tracks on
the CD.

Pr
ess and hold one of the buttons for
fast forward or backward.








RECEIVING TA MESSAGES
Press the TA button to activate or
deactivate traffi c messages.
The TA
(Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffi c
report is transmitted, the current audio source (Radio, CD, ...) is
interrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.

115
04
1
2
3
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,
is an audio compression standard which permits the recording of several tens of music fi les on a single disc.
In order to be able to play a recorded
CDR or CDRW, when recording, the ISO 9660 level 1.2 or Joliet fi le format isrecommended.
If the disc is recorded in another format, it ma
y not be playedcorrectly.
It is recommended that the same recordin
g format is alwaysused for an individual disc, with as low a speed as possible (4x maximum) for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet format is recommended.
The audio s
ystem will only play fi les with the extension ".mp3" with
a sampling rate of 22.05 KHz or 44.1 KHz. No other type of fi le(.wma, .mp4, .m3u...) can be played.
It is advisable to restrict fi le names to 20 characters without usin
gspecial characters (e.g. " ? ; ù) to avoid any playing or displaying problems.














MP3 CD
INFORMATION AND ADVICE
AUDIO

Empty CDs are not recognised and may damage the system.
Insert an MP3 compilation in the pla
yer.
The audio equipment searches
for all of the music tracks, which
may take anything between a few seconds and several tens of seconds, before play begins.









MP3 CD
PLAYING AN MP3 COMPILATION

On a single disc, the CD player can read up to 255 MP3 fi lesspread over 8 folder levels. However, it is advisable to keep to
a limit of two levels to reduce the access time before the CD isplayed.
While the CD is bein
g played, the folder structure is not followed.
All of the fi les are displayed on a single level.

To play a disc which has already
been inserted, press the SOURCE button several times in successionand select CD.
Pr
ess one of the buttons to select atrack on the CD.

Press the LI
ST REFRESH button to display the list of directories of
the MP3 compilation.

Pr
ess and hold one of the buttons for fast forward or backward play.

116
05
1
2
3
4
5
6
7
CONFIGURATION
Press the MENU button.
Usin
g the arrows, select DISPLAY CONGIGURATION.
Pr
ess to confi rm the selection.

Using the arrows, select YEAR. Pr
ess to confi rm the selection.
Pr
ess to confi rm the selection.
Ad
just the setting.


Start again from step 1 then set MONTH, DAY, HOUR, MINUTES.










SETTING THE DATE AND TIME

11 7
06 SCREEN MENU MAP


RADIO-CD
MAIN FUNCTION


* The parameters vary according to vehicle.
CHOICE A

CHOICE B...
MONOCHROME A
Choice A1
Choice A2
REG MODE
CD REPEAT
RANDOM PLAY



VEHICLE CONFIG *


REV WIPE ACT


OPTIONS


GUIDE LAMPS
DIAGNO
STICS
RDS SEARCHCONSUL
T
ABANDON

UNITS
TEMPERATURE: °CELSIUS/°FAHRENHEIT

FUEL CONSUMPTION
:KM/L - L/100 - MPG

1
2
3
31
2
2
2
2
1
2
3
2
3
1
2
2
1
2
2

118
06SCREEN MENU MAP

DISPLAY ADJUST


MONTH

DATE

HOUR

MINUTES
YEAR


12 H/24 H MODE


LANGUAGE


ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL
FRANCAIS

DEUTSCH

ENGLISH

ESPANOL
1
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
