79 PRACTICAL INFORMATION
-

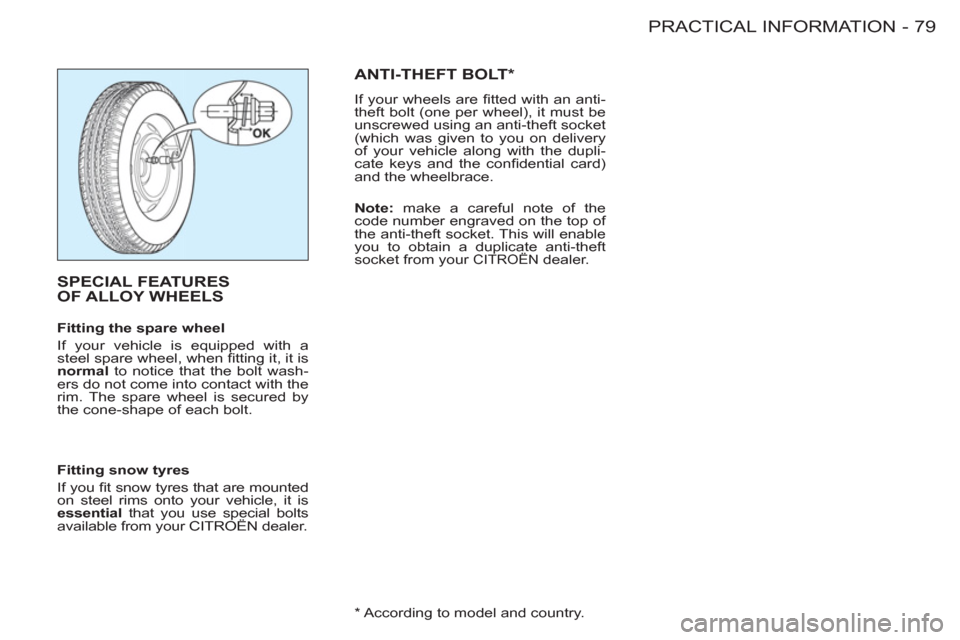

SPECIAL FEATURES
OF ALLOY WHEELS
Fitting the spare wheel
If your vehicle is equipped with a
steel spare wheel, when fi tting it, it is
normal
to notice that the bolt wash-
ers do not come into contact with the
rim. The spare wheel is secured by
the cone-shape of each bolt.
Fitting snow tyres
If you fi t snow tyres that are mounted
on steel rims onto your vehicle, it is
essential
that you use special bolts
available from your CITROËN dealer.
* According to model and country.
ANTI-THEFT BOLT *
If your wheels are fi tted with an anti-
theft bolt (one per wheel), it must be
unscrewed using an anti-theft socket
(which was given to you on delivery
of your vehicle along with the dupli-
cate keys and the confi dential card)
and the wheelbrace.
Note:
make a careful note of the
code number engraved on the top of
the anti-theft socket. This will enable
you to obtain a duplicate anti-theft
socket from your
CITROËN dealer.
Page 82 of 132
PRACTICAL INFORMATION
80 -
CHANGING A BULB
Front lamps
To replace a dipped/main beam
headlamp or sidelamp bulb:
Remove the grille
- Remove the screw ( 1
).
- Unclip the lug ( A
) of carrier ( 2
) on
each side.
- Remove the grille ( 3
).
Partially remove the wheelarch liner
- Remove the screws ( 1
),
- Remove the screw ( 2
),
- Remove the plastic pins ( 3
).
Page 83 of 132
81 PRACTICAL INFORMATION
-
Partially remove the bumper
- Remove the screws ( 1
),
- Remove the screws ( 2
),
- Pull lightly on the side of the bum-
per ( 3
),
- Push in the direction of the ar-
row ( B
), on the latch ( A
), via the
opening ( C
),
- Maintain a light sideways pull on
the bumper,
- Push the bumper sharply for-
wards to release the clips at ( D
).
Remove the headlamp
- Remove the screws ( 1
),
- Unclip the index pin on the head-
lamp ( A
),
- Disconnect the connector ( B
) on
the back of the headlamp,
- Remove the headlamp ( 2
).
Page 84 of 132
PRACTICAL INFORMATION
82 -
Dipped/Main beam headlamps
(H4-60/55W)
After following the procedure for re-
moval of the headlamp:
- Turn and remove the protector ( 6
),
- Disconnect the connector ( C
),
- Unclip the spring ( D
),
- Remove and replace the bulb ( 3
).
Page 85 of 132
83 PRACTICAL INFORMATION
-
Side lights (W 5 W)
After following the procedure for re-
moval of the headlamp:
- Turn and remove the protector ( 6
).
- Unclip the the bulb holder ( E
).
- Disconnect the connector ( F
).
- Remove and replace the bulb ( 1
).
Reassembly
Carry out the operations in reverse
order to reassemble. Check that the
lamps are working correctly.
Direction indicator side
repeaters (WY 5 W amber)
- Push the lens to the front or rear
and pull it out.
- Turn the bulb holder a quarter turn.
- Replace the bulb.
Amber coloured bulbs (di-
rection indicators and side
repeaters) must be replaced
by bulbs of the same rating
and colour.
Page 86 of 132
PRACTICAL INFORMATION
84 -
- Open the rear door.
- Unscrew the nut A
.
- Push the light unit gently towards
the interior of the vehicle to unclip
the two side retaining clips.
- Remove the light unit and discon-
nect it.
- Unclip the bulb holder by pressing
the tabs B
.
- Change the faulty bulb.
Number plate lights (W 5 W)
)
Insert a thin screwdriver into one
of the external holes of the lens.
)
Push it outwards to unclip it.
)
Remove the lens.
)
Change the faulty bulb.
Rear lights
1.
Fog lamp (P21 W).
2.
Direction indicators
(P21 W).
3.
Reversing lights (P21 W).
4.
Brake lights/Side lights
(P21/5 W).
High pressure washing:
when using
this type of washing on stubborn dirt,
do not persist on the headlamps, the
lights and their surround to avoid dam-
aging their coating and their seal.
Page 87 of 132
85 PRACTICAL INFORMATION
-

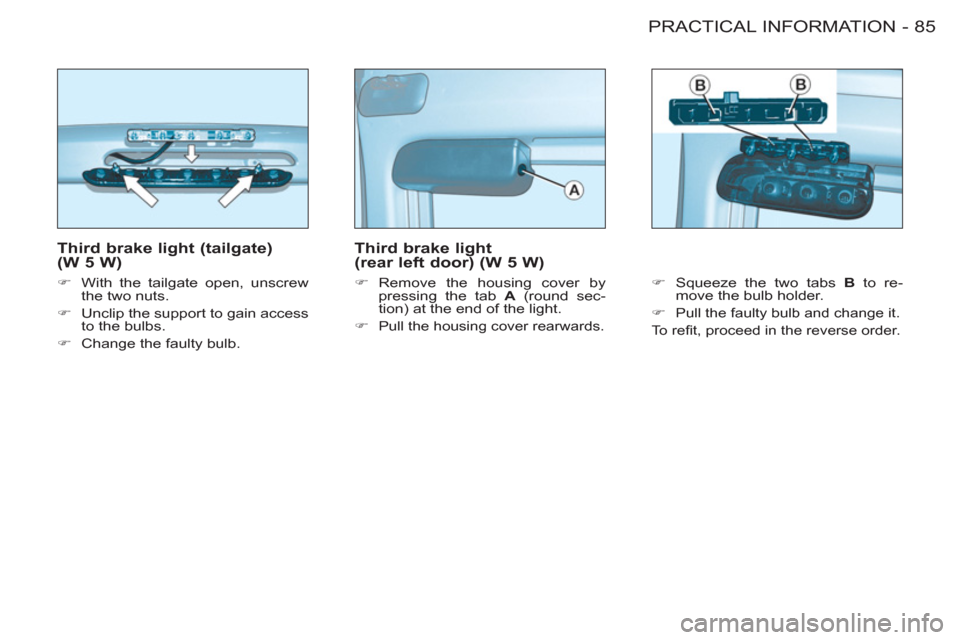

Third brake light (tailgate)
(W 5 W)
)
With the tailgate open, unscrew
the two nuts.
)
Unclip the support to gain access
to the bulbs.
)
Change the faulty bulb.
Third brake light
(rear left door) (W 5 W)
)
Remove the housing cover by
pressing the tab A
(round sec-
tion) at the end of the light.
)
Pull the housing cover rearwards.
)
Squeeze the two tabs B
to re-
move the bulb holder.
)
Pull the faulty bulb and change it.
To refi t, proceed in the reverse order.
Page 88 of 132
PRACTICAL INFORMATION
86 -
Removing and fi tting a fuse
Before changing a fuse, the cause
of the fault must be found and reme-
died. The fuse numbers are indicated
on the fusebox.
Use the tweezer B
.
CHANGING A FUSE
The fuse boxes are located under the
dashboard and in the engine com-
partment.
Dashboard fusebox
Unclip the cover to gain access to the
fuses.
The spare fuses and the tweezer B
are
fi tted to the inside of the cover A
.
Good
Failed
Tweezer B
Always replace a faulty fuse with a fuse
of the same rating (two fuse types ac-
cording to manufacturer - see images).
Page 89 of 132
87 PRACTICAL INFORMATION
-
Fuse
Rating
Functions
1
15A
Rear wiper.
4
20A
Multi-function scren - Instrument panel -
Audio system - Steering mounted controls.
5
-
Not used.
6
10A
Diagnostic socket.
7
-
Not used.
9
30A
Heated seats.
10
40A
Rear window and door mirrors demisting.
11
15A
Rear wiper (tailgate).
12
30A
Front electric windows.
14
10A
Engine fusebox - Steering mounted controls.
15
15A
Instrument panel - Multi-function screen -
Audio system.
16
30A
Locking/unlocking controls for doors,
bonnet and boot.
20
10A
Right-hand brake lamp.
21
15A
Left-hand brake lamp.
22
20A
Front courtesy lamp - Map reading lamp -
Cigarette lighter - Electric mirror.
Page 90 of 132
PRACTICAL INFORMATION
88 -

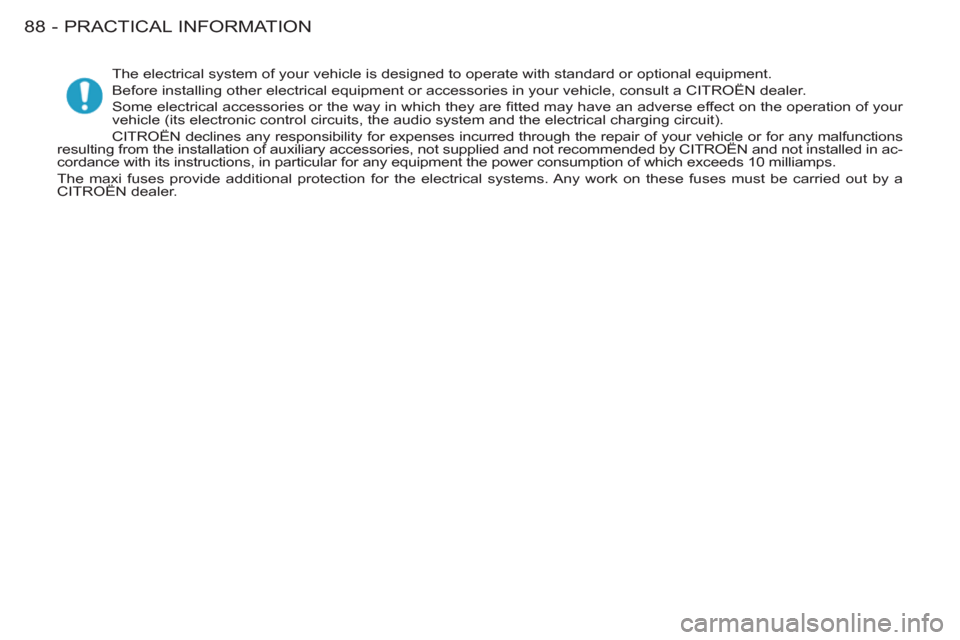

The electrical system of your vehicle is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories in your vehicle, consult a CITROËN dealer.
Some electrical accessories or the way in which they are fi tted may have an adverse effect on the operation of your
vehicle (its electronic control circuits, the audio system and the electrical charging circuit).
CITROËN declines any responsibility for expenses incurred through the repair of your vehicle or for any malfunctions
resulting from the installation of auxiliary accessories, not supplied and not recommended by CITROËN and not installed in ac-
cordance with its instructions, in particular for any equipment the power consumption of which exceeds 10 milliamps.
The maxi fuses provide additional protection for the electrical systems. Any work on these fuses must be carried out by a
CITROËN dealer.
