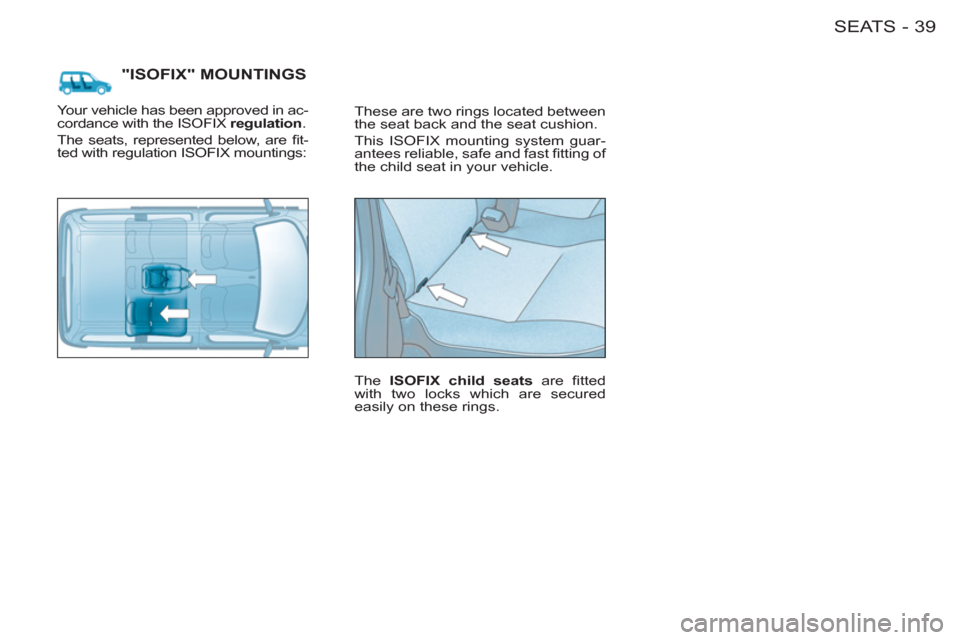

39SEATS-
"ISOFIX" MOUNTINGS
These are two rings located between
the seat back and the seat cushion.
This ISOFIX mounting system guar-
antees reliable, safe and fast fi tting of
the child seat in your vehicle.
The ISOFIX child seats
are fi tted
with two locks which are secured
easily on these rings. Your vehicle has been approved in ac-
cordance with the ISOFIX regulation
.
The seats, represented below, are fi t-
ted with regulation ISOFIX mountings:
Page 42 of 132

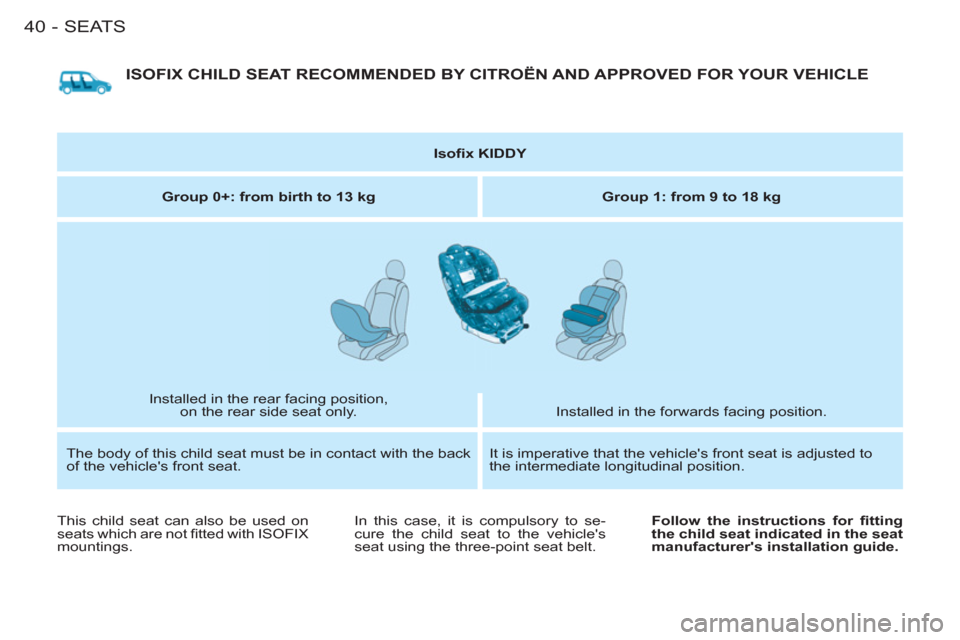

SEATS
40-
ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE
Isofi x KIDDY
Group 0+: from birth to 13 kg
Group 1: from 9 to 18 kg
Installed in the rear facing position,
on the rear side seat only. Installed in the forwards facing position.
The body of this child seat must be in contact with the back
of the vehicle's front seat. It is imperative that the vehicle's front seat is adjusted to
the intermediate longitudinal position.
This child seat can also be used on
seats which are not fi tted with ISOFIX
mountings. In this case, it is compulsory to se-
cure the child seat to the vehicle's
seat using the three-point seat belt.
Follow the instructions for fi tting
the child seat indicated in the seat
manufacturer's installation guide.
Page 43 of 132
41SEATS-
ADVICE ON CHILD SEATS
The incorrect installation of a
child seat in a vehicle com-
promises the child's protection in the
event of an accident.
Remember to fasten the seat belts
or the child seat harnesses keep-
ing the slack
in relation to the child's
body to a minimum
, even for short
journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of
sharp braking. Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger airbag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,
- the keys within reach of children
inside the vehicle.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level. To prevent accidental
opening of the doors, use
the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
Page 44 of 132

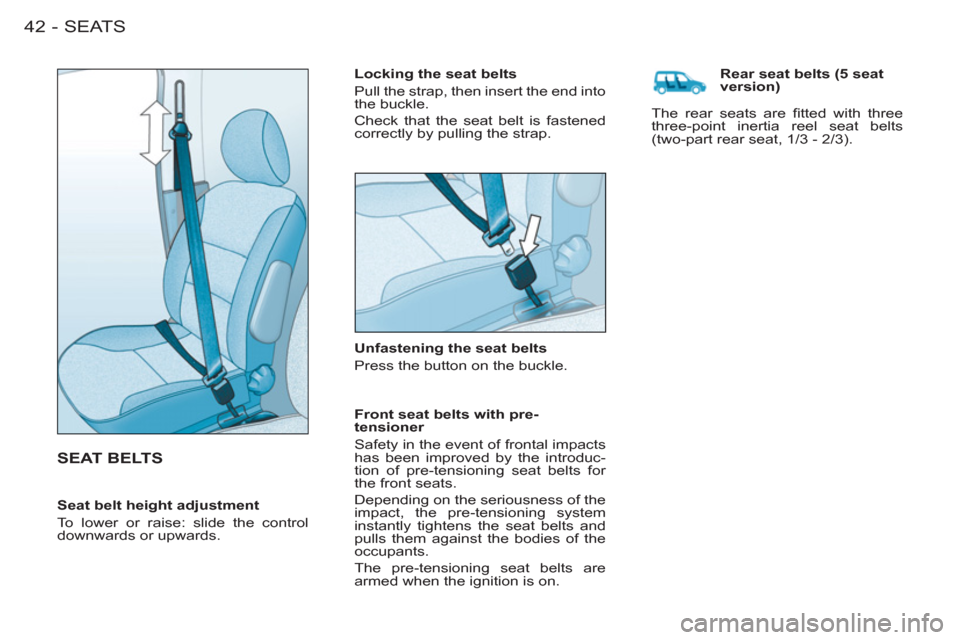

SEATS
42-
SEAT BELTS
Locking the seat belts
Pull the strap, then insert the end into
the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening the seat belts
Press the button on the buckle.
Front seat belts with pre-
tensioner
Safety in the event of frontal impacts
has been improved by the introduc-
tion of pre-tensioning seat belts for
the front seats.
Depending on the seriousness of the
impact, the pre-tensioning system
instantly tightens the seat belts and
pulls them against the bodies of the
occupants.
The pre-tensioning seat belts are
armed when the ignition is on.
Seat belt height adjustment
To lower or raise: slide the control
downwards or upwards.
Rear seat belts (5 seat
version)
The rear seats are fi tted with three
three-point inertia reel seat belts
(two-part rear seat, 1/3 - 2/3).
Page 45 of 132

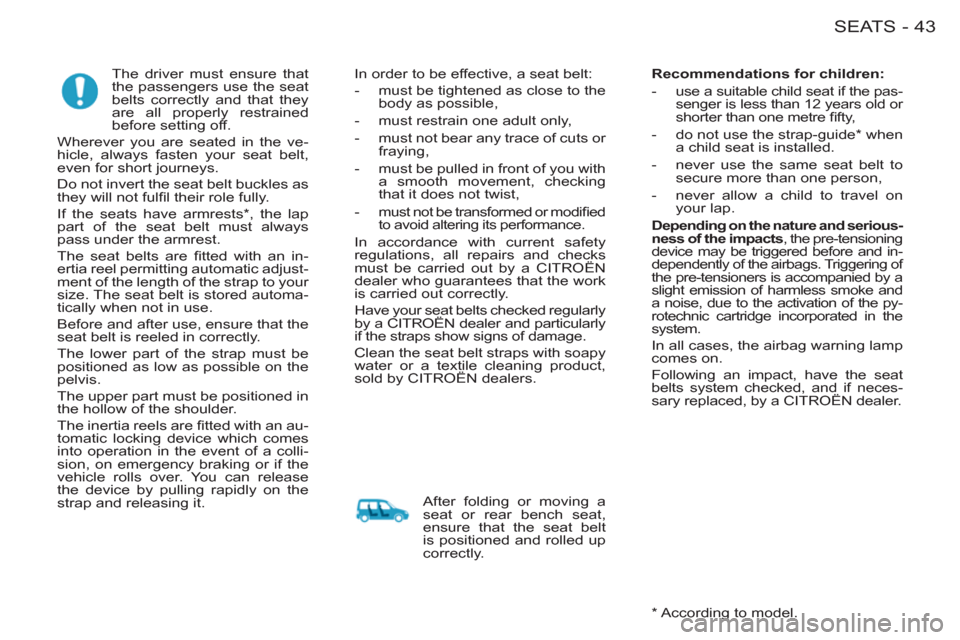

43SEATS-
The driver must ensure that
the passengers use the seat
belts correctly and that they
are all properly restrained
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
they will not fulfi l their role fully.
If the seats have armrests * , the lap
part of the seat belt must always
pass under the armrest.
The seat belts are fi tted with an in-
ertia reel permitting automatic adjust-
ment of the length of the strap to your
size. The seat belt is stored automa-
tically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an au-
tomatic locking device which comes
into operation in the event of a colli-
sion, on emergency braking or if the
vehicle rolls over. You can release
the device by pulling rapidly on the
strap and releasing it.
In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one adult only,
- must not bear any trace of cuts or
fraying,
- must be pulled in front of you with
a smooth movement, checking
that it does not twist,
- must not be transformed or modifi ed
to avoid altering its performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a CITROËN
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regularly
by a CITROËN dealer and particularly
if the straps show signs of damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by CITROËN dealers.
*
According to model.
Recommendations for children:
- use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one metre fi fty,
- do not use the strap-guide * when
a child seat is installed.
- never use the same seat belt to
secure more than one person,
- never allow a child to travel on
your lap.
Depending on the nature and serious-
ness of the impacts
, the pre-tensioning
device may be triggered before and in-
dependently of the airbags. Triggering of
the pre-tensioners is accompanied by a
slight emission of harmless smoke and
a noise, due to the activation of the py-
rotechnic cartridge incorporated in the
system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a CITROËN dealer.
After folding or moving a
seat or rear bench seat,
ensure that the seat belt
is positioned and rolled up
correctly.
Page 46 of 132
ACCESS and STARTING44 -
KEYS
The keys allow you to switch on the
ignition and operate the passenger
airbag disarming switch as well as to
independently operate the locks on
the doors and the fuel fi ller cap.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
)
press button A
, the courtesy lamps
come on and the direction indicators
fl ash for a few seconds.
Changing the battery of the
remote control
CR 2016/3 volt battery.
The information "battery fl at" is given by
an audible signal accompanied by the
message "Remote control battery
fl at"
on the screen.
To change the battery, unclip the cas-
ing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.
Reinitialising the remote
control
)
Switch off the ignition.
)
Switch the ignition on again.
)
Press button A
immediately for a
few seconds.
)
Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control
is now working again.
Remote control
Central locking
From the front doors, the keys allow
you to lock and unlock the doors and
tailgate.
If one of the doors or the tailgate is
open, the central locking does not
work.
The remote control performs the
same functions at a distance.
Locking
Press button A
to lock the vehicle.
This is confi rmed by fi xed lighting of
the direction indicators for approxi-
mately two seconds.
Unlocking
Press button B
to unlock the vehicle.
This is confi rmed by rapid fl ashing of
the direction indicators.
Note
: if the vehicle is locked and
unlocking is activated inadvertently,
unless the doors are opened within
30 seconds, the vehicle will lock au-
tomatically.
Page 47 of 132
45ACCESS and STARTING
-
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for the vehicle to
start.
If the system does not function
correctly,
the central locking button
indicator light, situated in the centre
of the fascia, fl ashes rapidly when the
ignition is switched on (2nd notch),
accompanied by an audible signal
and a message on the display.
In this case your vehicle will not
start.
Contact a CITROËN dealer as soon
as possible.
Key in ignition
A buzzer sounds on opening the driv-
er's door, if the key has been left in
the ignition. Make a careful note of the
number of each key. This
number is coded on the label
attached to the key.
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reprogramming.
Do not operate the deadlocking func-
tion if there is anyone inside the
vehicle.
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more diffi cult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time.
Do not repeatedly press the buttons
of your remote control out of range of
your vehicle.
You run the risk of stopping it from
working and the remote control would
have to be reprogrammed.
When purchasing a second-hand ve-
hicle, have the key codes memorised
by a CITROËN dealer, to ensure that
the keys in your possession are the
only ones which can start the vehi-
cle.
Do not make any modifi cations to the
electronic engine immobiliser system.
If the keys are lost
Visit a CITROËN dealer with the ve-
hicle’s V5 registration certifi cate and
your personal identifi cation docu-
ments.
The CITROËN network will be able to
retrieve the key code and the trans-
ponder code to order a replacement
key.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
Page 48 of 132
ACCESS and STARTING46 -
*
According to country.
THE ALARM SYSTEM *
The alarm offers two types of protection:
- exterior protection:
the alarm
sounds if a door, the boot or the
bonnet is opened
;
- interior protection:
the alarm
sounds if there is a variation in
the volume inside the vehicle
(breaking of a window or move-
ment inside the vehicle)
.
Setting the alarm
Switch the ignition off and get out of
the vehicle.
Activate the alarm within fi ve minutes
following your exit from the vehicle,
by locking using the remote control
key (the red indicator lamp in the
switch 1
, which can be seen from the
outside, fl ashes once a second).
Warning
If, on setting the alarm, a door, the
boot or the bonnet are not closed
correctly, the siren sounds for a mo-
ment.
Close the vehicle correctly to set the
alarm.
If the interior protection alarm is trig-
gered ten times in succession, it is
disarmed automatically. It must be
set again in order for it to operate
correctly. When the alarm is triggered, the
siren sounds and the direction indi-
cators fl ash for thirty seconds.
After it has been triggered, the alarm
becomes operational again.
Note:
if you wish to lock your vehicle
without setting the alarm, lock it us-
ing the key in the door lock.
Disarming the alarm
Unlock the vehicle using the remote
control key (the red indicator lam in
the switch 1
goes off).
Note:
if the warning light fl ashes, it is
a sign that the alarm has been trig-
gered in your absence.
To stop it, switch on the ignition.
Note:
when the alarm is set, but the
remote control no longer works:
)
unlock the doors using the key
and open the door; the alarm is
triggered;
)
switch the ignition on within ten
seconds; the alarm is disarmed.
To set the alarm with exterior
protection only.
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
need to select exterior protection only:
●
Switch off the ignition.
●
Press the button 2
until the lamp
1
comes on continuously.
●
Get out of the vehicle.
●
Press the locking button of the re-
mote control.
●
The doors lock.
●
The red lamp in the switch fl ashes
once a second.
Operating fault
When the ignition is switched on, fi xed
illumination of the red indicator lamp,
located in the centre of the dashboard,
indicates an anomaly with the siren.
Contact a CITROËN dealer to have
the system checked.
Do not make any modifi ca-
tions to the alarm system, this
could cause malfunctions.
Page 49 of 132
47ACCESS and STARTING
-

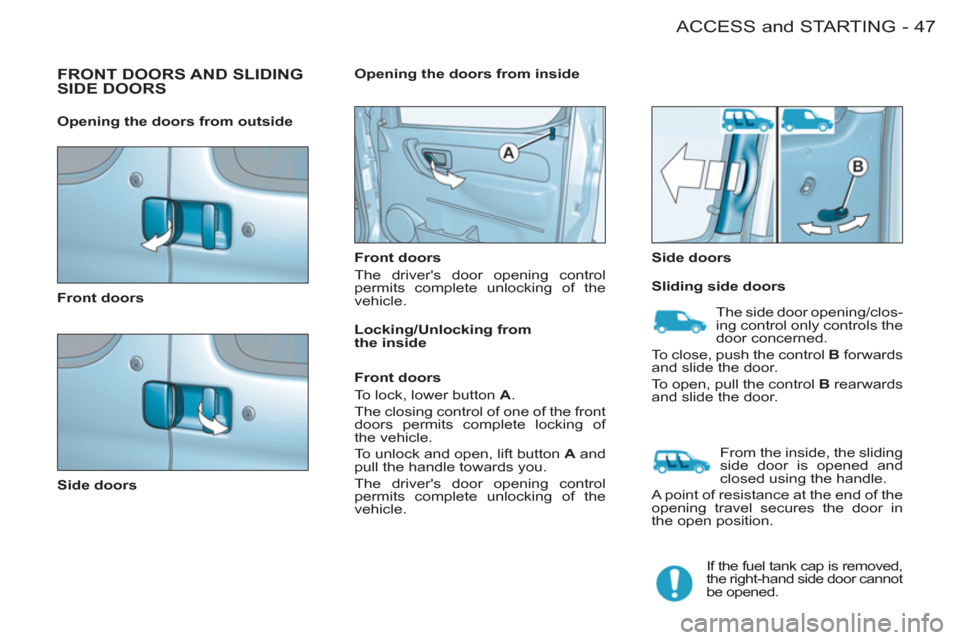

FRONT DOORS AND SLIDINGSIDE DOORS
Front doors
Side doors
Front doors
The driver's door opening control
permits complete unlocking of the
vehicle.
Side doors
Opening the doors from inside
Opening the doors from outside
Sliding side doors
If the fuel tank cap is removed,
the right-hand side door cannot
be opened.
Locking/Unlocking from
the inside
Front doors
To lock, lower button A
.
The closing control of one of the front
doors permits complete locking of
the vehicle.
To unlock and open, lift button A
and
pull the handle towards you.
The driver's door opening control
permits complete unlocking of the
vehicle.
From the inside, the sliding
side door is opened and
closed using the handle.
A point of resistance at the end of the
opening travel secures the door in
the open position. The side door opening/clos-
ing control only controls the
door concerned.
To close, push the control B
forwards
and slide the door.
To open, pull the control B
rearwards
and slide the door.
Page 50 of 132

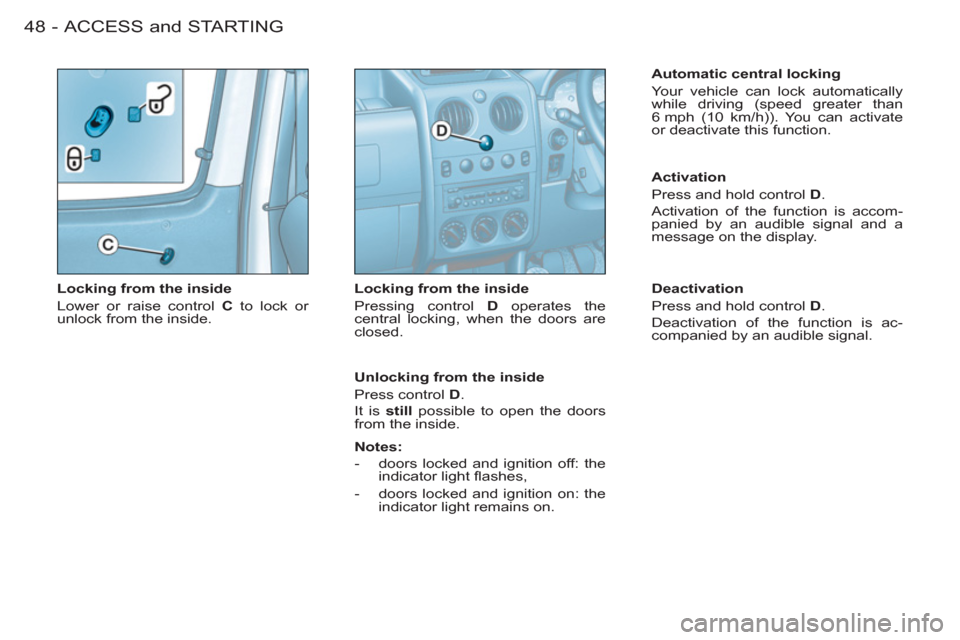

ACCESS and STARTING48 -
Locking from the inside
Lower or raise control C
to lock or
unlock from the inside.
Locking from the inside
Pressing control D
operates the
central locking, when the doors are
closed.
Automatic central locking
Your vehicle can lock automatically
while driving (speed greater than
6 mph (10 km/h)). You can activate
or deactivate this function.
Unlocking from the inside
Press control D
.
It is still
possible to open the doors
from the inside.
Activation
Press and hold control D
.
Activation of the function is accom-
panied by an audible signal and a
message on the display.
Deactivation
Press and hold control D
.
Deactivation of the function is ac-
companied by an audible signal.
Notes:
- doors locked and ignition off: the
indicator light fl ashes,
- doors locked and ignition on: the
indicator light remains on.
