Page 9 of 161
33
3
3
3
5
13
1
FAMILIARISATION
Interior
REAR LAYOUT
Rear bench seat
Each 1/3 - 2/3 section can be fully
folded and removed by section. Rear seats
The three rear seats are independent
and can be removed individually.
Maximum loads
Overhead storage compartment: 5 kg.
Modutop roof:
- storage compartments of the
central section: 6 kg,
- box: 10 kg,
- roof bars placed longitudinally or transversely: 35 kg.
Transverse roof bars: 75 kg.
I n t e r i o r r a c k : 1 0 k g p e r b a r .
59
80 62 CHILD SAFETY
Side door child lock 117
84
83
Safety auto-reverse
Monitoring mirror
Interior rack
Page 10 of 161
33
5
5
3
14
Interior VENTILATION
Heating Automatic air
conditioning
51 53
Air conditioning
CHILD SAFETY
Child seats
112
111
Air bag disarming
Recommended settings for the Manual Air Conditioning
For optimum use of the system, we recommend:
If I
require..
Air
distribution
Temperature A i r fl o w
Air
recirculation
AC
Heating
-
Cooling
De-icing
Demisting 55
With Automatic Air Conditioning, operation in AUTO mode is recommended
irrespective of the requirement.
Remember to switch the system off when the ambient air suits
your requirements.
Page 55 of 161
Seats
5 7
ERGONOMICS and COMFORT
33
FRONT SEATS
T h e f o l l o w i n g a d j u s t m e n t s a r e
a v a i l a b l e : 1 - Forwards/backwards adjustment
L i f t t h e b a r a n d s l i d e t h e s e a t f o r w a r d s
o r b a c k w a r d s .
3 - Driver’s seat height adjustment
T o r a i s e t h e s e a t , p u l l t h e c o n t r o l
u p w a r d s t h e n t a k e y o u r w e i g h t o f f t h e
s e a t c u s h i o n .
T o l o w e r t h e s e a t , p u l l t h e c o n t r o l
u p w a r d s t h e n p u s h o n t h e s e a t
cushion.
2 - Seat back angle adjustment
W i t h y o u r b a c k p r e s s e d a g a i n s t t h e
s e a t b a c k , m o v e t h e l e v e r f o r w a r d s
a n d s e t t h e r e q u i r e d a n g l e .
Page 56 of 161
5 8
Seats
N e v e r d r i v e w i t h t h e h e a d
r e s t r a i n t s r e m o v e d ; t h e y m u s t b e
i n p l a c e a n d c o r r e c t l y a d j u s t e d . Adjustable armrest
T o a c c e s s t h e v e r t i c a l p o s i t i o n , r a i s e
t h e a r m r e s t u n t i l i t l o c k s .
L o w e r t h e a r m r e s t t o r e t u r n i t t o a
position for use.
T o r e m o v e t h e a r m r e s t , p r e s s t h e
r e l e a s e b u t t o n f r o m t h e v e r t i c a l p o s i t i o n
a n d m o v e a s i d e t h e a r m r e s t .
T o p u t t h e a r m r e s t b a c k i n p l a c e , c l i p i t
i n t h e v e r t i c a l p o s i t i o n .
I f t h e v e h i c l e i s fi t t e d w i t h t h e a d d i t i o n a l
c o n s o l e a n d a n a r m r e s t , t o f o l d t h e
p a s s e n g e r s e a t t o t h e t a b l e p o s i t i o n
r e m o v e t h e c o n s o l e o r t h e a r m r e s t .
Head restraint height adjustment
T o r a i s e t h e h e a d r e s t r a i n t , s l i d e i t v e r t i c a l l y
u p w a r d s .
T o l o w e r t h e h e a d r e s t r a i n t , p r e s s t h e
b u t t o n a n d s l i d e t h e h e a d r e s t r a i n t
v e r t i c a l l y d o w n w a r d s .
T h e a d j u s t m e n t i s c o r r e c t w h e n t h e u p p e r
e d g e o f t h e h e a d r e s t r a i n t i s l e v e l w i t h t h e
t o p o f t h e h e a d .
T o r e m o v e t h e h e a d r e s t r a i n t , p r e s s t h e
b u t t o n a n d p u l l t h e h e a d r e s t r a i n t u p w a r d s .
T o r e - i n s t a l l t h e h e a d r e s t r a i n t , e n g a g e
t h e r o d s i n t h e h o l e s m a k i n g s u r e t h e y a r e
a l i g n e d w i t h t h e s e a t b a c k .
Page 57 of 161
Seats
59
33

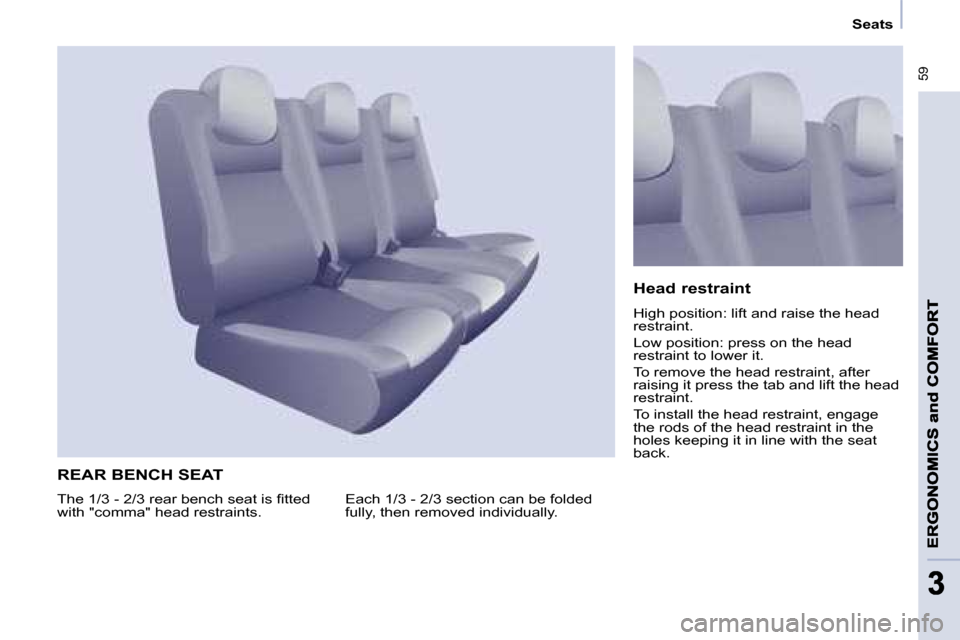

REAR BENCH SEAT
E a c h 1 / 3 - 2 / 3 s e c t i o n c a n b e f o l d e d
f u l l y , t h e n r e m o v e d i n d i v i d u a l l y . Head restraint
H i g h p o s i t i o n : l i f t a n d r a i s e t h e h e a d
r e s t r a i n t .
L o w p o s i t i o n : p r e s s o n t h e h e a d
r e s t r a i n t t o l o w e r i t .
T o r e m o v e t h e h e a d r e s t r a i n t , a f t e r
r a i s i n g i t p r e s s t h e t a b a n d l i f t t h e h e a d
r e s t r a i n t .
T o i n s t a l l t h e h e a d r e s t r a i n t , e n g a g e
t h e r o d s o f t h e h e a d r e s t r a i n t i n t h e
h o l e s k e e p i n g i t i n l i n e w i t h t h e s e a t
b a c k .
T h e 1 / 3 - 2 / 3 r e a r b e n c h s e a t i s fi t t e d
w i t h " c o m m a " h e a d r e s t r a i n t s .
Page 58 of 161
60
Seats
Fully folded position
E x a m p l e o f o p e r a t i o n s f o r t h e
1 / 3 s e c t i o n . T h e y a r e i d e n t i c a l f o r t h e
2 / 3 s e c t i o n .
- P l a c e t h e h e a d r e s t r a i n t s i n t h e l o w position.
- I f n e c e s s a r y , m o v e t h e f r o n t s e a t s f o r w a r d .
- P r e s s t h e g r e y c o n t r o l l o c a t e d o n t h e u p p e r p a r t o f t h e s e a t b a c k .
- F o l d t h e s e a t b a c k o n t o t h e s e a t cushion. - R a i s e t h e g r e y c o n t r o l b a r , l o c a t e d
a t t h e r e a r o f t h e s e a t c u s h i o n .
- T i l t t h e e n t i r e s e a t f o r w a r d . Putting back in place
P r e s s t h e r e d c o n t r o l a n d t i l t t h e e n t i r e
s e a t r e a r w a r d s u n t i l i t l o c k s .
R a i s e t h e s e a t b a c k .
T h e s e a t i s l o c k e d c o r r e c t l y w h e n t h e
r e d c o n t r o l ( a t t h e t o p o f t h e s e a t b a c k )
is no longer visible.
C h e c k t h a t t h e s e a t i s l o c k e d o n t h e
fl o o r s e c u r e l y w h e n i t i s r e t u r n e d t o t h e
sitting position.
Page 59 of 161
Seats
61
ERGONOMICS and COMFORT
33
Removing the bench seat
- I f n e c e s s a r y , m o v e t h e f r o n t s e a t s f o r w a r d .
- P l a c e t h e b e n c h s e a t ( 1 / 3 s e c t i o n a n d / o r 2 / 3 s e c t i o n ) i n t h e f u l l y
folded position. Refitting the bench seat
- O f f e r u p t h e b e n c h s e a t ( 1 / 3 s e c t i o n
a n d / o r 2 / 3 s e c t i o n ) v e r t i c a l l y .
- P l a c e t h e h o o k s b e t w e e n t h e t w o b a r s .
- F o l d t h e b e n c h s e a t r e a r w a r d s .
Refer to the "fully folded position"
d e s c r i b e d o n t h e p r e v i o u s p a g e . T o r e t u r n t h e b e n c h s e a t
( 1 / 3 s e c t i o n a n d / o r 2 / 3 s e c t i o n )
t o t h e " p a s s e n g e r t r a n s p o r t a t i o n "
position, refer to the "fully folded
position" described on the previous
p a g e .
- Press the red lever, in the centre o f t h e v e h i c l e , t o r e l e a s e t h e f r o n t
feet.
- T i l t t h e e n t i r e s e a t r e a r w a r d s b y a p p r o x i m a t e l y 4 5 ° w i t h o u t r e l e a s i n g
the lever.
- R e l e a s e t h e l e v e r .
- L i f t t h e b e n c h s e a t vertically to the
l i m i t o f t h e a n c h o r a g e s .
- S t r a i g h t e n b e n c h s e a t b y t i l t i n g i t f o r w a r d s t h e n l i f t i t .
Page 60 of 161
6 2
Seats

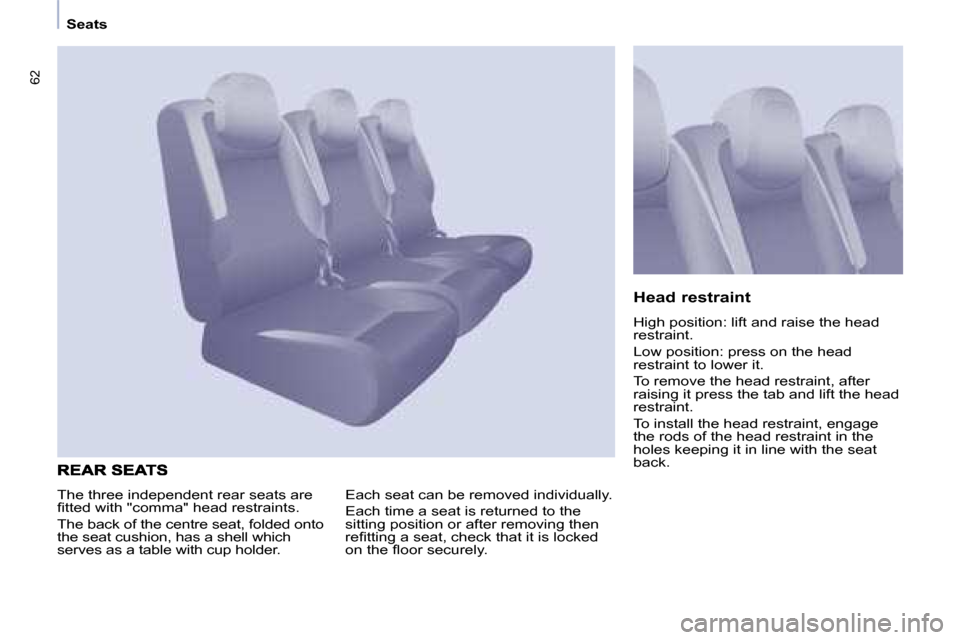

Head restraint
H i g h p o s i t i o n : l i f t a n d r a i s e t h e h e a d
r e s t r a i n t .
L o w p o s i t i o n : p r e s s o n t h e h e a d
r e s t r a i n t t o l o w e r i t .
T o r e m o v e t h e h e a d r e s t r a i n t , a f t e r
r a i s i n g i t p r e s s t h e t a b a n d l i f t t h e h e a d
r e s t r a i n t .
T o i n s t a l l t h e h e a d r e s t r a i n t , e n g a g e
t h e r o d s o f t h e h e a d r e s t r a i n t i n t h e
h o l e s k e e p i n g i t i n l i n e w i t h t h e s e a t
b a c k .
E a c h s e a t c a n b e r e m o v e d i n d i v i d u a l l y .
E a c h t i m e a s e a t i s r e t u r n e d t o t h e
s i t t i n g p o s i t i o n o r a f t e r r e m o v i n g t h e n
r e fi t t i n g a s e a t , c h e c k t h a t i t i s l o c k e d
o n t h e fl o o r s e c u r e l y .
T h e t h r e e i n d e p e n d e n t r e a r s e a t s a r e
fi t t e d w i t h " c o m m a " h e a d r e s t r a i n t s .
T h e b a c k o f t h e c e n t r e s e a t , f o l d e d o n t o
t h e s e a t c u s h i o n , h a s a s h e l l w h i c h
s e r v e s a s a t a b l e w i t h c u p h o l d e r .
Page 61 of 161
Seats
63
ERGONOMICS and COMFORT
33
Adjusting the angle of the seat back
- O p e r a t e t h e c o n t r o l a n d a d j u s t t h e a n g l e o f t h e s e a t b a c k .
Placing the seat back in the
table position
- P u l l t h e c o n t r o l t o f o l d t h e s e a t b a c k o n t o t h e s e a t c u s h i o n .
D o n o t p l a c e h a r d o r h e a v y o b j e c t s
o n t h e t a b l e . T h e y c o u l d b e c o m e
d a n g e r o u s p r o j e c t i l e s i n t h e e v e n t o f
s h a r p b r a k i n g o r i m p a c t . Returning the seat back to the
sitting position
- R e l e a s e t h e s e a t b a c k b y p u l l i n g
the control, then return it to its
o r i g i n a l p o s i t i o n .
W h e n r e t u r n i n g t h e s e a t b a c k t o t h e
s i t t i n g p o s i t i o n , e n s u r e t h a t i t i s l o c k e d
securely.
Placing the seat in the fully
folded position
- P u l l t h e c o n t r o l t o p l a c e t h e s e a t b a c k i n t h e t a b l e p o s i t i o n .
- R a i s e t h e b a r l o c a t e d b e h i n d t h e s e a t t o r e l e a s e t h e r e a r a n c h o r i n g
points.
- T i l t t h e e n t i r e s e a t f o r w a r d s , u n t i l i t l o c k s . Returning the seat to its original
position
- Push the red control.
- F o l d b a c k t h e s e a t t o fi x t h e r e a r
a n c h o r i n g p o i n t s .
- R a i s e t h e s e a t b a c k b y p u l l i n g t h e control.
C h e c k t h a t t h e e n t i r e s e a t i s a n c h o r e d
securely.
Red control.
Fully folded.
A n c h o r a g e .
Page 62 of 161
64
Seats
Removing the seat
- I f n e c e s s a r y , m o v e t h e f r o n t s e a t s f o r w a r d a n d l o w e r t h e h e a d
r e s t r a i n t .
- P l a c e t h e s e a t i n t h e f u l l y f o l d e d position. Putting the seat back in place
- T i l t t h e s e a t f o r w a r d b y 4 5 ° .
- P l a c e t h e h o o k s b e t w e e n t h e t w o
b a r s .
- F o l d b a c k t h e s e a t t o fi x t h e r e a r a n c h o r i n g p o i n t s .
- P u l l t h e c o n t r o l t o r e t u r n t h e s e a t b a c k t o i t s i n i t i a l p o s i t i o n .
- R a i s e t h e h e a d r e s t r a i n t .
Refer to the "fully folded position"
d e s c r i b e d o n t h e p r e v i o u s p a g e .
- P r e s s t h e r e d l e v e r t o r e l e a s e t h e front feet.
- T i l t t h e e n t i r e s e a t r e a r w a r d s b y a p p r o x i m a t e l y 4 5 ° w i t h o u t r e l e a s i n g
the lever.
- R e l e a s e t h e l e v e r .
- L i f t t h e s e a t vertically to the limit of
t h e a n c h o r a g e s .
- S t r a i g h t e n t h e s e a t b y t i l t i n g i t f o r w a r d s t h e n l i f t i t . Good practice
F o l l o w i n g t h e v a r i o u s o p e r a t i o n s :
- d o n o t r e m o v e a h e a d r e s t r a i n t
w i t h o u t s t o r i n g i t a n d fi x i t t o a
support,
- e n s u r e t h a t t h e p a s s e n g e r s c a n a l w a y s a c c e s s t h e s e a t b e l t s a n d
f a s t e n t h e m e a s i l y ,
- a p a s s e n g e r m u s t n e v e r t a k e h i s s e a t w i t h o u t a d j u s t i n g a n d
f a s t e n i n g h i s s e a t b e l t .
C h e c k t h a t n o o b j e c t i s o b s t r u c t i n g
t h e a n c h o r i n g r e c e s s e s o r p r e v e n t i n g
c o r r e c t l o c k i n g o f t h e s e a t s .
