Citroen BERLINGO MULTISPACE RHD 2012 2.G Owner's Manual

159
7


Having your vehicle towed

QUICK HEL
P


Without lifting
(4 wheels on the road)
You should always use a towing bar.

BEING TOWED

The towing eye is stored in the tool kit,
located under the right-hand seat.

From the front



- Unclip the cover by pressing the
bottom part.

- Fully screw in the removable
towing eye.



From the rear



- Unclip the cover using a coin or the
fl at part of the towing eye,

- Fully screw in the removable
towing eye.

When towing with the engine
switched off, there is no braking or
steering assistance.


Lifting (2 wheels on the road
only)
It is preferable to raise the vehicle
using professional lifting equipment.


Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to transmission and
braking components and the absence
of braking assistance when the engine
is started again.

160

161

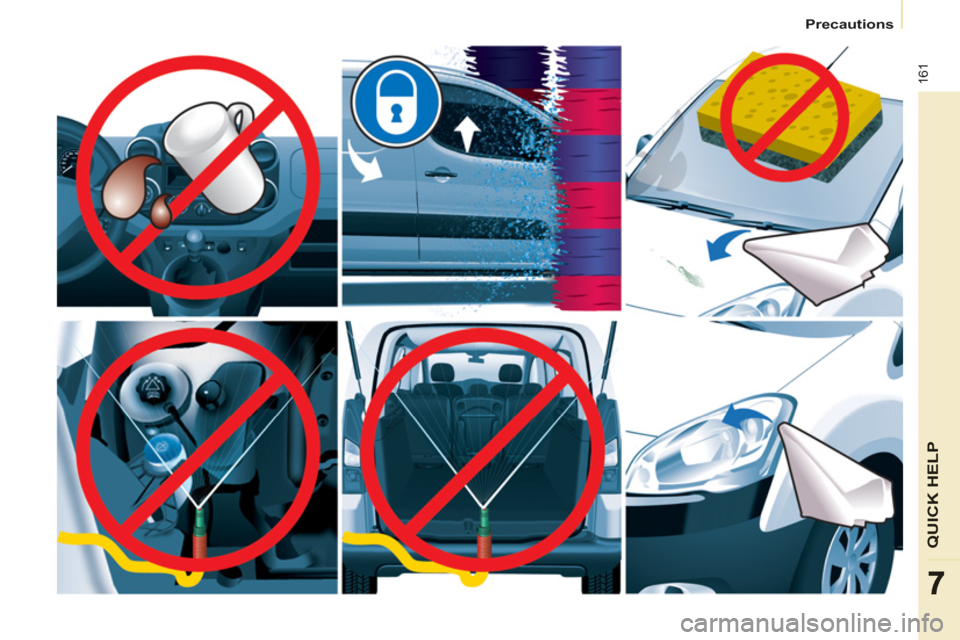

Precautions

QUICK HELP
77

162


Dimensions

16
3
Dimensions
TECHNICAL DAT
A
8
DIMENSIONS (MM)


L Overall length

4380

H Overall height

1801-1862

A Wheelbase

2728

B Front overhang

925

C Rear overhang

727

D Width over panels: without mirrors
1810
with mirrors
2112

E Width of front tracks
1505-1507

F Width of rear tracks
1554-1556

- Length of the loading surface to the
seat Row 2
990
Row 2, seat fully folded
1343
With front passenger seat folded
3000

164


Dimensions






REAR DOORS (mm)



M
Max threshold with 205/65 R15 tyre and tailgate trim
582






Hinged doors
Tailgate

Small
Large




N Useable opening height (under panel)
111 8

O Width
495
543
1582

165
Dimensions
TECHNICAL DAT
A
8





SLIDING SIDE DOORS (mm)



P Useable height
1009

Q Useable width
640

- Height under raised tailgate
1892

166

Weights

WEIGHTS AND TOWED LOADS (KG)


General points

For more information, refer to your
registration certifi cate.
In each country, it is imperative that
the towed loads authorised by local
legislation are complied with. To fi nd
out your vehicle's towing capacities
and its gross train weight, consult a
CITROËN dealer. With load trransfer, the braked towed
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
with a lightly loaded towing vehicle
may have an adverse effect on its road
holding.
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country). High ambient temperatures may result
in a reduction in the performance
of the vehicle in order to protect the
engine; when the ambient temperature
is higher than 37 °C, limit the towed
weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi lled to 90 %.
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres; the towed load
mentioned must be reduced by 10 %
for each additional 1000 metres.

16
7
TECHNICAL DAT
A
8


Identification markings


IDENTIFICATION MARKINGS


A. Manufacturer's plate.
C. Tyres and paint colour code.
The label C
, on the front door gives:


- the wheel and tyre sizes,

- the brands of tyres approved by the
manufacturer,

- the tyre pressures (the tyre
pressures must be checked when
the tyres are cold, at least once
a month),

- the paint colour code.


B. Serial number.
This is engraved on the front right
wheelarch.
