Ventilation
63
EASE OF U
SE and
COMFORT
3
Manual operation
You can, according to your
requirements, make a different selection
from that offered by the system by
changing a setting. The other functions
will still be controlled automatically.
Pressing the AUTO button restores fully
automatic operation.
Air distribution
Pressing this button several
times in succession directs
the air fl ow towards:
- the windscreen,
- the windscreen and footwells,
- the footwells,
- the side vents, central vents and footwells,
- the side vents and central vents. Air fl ow
Press the
small fan button to
reduce the fl ow or the large
fan button to increase the
fl ow.
On the display, the blades of the fan fi ll
when the fl ow is increased.
Switching the air
conditioning On / Off
Press this button, the A/C
symbol is displayed and the
air conditioning is activated.
Deactivating the system
Press the air fl ow
small fan
button until the fan symbol
disappears from the display.
This action deactivates all
of the system's functions, with the
exception of the air recirculation and
rear screen demisting (if fi tted on your
vehicle). Your comfort setting is no
longer maintained and is switched off. Intake of exterior air /
Recirculation of interior air
Press this button to
recirculate the interior air.
The recirculation symbol is
displayed.
Pressing the large fan
button or the AUTO button
reactivates the system with
the values set before it was
deactivated. Recirculation prevents exterior
odours and smoke from entering
the passenger compartment. Avoid
prolonged operation in interior
air recirculation mode (risk of
condensation, odour and humidity).
Pressing this button again activates the
intake of exterior air.
Pressing this button again switches off
the air conditioning.
The ventilation outlet, located
in the glove box, diffuses cool
air (if the air conditioning is
on) regardless of the reference
temperature requested in the
passenger compartment and
regardless of the exterior temperature.
For your comfort, do not deactivate the
system for long periods.

Under the bonnet
134
PETROL ENGINE
1. Screenwash reservoir.
2. Fusebox.
3. Engine coolant header tank.
4. Brake and clutch fl uid reservoir.
5. Air fi lter.
6. Engine oil dipstick.
7. Engine oil fi ller cap.
8. Power steering fl uid reservoir. Battery connections:
+ Positive terminal.
- Negative point (earth). Take care when working under the
bonnet.

Under the bonnet
135
CHECKS
6

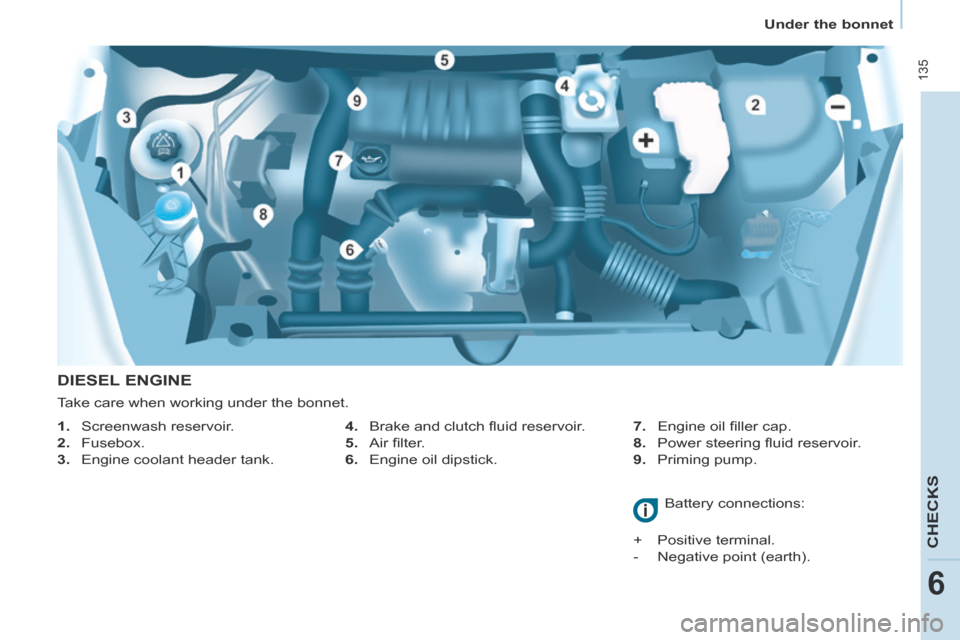

DIESEL ENGINE
4. Brake and clutch fl uid reservoir.
5. Air fi lter.
6. Engine oil dipstick. 7. Engine oil fi ller cap.
8. Power steering fl uid reservoir.
9. Priming pump.
1. Screenwash reservoir.
2. Fusebox.
3. Engine coolant header tank.
Battery connections:
+ Positive terminal.
- Negative point (earth).
Take care when working under the bonnet.

Changing a fuse
156

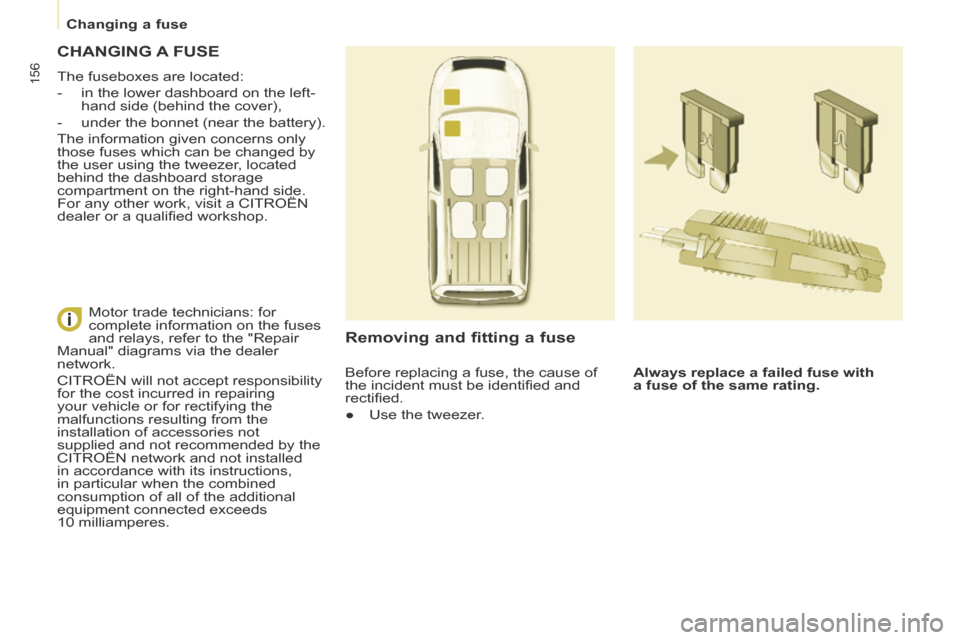

CHANGING A FUSE
The fuseboxes are located:
- in the lower dashboard on the left-hand side (behind the cover),
- under the bonnet (near the battery).
The information given concerns only
those fuses which can be changed by
the user using the tweezer, located
behind the dashboard storage
compartment on the right-hand side.
For any other work, visit a CITROËN
dealer or a qualifi ed workshop.
Removing and fitting a fuse
Always replace a failed fuse with
a fuse of the same rating.
Motor trade technicians: for
complete information on the fuses
and relays, refer to the "Repair
Manual" diagrams via the dealer
network.
CITROËN will not accept responsibility
for the cost incurred in repairing
your vehicle or for rectifying the
malfunctions resulting from the
installation of accessories not
supplied and not recommended by the
CITROËN network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes.
Before replacing a fuse, the cause of
the incident must be identifi ed and
rectifi ed.
● Use the tweezer.

Changing a fuse
159
QUICK HELP
7
FUSES UNDER THE BONNET
After opening the bonnet, unclip and tilt
the corresponding box to gain access
to the fuses. Fuses
F Amperes
A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 Engine components
6 10 Steering wheel angle sensor, DSC
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc
management unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp

170
Instruments and controls
ESC 107
Parking sensors 104-105
Electric mirrors 100

Headlamp beam height adjustment 51
Stop & Start 44-46
Cruise control
54-56
Speed limiter 57-59
Lighting controls
49-51
Automatic illumination of headlamps 50-51
Foglamps 50
LED daytime running lamps 50
INSTRUMENTS AND CONTROLS
Dashboard, passenger compartment fuses 156-158
Opening the bonnet 133
Parking brake 103 Instrument panels, screens,
dials 27-28
Warning lamps, indicator lamps 29-34
Indicators, fuel gauge 35, 38-39
Setting the time in the instrument panel 28
Lighting dimmer 39
Gear shift indicator 40-41
Gearbox 40
Ignition switch
47
Wiper controls
52-53
Automatic rain sensitive wipers 52
Screenwash / headlamp wash 53, 137
Trip computer Section 9
Audio equipment steering mounted controls Section 9
Steering wheel adjustment 43
Horn 103

173
Instruments and controls
VISUAL SEARCH
10
Fuses, dashboard, cabin 156-158
Bonnet release lever 133
Rear view mirror
101
Toll payment, parking 101
Child surveillance mirror 101
Emergency or assistance call Section 9
Front fi titngs 83-85
- glove box,
- roof storage,
- console,
- sun visor,
- bottle holder,
- bag holder,
- storage drawers,
- storage compartment.
"Grip control"
108-109 Technology on-board Section 9
- eMyWay
- Audio system
Controls - central locking 26
- electric child lock 126
- electric windows 102
- hazard warning lamps 103
Electronic gearbox 41-43
Heating, ventilation - heating 60-61
- air conditioning A/C 60-61
Digital air conditioning 62-63
Demisting-defrosting 64-65
Courtesy lamps 93, 153
Screens, display 27, Section 9
Setting the time
in the screen Section 9

176
Technical data - Maintenance
TECHNICAL DATA - MAINTENANCE
Identifi cation markings, serial number, paint code,
tyres 167
Snow chains 150
Windscreen / headlamp wash, levels 137
Changing bulbs, lighting 151-155 Checks
138-139
- battery,
- gearbox,
- air fi lter/passenger compartment fi lter,
- oil fi lter,
- particle emission fi lter,
- parking brake,
- brake pads,
- brake drums, discs. Engine fuses
156, 159
Opening the bonnet, stay 133 Levels
136-137
- Diesel additive,
- engine oil dipstick,
- power steering fl uid,
- brake fl uid,
- coolant.
Bleeding water, Diesel fi lter 139
Warning lamps
29-34
Under the bonnet
- Diesel 135
- petrol 134
Fuel cut-off, Diesel priming 141
Dimensions 162-165
Weights 166
