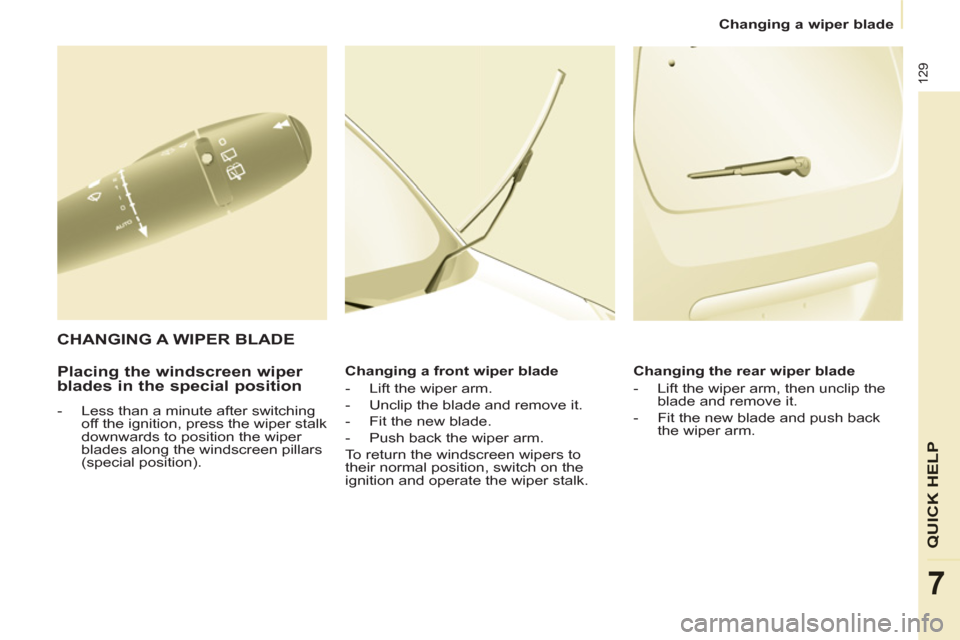

Changing a wiper blade
QUICK HELP

Placing the windscreen wiper
blades in the special position


- Less than a minute after switching
off the ignition, press the wiper stalk
downwards to position the wiper
blades along the windscreen pillars
(special position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk.
Changing the rear wiper blade


- Lift the wiper arm, then unclip the
blade and remove it.

- Fit the new blade and push back
the wiper arm.



CHANGING A WIPER BLADE

130


Having your vehicle towed



Without lifting (4 wheels on
the road)
You should always use a towing bar.

BEING TOWED
From the front



- Unclip the cover by pressing the
bottom part.

- Fully screw in the removable
towing eye.



From the rear



- Unclip the cover using a coin or the
fl at part of the towing eye,

- Fully screw in the removable
towing eye.

When towing with the engine
switched off, there is no braking or
steering assistance.


Lifting (2 wheels on
the road only)
It is preferable to raise the vehicle
using professional lifting equipment. The towing eye is stored in the tool kit,
located under the right-hand seat.

Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to transmission and
braking components and the absence
of braking assistance when the engine
is started again.

131

132


Dimensions

133

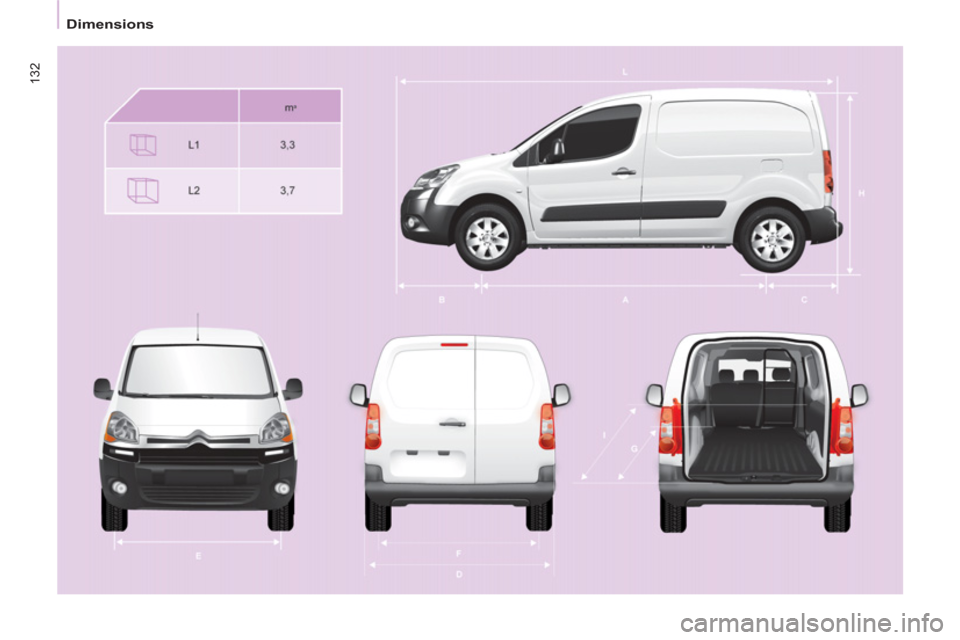

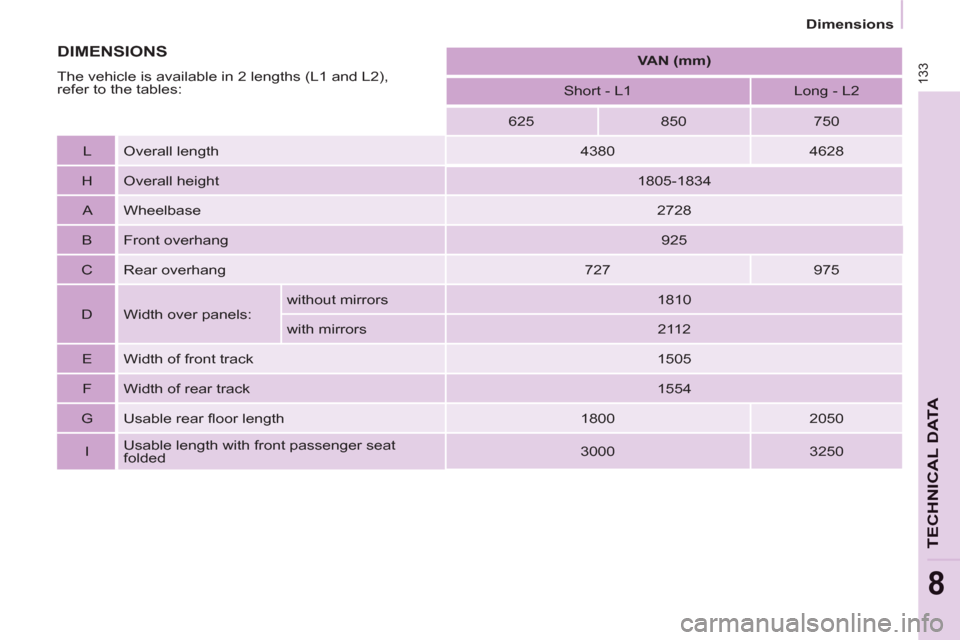

Dimensions

8
TECHNICAL DAT
A





VAN (mm)



Short - L1
Long - L2

625
850
750

L Overall length
4380
4628

H Overall height
1805-1834

A Wheelbase
2728

B Front overhang
925

C Rear overhang
727
975

D Width over panels: without mirrors
1810
with mirrors
2112

E Width of front track
1505

F Width of rear track
1554

G Usable rear fl oor length
1800
2050

I Usable length with front passenger seat
folded
3000
3250 DIMENSIONS DIMENSIONS

The vehicle is available in 2 lengths (L1 and L2),
refer to the tables:

134


Dimensions

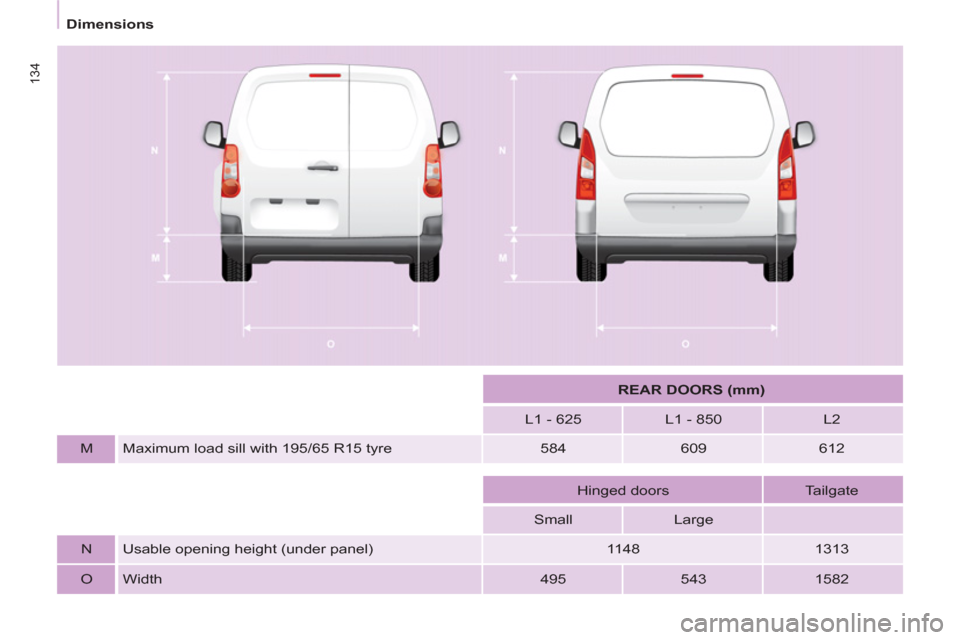

REAR DOORS (mm)



L1 - 625
L1 - 850
L2

M Maximum load sill with 195/65 R15 tyre
584
609
612









Hinged doors
Tailgate

Small
Large






N Usable opening height (under panel)
1148
1313

O Width
495
543
1582

135


Dimensions

8
TECHNICAL DAT
A

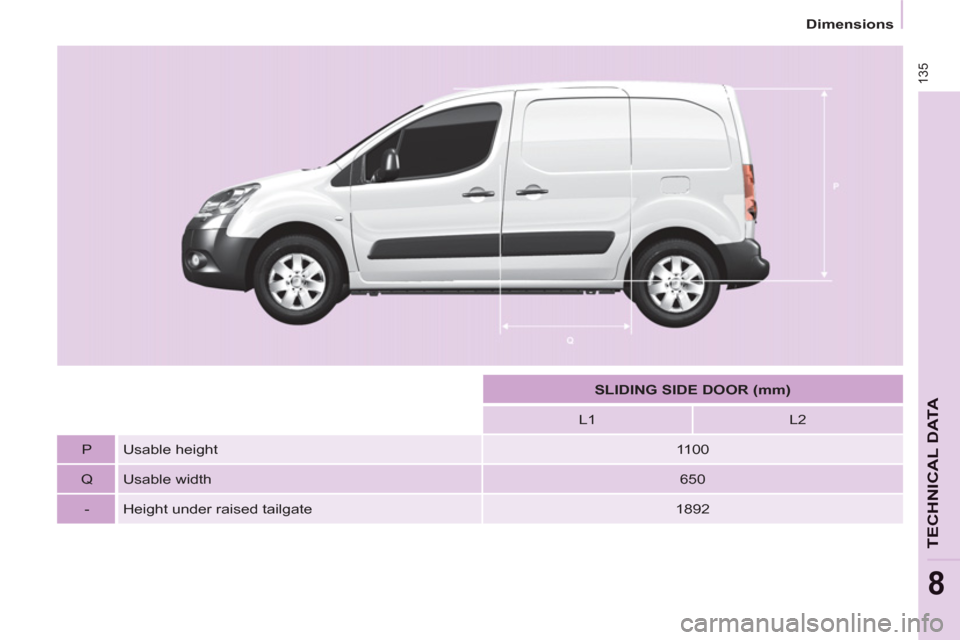

SLIDING SIDE DOOR (mm)



L1
L2

P
Usable height
1100

Q
Usable width
650

-
Height under raised tailgate
1892

136


Dimensions

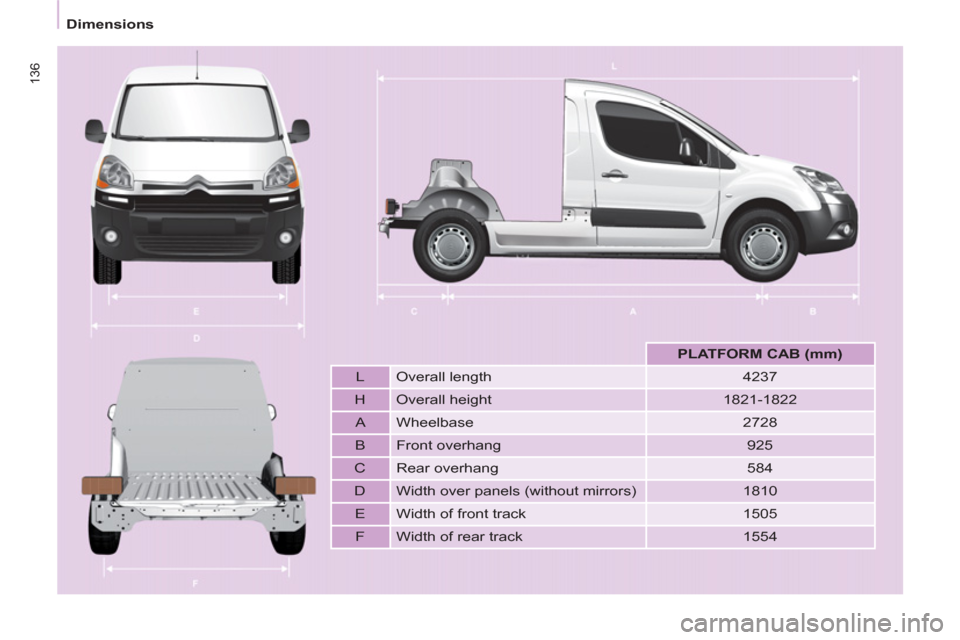

PLATFORM CAB (mm)



L Overall length
4237

H Overall height
1821-1822

A Wheelbase
2728

B Front overhang
925

C Rear overhang
584

D Width over panels (without mirrors)
1810

E Width of front track
1505

F Width of rear track
1554

137
8

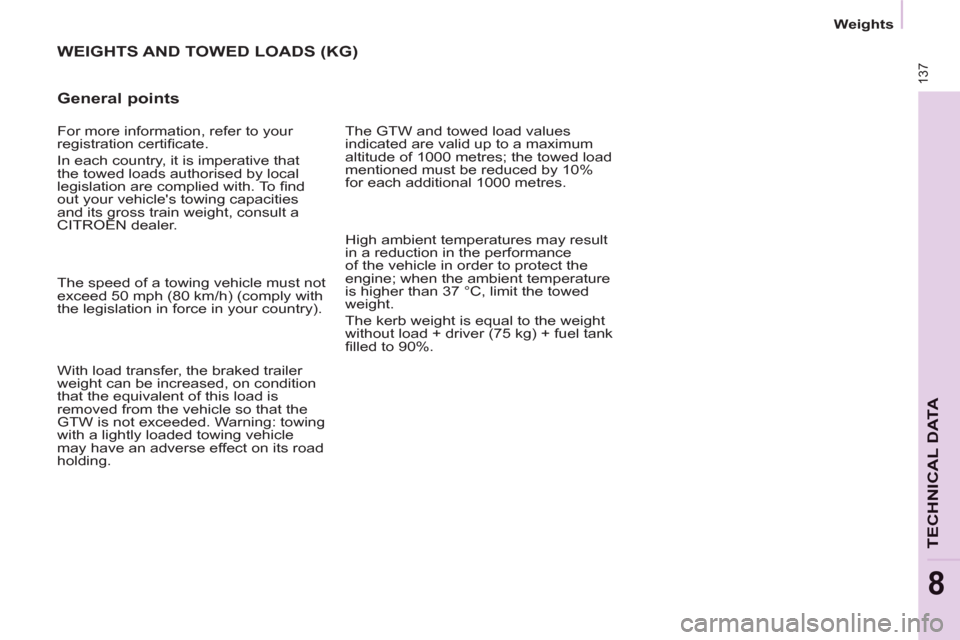

Weights
TECHNICAL DAT
A

WEIGHTS AND TOWED LOADS (KG)


General points

The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres; the towed load
mentioned must be reduced by 10%
for each additional 1000 metres.
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country).
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
with a lightly loaded towing vehicle
may have an adverse effect on its road
holding. High ambient temperatures may result
in a reduction in the performance
of the vehicle in order to protect the
engine; when the ambient temperature
is higher than 37 °C, limit the towed
weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi lled to 90%. For more information, refer to your
registration certifi cate.
In each country, it is imperative that
the towed loads authorised by local
legislation are complied with. To fi nd
out your vehicle's towing capacities
and its gross train weight, consult a
CITROËN dealer.

138


Identification markings

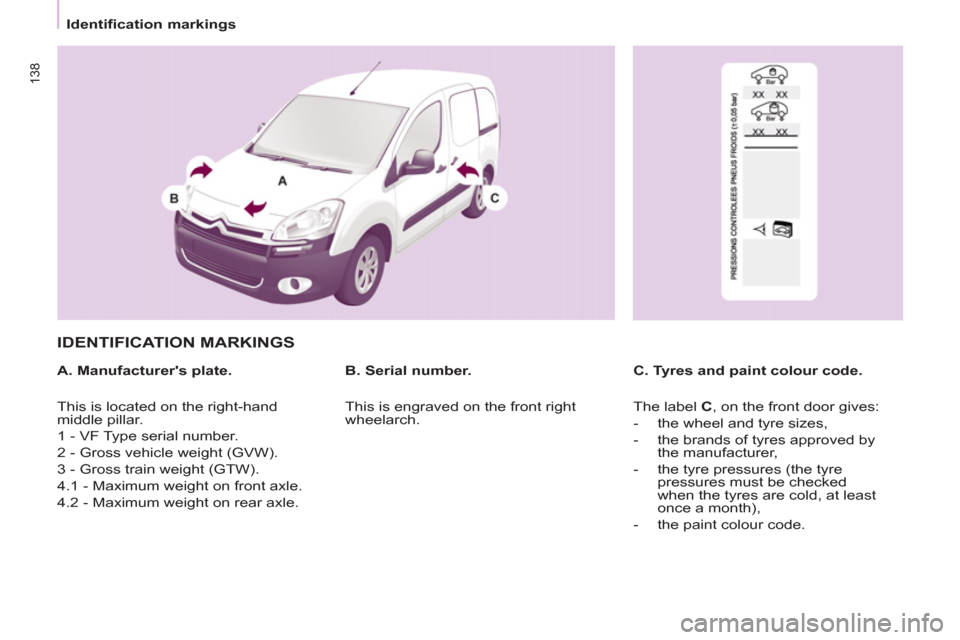

IDENTIFICATION MARKINGS


A. Manufacturer's plate.
C. Tyres and paint colour code.
B. Serial number.
This is located on the right-hand
middle pillar.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch. The label C
, on the front door gives:


- the wheel and tyre sizes,

- the brands of tyres approved by
the manufacturer,

- the tyre pressures (the tyre
pressures must be checked
when the tyres are cold, at least
once a month),

- the paint colour code.
