Cab fittings 79-80
- storage compartment.
-
glove box,
-
bottle holder
,
-
side storage,
-
bag holder
,
-
console,
-
overhead storage,
-
sun visor
,
-
storage compartments under seats.
Rear view mirror 88
Passenger's front airbag deactivation
108, 1
11
Courtesy lamps
81, 153
Gearbox
45
Controls
-
electric windows
89
-
hazard warning lamps
91
-
load space
locking
27
-
central locking
27
Screens, menus
28, 175, 236
Setting the date and time
30-31 Heating, ventilation-
heating
67-68, 71
-
air conditioning
67-68, 71
Digital air
conditioning
69-70, 71
Demisting/defrosting
72-73
"Grip control"
97-98 T
ouch screen tablet
171-231
Audio system
233-250
Reversing camera
94
1

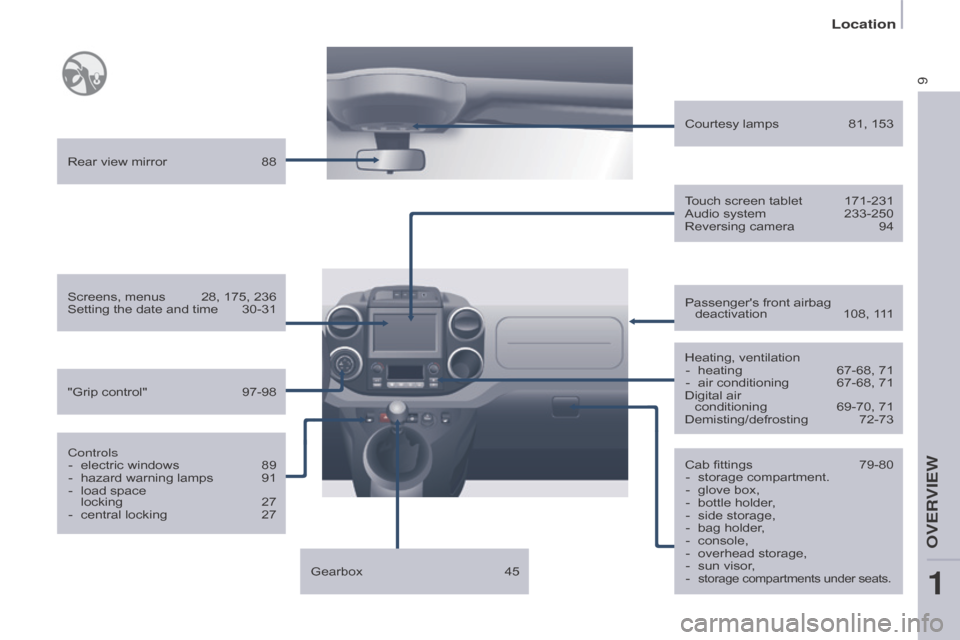

OVERVIEW
Location
Page 12 of 260
10
Berlingo2VU_en_Chap01_vue-ensemble_ed02-2016
Heating, ventilation- heating 67-68, 71
-
air conditioning
67-68, 71
Digital air
conditioning
69-70, 71
Demisting/defrosting
72-73
Rear view mirror
88
Controls-
electric windows
89
-
hazard warning lamps
91
-
load space
locking
27
-
central locking
27
"Grip control"
97-98
Cab fittings
79-80
-
storage compartment.
-
glove box,
-
bottle holder
,
-
side storage,
-
bag holder
,
-
console,
-
overhead storage,
-
sun visor
,
-
storage compartments under seats.
Dashboard, passenger compartment fuses 156-158
Opening the bonnet
125
T
ouch screen tablet
171-231
Audio system
233-250
Reversing camera
94
Screens, menus
28, 175, 236
Setting the date and time
30-31
Gearbox
45
Courtesy lamps
81, 153

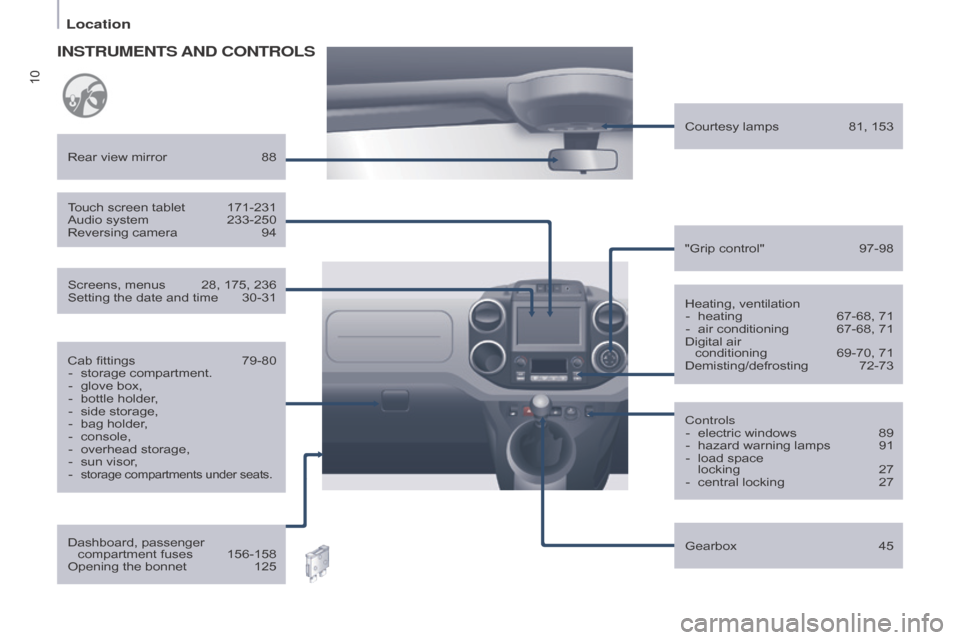

INSTRUMENTS AND CONTROLS
Location
Page 13 of 260
11
Berlingo2VU_en_Chap01_vue-ensemble_ed02-2016
Parking brake, handbrake 91 Instrument panels,
screens, dials
28-29Warning lamps, indicator lamps 32-39
Indicators, gauge
40, 43-44
Setting the time in
the instrument panel
29
Lighting dimmer
44
Gear shift
indicator
46 Passenger's front airbag deactivation
108, 1
11
ASR-DSC
96
Parking sensors
92-93
Electric mirrors
87-88Headlamp beam height adjustment 57
Stop & Start
49-51
Starter motor
, ignition switch
52
Wipers
58-59
Automatic wiping
58
Windscreen wash
59, 129
T
rip computer
60
Steering mounted controls: -
T
ouch screen tablet
174
-
Audio system
235
Steering wheel adjustment
45
Horn
90
6-speed electronic
gearbox
47-48
Lighting
55-57
Automatic illumination
of headlamps
56
Foglamps
56, 57
Cruise control
61-63
Speed limiter
64-66
1
OVERVIEW
Location
Page 14 of 260
12
Berlingo2VU_en_Chap01_vue-ensemble_ed02-2016

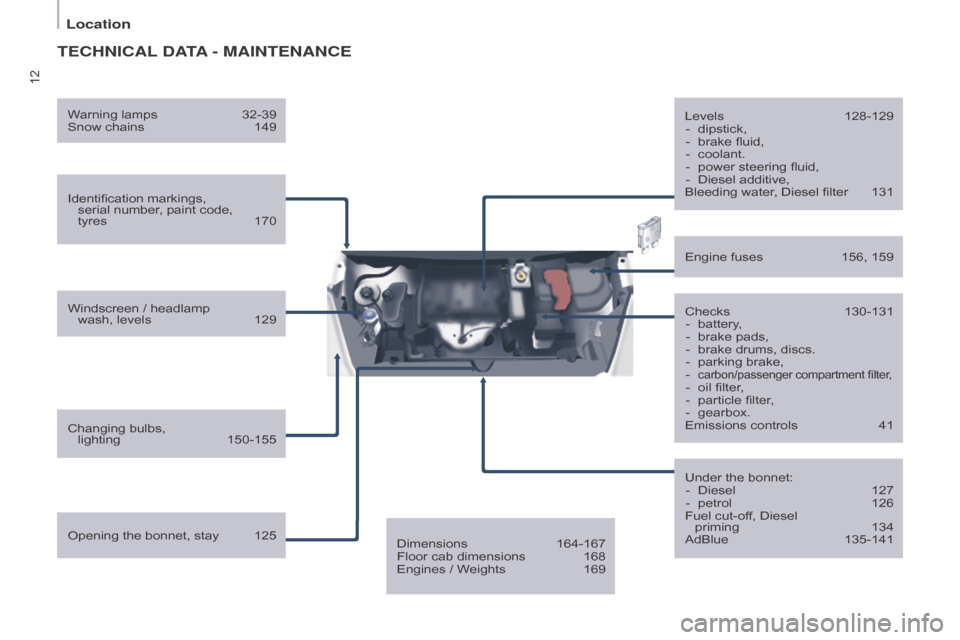

TECHNICAL DATA - M AINTENANCE
Identification markings,
serial number, paint code,
tyres
170
Windscreen / headlamp
wash, levels
129
Changing bulbs,
lighting
150-155 Checks
130-131
-
battery
,
-
brake pads,
-
brake drums, discs.
-
parking brake,
-
carbon/passenger compartment filter,- oil filter,
- particle filter ,
-
gearbox.
Emissions controls
41
Engine fuses
156, 159
Under the bonnet: -
Diesel
127
-
petrol
126
Fuel cut-of
f, Diesel
priming
134
AdBlue
135-141
Opening the bonnet, stay
125 Levels
128-129
-
dipstick,
-
brake fluid,
-
coolant.
-
power steering fluid,
-
Diesel additive,
Bleeding water
, Diesel filter
131
W
arning lamps
32-39
Snow chains
149
Dimensions
164-167
Floor cab dimensions
168
Engines / W
eights
169
Location
Page 15 of 260
13
Berlingo2VU_en_Chap01_vue-ensemble_ed02-2016
INSTRUMENTS AND CONTROLS
1. Lighting and direction indicator control
stalk.
2.
Instrument panel with screen.
3.
Wiper
, screenwash, trip computer
control stalk.
4.
Ignition switch.
5.
Audio controls.
6.
Driver's front airbag, horn.
7.
Steering wheel height and reach
adjustment.
8.
Cruise control, speed limiter controls.
9.
Switch panel: parking sensors,
headlamp beam adjustment, DSC,
Stop & Start.
10.
Bonnet release lever
.
11 .
Electric door mirror adjustment.
12.
Front electric window switches.
13.
Switch panel: hazard warning
lamps, central locking (passenger
compartment, load space).
14.
Cigarette lighter
.
15.
Heating-ventilation controls.
16.
Electronic gearbox control or Grip
control button.
17.
T
ouch screen tablet.
18.
USB port (with electronic gearbox).
19.
USB port (with manual gearbox).
1
OVERVIEW
Presentation
Page 16 of 260
14
Berlingo2VU_en_Chap01_vue-ensemble_ed02-2016
1. Lighting and direction indicator control
stalk.
2.
Instrument panel with screen.
3.
Wiper
, screenwash, trip computer
control stalk.
4.
Ignition switch.
5.
Audio controls.
6.
Driver's front airbag, horn.
7.
Steering wheel height and reach
adjustment.
8.
Cruise control, speed limiter controls.
9.
Switch panel: parking sensors,
headlamp beam adjustment, DSC,
Stop & Start, alarm.
10.
Bonnet release lever
.
11 .
Electric door mirror adjustment.
12.
Front electric window switches.
13.
Switch panel: hazard warning
lamps, central locking (passenger
compartment, load space).
14.
Cigarette lighter
.
15.
Heating-ventilation controls.
16.
Electronic gearbox control or Grip
control button.
17.
T
ouch screen tablet.
18.
USB port (with electronic gearbox).
19.
USB port (with manual gearbox).
INSTRUMENTS AND CONTROLS
Presentation
Page 17 of 260
15
Environment
With you, CITROËN acts to protect
the environment.
We invite you to visit the
www.citroen.co.uk website. As the driver, you also can contribute
to protecting the environment in the
following way:
-
drive smoothly
, without frequent
and harsh acceleration,
-
observe the service intervals;
we recommend that services are
carried out by a CITROËN dealer
,
authorised to collect used batteries
and fluids,
-
in order to preserve the reliability
of the engine and emission control
systems, do not use engine oil
additives.
Refer to information on eco-driving at
the end of this section.
2
ECO-DRIVING
Motoring & the Environment
Page 18 of 260

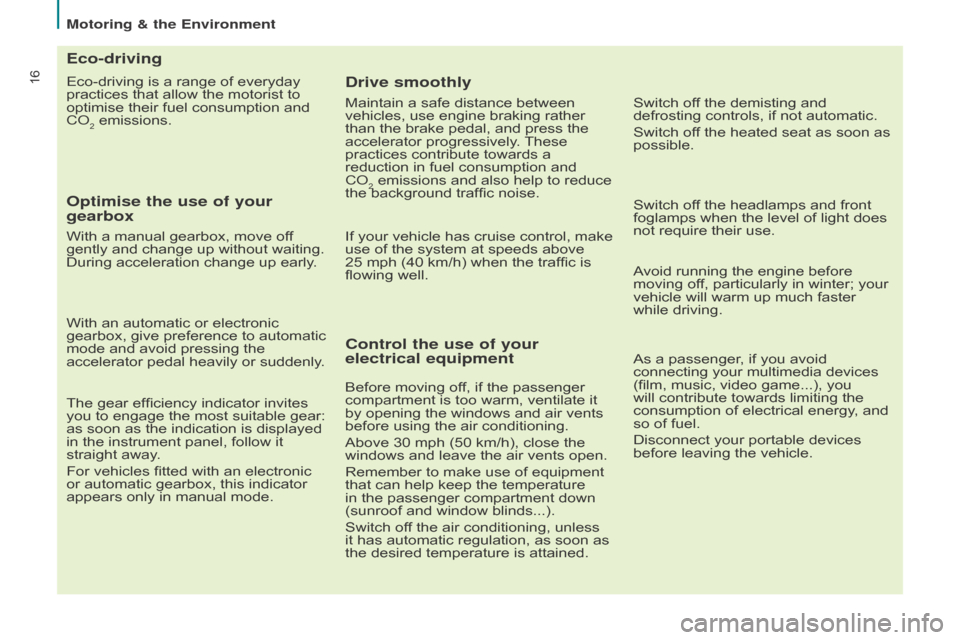

16Eco-driving is a range of everyday
practices that allow the motorist to
optimise their fuel consumption and
CO
2 emissions.
Eco-driving
Optimise the use of your
gearbox
With a manual gearbox, move off
gently and change up without waiting.
During acceleration change up early.
With an automatic or electronic
gearbox, give preference to automatic
mode and avoid pressing the
accelerator pedal heavily or suddenly.
The gear efficiency indicator invites
you to engage the most suitable gear:
as soon as the indication is displayed
in the instrument panel, follow it
straight away.
For vehicles fitted with an electronic
or automatic gearbox, this indicator
appears only in manual mode.
Drive smoothly
Maintain a safe distance between
vehicles, use engine braking rather
than the brake pedal, and press the
accelerator progressively. These
practices contribute towards a
reduction in fuel consumption and
CO
2 emissions and also help to reduce
the background traffic noise.
If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the traffic is
flowing well.
Control the use of your
electrical equipment
Switch off the demisting and
defrosting controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before
moving off, particularly in winter; your
vehicle will warm up much faster
while driving.
As a passenger, if you avoid
connecting your multimedia devices
(film, music, video game...), you
will contribute towards limiting the
consumption of electrical energy, and
so of fuel.
Disconnect your portable devices
before leaving the vehicle.
Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sunroof and window blinds...).
Switch off the air conditioning, unless
it has automatic regulation, as soon as
the desired temperature is attained.
Motoring & the Environment
Page 19 of 260

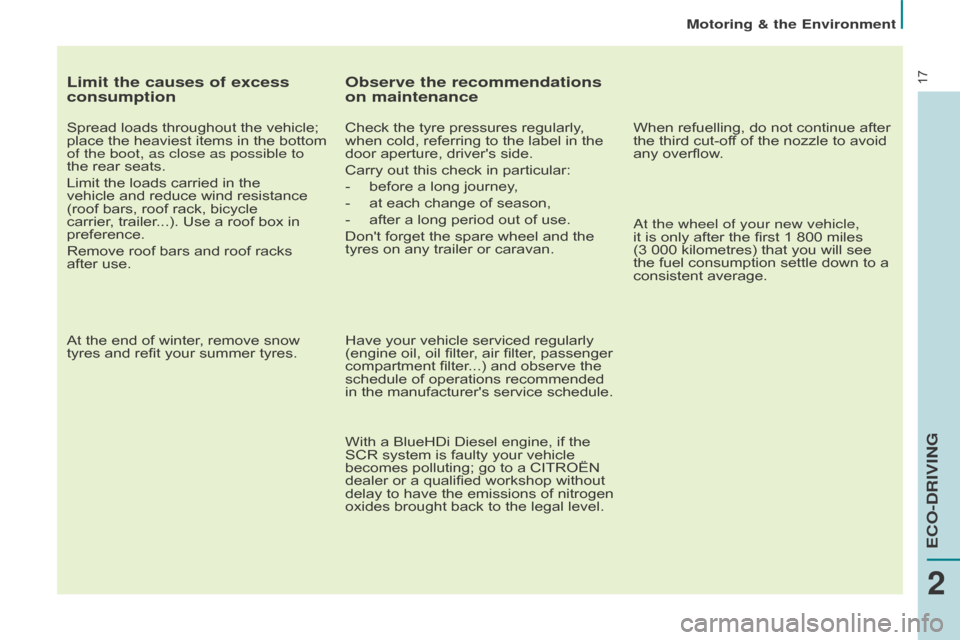

17Limit the causes of excess
consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to
the rear seats.
Limit the loads carried in the
vehicle and reduce wind resistance
(roof bars, roof rack, bicycle
carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks
after use.
At the end of winter, remove snow
tyres and refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
-
before a long journey
,
-
at each change of season,
-
after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regularly
(engine oil, oil filter
, air filter, passenger
compartment filter...) and observe the
schedule of operations recommended
in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the
SCR system is faulty your vehicle
becomes polluting; go to a CITROËN
dealer or a qualified workshop without
delay to have the emissions of nitrogen
oxides brought back to the legal level. When refuelling, do not continue after
the third cut-off of the nozzle to avoid
any overflow.
At the wheel of your new vehicle,
it is only after the first 1 800 miles
(3
000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.
2
ECO-DRIVING
Motoring & the Environment
Page 20 of 260
18
Berlingo2VU_en_Chap03_Pret-a-partir_ed02-2016
KEY
This locks and unlocks the vehicle's
doors, opens and closes the fuel filler
cap, as well as starting and stopping
the engine.
Security of use
R
EMOTE
CONTROL
Unlocking the cab or the vehicle Unlocking the load spaceLocking
Press this button to lock the
vehicle completely.
The direction indicators flash once.
If one of the doors is open
(transportation of long loads) or is not
closed correctly, the central locking will
not work.
Deadlocking
A second press on the closed padlock
on the remote control within five
seconds after locking changes the
locking to deadlocking.
This is confirmed by fixed lighting
of the direction indicators for
approximately two seconds.
Deadlocking renders the exterior
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started.
To unlock the load space only:
Press this control to unlock
the load space, the front
doors alone remain locked. Press this control to lock the
vehicle completely. Press this button to unlock all
of the rear doors.
Press this button once to
unlock the front doors.
Press this button again
to unlock your vehicle
completely.
The direction indicators flash twice.
Access
