CITROEN BERLINGO VAN 2008 Owner's Manual

23
Access
READY TO GO
2
TAILGATE
From outside
Locking/unlocking is by means of the
remote control.
To open, press the control below the
trim then raise the tailgate.
A pull strap is available to close the
tailgate in the high position.
Guide the closing of the tailgate to the
balance point of its travel then apply
a fi nal press on the tailgate to close it
fully. From inside
Emergency control
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the door and the
fl oor. To unlock the lock, move the
catch to the left then push the tailgate.
Tailgate screen
The opening rear screen allows you to
access the rear of the vehicle directly,
without having to open the tailgate.
Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen
to open it.
Closing
Close the rear screen by pressing
the centre of the glass until it is fully
closed.
The tailgate and tailgate screen cannot
both be open at the same time, to
prevent damage to the glass and
the screen itself.

Access The control diode:
- fl ashes when the doors are locked with the vehicle stationary and the
engine off,
-
comes on when the doors are locked and
from the time the ignition is switched on.
CENTRAL LOCKING
Cab and load space
Load space Locking while driving
When the vehicle moves off, as soon
as you reach approximately 6 mph
(10 km/h), the system locks the doors.
A noise characteristic of central locking
is heard. The LED on the control on
the dashboard central control panel
comes on.
During the journey, opening a door
results in complete unlocking of the
vehicle.
In the event of a serious impact, the
doors are unlocked automatically
to permit access by the emergency
services.
Protection against attack
An initial press permits
central locking of the front
and rear doors, when they
are closed.
A second press permits central
unlocking of the vehicle.
The control is inactive when the vehicle
has been locked using the remote
control or the key from the outside. Activating/deactivating the function
With the ignition on, press
and hold this button to
activate or deactivate
the function.

Door open warning lamp
If this warning lamp comes
on, check that all of your
vehicle's doors are closed
correctly.
Press to lock/unlock the rear
doors without changing the
locking status of the cab.
The doors can still be opened
from the inside.

Instruments and controls
READY TO GO
22
INSTRUMENTS AND CONTROLS
INSTRUMENT PANEL
Dials

1. Distance recorder in kilometres/
miles.

2. Display.

3. Fuel level, coolant temperature.

4. Rev counter.

5. Trip distance recorder/service
indicator zero reset.

6. Instrument panel lighting rheostat. Displays
- Speed limiter/cruise control.
- Kilometres/Miles travelled.
- Service indicator, engine oil level
indicator, total kilometres/miles.
- Presence of water in the diesel fi lter.
- Diesel pre-heating. Screens
The information is presented on board
the vehicle in different display formats
according to the vehicle's equipment.

26
Instruments and controls Centre console with display

Instrument panel without display
- turn to the right to increase the hours (hold the button to the right
for rapid scrolling),
- turn to the left: 24 H or 12 H is displayed,
- turn to the right to select 24 H or 12 H,
- turn to the left to complete the time adjustment.
After approximately 30 seconds
without any action, the display returns
to the normal display.
To adjust the time and date
indicated on the display, refer to
the "Adjusting the date and time"
section of chapter 9.
Centre console without display
To adjust the time of the
clock, use the left-hand
button on the instrument
panel then carry out the
operations in the following
order:
- turn to the left: the minutes fl ash,
- turn to the right to increase the minutes (hold the button to the right
for rapid scrolling),
- turn to the left: the hours fl ash, The display - time sequence
is linked according to model
(version). The access to the
"Date" adjustment is only
active when the model version
offers a date in words.

Instruments and controls
27
READY TO GO
22
Warning lamps
Each time the vehicle is started: a series of warning lamps comes on applying a self-test check. They go off almost
immediately. When the engine is running: the warning lamp becomes a warning if it remains on continuously or fl ashes.
This initial warning may be accompanied by an audible signal and a message which appears in the screen.
Do not ignore these warnings.

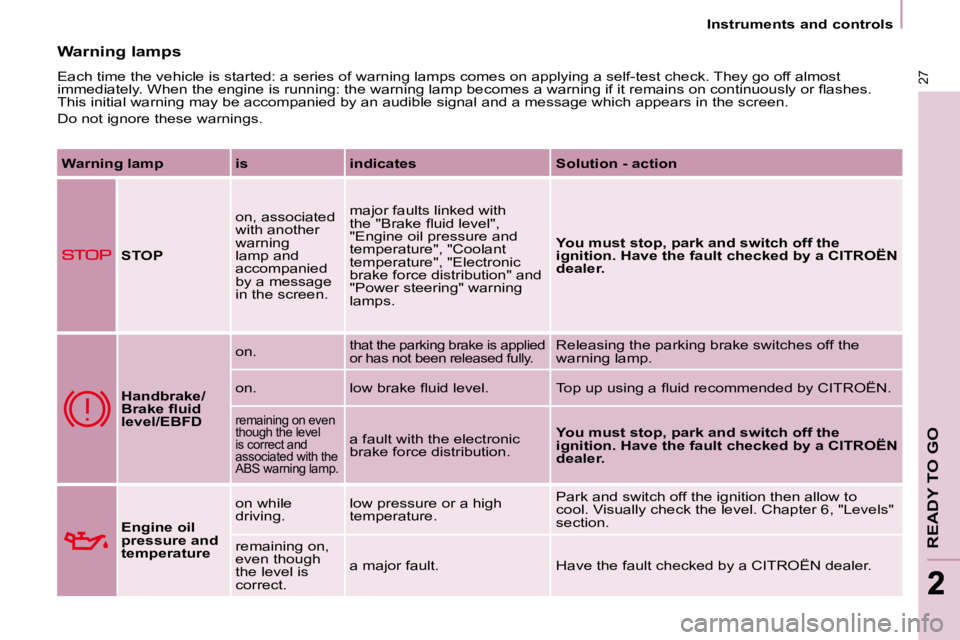

Warning lamp is indicates Solution - action

STOP on, associated
with another
warning
lamp and
accompanied
by a message
in the screen. major faults linked with
the "Brake fl uid level",
"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic
brake force distribution" and
"Power steering" warning
lamps.

You must stop, park and switch off the
ignition. Have the fault checked by a CITROËN
dealer.

Handbrake/
Brake fl uid
level/EBFD on.
that the parking brake is applied
or has not been released fully. Releasing the parking brake switches off the
warning lamp.
on. low brake fl uid level. Top up using a fl uid recommen ded by CITROËN.
remaining on even
though the level
is correct and
associated with the
ABS warning lamp.
a fault with the electronic
brake force distribution.
You must stop, park and switch off the
ignition. Have the fault checked by a CITROËN
dealer.

Engine oil
pressure and
temperature on while
driving.
low pressure or a high
temperature. Park and switch off the ignition then allow to
cool. Visually check the level. Chapter 6, "Levels"
section.
remaining on,
even though
the level is
correct. a major fault. Have the fault checked by a CITROËN dealer
.

28
Instruments and controls

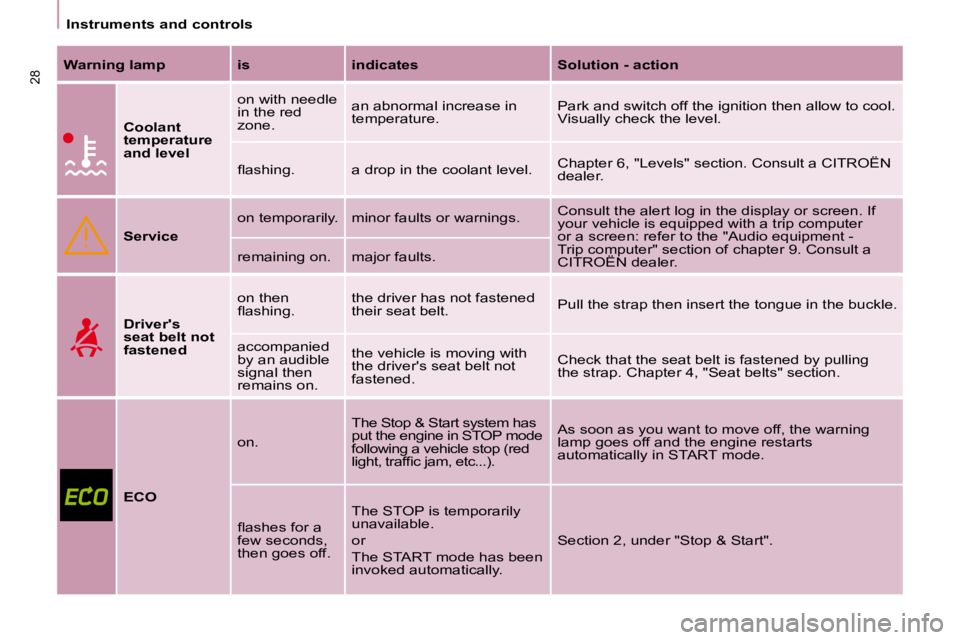

Warning lamp is indicates Solution - action

Coolant
temperature
and level on with needle
in the red
zone.
an abnormal increase in
temperature.
Park and switch off the ignition then allow to cool.
Visually check the level.
fl ashing. a drop in the coolant level. Chapter 6, "Levels" section. Consult a CITROËN
dealer.

Service on temporarily. minor faults or warnings.
Consult the alert log in the display or screen. If
your vehicle is equipped with a trip computer
or a screen: refer to the "Audio equipment -
Trip computer" section of chapter 9. Consult a
CITROËN dealer.
remaining on. major faults.

Driver's
seat belt not
fastened on then
fl ashing.
the driver has not fastened
their seat belt.
Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver's seat belt not
fastened.
Check that the seat belt is fastened by pulling
the strap. Chapter 4, "Seat belts" section.

ECO on.
The Stop & Start system has
put the engine in STOP mode
following a vehicle stop (red
light, traffi c jam, etc...). As soon as you want to move off, the warning
lamp goes off and the engine restarts
automatically in START mode.
fl ashes for a
few seconds,
then goes off. The STOP is temporarily
unavailable.
or
The START mode has been
invoked automatically.
Section 2, under "Stop & Start".

Instruments and controls
29
READY TO GO
22

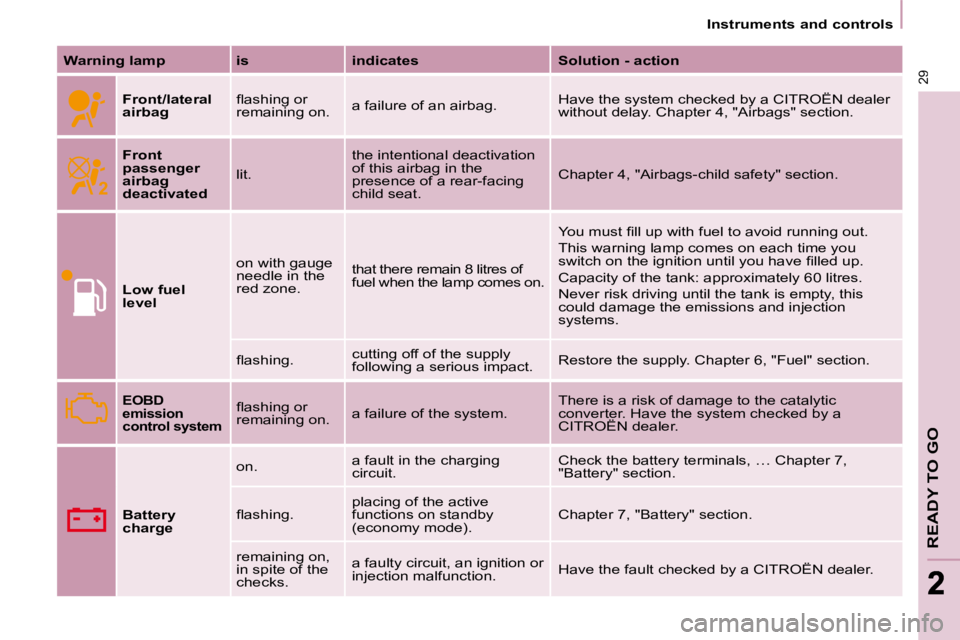

Warning lamp is indicates Solution - action

Front/lateral
airbag fl ashing or
remaining on.
a failure of an airbag. Have the system checked by a CITROËN dealer
without delay. Chapter 4, "Airbags" section.

Front
passenger
airbag
deactivated lit. the intentional deactivation
of this airbag in the
presence of a rear-facing
child seat. Chapter 4, "Airbags-child safety" section.

Low fuel
level on with gauge
needle in the
red zone.
that there remain 8 litres of
fuel when the lamp comes on. You must fi ll up with fuel to avoid running out.
This warning lamp comes on each time you
switch on the ignition until you have fi lled up.
Capacity of the tank: approximately 60 litres.
Never risk driving until the tank is empty, this
could damage the emissions and injection
systems.
fl ashing. cutting off of the supply
following a serious impact. Restore the supply. Chapter 6, "Fuel" section.

EOBD
emission
control system fl ashing or
remaining on. a failure of the system. There is a risk of damage to the catalytic
converter. Have the system checked by a
CITROËN dealer.

Battery
charge on.
a fault in the charging
circuit. Check the battery terminals, … Chapter 7,
"Battery" section.
fl ashing. placing of the active
functions on standby
(economy mode). Chapter 7, "Battery" section.
remaining on,
in spite of the
checks. a faulty circuit, an ignition or
injection malfunction.
Have the fault checked by a CITROËN dealer.

ABS
30
Instruments and controls

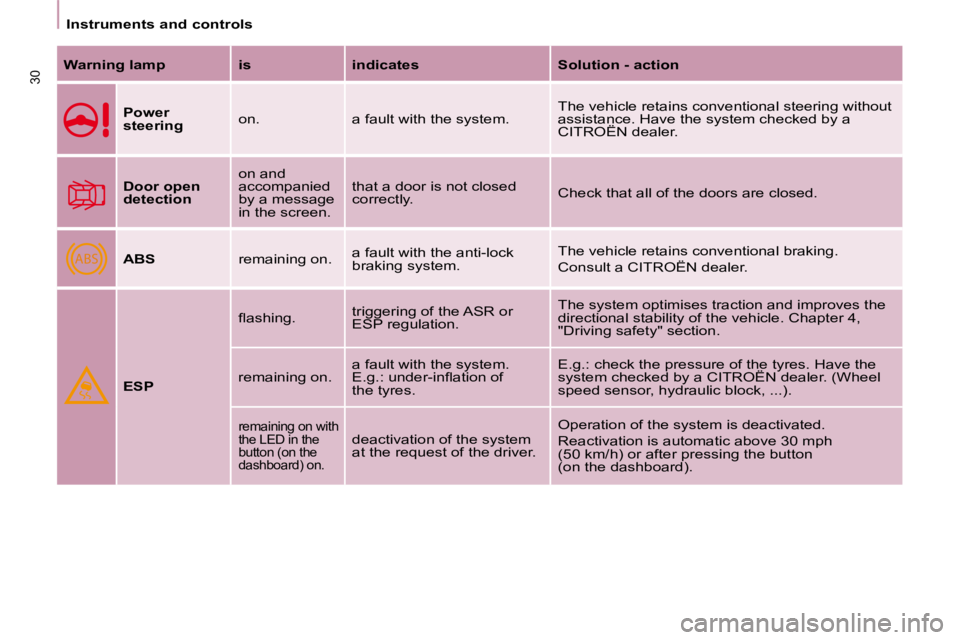

Warning lamp is indicates Solution - action

Power
steering on. a fault with the system. The vehicle retains conventional steering without
assistance. Have the system checked by a
CITROËN dealer.

Door open
detection on and
accompanied
by a message
in the screen. that a door is not closed
correctly.
Check that all of the doors are closed.

ABS remaining on. a fault with the anti-lock
braking system. The vehicle retains conventional braking.
Consult a CITROËN dealer.

ESP fl ashing.
triggering of the ASR or
ESP regulation. The system optimises traction and improves the
directional stability of the vehicle. Chapter 4,
"Driving safety" section.
remaining on. a fault with the system.
E.g.: under-infl ation of
the tyres. E.g.: check the pressure of the tyres. Have the
system checked by a CITROËN dealer. (Wheel
speed sensor, hydraulic block, ...).
remaining on with
the LED in the
button (on the
dashboard) on. deactivation of the system
at the request of the driver. Operation of the system is deactivated.
Reactivation is automatic above 30 mph
(50 km/h) or after pressing the button
(on the dashboard).

Instruments and controls
31
READY TO GO
22

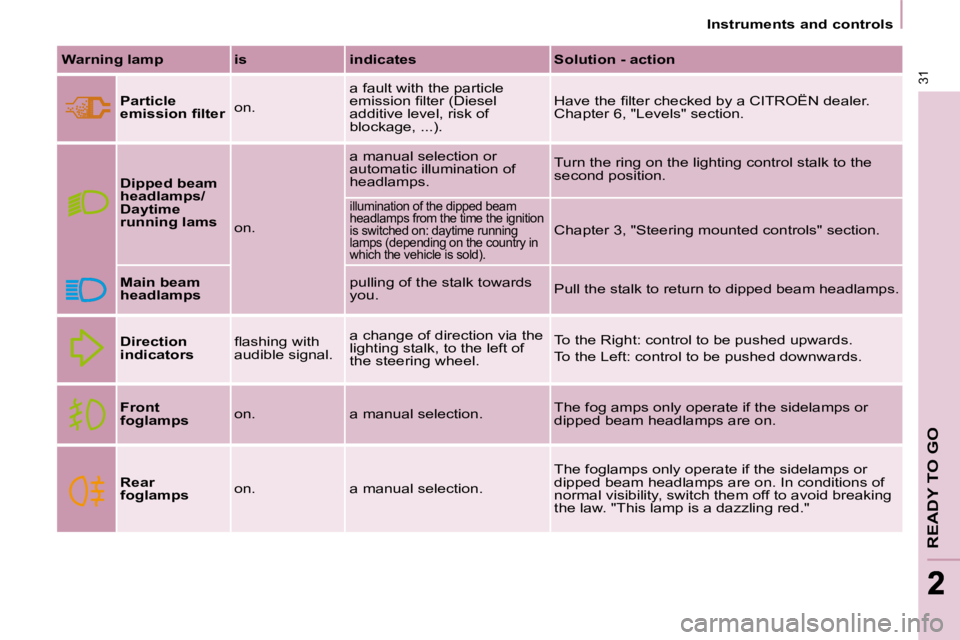

Warning lamp is indicates Solution - action

Particle
emission fi lter on. a fault with the particle
emission fi lter (Diesel
additive level, risk of
blockage, ...). Have the fi lter checked by a CITROËN dealer.
Chapter 6, "Levels" section.

Dipped beam
headlamps/
Daytime
running lams
on. a manual selection or
automatic illumination of
headlamps.
Turn the ring on the lighting control stalk to the
second position.
illumination of the dipped beam
headlamps from the time the ignition
is switched on: daytime running
lamps (depending on the country in
which the vehicle is sold).
Chapter 3, "Steering mounted controls" section.

Main beam
headlamps pulling of the stalk towards
you.
Pull the stalk to return to dipped beam headlamps.

Direction
indicators fl ashing with
audible signal. a change of direction via the
lighting stalk, to the left of
the steering wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.

Front
foglamps on. a manual selection. The fog amps only operate if the sidelamps or
dipped beam headlamps are on.

Rear
foglamps on. a manual selection. The foglamps only operate if the sidelamps or
dipped beam headlamps are on. In conditions of
normal visibility, switch them off to avoid breaking
the law. "This lamp is a dazzling red."

32

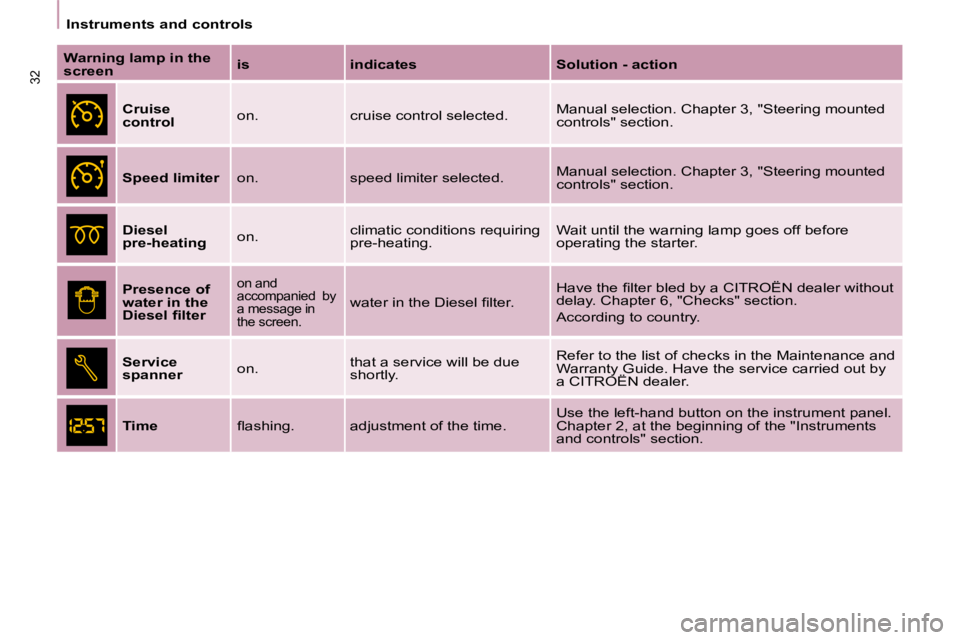

Instruments and controls

Warning lamp in the
screen
is indicates Solution - action

Cruise
control on. cruise control selected. Manual selection. Chapter 3, "Steering mounted
controls" section.

Speed limiter on. speed limiter selected. Manual selection. Chapter 3, "Steering mounted
controls" section.

Diesel
pre-heating on. climatic conditions requiring
pre-heating. Wait until the warning lamp goes off before
operating the starter.

Presence of
water in the
Diesel fi lter
on and
accompanied by
a message in
the screen.
water in the Diesel fi lter. Have the fi lter bled by a CITROËN dealer without
delay. Chapter 6, "Checks" section.
According to country.

Service
spanner on. that a service will be due
shortly. Refer to the list of checks in the Maintenance and
Warranty Guide. Have the service carried out by
a CITROËN dealer.

Time fl ashing. adjustment of the time. Use the left-hand button on the instrument panel.
Chapter 2, at the beginning of the "Instruments
and controls" section.
