language Citroen C CROSSER 2008 1.G User Guide
[x] Cancel search | Manufacturer: CITROEN, Model Year: 2008, Model line: C CROSSER, Model: Citroen C CROSSER 2008 1.GPages: 216, PDF Size: 4.85 MB
Page 174 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
171
DESCRIPTION OF THE CONTROLS - MENUS
MODE: Audio-video menu for:
- the radio,
- the audio, MP3 or WMA CD,
- the music server,
- the DVD.
MENU: Navigation-guidance menu
for selecting:
- a destination,
- a point of interest (POI),
- an advanced search by POI,
- one of the 20 previous destinations,
- an address stored in the address book,
- the return home,
- certain navigation settings,
- a route demonstration. NAVI: displaying of the current location
on the
map .
SET:
Settings menu for:
- switching off the display,
- selecting the sound setting,
- selecting the picture quality,
- selecting the language, the time zone or the units,
- selecting the size of the DVD picture,
- selecting the guidance voice, the display colour ranges or the
displaying of the audio-video
icon,
- setting certain equipment available in your vehicle. INFO:
Information menu for the
consultation or setting of certain
parameters of your vehicle.
Page 201 of 216
ABCDE
FGHIJ
KLM
RQPON
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
198
Information displayed in DVD mode
The DVD button is only active if the
player contains a DVD. Press Open to return the display to the
vertical position. For safety reasons, the video
is not displayed while driving,
however the audio can be
played.
To display the picture and watch
a DVD, park the vehicle in a safe
place.
K. To display the DVD title menu.
L. To scroll up or down through the
chapters.
Press and hold for fast backwards
or forwards play.
M. To scroll up or down through the
titles.
N. To enter a title or chapter number.
O. To change the angle.
P. To change the language of the
subtitles.
Q. To change the language .
R. To select a chapter or title or specify
a number.
A. This icon is displayed when the
operation requested cannot be
carried out.
B. The number of the chapter currently
being played is displayed.
C. The number of the title currently
being played is displayed.
D. Symbols display the current status
of the player.
E. The playing time is displayed.
F. To resume normal play when play is
paused or during slow-motion play.
G. To stop play temporarily.
H. To stop play. Press the screen to
access the menu.
I. For slow-motion play.
J. To play the previously selected zone
on the disc.
Page 204 of 216
DE
E1E2E3E4
D1D2
D3D4
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
201

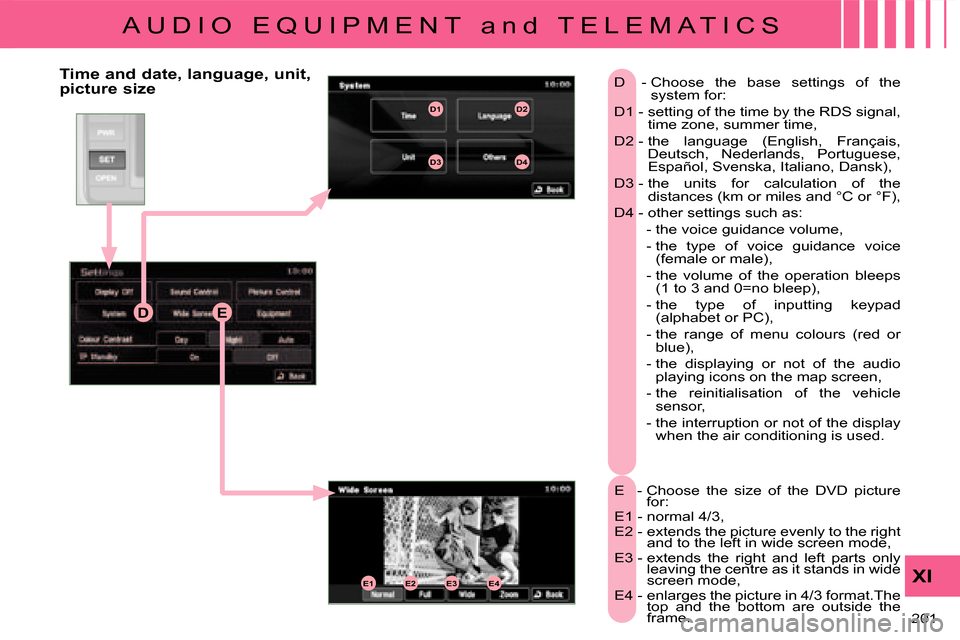

Time and date, language, unit,
picture size
E - Choose the size of the DVD picture
for:
E1 - normal 4/3,
E 2 - e x t e n d s t h e p i c t u r e e v e n l y t o t h e r i g h t and to the left in wide screen mode,
E 3 - e x t e n d s t h e r i g h t a n d l e f t p a r t s o n l y
leaving the centre as it stands in wide
screen mode,
E4 - enlarges the picture in 4/3 format.The top and the bottom are outside the
frame.
D
- Choose the base settings of the
system for:
D1 - setting of the time by the RDS signal,
time zone, summer time,
D2 - the language (English, Français,
Deutsch, Nederlands, Portuguese,
Español, Svenska, Italiano, Dansk),
D3 - the units for calculation of the
distances (km or miles and °C or °F),
D4 - other settings such as:
- the voice guidance volume,
- the type of voice guidance voice (female or male),
- the volume of the operation bleeps (1 to 3 and 0=no bleep),
- the type of inputting keypad (alphabet or PC),
- the range of menu colours (red or blue),
- the displaying or not of the audio playing icons on the map screen,
- the reinitialisation of the vehicle sensor,
- the interruption or not of the display when the air conditioning is used.
Page 209 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
206
HANDS-FREE TELEPHONE
What is the Bluetooth® hands-free telephone with voice
recognition?
The system uses wireless communication technology referred to as
Bluetooth® which allows you to make hands-free telephone calls in
SPEAK
Pressing activates the voice recognition (“Listening” is displayed).
During voice recognition, a brief press pauses this recognition.
A n e x t e n d e d p r e s s d e a c t i v a t e s t h e r e c o g n i t i o n .
A brief press will activate the recognition even if a telep hone call is
progress.
Increasing of the audio volume.
PICK UP
Press to answer an incoming call.
If a second incoming call is received,
p r e s s t h i s b u t t o n t o p l a c e t h e fi r s t
call on hold and speak to the second
caller.
In this case, a brief press switches
between callers.
To establish a three-way conver-
sation, press the SPEAK button to
switch to voice recognition mode and
say “Incorporate the call”.
HANG UP
Press to reject an incoming call.
During a call, pressing ends this call.
General notes
Decreasing of the audio volume. Audio system on/off. your vehicle via your Bluetooth® com-
patible mobile telephone.
It has a voice recognition function which
allows you to make telephone calls us-
ing a microphone, located in the courte-
sy light, and also by means of easy use
of the steering wheel controls or using
voice commands. Five languages are
available: English (by default), Spanish,
French, German and Italian.
Page 210 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
207
Changing the language,
programming the voice
Changing the language of the voice
commands
By default, the recognition system is in
English. Programming the user’s voice
You can use the user’s voice programming
function to create a voice model for one
person per language.
The characteristics of your voice and
your pronunciation are recorded in this
model for improved voice recognition.
It is essential that the vehicle is parked
in a safe place, with the handbrake
applied.
Switch off your telephone during the
process to avoid any interruption.
1 - Press the SPEAK button. 5 - T h e s y s t e m s a y s t h e fi r s t o f 4 5
typical phrases.
If you do not start the programming
p r o c e s s w i t h i n a p p r o x i m a t e l y 3 m i n -
utes after pressing the SPEAK but-
ton, the process is cancelled.
If you press the SPEAK button with-
in 5 seconds following the reading of
a voice command, the recording of
this command is repeated.
1 - Press the SPEAK button.
2 - Say “Setup”.
3 - Say “Language”.
5 - Say the language of your c h o i c e i n E n g l i s h , e x a m p l e :
say “French” for French.
7 - Say “Yes” to start the change of language process or say
“No” to return to steps 4 to 7.
8 - The system repeats the language chosen and completes the change
of language process. 2 - Say “Word training”.
4 - When you are ready to start, press and hold the SPEAK
button. 6 - Repeat each phrase in the
t a b l e o n t h e n e x t p a g e .
The system records your voice and
m o v e s o n t o t h e r e c o r d i n g o f t h e n e x t
command.
Continue the process until all of the
phrases have been recorded.
4 - The system says “Select a language: English, Spanish, French, German
or Italian”.
6 - The system then says “French selected. Is this correct?”
3 - A n e x p l a n a t i o n m e s s a g e i s g i v e n . 7 - After reading all the voice commands,
the system says “The word enrolment
is complete” and ends the process.
Page 213 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
210
Making a telephone call using a number, phone book
A Bluetooth ®
compatible mobile
telephone must be matched with the
system.
Using a telephone number
I f y o u r v e h i c l e i s fi t t e d w i t h t h e a u d i o -
telematics display, you can use the
press buttons to dial a number then
make a call. Recording a name in the system’s
phone book
The system has its own phone book,
independent of that of the mobile
telephone.
It can contain up to 32 names for each
language.
Each name in the phone book is
associated with 4 locations: HOME,
WORK, MOBILE and PAGER.
1 - Press the SPEAK button. 7 - The system says “HOME, WORK,
MOBILE OR PAGER”.
2 - Day “Dial”.
4 - Say the telephone number.
5 - The system asks you to con- fi r m t h i s n u m b e r , a n s w e r
“Yes”. Say “No” to return to
the previous step. 2 - Say “Phone book”.
4 - Say “New entry”.
6 - Say the name of your choice. 8 - Say the location which
corresponds to the number
that you wish to record.
10 - Answer “Yes” or say “No” to return to step 7.
12 - If you do not wish to change the telephone number,
repeat the original number
to retain it, otherwise say the
new number.
14 - Answer “Yes” or say “No” to return to step 11.
1 - Press the SPEAK button.
3 - The system says “Number please”.
3 - The system says “Select one of the following items: New Entry, Change,
List of names, Delete or Clear all,
or say Cancel to return to the main
menu”.
5 - The system says “Name please”.
To enter a new number: 9 - T h e s y s t e m a s k s y o u t o c o n fi r m t h e
location.
11 - If a telephone number has already been recorded for this location, the
system says “The current number
is
1 3 - T h e s y s t e m a s k s y o u t o c o n fi r m t h e number.
Page 215 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
212
When the system is waiting for a voice command, say “Help” to obtain a list of commands which can be used in the cur-
rent situation.
Voice commands (1/2)
Press this button to start the voice recognition.
C o n fi g u r e
Phone book
Dial
Call
Redial
Emergency number
Matching options
Match a telephone
Delete a telephone
List of matched telephones
Select a telephone
Previous Divert the call
Add a location
C o n fi g u r e t h e c o n fi r m a t i o n r e q u e s t s
Language
New entry
Delete
Change
Call this number
Change another entry
Try again
Clear all
List of names Home, at home
Work, at work
Mobile, on mobile
Pager, on pager
Help
Continue
All
Cancel
Mute
Deactivate mute
Yes
No
