Citroen C CROSSER 2008 1.G Owner's Manual

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
208
Programming controls 1 # 790 (for # = “Hash”)
2 * 671 (for * = “Star”)
3 212 - 4 903
4 235 - 3 494
5 315- 5 657
6 456 - 7 930
7 793 - 5 462
8 794 - 1 826
9 826 - 3 145
10 962 - 7 305
11 (531) 742 - 9 860
12 (632) 807 - 4 591
13 (800) 222 - 5015
14 (888) 555 - 1 212
15 0 123 456 789 16 55 66 77 88 99
17 44 33 22 11 00
18 Call 293 - 5804
19
Call * 350
20 Call 1 (234) 567 - 8 901
21 Dial 639 - 1542
22 Dial # 780
23 Dial (987) 654 - 3210
24 1058# 3794# Send
25 27643# 4321# Send
26 Cancel
27 Continue
28 Emergency number
29 Clear all
30 Help 31 Home, Work, Mobile, Pager
32 List of names
33 No
34 Phone book: Delete
35 Phone book: New entry
36 Previous
37 Phone book: Clear all
38 Redial
39 Repeat the training
40
Confi gure the confi rmation
requests
41 Confi gure the language
42 Confi gure the matching options
43 Match a telephone
44 Transfer the call
45 Yes

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
209
Matching your Bluetooth®

telephone
The system can register up to 7 Blue-
tooth ®
compatible mobile telephones.
The telephone which has the
highest level of priority is matched
automatically.
It is absolutely essential that the vehicle
is parked in a safe place with the
handbrake applied.
1 - Press the SPEAK button. 7 - Say a 4-digit number which
will be recorded as the match-
ing code. 12 - After the audible signal,
allocate a name to the
telephone by saying the
name of your choice.
13 - The system says “Allocate an order of priority between 1 and 7. One is
the highest level of priority”.
If the system does not detect the
Bluetooth ®
compatible mobile
telephone, the matching process
stops accompanied by an audible
signal.
If you select a level of priority which
has already been allocated to
another telephone, the system asks
you if you wish to replace this level
of priority.
You can choose any 4-digit number.
Remember this matching code as
you must enter it in the telephone
in one of the following steps of the
matching procedure.
9 - The system says “Start the matching procedure on the telephone. Consult
the instructions in the telephone
manual”.
2 - Say “Confi gure”.
3 - Say “Matching options”.
5 - Say “Match a telephone”. 8 - The system confi rms the
validity of the number spoken,
answer “Yes”. Say “No” to
return to step 7.
10 - Consult your mobile telephone’s user manual
and enter the matching
code recorded in step 7
in the telephone.
11 - When it detects a Bluetooth ®

compatible mobile telephone, the
system says “Please say the name
of the telephone after the bleep”. 14 - Say a number between 1
and 7 to establish the level
of priority of the mobile
telephone.
15 - The system says and confi rms the and the
of its priority.
16 - Answer “Yes” or say “No” to return to step 13.
17 - The systems says “Matching complete” then
emits an audible signal
and deactivates the voice
recognition.
4 - The system says “Do you wish to match a telephone, delete a
telephone or obtain the list of
matched telephones?”.
6 - The systems says “Please say the 4 digits of a matching code”.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
210
Making a telephone call using a number, phone book
A Bluetooth ®
compatible mobile
telephone must be matched with the
system.
Using a telephone number
If your vehicle is fi tted with the audio-
telematics display, you can use the
press buttons to dial a number then
make a call. Recording a name in the system’s
phone book
The system has its own phone book,
independent of that of the mobile
telephone.
It can contain up to 32 names for each
language.
Each name in the phone book is
associated with 4 locations: HOME,
WORK, MOBILE and PAGER.
1 - Press the SPEAK button. 7 - The system says “HOME, WORK,
MOBILE OR PAGER”.
2 - Day “Dial”.
4 - Say the telephone number.
5 - The system asks you to con- fi rm this number, answer
“Yes”. Say “No” to return to
the previous step. 2 - Say “Phone book”.
4 - Say “New entry”.
6 - Say the name of your choice. 8 - Say the location which
corresponds to the number
that you wish to record.
10 - Answer “Yes” or say “No” to return to step 7.
12 - If you do not wish to change the telephone number,
repeat the original number
to retain it, otherwise say the
new number.
14 - Answer “Yes” or say “No” to return to step 11.
1 - Press the SPEAK button.
3 - The system says “Number please”.
3 - The system says “Select one of the following items: New Entry, Change,
List of names, Delete or Clear all,
or say Cancel to return to the main
menu”.
5 - The system says “Name please”.
To enter a new number: 9 - The system asks you to confi rm the
location.
11 - If a telephone number has already been recorded for this location, the
system says “The current number
is , number please”.
13 - The system asks you to confi rm the number.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
211
Making a telephone call using a name in the phone book, receiving a call
Using a name in the system’s phone
book
The name must be recorded in the
system’s phone book. 8 - Answer “Yes” or say “No” to
return to step 4.
Redialling the last number Receiving a call
The telephone ring is transmitted on the
speaker by the front passenger’s seat.
If an audio source (CD, radio, ...) is in
operation when the call is received, it is
placed on mute and only the incoming
call is heard.
When the ignition switch is in the ACC
or ON position, the audio system is
activated automatically if an incoming
call is received, even if it was originally
off.
1 - Press the PICK UP button.
At the end of the call, the audio system
returns to its previous status.
1 - Press the SPEAK button.
2 - Say “Call”.
4 - Say the name of the person that you wish to call.
6 - Say the location corresponding to the number that you wish to
call. 1 - Press the SPEAK button.
2 - Say “Redial”.
3 - The system says “Name please”.
5 - If several telephone numbers have
been recorded for this person, the
system says “Do you wish to call
{home}, {work}, {mobile} or
{pager}?”
7 - The system requests confi rmation of the name. 9 - The system says “Call to at
” and makes the call.

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
212
When the system is waiting for a voice command, say “Help” to obtain a list of commands which can be used in the cur-
rent situation.
Voice commands (1/2)
Press this button to start the voice recognition.
Confi gure
Phone book
Dial
Call
Redial
Emergency number
Matching options
Match a telephone
Delete a telephone
List of matched telephones
Select a telephone
Previous Divert the call
Add a location
Confi gure the confi rmation requests
Language
New entry
Delete
Change
Call this number
Change another entry
Try again
Clear all
List of names Home, at home
Work, at work
Mobile, on mobile
Pager, on pager
Help
Continue
All
Cancel
Mute
Deactivate mute
Yes
No

A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
213

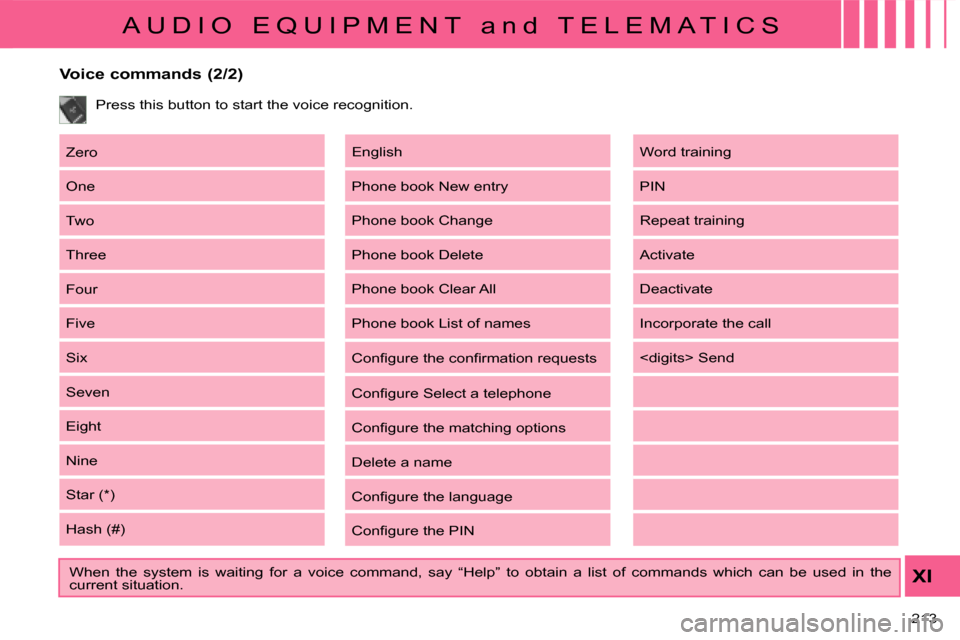

Voice commands (2/2) Zero
One
Two
Three
Four
Five
Six
Seven
Eight
Nine
Star (*)
Hash (#) Word training
PIN
Repeat training
Activate
Deactivate
Incorporate the call
Send
English
Phone book New entry
Phone book Change
Phone book Delete
Phone book Clear All
Phone book List of names
Confi gure the confi rmation requests
Confi gure Select a telephone
Confi gure the matching options
Delete a name
Confi gure the language
Confi gure the PIN
Press this button to start the voice recognition.
When the system is waiting for a voice command, say “Help” to o btain a list of commands which can be used in the
current situation.
