C O M F O R T
II
60
INTERIOR MIRROR
Adjust the mirror by moving it up or
down and/or to the left or right.
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.
MANUAL STEERING WHEEL
HEIGHT ADJUSTMENT

 Pull the locking lever downwards
(position B ) while supporting the
steering wheel.

 Adjust the steering wheel to the
required height.

 Lock the steering wheel by pushing
the lever upwards (position A ).
SUN VISOR
The sun visors fold forwards, and to the
side when they are unhooked.
They are fi tted with a courtesy mirror
and a ticket holder.
As a safety precaution, it
is imperative that these
operations are carried out
while the vehicle is stationary.

C O M F O R T
II
63
Upper glove box with
air conditioning
Storage box
Press the front part of the lid to open.
To close, fold down the lid until it locks. Press button
A on the lid to open it.
To close it, push the lid up.
It is fi tted with a ventilation nozzle which
can be closed by means of a dial, dis-
tributing conditioned air at the same
temperature as the vents in the passen-
ger compartment.
In cold weather, it is advisable to close
this vent to conserve the ambient air in-
side the passenger compartment.
Spectacles storage
Press the cover to open it.
To close it, push the cover until it locks.

C O M F O R T
II
64
Lower glove box
This is fi tted with a lock.
To unlock it, turn the key to the left.
To open it, pull the handle A .
To close it, push the lid up.
To lock it, turn the key to the right.
It is fi tted with a pen holder and a card
holder.
It is lit on opening when the lights stalk
is activated. Lighter
12 volt socket (120 W max)
When the ignition switch is in the “ON”
or “ACC” position, press the lighter.
After a moment you hear a click when
the lighter pops out.
When the lighter socket is used to con-
nect electrical equipment, ensure that
this equipment operates correctly with
a voltage of 12 volts and has an electri-
cal power of 120 W maximum.
The prolonged use of electri-
cal equipment without running
the engine may discharge the
battery. Armrest with storage compartments
12 volt socket (120 W max)
Upper storage compartment
Pull the right-hand lever to open the
storage compartment lid, which serves
as an armrest.
To close, fold down the lid until it locks.

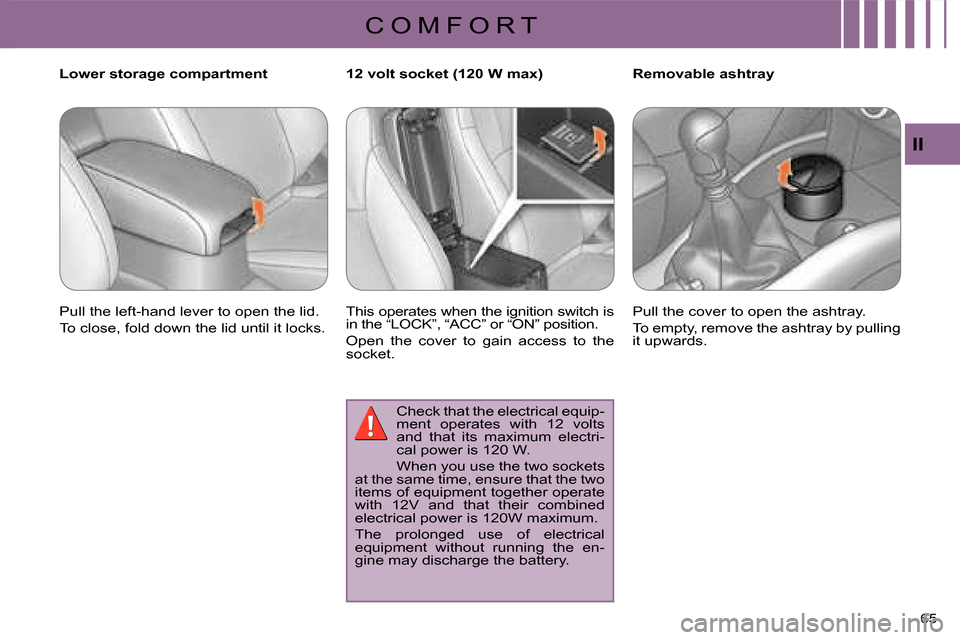

C O M F O R T
II
65
Removable ashtray
Pull the cover to open the ashtray.
To empty, remove the ashtray by pulling
it upwards.
Lower storage compartment
Pull the left-hand lever to open the lid.
To close, fold down the lid until it locks.
12 volt socket (120 W max)
This operates when the ignition switch is
in the “LOCK”, “ACC” or “ON” position.
Open the cover to gain access to the
socket.
Check that the electrical equip-
ment operates with 12 volts
and that its maximum electri-
cal power is 120 W.
When you use the two sockets
at the same time, ensure that the two
items of equipment together operate
with 12V and that their combined
electrical power is 120W maximum.
The prolonged use of electrical
equipment without running the en-
gine may discharge the battery.

A C C E S S
III
72
Unfolding the key

 First press button A to unfold the
key.
Unlocking the vehicle

 Press the open padlock
to unlock the vehicle.
Unlocking using the remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It also folds and
unfolds the mirrors, closes the electric
windows and starts the vehicle, as well
as providing protection against theft. Locking the vehicle
Unlocking using the key

 Turn the key to the right in the

driver’s door lock to unlock the
vehicle.
 Press the closed padlock
to lock the vehicle.
If one of the doors or the tailgate is
still open, the central locking will not
take place.
Unlocking is confi rmed by the interior
lighting which comes on for approxi-
mately 15 seconds and the direction
indicators which fl ash
twice .
If you press the open padlock twice in
succession within 30 seconds after
unlocking the vehicle, the exterior mir-
rors unfold.
Normal locking using the key

 Turn the key to the left in the driver’s
door lock to lock the vehicle.
Locking is confi rmed by the direction in-
dicators which come on
once .
If you press the closed padlock twice
in succession within 30 seconds after
locking the vehicle, the exterior mirrors
fold.

An extended press on the closed pad-
lock within 30 seconds after locking the
vehicle permits automatic closing of the
windows.
Normal locking using the remote
control

A C C E S S
III
73
The vehicle will relock automatically
after thirty seconds unless a door or
the tailgate is opened. This function
prevents inadvertent unlocking.
The duration which precedes the au-
tomatic relocking of the vehicle can
be confi gured via the colour display
“Equipment” menu.
Folding the key

 First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the ig-
nition is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
CITROËN dealer as soon as possible.

A C C E S S
III
74
Starting the vehicle

 Insert the key in the ignition switch.

 Operate the starter by turning the
key to position 4 (START) .

 When the engine turns over, release
the key. The ignition switch is placed
in position 3 (ON) automatically. Switching the vehicle off

 Park the vehicle.

 While pressing the key, turn it to-
wards you to position 1 (LOCK) .

 Remove the key from the ignition
switch. Changing the battery
Battery reference: CR1616 / 3 volts.

 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its hous-
ing.

 Slide the new battery into its hous-
ing observing the original direction.

 Clip the casing.
Key in ignition
A buzzer sounds on opening the
driver’s door, if the key has been left
in the ignition.

A C C E S S
III
75
Do not throw the remote control batteries away, they contain metals which are harmful to the environment.
Take them to an approved collection point. Keys
Make a careful note of the number of each key. This number is
coded on the label attached to the key.
If the keys are lost, a CITROËN dealer can supply you wit h new keys.
Remote control
The high frequency remote control is a sensitive system; do not o perate it while it is in your pocket as there is a possibility
that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle.
You run the risk of stopping it from working. The remote contro l does not operate when the key is in the ignition, even when
the ignition is switched off.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment by the emergency services more diffi cult
in an emergency.
As a safety precaution (with children on board), remove the key fro m the ignition when you leave the vehicle, even for a
short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system, this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which
can start the vehicle.

A C C E S S
III
73
The vehicle will relock automatically
after thirty seconds unless a door or
the tailgate is opened. This function
prevents inadvertent unlocking.
The duration which precedes the au-
tomatic relocking of the vehicle can
be confi gured via the colour display
“Equipment” menu.
Folding the key

 First press button A to fold the key. Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the ig-
nition is switched on, this code must be
recognised to permit starting.
This electronic engine immobiliser locks
the engine management system a few
moments after the ignition is switched
off and prevents starting of the engine
by anyone who does not have the key.
Anti-theft protection
In the event of a malfunction and if
your vehicle does not start; contact a
CITROËN dealer as soon as possible.

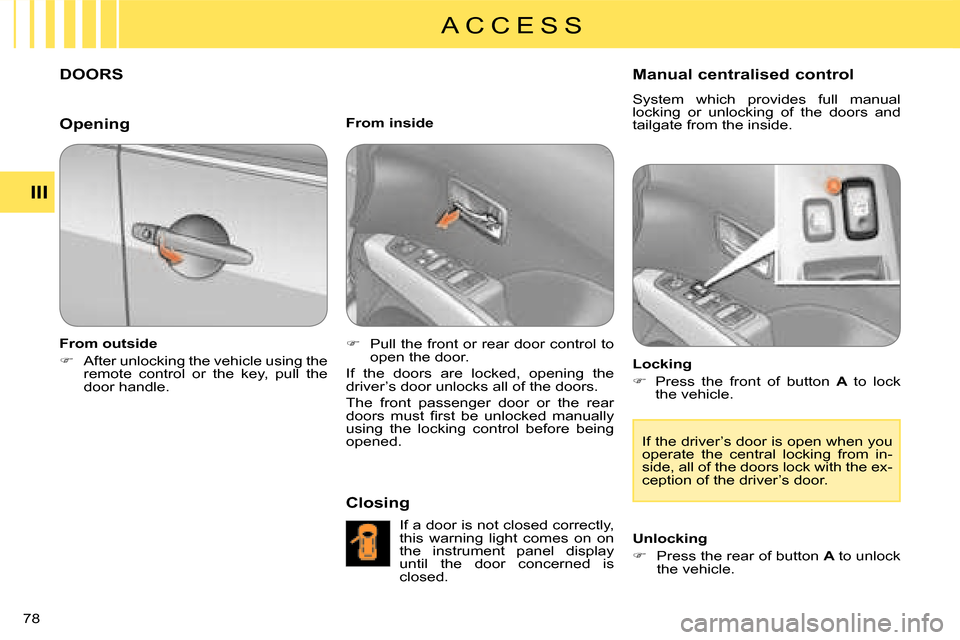

A C C E S S
III
78
DOORS
From outside

 After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside

 Pull the front or rear door control to
open the door.
If the doors are locked, opening the
driver’s door unlocks all of the doors.
The front passenger door or the rear
doors must fi rst be unlocked manually
using the locking control before being
opened.
Closing
If a door is not closed correctly,
this warning light comes on on
the instrument panel display
until the door concerned is
closed. Manual centralised control
System which provides full manual
locking or unlocking of the doors and
tailgate from the inside.
Locking

 Press the front of button A to lock
the vehicle.
If the driver’s door is open when you
operate the central locking from in-
side, all of the doors lock with the ex-
ception of the driver’s door.
Unlocking

 Press the rear of button A to unlock
the vehicle.
Opening
