XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
212

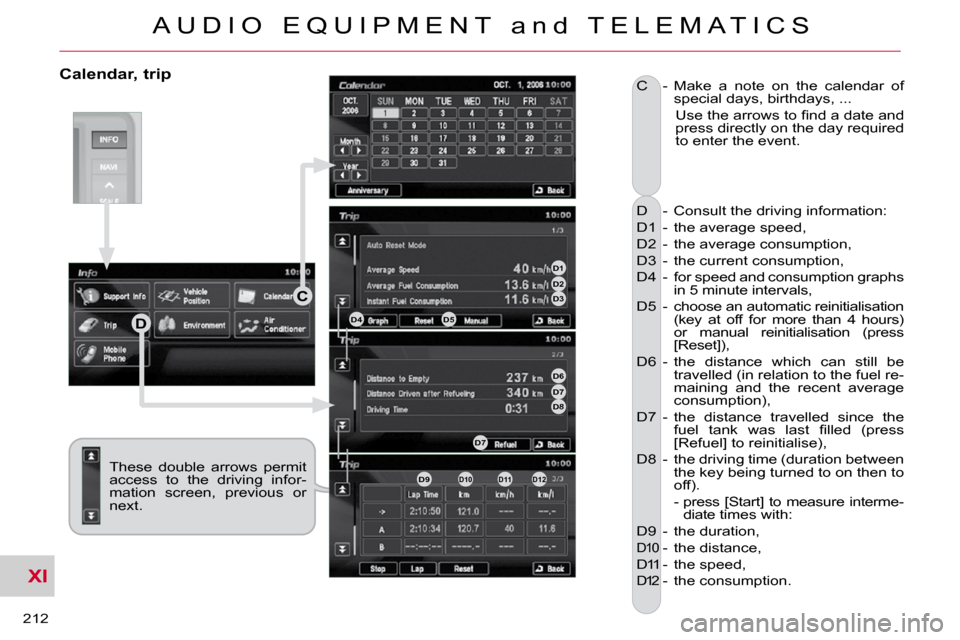

Calendar, trip
D - Consult the driving information:
D1 - the average speed,
D2 - the average consumption,
D3 - the current consumption,
D4 - for speed and consumption graphs in 5 minute intervals,
D5 - choose an automatic reinitialisation (key at off for more than 4 hours)
or manual reinitialisation (press
[Reset]),
D6 - the distance which can still be travelled (in relation to the fuel re-
maining and the recent average
consumption),
D7 - the distance travelled since the f u e l t a n k w a s l a s t fi l l e d ( p r e s s
[Refuel] to reinitialise),
D8 - the driving time (duration between the key being turned to on then to
off).
- press [Start] to measure interme- diate times with:
D9 - the duration,
D10 - the distance,
D11 - the speed,
D12 - the consumption.
C - Make a note on the calendar of
special days, birthdays, ...
U s e t h e a r r o w s t o fi n d a d a t e a n d press directly on the day required
to enter the event.
These double arrows permit
access to the driving infor-
mation screen, previous or
next.
D
C
D1D2D3
D4D5
D6D7D8
D7
D9D10D11D12
Page 222 of 230
XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
213
F - Consult the air conditioning condi-tions:
F1 - the fan speed indicator,
F2 - the air selection indicator,
F3 - the windscreen demisting indica- tor light,
F4 - the air conditioning indicator,
F5 - the rear screen demisting indica- tor light,
F6 - the AUTO mode indicator.
E - Consult the environment informa-
tion:
E1 - the altitude,
E2 - the atmospheric pressure,
E3 -
the exterior temperature. The ice
s y m b o l fl a s h e s i f t h e r e i s a r i s k o f i c e .
G - Make and receive telephone calls:
G1 - enter the telephone number,
G2 - delete a character,
G3 - make the call.
Refer to the hands-free telephone
section to connect your Bluetooth ®
mobile telephone.
Environment, air conditioning, telephone
G
EFF1F2
F3F4
F5
F6
E1
E2
E3
G1G2
G3
Page 223 of 230
XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
214
What is the Bluetooth®
hands-free telephone with voice
recognition?
SPEAK
Pressing activates the voice recognition ("Listening" is displayed).
During voice recognition, a brief press pauses this recognition.
An extended press deactivates the recognition.
A brief press will activate the recognition even if a telep hone call is
progress.
Decreasing of the audio volume.
PICK UP
Press to answer an incoming call.
If a second incoming call is received,
p r e s s t h i s b u t t o n t o p l a c e t h e fi r s t
call on hold and speak to the second
caller.
In this case, a brief press switches
between callers.
To establish a three-way conver-
sation, press the SPEAK button to
switch to voice recognition mode and
say "Incorporate the call".
HANG UP
Press to reject an incoming call.
During a call, pressing ends this call.
General notes
Increasing of the audio volume.
Audio system on/off.
HANDS-FREE TELEPHONE
It has a voice recognition function which
allows you to make telephone calls us-
ing a microphone, located in the courtesy
light, and also by means of easy use
of the steering wheel controls or using
voice commands. Five languages are
available: English (by default), Spanish,
French, German and Italian.
The system uses wireless communication technology referred to as
Bluetooth
®
which allows you to make hands-free telephone calls in
your vehicle via your Bluetooth ®
compatible mobile telephone.
Page 224 of 230
XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
215
Changing the language, programming the voice
Changing the language of the voice
commands
By default, the recognition system is in
English. Programming the user's voice
You can use the user's voice program-
ming function to create a voice model
for one person per language.
The characteristics of your voice and
your pronunciation are recorded in this
model for improved voice recognition.
It is essential that the vehicle is parked
in a safe place, with the handbrake ap-
plied.
Switch off your telephone during the
process to avoid any interruption.
1 - Press the SPEAK button. 5 - T h e s y s t e m s a y s t h e fi r s t o f 4 5 t y p i c a l
phrases.
If you do not start the program-
ming process within approximately
3 minutes after pressing the SPEAK
button, the process is cancelled.
If you press the SPEAK button with-
in 5 seconds following the reading of
a voice command, the recording of
this command is repeated.
1 - Press the SPEAK button.
2 - Say "Setup".
3 - Say "Language".
5 - Say the language of your choice in English, example:
say "French" for French.
7 - Say "Yes" to start the change of language process or say
"No" to return to steps 4 to 7. 2 - Say "Word training".
4 - When you are ready to start, press and hold the SPEAK
button. 6 - Repeat each phrase in the
table on the next page.
The system records your voice and
moves on to the recording of the next
command.
Continue the process until all of the
phrases have been recorded.
4 - The system says "Select a language: English, Spanish, French, German
or Italian".
6 - The system then says "French se- lected. Is this correct?"
8 - The system repeats the language chosen and completes the change
of language process. 3 - An explanation message is given. 7 - After reading all the voice com-
mands, the system says "The word
enrolment is complete" and ends the
process.
Page 225 of 230
XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
216

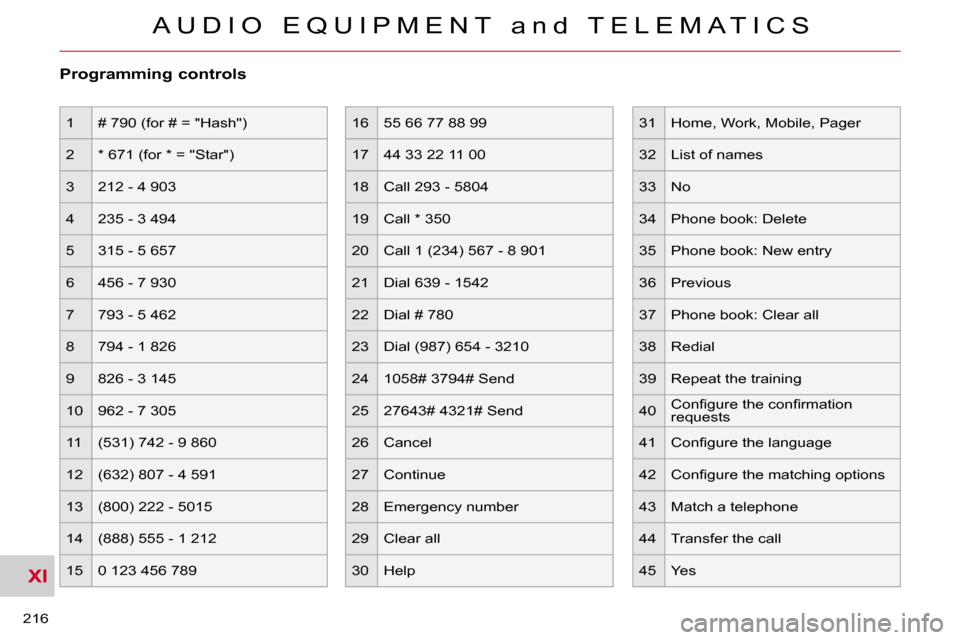

Programming controls
1 # 7 9 0 ( f o r # = " H a s h " )
2 * 6 7 1 ( f o r * = " S t a r " )
3 212 - 4 903
4 235 - 3 494
5 315 - 5 657
6 456 - 7 930
7 793 - 5 462
8 794 - 1 826
9 826 - 3 145
10 962 - 7 305
11 (531) 742 - 9 860
12 (632) 807 - 4 591
13 (800) 222 - 5015
14 (888) 555 - 1 212
15 0 123 456 789 16 55 66 77 88 99
17 44 33 22 11 00
18 Call 293 - 5804
19 Call * 350
20 Call 1 (234) 567 - 8 901
21 Dial 639 - 1542
22 Dial # 780
23 Dial (987) 654 - 3210
24 1058# 3794# Send
25 27643# 4321# Send
26 Cancel
27 Continue
28 Emergency number
29 Clear all
30 Help 31 Home, Work, Mobile, Pager
32 List of names
33 No
34 Phone book: Delete
35 Phone book: New entry
36 Previous
37 Phone book: Clear all
38 Redial
39 Repeat the training
40
C o n fi g u r e t h e c o n fi r m a t i o n
requests
41 C o n fi g u r e t h e l a n g u a g e
42 C o n fi g u r e t h e m a t c h i n g o p t i o n s
43 Match a telephone
44 Transfer the call
45 Yes
Page 226 of 230
XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
217
Matching your Bluetooth®
telephone
The system can register up to 7 Blue-
tooth®
compatible mobile telephones.
The telephone which has the highest
level of priority is matched automati-
cally.
It is absolutely essential that the vehicle
is parked in a safe place with the hand-
brake applied.
1 - Press the SPEAK button.
7 - Say a 4-digit number which will be recorded as the match-
ing code. 11 - When it detects a Bluetooth
®
compatible mobile telephone,
the system says "Please say
the name of the telephone af-
ter the bleep". If the system does not detect the
Bluetooth
®
compatible mobile tel-
ephone, the matching process stops
accompanied by an audible signal.
If you select a level of priority which
has already been allocated to an-
other telephone, the system asks
you if you wish to replace this level
of priority.
Remember this matching code as
you must enter it in the telephone
in one of the following steps of the
matching procedure.
9 - The system says "Start the matching procedure on the telephone. Con-
sult the instructions in the telephone
manual".
2 - S a y " C o n fi g u r e " .
3 - Say "Matching options".
5 - Say "Match a telephone". 8 - T h e s y s t e m c o n fi r m s t h e v a -
lidity of the number spoken,
answer "Yes". Say "No" to re-
turn to step 7.
10 - Consult your mobile tele- phone's user manual and
enter the matching code
recorded in step 7 in the
telephone. 12 - After the audible signal, allo-
cate a name to the telephone
by saying the name of your
choice.
13 - The system says "Allocate an order of priority between 1 and 7. One is
the highest level of priority".
14 - Say a number between 1 and 7 to establish the level
of priority of the mobile tel-
ephone.
1 5 - T h e s y s t e m s a y s a n d c o n fi r m s t h e
4 - The system says "Do you wish to match a telephone, delete a tele-
phone or obtain the list of matched
telephones?".
6 - The systems says "Please say the 4 digits of a matching code". If the code is incorrect, the system
locks. To clear the code:
- check that the telephone's voice
recognition is not activated,
- with the ignition on and the audio system active, press the HANG UP
button for 2 seconds, 3 times in
succession. 16 - Answer "Yes" or say "No" to
return to step 13.
17 - The systems says "Matching com- plete" then emits an audible signal
and deactivates the voice recogni-
tion.
Page 227 of 230
XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
218
Making a telephone call using a number, phone book
A Bluetooth® compatible mobile telephone
must be matched with the system.
Using a telephone number I f y o u r v e h i c l e i s fi t t e d w i t h t h e a u d i o -
telematics display, you can use the
press buttons to dial a number then
make a call. Recording a name in the system's
phone book
The system has its own phone book,
independent of that of the mobile tele-
phone.
It can contain up to 32 names for each
language.
Each name in the phone book is asso-
ciated with 4 locations: HOME, WORK,
MOBILE and PAGER.
1 - Press the SPEAK button. 7 - The system says "HOME, WORK,
MOBILE OR PAGER".
2 - Day "Dial".
4 - Say the telephone number.
5 - The system asks you to con- fi r m t h i s n u m b e r , a n s w e r
"Yes". Say "No" to return to
the previous step. 2 - Say "Phone book".
4 - Say "New entry".
6 - Say the name of your choice. 8 - Say the location which cor-
responds to the number that
you wish to record.
10 - Answer "Yes" or say "No" to return to step 7.
12 - If you do not wish to change the telephone number, re-
peat the original number to
retain it, otherwise say the
new number.
14 - Answer "Yes" or say "No" to return to step 11.
1 - Press the SPEAK button.
3 - The system says "Number please".
3 - The system says "Select one of the following items: New Entry, Change,
List of names, Delete or Clear all,
or say Cancel to return to the main
menu".
5 - The system says "Name please".
To enter a new number: 9 - T h e s y s t e m a s k s y o u t o c o n fi r m t h e
location.
11 - If a telephone number has already been recorded for this location, the
system says "The current number
is
1 3 - T h e s y s t e m a s k s y o u t o c o n fi r m t h e number.
Page 228 of 230
XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
219
Making a telephone call using a name in the phone book, receiving a call
Using a name in the system's phone
book
The name must be recorded in the sys-
tem's phone book. 8 - Answer "Yes" or say "No" to
return to step 4.
Redialling the last number Receiving a call
The telephone ring is transmitted on the
speaker by the front passenger's seat.
If an audio source (CD, radio, ...) is in
operation when the call is received, it is
placed on mute and only the incoming
call is heard.
When the ignition switch is in the ACC
or ON position, the audio system is acti-
vated automatically if an incoming call
is received, even if it was originally off.
1 - Press the PICK UP button.
At the end of the call, the audio system
returns to its previous status.
1 - Press the SPEAK button.
2 - Say "Call".
4 - Say the name of the person that you wish to call.
6 - Say the location correspond- ing to the number that you
wish to call. 1 - Press the SPEAK button.
2 - Say "Redial".
3 - The system says "Name please".
5 - If several telephone numbers have
been recorded for this person, the
system says "Do you wish to call
{pager]?".
7 - T h e s y s t e m r e q u e s t c o n fi r m a t i o n o f the name. 9 - The system says "Call to
Page 229 of 230
XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
220
When the system is waiting for a voice command, say "Help" to obtain a list of commands which can be used in the current
situation.

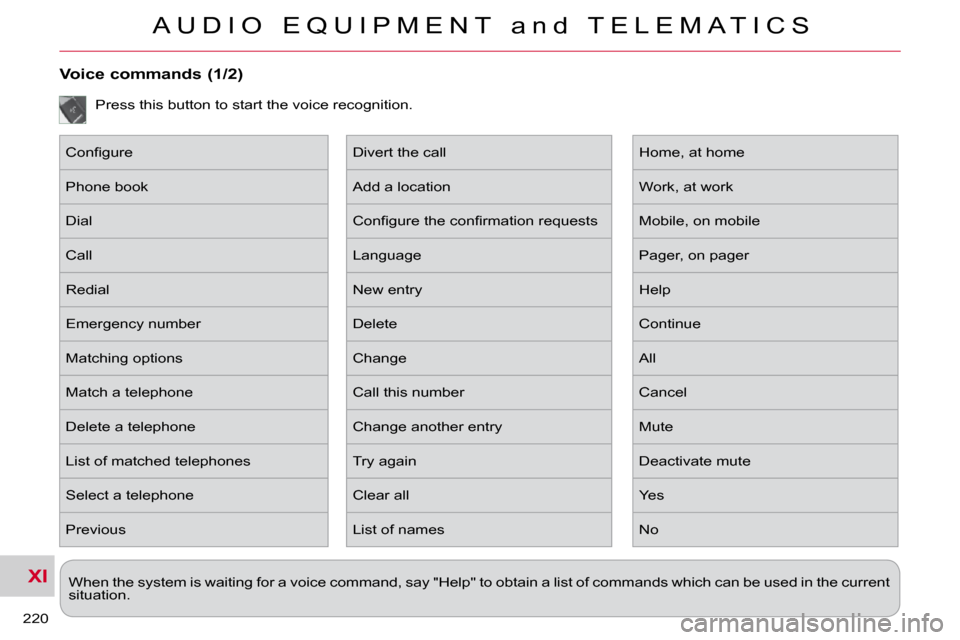

Voice commands (1/2)
Press this button to start the voice recognition.
C o n fi g u r e
Phone book
Dial
Call
Redial
Emergency number
Matching options
Match a telephone
Delete a telephone
List of matched telephones
Select a telephone
Previous Divert the call
Add a location
C o n fi g u r e t h e c o n fi r m a t i o n r e q u e s t s
Language
New entry
Delete
Change
Call this number
Change another entry
Try again
Clear all
List of names Home, at home
Work, at work
Mobile, on mobile
Pager, on pager
Help
Continue
All
Cancel
Mute
Deactivate mute
Yes
No
Page 230 of 230
XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
221

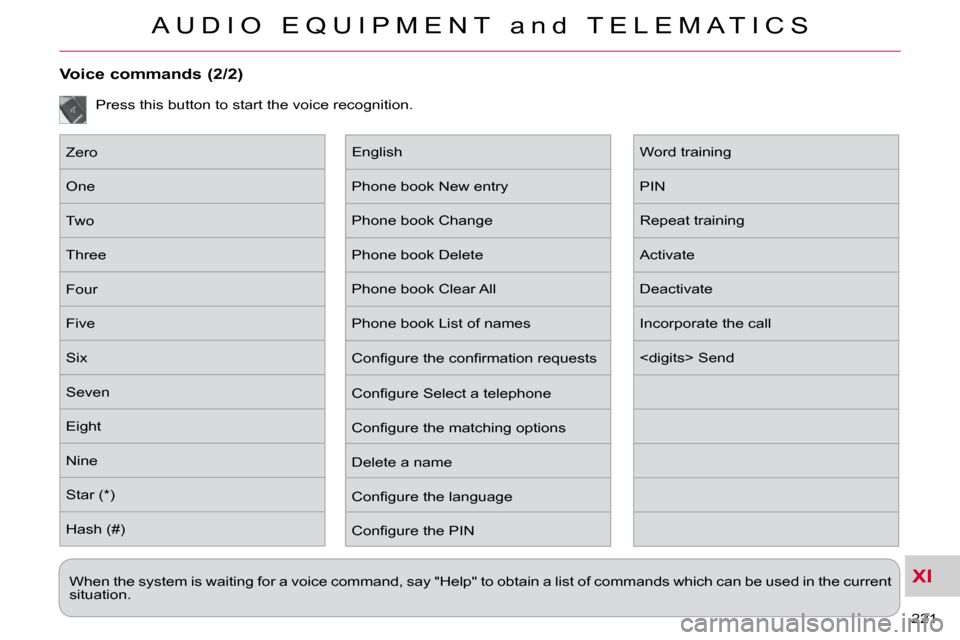

Voice commands (2/2)
Zero
One
Two
Three
Four
Five
Six
Seven
Eight
Nine
Star (*)
Hash (#) Word training
PIN
Repeat training
Activate
Deactivate
Incorporate the call
English
Phone book New entry
Phone book Change
Phone book Delete
Phone book Clear All
Phone book List of names
C o n fi g u r e t h e c o n fi r m a t i o n r e q u e s t s
C o n fi g u r e S e l e c t a t e l e p h o n e
C o n fi g u r e t h e m a t c h i n g o p t i o n s
Delete a name
C o n fi g u r e t h e l a n g u a g e
C o n fi g u r e t h e P I N
Press this button to start the voice recognition.
When the system is waiting for a voice command, say "Help" to obt ain a list of commands which can be used in the current
situation.
