Citroen C CROSSER 2009.5 1.G Owner's Manual

XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
172
CD PLAYER
This can play audio CDs (CD-DA, CD-
Text, CD-R/RW) or MP3 CDs.
Selecting CD mode
If the player already con-
tains a disc, press the "CD"
button.
"CD", the track number and
the playing time appear on the display.
Functions setting mode
This permits activation or deactivation
of the functions below.
Press the "TUNE" button for
more than two seconds to
access the functions setting
mode.
Then, press this button sev-
eral times in succession;
the functions setting mode changes in
the following order:
AF/CT/REG/TP-S/PTY (languages)/SCV/
PHONE/OFF.
Turn the "TUNE" dial respectively to the
left to deactivate the function ("OFF") or
to the right to activate it ("ON").
The "PHONE" is not operational at
present.
The functions setting mode is deacti-
vated after approximately 10 seconds
without any action. After inserting a disc, printed face up-
wards, the player starts automatically.
Ejecting a disc
Press this button to remove
the disc from the player.
The system automatically
switches to radio mode.
Fast search
Press and hold button "  "
or "  " to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is released.
Selecting a track
Press button "  " or "  " to
select the previous or next
track respectively.
Repeating a track Press the "RPT" button to
repeat the playing of the
current track. "RPT" ap-
pears on the display.
To exit this mode, press this button
again.
Random playing of a disc
Press the "RDM" button to
start random playing of the
tracks on the disc. "RDM"
appears on the display.
To exit this mode, press this button
again.
Insert circular compact discs only.
8 cm compact discs must be inserted
in the centre of the player slot.
Once ejected, if the compact disc is
not removed within fi fteen seconds, it
is reloaded into the player.
Audio CDs

XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
173
MP3/TAG ID3 CD
Playing the beginning of each track Press the "SCAN" button
to start the playing of the
fi rst ten seconds of each
track on the disc. "SCAN"
appears on the display and the corre-
sponding track number fl ashes.
To exit this mode, press this button again. The CD player and the CD changer
are compatible with the playing of MP3
fi les.
These must be recorded in ISO 9660
Level 1/Level 2, Joliet or Romeo for-
mat on CD ROMs, CD-Rs or CD-RWs.
The CDs can contain a maximum of
255 fi les and 100 folders on 16 levels.
The Tag ID3 version 1 can be displayed
while playing MP3 fi les.
In the case of compact discs contain-
ing both CD-DA and MP3 fi les, play
automatically begins with the CD-DA
fi les.
To switch play between the two types
of fi le, press the "CD" button for more
than two seconds until an audible
signal is heard.
While using these compact discs, the
"Repeat", Random play" and "Play-
ing of the beginning of the tracks"
functions are only applied to fi les of
the same format.
Selecting an MP3 folder Turn the "FOLDER" dial re-
spectively to the right to select
a folder in ascending order or
to the left to select a folder in
descending order.
Press the "DISP" button
several times in succession;
the CD-Text information ap-
pears in the following order:
DISC NAME/TRACK NAME/NORMAL
DISPLAY MODE.
CD-TEXT DISPLAY
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of CD-Text information
to be displayed, "NOTITLE" appears on
the display.
The CD player and the CD changer are
compatible with the displaying of CD-
Text information.
On CD-R/RWs, the quality of the
playing sound depends on the en-
coding software, the burning device
and the burning speed used.

XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
174
When play begins, "READING" appears
on the display then disappears to make
way for the folder number, the track
number, the playing time and "MP3".
Playing the beginning of each track
Press the "SCAN" but-
ton to start playing the fi rst
ten seconds of each track
in all of the folders. "SCAN"
appears on the display and the corre-
sponding track number fl ashes.
To exit this mode, press this button again.
MP3/Tag ID3 display
Press the "DISP" button sev-
eral times in succession; the
MP3 information appears in
the following order:
FOLDER NAME/TRACK NAME/NORMAL
DISPLAY MODE.
If the information exceeds
12 characters, press the
"PAGE" button to see the
rest.
In the absence of MP3 or Tag ID3 in-
formation to be displayed, "NOTITLE"
appears on the display.
Press the "DISP" button for
more than two seconds to
activate the Tag ID3 infor-
mation. "TAG" appears on
the display.
Press the "DISP" button several times
in succession; the Tag ID3 information
appears in the following order:
ALBUM NAME/TRACK NAME/ARTIST
NAME/NORMAL DISPLAY MODE. To deactivate this information, press
the "DISP" button again for more than
two seconds.
Repeating the tracks in a folder
Press the "RPT" button for
more than two seconds to re-
peat the playing of the tracks contained in the current folder. "D-RPT" appears on the display.
To exit this mode, press this button again.
Random playing of a folder Press the "RDM" button to
start random playing of the
tracks in the current folder.
"RDM" appears on the dis-
play.
To exit this mode, press this button again.
Random playing of a disc
Press the "RDM" button for
more than two seconds to
start random playing of the
tracks in all of the folders.
"D-RDM" appears on the
display.
To exit this mode, press this button again. On CD-R/RWs, the quality of the
playing sound depends on the en-
coding software, the burning device
and the burning speed used.
Depending on the fl ow chart of the
MP3 folders and fi les on the disc,
play may not begin immediately.

XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
175
Selecting changer mode
If the changer already con-
tains a disc, press the "CD"
button.
"CD", the disc and track
numbers and the playing time appear
on the display.
After inserting at least one disc, printed
face upwards, the changer starts auto-
matically.
Ejecting a disc
Press this button briefl y to
remove the current disc
from the changer. Once ejected, if the compact disc is
not removed within fi fteen seconds it
is re-loaded into the changer.
Loading a disc
Press the "LOAD" button
briefl y. "WAIT" appears on
the display.
When the changer is ready,
the indicator light on the "LOAD" button
comes on and "LOAD DISC N° (1-6)"
appears on the display.
If several slots are empty, select one
using one of the "DISC" buttons.
The CD changer can hold up to 6 CDs.
Insert circular compact discs only.
8 cm compact discs cannot be
played by the changer.
Loading all of the discs Ejecting all of the discs
Press this button for more
than two seconds. The cur-
rent disc is ejected.
Once this disc has been
removed, the next disc is ejected auto-
matically in its turn.
Repeat these steps until unloading is
complete.
Selecting a disc
Press one of the "DISC" but-
tons several times in suc-
cession until you reach the
disc required. The symbol of
the disc selected appears on
the display.
See also "CD-Text display" and "MP3/
Tag ID3 CD".
Press the "LOAD" button for
more than two seconds.
The changer selects an
empty slot number from the
lowest to the highest and switches to
waiting for loading mode.
"LOAD DISC N° (1-6)" appears on the
display; insert the disc in the corre-
sponding slot.
The changer automatically selects the
next empty slot number and returns to
waiting for loading mode.
Repeat these steps until loading is
complete. Play begins with the last disc
inserted.
CD CHANGER

XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
176
Playing of the beginning of each track Press the "SCAN" button
to start the playing of the
fi rst ten seconds of each
track on the disc. "SCAN"
appears on the display and the corre-
sponding track number fl ashes.
To exit this mode, press this button
again.
On CD-R/RWs, the quality of the
playing sound depends on the en-
coding software, the burning device
and the burning speed used.
Random playing on all of the discs Press the "RDM" button for
more than two seconds to start
random playing of the tracks
on all of the discs. "D-RDM"
appears on the display.
To exit this mode, press this button
again.
Fast search
Press and hold button "  "
or "  " to carry out a fast
backwards or forwards
search respectively.
Play begins when the button is released.
Selecting a track
Press button "  " or "  " to
select the previous track or
next track respectively.
Repeating a track Press the "RPT" button to
repeat the playing of the
current track. "RPT" ap-
pears on the display.
To exit this mode, press this button
again. Random playing of a disc
Press the "RDM" button to
start random playing of the
tracks on the disc. "RDM"
appears on the display.
To exit this mode, press this button again. Repeating a disc
Press the "RPT" button for
more than two seconds to
repeat the playing of the
tracks of the current disc.
"D-RPT" appears on the display.
To exit this mode, press this button
again.

XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
177

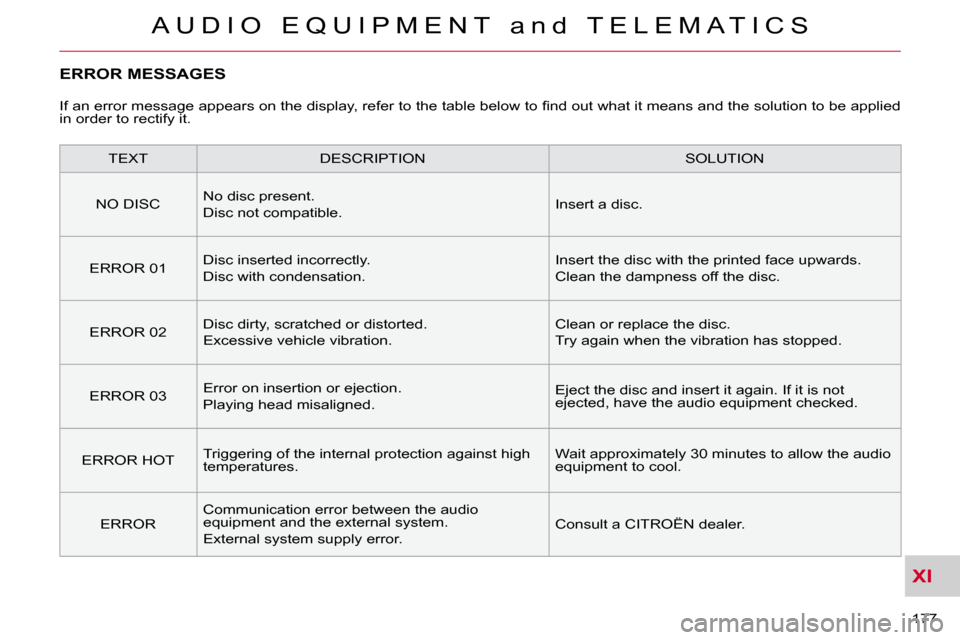

ERROR MESSAGES
If an error message appears on the display, refer to the table below to fi nd out what it means and the solution to be applied
in order to rectify it.
TEXT DESCRIPTION SOLUTION
NO DISC No disc present.
Disc not compatible. Insert a disc.
ERROR 01 Disc inserted incorrectly.
Disc with condensation. Insert the disc with the printed face upwards.
Clean the dampness off the disc.
ERROR 02 Disc dirty, scratched or distorted.
Excessive vehicle vibration. Clean or replace the disc.
Try again when the vibration has stopped.
ERROR 03 Error on insertion or ejection.
Playing head misaligned. Eject the disc and insert it again. If it is not
ejected, have the audio equipment checked.
ERROR HOT Triggering of the internal protection against high
temperatures. Wait approximately 30 minutes to allow the audio
equipment to cool.
ERROR Communication error between the audio
equipment and the external system.
External system supply error.
Consult a CITROËN dealer.

XI
!
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
178

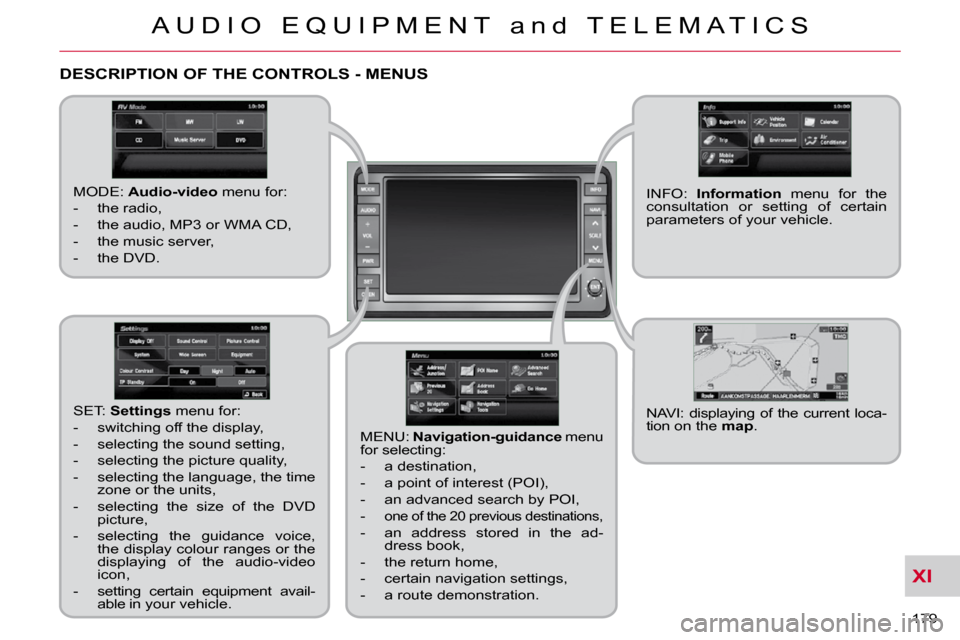

AUDIO: selection of the Audio-
video (FM, CD, music server, ...)
or Navigation (map) display.
VOL: adjustment of the audio-
video volume. OPEN: tilts the dis-
play and permits ac-
cess to the CD/DVD.
A second press clos-
es the display. SCALE: changing of the scale of
the map.
ENTR: confi rms the choice of the
item selected on the screen.
For certain operations, confi rma-
tion is given by contact with the
touch screen.
Scrolling of the map displayed or
selection of an item.

For safety reasons, it is im-
perative that the driver carries
out operations which require
prolonged attention with the vehicle
stationary.
AUDIO-TELEMATIC SYSTEM
Changing of the audio-video source
(FM, CD, music server, ...).
Activation/deactivation of the mute.
Next or previous selection for:
- a radio station,
- an audio track (CD),
- a chapter (DVD).
Move a fi nger over the screen to operate
the system.
Use the buttons offered on the screen.
POWER: audio system on/off
(only).
Setting of the audio volume.

XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
179
DESCRIPTION OF THE CONTROLS - MENUS
MODE: Audio-video menu for:
- the radio,
- the audio, MP3 or WMA CD,
- the music server,
- the DVD.
MENU: Navigation-guidance menu
for selecting:
- a destination,
- a point of interest (POI),
- an advanced search by POI,
-
one of the 20 previous destinations,
- an address stored in the ad- dress book,
- the return home,
- certain navigation settings,
- a route demonstration. NAVI: displaying of the current loca-
tion on the
map .
SET:
Settings menu for:
- switching off the display,
- selecting the sound setting,
- selecting the picture quality,
- selecting the language, the time zone or the units,
- selecting the size of the DVD picture,
- selecting the guidance voice, the display colour ranges or the
displaying of the audio-video
icon,
- setting certain equipment avail- able in your vehicle. INFO:
Information menu for the
consultation or setting of certain
parameters of your vehicle.

XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
180
NAVIGATION-GUIDANCE
What is the navigation system and
the GPS?
The satellite navigation system guides
the driver to the destination that he has
set in accordance with a chosen route.
Initially, it searches for the destination
required by the user, then it calculates
the route and fi nally it provides the visu-
al and audible guidance instructions. What precautions should be
observed in order to use the system
under good conditions?
Do not place anything on or near the
GPS aerial.
Do not use any digital communication
equipment (personal computers, etc...)
near the GPS aerial.
Do not affi x any refl ective fi lms or fi lms
containing carbon to the window.
The GPS (Global Position-
ing System) consists of
several satellites distribut-
ed around the earth. They
continuously transmit digi-
tal signals which travel at the speed of
light, on 2 different frequencies.
At any given time, the system receives
its position in relation to the satellites
detected and the time of transmission
of the signal.
This enables the telematic unit to de-
duce its position and therefore that of
the vehicle.
A repositioning process using the map
database stored on the hard disc per-
mits repositioning of the vehicle's po-
sition on the road network in order to
improve the accuracy of the locating
function. What is a point of interest
(POI)?
Up to 40 different icons may
be displayed (refer to the
section "Points of interest
icon").
They are classifi ed in 5 groups
and identifi ed by one colour for each
group:
- Shops, fi nance and businesses (Green),
- Vehicles and travel (Dark blue),
- Restaurants (Orange),
- Public places and emergency serv- ices (Brown),
- Entertainment and attractions (Blue).
GPS
The system's measurements may be
inaccurate if the vehicle is:
- in a tunnel or underground car park,
- underneath a two-level motorway,
- in an area with several very high buildings,
- surrounded by closely planted trees.
Depending on the vehicle's situation and
the reception of the GPS information,
the displayed information may disap-
pear from the display temporarily. A point of interest (POI) is
represented by an icon on
the map, it represents an
airport, a station, a town
hall, ...

XI
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
181

A. Manoeuvre icon: indicates whether
the driver should turn left or right at
the next junction indicated by the
guidance and the distance to this
junction.

B. Guidance route: indicates the route
to the destination.

C. Vehicle marker: indicates the posi-
tion of the vehicle while driving.

D. TMC icon: displays traffi c information
such as traffi c jams, road works, etc.
When the user passes over the icon, detailed TMC information can
be consulted.

E. Orientation mark: indicates the ori-
entation of the map displayed.

F. Map scale: indicates the scale of
the map displayed.

G. Name of the street: indicates the
name of the current street.

H. Direction frame: displays the
number of the next road or the
name of the next street which the
driver should turn into.

I. Destination/intermediate destina-
tion icon: indicates the direction
of the destination or intermediate
destination.
Two-map display.
Single map display. Information displayed on the map during navigation
J. Destination/intermediate destination
information: indicates the distance
and the time remaining until the des-
tination or intermediate destination is
reached.

K. Pressing provides access to
the Route Menu in order to:
K1 - change the route in favour of an- other making a detour through a
specifi ed region,
K2 - change the position of the des- tination, add an intermediate
destination and change the route
calculation conditions,
K3 -
display a route by various methods,
K4 - delete a route created,
K5 - search for points of interest (POI) around the current location.
K1K2K3
K4K5
K
H
E
F
BCA
D
G
I
J
