Page 1 of 230
4
FAMILIARISATION
Sunroof
This roof improves the ventilation and light in the passenger compartment.
82
81 124
EXTERIOR
Audible rear parking assistance
This equipment warns you if an ob-stacle is detected behind the vehicle when reversing.
Reversing camera
This equipment is activated automati-cally when reverse gear is engaged providing a visual return on the colour display.
Lower tailgate
This lower tailgate provides remark-able accessibility and makes the load-ing of bulky objects easier.
125
Page 2 of 230
5
FAMILIARISATION
Fuel tank
A. O p e n i n g o f t h e f u e l fi l l e r fl a p .
B. Opening of the fuel tank cap.
84
1. Locking of the vehicle.
2. Unlocking of the vehicle.
Remote control key
A. Unfolding/folding of the key.
B. Unlocking of the vehicle.
C. Locking of the vehicle.
73
Manual centralised control
79
OPENING
W h e n r e fi t t i n g t h e c a p , i n s e r t t h e u p p e r p a r t fi r s t t u r n i n g i t t o t h e r i g h t .
Capacity of the tank: approximately 60 litres.
Page 3 of 230
!
6
FAMILIARISATION
Opening
After unlocking the vehicle using the r e m o t e c o n t r o l o r t h e k e y , p r e s s t h e handle A and raise the tailgate.
Tailgate Lower tailgate
Opening
Push the handle C to the right and tilt the tailgate D gently.
The maximum authorised weight on the lower tailgate when open is 200 kg .
Spare wheel and tools
Access to the spare wheel
Remove the plastic cover E to gain a c c e s s t o t h e s p a r e w h e e l fi x i n g system.
80
OPENING
81 133
Closing
Pull the handle B downwards.
Closing
Raise the tailgate D , p u s h i t t o c l o s e i t , t h e n c h e c k t h a t i t i s s e c u r e d correctly.
Access to the tools
The tools are stored in the storage com-partment F in the boot right-hand trim.
Page 4 of 230
7
FAMILIARISATION
CONFIGURING
Rear seats (row 2)
Forwards-backwards adjustment
Seat back angle adjustment
53
Head restraint height adjustment
Access to the third row (7-seat version)
54
Rear bench seat (row 3)
The rear bench seat can be folded. It r e t r a c t s i n t o a l o c a t i o n i n t h e fl o o r o f t h e vehicle.
58
52
Page 5 of 230
8
FAMILIARISATION

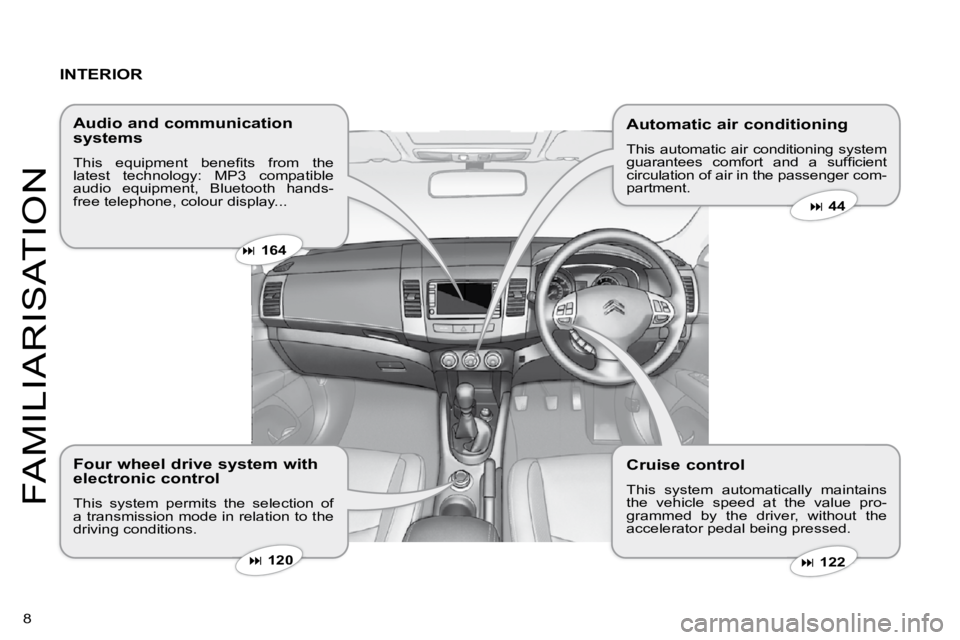

INTERIOR
Audio and communication systems
T h i s e q u i p m e n t b e n e fi t s f r o m t h e latest technology: MP3 compatible a u d i o e q u i p m e n t , B l u e t o o t h h a n d s - f r e e t e l e p h o n e , c o l o u r d i s p l a y . . .
Four wheel drive system with electronic control
This system permits the selection of a transmission mode in relation to the driving conditions.
Automatic air conditioning
This automatic air conditioning system g u a r a n t e e s c o m f o r t a n d a s u f fi c i e n t circulation of air in the passenger com-partment.
Cruise control
This system automatically maintains the vehicle speed at the value pro- g r a m m e d b y t h e d r i v e r , w i t h o u t t h e accelerator pedal being pressed.
164
120
44
122
Page 6 of 230
9
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Audio equipment controls.
2. Telephone controls.
3. Steering wheel adjustment control.
4. Front and rear wipers/wash-wipe
control.
5. Instrument panel.
6. Driver’s air bag.
Horn.
7. Cruise control switches.
8. Gear lever.
9. Handbrake.
10. B o n n e t r e l e a s e .
11. Enclosed storage compartment.
12. Headlamp height adjustment.
Deactivation of the ASC system.
Deactivation of the audible parking
assistance.
13. Cup holder.
14. Side adjustable and closing vent.
15. Information button.
16. Window de-icing and demisting
vent.
17. Windscreen de-icing vent.
Page 7 of 230
10
FAMILIARISATION

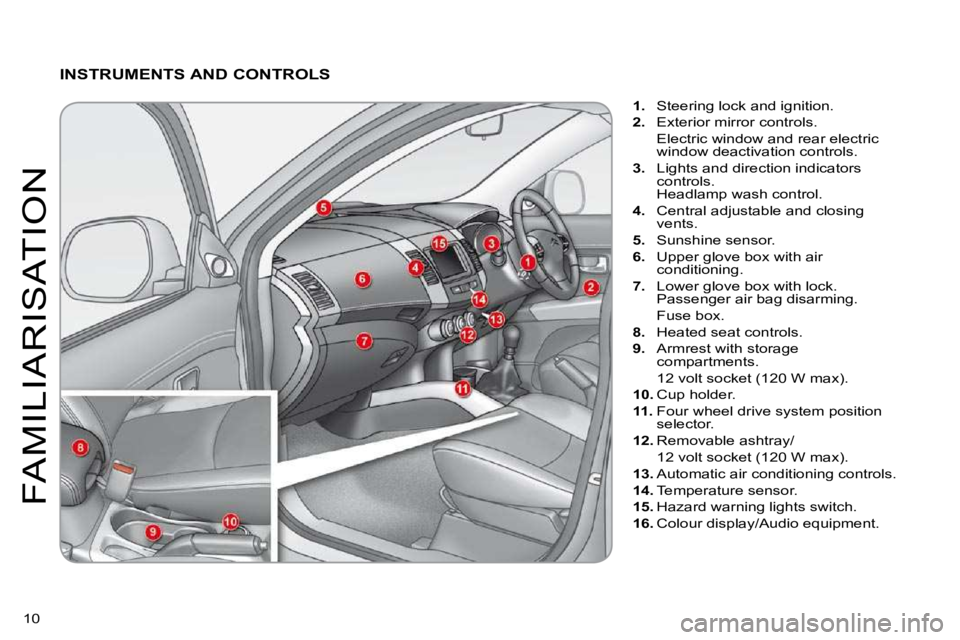

INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Exterior mirror controls.
Electric window and rear electric window deactivation controls.
3. Lights and direction indicators controls.Headlamp wash control.
4. Central adjustable and closing vents.
5. Sunshine sensor.
6. Upper glove box with air conditioning.
7. Lower glove box with lock. Passenger air bag disarming.
Fuse box.
8. Heated seat controls.
9. Armrest with storage compartments.
12 volt socket (120 W max).
10. Cup holder.
11. Four wheel drive system position selector.
12. Removable ashtray/
12 volt socket (120 W max).
13. Automatic air conditioning controls.
14. Temperature sensor.
15. Hazard warning lights switch.
16. Colour display/Audio equipment.
Page 8 of 230
11
FAMILIARISATION

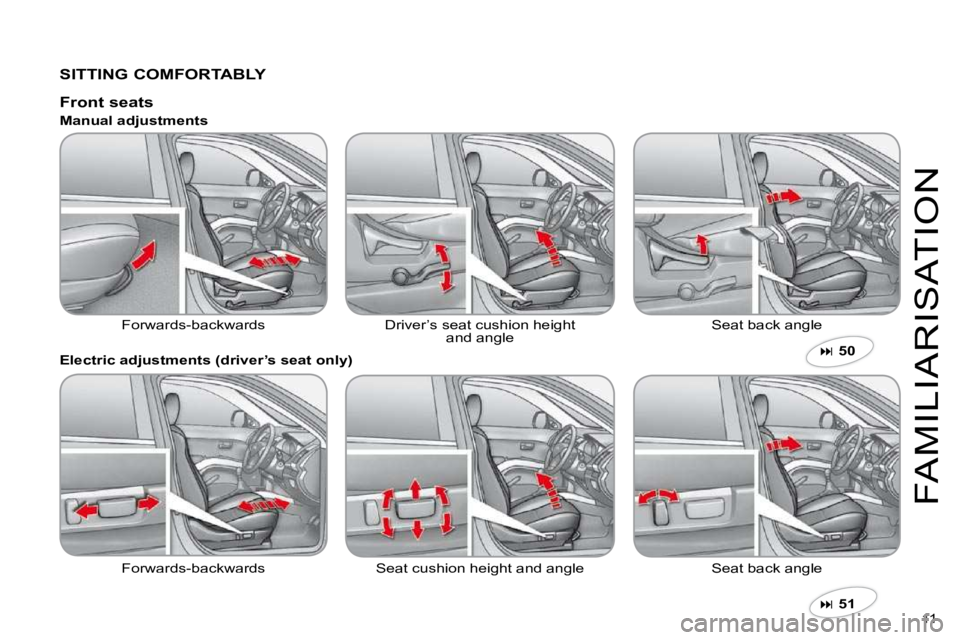

SITTING COMFORTABLY
51
Front seats
Forwards-backwards Driver’s seat cushion heightand angle Seat back angle
Manual adjustments
Electric adjustments (driver’s seat only)
Forwards-backwards Seat cushion height and angle Seat back angle
50
Page 9 of 230
12
FAMILIARISATION

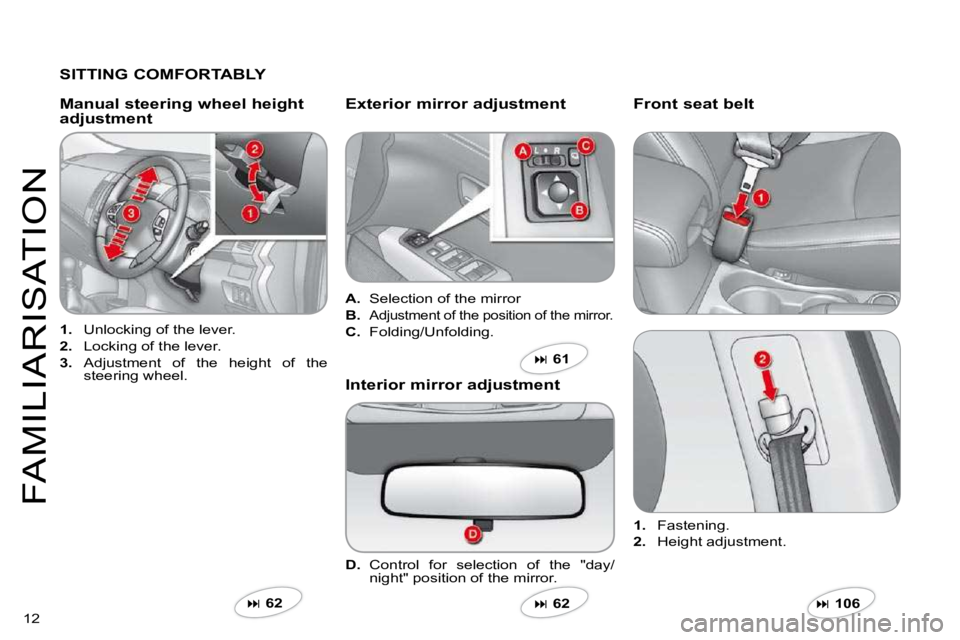

SITTING COMFORTABLY
1. Unlocking of the lever.
2. Locking of the lever.
3. Adjustment of the height of the steering wheel.
Manual steering wheel height adjustment Exterior mirror adjustment
A. Selection of the mirror
B.Adjustment of the position of the mirror.
C. Folding/Unfolding.
62
Interior mirror adjustment
D. Control for selection of the "day/night" position of the mirror.
61
62
Front seat belt
1. Fastening.
2. Height adjustment.
106
Page 10 of 230
13
FAMILIARISATION
SITTING COMFORTABLY

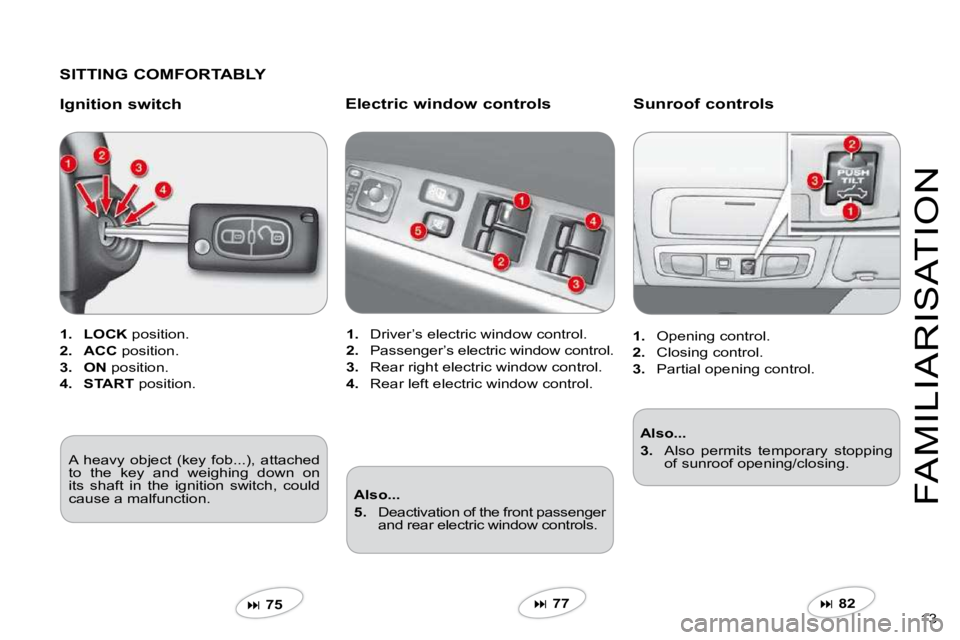

Ignition switch
1. LOCK position.
2. ACC position.
3. ON position.
4. START position.
75
Electric window controls
1. Driver’s electric window control.
2. Passenger’s electric window control.
3. Rear right electric window control.
4. Rear left electric window control.
Also...
5. Deactivation of the front passenger and rear electric window controls.
77
Sunroof controls
1. Opening control.
2. Closing control.
3. Partial opening control.
Also...
3. Also permits temporary stopping of sunroof opening/closing.
82
A h e a v y o b j e c t ( k e y f o b . . . ) , a t t a c h e d to the key and weighing down on i t s s h a f t i n t h e i g n i t i o n s w i t c h , c o u l d cause a malfunction.
