Citroen C CROSSER 2012 1.G Owners Manual

IV
VISIBILITY
89
MANUAL HEADLAMP
ADJU
STMENT

To avoid dazzling other road users,
the height of the headlamps must be
adjusted in relation to the load in the
vehicle.

AUTOMATIC HEADLAMP
ADJU
STMENT
On vehicles with xenon bulbs: when
stationary
, the system automatically
corrects the height of the beam, what-
ever the load of the vehicle. The driv-
er is then assured of having optimum
lighting and not causing a nuisance to
other road users.

In cases of malfunction
,
this message appears in
the multifunction screen.

7-seat version


0.
Driver only or Driver + 1 passenger
in the front.

1 or 2.
Driver + 1 passenger in the front
+ 2 passengers on the third
bench seat.

3.
7 occupants (including the driver
with or without maximum authorised
load).

4.
Driver + maximum authorised load.


5-seat version


0.
Driver only or Driver + 1 passenger
in the front.

1 or 2.
5 occupants (including the driver).

3.
5 occupants (including the driver) +
maximum authorised load.

4.
Driver + maximum authorised load.
Do not touch the xenon bulbs. Contact
a CITROËN dealer or a qualifi ed work-
shop.

IV
VISIBILITY
90
WIPER CONTROLSManual controls
The wiper commands are issued direct-
ly by the driver by means of the stalk A

and the ring B
.
single wipe.
Windscreen wipers

A.
wiping speed selection stalk:
park.
intermittent (the speed can be
set manually),
slow.
fast.




B.
intermittent operation or rain sensor
sensitivity adjustment ring.
You can increase or decrease:


●
the wiping frequency when the in-
termittent mode is active,

●
the sensitivity of the rain sensor
when the automatic mode is active.


- "+": high sensitivity.

- "-": low sensitivity.

Headlamp wash
Press the end of the lighting stalk to
activate the headlamp wash, when the
dipped beam headlamps are on.

Programming
An automatic control mode is also avail-
able, the automatic rain sensitive wind-
screen wipers.











Windscreen wash
Pull the wiper stalk towards you. The wind-
screen wash then the wipers operate for a
set time.
The headlamp wash is also activated if
the dipped
beam
headlamps are on
. Certain windscreen wiper func-
tions (intermittent operation, ...) can
be confi gured via the colour screen
"Equipment" menu.



Model with intermittent wiping



Model with AUTO wiping
or

automatic rain sensitive wipers
(the speed can be set manually).

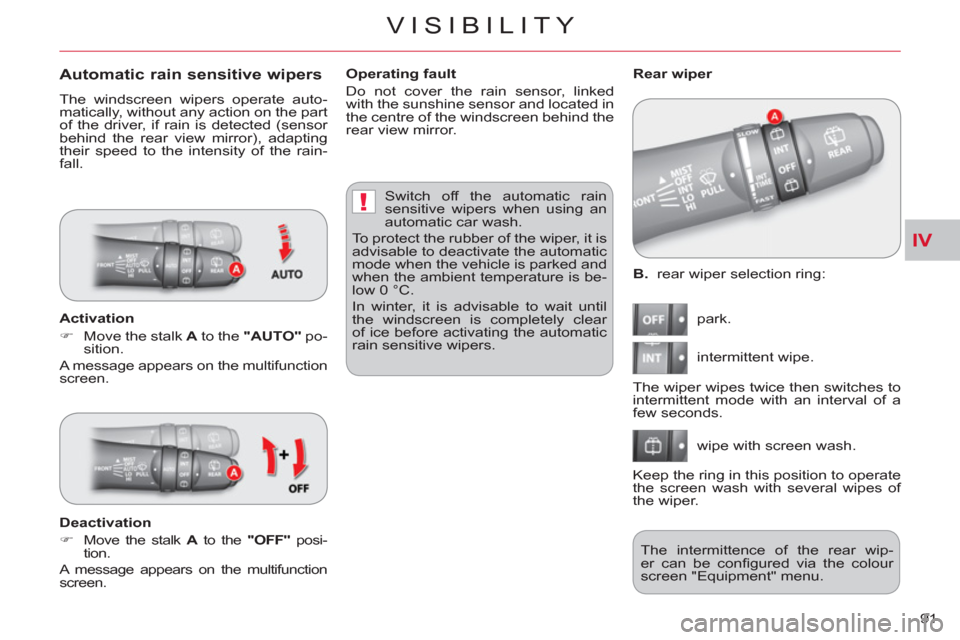

IV
!
VISIBILITY
91
B.
rear wiper selection ring:
park.
intermittent wipe.
wipe with screen wash.

Rear wiper
The wiper wipes twice then switches to
intermittent mode with an interval of a
few seconds.
Keep the ring in this position to operate
the screen wash with several wipes of
the wiper.
The intermittence of the rear wip-
er can be confi gured via the colour
screen "Equipment" menu.

Automatic rain sensitive wipers

The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
behind the rear view mirror), adapting
their speed to the intensity of the rain-
fall.

Activation


)
Move the stalk A
to the "AUTO"
po-
sition.
A message appears on the multifunction
screen.

Deactivation


)
Move the stalk A
to the "OFF"
posi-
tion.
A message appears on the multifunction
screen.
Operating fault
Do not cover the rain sensor, linked
with the sunshine sensor and located in
the centre of the windscreen behind the
rear view mirror.
Switch off the automatic rain
sensitive wipers when using an
automatic car wash.
To protect the rubber of the wiper, it is
advisable to deactivate the automatic
mode when the vehicle is parked and
when the ambient temperature is be-
low 0 ° C.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the automatic
rain sensitive wipers.

IV
VISIBILITY
92
COURTESY LAMPS
Front courtesy lamp

Map reading lamps

There are two map reading lamps, one
on each side of the courtesy lamp.
Press the corresponding lamp lens A
.
Position 1
The courtesy lamp comes on when a
door or the tailgate is opened.
When the door or the tailgate is closed
again, the lighting gradually dims for a
few seconds before switching off.
However, the courtesy lamp is switched
off automatically in the following cases:


- When the doors and the tailgate
are closed and the ignition switch is
placed in the "ON"
position.

- When the doors and the tailgate are
closed and you lock the vehicle from
inside or using the remote control.


Position 2
The courtesy lamp is off, regardless of
whether the doors or tailgate are open
or closed.
The durations of lighting of the front
courtesy lamps can be confi gured
via the colour screen "Equipment"
menu.

IV
VISIBILITY
93
Position 1 "ON"
The courtesy lamp is permanently on.

Position 2 "●"
The courtesy lamp comes on when a
door or the tailgate is opened. When
the door or the tailgate is closed again,
the lighting gradually dims for a few
seconds before switching off.
However, the courtesy lamp is switched
off immediately in the following cases:


- When the doors and the tailgate
are closed and the ignition switch is
placed in the "ON"
position.
- When the doors and the tailgate are
closed and you lock the vehicle from
inside or using the remote control.




Position 1 "ON"
The boot lamp is on, regardless of
whether the tailgate is open or closed.

Position 2 "●"
The boot lamp comes on if the tailgate
is opened and switches off when the
tailgate is closed.


Position 3 "OFF"
The courtesy lamp is permanently off.


Boot lamp


Position 3 "OFF"
The boot lamp is off, regardless of
whether the tailgate is open or closed.

Courtesy lamps automatic
switch off
To prevent discharging of the battery,
the courtesy lamps, map reading lamps
and boot lamp switch off automatically
after 30 minutes.
The courtesy lamps are switched on
again if the ignition switch is placed
in the "ON"
or "ACC"
position, if you
open then close a door or the tailgate or
if you use the remote control.
The duration of lighting of the rear
courtesy lamps can be confi gured
via the colour screen "Equipment"
menu.


Rear courtesy lamp

V!
CHILD SAFETY
94
"Rearwards-facing"
"Forwards-facing"

*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.
GENERAL POINTS RELATING
TO CHILD SEATS


Intermediate longitudinal position

CITROËN recommends
that children
should travel in the rear seats
of your ve-
hicle:


-

"rearwards-facing"
up to the age of 2,


- "forwards-facing"
over the age of 2.

When a "rearwards-facing" child
seat is installed on the front
passenger seat
, it is essential
that the passenger airbag is deacti-
vated. Otherwise, the child would
risk being seriously injured or
killed if the airbag were to infl ate
.

CHILD SEAT IN THE FRONT

When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated. Although one of CITROËN's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:


- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.

V
CHILD SAFETY
95
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are se-
cured using a three point seat belt
:


Group 0+: from birth to 13 kg









L1

"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing position.


Groups 2 and 3: from 15 to 36 kg








L3

"RECARO Start''






L4

"KLIPPAN Optima"
From the age of 6 years (approximately
22 kg), the booster is used on its own.







L5

"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

V
!
CHILD SAFETY
96


Passenger airbag OFF

Refer to the advice given on the label
present on both sides of the passen-
ger's sun visor.

To assure the safety of your child, you must deactivate the passenger's
front airbag when you install a child seat in the rearwards facing position
on the front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed if the
airbag were deployed.

V
CHILD SAFETY
97
LOCATIONS FOR CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.

U:
seat suitable for the installation of a child seat secured using the seat belt and universally approved, "rear facing" and/or
"forward facing".

X:
seat not suitable for the installation of a child seat of the weight group indicated.

L-:
only the child seats indicated can be installed on the seat concerned (according to country).

Seat



Weight of the child and indicative age




Less than 13 kg
(groups 0 (b) and 0+)
Up to ≈ 1 year

From 9 to 18 kg

(group 1)
From 1 to ≈ 3 years

From 15 to 25 kg

(group 2)
From 3 to ≈ 6 years

From
22 to 36 kg

(group 3)
From 6 to ≈ 10 years
Front passenger
seat (c) with
passenger airbag
activated



X



X



L3, L4

**
, L5

***


L3, L4

**
, L5

***

Front passenger
seat (c) with
passenger airbag
deactivated



L1



X



L3, L4

**
, L5

***


L3, L4

**
, L5

***

Outer rear seats
(row 2)



L1



X



U

*


U

*

Centre rear seat
(row 2)



L1



X



L4

*
,
L5

*


L4

*
, L5

*


*
Remove the rear head restraint before fi tting a child seat at this position.

**
Place the head restraint in the fully up position before fi tting a child seat at this position.

***
Remove the front head restraint before fi tting a child seat at this position.

V
!
CHILD SAFETY
98
The incorrect installation of a
child seat in a vehicle compro-
mises the child's protection in
the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, refer to the table show-
ing the locations for ISOFIX child
seats.
"ISOFIX" mountings
These are three rings for each seat:


- two rings A
, located between the
vehicle seat back and cushion, indi-
cated by a label,

- a ring B
, used to fi x the upper strap,
referred to as the TOP TETHER
, in-
dicated by a label. This ISOFIX mounting system provides
fast, reliable and safe fi tting of the child
seat in your vehicle.
The ISOFIX child seats
are fi tted with
two latches which are secured easily on
the two rings A
.
Some also have an upper strap
which
is attached to the ring B
.
To attach this strap, remove the vehicle
seat's head restraint. Then fi x the hook
on the ring B
and tighten the upper
strap. Your vehicle has been approved in accor-
dance with the new
ISOFIX regulation
.
The seats, represented below, are fi tted
with regulation ISOFIX mountings:
