II
COMFORT
59

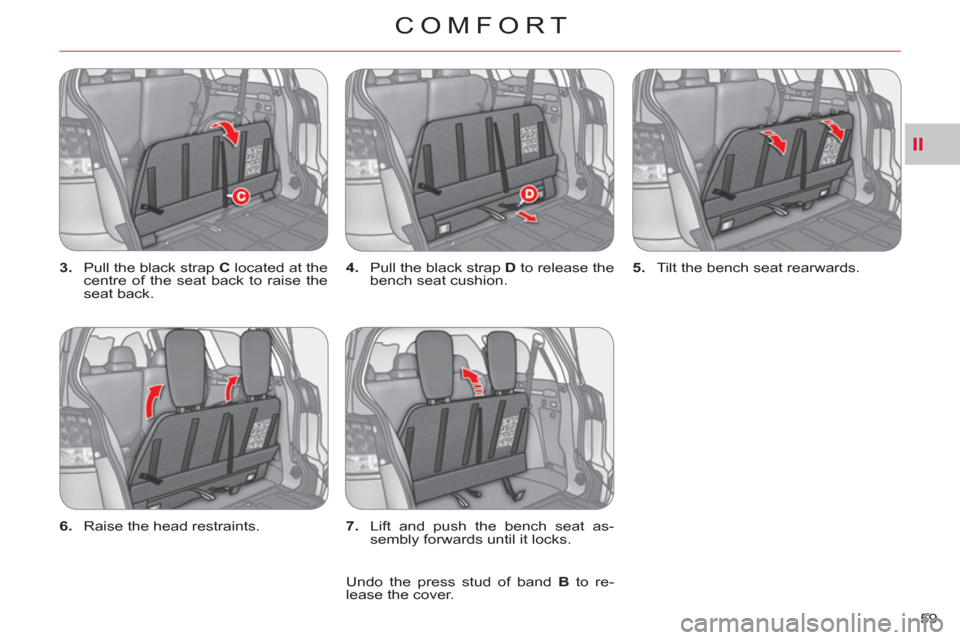

3.
Pull the black strap C
located at the
centre of the seat back to raise the
seat back.
4.
Pull the black strap D
to release the
bench seat cushion.
5.
Tilt the bench seat rearwards.

6.
Raise the head restraints.
7.
Lift and push the bench seat as-
sembly forwards until it locks.
Undo the press stud of band B
to re-
lease the cover.

II
COMFORT
60


1.
Open the tailgate and the lower tail-
gate (refer to the "Access" section).

2.
Lift the cover A
and fi x it to the seat
back using the press stud of the
band B
.
3.
Unlock the head restraints by slid-
ing the controls C
and fold them
onto the seat back.
4.
Pull the grey strap D
and bring the
bench seat towards you. Press on
the bench seat to lock it.

5.
Tilt and push the bench seat for-
wards.
6.
Pull the black strap E
located at the
centre of the seat back to fold the
seat back.
Undo the press stud of the band B
to
put the cover back in place.


Folding the bench seat

II
!
COMFORT
61
DOOR MIRRORS

Adjustment

The mirrors can be adjusted when the
ignition switch is in the "ON" or "ACC"
position.


)
Move control A
to the right or to the left
to select the corresponding mirror.

)
Direct control B
in all four directions
to adjust the mirror.
When adjustment is complete, return
control A
to the central position.






Electric folding/unfolding


- from inside, with the ignition switch
in the "ON" or "ACC" position


)
by pressing the control C
.

- from inside, with the ignition switch
in the "LOCK" position:


)
by pressing the control C, within
30 seconds.



- from outside using the remote control:


)
by pressing the "closed pad-
lock button briefl y 3 times to fold
them,

)
by pressing the "open padlock"
button briefl y 3 times to unfold
them.

The folding and unfolding of the door
mirrors can be confi gured via the co-
lour screen "Equipment" menu or de-
activated by a CITROËN dealer or a
qualifi ed workshop. The mirrors can also be folded
manually.
If you have folded the mirrors using
the control C
, you must use this con-
trol to unfold them, otherwise the mir-
rors will not be lock in place correctly.
If you switch the engine off then re-
start it with the mirrors folded, they
will unfold automatically when the
vehicle reaches 20 mph (30 km/h).
If the mirrors have been folded man-
ually or electrically after starting the
engine, they are not unfolded auto-
matically.
In this case:


)
Press the control C
to unfold
them.

II
COMFORT
62
REAR VIEW MIRROR

Adjust the mirror by moving it up or
down and/or to the left or right.
The rear view mirror has two positions:


- day (normal),

- night (anti-dazzle).
To change from one to the other, push
or pull the lever on the lower edge of
the mirror.

AUTOMATIC REAR VIEW
MIRROR *
AUTOMATIC REAR VIEW
MIRROR WITH REVERSING
CAMERA*


This automatically and gradually
changes between the day and night po-
sitions.
To prevent dazzling, the glass of the
mirror darkens automatically depend-
ing on the intensity of the light from be-
hind. It clears as the light (headlamps of
following vehicles, sunlight) decreases,
ensuring maximum visibility.
You can deactivate automatic mode by
pressing the " AUTO
" button.
Combined with a camera fi tted at the
rear of the vehicle, this mirror allows the
driver to see what there is behind the
vehicle when reversing.
With reverse engaged, is screen is
displayed automatically in the mirror
glass.
A warning message appears suggesting
that you check around your vehicle.
The screen disappears when another
gear is engaged.
You can deactivate automatic mode by
pressing the " AUTO
" button.

*
According to country of sale.

II
!
!
63
STEERING WHEEL MANUAL
HEIGHT ADJU
STMENT



)
Pull the locking lever downwards
(position B
) while supporting the
steering wheel.

)
Adjust the steering wheel to the re-
quired height.
)
Lock the steering wheel adjustment by
pushing the lever upwards (position A
).

The sun visors fold forwards, and to the
side when they are unhooked.
They are fi tted with a courtesy mirror
and a ticket holder.
As a safety precaution, these op-
erations must only be carried out
while the vehicle is stationary.
AREAS FOR TOLL CARDS/CAR
PARK TICKETS


The athermic windscreen has a non-
refl ective zone located above the base
of the rear view mirror.
It is intended for affi xing toll cards and/
or car park tickets.
MAT


When removing the mat on the driver's
side, move back the seat as far as pos-
sible and remove the fi xings.
When refi tting, position the mat cor-
rectly on the pins and clip the fi xings.
Check that the mat is secured fi rmly.
To prevent any risk of jamming
under the pedals:


- only use mats suited to the
fi xings already present in
the vehicle; it is imperative
that these fi xings are used.

- never fi t one mat on top of
another.

II
64
FRONT INTERIOR FITTINGS



1.
Spectacles storage.

2.
Cooled upper glove box.

3.
Lockable lower glove box.

4.
12 V socket (120 W max).

5.
Armrest with storage compartments
12 V socket (120 W max).

6.
Cup holder.

7.
Removable ashtray.

8.
Bottle holder.

9.
Enclosed storage compartment.

10.
Cup holder.

II
COMFORT
65

Spectacles storage
Press the cover to open it.
To close it, push the cover until it locks.







Cooled upper glove box
Press button A
on the lid to open it.
To close it, push the lid up.
It is fi tted with a ventilation nozzle which
can be closed by means of a dial, dis-
tributing conditioned air at the same
temperature as the vents in the passen-
ger compartment.
In cold weather, it is advisable to close
this vent to conserve the ambient air in-
side the passenger compartment.




Lower glove box
This is fi tted with a lock.
To unlock it, turn the key to the left.
To open it, pull the handle A
.
To close it, push the lid up.
To lock it, turn the key to the right.
It is fi tted with a pen holder and a card
holder.
It is illuminated on opening when the
vehicle lighting is on.

II
!
COMFORT
66

Upper storage compartment
Pull the right-hand lever to open the
storage compartment lid, which serves
as an armrest.
To close, fold down the lid until it locks.
Lower storage compartment
Pull the left-hand lever to open the lid.
To close, fold down the lid until it locks.









12 V socket (120 W max)
This is operational when the ignition
switch is in the "LOCK", "ON" or "ACC"
position.
Check that the electrical equipment op-
erates on 12 volts and that its electrical
power is 120 W maximum.
The prolonged use of electrical
equipment without running the en-
gine may discharge the battery.










Armrest with storage compartments
12 V socket (120 W max)

II!
COMFORT
67






12 V socket (120 W max)






Removable ashtray
This operates when the ignition switch is
in the "LOCK", "ACC" or "ON" position.
Open the cover to gain access to the
socket. Check that the electrical equip-
ment operates on 12 V and that
its maximum electrical power is
120 W.
When you use the two sockets at the
same time, ensure that the two items
of equipment together operate on 12 V
and that their combined electrical power
is 120 W maximum.
The prolonged use of electrical equip-
ment without running the engine may
discharge the battery.

Pull the cover to open the ashtray.
To empty, remove the ashtray by pulling
it upwards.

II
COMFORT
68


Enclosed storage compartment
Pull the storage compartment lid to
open it.







Cup holder
There is a cup holder fi tted in the dash-
board on the driver's side.
Press on the centre of the cover to extract
the plate.
Pull it fully to use it.
Push it fully to store it. Two further cup holders are available in
front of the front armrest.
