CITROEN C-CROSSER 2012 Handbook (in English)
Manufacturer: CITROEN, Model Year: 2012, Model line: C-CROSSER, Model: CITROEN C-CROSSER 2012Pages: 244, PDF Size: 7.45 MB
Page 1 of 244
Page 2 of 244
YOUR HANDBOOK
ON THE INTERNET!
CITROËN lets you view your vehicle's
documentation on line, to see earlier versions
and the latest information, simply and free of
charge.
Connect to http://service.citroen.com
:
1|
Select your language and register,
click on the link in the "Private customer access" zone to consult the
vehicle documentation; a window opens providing access to all of the
handbooks,
select your vehicle, choose the body type then the date of issue of the
handbook,
fi nally, click on the heading of your choice.
2|
3 |
4 |
Page 3 of 244
!
1
Your vehicle is fi tted with only some of the equipment
described in this document, depending on the trim
level, version and the specifi cations for the country
in which it is sold.
The fi ttin
g of electrical equipment or accessories
which are not recommended b
y CITROËN may result
in a
failure of your vehicle's electronic system. Please
note this specifi c warnin
g and contact a CITROËN
dealer to be shown the recommended equipment and
accessories.
CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.
Happy motoring!
Key
safet
y warning
We draw your attention to the following...
contributes to the protection of the environment
refer to the page indicated
At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.
Page 4 of 244
2
CONTENTS
Ventilation 44Automatic air conditioning 46Front seats 50Rear seats 53Rear bench seat 58Mirrors 61Steering wheel adjustment 63Front fi ttings 64Rear fi ttings 69Boot fi ttings 70
„ „ „ „ „ „ „ „ „ „
II - COMFORT 44 Î72
Remote control key 73Electric windows 77Doors 79Tailgate 80Lower tailgate 81Sunroof 82Fuel tank 84
„ „ „ „ „ „ „
III - ACCESS 73 Î 85
Lighting stalk 86Daytime running lamps 88Automatic illumination of
headlamps 88Headlamp adjustment 89Wiper controls 90Automatic rain sensitive wipers 91Courtesy lamps 92
„ „ „
„ „ „ „
IV - VISIBILITY 86 Î 93
Child seats 94ISOFIX mountings 98Child lock 101
„ „ „
V - CHILD SAFETY 94 Î 101
Direction indicators 102Hazard warning lamps 102Horn 102Braking assistance systems 103Trajectory control systems 104Front seat belts 105Airbags 108
„ „ „ „ „ „ „
VI - SAFETY 102 Î111
Instrument panel 21Warning lamps 22Instrument panel displays 25Information in the instrument
panel screen 31Distance recorders 32Service indicator 33Trip computer 34Setting menu 35Monochrome screen 39Colour screen 41Lighting rheostat 43
„ „ „ „
„ „ „ „ „ „ „
FAMILIARISATION 4 Î 20
I - MONITORING 21 Î 43
Page 5 of 244
3
CONTENTS
Parking brake 112Manual gearbox 112CVT gearbox 113DCS gearbox 115Four wheel drive system 119Cruise control 121Audible rear parking sensors 123Reversing camera 124
„ „ „ „ „ „ „ „
VII - DRIVING 112 Î124
Bonnet 126Running out of fuel 126Petrol engine 127Diesel engine 128Checking levels 129Checks 130
„ „ „ „ „ „
VIII - CHECKS 125 Î131
Changing a wheel 132Changing a bulb 137Changing a fuse 146Battery 151Changing a wiper blade 153Towing 154Towing a trailer 156Fitting roof bars 157Accessories 158
„ „ „ „ „ „ „ „ „
IX - PRACTICAL INFORMATION 132 Î158
Engines 159Weights 160Dimensions 161Identifi cation markings 162
„ „ „ „
X - TECHNICALDATA 159 Î163
Audio CD system 164
CD changer 175Error messages 177Audio-Telematic System 178Navigation 180DVD mode 208Hands-free telephone 216
„ „ „ „ „ „ „
XI - AUDIO and TELEMATICS 164 Î 223
VISUAL SEARCH 224 Î 229
ALPHABETICALINDEX 230 Î240
Page 6 of 244
4
FAMILIARI
S
AT I
ON
Sunroof
This roof improves the ventilation andlight in the passenger compartment.
82
81
123
EXTERIOR
Audible rear parking sensors
This system warns you if an obstacleis detected behind the vehicle whenreversing.
Reversing camera
This system is activated automati-cally when reverse gear is engagedproviding a visual image on the colour screen.
Lower tailgate
This lower tailgate provides remark-able accessibility and makes the load-ing of bulky objects easier.
124
Page 7 of 244
5
FAMILIARI
S
AT I
ON
Fuel tank
A.Opening the fuel fi ller fl ap.
B.Removing the fuel fi ller cap.
84 1
.Locking the vehicle.
2.Unlocking the vehicle.
Remote control key
A.
Unfolding/folding the key.
B.
Unlocking the vehicle.
C
. Locking the vehicle.
73
Manual central locking
79
OPENING
When refi tting the cap, insert the upper part fi rst turning it to the right.
Capacity of the tank: approximately60 litres.
Page 8 of 244
!
6
FAMILIARI
S
AT I
ON
Opening
)
After unlocking the vehicle using the
remote control or the key, press thehandle Aand raise the tailgate.
Tailgate Lower tailgate
Opening
)
Push the handle C
to the right and
tilt the tailgate Dgently.
The maximum authorised weighton the lower tailgate when openis 200 kg.
Spare wheel and tools
Access to the spare wheel
)Remove the plastic cover E
to gain
access to the spare wheel fi xingsystem.
80
OPENING
81
132
Closing
)
Pull the handle B
downwards.
Closing
)Raise the tailgate D
, push it to close it, then check that it is latched correctly.
Access to the tools
The tools are stored in the stora
ge com-partment Fin the boot right-hand trim.
Page 9 of 244
7
FAMILIARI
S
AT I
ON
CONFIGURING SEATS
Rear seats
(row 2)
Forwards-backwards adjustment
Seat back an
gle adjustment
53
Head restraint height adjustment
Access to the third row (7-seat version)
54
Rear bench seat (row 3)
The rear bench seat can be folded. It is stowed in a location in the fl oor of the
vehicle.
58
52
Page 10 of 244
8
FAMILIARI
S
AT I
ON

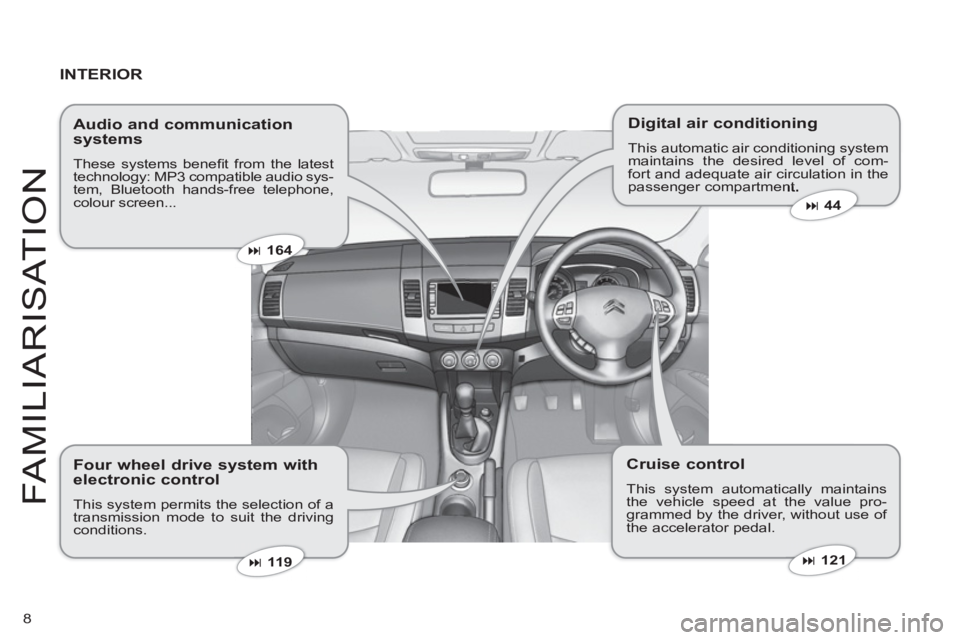

INTERIOR
Digital air conditioning
This automatic air conditioning systemmaintains the desired level of com-fort and adequate air circulation in thepassenger compartment.
Cruise control
This system automatically maintainsthe vehicle speed at the value pro-grammed by the driver, without use of the accelerator pedal.
Audio and communication systems
These systems benefi t from the latesttechnology: MP3 compatible audio sys-tem, Bluetooth hands-free telephone,colour screen...
Four wheel drive system with electronic control
This system permits the selection of atransmission mode to suit the drivingconditions.
44
121
164
11 9
