A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
168
AUXILIARY SOCKETS
A.
Left-hand audio input (RCA
white)
B.
Right-hand audio input (RCA
red)
C.
Video input (RCA yellow)
C o n n e c t a n e x t e r n a l a u d i o s y s t e m
to sockets A or
B to use the vehicle’s
speakers.
Connect the rear seat display (option)
to the additional socket C (refer to the
user manual supplied with the rear seat
display). Audio-CD system Audio-telematics system
Selecting the AUX source
Press the “CD” button for
more than two seconds.
“AUX REAR” appears on
the display.
T h e c o n n e c t i o n t o t h e e x t e r n a l a u d i o
system is activated.
To deactivate this connection and
change source, press the “AM/FM” or
“CD” button. After pressing “AUX”, the
c o n n e c t i o n t o t h e e x t e r n a l
audio and/or video system
is activated.
Selecting the AUX source
To deactivate the connection and
change source, press another button
on the display (FM, CD, ...). After pressing “Rear
Display”, the connection to
the rear audio and/or video
system is activated.
For safety reasons, the video
is not displayed while driving,
however the audio can be
played.
To display the picture and watch
a DVD, park the vehicle in a safe
place. Selecting the rear display source
Page 172 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
169
YOUR AUDIO-TELEMATICS SYSTEM
This consists of the following components:
- a t i l t i n g 7 ˝ L C D c o l o u r t o u c h s c r e e n ,
- a GPS aerial located in your fascia,
- a radio aerial located at the rear, on the roof of the vehicle,
- 4 to 6 speakers (according to version),
- controls around the screen and at the steering wheel plu s touch buttons on the screen according to the display,
- a voice synthesiser (male or female) giving the directions duri ng navigation,
GPS aerial
It allows you to:
- b e g u i d e d t o t h e d e s t i n a t i o n o f y o u r c h o i c e ( E u r o p e a n m a p o n 3 0 G b h a r d d i s c ) t a k i n g t r a f fi c c o n d i t i o n s i n t o a c c o u n t ,
- listen to the radio,
- l i s t e n t o a u d i o C D s ( C D D A , C D - T e x t , C D - R / R W ) o r C D s w i t h M P 3 a n d W M A fi l e s ,
- copy audio CDs to a music server, up to 2,500 songs (coded i n MP3/WMA) on 10 Gb available on the hard disc,
- play DVDs (playing of video if the vehicle is stationary),
- make hands-free telephone calls.
For maintenance of the display, we recommend the use of a n on-abrasive soft cloth (spectacles cloth) without any additional
products.
Page 173 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
170
AUDIO: selection of the Audio-
video (FM, CD, music server, ..)
or Navigation (map) display.
VOL: adjustment of the audio-
video volume. OPEN: tilts the
display and permits
access to the CD/
DVD. A second
press closes the
display. SCALE: changing of the scale of
the map.
E N T R : c o n fi r m s t h e c h o i c e o f t h e
item selected on the screen.
F o r c e r t a i n o p e r a t i o n s , c o n fi r m a t i o n
is given by contact with the touch
screen.
Scrolling of the map displayed or
selection of an item.
For safety reasons, it is
imperative that the driver
carries out operations which
require prolonged attention with
the vehicle stationary.
DESCRIPTION OF THE CONTROLS
Changing of the audio-
video source (FM, CD, music
server, ...).
Activation/deactivation of the
mute.
N e x t o r p r e v i o u s s e l e c t i o n f o r :
- a radio station,
- an audio track (CD),
- a chapter (DVD).
M o v e a fi n g e r o v e r t h e s c r e e n t o o p e r a t e
the system.
Use the buttons offered on the screen.
POWER: audio system on/off
(only).
Setting of the audio volume.
Page 174 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
171
DESCRIPTION OF THE CONTROLS - MENUS
MODE: Audio-video menu for:
- the radio,
- the audio, MP3 or WMA CD,
- the music server,
- the DVD.
MENU: Navigation-guidance menu
for selecting:
- a destination,
- a point of interest (POI),
- an advanced search by POI,
- one of the 20 previous destinations,
- an address stored in the address book,
- the return home,
- certain navigation settings,
- a route demonstration. NAVI: displaying of the current location
on the
map .
SET:
Settings menu for:
- switching off the display,
- selecting the sound setting,
- selecting the picture quality,
- selecting the language, the time zone or the units,
- selecting the size of the DVD picture,
- selecting the guidance voice, the display colour ranges or the
displaying of the audio-video
icon,
- setting certain equipment available in your vehicle. INFO:
Information menu for the
consultation or setting of certain
parameters of your vehicle.
Page 175 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
172
NAVIGATION-GUIDANCE
What is the navigation system and
the GPS?
The satellite navigation system guides
the driver to the destination that he has
set in accordance with a chosen route.
Initially, it searches for the destination
required by the user, then it calculates
t h e r o u t e a n d fi n a l l y i t p r o v i d e s t h e v i s u a l
and audible guidance instructions. What precautions should be
observed in order to use the system
under good conditions?
Do not place anything on or near the
GPS aerial.
Do not use any digital communication
equipment (personal computers, etc.)
near the GPS aerial.
D o n o t a f fi x a n y r e fl e c t i v e fi l m s o r fi l m s
containing carbon to the window.
The GPS (Global Positioning
System) consists of several
satellites distributed around
the earth. They continuously
transmit digital signals
which travel at the speed of light, on 2
different frequencies.
At any given time, the system receives
its position in relation to the satellites
detected and the time of transmission
of the signal.
This enables the telematic unit to
deduce its position and therefore that of
the vehicle.
A repositioning process using the
map database stored on the hard disc
permits repositioning of the vehicle’s
position on the road network in order
to improve the accuracy of the locating
function. What is a point of interest (POI)?
Up to 40 different icons may
be displayed (refer to the
section “Points of interest
icon”).
T h e y a r e c l a s s i fi e d i n
5 g r o u p s a n d i d e n t i fi e d b y o n e c o l o u r
for each group:
- S h o p s , fi n a n c e a n d b u s i n e s s e s (Green),
- Vehicles and travel (Dark blue),
- Restaurants (Orange),
- Public places and emergency services (Brown),
- Entertainment and attractions (Blue).
GPS
The system’s measurements may be
inaccurate if the vehicle is:
- in a tunnel or underground car park,
- underneath a two-level motorway,
- in an area with several very high buildings,
- surrounded by closely planted trees.
Depending on the vehicle’s situation and
the reception of the GPS information, the
displayed information may disappear
from the display temporarily. A point of interest (POI) is
represented by an icon on
the map, it represents an
airport, a station, a town
hall, ...
Page 176 of 216
K1K2K3
K4K5
K
H
E
F
BCA
D
G
I
J
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
173
A. Manoeuvre icon: indicates whether
the driver should turn left or right at
t h e n e x t j u n c t i o n i n d i c a t e d b y t h e
guidance and the distance to this
junction.
B. Guidance route: indicates the route
to the destination.
C. Vehicle marker: indicates the position
of the vehicle while driving.
D. T M C i c o n : d i s p l a y s t r a f fi c i n f o r m a t i o n
s u c h a s t r a f fi c j a m s , r o a d w o r k s , e t c .
When the user passes over the
icon, detailed TMC information can
be consulted.
E. Orientation mark: indicates the
orientation of the map displayed.
F. Map scale: indicates the scale of
the map displayed.
G. Name of the street: indicates the
name of the current street.
H. Direction frame: displays the
n u m b e r o f t h e n e x t r o a d o r t h e
n a m e o f t h e n e x t s t r e e t w h i c h t h e
driver should turn into.
I. Destination/intermediate destina-
tion icon: indicates the direction
of the destination or intermediate
destination.
Two-map display.
Single map display.
Information displayed on the
map during navigation
J. Destination/intermediate destina-
tion information: indicates the dis-
tance and the time remaining un-
til the destination or intermediate
destination is reached.
K. Pressing provides access to the
Route Menu in order to:
K1 - change the route in favour of an- other making a detour through a
s p e c i fi e d r e g i o n ,
K2 - change the position of the destination, add an intermediate
destination and change the route
calculation conditions,
K3 - display a route by various methods,
K4 - delete a route created,
K5 - search for points of interest (POI) around the current location.
Page 177 of 216
ABC
A4
A3
A2
A1
A6
A5
B1
B2
B3
B4
B5
C1C2C3
C4C5C6
C7C8
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
174
B - Select a location using the name of a point of interest (POI).
Select:
B1 - the country,
B2 - the city,
B3 - the name of a stored POI,
B4 - a POI category (airport, bowling alley, bus station, car park, service station,
hotel, cinema, ...),
B5 - a detailed POI list.
C - Select a location using an advanced search based on a POI:
C1 - around the current location,
C2 - on the current route,
C3 - in the vicinity of the destination,
C4 - on a chosen street,
C5 - along a motorway or in the vicinity of the e x i t ,
C6 - by scrolling the map,
C7 - taking the point of departure of the current route,
C8 - specifying the latitude/longitude coordinates .
A - Select a location using the address or
street name of the destination. Select:
A1 - the country,
A2 - the city,
A3 - the street,
A4 - the house number,
A5 - the name of a junction,
A6 - to select the search using either a
number or a junction.
Y o u h a v e a m a x i m u m o f 1 0 0 p o i n t s o f i n t e r e s t ( P O I ) w i t h i n a
r a d i u s o f a p p r o x i m a t e l y 6 0 m i l e s ( 1 0 0 k m ) .
Searching for a destination
using an address or points of
interest (POI)
Page 178 of 216
E2E1E3
DEF
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
175

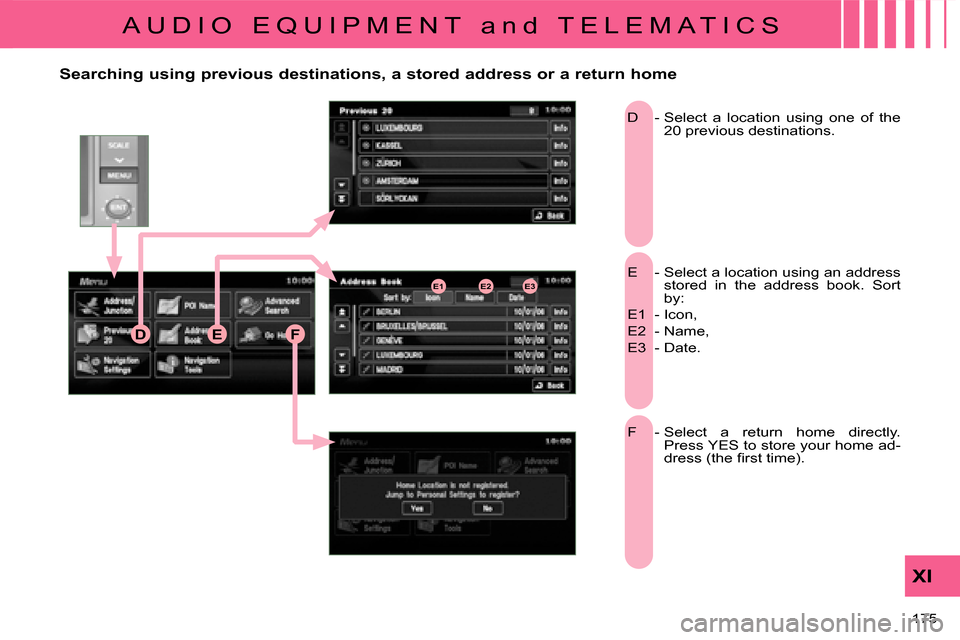

Searching using previous destinations, a stored address or a return home
E - Select a location using an address stored in the address book. Sort
by:
E1 - Icon,
E2 - Name,
E3 - Date.
D - Select a location using one of the
20 previous destinations.
F - Select a return home directly. Press YES to store your home ad-
d r e s s ( t h e fi r s t t i m e ) .
Page 179 of 216
GH
G1G2G3
G4G5
H1H2
H3H4
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
176
Navigation settings and
information G
- Select the settings of functions
linked with the navigation to:
G1 - set the screen display parameters
such as:
- display 1 or 2 maps,
- display or do not display the POIs on the map, display selected
icons,
- change the colours of the map,
- display or do not display the name of the current street.
- display or do not display the address of the current street.
G2 - set route conditions,
G3 - set the route guidance mode and
the displaying of the results of the
route search.
G4 - save, change or delete a location
in the address book,
G5 - d i s p l a y a n d s e l e c t t h e t r a f fi c
i n f o r m a t i o n s u c h a s t r a f fi c j a m s o r
road works.
H - Select basic information relating to
the navigation as well as a pre-set
route demonstration to:
H1 - choose to divert your route to avoid
certain areas,
H2 - select a location using an advanced
search based on a POI along a
motorway or in the vicinity of the
m o t o r w a y e x i t ,
H3 - start/stop the demonstration,
H4 - recall a stored map screen.
Page 180 of 216
A U D I O E Q U I P M E N T a n d T E L E M A T I C S
XI
177
Selecting points of interest (POI)
icons displayed on the map
You can select up to 40 types of point
of interest icon which are displayed on
your map screen.
Press the MENU button then
[Navigation/Settings].
Press [Screen] then [Select] on the POI
line.
Press [ ] which is displayed.
Press each POI required.
At each contact with a POI, the display-
ing of [ ] changes ( = the POI will be
displayed on the screen). General
Town centre
Locality
S h o p s , fi n a n c e a n d b u s i n e s s e s (Green)
Major companies
Shopping centre
Vehicles and travel (Dark blue)
CITROËN
Airport
Bus stop
Vehicle hire
Suburban station / station
Ferry terminal
Hotel
Park and ride
Car park (press +)
Service station
Rest area
Toll booth
Tourist information
Railway station Restaurant (Orange)
Night life / night club
Restaurant Public places and emergency
services (Brown)
Town Hall
Community centre
C o n v e n t i o n / e x h i b i t i o n c e n t r e
Hospital
University / college
Entertainment and attractions (Blue) Theme park
Bowling alley
Casino
Cinema
Golf course
Historical monument
Skating rink
Marina
Museum
Flying club
Leisure area
Ski station
Sports centre
Theatre / opera
Tourist attraction
Vineyard / wine and spirit store
